Smart Bench Press System Dat Lee, Sophia Mercurio, Johnny Peguero ME 5643 Final Project

Smart Bench Press System Dat Lee, Sophia Mercurio, Johnny Peguero ME 5643 Final Project Presentation

Overview Introduction Project Overview Functions and Features Societal Impact Material Selection Mechanical Design Electrical

Overview Introduction Project Overview Functions and Features Societal Impact Material Selection Mechanical Design Electrical Circuit Design Software Design Cost Estimate Future Improvements Demonstration References 2

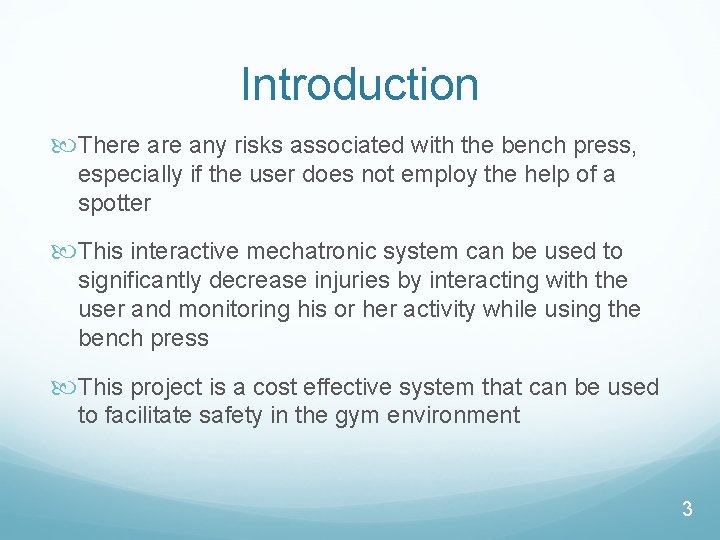

Introduction There any risks associated with the bench press, especially if the user does

Introduction There any risks associated with the bench press, especially if the user does not employ the help of a spotter This interactive mechatronic system can be used to significantly decrease injuries by interacting with the user and monitoring his or her activity while using the bench press This project is a cost effective system that can be used to facilitate safety in the gym environment 3

Project Overview Objective: to design a smart bench press system and demonstrate its capabilities

Project Overview Objective: to design a smart bench press system and demonstrate its capabilities by building a prototype An automatic actuator monitors the user activity and detects indications of struggle Once sensing struggle, the system will engage Once engaged, the system will use an arm actuator system to help the user lift the bench press Additional features improve the workout experience 4

Functions and Features Safety Monitors time taken for user repetitions Significant time delay indicates

Functions and Features Safety Monitors time taken for user repetitions Significant time delay indicates struggle User Interaction User inputs work out information LCD displays number of remaining repetitions System notifies user when workout is complete 5

Societal Impact Increase Safety for users Reduce number of accidents in the weight room

Societal Impact Increase Safety for users Reduce number of accidents in the weight room Increase Work out efficiency Monitor user repetitions Improved Experience Safety paramount, efficiency secondary 6

Material Selection Analog Sensors Ultrasonic: measures distance bar has traveled Digital Sensors Push Buttons

Material Selection Analog Sensors Ultrasonic: measures distance bar has traveled Digital Sensors Push Buttons User Interface LED Display Actuator Servo motors 7

Mechanical Design Ultrasonic Sensor Bench Bar Servo Motors Relief Arm LCD 8

Mechanical Design Ultrasonic Sensor Bench Bar Servo Motors Relief Arm LCD 8

Electrical Circuit Design 9

Electrical Circuit Design 9

Software Design 10

Software Design 10

Software Design 11

Software Design 11

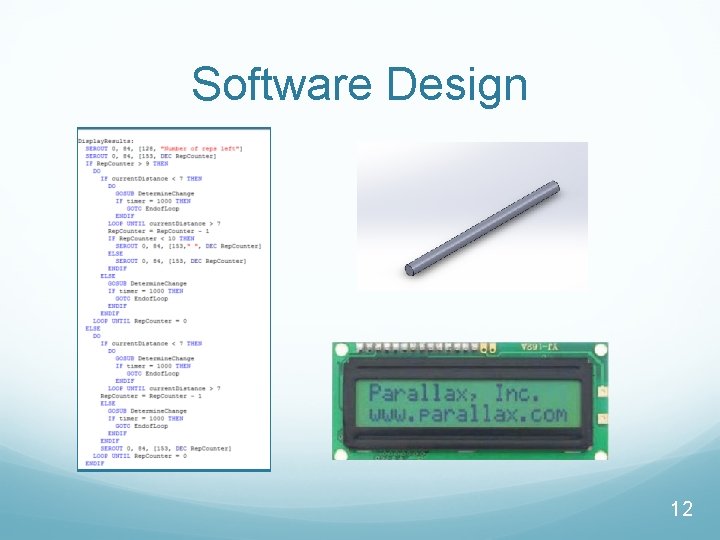

Software Design 12

Software Design 12

Software Design 13

Software Design 13

Cost Estimate Item No. Part Description Unit Cost Quantity Total Cost 1 LCD Display

Cost Estimate Item No. Part Description Unit Cost Quantity Total Cost 1 LCD Display 30. 00 1 30. 00 2 Push Button 0. 99 3 2. 98 3 BS 2 Microcontroller 49. 00 1 49. 00 4 Servo Motor 13. 00 2 26. 00 5 Ultrasonic Sensor 24. 00 1 24. 00 6 3 D Printed Parts 3. 00 4 12. 00 7 Resistors 0. 15 6 0. 90 8 AA Batteries 0. 99 4 3. 96 9 Jumper Wires 0. 05 30 1. 50 TOTAL COST OF PROJECT = 150. 34 14

Future Improvements Implementation of “perfect form” system using accelerometer to measure tilt of the

Future Improvements Implementation of “perfect form” system using accelerometer to measure tilt of the bench bar Compact encasing of electronic systems Implementation of system on other exercises or different machines 15

Demonstration 16

Demonstration 16

Demonstration 17

Demonstration 17

References Mechatronics. poly. edu Parallax. com Working knowledge from 18

References Mechatronics. poly. edu Parallax. com Working knowledge from 18
