Small Party Rescue Technical Handout Rev 0 Modified
- Slides: 41
Small Party Rescue Technical Handout Rev 0 Modified on 10/20/2020 With thanks to Peter Tran, Foothills Branch
SPR – Skill Checklist Knots ☐Rewoven Figure 8 ☐Figure 8 on bight ☐Bowline ☐Water knot ☐Flat overhand Bend ☐Mule Overhand Hitches ☐Prussik hitch ☐Munter ☐Super Munter ☐Kleimheist Load Release Hitches ☐Guide Hitch/Munter Mule Overhand ☐Munter Mariner ☐Mariner Other Skills ☐Full Belay Escape – with releasable hitch
SPR – Station Checklist Main Line ☐Anchor – wrap 3 pull 2 ☐Descent Control – Monster Munter or Dual ATC/ATCMunter combo ☐Safety Hitch Belay Line (as required) ☐Anchor – Wrap 3 pull 2 ☐Descent control – Munter Attendant High Directional (as required) ☐Wrap many pull many ☐Long Tail Bowline (5 foot tail) with figure 8 on bight at end of tail ☐Long prusik to belay line ☐Prusik on main line for subject ☐Safety Hitch ☐Releasable hitch ☐Pulley

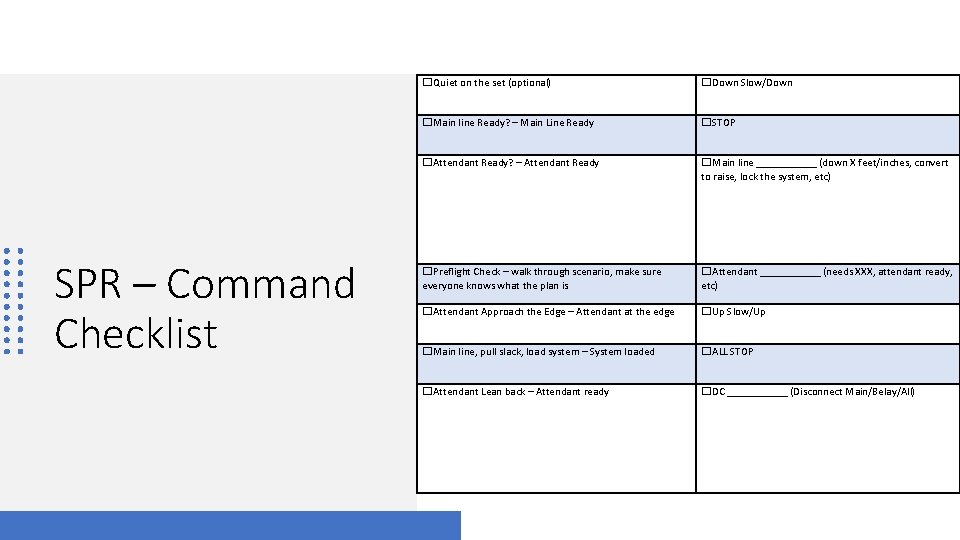

SPR – Command Checklist ☐Quiet on the set (optional) ☐Down Slow/Down ☐Main line Ready? – Main Line Ready ☐STOP ☐Attendant Ready? – Attendant Ready ☐Main line ______ (down X feet/inches, convert to raise, lock the system, etc) ☐Preflight Check – walk through scenario, make sure everyone knows what the plan is ☐Attendant ______ (needs XXX, attendant ready, etc) ☐Attendant Approach the Edge – Attendant at the edge ☐Up Slow/Up ☐Main line, pull slack, load system – System loaded ☐ALL STOP ☐Attendant Lean back – Attendant ready ☐DC ______ (Disconnect Main/Belay/All)
Lower To Raise Transition Raise to Lower Transition SPR – Other Skills Knot Pass on Raise Knot Pass on Lower Knot Pass through High Directional Block and Tackle Tandem Rappel
Monster Munter
Monster Munter
Monster Munter
Monster Munter
Monster Munter
Double ATC
ATC – 2 options Prusiks
LRH – Munter Mariner

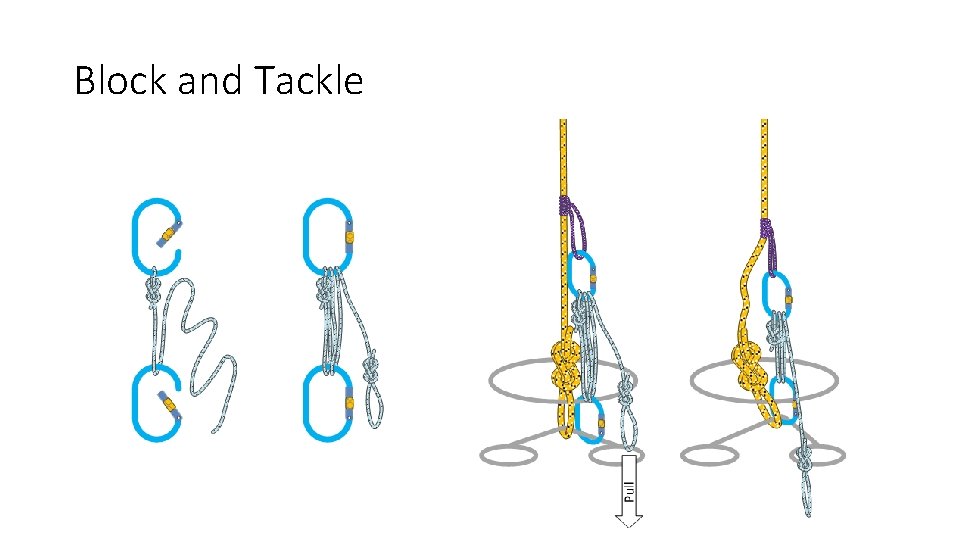

Block and Tackle

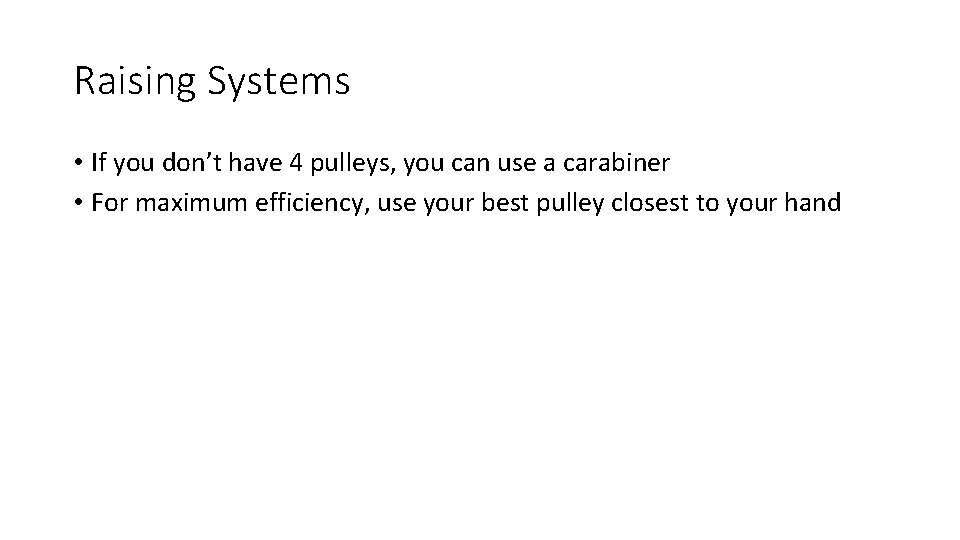

Raising Systems • If you don’t have 4 pulleys, you can use a carabiner • For maximum efficiency, use your best pulley closest to your hand
Raising Systems
Raising Systems
Raising Systems
Raising Systems

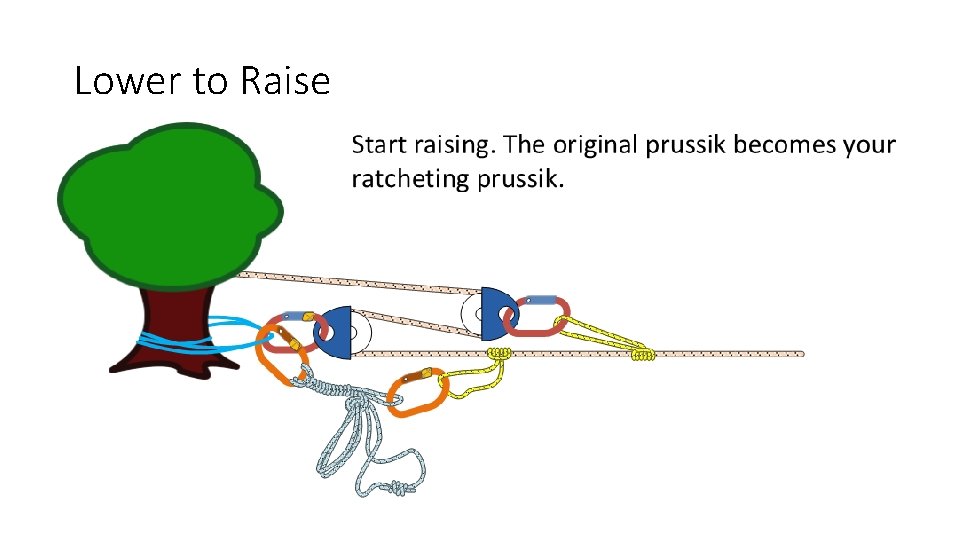

Lower to Raise
Lower to Raise
Lower to Raise Note: it is HIGHLY recommended you close the system with a clove hitch backup before completely removing the lowering system
Lower to Raise
Lower to Raise

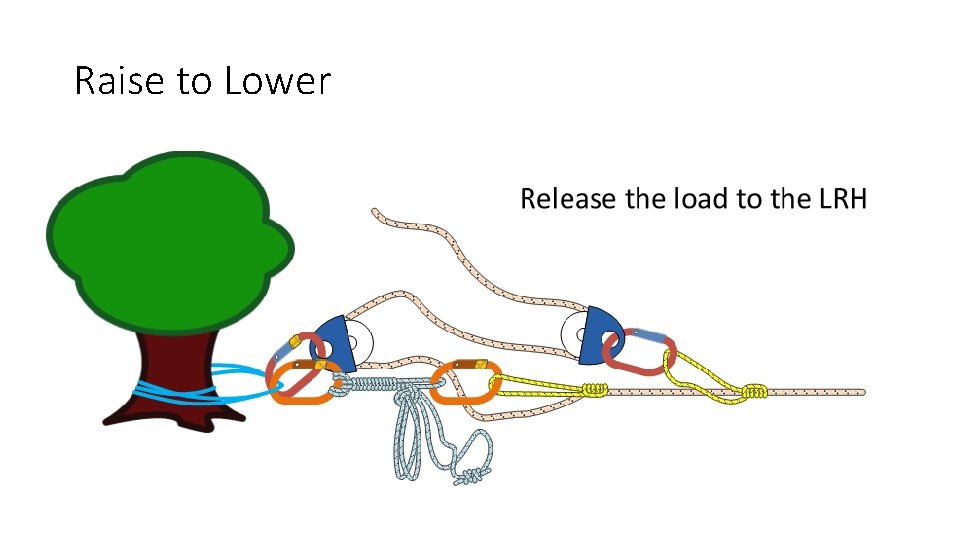

Raise to Lower
Raise to Lower
Raise to Lower Note: it is HIGHLY recommended you close the system with a clove hitch backup before completely removing the raising system
Raise to Lower
Raise to Lower
Knot Pass - Lowering
Knot Pass - Lowering
Knot Pass - Lowering
Knot Pass - Lowering
Knot Pass - Lowering • Do not let the knot come too close to the lowering system or it will jam. Leave at least 8 -12 inches • Tighten the LRH by hand as much as you can • Keep the Munter or Mariner on the LRH close to the anchor so it doesn’t travel away as you release

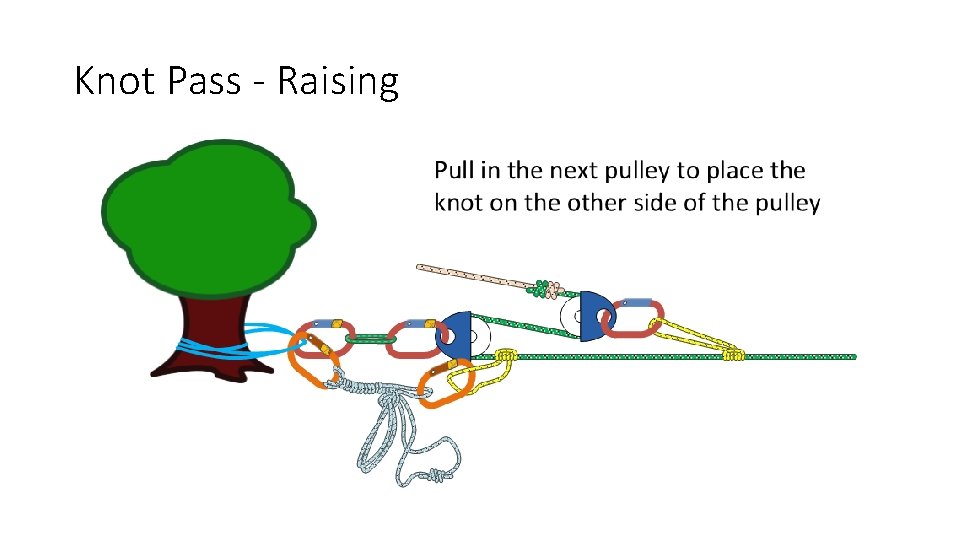

Knot Pass - Raising
Knot Pass - Raising
Knot Pass - Raising
Knot Pass - Raising
Knot Pass - Raising
Knot Pass - Raising
Knot Pass - Raising • Note: to avoid decreasing the pulling (throw) distance each time a knot is passed, you can remove the anchor extension as soon as the knot has passed the pulley far enough
