Small Molecule Large Molecule Interactions Times Squared Academy Sorys Cepeda Cheyenne Clark Instructors: Kerri Krawczyk Erick Argueta

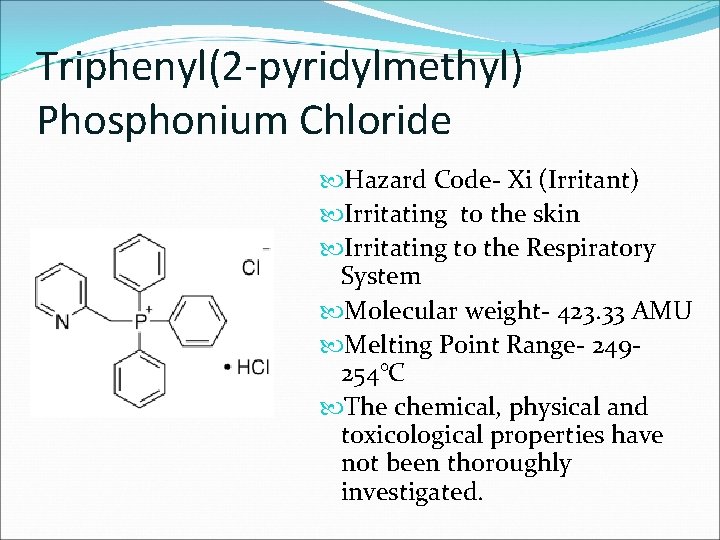

Triphenyl(2 -pyridylmethyl) Phosphonium Chloride Hazard Code- Xi (Irritant) Irritating to the skin Irritating to the Respiratory System Molecular weight- 423. 33 AMU Melting Point Range- 249254°C The chemical, physical and toxicological properties have not been thoroughly investigated.

Genomic Melting Temperature vs. Absorbance for DNA Melting Curves of Salmon Testes DNA in Distilled Water and Salmon Testes DNA with TPPYD in Distilled Water (using quartz cuvette) 1. 2 1. 1 1 Absorption 0. 9 Absorbance of Salmon DNA in Distilled 0. 8 Absorbance of Salmon DNA w/ TPPYD 0. 7 0. 6 0. 5 0. 4 0. 3 40 45 50 55 60 65 70 75 Temperature (°C) 80 85 90 95 100

Genomic Melting Comparison DNA Melting Curve Derivative Plot for Salmon Testes DNA in Distilled Water and Salmon Testes DNA With TPPYD in Distilled Water (using quartz cuvette) 0. 025 0. 02 DNA in Distilled Water DNA with TPPYD in Distilled Water delta A/ delta T 0. 015 0. 01 0. 005 0 40 -0. 005 45 50 55 60 65 70 Average Temperature 75 80 85 90 95

Plasmid DNA Melting

Plasmid DNA Melting

Electrophoresis of Plasmid DNA Lane 1 - control uncut (1 µL uncut DNA+ 1µL buffer + 8 µL H 2 O) Lane 2 - uncut (1 µL uncut DNA+ 1µL TPPYD + 1µL buffer + 7 µL H 2 O) Lane 3 - uncut (1 µL uncut DNA+ 2µL TPPYD + 1µL buffer + 6 µL H 2 O) Lane 4 - Ladder Lane 5 - control cut (1 µL cut DNA+ 1µL buffer + 8 µL H 2 O) Lane 6 - cut (1 µL cut DNA+ 1µL TPPYD + 1µL buffer + 7 µL H 2 O) Lane 7 - cut (1 µL cut DNA+ 2µL TPPYD + 1µL buffer + 6 µL H 2 O) Lane 8 - cut (1 µL cut DNA+ 3µL TPPYD + 1µL buffer + 5 µL H 2 O)

Distance Number of (mm) Bases 33. 5 10000 34 8000 36 6000 38 5000 40. 5 4000 46. 5 3000 58 2000 79 1500 89 1000

Hyperchem Energy Data Molecular Geometry Mechanic Optimization Test Method Algorithm Orientation Major Groove Energy Minor Groove Energy Intercalating Energy DNA and TPPYD Amber Polak- Ribiere x -25. 109259 -20. 109667 2532. 531982 DNA and TPPYD Amber Polak- Ribiere y -25. 048698 -28. 059345 DNA and TPPYD Amber Polak- Ribiere z -36. 945206 -32. 09108 4130. 883301 -24. 102997

Before Major Groove for Y Orientation After

Before Minor Groove for Y Orientation After

Before Intercalating in Orientation Y After

Energy 227. 896214 Before After Intercalating TPPYD with 4 base pair of Adenine and Thymine in Orientation Z

Energy -329. 664459 Before After Intercalating TPPYD with 4 base pair of Cytosine and Guanine in Orientation Z

Review The TPPYD did not change the melting temperature of the Salmon Testes DNA For the plasmid DNA melting, there were many inconsistencies that prevented us from determining the melting temperature. Electrophoresis- The uncut plasmid DNA had the least movement, whether with or without the TPPYD. In the last three lanes, most of the plasmid DNA at equal lengths, all traveling more than the DNA in the uncut lanes. Because some plasmid DNA stayed in the wells and there were bands where the DNA did not travel as far as most of the DNA in specific lanes, we think that there may have been minor interactions between the DNA and TPPYD.

Discussion The Gel Electrophoresis results for the Cut Plasmid DNA demonstrated that there could be some interaction or binding to the TPPYD. The DNA in the Hyperchem showed minor interactions with TPPYD. The DNA denaturing experiment did not show a shift in the melting curve when the Salmon DNA was combined with TPPYD. In the future, we would like to replicate the experiments to further validate the results. Design similar experiments that have reduced possibilities of error. Experiment with different chemicals on DNA to see the different interactions that can occur.
