List of beams and their symbols in RID stage 1 Lamp (function) Symbol Driving beam headlamp of Class A R Passing beam headlamp of Class A (asymmetrical) C Passing beam headlamp of Class AS (symmetrical) C-AS Passing beam headlamp of Class BS (symmetrical) C-BS Driving beam headlamp of Class B HR Passing beam headlamp of Class CS (symmetrical) WC-CS Passing beam headlamp of Class B (asymmetrical) HC Passing beam headlamp of Class DS (symmetrical) WC-DS Driving beam headlamp of Class D (GDL) DR Driving beam headlamp of Class BS R-BS Passing beam headlamp of Class D (GDL asymmetrical) DC Driving beam headlamp of Class CS WR-CS Adaptive Front lighting System (AFS): basic passin beam XC Driving beam headlamp of Class DS WR-DS Adaptive Front lighting System (AFS): motorway passing beam XCE Adaptive Front lighting System (AFS): town passing beam XCV 4 Adaptive Front lighting System (AFS): adverse weather passing beam XCW 4 Adaptive Front lighting System (AFS): driving beam XR 4 Passing beam headlamp of Class AS (symmetrical) C-AS Passing beam headlamp of Class BS (symmetrical) C-BS Passing beam headlamp of Class CS (symmetrical) WC-CS Passing beam headlamp of Class DS (symmetrical) WC-DS Passing beam headlamp of Class ES (GDL symmetrical) WC-ES Driving beam headlamp of Class BS R-BS Driving beam headlamp of Class CS WR-CS Driving beam headlamp of Class DS WR-DS Driving beam headlamp of Class ES (GDL) Front fog lamp Class F 3 WR-ES F 3 Cornering lamp K

DRIVING BEAMS PASSING BEAMS List of beams and their symbols in RID stage 2 Symb Comment Class ”C” C Basic PB For 2 or 4 wheelers Class ”V” V City/ Low speed For 2 or 4 wheelers Class ”E” E Motorway PB 4 wheelers Class “W” W Adverse weathe PB 4 wheelers Symetrical Class A AS For e-bikes Symetrical Class B BS For moped Symetrical Class C CS Small motorcycles Symetrical Class D DS Motorcycle Class “V” R Static Low speed Driving beam Class “C” HR Static Basic Driving beam Variable Driving Beam XR Variable DB (includes ADB) Class “BS” R-BS For mopeds Class CS WR-CS Secondary if LB or primary DB operates at the same time Class DS WR-DS Secondary if LB or primary DB operates at the same time Auxiliary RA Additional driving beam. possible if R or HR are present Front Fog Lamp F 3 Cornering Lamp K

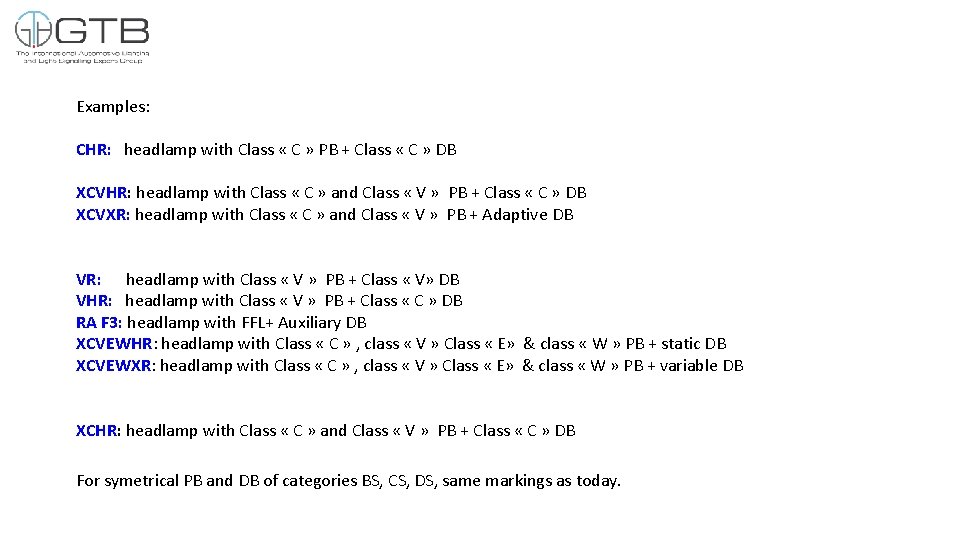

Examples: CHR: headlamp with Class « C » PB + Class « C » DB XCVHR: headlamp with Class « C » and Class « V » PB + Class « C » DB XCVXR: headlamp with Class « C » and Class « V » PB + Adaptive DB VR: headlamp with Class « V » PB + Class « V» DB VHR: headlamp with Class « V » PB + Class « C » DB RA F 3: headlamp with FFL+ Auxiliary DB XCVEWHR: headlamp with Class « C » , class « V » Class « E» & class « W » PB + static DB XCVEWXR: headlamp with Class « C » , class « V » Class « E» & class « W » PB + variable DB XCHR: headlamp with Class « C » and Class « V » PB + Class « C » DB For symetrical PB and DB of categories BS, CS, DS, same markings as today.
