SLR28 13 SIMPLIFICATION Status after GTB WG FL

SLR-28 -13 SIMPLIFICATION. Status after GTB WG FL meeting February 7 th , 2019 February 2019 CONFIDENTIAL

INTRODUCTION 2 Definition of requirements for basic/”C” passing beam which is technologically neutral and performance oriented. Definition of Low speed /”V” and Motorway /”E” passing beam requirements Introduction of Adverse weather passing beam Driving beam Specific beams for 2 wheelers (IMMA Proposal) Front fog Lamp and Cornering lamp How to manage beams / vehicles categories? February 2019 CONFIDENTIAL

STRATEGY Currently … R 112 Class A Class B Class AR Class BR R 98 Class DC Class DR R 123 Class C Class E Class V Class W Class XR ADB R 113 Class AS Class BS Class CS Class DS Class ES Class R-BS 6 regulations Class R-CS 24 Beam patterns Class R- DS Class R- ES R 19 Class B- F 3 R 119 Class K 3 February 2019 RID In the future: RID stage 2 Class A Class B Class AR Class BR Class DC Class DR Class C Class E Class V Class W Class XR ADB Class AS Class BS Class CS Class DS Class ES Class R-BS Class R-CS Class R- DS Class R- ES Class F 3 Class K Basic /”C” Passing beam Low speed /”V” Passing beam Motorway/”E” Passing beam Adverse weather passing beam Basic Driving beam Low speed Driving beam ADB AS, BS for mopeds CS DS for motorbikes (>< 11 KW /125 cm 3) Secondary driving beams (>< 11 KW /125 cm 3) Auxiliary driving beam Fog beam Cornering beam 1 regulation 16 Beam patterns 1 regulation 23 Beam patterns CONFIDENTIAL TC 4 -45 SAE J 2829 Expertise of Optical engineers

NEXT STEPS? Polishing the strategy: How to manage the different technical requirements -> Done Basic passing beam, low speed/ town passing beam , Motorway Passing beam , AFS, which light distribution for which vehicles? Technical requirements: Validation of basic requirement for passing beam. -> Done but BRR +1/2 Sum -> Validation in March 19 Validation of Passing beams for 2 wheelers : AS, BS: same as today, new CS and new DS -> Done Management of AFS/ ADB. Definition of requirement for Low speed /”V” passing beam/ “E” passing beam. ADB -> Proposal done -> Validation in March 19 Adverse Weather Passing beam part of AFS: Definition Front -> Done but 125 R -> Validation in March 19. Proposal done -> Validation in March 19 of requirements for driving beams -> Validation -> Done fog beam-> Done: . Cornering -> Done. Redaction: Rewrite 4 / optimization of RID text ready to start including ADB and class W consideration. February 2019 CONFIDENTIAL

PASSING BEAMS 5 June 2018 CONFIDENTIAL

GRIDS FOR PASSING BEAMS To be discussed The photometric requirement for each single measuring point or segment of these functions applies to half of the sum of the respective measured values from all lighting units of the system applied for this function, except opposite prescription (i. e. “No” with regard to a certain test point or segment) in the column “half sum” of the table. 6 February 2019 CONFIDENTIAL

REQUIREMENTS FOR PASSING BEAMS Simplification of cut-off line position 7 February 2019 CONFIDENTIAL

MEASUREMENT POINTS AND SEGMENTS Zone. III BLL B 50 L Seg 40 LL Seg 25 L 40 L 50 L Seg 25 Seg 15 50 V 75 R 50 R Seg 50 25 V Seg 10 8 February 2019 BRR BR CONFIDENTIAL 40 R Seg 40 RR Seg 25 R

FOR COMPARISON: ILLUMINATION PROJECTED ON THE ROAD FOR BASIC /”C” PASSING BEAM AND CURRENT REQUIREMENT RID CLASS C (R 123 CLASS C). Values in blue: Mini Values in red: Maxi Bird’s eye view RID class C Proposal Basic/”C” Passing Beam Significant improvement of the proposal / R 123 class C Width on the road : 20 m instead of 11. 6 m. +20% at 75 m. 9 February 2019 CONFIDENTIAL

FOR COMPARISON: ILLUMINATION PROJECTED ON THE ROAD FOR MOTORWAY /”E” PASSING BEAM AND CURRENT REQUIREMENT RID CLASS E (R 123 CLASS E). Values in blue: Mini Values in red: Maxi Bird’s eye view 15 10 1. 9 1. 7 5 0 0 106. 4 20 2. 7 40 4. 0 60 1. 9 -5 2. 7 100 120 140 1. 7 2. 7 4. 3 80 0. 5 1. 9 1. 0 2. 7 4. 0 160 2. 7 1. 7 -10 1. 9 2. 7 0. 75 1. 7 1. 0 0. 5 -15 RID class E Proposal Motorway /”E” Passing Beam Significant improvement of the proposal / R 123 class E Width on the road : 20 m instead of 11. 6 m. Same illumination at 75 + requirement at 125 m 10 February 2019 CONFIDENTIAL

PROPOSAL FOR 2 WHEELERS, CS, DS IMMA Symmetrical PB proposal 11 February 2019 CONFIDENTIAL

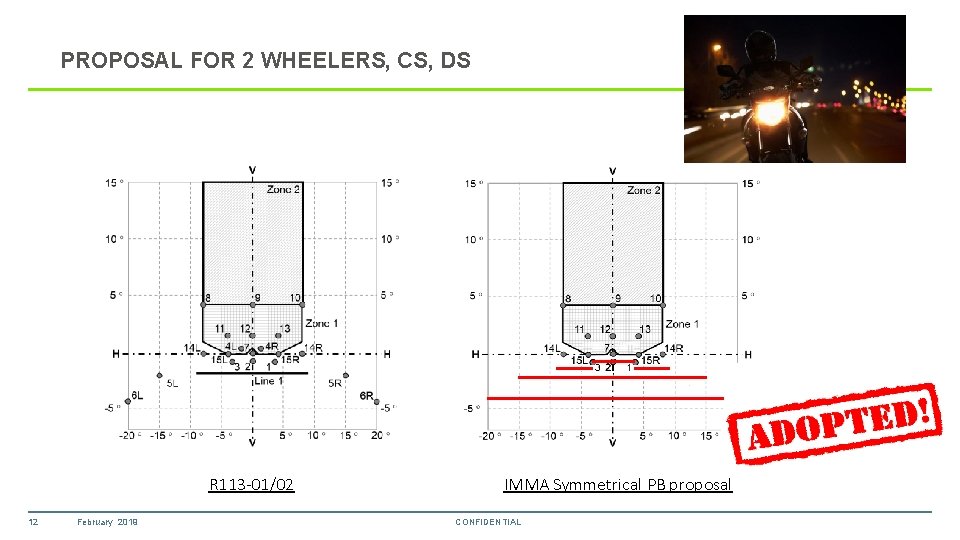

PROPOSAL FOR 2 WHEELERS, CS, DS R 113 -01/02 12 February 2019 IMMA Symmetrical PB proposal CONFIDENTIAL

COMPARISON CURRENT DS/ PROPOSAL 15 10 2. 4 5 2. 6 Line 1 0 0 10 20 2. 6 -5 30 2. 9 2. 6 0. 8 5. 5 2. 9 40 50 2. 0 0. 8 5. 5 60 70 2. 4 0. 5 0. 8 5. 5 2. 0 2. 6 80 2. 6 2. 4 0. 8 5. 5 2. 4 0. 5 -10 -15 Current DS beam pattern 13 February 2019 New DS beam pattern CONFIDENTIAL

DRIVING BEAMS 14 June 2018 CONFIDENTIAL

DRIVING BEAMS Grey fields are Identical to last IMMA proposal of Secondary DB Auxiliary DB would be any supplemental beam to the Basic DB evaluated only for its required contribution to HV, position of maximum close to HV and contributing to total Index of DB. It would require new homologation marking. It would only operate together with Low Speed or Basic DB. Typical use for Aftermarket. 15 February 2019 CONFIDENTIAL

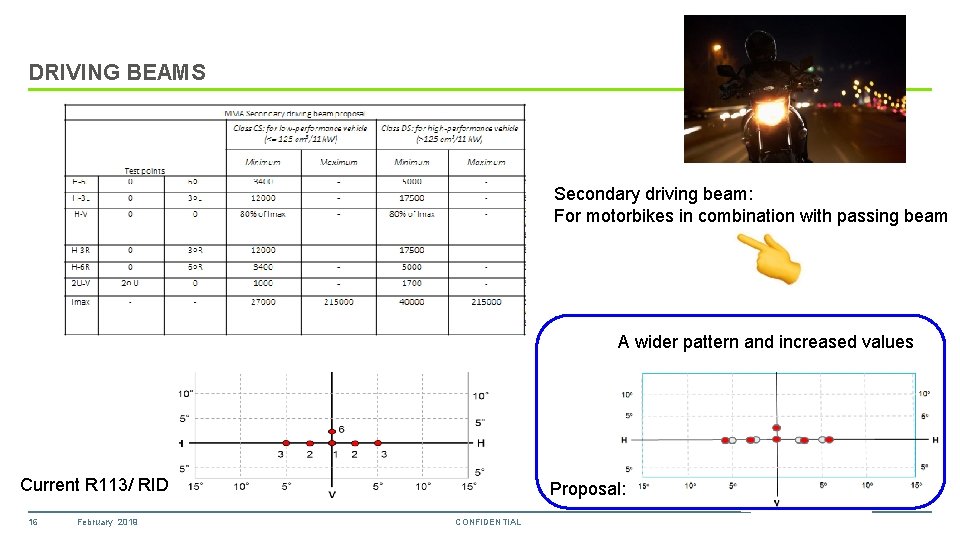

DRIVING BEAMS Secondary driving beam: For motorbikes in combination with passing beam A wider pattern and increased values Current R 113/ RID 16 February 2019 Proposal: CONFIDENTIAL

FRONT FOG LAMPS 17 June 2018 CONFIDENTIAL

FRONT FOG LAMP Same requirements for all F 3 front fog lamps with half of the sum allowed for only Lines 8 and 9. Lines 6 &7 measured from 5° inwards to 10° outwards (same as the original requirements of R 19, 04 series of amendments - Date of entry into force: 9 December 2010) Bird’s eye view 18 February 2019 CONFIDENTIAL

CORNERING LAMP 19 June 2018 CONFIDENTIAL

CORNERING BEAM 30° 20 February 2019 CONFIDENTIAL

SYNTHESIS 21 February 2019 CONFIDENTIAL

WHICH BEAM(S) FOR WHICH VEHICLE? To be addressed with WG-I 22 February 2019 CONFIDENTIAL

INSTALLATION REQUIREMENTS AFTER SLR STEP 1 REGULATION RID R 74 Class A, AR Class B, BR Class DC, DR Class AS Class BS, R-BS Class CS, R-CS Class DS, R-DS Class ES, R-ES Class F 3 Class K Class B, BR Class DC, DR Class C Class E Class V Class W Class XR ADB Class F 3 Class K R 48 < 50 Km / h R 53 <125 cm 3 R 86 Black: mandatory Green : optional Should the beam requirements be based on the category of the vehicle? >125 cm 3 23 February 2019 CONFIDENTIAL AS BS, R-BS CS, R-CS DS, R-DS ES, R-ES A, AR B, BR CS, R-CS DS, R-DS ES, R-ES Class B, BR Class DC, DR F 3 2 x CS, 2 x R-CS DS, R-DS ES, R-ES A, AR B, BR DC, DR F 3

PROPOSAL Basic/”C” passing beam, Low Speed/”V” passing beam, Motorway/”E” passing beam. Which passing beam/speed/driving conditions? “W” Basic/ “C” passing beam – Basic driving beam Low speed / “V” passing beam Low speed driving beam 0 Motorway/“E” passing beam [50] [110] No Feed Back from Agricultural Machines Industry. 24 February 2019 CONFIDENTIAL km/h

ALTERNATIVE FOR TWO WHEELERS DS (PB & DB) CS (PB & DB) 0 Power (k. W) Displacement (cm 3) 11 k. W 125 cm 3 Mopeds and electrical bikes AS , BS 25 February 2019 CONFIDENTIAL
