Sliding Windows Succumbs to Big Mac Attack Colin

Sliding Windows Succumbs to Big Mac Attack Colin D. Walter www. co. umist. ac. uk CHES 2001 C. D. Walter, UMIST

DPA Attack on RSA Summary: Differential Power Analysis (DPA) is used to determine the secret exponent in an embedded RSA cryptosystem. Assumption: The implementation uses a small multiplier whose power consumption is data dependent and measurable. CHES 2001 C. D. Walter, UMIST 2

History • P. Kocher, J. Jaffe & B. Jun Introduction to Differential Power Analysis and Related Attacks www. cryptography. com/dpa (1998) • T. S. Messerges, E. A. Dabbish & R. H. Sloan Power Analysis Attacks of Modular Exponentiation in Smartcards CHES 99 CHES 2001 C. D. Walter, UMIST 3

Multipliers • Switching a gate in the H/W requires more power than not doing so; • On average, a Mult-Acc opn a×b+c has data dependent contributions roughly linear in the Hamming weights of a and b; • Variation occurs because of the initial state set up by the previous mult-acc opn. CHES 2001 C. D. Walter, UMIST 4

First Results • This theory was checked by simulation and found to be broadly correct; • Refinements were made to this model (which will be reported elsewhere); • These give a more precise & detailed partial ordering. CHES 2001 C. D. Walter, UMIST 5

Combining Traces I • The long integer product A×B in an exponentiation contains a large number of small digit multiply-accumulates: ai×bj+ck • Identify the power subtraces of each ai×bj+ck from the power trace of A×B; • Average the power traces for fixed i as j varies: this gives a trace tri which depends on ai but only the average of the digits of B. CHES 2001 C. D. Walter, UMIST 6

Combining Traces a 0 b 0 CHES 2001 a 0 b 2 C. D. Walter, UMIST a 0 b 3 7

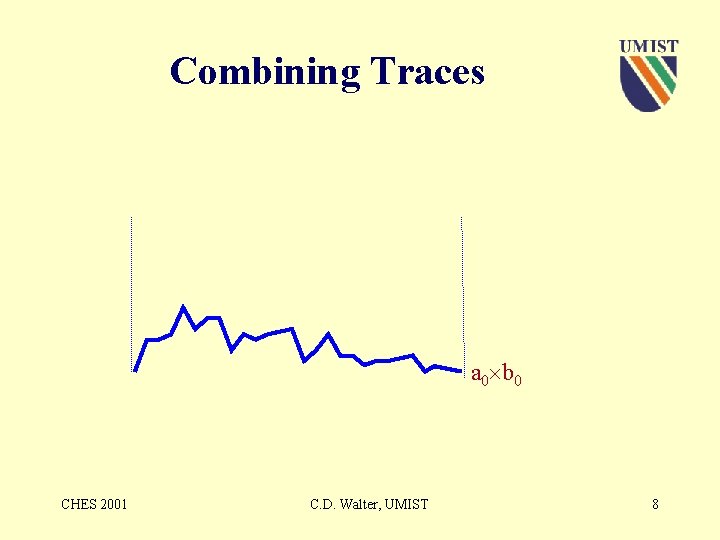

Combining Traces a 0 b 0 CHES 2001 C. D. Walter, UMIST 8

Combining Traces a 0 b 1 a 0 b 0 CHES 2001 C. D. Walter, UMIST 9

Combining Traces a 0 b 2 a 0 b 1 a 0 b 0 CHES 2001 C. D. Walter, UMIST 10

Combining Traces a 0 b 3 a 0 b 2 a 0 b 1 a 0 b 0 CHES 2001 C. D. Walter, UMIST 11

Combining Traces CHES 2001 C. D. Walter, UMIST 12

Combining Traces Average the traces: a 0 (b 0+b 1+b 2+b 3)/4 CHES 2001 C. D. Walter, UMIST 13

_ Combining Traces • b is effectively an average random digit; • So trace is characteristic of a 0 only, not B. _ a 0 b tr 0 CHES 2001 C. D. Walter, UMIST 14

Combining Traces II • The dependence of tri on B is minimal if B has enough digits; • Concatenate the average traces tri for each ai to obtain a trace tr. A which reflects properties of A much more strongly than those of B; • The smaller the multiplier or the larger the number of digits (or both) then the more characteristic tr. A will be. CHES 2001 C. D. Walter, UMIST 15

Combining Traces tr 0 CHES 2001 C. D. Walter, UMIST 16

Combining Traces tr 0 CHES 2001 tr 1 C. D. Walter, UMIST 17

Combining Traces tr 0 CHES 2001 tr 2 C. D. Walter, UMIST 18

Combining Traces tr 0 CHES 2001 tr 2 C. D. Walter, UMIST tr 3 19

Combining Traces tr. A • Question: Is the trace tr. A sufficiently characteristic to determine repeated use of a multiplier A in an exponentiation routine? CHES 2001 C. D. Walter, UMIST 20

Distinguish Digits? • Averaging over the digits of B has reduced the noise level; • In m-ary exponentiation we only need to distinguish: – squares from multiplies – the multipliers A(1), A(2), A(3), …, A(m– 1) • For small enough m and large enough number of digits they can be distinguished in a simulation of clean data. CHES 2001 C. D. Walter, UMIST 21

Distances between Traces power tr 0 tr 1 0 CHES 2001 d(0, 1) = ( n i=0(tr 0(i) tr 1(i))2 )½ C. D. Walter, UMIST n i 22

Simulation gate switch count tr 0 tr 1 0 CHES 2001 d(0, 1) = ( n i=0(tr 0(i) tr 1(i))2 )½ C. D. Walter, UMIST n i 23

Simulation Results 16 -bit multiplier, 4 -ary expn, 512 -bit modulus. d(i, j) = distance between traces for ith and jth multiplications of expn. Av d for same multipliers SD for same multipliers Av d for different multipliers SD for different multipliers CHES 2001 C. D. Walter, UMIST 2428 gates 1183 23475 gates 481 24

Simulation Results • Equal exponent digits can be identified – their traces are close; • Unequal exponent digit traces are not close; • Squares can be distinguished from multns: their traces are not close to any other traces; • There are very few errors for typical cases. CHES 2001 C. D. Walter, UMIST 25

Expnt Digit Values • Pre-computations A(i+1) A A(i) mod M provide traces for known multipliers. So: • We can determine which multive opns are squares; • We can determine the exp digit for each multn; • Minor extra detail for i = 0, 1 and m– 1; • This can be done independently for each opn. CHES 2001 C. D. Walter, UMIST 26

Some Conclusions • The independence means attack time proportional to secret key length; • Longer modulus means better discrimination between traces; • No greater safety against this attack from longer keys. CHES 2001 C. D. Walter, UMIST 27

Warning • With the usual DPA averaging already done, it may be possible to use a single exponentiation to obtain the secret key; • So using expnt d+rφ(M) with random r may be no defence. CHES 2001 C. D. Walter, UMIST 28

Final Conclusions • Sliding Windows expn method may be broken in this way; • Like a Big Mac, you can nibble away at each secret exponent digit in turn and enjoy finding out its value. CHES 2001 C. D. Walter, UMIST 29
