Sliding Shoe Dewatering Pumps MINING DEWATERING Sliding Shoe

Sliding Shoe Dewatering Pumps MINING / DEWATERING

Sliding Shoe Dewatering Pumps § Established in 1946 as a manufacturer of pumps and compressors. § The company was based upon the UK mining industry. § Today produces the Megator sliding shoe pump, mainly for mining, oil recovery, maritime and other Industrial applications. About Megator

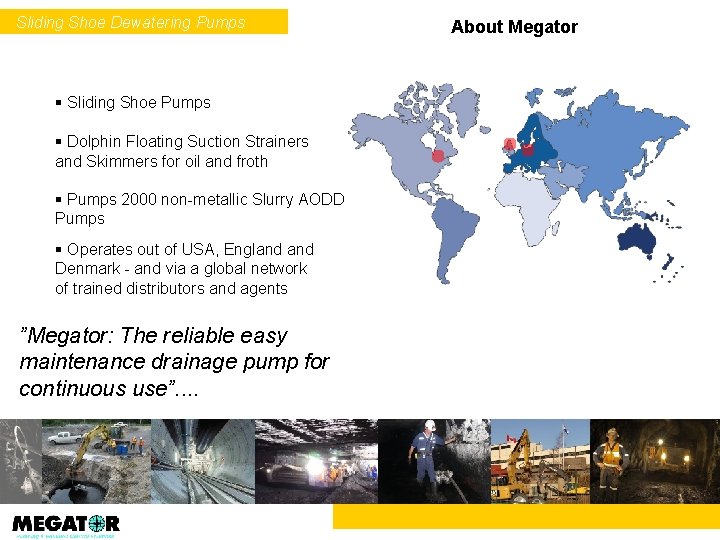

Sliding Shoe Dewatering Pumps § Sliding Shoe Pumps § Dolphin Floating Suction Strainers and Skimmers for oil and froth § Pumps 2000 non-metallic Slurry AODD Pumps § Operates out of USA, England Denmark - and via a global network of trained distributors and agents ”Megator: The reliable easy maintenance drainage pump for continuous use”. . About Megator

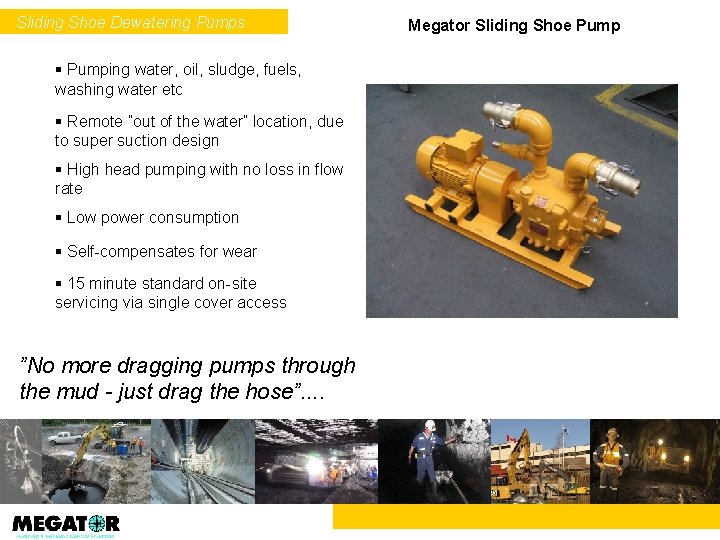

Sliding Shoe Dewatering Pumps § Pumping water, oil, sludge, fuels, washing water etc § Remote ”out of the water” location, due to super suction design § High head pumping with no loss in flow rate § Low power consumption § Self-compensates for wear § 15 minute standard on-site servicing via single cover access ”No more dragging pumps through the mud - just drag the hose”. . Megator Sliding Shoe Pump

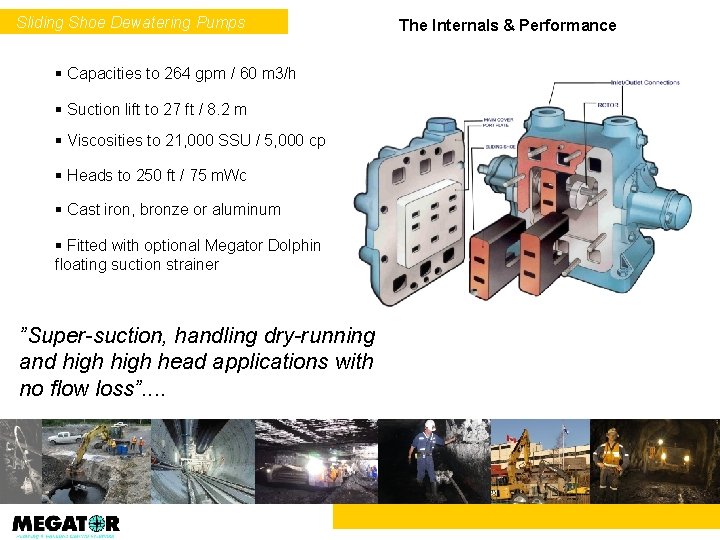

Sliding Shoe Dewatering Pumps § Capacities to 264 gpm / 60 m 3/h § Suction lift to 27 ft / 8. 2 m § Viscosities to 21, 000 SSU / 5, 000 cp § Heads to 250 ft / 75 m. Wc § Cast iron, bronze or aluminum § Fitted with optional Megator Dolphin floating suction strainer ”Super-suction, handling dry-running and high head applications with no flow loss”. . The Internals & Performance

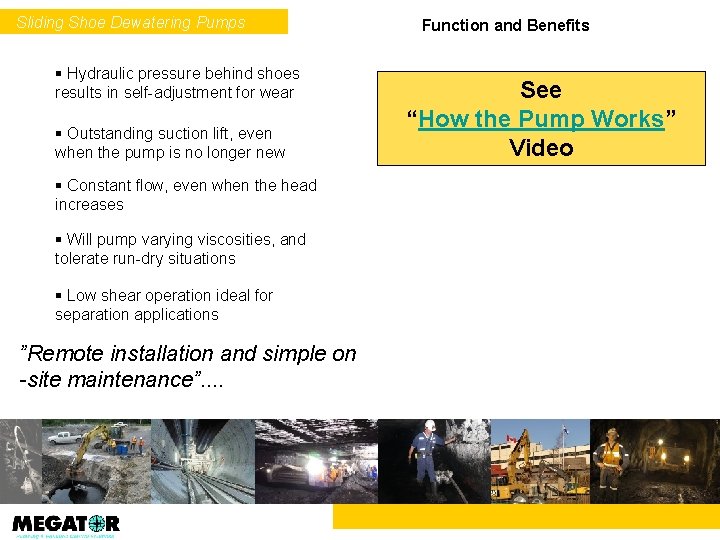

Sliding Shoe Dewatering Pumps § Hydraulic pressure behind shoes results in self-adjustment for wear § Outstanding suction lift, even when the pump is no longer new § Constant flow, even when the head increases § Will pump varying viscosities, and tolerate run-dry situations § Low shear operation ideal for separation applications ”Remote installation and simple on -site maintenance”. . Function and Benefits See “How the Pump Works” Video

Sliding Shoe Dewatering Pumps Dolphin Floating Strainer § Dolphin floating strainer - Simple floating suction strainer that draws from just below the surface, avoiding sand, mud and floating debris § Plastic and stainless steel designs that will tolerate agressive fluids: acids, seawater, bilge etc. § Will always flow upright, even if ruptured ”Reduce pump wear, prevent stoppages, lessen cavitation risk - save their cost many times over”. .

Sliding Shoe Dewatering Pumps Megator mine pump installation § The Sliding Shoe pump is supplied as a complete pump set: pump mounted to a mild steel skid base, complete with NEMA/IEC drive motor, flexible coupling and Dolphin strainer. § Install the pump underground with easy access. §Install the Dolphin strainer in the area to be dewatered. The Dolphin may be kept in place by its mooring eye. § One pump may be fed by more than one Dolphin via the use of a manifold. § Fill up the pump with water (initial prime) and start pumping! Megator pump fitted with both Dolphin strainer and optional SIGMA skimmer.

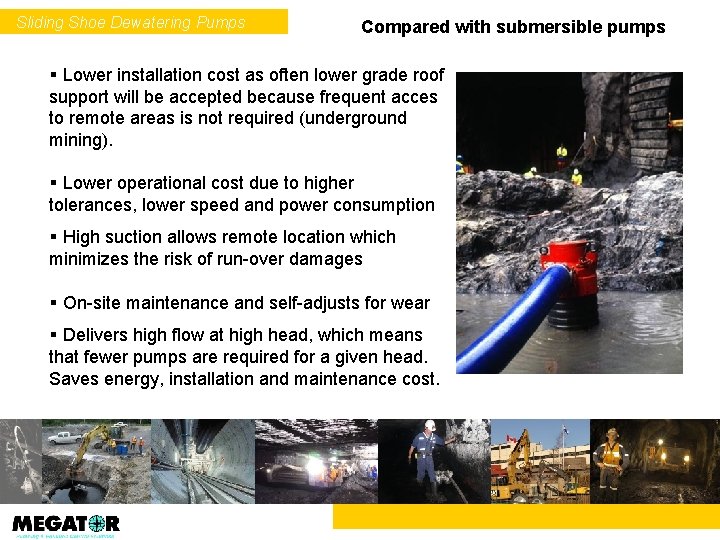

Sliding Shoe Dewatering Pumps Compared with submersible pumps § Lower installation cost as often lower grade roof support will be accepted because frequent acces to remote areas is not required (underground mining). § Lower operational cost due to higher tolerances, lower speed and power consumption § High suction allows remote location which minimizes the risk of run-over damages § On-site maintenance and self-adjusts for wear § Delivers high flow at high head, which means that fewer pumps are required for a given head. Saves energy, installation and maintenance cost.

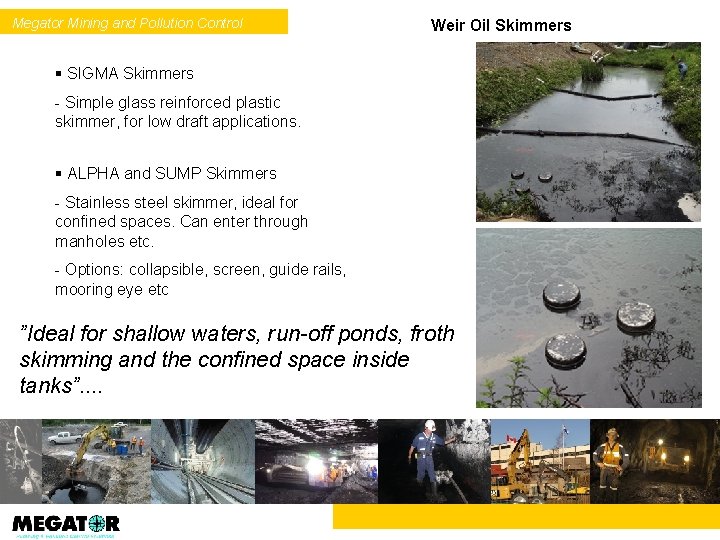

Megator Mining and Pollution Control Weir Oil Skimmers § SIGMA Skimmers - Simple glass reinforced plastic skimmer, for low draft applications. § ALPHA and SUMP Skimmers - Stainless steel skimmer, ideal for confined spaces. Can enter through manholes etc. - Options: collapsible, screen, guide rails, mooring eye etc ”Ideal for shallow waters, run-off ponds, froth skimming and the confined space inside tanks”. .

Megator Mining, Marine, Industry & Pollution Control The Megator Product Range § Pumps 2000 Slurry AODD Pump § Oil Recovery Equipment § Salarollpump § Floating Dolphin Strainer § Sliding Shoe Pump § Rotary Lobe Pump § Mega & Mini Booms

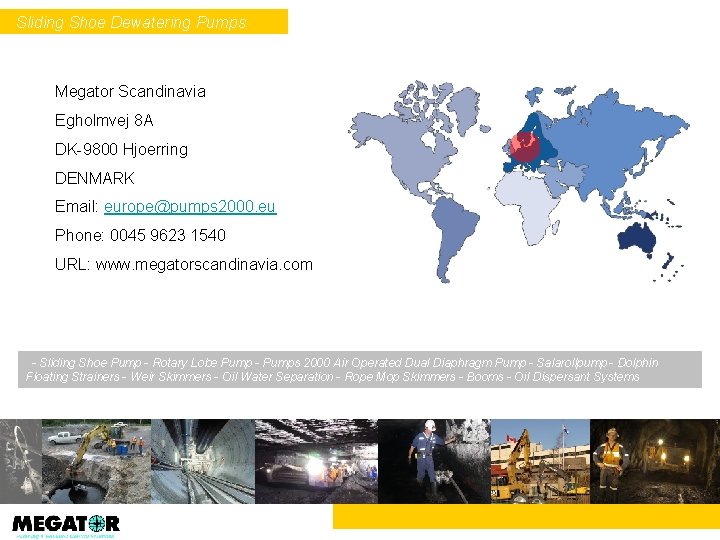

Sliding Shoe Dewatering Pumps Megator Scandinavia Egholmvej 8 A DK-9800 Hjoerring DENMARK Email: europe@pumps 2000. eu Phone: 0045 9623 1540 URL: www. megatorscandinavia. com - Sliding Shoe Pump - Rotary Lobe Pump - Pumps 2000 Air Operated Dual Diaphragm Pump - Salarollpump - Dolphin Floating Strainers - Weir Skimmers - Oil Water Separation - Rope Mop Skimmers - Booms - Oil Dispersant Systems
