SLIDING BEVEL Drawing straight lines at an angle
SLIDING BEVEL • Drawing straight lines at an angle or slope
TRY-SQUARE Rivets Brass strip • Drawing lines around a piece of wood Hardwood stock • Drawing lines at 90⁰ to an edge • Testing timber for square
MORTISE GAUGE Locking screw Adjustable spur Adjustable thumb screw Slide Stem Stock Fixed spur • Marking two parallel gauge lines • Marking mortise and tenon joints

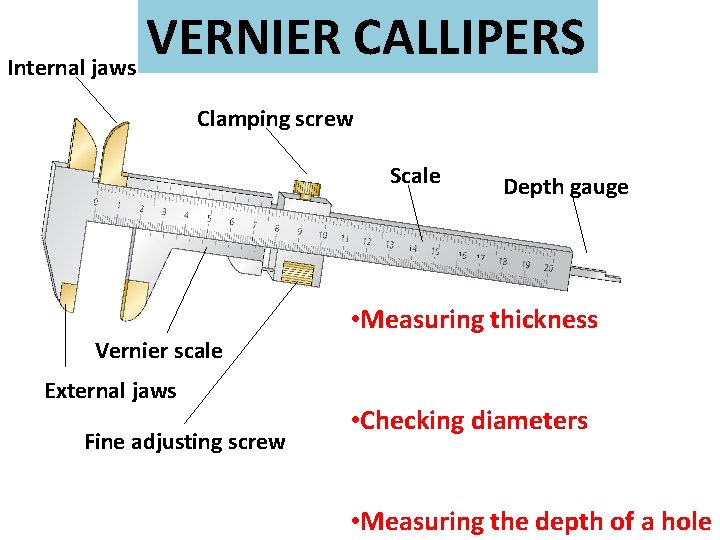

VERNIER CALLIPERS Internal jaws Clamping screw Scale Vernier scale External jaws Fine adjusting screw Depth gauge • Measuring thickness • Checking diameters • Measuring the depth of a hole

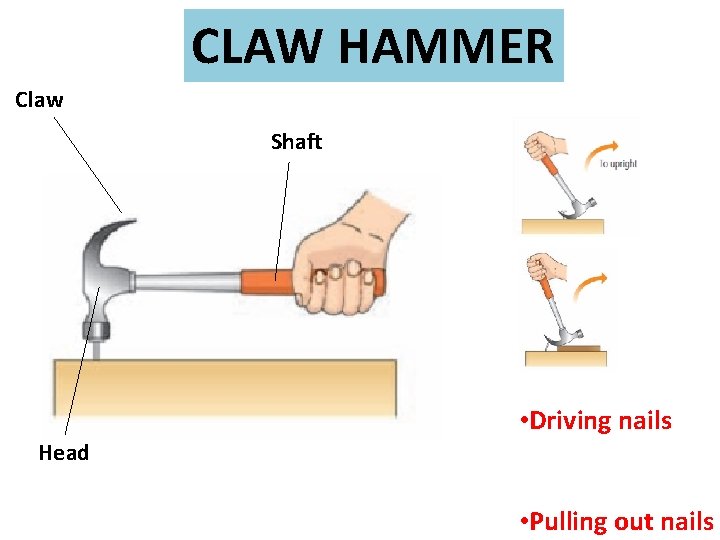

CLAW HAMMER Claw Shaft • Driving nails Head • Pulling out nails

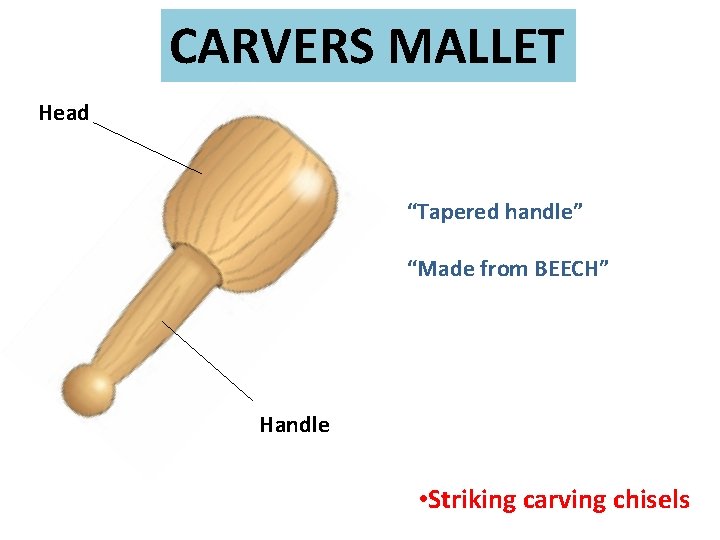

CARVERS MALLET Head “Tapered handle” “Made from BEECH” Handle • Striking carving chisels

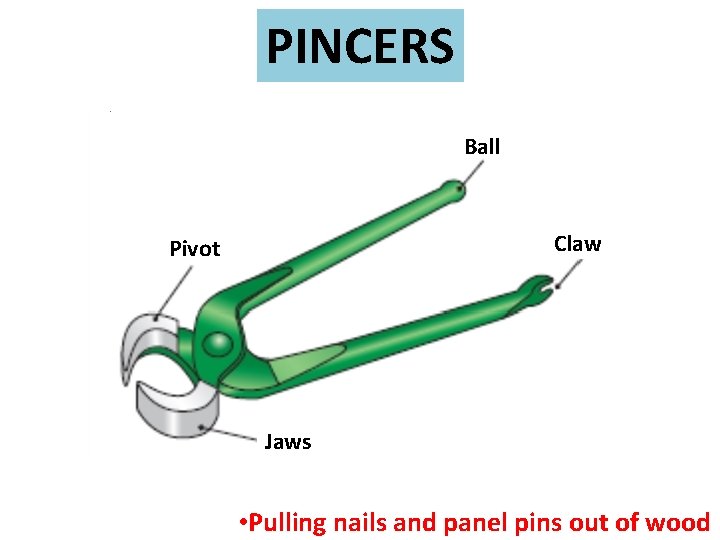

PINCERS Ball Claw Pivot Jaws • Pulling nails and panel pins out of wood

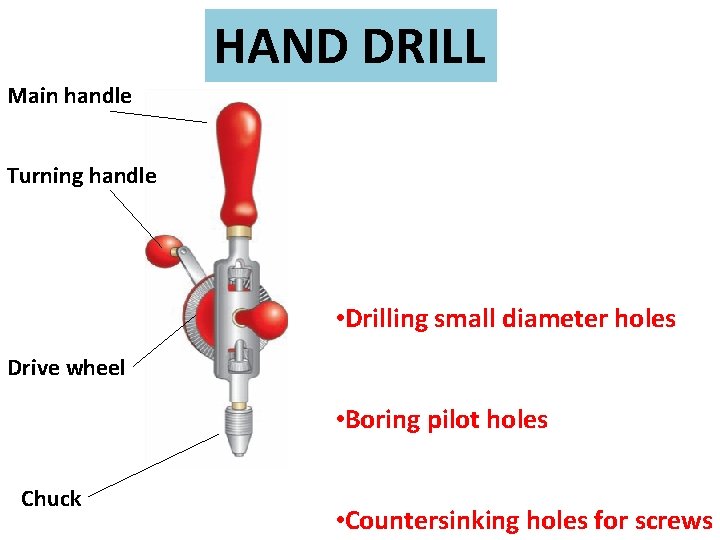

HAND DRILL Main handle Turning handle • Drilling small diameter holes Drive wheel • Boring pilot holes Chuck • Countersinking holes for screws

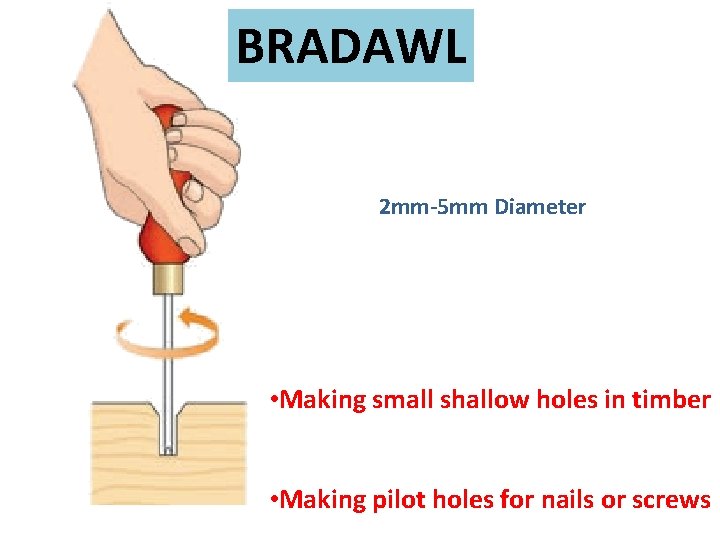

BRADAWL 2 mm-5 mm Diameter • Making small shallow holes in timber • Making pilot holes for nails or screws

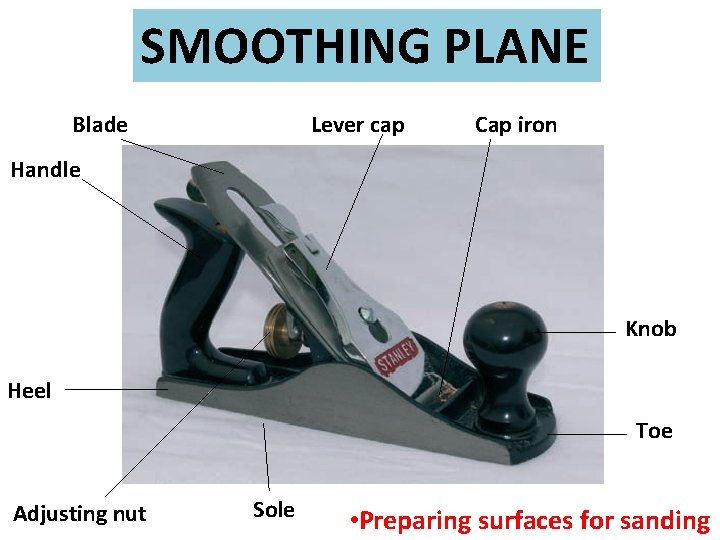

SMOOTHING PLANE Blade Lever cap Cap iron Handle Knob Heel Toe Adjusting nut Sole • Preparing surfaces for sanding

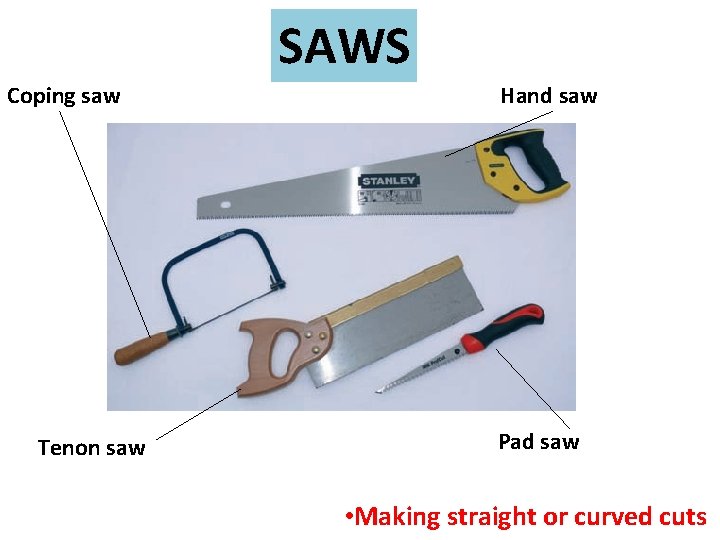

SAWS Coping saw Tenon saw Hand saw Pad saw • Making straight or curved cuts

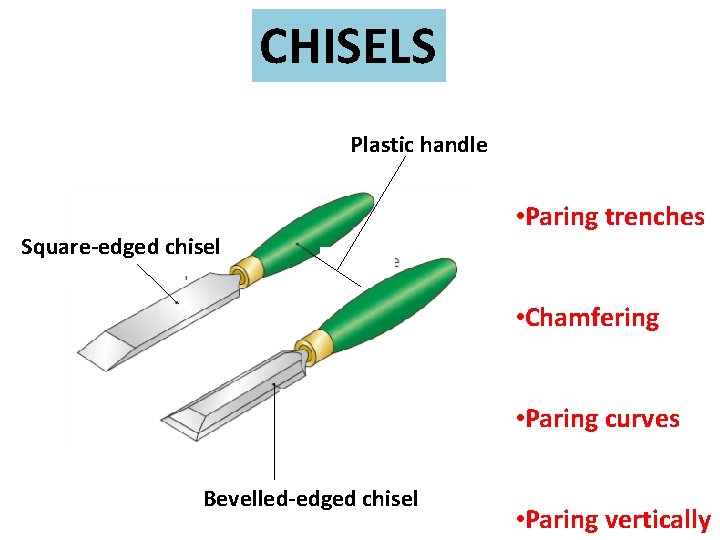

CHISELS Plastic handle Square-edged chisel • Paring trenches • Chamfering • Paring curves Bevelled-edged chisel • Paring vertically

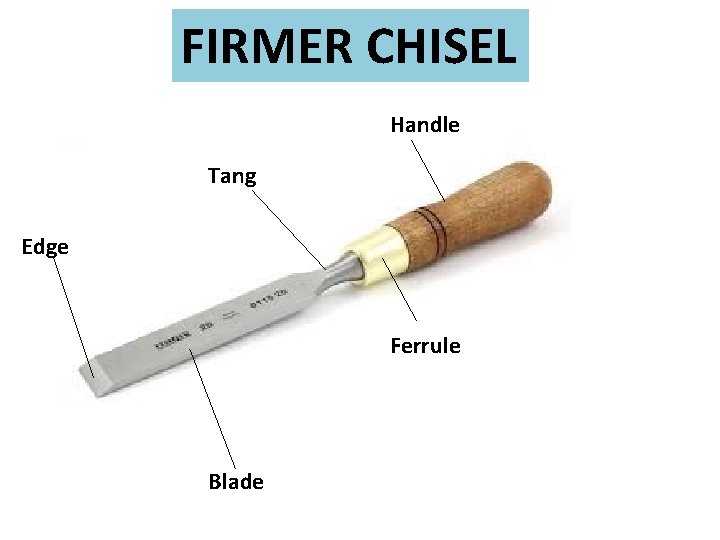

FIRMER CHISEL Handle Tang Edge Ferrule Blade
