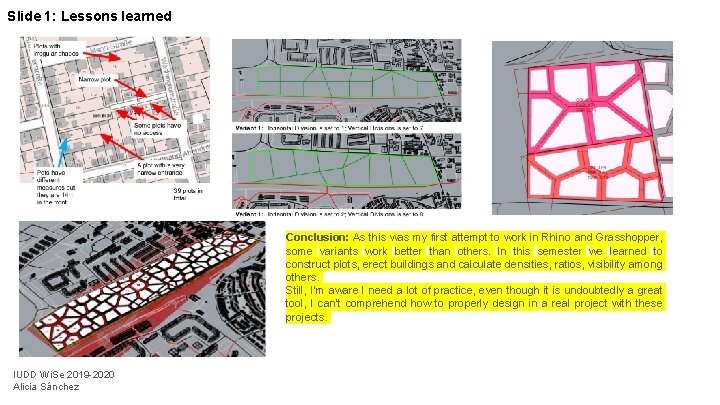

Slide 1: Lessons learned Conclusion: As this was my first attempt to work in Rhino and Grasshopper, some variants work better than others. In this semester we learned to construct plots, erect buildings and calculate densities, ratios, visibility among others. Still, I’m aware I need a lot of practice, even though it is undoubtedly a great tool, I can’t comprehend how to properly design in a real project with these projects. IUDD Wi. Se 2019 -2020 Alicia Sánchez

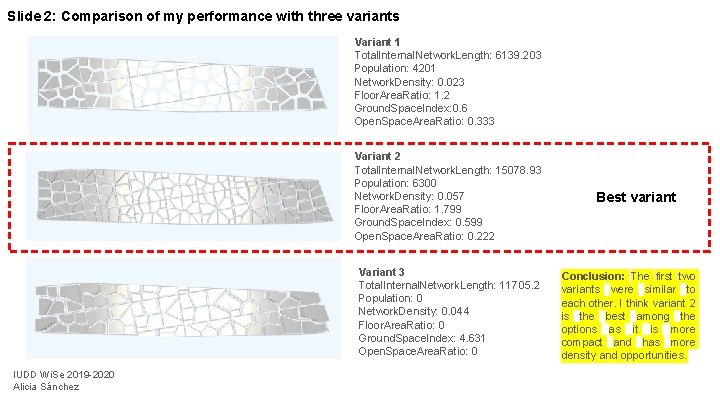

Slide 2: Comparison of my performance with three variants Variant 1 Total. Internal. Network. Length: 6139. 203 Population: 4201 Network. Density: 0. 023 Floor. Area. Ratio: 1. 2 Ground. Space. Index: 0. 6 Open. Space. Area. Ratio: 0. 333 Variant 2 Total. Internal. Network. Length: 15078. 93 Population: 6300 Network. Density: 0. 057 Floor. Area. Ratio: 1. 799 Ground. Space. Index: 0. 599 Open. Space. Area. Ratio: 0. 222 Variant 3 Total. Internal. Network. Length: 11705. 2 Population: 0 Network. Density: 0. 044 Floor. Area. Ratio: 0 Ground. Space. Index: 4. 631 Open. Space. Area. Ratio: 0 IUDD Wi. Se 2019 -2020 Alicia Sánchez Best variant Conclusion: The first two variants were similar to each other. I think variant 2 is the best among the options as it is more compact and has more density and opportunities.

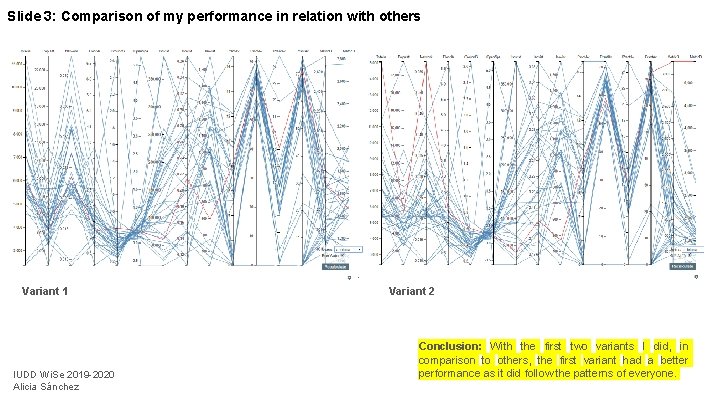

Slide 3: Comparison of my performance in relation with others Variant 1 IUDD Wi. Se 2019 -2020 Alicia Sánchez Variant 2 Conclusion: With the first two variants I did, in comparison to others, the first variant had a better performance as it did follow the patterns of everyone.
