Основная цель Создание надежных и дешевых устройств для мониторинга и управления на базе беспроводных сетевых решений, основанных на открытом глобальном стандарте. Slide 1 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Границы применения и типы беспроводных интерфейсов Возможности технологий Дальность передачи Текст Интернет Графика Голос Zig. Bee 802. 15. 4 Hi-Fi аудио Потоковое видео Цифр. видео Мульти-канал. видео WLAN 802. 11 Bluetooth Низкая скорость передачи данных Slide 2 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 UWB 802. 15. 3 Высокая скорость передачи данных

Стоимость беспроводных решений Высокая стоимость PDA PC NIC Цена решения Wi. Fi Vo. IP phone Cellular Auto Gaming Video cam STB/DBS UWB Video cable replace Displays PC Bluetooth Cellular headset Stereo ISMLINK Industrial Headsets Inventory Speakers Gaming Zig. Bee RF Toy Home remotes Control Низкая стоимость Controller security 200 K 1 M Скорость передачи (бит/сек) Slide 3 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 100 M

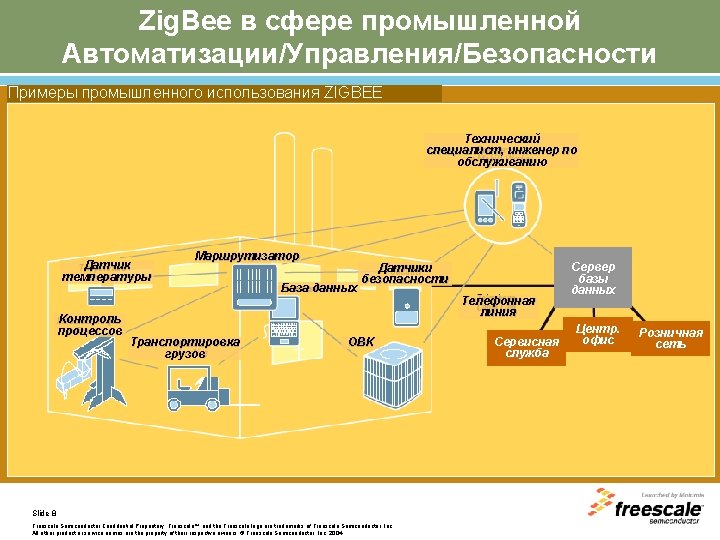

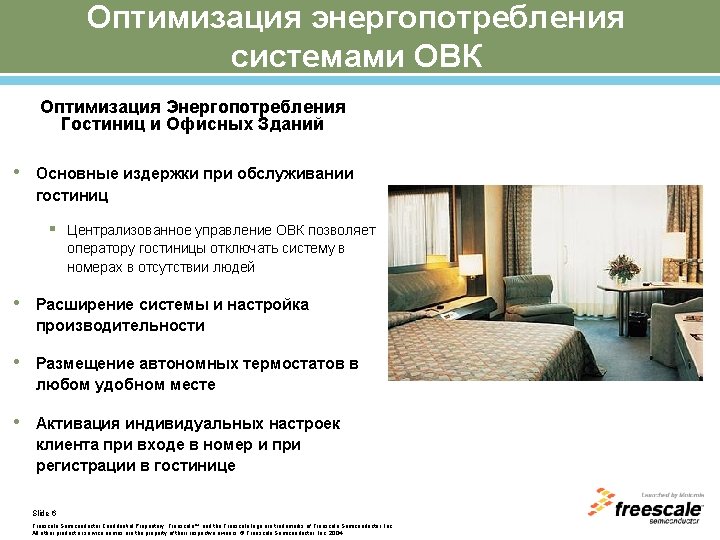

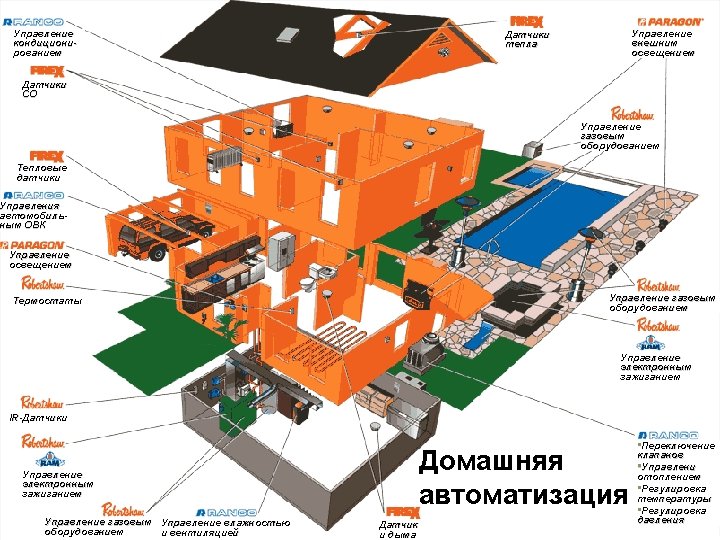

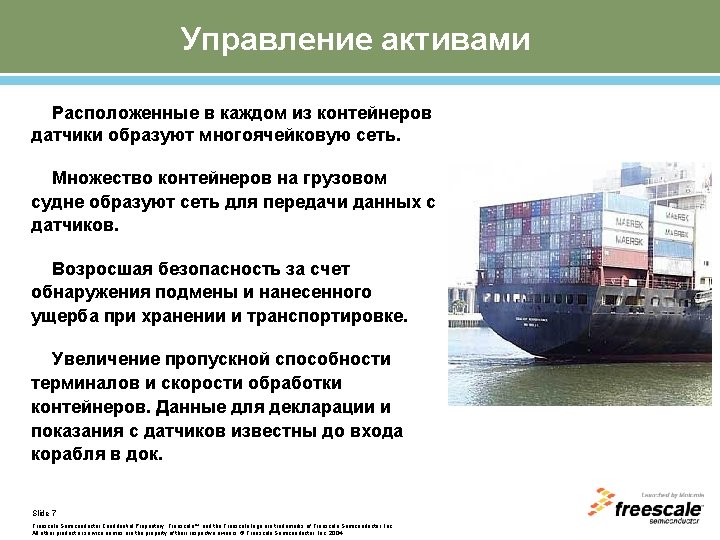

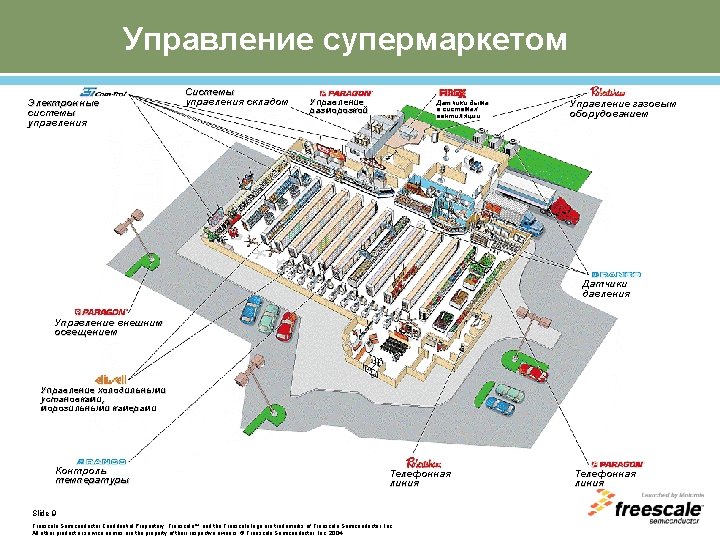

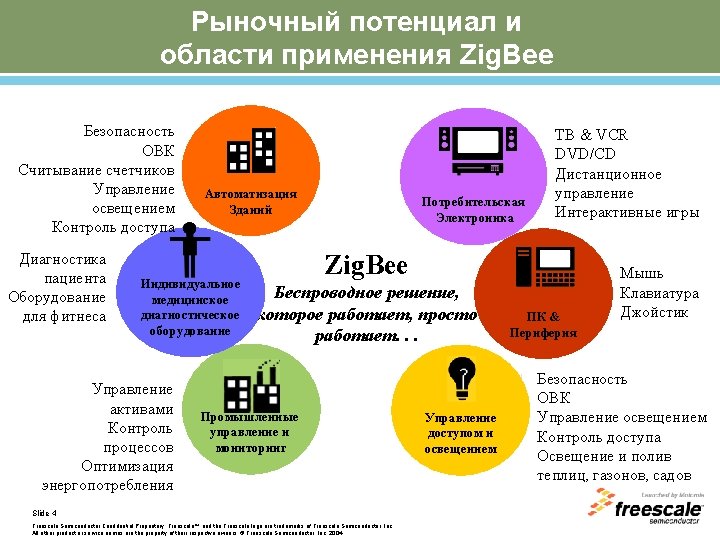

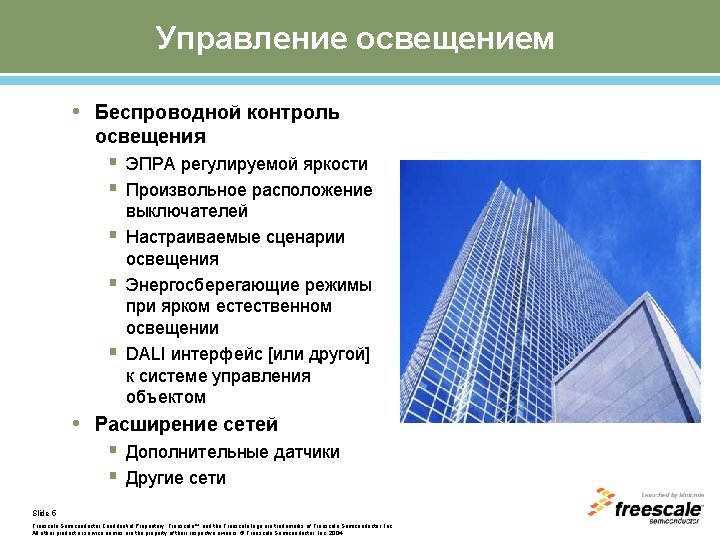

Участники альянса Zig. Bee Slide 11 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

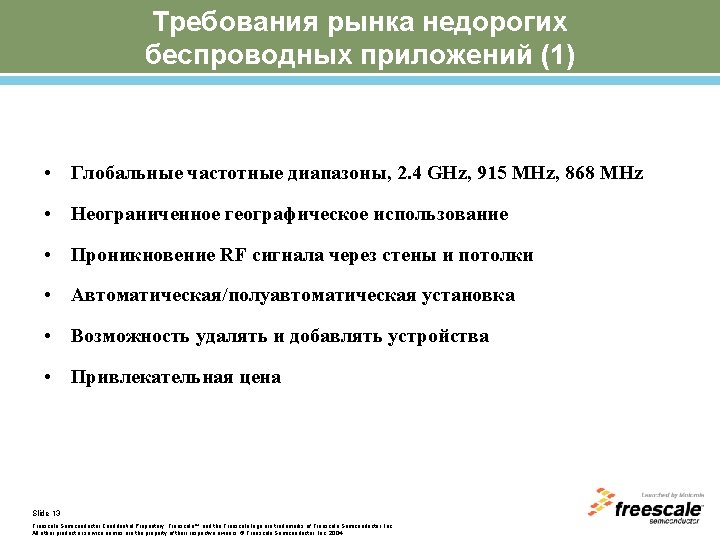

Требования рынка недорогих беспроводных приложений(2) • Скорость передачи – 10 к-115. 2 кбит/сек • Радиус покрытия - 10 -75 м • До 255 подчиненных устройств в сети • До 100 параллельно работающих сетей • До 2 -х лет работы от стандартной алкалиновой батареи Slide 14 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

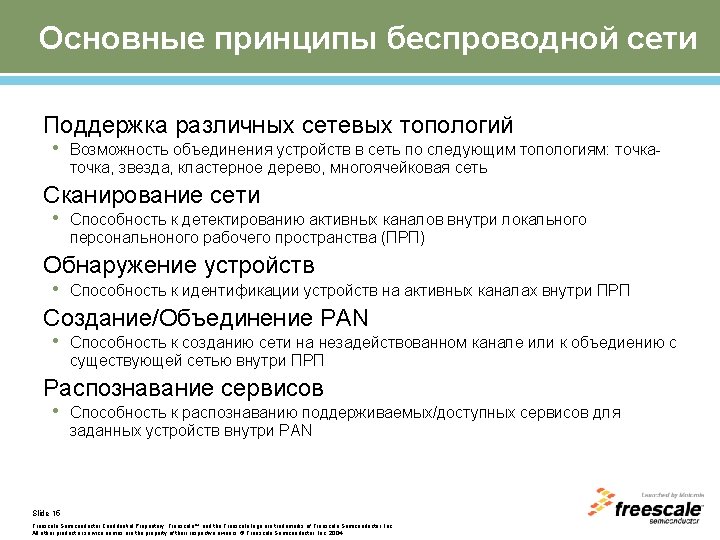

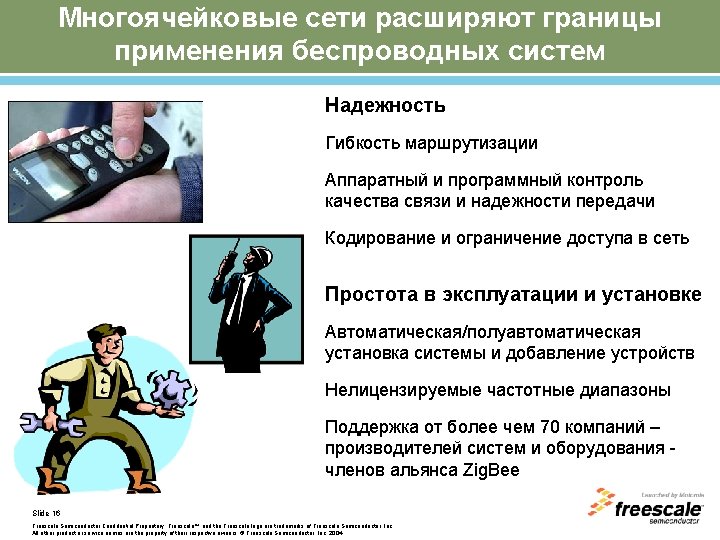

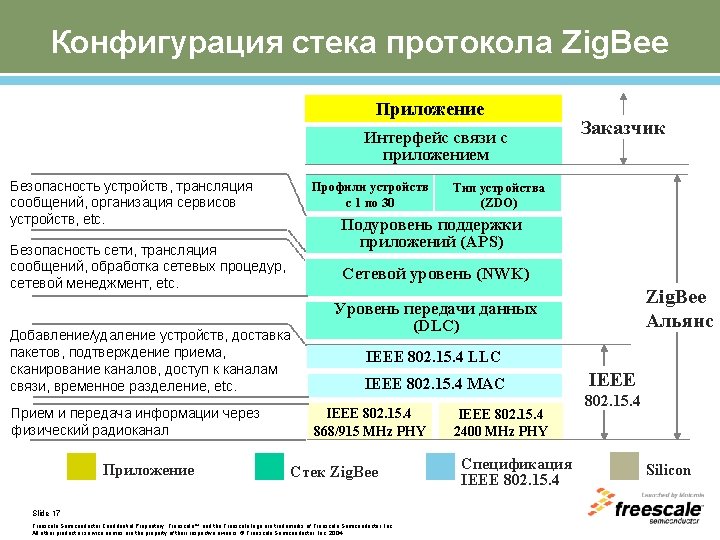

Классификация беспроводных соединений на базе стека протокола Zig. Bee P 31 Zig. Bee 802. 15. 4 ( <60 K ) ( <32 K ) (стек конечного устройства <4 K) … P 1 Простое Беспроводное Соединение ( <2 K ) ТУ Zig. Bee Подуровень Поддержки Приложений Сетевой уровень Zig. Bee 802. 15. 4 MAC SMAC 802. 15. 4 PHY HCS 08 MC 13192 Slide 18 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 802. 15. 4 / PHY Layers HCS 08 MC 13192/1

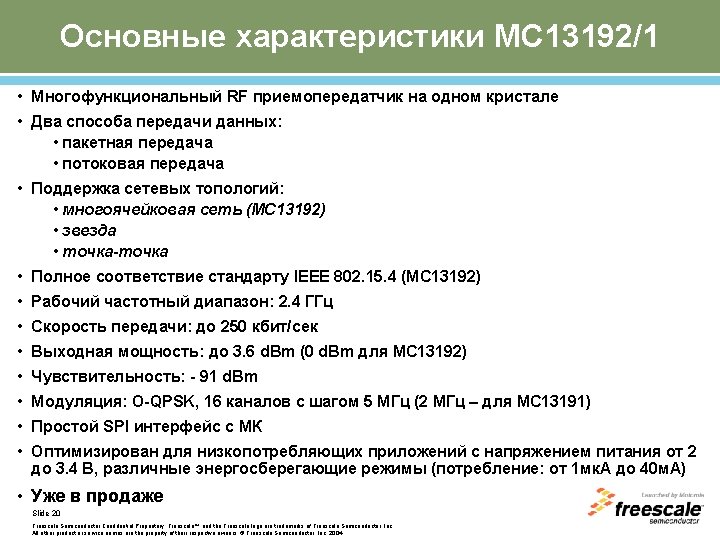

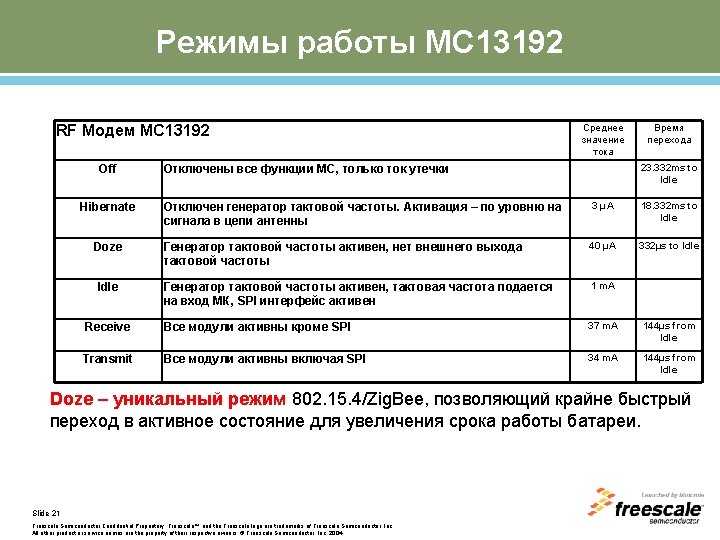

Частотные диапазоны и скорости передачи Диапазон 2. 4 GHz География использования Скорость ISM 868 MHz 915 MHz 868 MHz / 915 MHz PHY ISM # Каналов Модуляция Весь мир 250 kbps 16 O-QPSK Европа 20 kbps 1 BPSK Америка 40 kbps 10 BPSK 2 MHz Канал 0 868. 3 MHz 902 MHz Каналы 11 -26 Каналы 1 -10 928 MHz 5 MHz 2. 4 GHz PHY 2. 4 GHz Slide 22 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 2. 4835 GHz

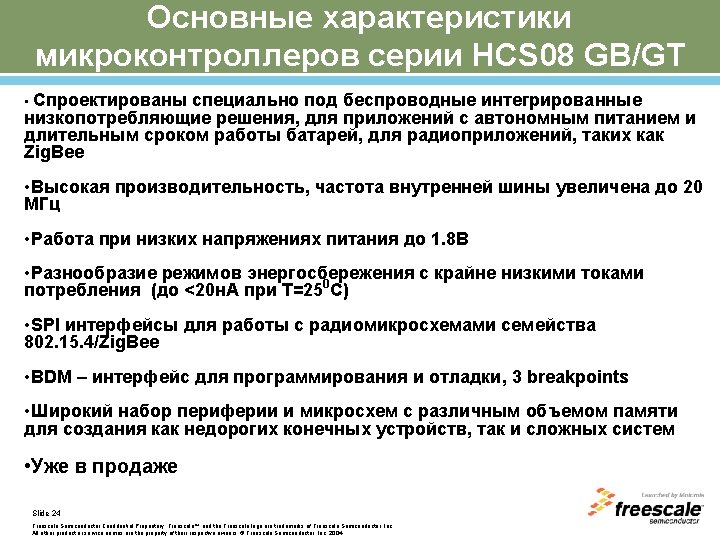

MC 9 S 08 GB/GT 9 S 08 GB 60/32 HCS 08 CPU BDM 60/32 K Flash 8 -ch 10 -Bit ADC 4/2 K RAM 2 x. SCI LVI SPI COP 8 -ch 16 bit Timer IIC Internal Clock Generator 64 LQFP Up to 56 GPIO • Supply Voltage/ Performance • 1. 8. . 3. 6 V ± 10%, -40 to 85 C • Core • 20 MHz HCS 08 Core (20 MHz Bus) • Memory • 60 or 32 K Flash, 4 or 2 K Ram • Communications • (2)SCI, SPI, IIC • Features/ Benefits • 8 -ch, 16 -bit, IC/ OC, or PWM • Computer Operating Properly, Analog to Digital Converter, Internal Clock Generator, Low Voltage Inhibit, Background Debug Mode • Up to 56 GPIO • Available Packages • 42 SDIP, 44 QFP (GT) 64 LQFP (GB) • Development Tools/ Documentation • M 68 DEMO 908 GB 60 • M 68 EVB 908 GB 60 Slide 23 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 9 S 08 GT 60/32 HCS 08 CPU BDM 60/32 K Flash 8 -ch 10 -Bit ADC 4/2 K RAM 2 x. SCI IIC SPI LVI COP Internal Clock Generator 4 -ch 16 bit Timer Up to 36 GPIO 42 SDIP, 44 QFP

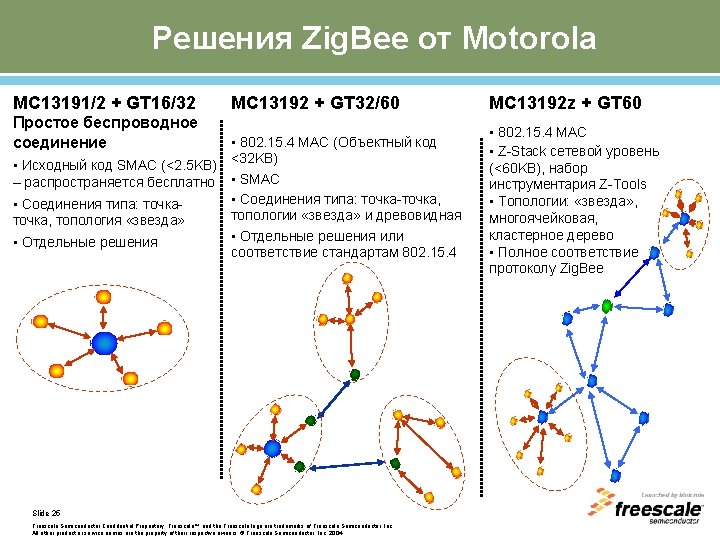

Простое беспроводное решение на базе протокола SMAC App Interface SMAC MC 1319 X Motorola RF Packet Radio HCSO 8 Motorola 8 -Bit MCU Slide 26 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Беспроводное решение на базе спецификаций IEEE 802. 15. 4 App Interface MC 1319 X Motorola RF Packet Radio HCSO 8 Motorola 8 -Bit MCU Slide 27 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Полностью функциональное решение для реализации технологии Zig. Bee (4 th Quarter’ 2004) MC 1319 X Motorola RF Packet Radio HCSO 8 Motorola 8 -Bit MCU Slide 28 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Семейство решений для беспроводного соединения Zig. Bee Простое Беспроводное Соединение Уровень Приложений Объект приложения 31 … Объект приложения 1 Zig. Bee Тип Устройства F 8 W Z-Stack Подуровень Поддержки Приложения Figure 8 Wireless Z-Stack Приложение NWK Уровень Figure 8 Wireless Z-Stack SMAC Motorola Source Code MAC Уровень Motorola Software PHY Уровень Motorola MC 13192 Slide 29 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

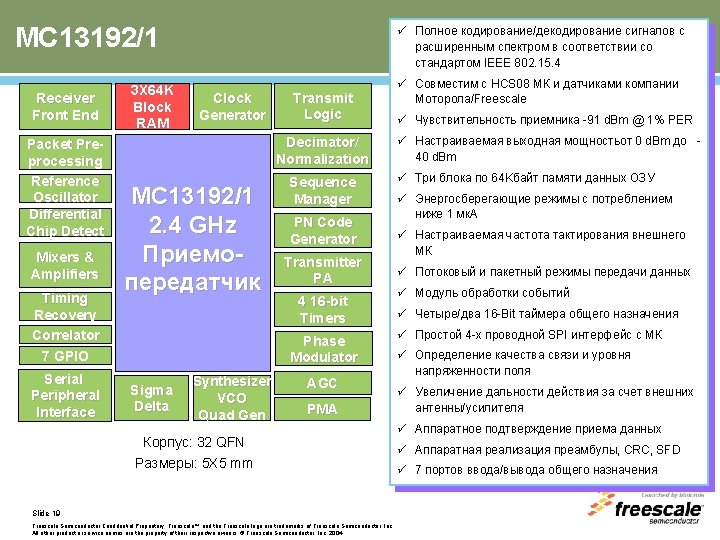

Полностью законченное Zig. Bee решение от компании Motorola/Freescale Полный набор микросхем приемопередатчиков • MC 13192/1 2. 4 GHz - QFN 32 5 x 5 • MC 68 HCS 908 GT 60/32 или MC 68 HCS 908 GB 60/32 Средства разработки Приложение заказчика Полный набор программного обеспечения • IEEE 802. 15. 4 PHY Уровень • IEEE 802. 15. 4 MAC Уровень • Zig. Bee: Сетевой Уровень и Уровень Приложения Zig. Bee Сеть и Профиль IEEE 802. 15. 4 MAC/PHY 8 -бит МК Полный набор инструментария • Metrowerks Code. Warrior для МК • Z-Tool для Приложений Zig. Bee • Конфигуратор сети Slide 30 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004 MC 13192 RFIC

Figure 8 Wireless Motorola Responsibility Slide 31 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Аппаратные средства разработки MC 13191/92 Developer’s Starter Kit (DSK) • • • SMAC and IEEE 802. 15. 4 network development 2 Sensor Applications Reference Boards (SARD) Orderable part number: 13192 DSK-A 00 MCU Evaluation board (EVB) • Orderable part number: M 68 EVB 908 GB 60 RF Daughter Card • • • Plug-in directly to M 68 EVB 908 GB 60 Development Kit or other Freescale MCU development system 1 per kit Orderable part number: 13192 RFC-A 00 BDM Multilink • • USB adaptor/cable for programming and debugging (Computer <-> MCU Board) Orderable part number: USBMULTILINKS 08 Evaluation Kit (EVK) Slide 32 • • Zig. Bee network development system 3 EVB boards, 2 SARD boards D 18 SW PC tools, Demo Apps. , documentation, cables, etc. 802. 15. 4 packet Sniffer board USB BDM cable Orderable part number: 13192 EVK-A 00 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

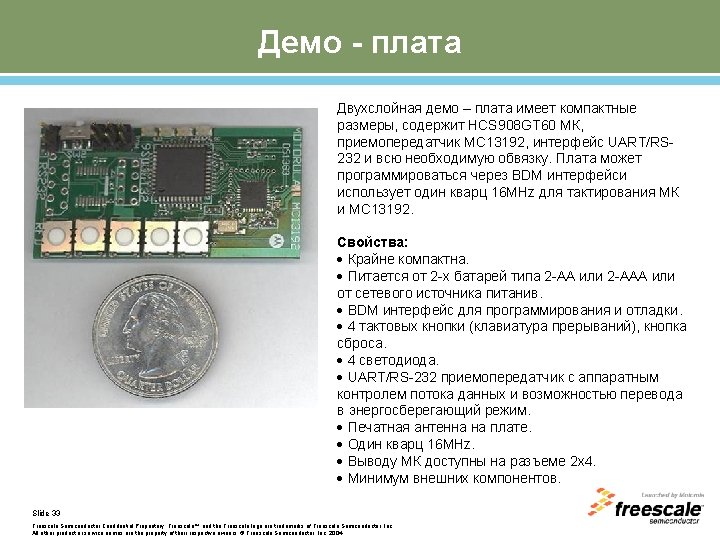

MC 13191/92 Software Distribution Software distributed via Motorola/Freescale Website: • Registered Download: SMAC & IEEE 802. 15. 4 MAC • Moderated Download: Z-Stack & Z-Tools (Early Adopters & Beta Customers only – beginning July 2004) Downloads require customer registration via the Motorola/Freescale website. Defining Downloads: MODERATED DOWNLOAD A moderated download requires that the customer fill out a “request to download” that includes their FAE’s name and email address. The request is automatically emailed to a pre-defined “moderator” who evaluates the customer information and either accepts or rejects the request. When the request is accepted, the customer’s FAE is emailed the information on how to download, and must forward this email to the customer. REGISTERED DOWNLOAD A registered download requires that the customer log in and identify themselves before performing a download. This is tied to the Common Customer Profile that is stored in Siebel Slide 34 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Документация Вся необходимая документация доступна на сайте: www. motorola. com/zigbee Brochures • Zig. Bee Brochure • MC 1319 x Family Brochure Reference Manuals • MC 13191 • MC 13192 • IEEE 802. 15. 4 MAC (D 18 MAC) Fact Sheets • Developer’s Starter Kit • EVK • RF Daughtercard • MC 13191 • MC 13192 Users Guides • SARD • EVK • RF Daughtercard • SMAC Datasheets • MC 13191 • MC 13192 Applications Notes • SMAC • Antenna Design Examples Slide 35 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Дополнительная информация HCS 08 MCU’s www. freescale. com HCS 08 MCU development tools (Codewarrior 3. 0) www. metrowerks. com Zig. Bee network stack partner: http: //www. figure 8 wireless. com Zig. Bee standardization: www. zigbee. org Slide 36 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004

Контактная информация Московское представительство Freescale Semiconductor в России http: //www. motorola. ru http: //www. freescale. com/russia Панфилов Дмитрий Иванович Менеджер по развитию рынка rdp 001@freescale. com Чепурин Илья Николаевич Инженер по поддержке продукции ric 001 c@freescale. com Slide 37 Freescale Semiconductor Confidential Proprietary. Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other product or service names are the property of their respective owners. © Freescale Semiconductor, Inc. 2004
