SKY-Scanner: time-critical decision support system surveilling aircraft landing and take-off Kristina Lapin Vilnius University, Lithuania

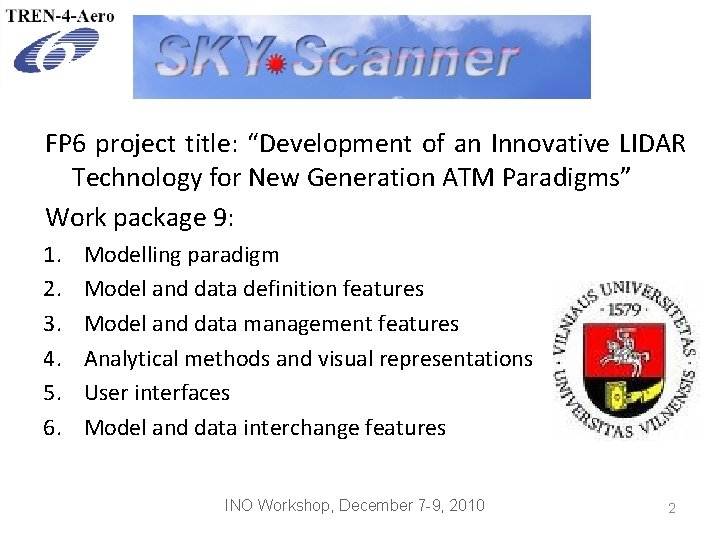

FP 6 project title: “Development of an Innovative LIDAR Technology for New Generation ATM Paradigms” Work package 9: 1. 2. 3. 4. 5. 6. Modelling paradigm Model and data definition features Model and data management features Analytical methods and visual representations User interfaces Model and data interchange features INO Workshop, December 7 -9, 2010 2

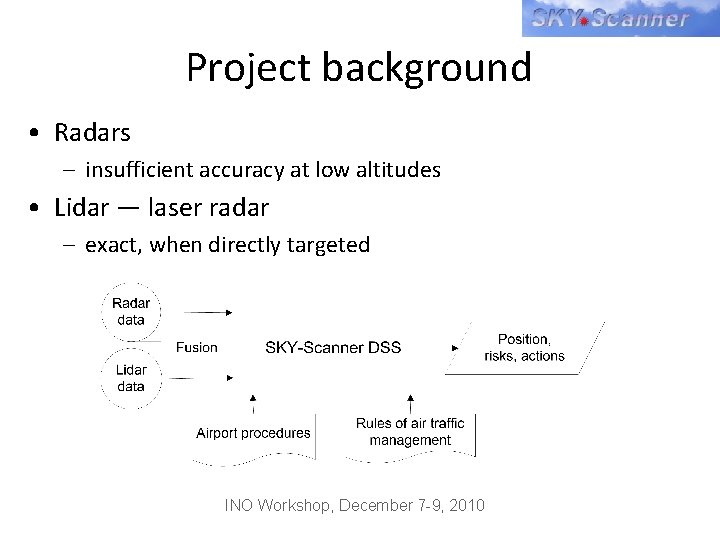

Project background • Radars – insufficient accuracy at low altitudes • Lidar — laser radar – exact, when directly targeted INO Workshop, December 7 -9, 2010

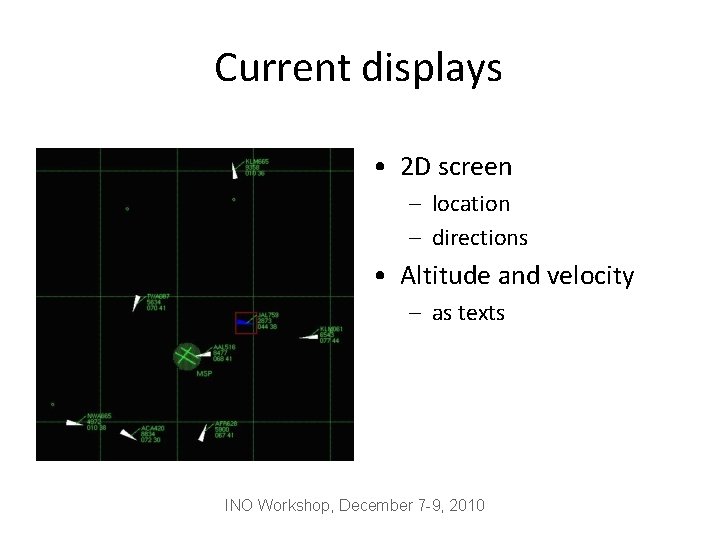

Current displays • 2 D screen – location – directions • Altitude and velocity – as texts INO Workshop, December 7 -9, 2010

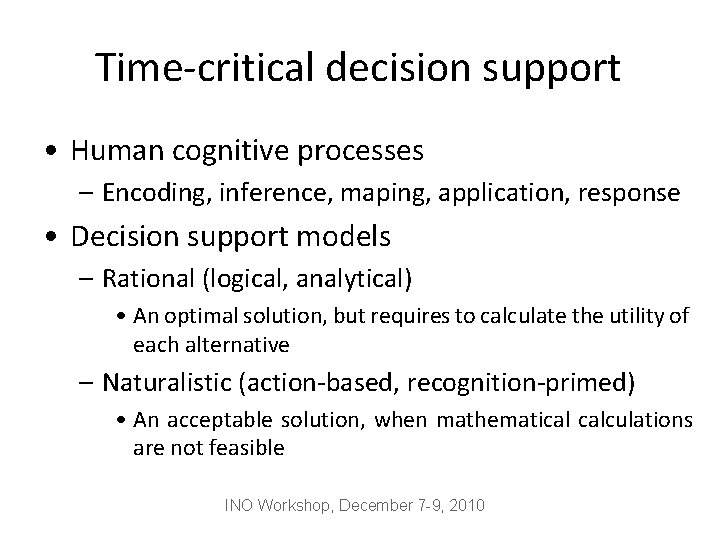

Time-critical decision support • Human cognitive processes – Encoding, inference, maping, application, response • Decision support models – Rational (logical, analytical) • An optimal solution, but requires to calculate the utility of each alternative – Naturalistic (action-based, recognition-primed) • An acceptable solution, when mathematical calculations are not feasible INO Workshop, December 7 -9, 2010

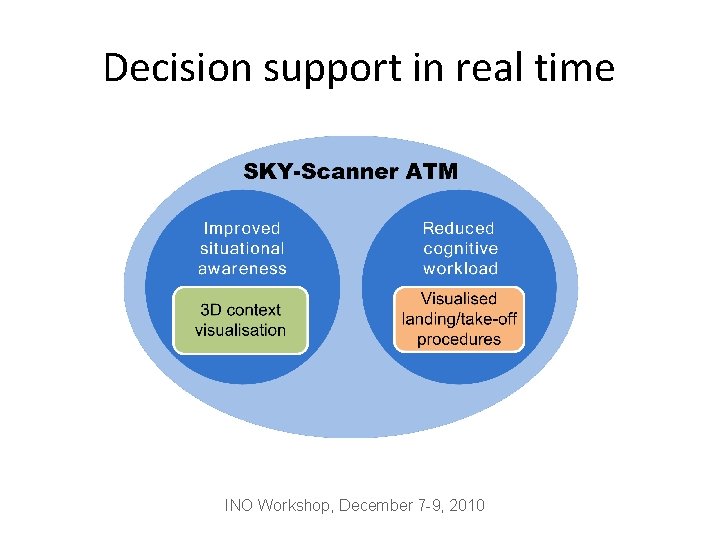

Decision support in real time INO Workshop, December 7 -9, 2010

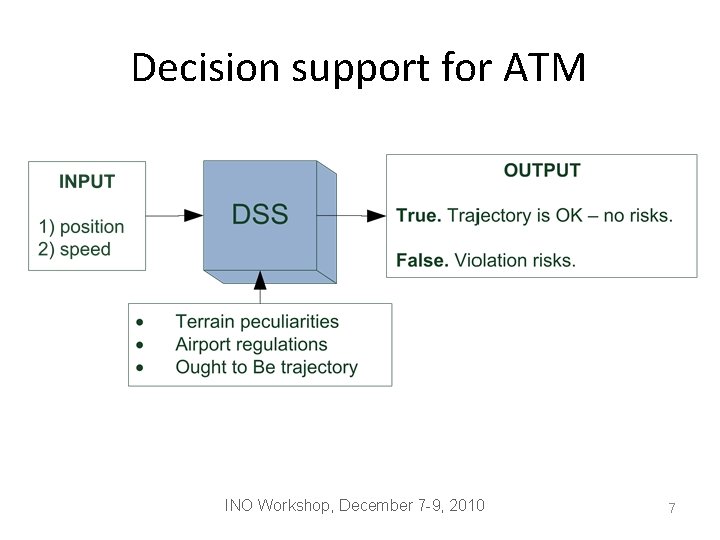

Decision support for ATM INO Workshop, December 7 -9, 2010 7

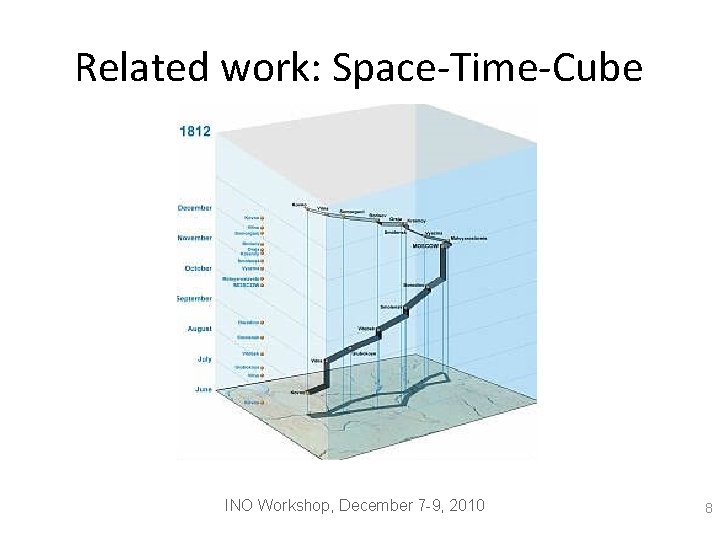

Related work: Space-Time-Cube INO Workshop, December 7 -9, 2010 8

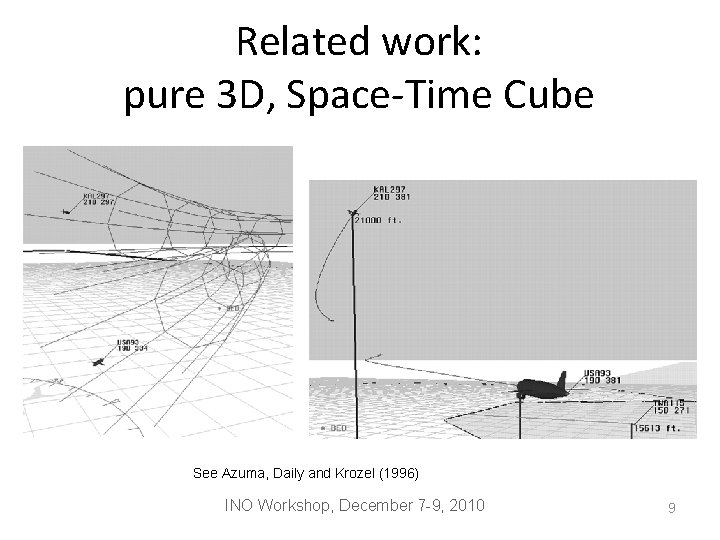

Related work: pure 3 D, Space-Time Cube See Azuma, Daily and Krozel (1996) INO Workshop, December 7 -9, 2010 9

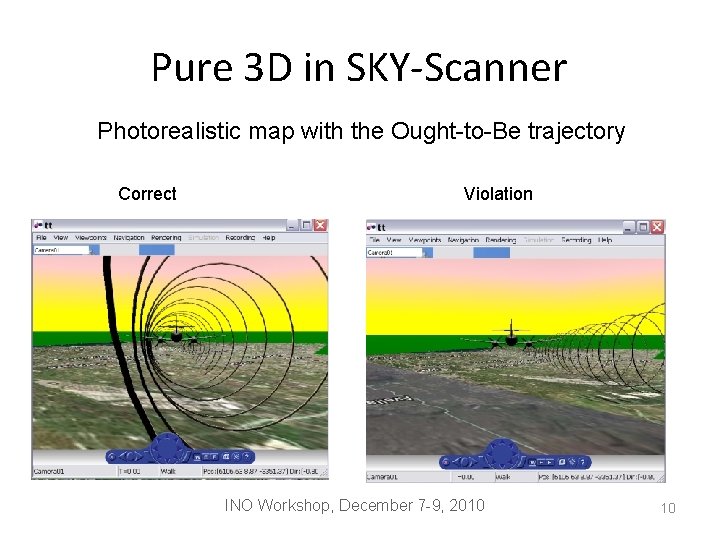

Pure 3 D in SKY-Scanner Photorealistic map with the Ought-to-Be trajectory Correct Violation INO Workshop, December 7 -9, 2010 10

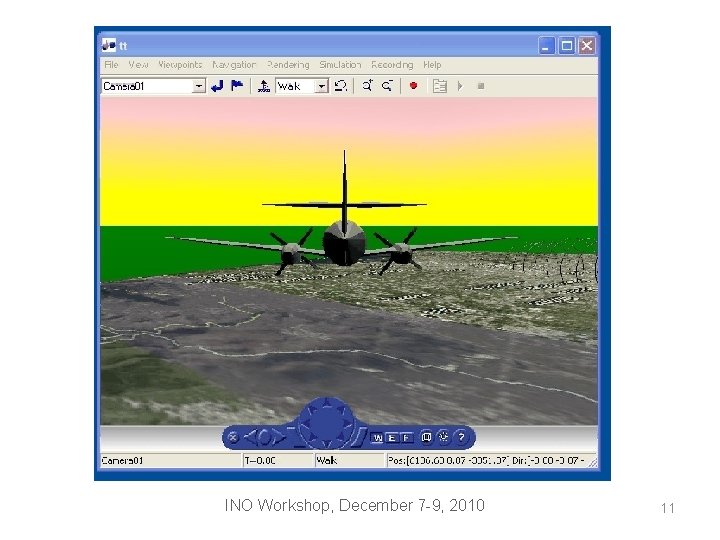

INO Workshop, December 7 -9, 2010 11

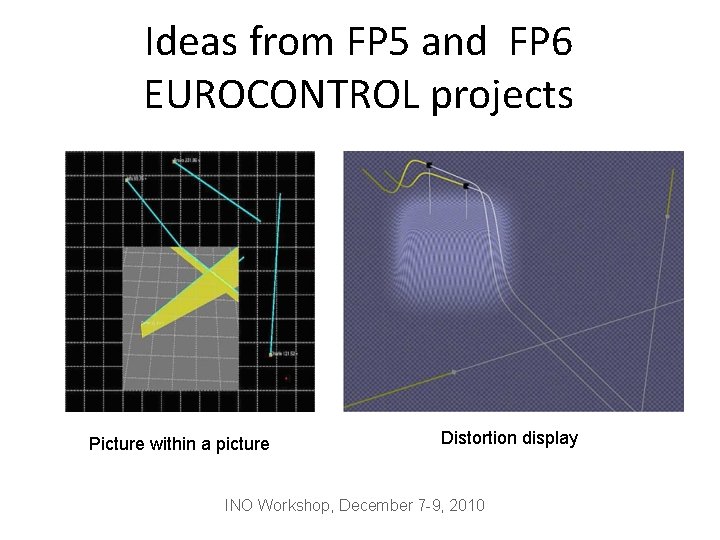

Ideas from FP 5 and FP 6 EUROCONTROL projects Picture within a picture Distortion display INO Workshop, December 7 -9, 2010

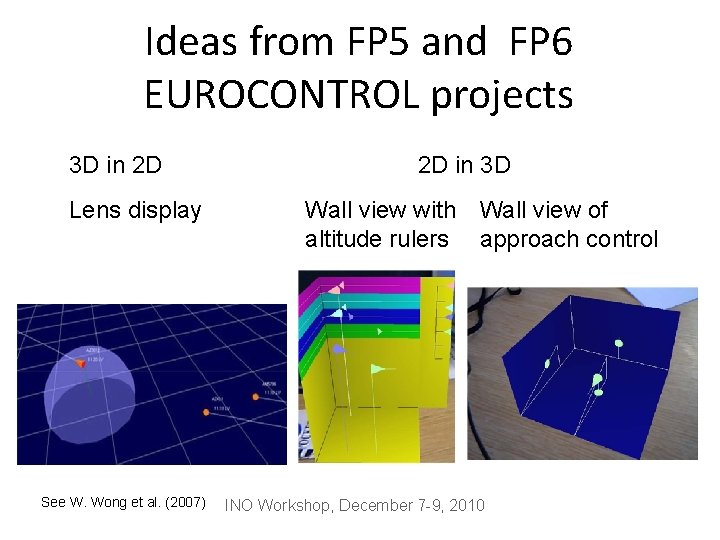

Ideas from FP 5 and FP 6 EUROCONTROL projects 3 D in 2 D Lens display See W. Wong et al. (2007) 2 D in 3 D Wall view with Wall view of altitude rulers approach control INO Workshop, December 7 -9, 2010

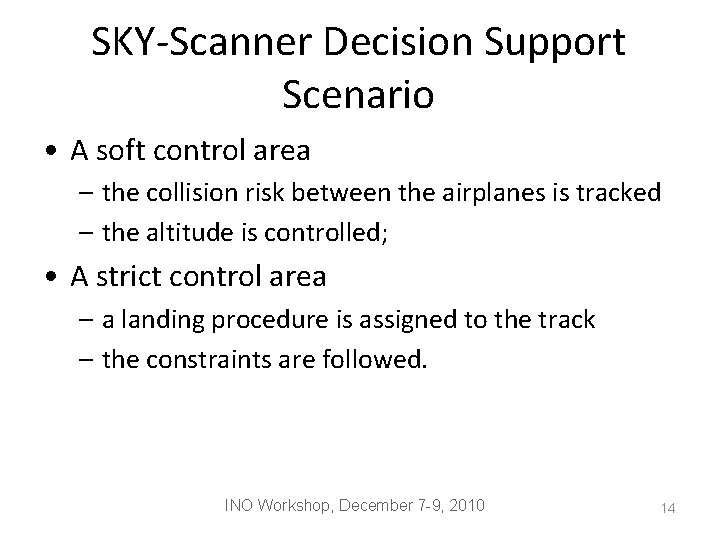

SKY-Scanner Decision Support Scenario • A soft control area – the collision risk between the airplanes is tracked – the altitude is controlled; • A strict control area – a landing procedure is assigned to the track – the constraints are followed. INO Workshop, December 7 -9, 2010 14

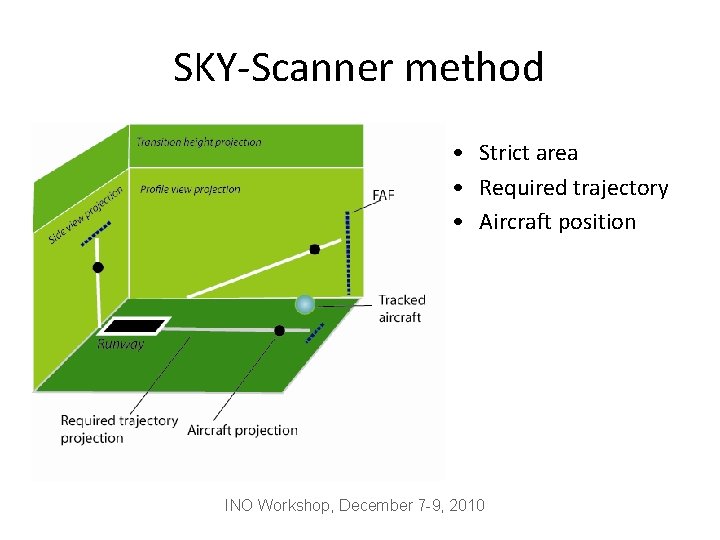

SKY-Scanner method • Strict area • Required trajectory • Aircraft position INO Workshop, December 7 -9, 2010

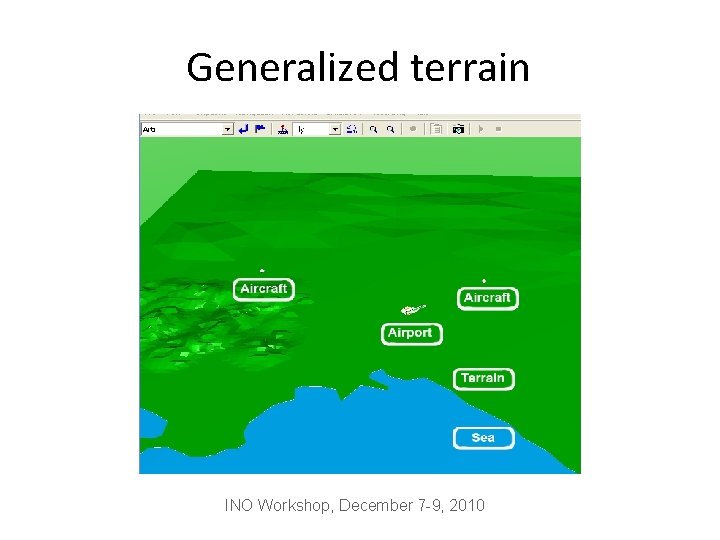

Generalized terrain INO Workshop, December 7 -9, 2010

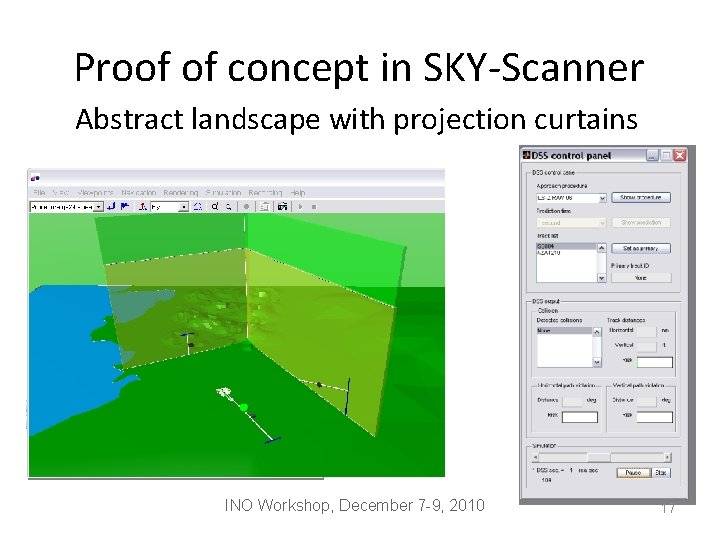

Proof of concept in SKY-Scanner Abstract landscape with projection curtains INO Workshop, December 7 -9, 2010 17

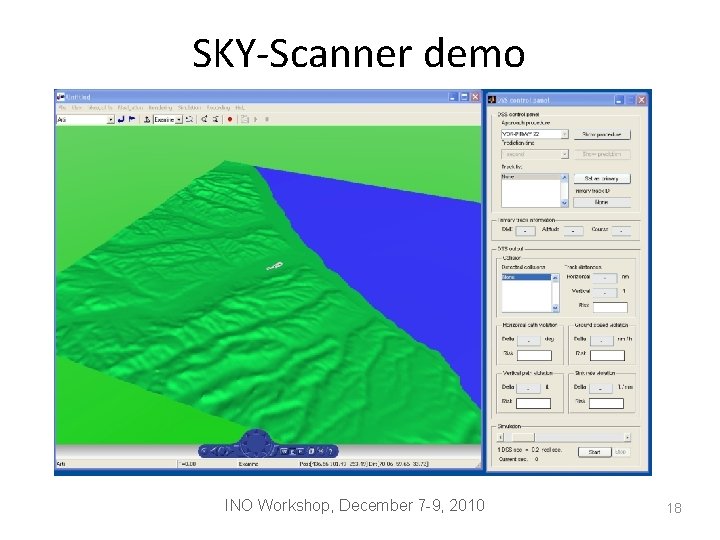

SKY-Scanner demo INO Workshop, December 7 -9, 2010 18

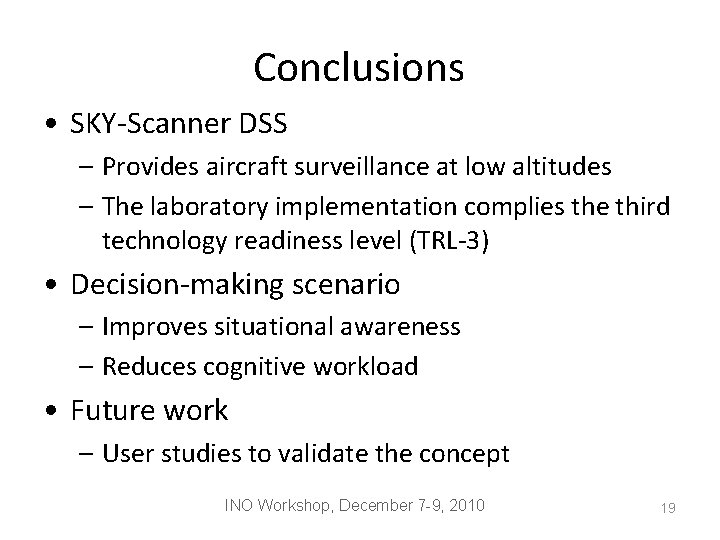

Conclusions • SKY-Scanner DSS – Provides aircraft surveillance at low altitudes – The laboratory implementation complies the third technology readiness level (TRL-3) • Decision-making scenario – Improves situational awareness – Reduces cognitive workload • Future work – User studies to validate the concept INO Workshop, December 7 -9, 2010 19

http: //www. sky-scanner. it/ Kristina LAPIN Associate professor Vilnius University kristina. lapin@mif. vu. lt Acknowledgements for the team: Vytautas ČYRAS, associate professor Sigitas DAPKŪNAS, associate professor Tomas PLANKIS, lecturer Laura SAVIČIENĖ, Ph. D student INO Workshop, December 7 -9, 2010 20
