Skype for Business Trivia Test your Skype for Business knowledge with questions created by MVPs and enjoy the trivia fun tomorrow night with complimentary food & drinks, and the chance to win great prizes! Tweet a photo from any Skype for Business session using the hashtag #Skype 4 BTrivia and be entered into a drawing to win a ticket to this invite-only Trivia game for you and a guest. One entry will be randomly selected each day. * If you don’t score an invite, you can still compete on Twitter with @Skype. Business Wednesday at 8: 30 pm for your chance to win a Surface Pro 3!** *No purchase necessary. Open only to event attendees. Game ends 5/7/2015. See Skype for Business Facebook for full Official Rules. **No purchase necessary. Open only to legal residents of any country where Surface Pro 3 is certified for distribution. Game ends 5/7/2015. See Skype for Business Facebook for full Official Rules. Microsoft Ignite #Skype 4 BTrivia
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-4.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-5.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-6.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-7.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-8.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-9.jpg)
![PSTN/ GSM Internet MPNS Exchange Online DMZ Forward Proxy Reverse Proxy EDGE (SIP) Enterprise PSTN/ GSM Internet MPNS Exchange Online DMZ Forward Proxy Reverse Proxy EDGE (SIP) Enterprise](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-10.jpg)
PSTN/ GSM Internet MPNS Exchange Online DMZ Forward Proxy Reverse Proxy EDGE (SIP) Enterprise SIP Federation (push. lync. com) Media Gateway PNCH Services FE Pool 1, Mediation Server FE Pool 2, Mediation Server FE Pool 3, Mediation Server Lync Server (with Skype for Business Web Components: UC Web API, Discovery) HTTP SIP
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-11.jpg)
![Exchange mailbox FE Pool TL_INFO, History: : CEws. Conversation. History. Provider: : Write. Message. Exchange mailbox FE Pool TL_INFO, History: : CEws. Conversation. History. Provider: : Write. Message.](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-12.jpg)
Exchange mailbox FE Pool TL_INFO, History: : CEws. Conversation. History. Provider: : Write. Message. To. Mailbox[CEws. Conversation. History. Provider_cpp 166], <O_TRC><ADR>0 x 08 C 8 C 8 D 8</ADR>Entry</O_TRC>
![Exchange Reverse proxy UCWA FE Exchange Reverse proxy UCWA FE](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-13.jpg)

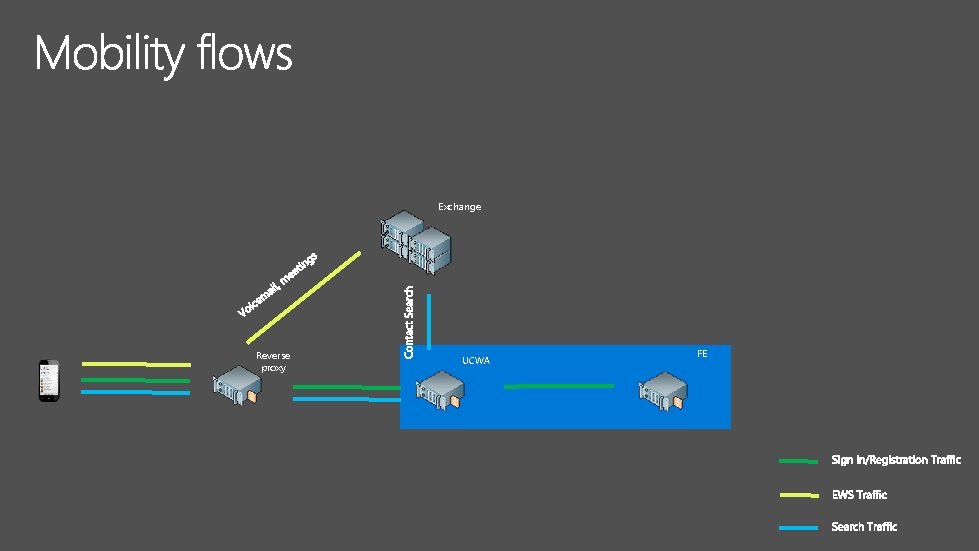

Exchange Reverse proxy UCWA FE
![Exchange Reverse proxy UCWA FE Exchange Reverse proxy UCWA FE](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-14.jpg)
Exchange Reverse proxy UCWA FE
![Exchange server CDR DB Qo. E DB Exchange server CDR DB Qo. E DB](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-15.jpg)
Exchange server CDR DB Qo. E DB
![Environment Prerequisites o In order to leverage this feature, user must be homed on Environment Prerequisites o In order to leverage this feature, user must be homed on](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-16.jpg)
Environment Prerequisites o In order to leverage this feature, user must be homed on Skype for Business Preview Server o Users must have a mailbox homed on Exchange 2013 (either on premise or online) o Skype for Business Server Preview has OAuth setup with the Exchange 2013 environment Exchange specific prerequisites 1) Verify OAuth is configured on Skype for Business Server Preview Get-Cs. Certificate -Type OAuth. Token. Issuer 2) Verify Exchange Server 2013 is configured to use OAuth with Skype for Business Server Preview Get-Partner. Application 3) Verify the configuration for Exchange 2013 Get-Cs. Partner. Application 4) Verify OAuth setup between Skype for Business and Exchange Test-Cs. Ex. Storage. Connectivity –Sip. Uri user@contoso. com -Verbose
![Enable Server Side Conversation History Set-Cs. Conversation. History. Configuration -Enable. Server. Conversation. History $true Enable Server Side Conversation History Set-Cs. Conversation. History. Configuration -Enable. Server. Conversation. History $true](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-17.jpg)
Enable Server Side Conversation History Set-Cs. Conversation. History. Configuration -Enable. Server. Conversation. History $true -verbose Set-Cs. Client. Policy –identity “policy_name” –Enable. Server. Conversation. History $true -verbose Verify replication and restart the front end service Get-Cs. Management. Store. Replication. Status Restart the Sf. B Services (assuming this is the first time Lync-Exchange auth has been configured) Required settings Cs. Mobility. Policy – Allow. Save. IMHistory flag = True Cs. Client. Policy – Disable. Saving. IM = False
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-18.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-19.jpg)
![Reverse Proxy FE Pool, UCWA & Exchange Reverse Proxy FE Pool, UCWA & Exchange](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-20.jpg)
Reverse Proxy FE Pool, UCWA & Exchange
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-21.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-22.jpg)
![Desktop Mobile Preferred Endpoint for Auto-accepting IMs Available Desktop Inactive Available Mobile Available Inactive Desktop Mobile Preferred Endpoint for Auto-accepting IMs Available Desktop Inactive Available Mobile Available Inactive](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-23.jpg)

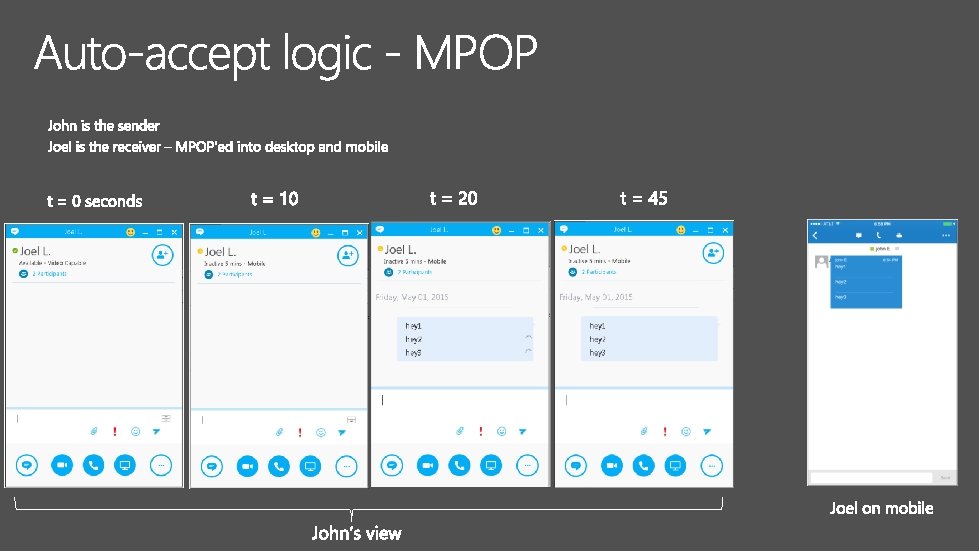

Desktop Mobile Preferred Endpoint for Auto-accepting IMs Available Desktop Inactive Available Mobile Available Inactive Desktop Away Inactive Mobile Offline Inactive Mobile Endpoint State ↓ Desktop Mobile Available 3500 ? Inactive ? ? Away ? 15450
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-24.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-25.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-26.jpg)
![Reverse Proxy FE Pool, UCWA & Exchange EDGE (SIP) Reverse Proxy FE Pool, UCWA & Exchange EDGE (SIP)](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-27.jpg)
Reverse Proxy FE Pool, UCWA & Exchange EDGE (SIP)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-28.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-29.jpg)
![Mobile. Preferred. Auth. Type Mobile. Preferred. Auth. Type](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-30.jpg)

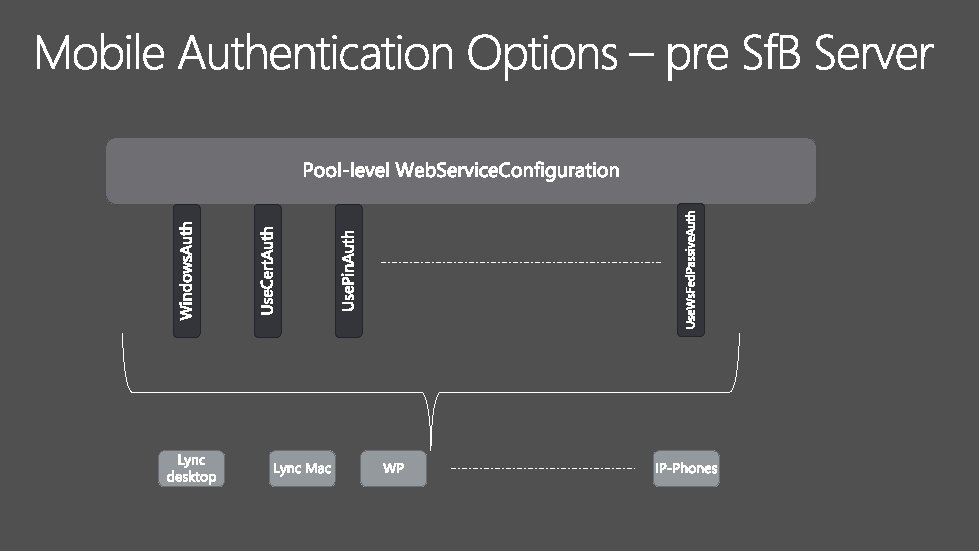

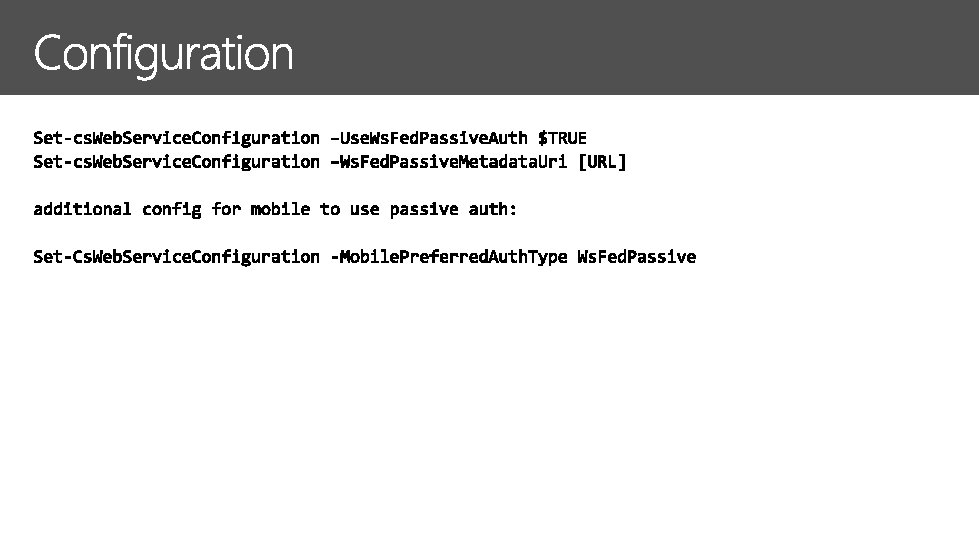

Mobile. Preferred. Auth. Type
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-31.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-32.jpg)
![](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-33.jpg)
![3: 15 PM BRK 3208 Mobility Deployment and Security with Skype for Business 9: 3: 15 PM BRK 3208 Mobility Deployment and Security with Skype for Business 9:](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-34.jpg)
3: 15 PM BRK 3208 Mobility Deployment and Security with Skype for Business 9: 00 AM BRK 4120 Troubleshooting Skype for Business Scenarios 12: 30 PM BRK 4102 Barak Manor; François Dorémieux; Girija S 104 Bhagavatula David Howe; Mohamad Saleem SIP Signaling, Negotiation and Media Flows in Johan Delimon Skype for Business, Explained S 404
![http: //myignite. microsoft. com http: //myignite. microsoft. com](http://slidetodoc.com/presentation_image_h/e2e9c74462d813227eb6199965235104/image-35.jpg)
http: //myignite. microsoft. com
