sky er, C k a e Sp Sile s o l r a NMTIE

sky er, C k a e Sp Sile s o l r a NMTIE Presentatio n Migration to Cluster Mod e

Introduction 0 Previous 7 -Mode Environment 0 Migrating from 7 -Mode to Cluster Mode

Introduction 0 Previous 7 -Mode Environment 0 Migrating from 7 -Mode to Cluster Mode 0 Present Cluster Mode Environment 0 Questions 9/30/2020 2

Benefits Gained with Clustered On. Tap 0 Reduce Footprint, Power and Cooling 0 Ease

Benefits Gained with Clustered On. Tap 0 Reduce Footprint, Power and Cooling 0 Ease of Manageability 0 Non Disruptive Operations (Almost Always On) 0 On Demand Flexibility 0 Scalability 0 Operational Efficiency 9/30/2020 3

Cfs 8/Cfs 9 7 -Mode Storage Configuration DR Fiber Network Cfs 1/cfs 2 Cfs

Cfs 8/Cfs 9 7 -Mode Storage Configuration DR Fiber Network Cfs 1/cfs 2 Cfs 4/Cfs 5 Cfs 6/Cfs 7 Cfs 10/Cfs 11 Erp AIX and Other Physical Server IP Network 9/30/2020 4 ESXi Serverss (VMWARE)

UNM Previous Environment – 7 Mode 0 Production Controllers: 0 0 CFS 1/CFS 2

UNM Previous Environment – 7 Mode 0 Production Controllers: 0 0 CFS 1/CFS 2 (FAS 3270) 115 TB used CFS 4/CFS 5 (FAS 6240) 42 TB used CFS 6/CFS 7 (FAS 3170) 49 TB used CFS 10/CFS 11 (FAS 3140) 55 TB used 0 DR Controllers: 0 CFS 8/CFS 9 (FAS 3210) 59 TB used 9/30/2020 5

UNM Previous Environment – 7 Mode Major Applications: 0 Exchange 2010 0 102 TB,

UNM Previous Environment – 7 Mode Major Applications: 0 Exchange 2010 0 102 TB, 96 Volumes 0 Oracle 0 29 TB, 89 FCP and i. SCSI Volumes 0 7. 1 TB, 8 NFS Volumes 0 TSM Storage Pools 0 50 TB, 15 NFS/i. SCSI 0 VMware 0 46 TB. 28 NFS Volumes Summary: 0 153 CIFS/NFS Volumes 0 220 FCP/i. SCSI Volumes 9/30/2020 6

Migration Plan High Level Plan to Transition to Production Clustered On. Tap: 0 Configure

Migration Plan High Level Plan to Transition to Production Clustered On. Tap: 0 Configure FAS 6280 to serve as swing space (Provided by Net. App) 0 0 Install FC cards Connect to 10 G Network Install disk shelves Configure as initial 2 -node c. DOT 0 FAS 3270 (CFS 1/2) transition to Clustered Data ONTAP 0 Migration of data to FAS 6280 0 102 TB Exchange Data (Carlos & Team) 0 13 TB CIFS/NFS data using 7 MTT (Net. App assistance with initial migration) 0 Conversion to c. DOT and join to cluster 0 Copy data back as needed 9/30/2020 7

Migration Plan 0 FAS 6240 (CFS 4/5) transition to Clustered Data ONTAP 0 29

Migration Plan 0 FAS 6240 (CFS 4/5) transition to Clustered Data ONTAP 0 29 TB FC Oracle data via LVM (UNM will migrate all Data) 0 7 TB NFS Oracle data via 7 MTT (Net. App will Migrate all NFS) 0 Conversion to c. DOT and join to the cluster (Net. App) 0 FAS 3140 (CFS 10/11) data migration 0 0 50 TB NFS migration of TSM data via 7 MTT (Net. App) 500 GB NFS/CIFS migration via 7 MTT (Net. App) 5 TB i. SCSI LUN data migration via Net. App DTA (UNM LVM) **End state of FAS 3140 demised** 0 FAS 3170 (CFS 6/7) Transition to Clustered Data ONTAP 0 0 46 TB NFS VMware data migration via Storage v. Motion (UNM - Data v. Motion ) 3 TB NFS DB 2 TSM data migration via 7 MTT (Net. App) Conversion to c. DOT and configure as DR target Perform local Snap. Mirror sync 9/30/2020 8

Modified Plan 0 We got New Storage 0 This saved us time because did

Modified Plan 0 We got New Storage 0 This saved us time because did only one move 0 7 -mode HA Pair to Swing Gear Cluster 0 Then, from Swing Gear back to newly cluster HA Pair 9/30/2020 9

Migration Methods 0 MS Exchange 0 Mailbox moves (online) 0 Dag Failover 0 Oracle

Migration Methods 0 MS Exchange 0 Mailbox moves (online) 0 Dag Failover 0 Oracle 0 Block data via AIX & Linux Volume Managers 0 NFS data via 7 MTT 0 VMware 0 Via Storage v. Motion 9/30/2020 10

Migration Methods 0 CIFS/NFS 0 Via 7 MTT 0 Misc. Windows LUN data (Windows

Migration Methods 0 CIFS/NFS 0 Via 7 MTT 0 Misc. Windows LUN data (Windows Mirroring) 0 DR FAS 3170 0 Assist UNM with bringing system down and preparing for shipping 0 Re-install at DR site 0 Re-create Mirrors For Production Oracle & VMware 0 Replicate TSM Backups 9/30/2020 11

UNM – Clustered On. Tap Environment 0 Production Clustered On. Tap (4 Node): 0

UNM – Clustered On. Tap Environment 0 Production Clustered On. Tap (4 Node): 0 0 2 x FAS 3270 nodes (old cfs 1/2) 2 x FAS 6240 nodes (old cfs 4/5) Includes data from: CFS 1/CFS 2, CFS 4/CFS 5, CFS 6/CFS 7, CFS 10/CFS 11 0 DR Clustered On. Tap (2 Node): 0 2 x FAS 3170 (old cfs 6/7) 0 Includes data from: 0 CFS 8/CFS 9 9/30/2020 12

UNM – Clustered On. Tap Environment 0 Move Volumes & Aggregates 0 From Sata

UNM – Clustered On. Tap Environment 0 Move Volumes & Aggregates 0 From Sata to Sas and vice versa 0 From One HA Node to Another 0 Reduced Number of Storage Silos 0 Bigger aggregates 0 Reduce number of parity disks 0 Centralized Storage, Oncommand Web Management Interface 0 0 9/30/2020 Manage DR & Production Clusters To manage/create lifs , vservers and nodes To manage/create volumes, luns, shares, etc Next , I will walk you through this tool 13

Oncommand Cluster View 9/30/2020 14

Oncommand Cluster View 9/30/2020 14

Production Cluster 9/30/2020 15

Production Cluster 9/30/2020 15

Production Cluster 9/30/2020 16

Production Cluster 9/30/2020 16

Cluster Aggregates 9/30/2020 17

Cluster Aggregates 9/30/2020 17

Vservers View 9/30/2020 18

Vservers View 9/30/2020 18

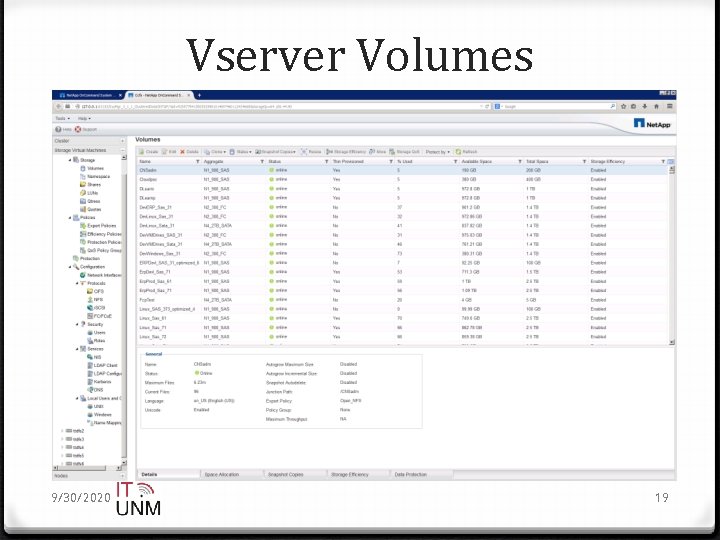

Vserver Volumes 9/30/2020 19

Vserver Volumes 9/30/2020 19

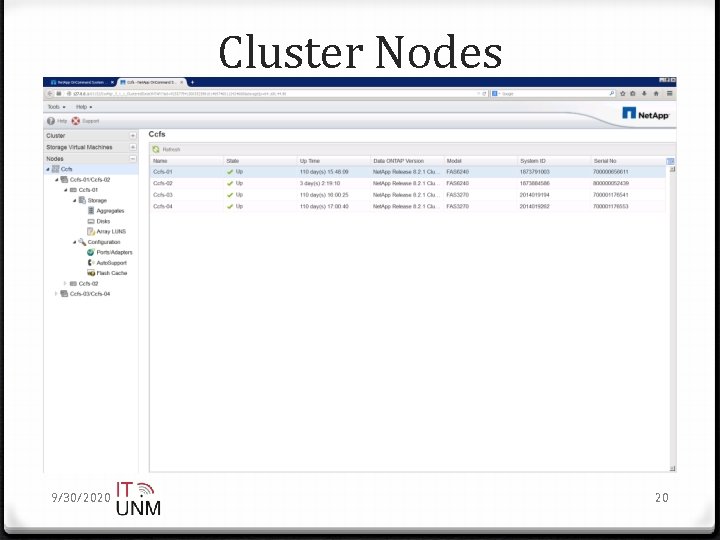

Cluster Nodes 9/30/2020 20

Cluster Nodes 9/30/2020 20

Present Cluster Mode Storage Configuration Dr 1/Dr 2 DR Fiber Network Node 1/Node 2

Present Cluster Mode Storage Configuration Dr 1/Dr 2 DR Fiber Network Node 1/Node 2 Node 3/Node 4 Erp AIX and Other Physical Server Cluster Switches IP Network ESXi Serverss (VMWARE) 9/30/2020 21

Thanks Any Questions? 9/30/2020 22

Thanks Any Questions? 9/30/2020 22
