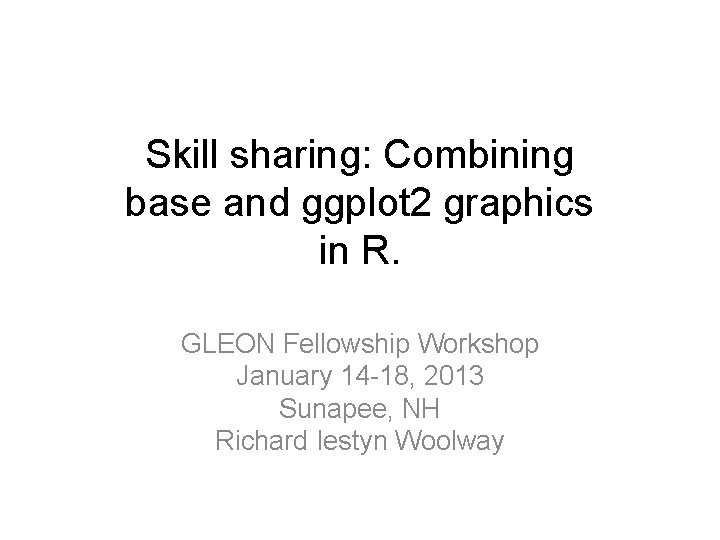

Skill sharing: Combining base and ggplot 2 graphics in R. GLEON Fellowship Workshop January 14 -18, 2013 Sunapee, NH Richard Iestyn Woolway

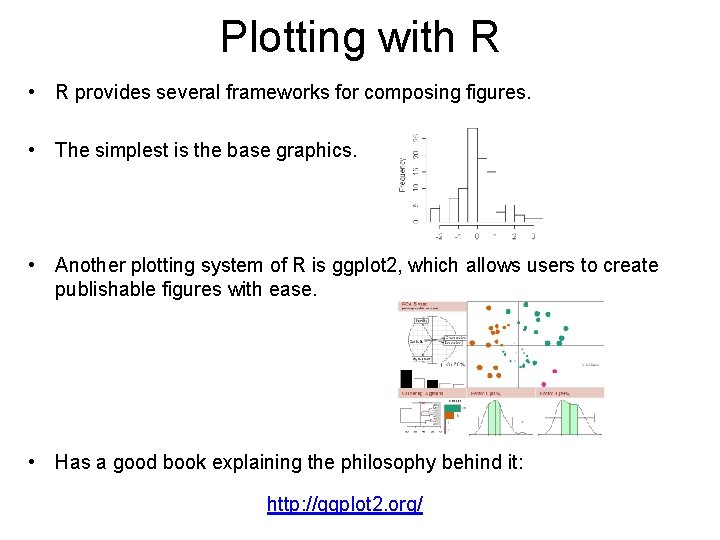

Plotting with R • R provides several frameworks for composing figures. • The simplest is the base graphics. • Another plotting system of R is ggplot 2, which allows users to create publishable figures with ease. • Has a good book explaining the philosophy behind it: http: //ggplot 2. org/

Plotting with R – base graphics • I recently needed to create a multi panel figure composed of a line plot, continuous wavelet transform, and the autocorrelation of a time series. • This can easily be created in base graphics using either par() or layout(). • I then decided to use ggplot 2 to improve the quality of the acf plot in the third panel of the figure.

Plotting with R – ggplot 2 graphics • We can improve the quality of the acf plot with ggplot 2: • However, as par() and layout() are only available with base graphics, we cannot mix base and ggplot graphics in a single figure window. • The most appropriate solution is to use the grid. Base package. • The script called ‘RIW_code. R’ shows how grid. Base is used.

Integration of base and ggplot graphics • grid. Base provides similar functionality to par(mfrow=c(x, y)). • This is an useful technique when we wish to create multiple panel figures that combines plots based on base graphics (e. g. biplots), that have not been implemented in grid (i. e. ggplot), and the task of re-implementing in grid is extremely daunting.
