Sixth nerve palsy abducens nerve palsy Abbas Attarzadeh

Sixth nerve palsy abducens nerve palsy Abbas Attarzadeh Professor of ophthalmology Shiraz University of medical sciences

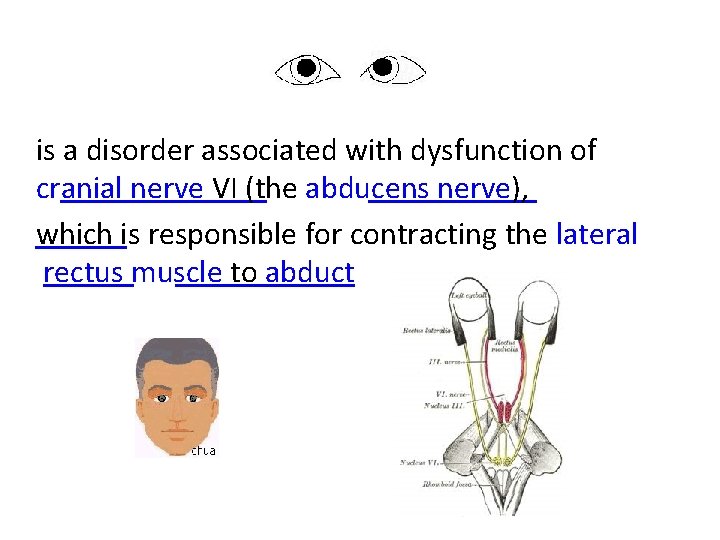

is a disorder associated with dysfunction of cranial nerve VI (the abducens nerve), which is responsible for contracting the lateral rectus muscle to abduct

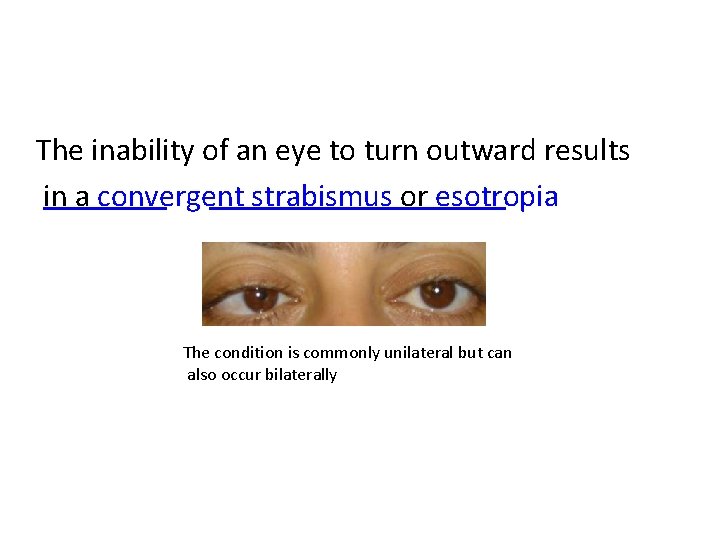

The inability of an eye to turn outward results in a convergent strabismus or esotropia The condition is commonly unilateral but can also occur bilaterally

The affected individual will have an esotropia or convergent squint on distance fixation. On near fixation the affected indiviual may have only a latent deviation and be able to maintain binocularity or have an esotropia of a smaller size.

Patients sometimes adopt a face turn towards the side of the affected eye, moving the eye away from the field of action of the affected lateral rectus muscle, with the aim of controlling diplopia and maintaining binocular vision.

Diplopia is typically experienced by adults with VI nerve palsies, but children with the condition may not experience diplopia due to suppression. The neural plasticity present in childhood allows the child to 'switch off' the information coming from one eye, thus relieving any diplopic symptoms. Whilst this is a positive adaptation in the short term, in the long term it can lead to a lack of appropriate development of the visual cortex giving rise to permanent visual loss in the suppressed eye; a condition known as amblyopia.

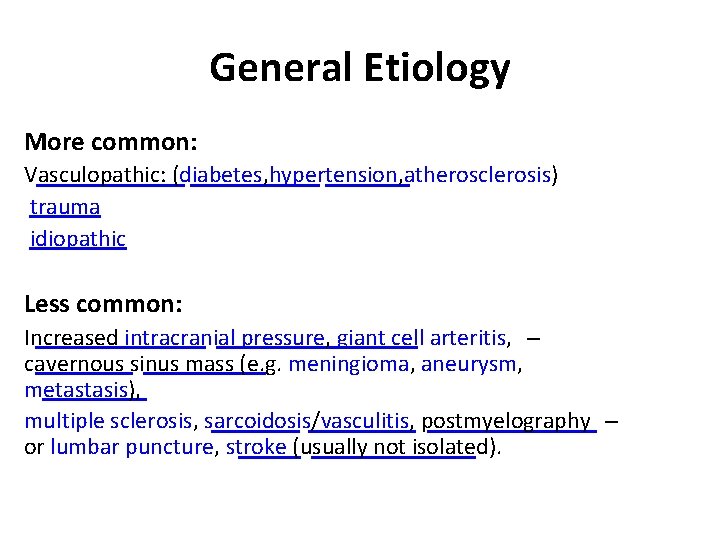

General Etiology More common: Vasculopathic: (diabetes, hypertension, atherosclerosis) trauma idiopathic Less common: Increased intracranial pressure, giant cell arteritis, – cavernous sinus mass (e. g. meningioma, aneurysm, metastasis), multiple sclerosis, sarcoidosis/vasculitis, postmyelography – or lumbar puncture, stroke (usually not isolated).

In children, Harley reports typical etiologies as traumatic, neoplastic (most commonly brainstem glioma), as well as idiopathic. Vallee et al. report that benign and rapidly recovering isolated VIth nerve palsy can occur in childhood, sometimes precipitated by ear, nose and throat infections.

Localizing Signs

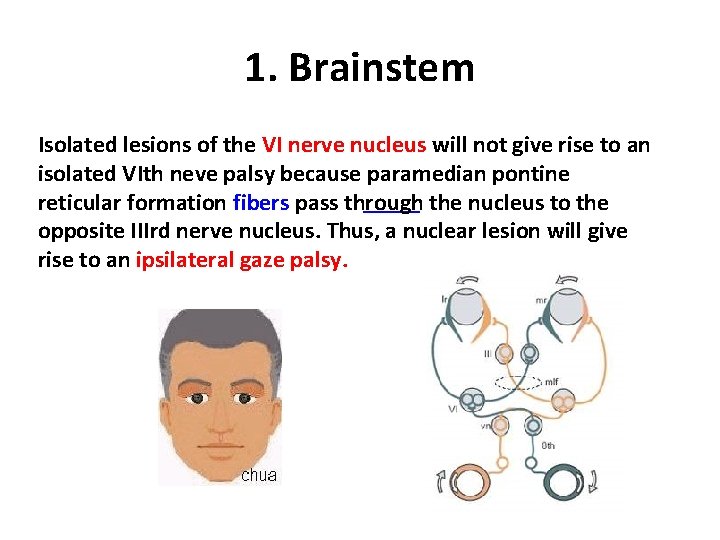

1. Brainstem Isolated lesions of the VI nerve nucleus will not give rise to an isolated VIth neve palsy because paramedian pontine reticular formation fibers pass through the nucleus to the opposite IIIrd nerve nucleus. Thus, a nuclear lesion will give rise to an ipsilateral gaze palsy.

1. Brainstem In addition, fibers of the seventh cranial nerve wrap around the VIth nerve nucleus, and, if this is also affected, a VIth nerve palsy with ipsilateral facial palsy will result. In Millard Gubler syndrome, a unilateral softening of the brain tissue arising from obstruction of the blood vessels of the pons involving sixth and seventh cranial nerves and the corticospinal tract, the VIth nerve palsy and ipsilateral facial paresis occur with a contralateral hemiparesis. Foville's syndrome can also arise as a result of brainstem lesions which affect Vth, VIth and VIIth cranial nerves.

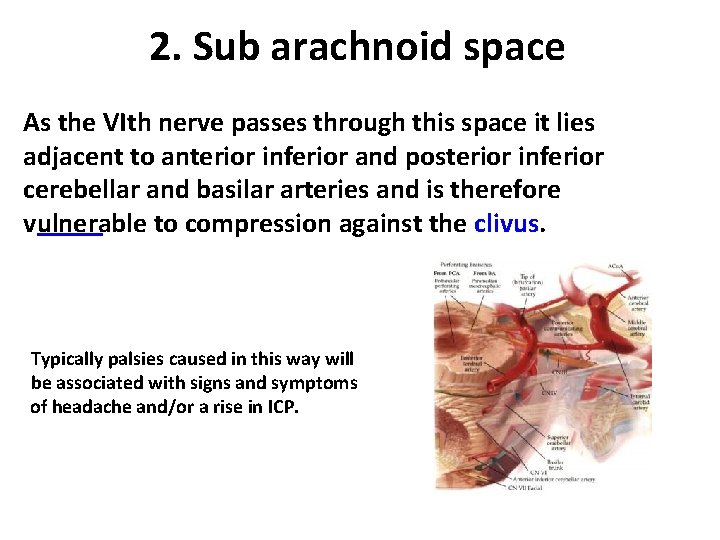

2. Sub arachnoid space As the VIth nerve passes through this space it lies adjacent to anterior inferior and posterior inferior cerebellar and basilar arteries and is therefore vulnerable to compression against the clivus. Typically palsies caused in this way will be associated with signs and symptoms of headache and/or a rise in ICP.

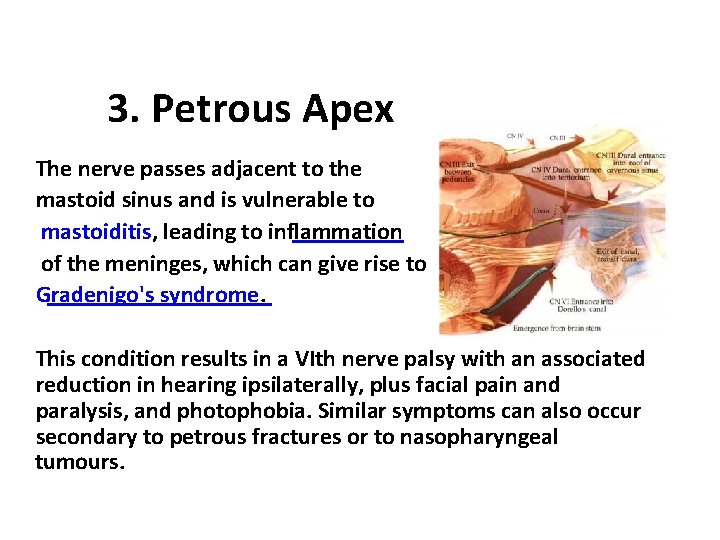

3. Petrous Apex The nerve passes adjacent to the mastoid sinus and is vulnerable to mastoiditis, leading to inflammation of the meninges, which can give rise to Gradenigo's syndrome. This condition results in a VIth nerve palsy with an associated reduction in hearing ipsilaterally, plus facial pain and paralysis, and photophobia. Similar symptoms can also occur secondary to petrous fractures or to nasopharyngeal tumours.

4. Cavernous sinus/Superior orbital fissure The nerve runs in the sinus body adjacent to the internal carotid artery and oculo-sympathetic fibres responsible for pupil control, thus, lesions here might be associated with pupillary dysfunctions such as Horner's syndrome.

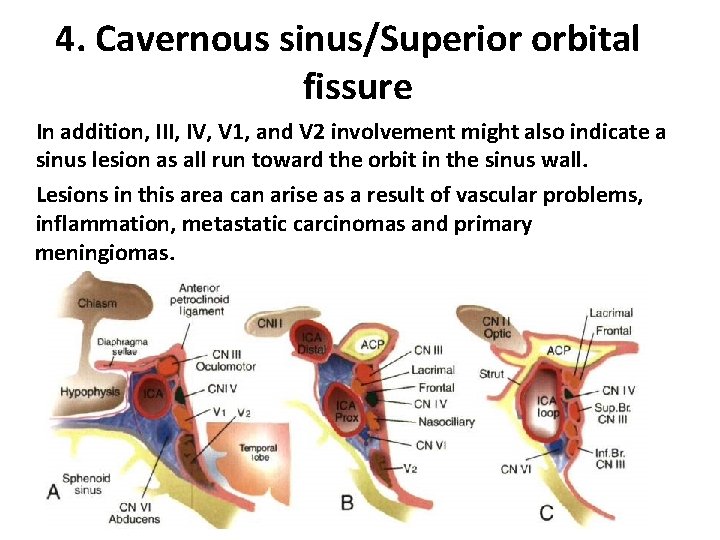

4. Cavernous sinus/Superior orbital fissure In addition, III, IV, V 1, and V 2 involvement might also indicate a sinus lesion as all run toward the orbit in the sinus wall. Lesions in this area can arise as a result of vascular problems, inflammation, metastatic carcinomas and primary meningiomas.

5. Orbit The VIth nerve's course is short and lesions in the orbit rarely give rise to isolated VIth nerve palsies, but more typically involve one or more of the other extraocular muscle groups.

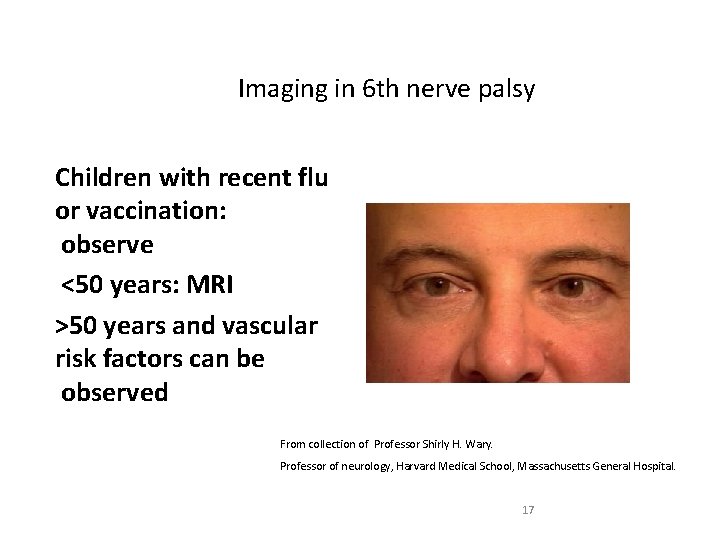

Imaging in 6 th nerve palsy Children with recent flu or vaccination: observe <50 years: MRI >50 years and vascular risk factors can be observed From collection of Professor Shirly H. Wary. Professor of neurology, Harvard Medical School, Massachusetts General Hospital. 17

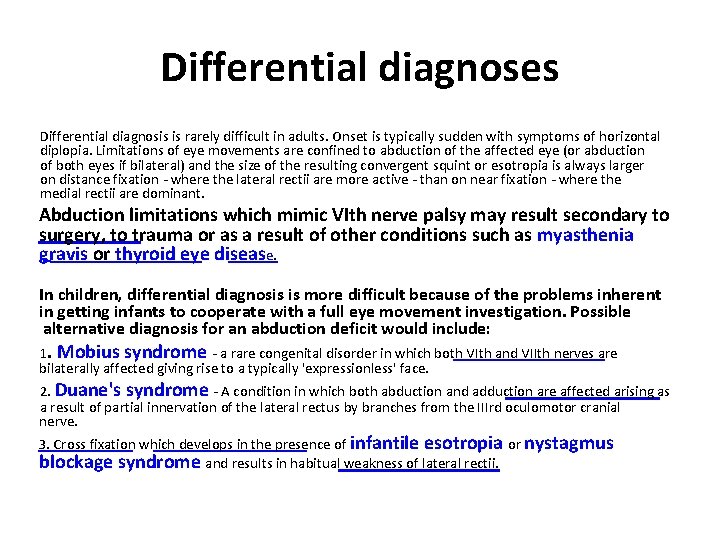

Differential diagnoses Differential diagnosis is rarely difficult in adults. Onset is typically sudden with symptoms of horizontal diplopia. Limitations of eye movements are confined to abduction of the affected eye (or abduction of both eyes if bilateral) and the size of the resulting convergent squint or esotropia is always larger on distance fixation - where the lateral rectii are more active - than on near fixation - where the medial rectii are dominant. Abduction limitations which mimic VIth nerve palsy may result secondary to surgery, to trauma or as a result of other conditions such as myasthenia gravis or thyroid eye disease. In children, differential diagnosis is more difficult because of the problems inherent in getting infants to cooperate with a full eye movement investigation. Possible alternative diagnosis for an abduction deficit would include: 1. Mobius syndrome - a rare congenital disorder in which both VIth and VIIth nerves are bilaterally affected giving rise to a typically 'expressionless' face. 2. Duane's syndrome - A condition in which both abduction and adduction are affected arising as a result of partial innervation of the lateral rectus by branches from the IIIrd oculomotor cranial nerve. 3. Cross fixation which develops in the presence of infantile esotropia or nystagmus blockage syndrome and results in habitual weakness of lateral rectii.

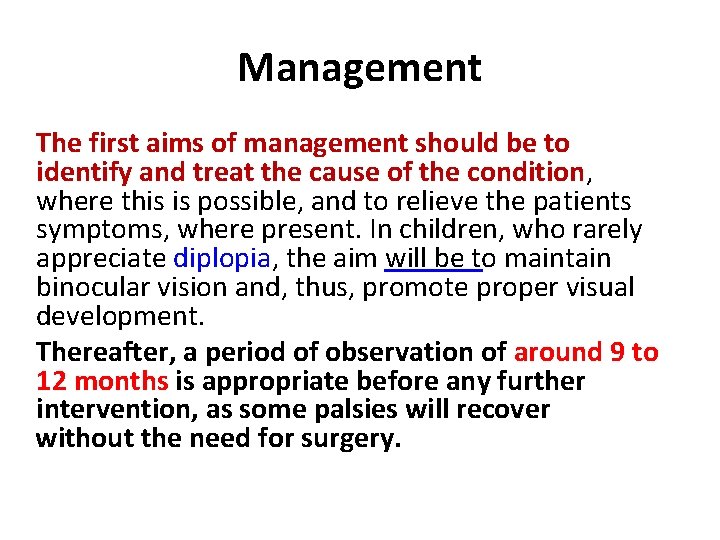

Management The first aims of management should be to identify and treat the cause of the condition, where this is possible, and to relieve the patients symptoms, where present. In children, who rarely appreciate diplopia, the aim will be to maintain binocular vision and, thus, promote proper visual development. Thereafter, a period of observation of around 9 to 12 months is appropriate before any further intervention, as some palsies will recover without the need for surgery.

Symptom relief and/or binocular vision maintenance This is most commonly achieved through the use of fresnel prisms. These slim flexible plastic prisms can be attached to the patient's glasses, or to plano glasses if the patient has no refractive error, and serve to compensate for the inward misalignment of the affected eye. Unfortunately, the prism only correct for a fixed degree of misalignment and, because the affected individual's degree of misalignment will vary depending upon their direction of gaze, they may still experience diplopia when looking to the affected side. The prisms are available in different strengths and the most appropriate one can be selected for each patient. However, in patients with large deviations, the thickness of the prism required may reduce vision so much that binocularity is not achievable. In such cases it may be more appropriate simply to occlude one temporarily. Occlusion would never be used in infants though both because of the risk of inducing stimulus deprivation amblyopia and because they do not experience diplopia. eye

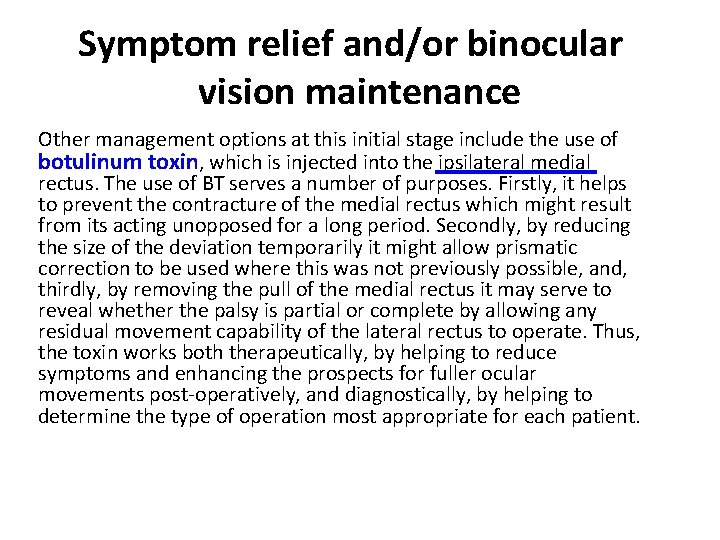

Symptom relief and/or binocular vision maintenance Other management options at this initial stage include the use of botulinum toxin, which is injected into the ipsilateral medial rectus. The use of BT serves a number of purposes. Firstly, it helps to prevent the contracture of the medial rectus which might result from its acting unopposed for a long period. Secondly, by reducing the size of the deviation temporarily it might allow prismatic correction to be used where this was not previously possible, and, thirdly, by removing the pull of the medial rectus it may serve to reveal whether the palsy is partial or complete by allowing any residual movement capability of the lateral rectus to operate. Thus, the toxin works both therapeutically, by helping to reduce symptoms and enhancing the prospects for fuller ocular movements post-operatively, and diagnostically, by helping to determine the type of operation most appropriate for each patient.

Guillain barre (GBS)

Acute 6 th N palsy

VI N palsy post toxin injection 1 st Day 5 moth post injection One week

Recurrent 6 th N palsy No cause 1 st Day 1 week Toxin injection

Longer term management where full recovery has not occurred after the 9 to 12 month 'watch and wait' period, management will take either a 'conservative' or a surgical course.

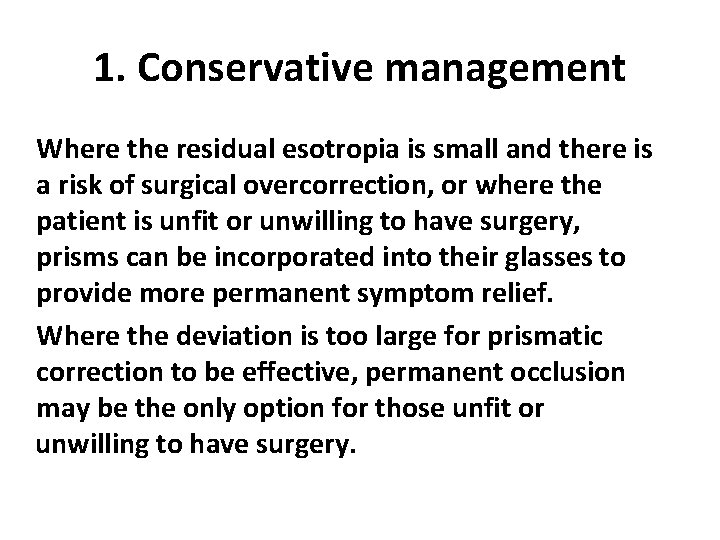

1. Conservative management Where the residual esotropia is small and there is a risk of surgical overcorrection, or where the patient is unfit or unwilling to have surgery, prisms can be incorporated into their glasses to provide more permanent symptom relief. Where the deviation is too large for prismatic correction to be effective, permanent occlusion may be the only option for those unfit or unwilling to have surgery.

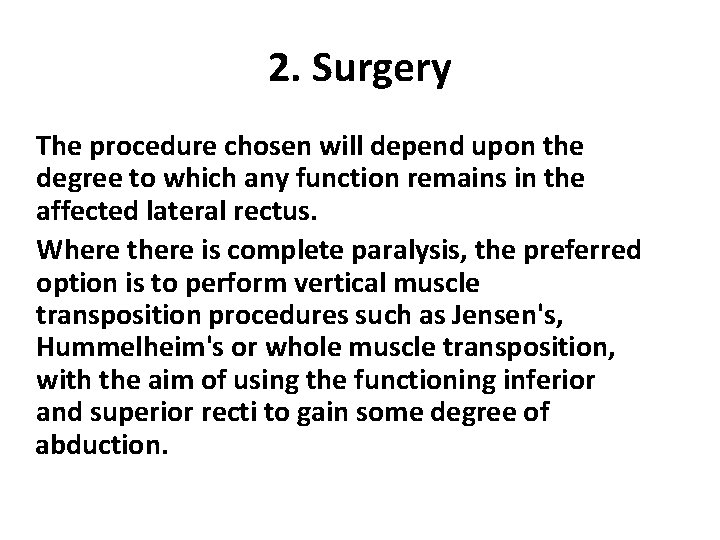

2. Surgery The procedure chosen will depend upon the degree to which any function remains in the affected lateral rectus. Where there is complete paralysis, the preferred option is to perform vertical muscle transposition procedures such as Jensen's, Hummelheim's or whole muscle transposition, with the aim of using the functioning inferior and superior recti to gain some degree of abduction.

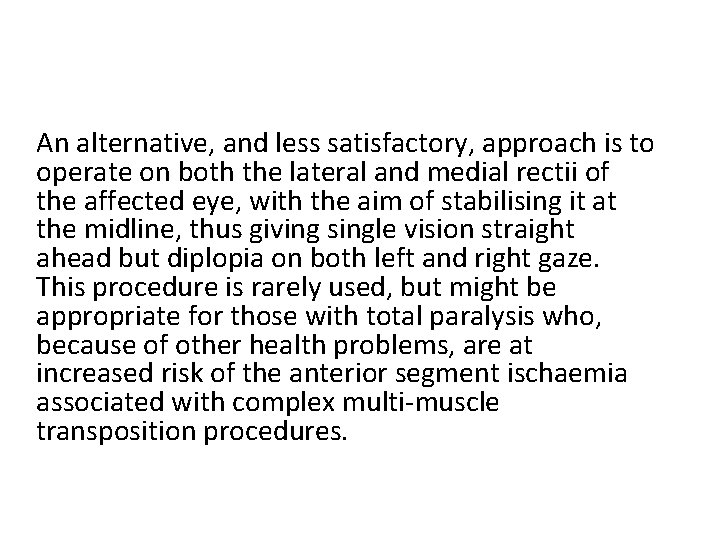

An alternative, and less satisfactory, approach is to operate on both the lateral and medial rectii of the affected eye, with the aim of stabilising it at the midline, thus giving single vision straight ahead but diplopia on both left and right gaze. This procedure is rarely used, but might be appropriate for those with total paralysis who, because of other health problems, are at increased risk of the anterior segment ischaemia associated with complex multi-muscle transposition procedures.

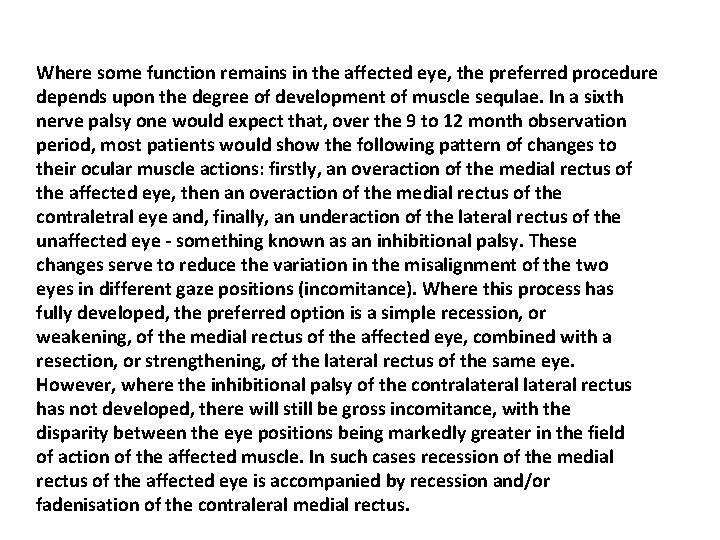

Where some function remains in the affected eye, the preferred procedure depends upon the degree of development of muscle sequlae. In a sixth nerve palsy one would expect that, over the 9 to 12 month observation period, most patients would show the following pattern of changes to their ocular muscle actions: firstly, an overaction of the medial rectus of the affected eye, then an overaction of the medial rectus of the contraletral eye and, finally, an underaction of the lateral rectus of the unaffected eye - something known as an inhibitional palsy. These changes serve to reduce the variation in the misalignment of the two eyes in different gaze positions (incomitance). Where this process has fully developed, the preferred option is a simple recession, or weakening, of the medial rectus of the affected eye, combined with a resection, or strengthening, of the lateral rectus of the same eye. However, where the inhibitional palsy of the contralateral rectus has not developed, there will still be gross incomitance, with the disparity between the eye positions being markedly greater in the field of action of the affected muscle. In such cases recession of the medial rectus of the affected eye is accompanied by recession and/or fadenisation of the contraleral medial rectus.

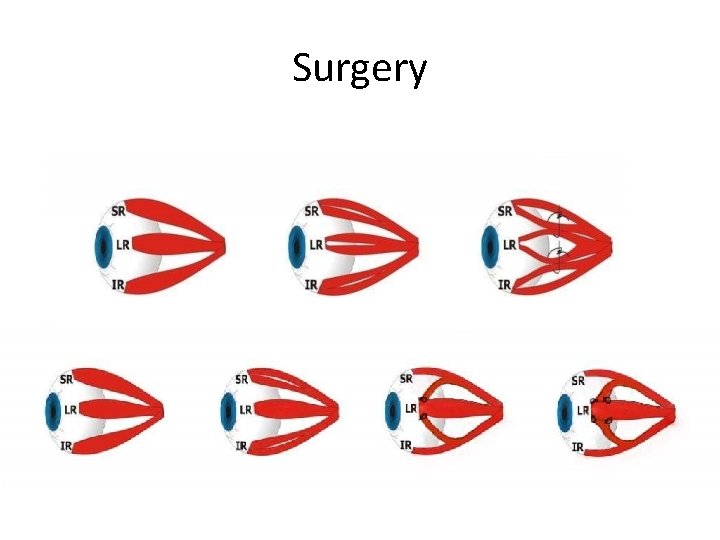

Surgery

VI nerve palsy bilateral Lt side cured spontaneously

Traumatic 6 th N palsy
