Site B Site A Control Office Site E

  • Slides: 9
Download presentation
Site B Site A Control Office Site E Site C Site D

Site B Site A Control Office Site E Site C Site D

Basic Installing Diagram: 1. Set up independent wireless link at each site 2. Line-of-sight

Basic Installing Diagram: 1. Set up independent wireless link at each site 2. Line-of-sight shall be available 3. The Antenna shall be install above roof or tower 4. Distance Up to 6 km 5. The camera quantity below 5 will be installed model Alink-5801 a at site 6. The camera quantity above 5 and below 10 will be Alink-PW 5 at site (the antenna pole, electricity power shall be arrange by clients at site)

Project Description 1. Distance: 5 km for Each Site to Control Office 2. The

Project Description 1. Distance: 5 km for Each Site to Control Office 2. The Maximum Camera quantity at each site: 10 cameras 3. Compatible for Analog CCTV Camera 4. Compatible for DVR system

Equipment Required Site A. 1. Alink-5801 a: 5. 1~5. 8 GHz Wireless Unit with

Equipment Required Site A. 1. Alink-5801 a: 5. 1~5. 8 GHz Wireless Unit with 23 d. Bi Panel Antenna (including Accessories) x 1 set 2. AVS-264 Video Server x 5 sets 3. 8 port Switching Hub x 1 pcs 4. Camera and Camera accessories (provided by clients)

Equipment Required Site B. 1. Alink-5801 a: 5. 1~5. 8 GHz Wireless Unit with

Equipment Required Site B. 1. Alink-5801 a: 5. 1~5. 8 GHz Wireless Unit with 23 d. Bi Panel Antenna (including Accessories) x 1 set 2. AVS-264 Video Server x 5 sets 3. 8 port Switching Hub x 1 pcs 4. Camera and Camera accessories (provided by clients)

Equipment Required Site C. 1. Alink-5801 a: 5. 1~5. 8 GHz Wireless Unit with

Equipment Required Site C. 1. Alink-5801 a: 5. 1~5. 8 GHz Wireless Unit with 23 d. Bi Panel Antenna (including Accessories) x 1 set 2. AVS-264 Video Server x 2 sets 3. 4 port Switching Hub x 1 pcs 4. Camera and Camera accessories (provided by clients)

Equipment Required Site D. 1. Alink-PW 5: 5. 1~5. 8 GHz Wireless Unit with

Equipment Required Site D. 1. Alink-PW 5: 5. 1~5. 8 GHz Wireless Unit with 23 d. Bi Panel Antenna (including Accessories) x 1 set 2. AVS-264 Video Server x 10 sets 3. 16 port Switching Hub x 1 pcs 4. Camera and Camera accessories (provided by clients)

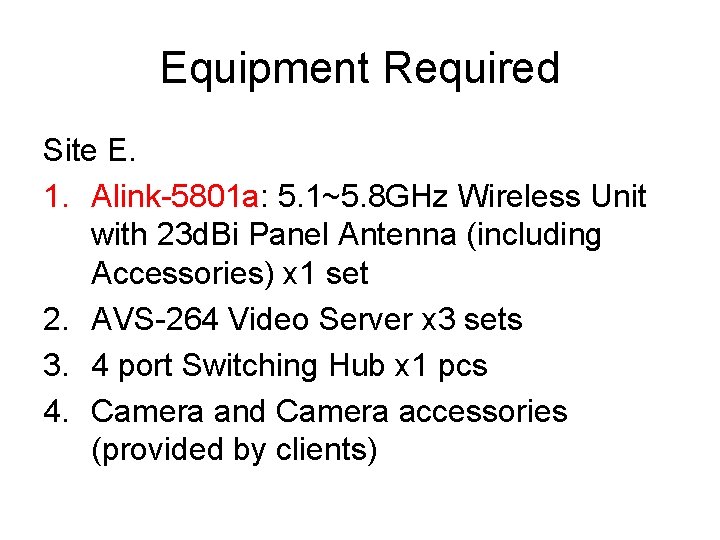

Equipment Required Site E. 1. Alink-5801 a: 5. 1~5. 8 GHz Wireless Unit with

Equipment Required Site E. 1. Alink-5801 a: 5. 1~5. 8 GHz Wireless Unit with 23 d. Bi Panel Antenna (including Accessories) x 1 set 2. AVS-264 Video Server x 3 sets 3. 4 port Switching Hub x 1 pcs 4. Camera and Camera accessories (provided by clients)

Equipment Required Control Office 1. Alink-5801 a: 5. 1~5. 8 GHz Wireless Unit with

Equipment Required Control Office 1. Alink-5801 a: 5. 1~5. 8 GHz Wireless Unit with 23 d. Bi Panel Antenna (including Accessories) x 4 set 2. Alink-PW 5: 5. 1~5. 8 GHz Wireless Unit with 23 d. Bi Panel Antenna (including Accessories) x 1 set 3. AVS-200 D Video Decoder x 25 sets 4. 16 port Switching Hub x 2 pcs 5. Camera and Camera accessories (provide by client) 6. 32 channel DVR ( not include) 7. Monitor: (not includes)
