SISTEM SARAF PUSAT Pembagian Syaraf Susunan Syaraf Pusat
SISTEM SARAF PUSAT

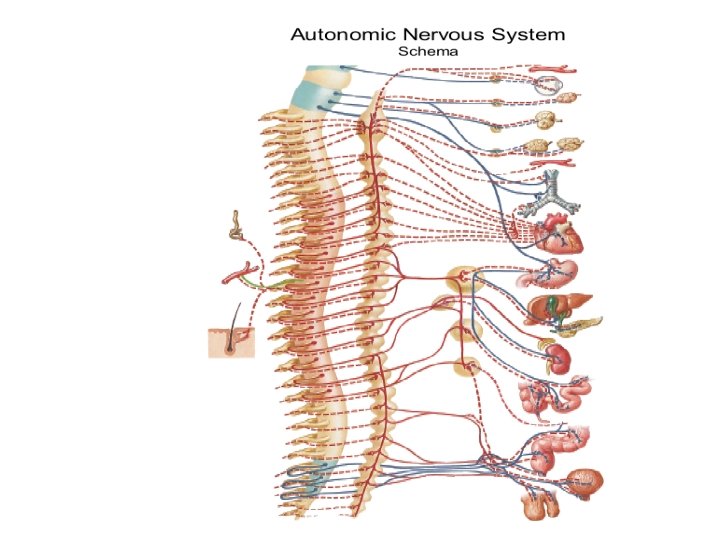

Pembagian Syaraf : <Susunan Syaraf Pusat (SSP) tdd : Otak o Medula Spinalis (Sum-sum Tl Belakang) o <Susunan Syaraf Perifer tdd : Susunan Syaraf Somatik (Pengatur otot sadar) o Susunan Syaraf Otonom (pengatur otot tak sadar spt jantung, hati, jalan pencernaan dll). Tdd : o Susunan Syaraf Simpatis § Susunan Syaraf Parasimpatis §
MANUSIA DICIPTAKAN TUHAN DENGAN KEMAMPUAN YANG MELEBIHI KEMAMPUAN MAKHLUK LAINNYA. KARENA MANUSIA DIBERIKAN SATU ALAT/ORGAN YANG DISEBUT OTAK DAN MEMPUNYAI KEMAMPUAN YANG SANGAT UNIK. DENGAN KEMAMPUAN OTAKNYA, MANUSIA DAPAT MENGEMBANGKAN DIRINYA SECARA OPTIMAL UNTUK BERADAPTASI MENCAPAI TATANAN SOSIAL TERTENTU PADA LINGKUNGAN SEKITARNYA DAN AKHIRNYA MANUSIA DAPAT MENGENAL SIAPA PENCIPTANYA.
FUNGSI DASAR: -GERAK -FUNGSI PENGATURAN ORGAN OTAK SEBAGAI ORGAN PENGENDALI BERBAGAI RAGAM FUNGSI KEHIDUPAN FUNGSI LUHUR: -KOGNITIF (INTELEKTUAL) : PERHATIAN FUNGSI MENGINGAT: MENGINGAT VISUAL MENGINGAT AUDITORY MENGINGAT KINESTETIK -EMOSI DAN PRILAKU -BAHASA -EXECUTIVE FUNCTION
APAKAH KEAJAIBAN OTAK ? 1. BENTUK OTAK YANG UNIK 2. KERJA OTAK YANG UNIK

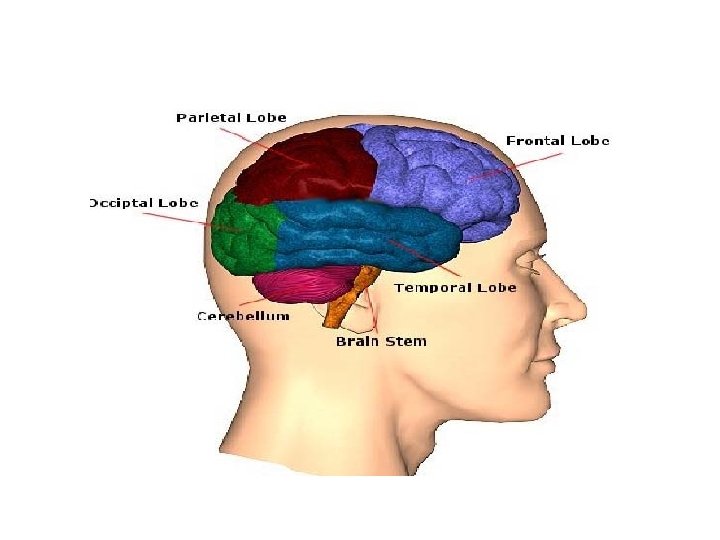

1. BENTUK OTAK YANG UNIK Ø OTAK TERDIRI DARI 100 -200 MILYARD SEL AKTIF YANG SALING BERHUBUNGAN Ø DILAPISI SELAPUT TIPIS Ø OTAK BESAR TERDIRI DARI 2 BELAHAN, YAITU BELAHAN KIRI & KANAN YANG DIHUBUNGKAN OLEH JEMBATAN YANG DISEBUT CORPUS CALOSUM Ø MASING 2 BELAHAN TERDIRI DARI 4 LOBUS (PARIETAL, TEMPORAL, OKSIPITAL & FRONTAL)
Evolution of the Nervous System Figure 9 -1: Evolution of the nervous system
- lahir 350 gr - 3 bulan 500 gr - 18 bulan 1000 gr - 6 tahun 1300 gr

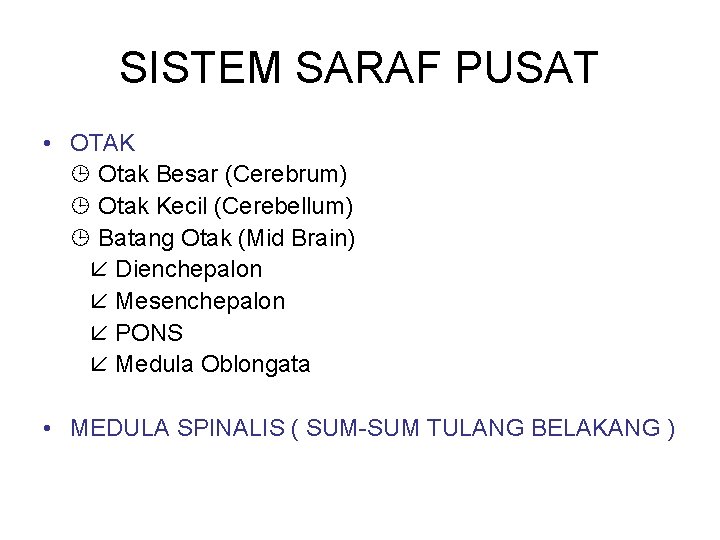

SISTEM SARAF PUSAT • OTAK Otak Besar (Cerebrum) Otak Kecil (Cerebellum) Batang Otak (Mid Brain) Dienchepalon Mesenchepalon PONS Medula Oblongata • MEDULA SPINALIS ( SUM-SUM TULANG BELAKANG )

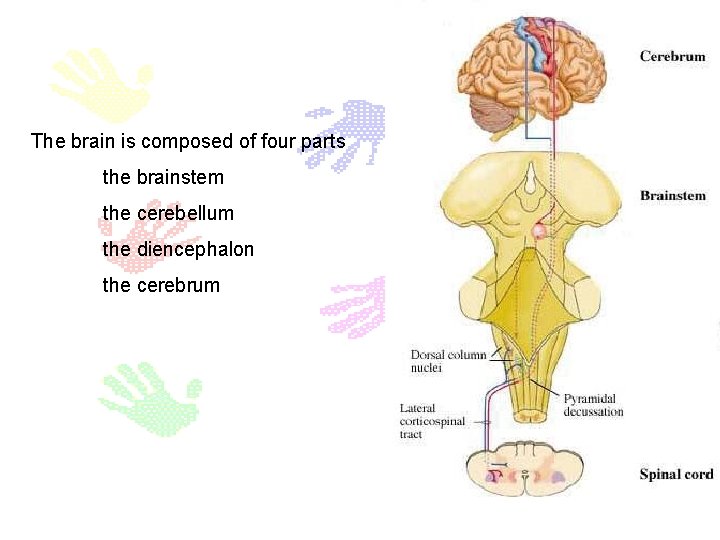

The brain is composed of four parts the brainstem the cerebellum the diencephalon the cerebrum
BELAHAN OTAK

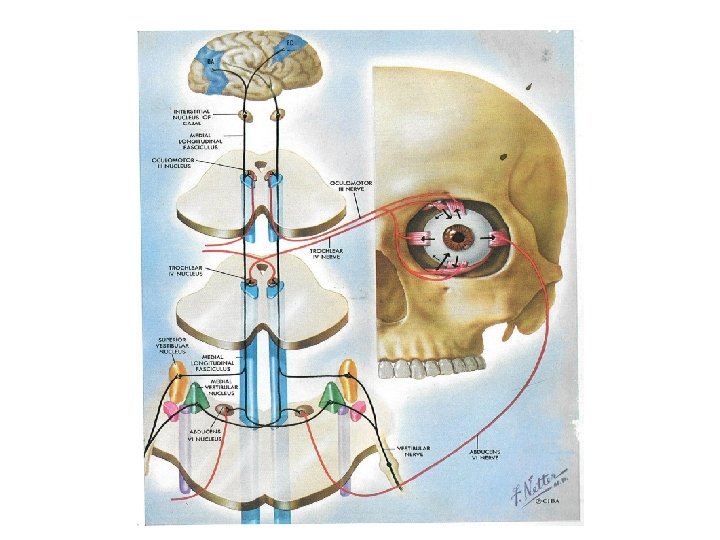

Cranial nerves - spinal nerves carry sensory and motor information from the level of the sacrum and coccyc (sacral and coccygeal nerves) to the level of the neck (upper cervical nerves) - above this level, in the region of the head and face, nerves enter the cranium rather than the spinal cord and are termed cranial nerves - there are 12 pairs of cranial nerves and you need only learn them in the context of specific sensory and motor lectures to follow

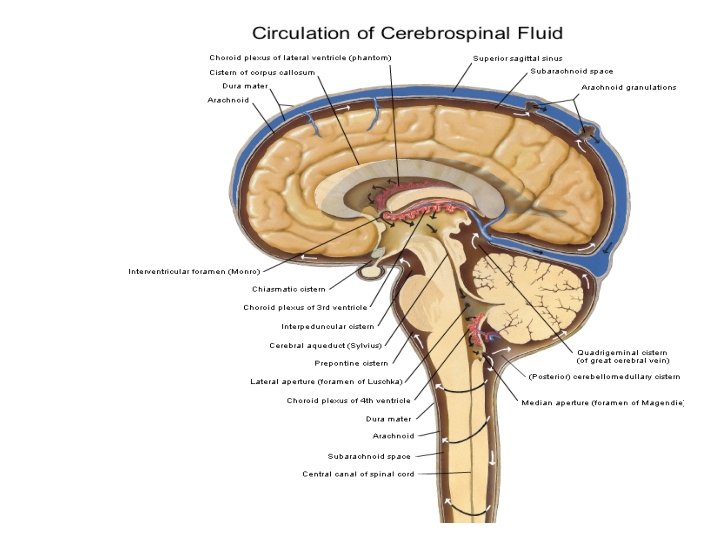

Cerebrospinal Fluid Figure 9 -5: ANATOMY SUMMARY: Cerebrospinal Fluid

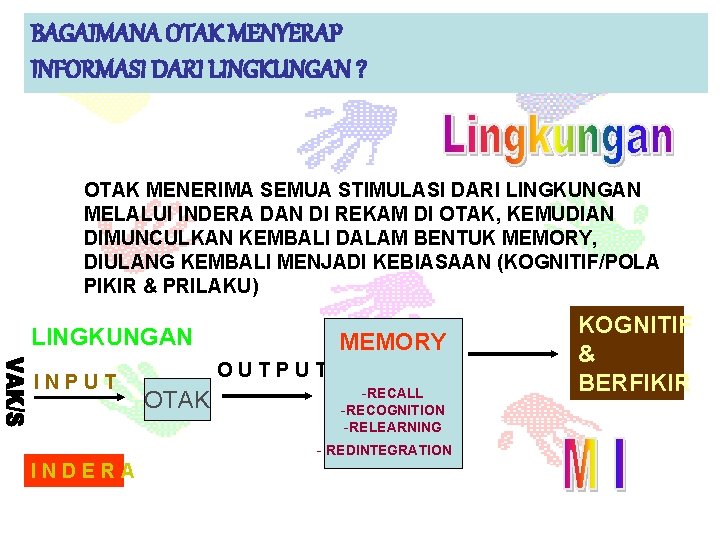

BAGAIMANA OTAK MENYERAP INFORMASI DARI LINGKUNGAN ? OTAK MENERIMA SEMUA STIMULASI DARI LINGKUNGAN MELALUI INDERA DAN DI REKAM DI OTAK, KEMUDIAN DIMUNCULKAN KEMBALI DALAM BENTUK MEMORY, DIULANG KEMBALI MENJADI KEBIASAAN (KOGNITIF/POLA PIKIR & PRILAKU) LINGKUNGAN INPUT MEMORY OUTPUT OTAK -RECALL -RECOGNITION -RELEARNING - REDINTEGRATION INDERA KOGNITIF & BERFIKIR
MEDULLA SPINALIS

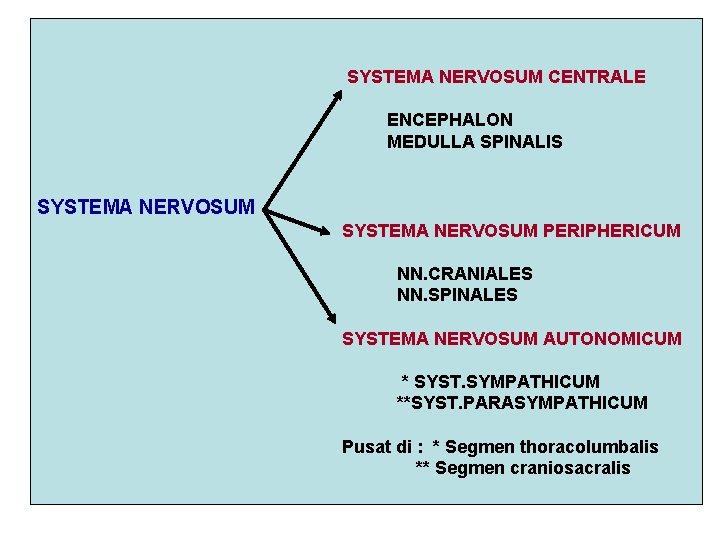

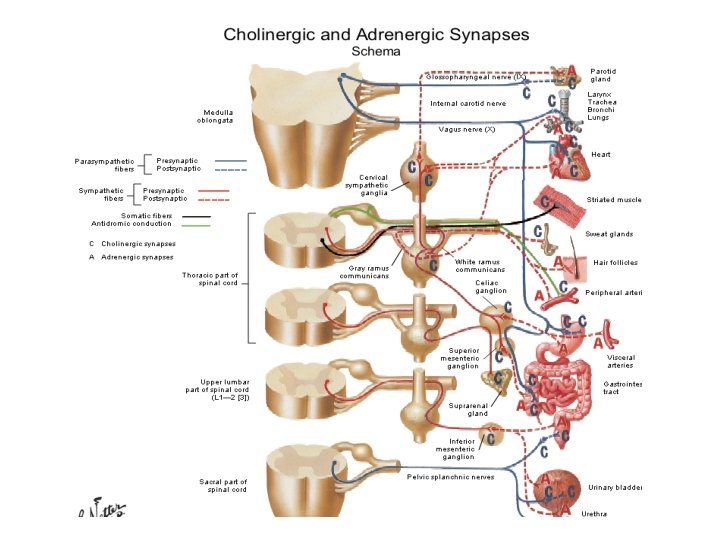

SYSTEMA NERVOSUM CENTRALE ENCEPHALON MEDULLA SPINALIS SYSTEMA NERVOSUM PERIPHERICUM NN. CRANIALES NN. SPINALES SYSTEMA NERVOSUM AUTONOMICUM * SYST. SYMPATHICUM **SYST. PARASYMPATHICUM Pusat di : * Segmen thoracolumbalis ** Segmen craniosacralis
C Th L S

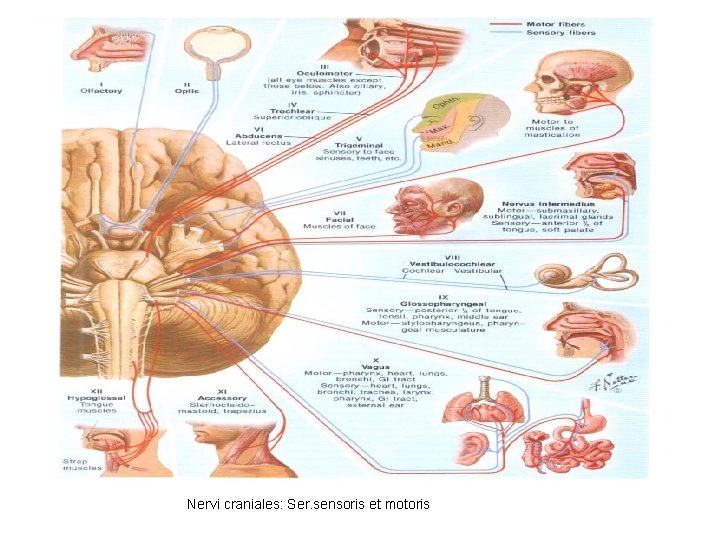

Nervi craniales: Ser. sensoris et motoris
MEDULLA SPINALIS q Dif: Merupakan bagian SNC yang terdapat di canalis vertebralis q Mulai setinggi for. magnum s/d. setinggi VL 1 -2 conus medullaris q Terdiri atas: 8 segmen cervicales 12 segmen thoracales 5 segmen lumbales filum terminale 5 segmen sacrales 1 segmen coccygeus q Terbagi: a). Subst. alba: fun. anterior, fun. lateralis dan fun. posterior b). Subst. grisea: columna grisea anterior … cornu anterius columna grisea lateralis … cornu laterale columna grisea anterior … cornu posterius canalis centralis

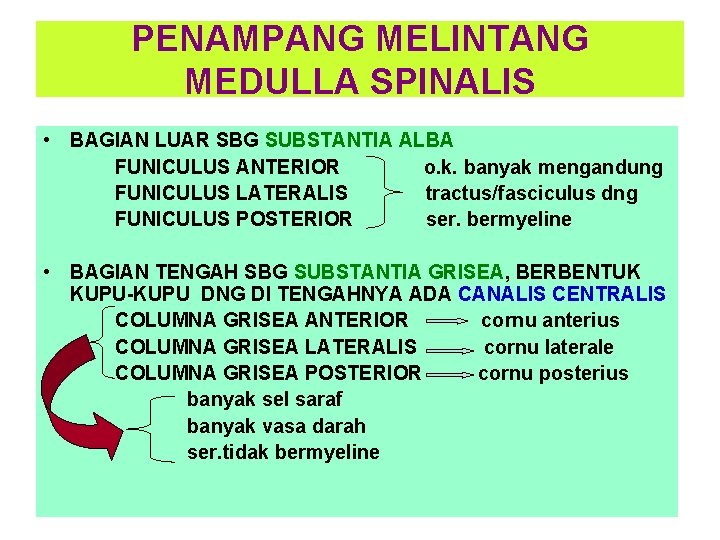

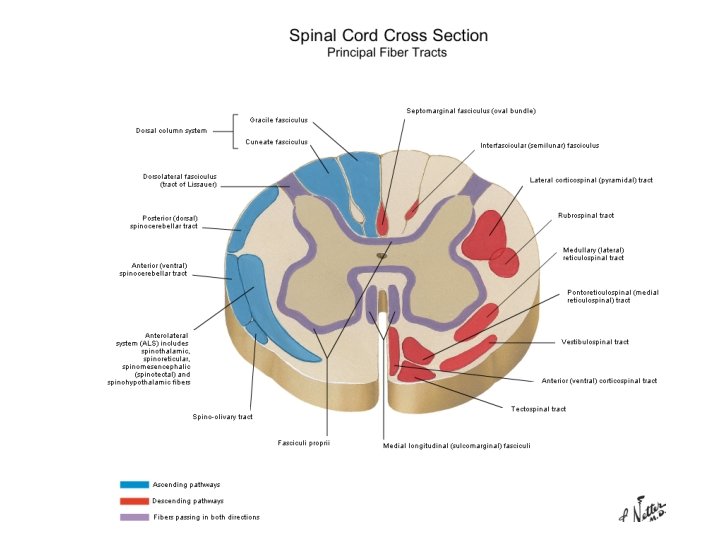

PENAMPANG MELINTANG MEDULLA SPINALIS • BAGIAN LUAR SBG SUBSTANTIA ALBA FUNICULUS ANTERIOR o. k. banyak mengandung FUNICULUS LATERALIS tractus/fasciculus dng FUNICULUS POSTERIOR ser. bermyeline • BAGIAN TENGAH SBG SUBSTANTIA GRISEA, BERBENTUK KUPU-KUPU DNG DI TENGAHNYA ADA CANALIS CENTRALIS COLUMNA GRISEA ANTERIOR cornu anterius COLUMNA GRISEA LATERALIS cornu laterale COLUMNA GRISEA POSTERIOR cornu posterius banyak sel saraf banyak vasa darah ser. tidak bermyeline
Penampang melintang serbagai segmen medulla spinalis

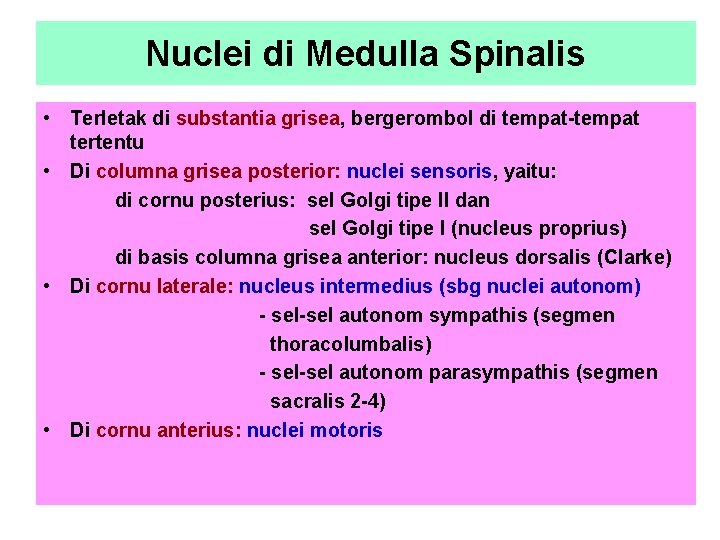

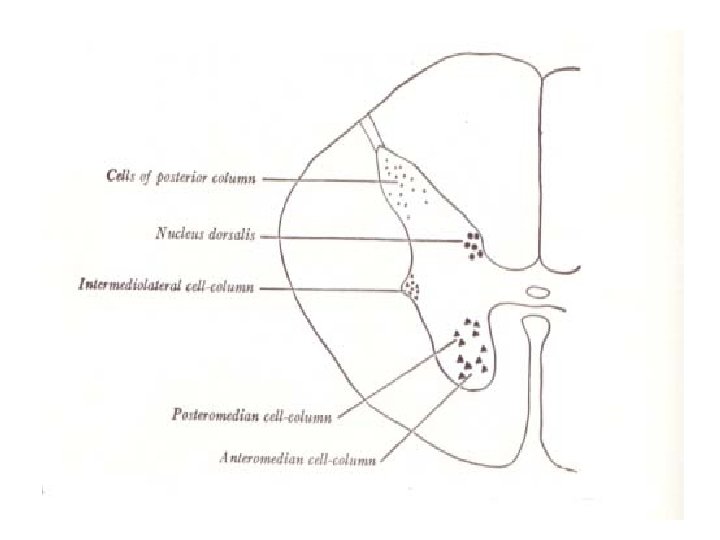

Nuclei di Medulla Spinalis • Terletak di substantia grisea, bergerombol di tempat-tempat tertentu • Di columna grisea posterior: nuclei sensoris, yaitu: di cornu posterius: sel Golgi tipe II dan sel Golgi tipe I (nucleus proprius) di basis columna grisea anterior: nucleus dorsalis (Clarke) • Di cornu laterale: nucleus intermedius (sbg nuclei autonom) - sel-sel autonom sympathis (segmen thoracolumbalis) - sel-sel autonom parasympathis (segmen sacralis 2 -4) • Di cornu anterius: nuclei motoris

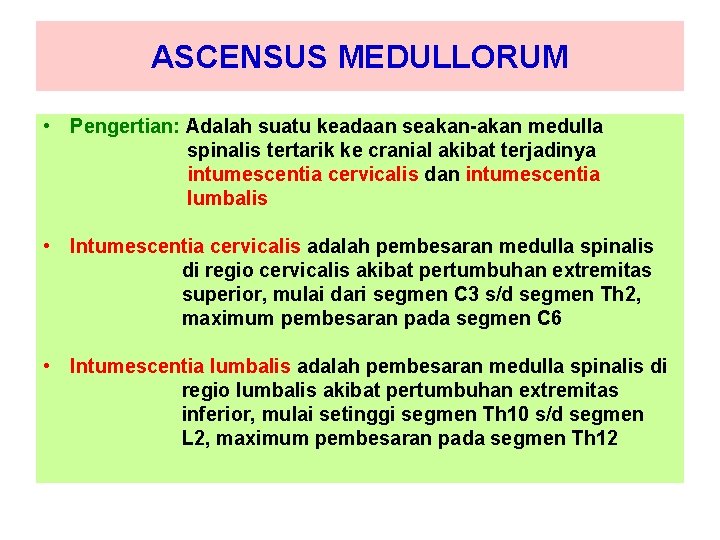

ASCENSUS MEDULLORUM • Pengertian: Adalah suatu keadaan seakan-akan medulla spinalis tertarik ke cranial akibat terjadinya intumescentia cervicalis dan intumescentia lumbalis • Intumescentia cervicalis adalah pembesaran medulla spinalis di regio cervicalis akibat pertumbuhan extremitas superior, mulai dari segmen C 3 s/d segmen Th 2, maximum pembesaran pada segmen C 6 • Intumescentia lumbalis adalah pembesaran medulla spinalis di regio lumbalis akibat pertumbuhan extremitas inferior, mulai setinggi segmen Th 10 s/d segmen L 2, maximum pembesaran pada segmen Th 12

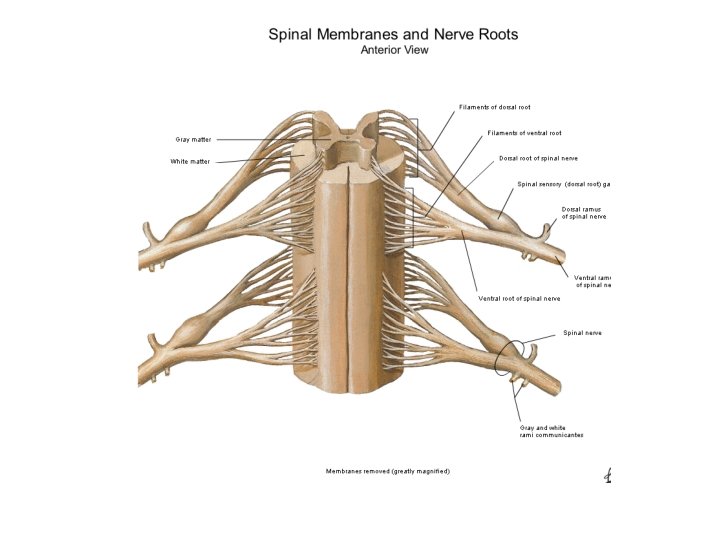

N. SPINALIS Ø Adalah saraf yg berpangkal di medulla spinalis, mrpk gabungan serabut-serabut radix anterior dan posterior Ø Serabut-serabut radix anterior dan posterior dlm membentuk n. spinalis hrs melalui for. intervertebrale yg sesuai terlebih dahulu Ø Terdapat 31 pasang nn. spinales, yang masing-masing berhubungan dengan setiap segmen medulla spinalis Ø Setiap n. spinalis mengandung serabut motoris, serabut sensoris dan serabut postganglioner sympathis Ø Akibat terjadinya intumescentia cervicalis dan lumbalis serta adanya perbedaan pertumbuhan antara medulla spinalis dan columna vertebralis, maka serabut-serabut radix anterior dan radix posterior bagian caudal dalam mencapai for. intervertebrale yang sesuai harus berjalan descendens terlebih dahulu; berkas serabut-serabut yg berjalan descendens tersebut akan membentuk: cauda equina
MENINGES SPINALIS v TERDIRI ATAS 2 LAPIS, YAITU: • (1). Pachymeninx atau duramater, hanya 1 lapis identik dng lamina meningealis duramater encephali; sebelah luar lapisan ini ada spatium extradurale (spatium epidurale) mengandung plexus venosus • (2). Leptomeninx, tersusun atas arachnoidea dan piamater, yang dipisahkan oleh spatium subarachnoidale, mengandung LCS • Leptomeninx dipisahkan oleh spatium subdurale dengan duramater, mengandung plexus venosus • Piamater di sebelah caudal berakhir setinggi VL 1 -2, terus membentuk filum terminale • Arachnoidea dan duramater berakhir setinggi VS 2, sehingga di bawah conus medullaris terdapat spatium subarachnoidale yang luas, baik untuk tindakan LUMBALE PUNCTIE • Piamater menembus arachoidea dan duramater, membentuk ligamentum denticulatum, untuk memfixir medulla spinalis

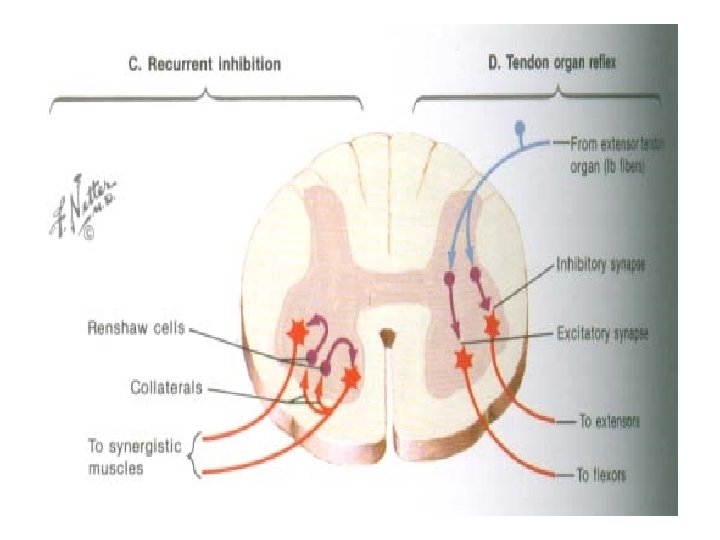

ARCUS REFLEX • KOMPONEN: - reseptor - konduktor I ( ser. afferens) - sentrum - konduktor II (ser. efferens) - efektor Serabut-serabut bantu: - ser. associatie/commissura - fasciculus proprius • Reflex: - reflex intrasegmental homolateral/kontralateral - reflex intersegmental homolateral/kontralateral

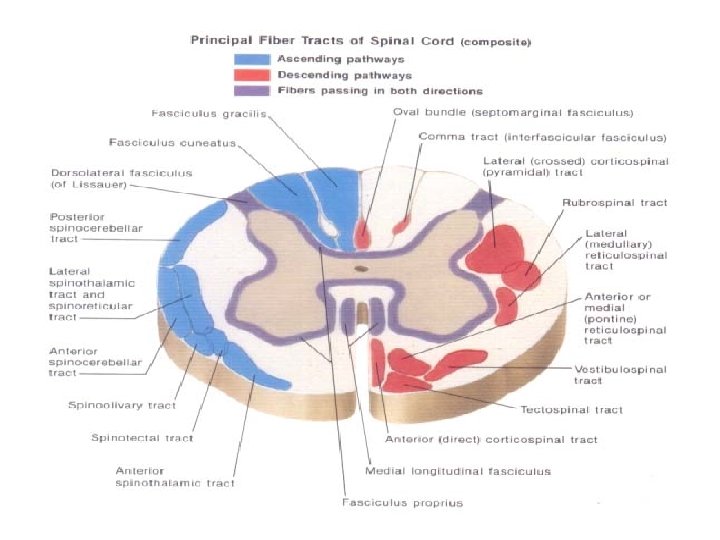

SERABUT DI MEDULLA SPINALIS v Serabut-serabut yg akhiran, asal dan fungsi sama disebut: Tractus v Serabut-serabut di daerah tertentu disebut: Funiculus q Nama: 1). Disebut berdasarkan asal dan akhirannya Misalnya tractus corticospinalis 2). Disebut berdasarkan lokasinya Misalnya fasciculus dorsolateralis 3). Disebut berdasarkan orang yg pertama kali memperkenalkannya Misalnya fasciculus dorsolateralis tersebut no. 2 disebut dng tractus Lissauer

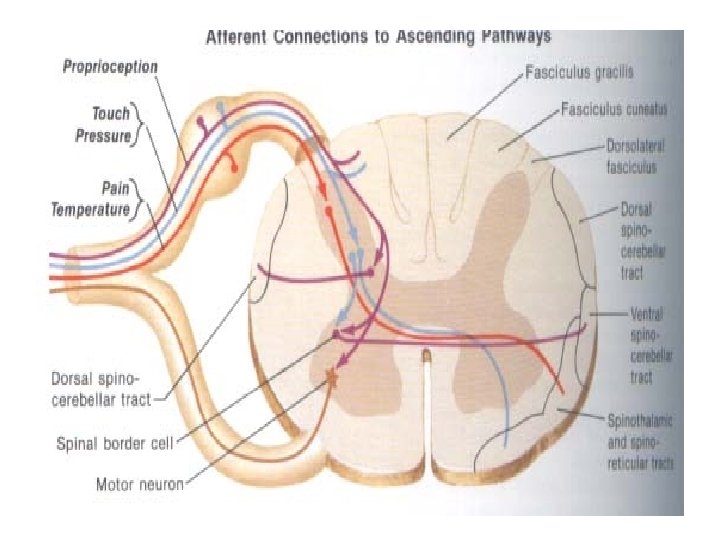

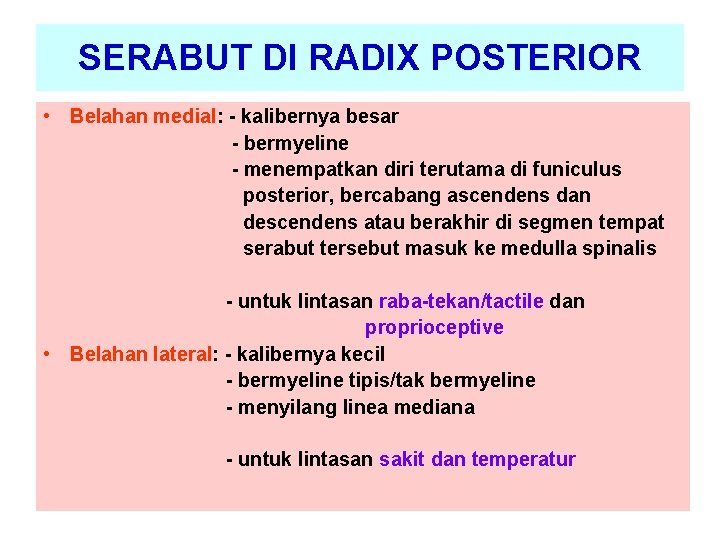

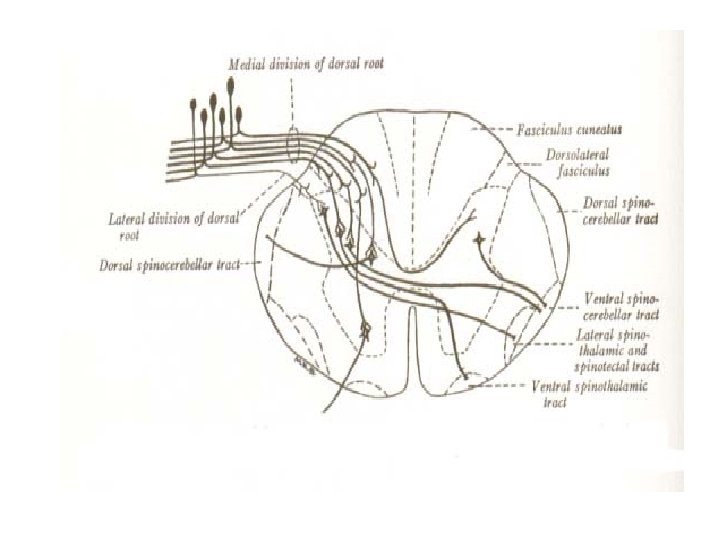

SERABUT DI RADIX POSTERIOR • Belahan medial: - kalibernya besar - bermyeline - menempatkan diri terutama di funiculus posterior, bercabang ascendens dan descendens atau berakhir di segmen tempat serabut tersebut masuk ke medulla spinalis - untuk lintasan raba-tekan/tactile dan proprioceptive • Belahan lateral: - kalibernya kecil - bermyeline tipis/tak bermyeline - menyilang linea mediana - untuk lintasan sakit dan temperatur
SERABUT RADIX POSTERIOR • A. BELAHAN MEDIAL - Cabang perifer reseptor - cabang sentral: * cab. ascendens, dlm fun. posterior: nucl. gracilis/cuneatus columna grisea post or di atasnya * columna grisea posterior yg sama * cab. descendens : - fasc. interfascicularis (tract. comma Schultz) - fasc. septomarginalis Homolateral Kontralateral - fasc. gracilis/cuneatus - tract. spinocerebellaris ventralis - tract. spinocerebellaris dorsalis - tract. spinothalamicus anterior - fasc. columna grisea postor atasnya Sensasi: - Raba-tekan - Proprioceptive
B. BELAHAN LATERAL - cabang perifer reseptor - cabang sentral: substantia gelatinosa Rolandi berjalan kontralateral tract. spinothalamicus lateralis - pars descendens dari cabang sentralis ini tidak lebih dari 1 segmen, shg dianggap tidak bercabang

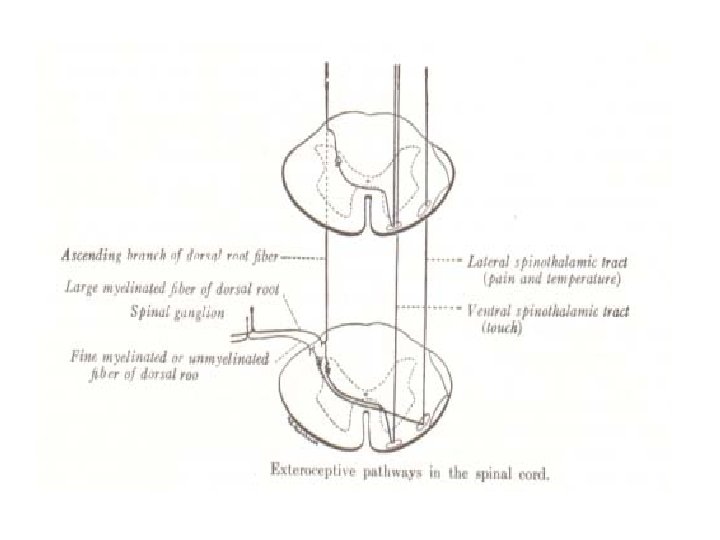

LINTASAN EXTEROCEPTIVE SPINALIS (1). SAKIT DAN TEMPERATUR • NEURON I: Sel di ganglion spinale columna grisea posterior • NEURON II: Sel di substantia gelatinosa Rolandi menyilang linea mediana sbg tract. spinothalamicus latis • NEURON III: Sel di nucleus anteroposterolateralis thalami Radiatio thalamicus Cortex cerebri (area 3, 1 dan 2)
Diagram lintasan “pain & temperature”

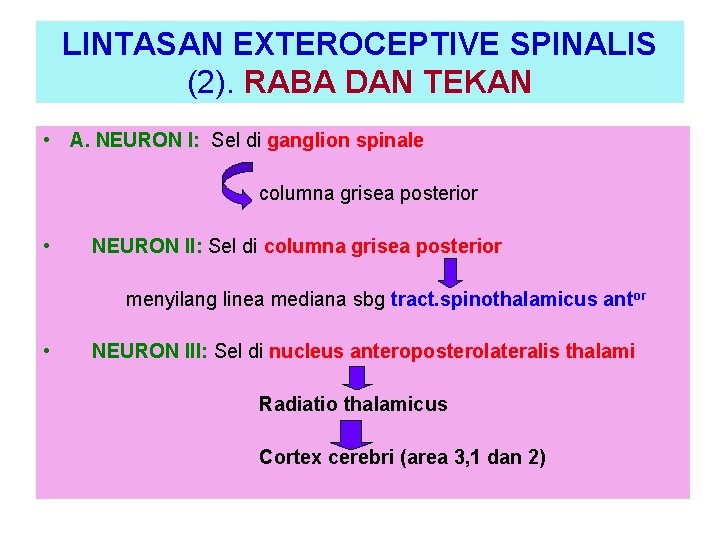

LINTASAN EXTEROCEPTIVE SPINALIS (2). RABA DAN TEKAN • A. NEURON I: Sel di ganglion spinale columna grisea posterior • NEURON II: Sel di columna grisea posterior menyilang linea mediana sbg tract. spinothalamicus antor • NEURON III: Sel di nucleus anteroposterolateralis thalami Radiatio thalamicus Cortex cerebri (area 3, 1 dan 2)

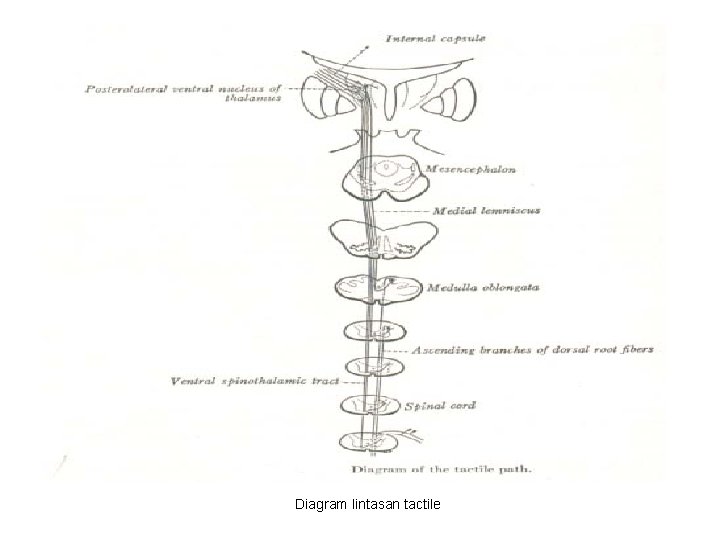

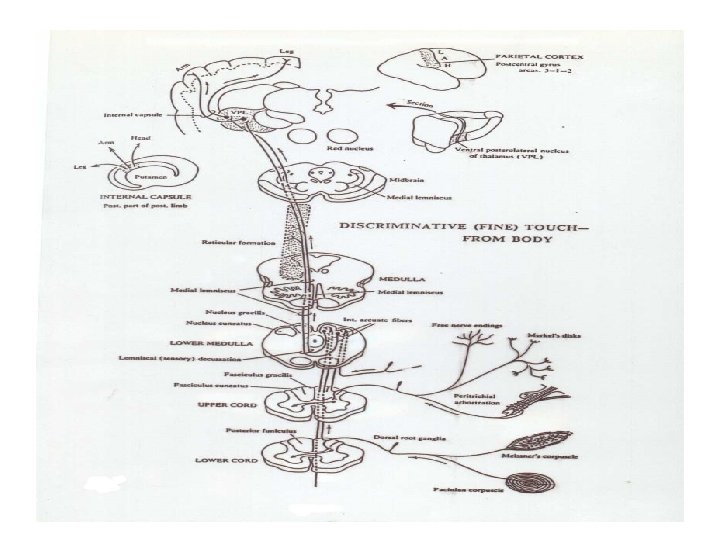

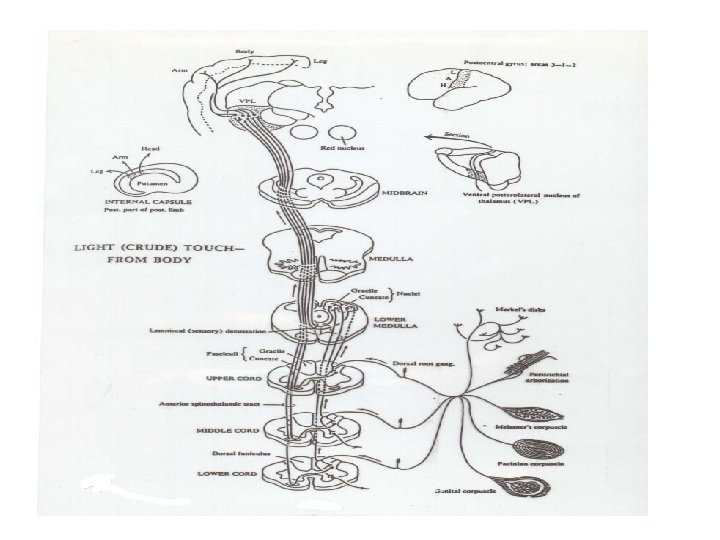

Diagram lintasan tactile
Serabut projectie-efferens

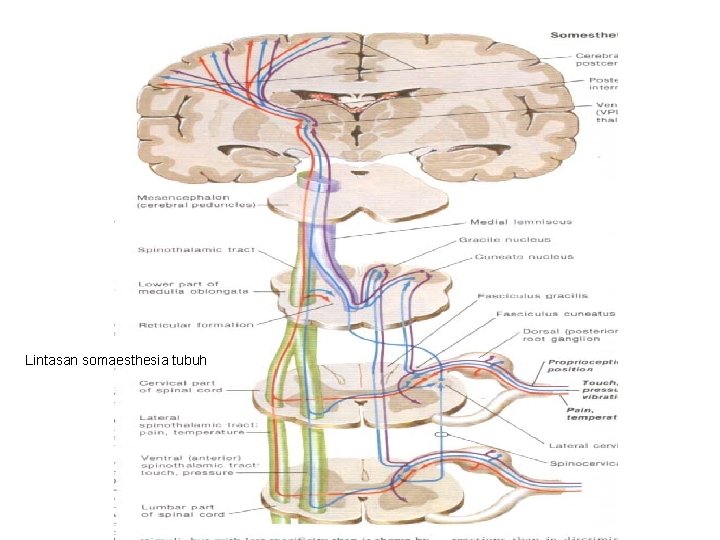

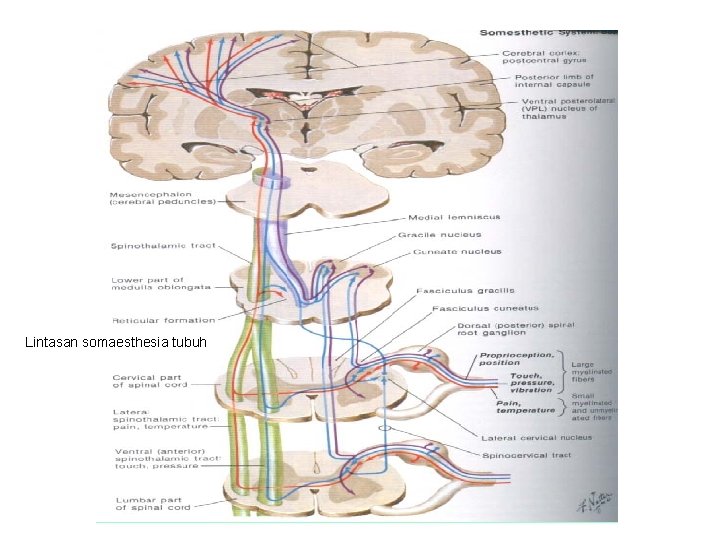

Lintasan somaesthesia tubuh
LINTASAN EXTEROCEPTIVE SPINALIS (2). RABA DAN TEKAN • B. NEURON I: Sel di ganglion spinale • fun. posterior NEURON II: Sel di nucl. fun. gracilis/cuneatus • ser. arcuatus internus, (menyilang) membentuk dec. lemnisculorum lemniscus medialis NEURON III: Sel di nucleus anteroposterolateralis thalami Radiatio thalamicus Cortex cerebri (area 3, 1 dan 2)
(3). LINTASAN PROPRIOCEPTIVE SPINALIS • A. KE CORTEX CEREBRI • NEURON I: Sel di ganglion spinale fun. posterior • NEURON II: Sel di nucl. fun. gracilis/cuneatus ser. arcuatus internus, (menyilang) membentuk dec. lemnisculorum lemniscus medialis • NEURON III: Sel di nucleus anteroposterolateralis thalami Radiatio thalamicus Cortex cerebri (area 3, 1 dan 2)

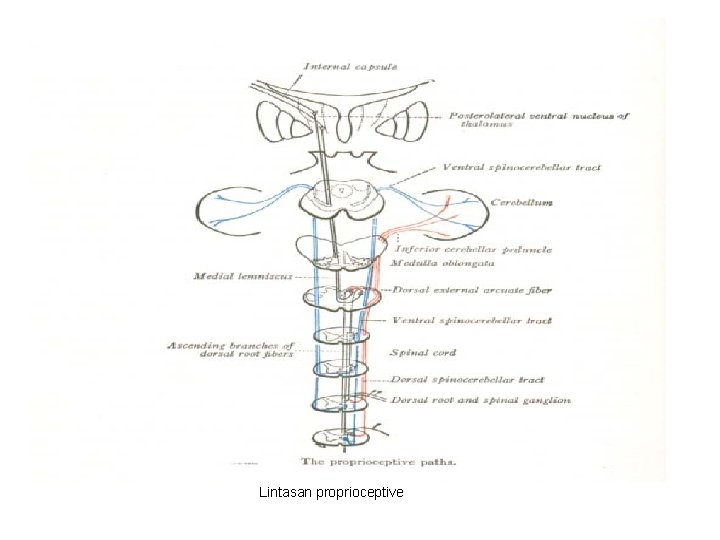

Lintasan proprioceptive
(3). LINTASAN PROPRIOCEPTIVE SPINALIS • B. KE CORTEX CEREBELLI • 1. LEWAT SER. ARCUATUS EXTERNUS DORSALIS • NEURON I: Sel di ganglion spinale fun. posterior • NEURON II: Sel di nucl. cuneatus lateralis ser. arcuatus externus dorsalis (homolateral) Corpus restiforme Cortex cerebelli
Lintasan somaesthesia tubuh
(3). LINTASAN PROPRIOCEPTIVE SPINALIS • B. KE CORTEX CEREBELLI • 2. LEWAT TRACT. SPINOCEREBELLARIS DORSALIS • NEURON I: Sel di ganglion spinale columna grisea posterior • NEURON II: Sel di nucl. dorsalis (Clarke) Tract. spinocerebellaris dorsalis (homolateral) Corpus restiforme Cortex cerebelli (vermis)

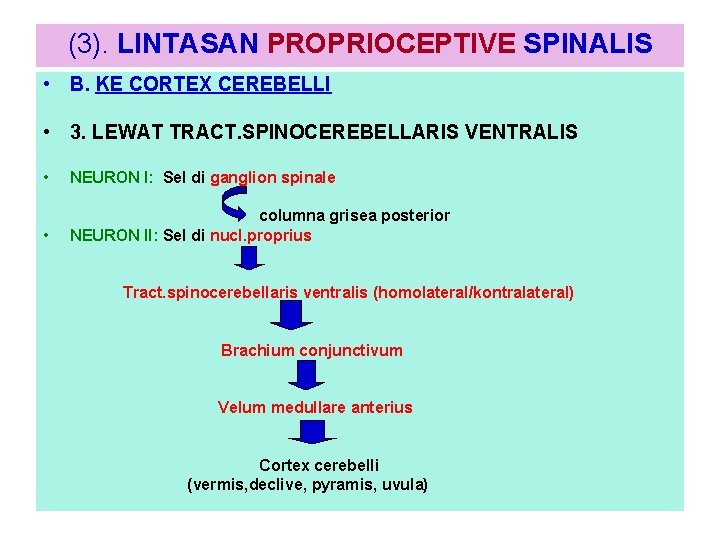

(3). LINTASAN PROPRIOCEPTIVE SPINALIS • B. KE CORTEX CEREBELLI • 3. LEWAT TRACT. SPINOCEREBELLARIS VENTRALIS • NEURON I: Sel di ganglion spinale • columna grisea posterior NEURON II: Sel di nucl. proprius Tract. spinocerebellaris ventralis (homolateral/kontralateral) Brachium conjunctivum Velum medullare anterius Cortex cerebelli (vermis, declive, pyramis, uvula)
Lintasan proprioceptive

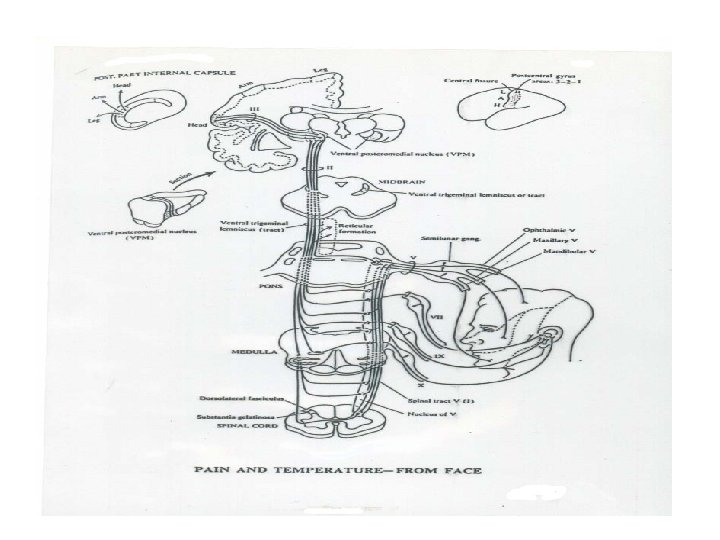

Lintasan somaesthesia kepala

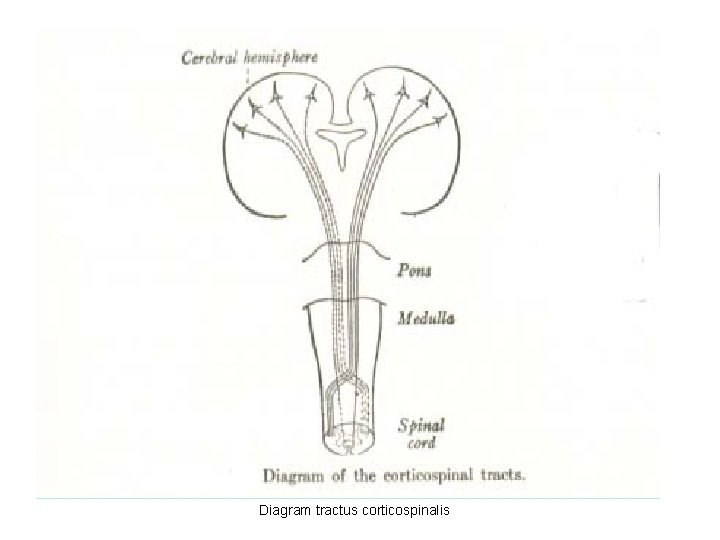

Diagram tractus corticospinalis
Tractus corticospinalis
Tractus corticospinalis dan medulla oblongata
Go To Sistem Saraf Otonom
