SIP questions Henning Schulzrinne Columbia University IRT Lab
SIP questions Henning Schulzrinne Columbia University IRT Lab Siemens Munich -- January 2003
SIP bugs n n n http: //www. sipwg. org/sipwg/ 54 bugs listed likely lead to either an addendum or re-issue at Proposed n n Draft Standard requires promotion of DNS SRV, NAPTR, TLS, … unlikely anytime soon currently, in bug-gathering phase, since none are critical n n a few require discussion very few seem to have backwards-compatibility issues
SIP bugs - editorial 585 Various text-formatting problems 592 To. C in the pdfs is missing references section 645 srvr production rule contains extra "@" 654 Text on CSeq ordering missing equality 674 "2 xx class" terminology still occurs in places 608 Definition of "optional" in table 2/3 inconsistent with usage 643 Offer and answer rules repetitive 644 Proxy or UAS vs. UAS or proxy line breaks, periods, spaces, … need “optional to insert, mandatory to process” designation
SIP bugs – editorial 651 21. 4. 1 example about missing call-id should be changed 657 Missing branch parameters in examples in Section 18. 2. 1 660 Table 2 entry for Authorization in a CANCEL should be a N/A 666 Clarify use of expires=xxx with terminated 681 B 2 BUA definition – keep, remove or change? 684 Explicit language banning response to ACK has been lost 685 Example Server header field confusing
SIP bugs - security 646 Explain TLS mode more clearly We expect proxy servers and registrars to authenticate themselves via cert, while clients will typically not have one, but use the secure channel to improve the security of Digest, would behelpful. 619 No response code defined for unverifiable certs Should indicate nature of problem, to allow fall-back 652 Clarify MUST include certificate statement either CMS or content-indirection 631 Values of nonce-count, method Unclear what should be placed in param in ACK digests ACK 679 S/MIME for registrars Assumes TLS (bad), but doesn't work for proxied REGISTER; SHOULD or MUST?
SIP bugs – error behavior 40 Meaning of 3 xx response to re-INVITE 653 Why do we return 500 for CSeq out of order? 305 What does the UAS restriction on 305 mean? 663 Handling failure of proxy after 100, but before proxying 668 "423 Subscription too brief" doesn't match RFC 3261 667 Reason code for unsubscription/poll not clearly spelled out 3 xx in re-INVITE not allowed

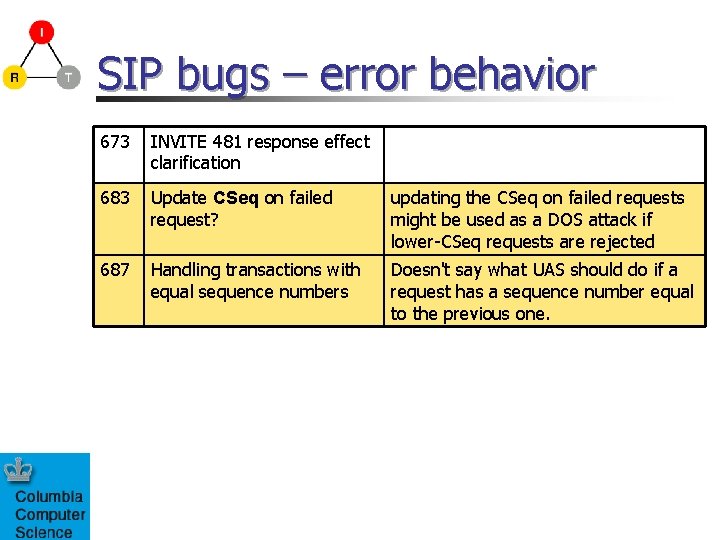

SIP bugs – error behavior 673 INVITE 481 response effect clarification 683 Update CSeq on failed request? updating the CSeq on failed requests might be used as a DOS attack if lower-CSeq requests are rejected 687 Handling transactions with equal sequence numbers Doesn't say what UAS should do if a request has a sequence number equal to the previous one.
SIP bugs – protocol format issues 656 Deprecate comments in Retry. After accidentally remain in Retry-After; should not be used 583 3 xx to INVITE should have at least one Contact Text can be interpreted as allowing empty contact list (or disallow more than one). 650 Allow in REGISTER
SIP bugs – URI & transport 598 100 trying needed for TCP? 100 not really needed for TCP; CANCEL can't be sent before that allow for TCP. 658 First well known rule can be from maddr 675 Sending requests to non-SIP URI 678 Support for UTF-8 in the SIP Are user names UTF-8? (Yes!) Who URI performs canonicalization for comparisons – UAC or proxy?

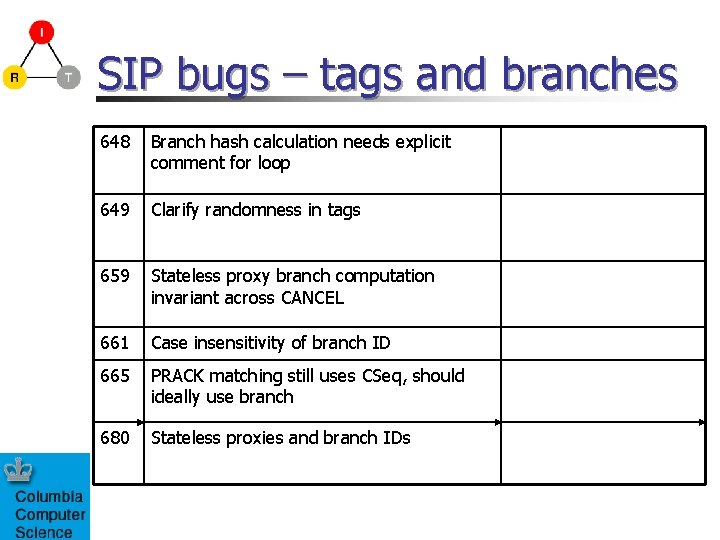

SIP bugs – tags and branches 648 Branch hash calculation needs explicit comment for loop 649 Clarify randomness in tags 659 Stateless proxy branch computation invariant across CANCEL 661 Case insensitivity of branch ID 665 PRACK matching still uses CSeq, should ideally use branch 680 Stateless proxies and branch IDs
SIP bugs – Record-Route 664 Double record-routing Record both inbound and outbound interface for multihomed proxies.
SIP bugs – dynamic behavior 610 Response failover and statelessness 671 Dialog state machine needs clarification 682 Expires header or param in REGISTER responses 686 Overlapping transactions in a dialog, revisited

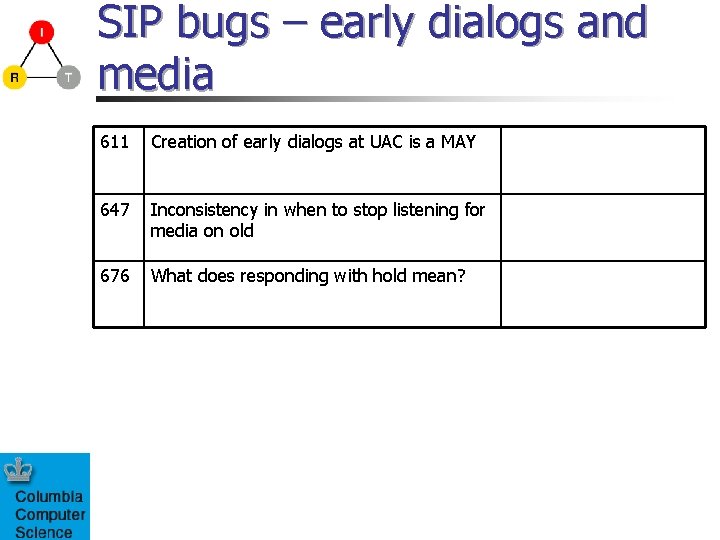

SIP bugs – early dialogs and media 611 Creation of early dialogs at UAC is a MAY 647 Inconsistency in when to stop listening for media on old 676 What does responding with hold mean?
SIP bugs – events 669 Clarify: SUBSCRIBE for a duration might be answered with 671 Clarify timeout-based removal of subscriptions 672 Mandate expires= in NOTIFY 677 SUBSCRIBE response matching text in error
Session model for instant messaging n No recent public discussion, but apparently design team at work n n Primary motivation: n n n bypass SIP proxies reliable channel avoid concerns about message size more efficient encryption and signing integration into multimedia sessions Open issues: n n moving towards SDP specific to CPIM messages, instead of comedia proxies ever needed or is B 2 BUA good enough here? Proposals: n n n SIP-lite BEEP CPIM (draft-campbell-simple-im-sessions, draft-campbell-simplecpimmsg-sessions)

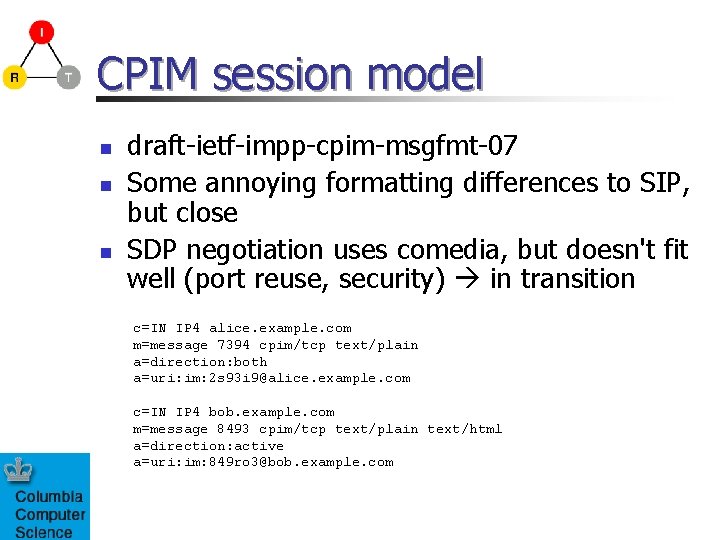

CPIM session model n n n draft-ietf-impp-cpim-msgfmt-07 Some annoying formatting differences to SIP, but close SDP negotiation uses comedia, but doesn't fit well (port reuse, security) in transition c=IN IP 4 alice. example. com m=message 7394 cpim/tcp text/plain a=direction: both a=uri: im: 2 s 93 i 9@alice. example. com c=IN IP 4 bob. example. com m=message 8493 cpim/tcp text/plain text/html a=direction: active a=uri: im: 849 ro 3@bob. example. com
CPIM example From: MR SANDERS <im: piglet@100 akerwood. com> To: Depressed Donkey <im: eeyore@100 akerwood. com> Date. Time: 2000 -12 -13 T 13: 40: 00 -08: 00 Subject: the weather will be fine today Subject: ; lang=fr beau temps prevu pour aujourd'hui NS: My. Features <mid: Message. Features@id. foo. com> Require: My. Features. Vital. Message. Option: Confirmation-requested My. Features. Wacky. Message. Option: Use-silly-font Content-type: text/xml; charset=utf-8 Content-ID: <1234567890@foo. com> <body> Here is the text of my message. </body> header encapsulated MIME content
Security n n Not much movement – considered first-stage complete Work on Authenticated Identity Body (AIB) n n n Some murmurings on reviving Basic authentication n n signed subset of SIP not clear how proxies can do the signing avoids storage of valuable key on server What about untrusted end systems? Proposal for public key retrieval via OPTIONS Single sign-on: SAML and SIP?

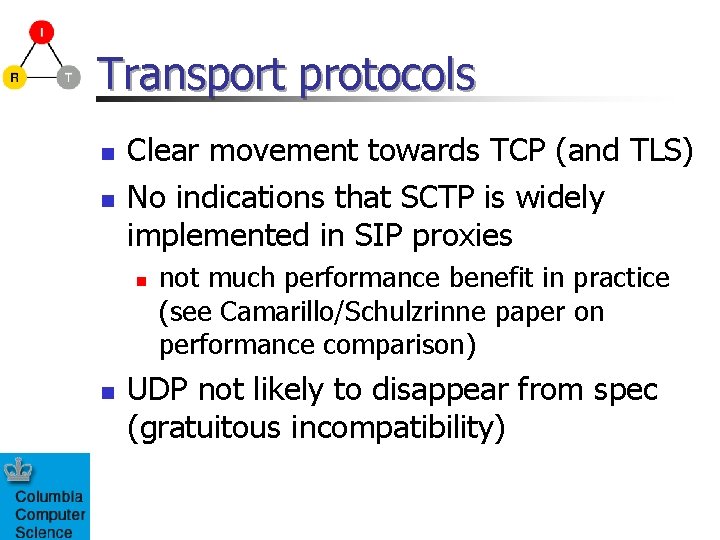

Transport protocols n n Clear movement towards TCP (and TLS) No indications that SCTP is widely implemented in SIP proxies n n not much performance benefit in practice (see Camarillo/Schulzrinne paper on performance comparison) UDP not likely to disappear from spec (gratuitous incompatibility)
Stray responses n n Responses without proxy state are routed statelessly to UAC Problem: 408 (timeout) for unreachable UAS can trigger an avalanche of responses Proposal: suppress error responses or at least 408 Evaluation: 4 xx needed by caller n n n avoid special cases usually, only last proxy needs short (user-oriented) timeout let it clean up the chain however, not clear if proxy knows its position in chain

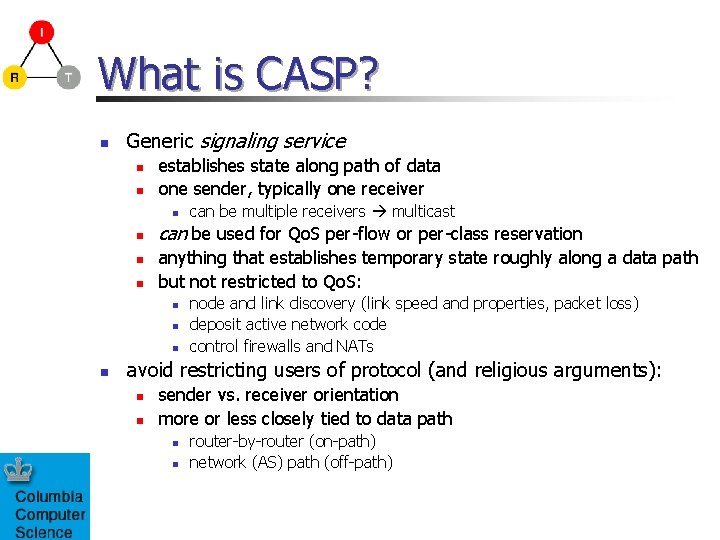

What is CASP? n Generic signaling service n n establishes state along path of data one sender, typically one receiver n n can be used for Qo. S per-flow or per-class reservation anything that establishes temporary state roughly along a data path but not restricted to Qo. S: n n can be multiple receivers multicast node and link discovery (link speed and properties, packet loss) deposit active network code control firewalls and NATs avoid restricting users of protocol (and religious arguments): n n sender vs. receiver orientation more or less closely tied to data path n n router-by-router (on-path) network (AS) path (off-path)

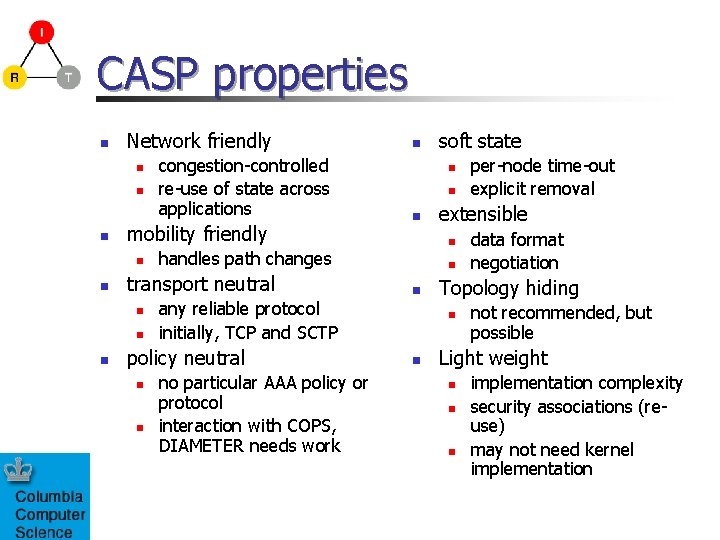

CASP properties n Network friendly n n n mobility friendly n n n any reliable protocol initially, TCP and SCTP policy neutral n n no particular AAA policy or protocol interaction with COPS, DIAMETER needs work soft state n n n data format negotiation Topology hiding n n per-node time-out explicit removal extensible n handles path changes transport neutral n n congestion-controlled re-use of state across applications n not recommended, but possible Light weight n n n implementation complexity security associations (reuse) may not need kernel implementation
CASP network model – onpath selective ("vegetarian") CASP chain Qo. S midcom omnivorous n n CASP nodes form CASP chain not every node processes all client protocols: n non-CASP node: regular router omnivorous: processes all CASP messages selective: bypassed by CASP messages with unknown client protocols
CASP network model – out-ofpath Bandwidth broker NAC CASP AS 15465 AS 1249 AS 17 data n n n Also route network-by-network can combine router-by-router with out-of-path messaging Not well defined if several in one AS basically, an inter-domain service location problem IETF tool kit for distributed solutions: n SLP (with extension in progress) n DNS SRV/NAPTR (see SIP) Probably not: multicast, anycast, LDAP
CASP protocol structure n scout protocol messaging layer (M) transport layer (T) UDP IP router alert client layer does the real work: n n client layer (C) reserve resources open firewall ports … messaging layer: n n establishes and tears down state negotiates features and capabilities n transport layer: n reliable transport
CASP messages n Regular CASP messages n n n Scout messages n n n establish or tear down state carry client protocol discover next hop Hop-by-hop reliability Generated by any node along the chain

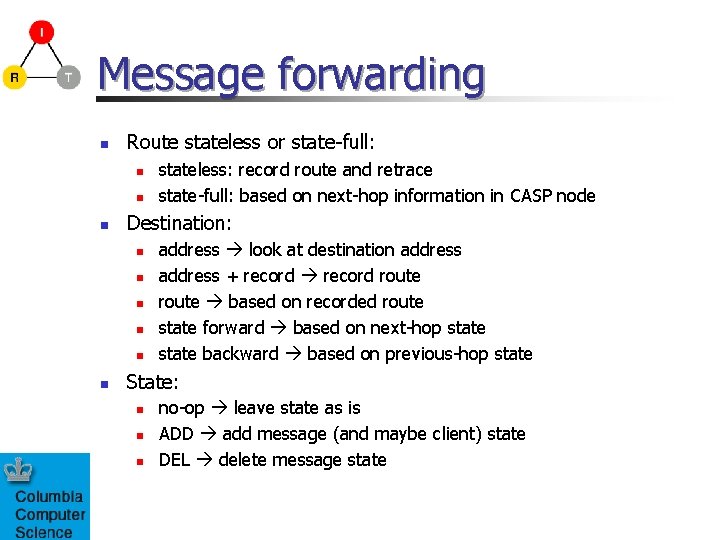

Message forwarding n Route stateless or state-full: n n n Destination: n n n stateless: record route and retrace state-full: based on next-hop information in CASP node address look at destination address + record route based on recorded route state forward based on next-hop state backward based on previous-hop state State: n no-op leave state as is ADD add message (and maybe client) state DEL delete message state
Next-node discovery: pathcoupled n Discovery behavior options: n n NI straight-through hop-by-hop NE n n non NE routing protocol with probing service discovery, e. g. , SLP first hop, e. g. , router advertisements DHCP scout protocol NE NR

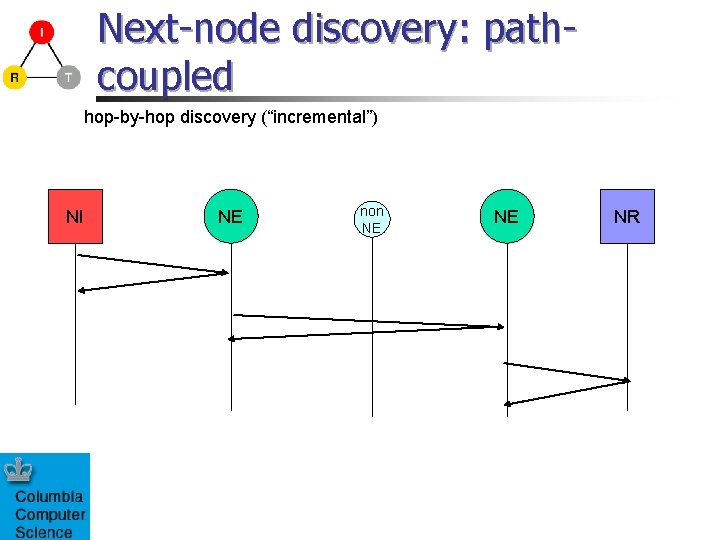

Next-node discovery: pathcoupled hop-by-hop discovery (“incremental”) NI NE non NE NE NR

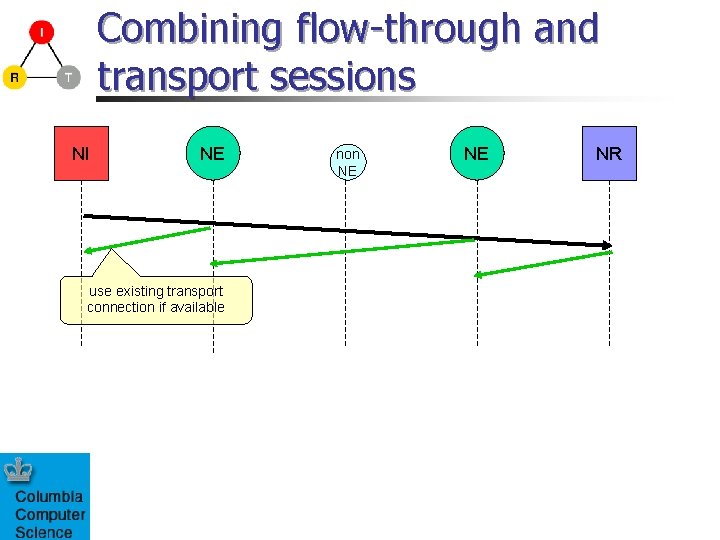

Combining flow-through and transport sessions NI NE use existing transport connection if available non NE NE NR
Mobility and route changes DEL (B=2) B=1 discovers new route on refresh ADD B=2 n n n avoids session identification by end point addresses avoid use of traffic selector as session identifier remove dead branch
SIP resilience n Similar to DNS provide multiple servers, on different networks n n failover via DNS SRV/NAPTR with state replication n n database replication may be too heavy-weight copy REGISTER to all backup proxies n n n copy service logic, configuration to other servers minimize call state bound to one server n n issue: digest authentication third-party authentication specify server cluster as Route, not one server SCTP between servers for failover

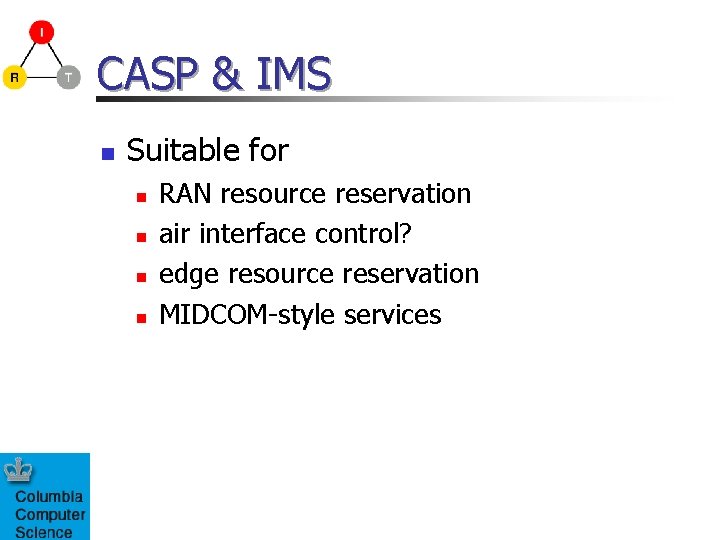

CASP & IMS n Suitable for n n RAN resource reservation air interface control? edge resource reservation MIDCOM-style services
