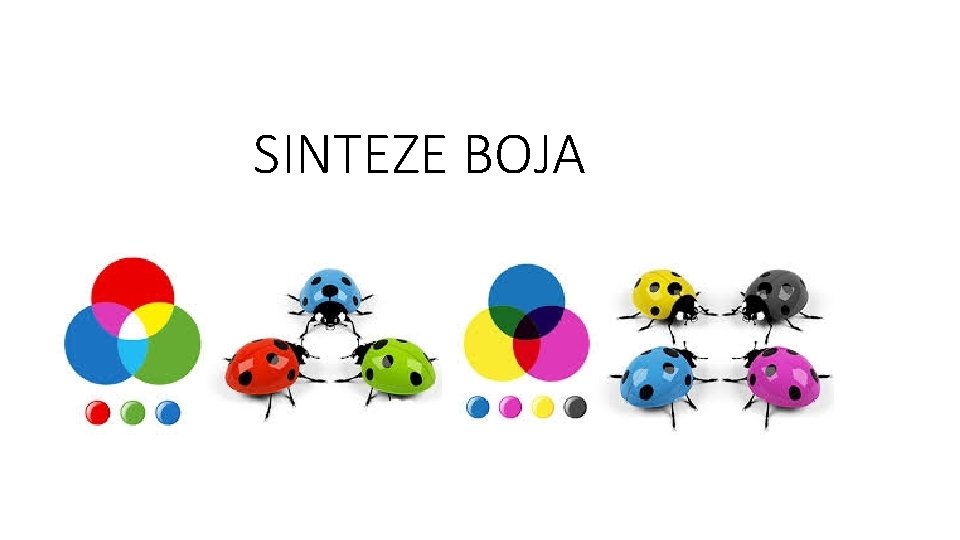

SINTEZE BOJA Sinteze boja Vidljivi dio spektra sastoji
SINTEZE BOJA

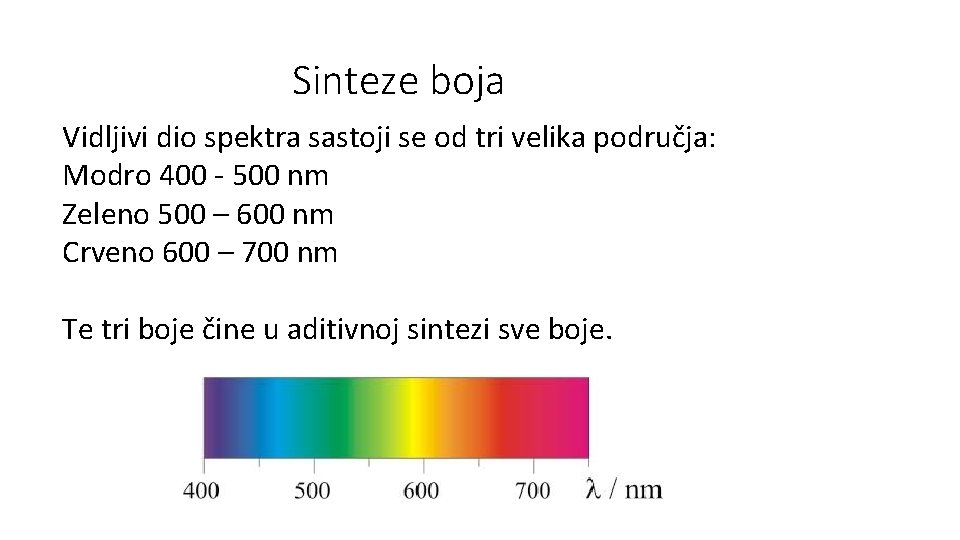

Sinteze boja Vidljivi dio spektra sastoji se od tri velika područja: Modro 400 - 500 nm Zeleno 500 – 600 nm Crveno 600 – 700 nm Te tri boje čine u aditivnoj sintezi sve boje.
RGB - Aditivna sinteza • Aditivna sinteza (sinteza zbrajanja) je sinteza obojenih svjetala, a boje koje sudjeluju su osnovne boje vidljivog spektra: crvena, zelena i modra. • Spajanjem modre, zelene i crvene nastaje bijela boja (jer se vidljivi dio spektra - bijelo svjetlo - sastoji od modre, zelene i crvene boje) U digitalnom svijetu aditivnu sintezu zovemo RGB (Red, Green, Blue)

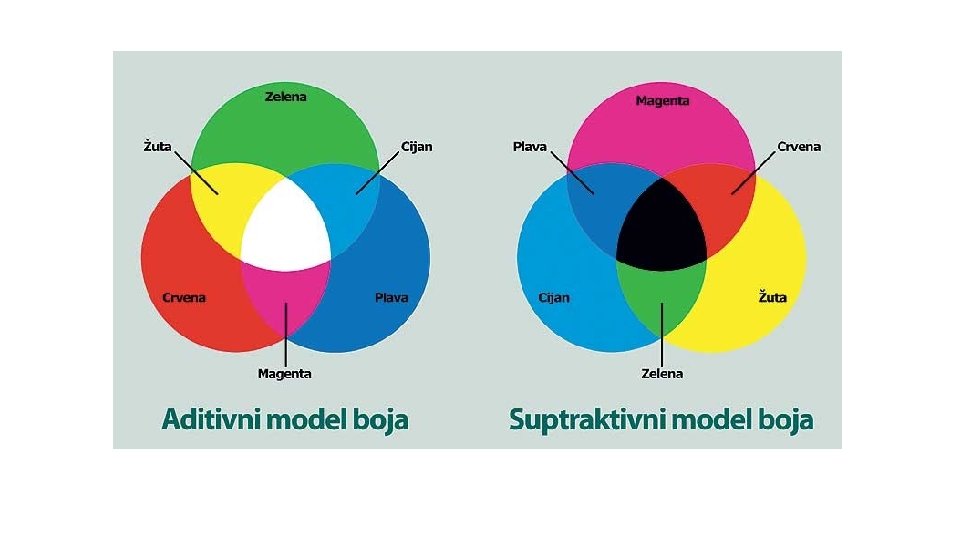

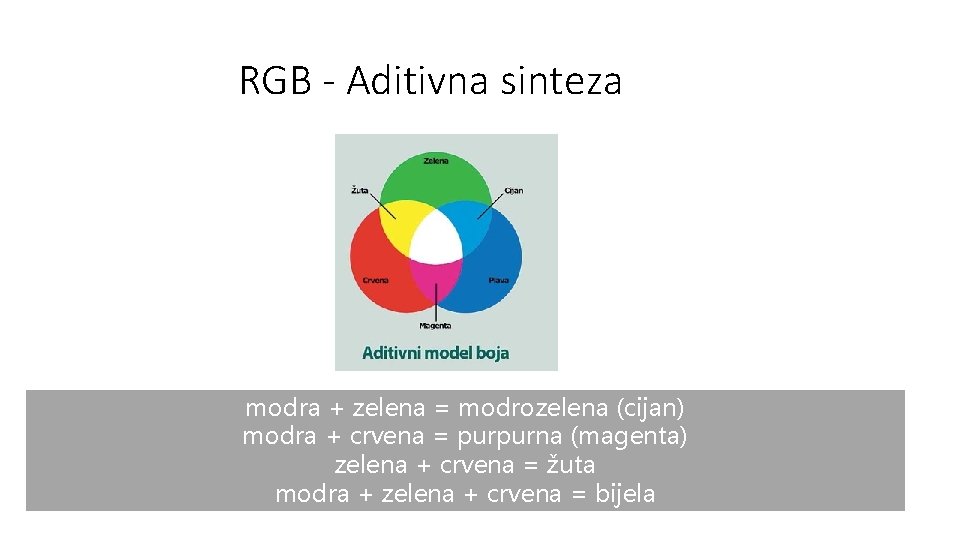

RGB - Aditivna sinteza modra + zelena = modrozelena (cijan) modra + crvena = purpurna (magenta) zelena + crvena = žuta modra + zelena + crvena = bijela

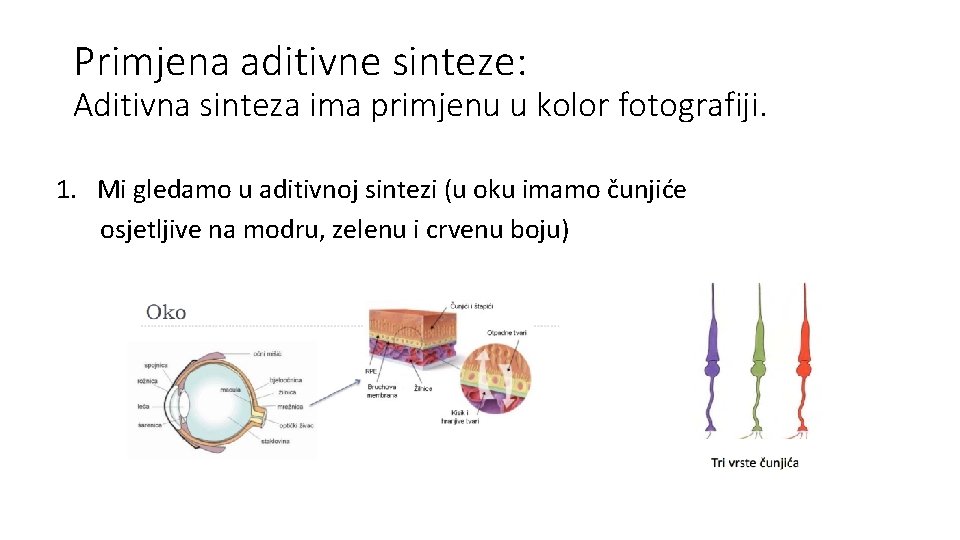

Primjena aditivne sinteze: Aditivna sinteza ima primjenu u kolor fotografiji. 1. Mi gledamo u aditivnoj sintezi (u oku imamo čunjiće osjetljive na modru, zelenu i crvenu boju)

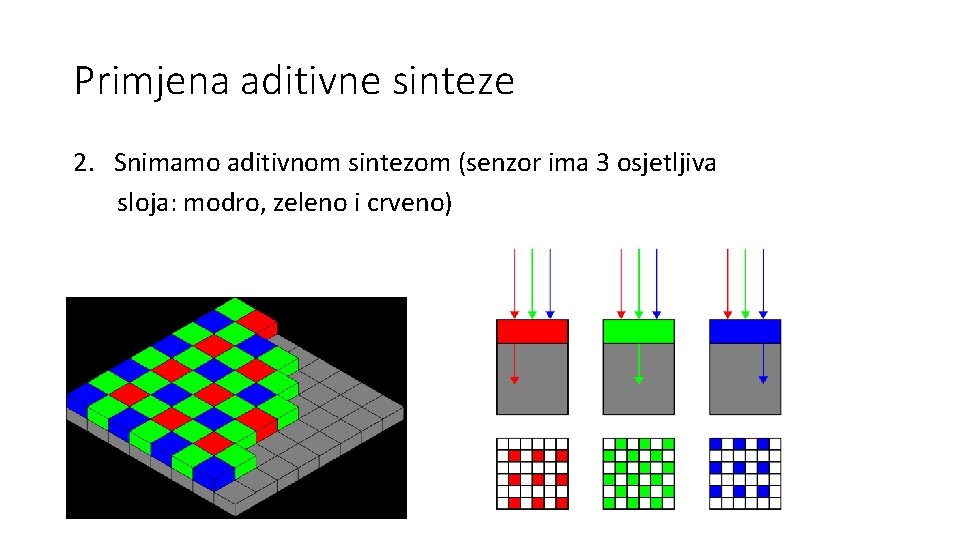

Primjena aditivne sinteze 2. Snimamo aditivnom sintezom (senzor ima 3 osjetljiva sloja: modro, zeleno i crveno)
Primjena aditivne sinteze 3. Na principu aditivne sinteze rade, također i elektronski mediji - video, TV, monitori i drugi uređaji koji imaju RGB prikaz slike(red-greenblue).

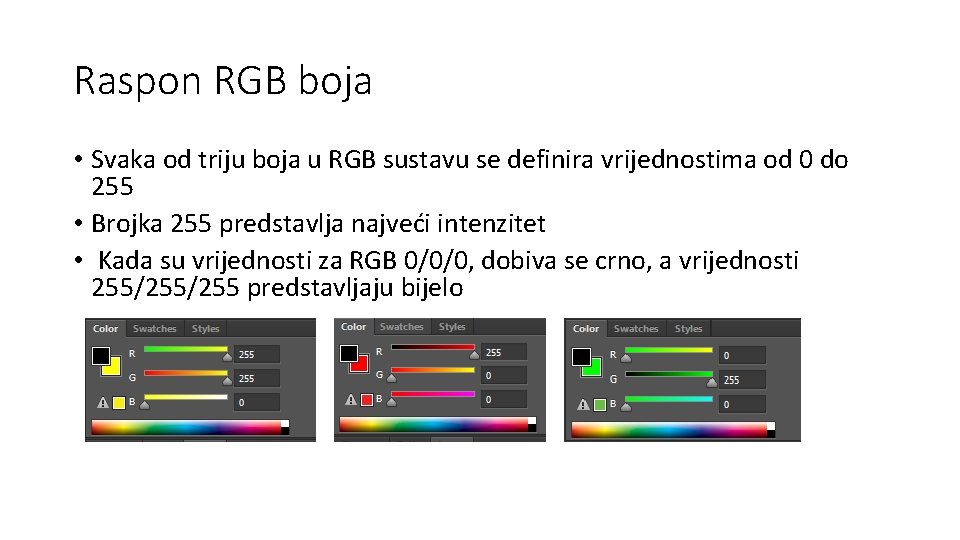

Raspon RGB boja • Svaka od triju boja u RGB sustavu se definira vrijednostima od 0 do 255 • Brojka 255 predstavlja najveći intenzitet • Kada su vrijednosti za RGB 0/0/0, dobiva se crno, a vrijednosti 255/255 predstavljaju bijelo

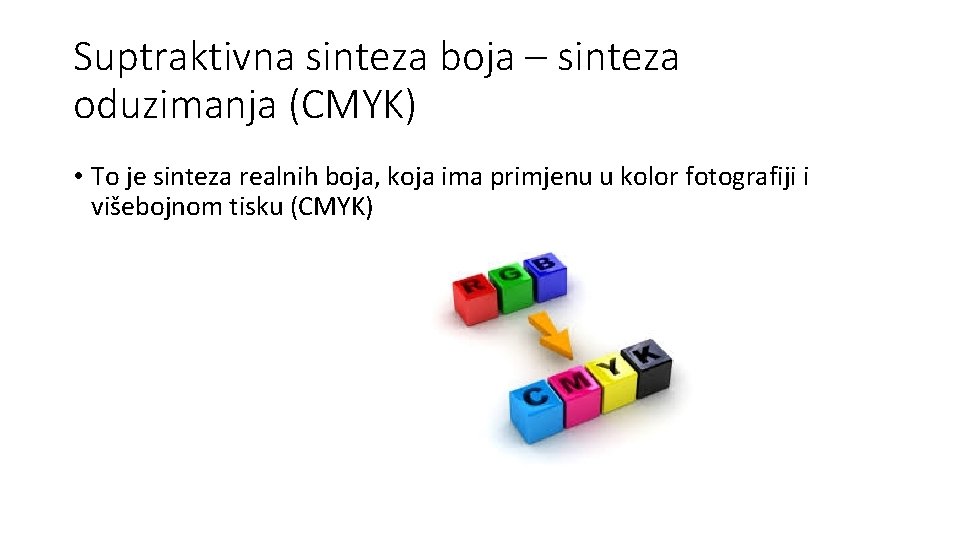

Suptraktivna sinteza boja – sinteza oduzimanja (CMYK) • To je sinteza realnih boja, koja ima primjenu u kolor fotografiji i višebojnom tisku (CMYK)

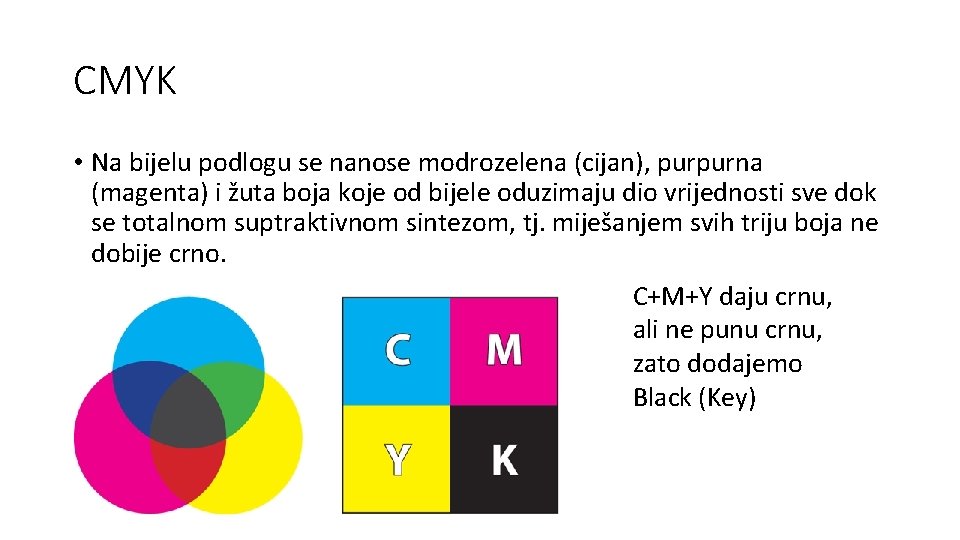

CMYK • Na bijelu podlogu se nanose modrozelena (cijan), purpurna (magenta) i žuta boja koje od bijele oduzimaju dio vrijednosti sve dok se totalnom suptraktivnom sintezom, tj. miješanjem svih triju boja ne dobije crno. C+M+Y daju crnu, ali ne punu crnu, zato dodajemo Black (Key)

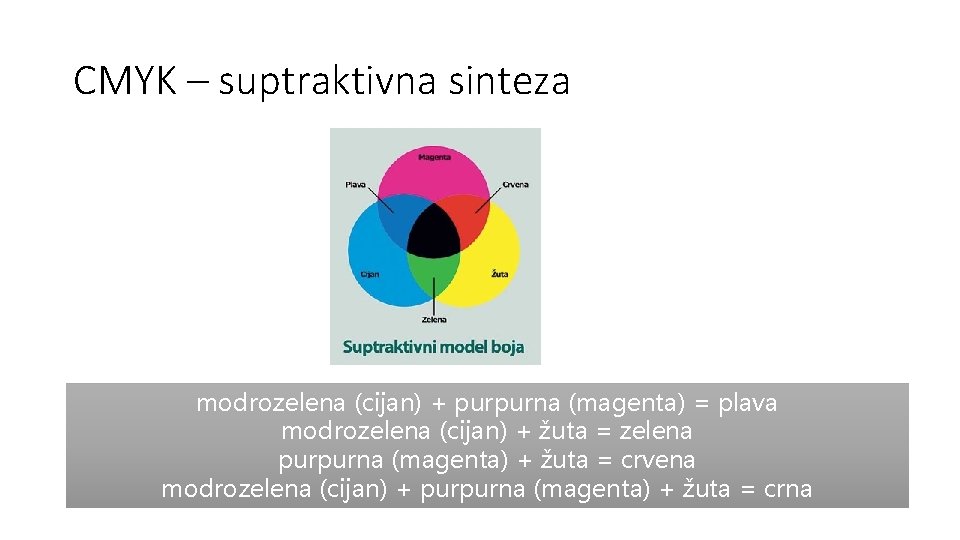

CMYK – suptraktivna sinteza modrozelena (cijan) + purpurna (magenta) = plava modrozelena (cijan) + žuta = zelena purpurna (magenta) + žuta = crvena modrozelena (cijan) + purpurna (magenta) + žuta = crna
Raspon CMYK boja • Dakle, boje i njihove nijanse nastaju oduzimanjem komponenti pa se boje definiraju u postotcima od 0 do 100% intenziteta pojedine komponente. • 0 % je bijelo, nema ničega, a 100% je crno • Crvena se dobiva miješanjem 100% magente i 100% žute, dok se zelena dobiva miješanjem 100% cijana i 100% žute. Želimo li dobiti tamniju zelenu možemo još dodati npr. 20% crne. • CMYK sustav miješanja boja se koristi kod svih vrsta tiska: od offseta, sitotiska, digitalnog tiska pa sve do kućnih ili uredskih printera ili fotokopirki u boji. U tisku se popularno zove kolor ili full color.
