Safe Yellow IC in Plastic Masterbatch §Ability of SYIC to replace 10 -15% of expensive heat resistant pigment means Reduced RMC §Low oil absorption of SYIC means improved flow and higher quality MB §Increased opacity can be obtained from the Zn. S which is 28% in SYICc and 58%in SYICh.

SYIC Formulation Hint §When replacing organic pigments with Safe Yellow IC, efficient dispersion (extrusion) of the organic pigment is of the utmost importance to the success of the procedure.

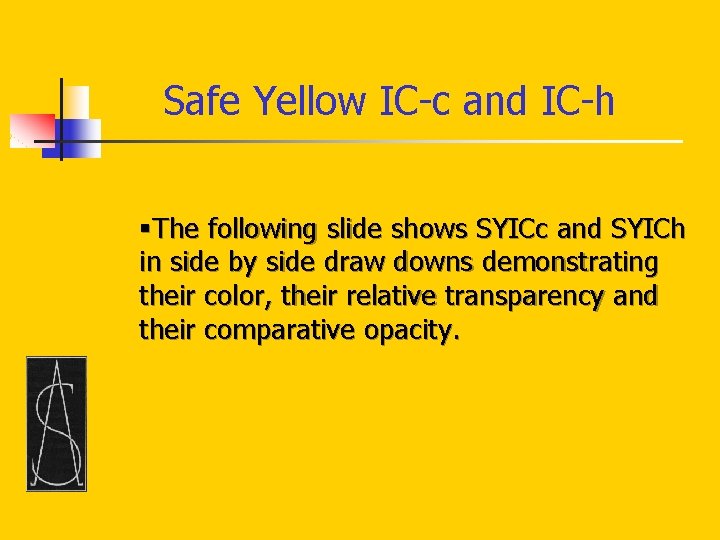

Safe Yellow IC-c and IC-h §The following slide shows SYICc and SYICh in side by side draw downs demonstrating their color, their relative transparency and their comparative opacity.

Safe Yellow IC SYICc SYICh

Modification of Yellow Plastic MB with SYIC § The next slide shows the results of the replacement of 5%, 10% and 15% of YELLOW K 2270 with SYIC. § The following 3 slides show the CIE lab results for each replacement level.

§Control standard Yellow K 2270 Lab color match 0. 2% Pigment in Co-Poly Propylene § 5% Replacement of K 2270 with Safe yellow IC § 10% Replacement of K 2270 with Safe yellow IC § 15% Replacement of K 2270 with Safe yellow IC

Standard: STD: YELLOW CONTROL K 2270 Batch: 5% REPLACEMENT 10 deg. Sp. In. CIEL Mode: Illium D 65 A Batch Standard Delta L* 68. 06 68. 41 -0. 35 a* 10. 91 10. 98 -0. 07 b* 62. 29 62. 75 -0. 46 9 – August - 2001 DC 0. 47 CIELab Plot: Scale= 0. 20 units/division. DE 0. 58 Ilium. D 65= L* 72. 01 72. 38 -0. 37 a* 12. 85 12. 86 -0. 01 b* F Date: 67. 21 67. 71 0. 50 DE 0. 62 F= L+ -0. 50 DC Illium, A= G R L* 72. 22 72. 62 -0. 40 a* 9. 18 9. 21 -0. 04 b* 68. 95 69. 49 -0. 54 DC 0. 54 DE 0. 67 Batch: Darker, Greener, Bluer B L-

Standard: STD: YELLOW CONTROL K 2270 Batch: 10% REPLACEMENT 10 deg. Sp. In. CIEL Mode: Illium D 65 A Batch Standard Delta L* 68. 71 68. 41 -0. 24 a* 10. 20 10. 98 -0. 78 b* 62. 33 62. 75 -0. 41 9 – August - 2001 DC 0. 88 CIELab Plot: Scale= 0. 20 units/division. DE 0. 92 Ilium. D 65= L* 72. 04 72. 38 -0. 34 a* 12. 27 12. 86 -0. 60 b* F Date: 67. 05 67. 71 0. 89 DE 0. 95 F= L+ -0. 65 DC Illium, A= G R L* 72. 26 72. 62 -0. 36 a* 8. 69 9. 21 -0. 52 b* 68. 86 69. 49 -0. 63 DC 0. 82 DE 0. 89 Batch: Darker, Greener, Bluer B L-

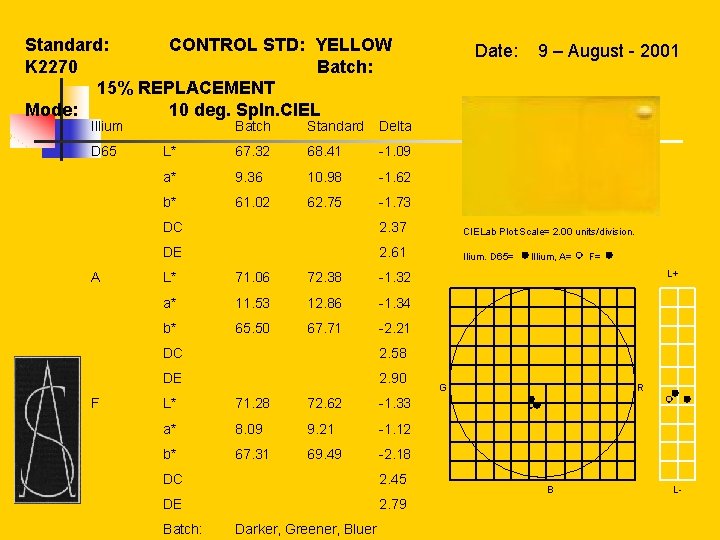

Standard: STD: YELLOW CONTROL K 2270 Batch: 15% REPLACEMENT 10 deg. Sp. In. CIEL Mode: Illium D 65 A Batch Standard Delta L* 67. 32 68. 41 -1. 09 a* 9. 36 10. 98 -1. 62 b* 61. 02 62. 75 -1. 73 9 – August - 2001 DC 2. 37 CIELab Plot: Scale= 2. 00 units/division. DE 2. 61 Ilium. D 65= L* 71. 06 72. 38 -1. 32 a* 11. 53 12. 86 -1. 34 b* F Date: 65. 50 67. 71 2. 58 DE 2. 90 F= L+ -2. 21 DC Illium, A= G R L* 71. 28 72. 62 -1. 33 a* 8. 09 9. 21 -1. 12 b* 67. 31 69. 49 -2. 18 DC 2. 45 DE 2. 79 Batch: Darker, Greener, Bluer B L-

SYIC FORMULATION HINT In plastic master batch, because of single mix process, the most efficient extrusion yields the best results. In some cases lab extruders do not achieve the same level of extrusion as a production extruder, and at the testing level it may result in less than optimum results. Some companies will run the trial on the tail end of a production run so that they can more clearly see what can be accomplished by replacing a percentage of their organic pigment with Safe Yellow IC.

Modification of Orange Plastic MB with SYIC §The next slide shows the results of the replacement of 5%, 10% and 15% of Orange GP with SYIC. §The following 3 slides show the CIE lab results for each replacement level.

§Control Standard Orange GP Lab color match 0. 2% Pigment in Co-Poly Propylene § 5% Replacement of Orange GP with Safe Yellow IC § 10% Replacement of Orange GP with Safe Yellow IC § 15% Replacement of Orange GP with Safe Yellow IC

Standard: Batch: Mode: Illium D 65 A CONTROL STD: ORANGE GP 5%REPLACEMENT deg. Sp. In. CIEL 10 Batch Standard Delta L* 55. 60 55. 05 0. 55 a* 40. 15 40. 28 -0. 13 b* 42. 66 42. 23 0. 42 9 – August - 2001 DC 0. 44 CIELab Plot: Scale= 0. 20 units/division. DE 0. 71 Ilium. D 65= L* 62. 24 61. 68 0. 55 a* 38. 89 39. 11 -0. 22 b* F Date: 54. 02 53. 61 0. 47 DE 0. 72 F= L+ 0. 41 DC Illium, A= G R L* 60. 33 59. 68 0. 65 a* 32. 46 32. 56 -0. 10 b* 50. 82 50. 23 0. 59 DC 0. 60 DE 0. 89 Batch: Lighter, Greener, Yellower B L-

Standard: Batch: Mode: Illium D 65 A CONTROL STD: ORANGE GP 10% REPLACEMENT deg. Sp. In. CIEL 10 Batch Standard Delta L* 54. 55 55. 05 -0. 50 a* 39. 16 40. 28 -1. 12 b* 41. 50 42. 23 -0. 73 9 – August - 2001 DC 1. 34 CIELab Plot: Scale= 2. 00 units/division. DE 1. 43 Ilium. D 65= L* 61. 03 61. 68 -0. 66 a* 38. 07 39. 11 -1. 04 b* F Date: 52. 58 53. 61 1. 46 DE 1. 60 F= L+ -103 DC Illium, A= G R L* 59. 12 59. 68 -0. 56 a* 31. 67 32. 56 -0. 89 b* 49. 39 50. 23 -0. 84 DC 1. 23 DE 1. 35 Batch: Dark, Greener, Bluer B L-

Standard: Batch: Mode: Illium D 65 A Batch Standard Delta L* 53. 91 55. 05 -1. 14 a* 38. 97 40. 28 -1. 31 b* 39. 30 42. 23 -2. 93 9 – August - 2001 DC 3. 21 CIELab Plot: Scale= 2. 00 units/division. DE 3. 41 Ilium. D 65= L* 60. 30 61. 68 -1. 39 a* 38. 06 39. 11 -1. 06 b* F CONTROL STD: ORANGE GP 15% REPLACEMENT 10 deg. Sp. In. CIEL Date: 50. 25 53. 61 3. 52 DE 3. 78 F= L+ -3. 36 DC Illium, A= G R L* 58. 28 59. 68 -1. 40 a* 31. 63 32. 56 -0. 93 b* 46. 84 50. 23 -3. 39 DC 3. 51 DE 3. 78 Batch: Darker, Greener, Bluer B L-

SYIC FORMULATION HINT During the initial testing in a typical final plastic compound and prime pigment bagshake method, we suggest that for the standard color match tests prepare a master batch of the IC based on standard or polymer specific formulations as required. To match the customers sample requirement, add pigment to the IC base until the color matches your upper tolerance for color shift. Hereby, you essentially have established your trial formula. From there the formula can be adjusted as needed for flow, opacity, etc…

Modification of Red Plastic MB with SYIC §The next slide shows the results of the replacement of 5%, 10% and 15% of DPP Red with SYIC. §The following 3 slides show the CIE lab results for each replacement level.

§Control Standard DPP Red Chromophtal lab color match 0. 2% Pigment in Co-Poly Propylene § 5% Replacement of DPP Red with Safe Yellow IC § 10% Replacement of DPP Red with Safe Yellow IC § 15% Replacement of DPP Red with Safe Yellow IC

Standard: Batch: Mode: Illium D 65 A CONTROL STD: DPP RED 5% REPLACEMENT deg. Sp. In. CIEL 10 Batch Standard Delta L* 45. 55 45. 52 0. 03 a* 47. 44 47. 94 -0. 50 b* 30. 18 30. 72 -0. 54 9 – August - 2001 DC 0. 73 CIELab Plot: Scale= 0. 20 units/division. DE 0. 73 Ilium. D 65= L* 52. 65 52. 70 -0. 05 a* 48. 52 48. 99 -0. 47 b* F Date: 42. 37 43. 04 0. 82 DE 0. 82 F= L+ -0. 67 DC Illium, A= G R L* 47. 30 47. 26 0. 04 a* 39. 96 40. 35 -0. 39 b* 33. 22 33. 73 -. 052 DC 0. 64 DE 0. 64 Batch: Lighter, Greener, Bluer B L-

Standard: Batch: Mode: Illium D 65 A CONTROL STD: DPP RED 10% REPLACEMENT deg. Sp. In. CIEL 10 Batch Standard Delta L* 45. 27 45. 52 -0. 26 a* 46. 99 47. 94 -0. 94 b* 30. 10 30. 72 -0. 61 9 – August - 2001 DC 1. 13 CIELab Plot: Scale= 0. 20 units/division. DE 1. 16 Ilium. D 65= L* 52. 30 52. 70 -0. 40 a* 48. 01 48. 99 -0. 98 b* F Date: 42. 17 43. 04 -0. 86 DC 1. 30 DE 1. 36 G Illium, A= F= L+ R L* 47. 06 47. 26 -0. 20 a* 39. 64 40. 35 -. 071 b* 33. 21 33. 73 -. 052 DC 0. 88 DE 0. 90 Batch: Darker, Greener, Bluer B L-

Standard: Batch: Mode: Illium D 65 A CONTROL STD: DPP RED 15% REPLACEMENT deg. Sp. In. CIEL 10 Batch Standard Delta L* 45. 04 45. 52 -0. 48 a* 46. 67 47. 94 -1. 27 b* 29. 87 30. 72 -0. 84 9 – August - 2001 DC 1. 52 CIELab Plot: Scale= 2. 00 units/division. DE 1. 59 Ilium. D 65= L* 52. 03 52. 70 -0. 67 a* 47. 71 48. 99 -1. 27 b* F Date: 41. 87 43. 04 1. 73 DE 1. 86 F= L+ -1. 17 DC Illium, A= G R L* 46. 82 47. 26 -0. 44 a* 39. 37 40. 35 -0. 98 b* 32. 97 33. 73 -0. 77 DC 1. 25 DE 1. 32 Batch: Darker, Greener, Bluer B L-

Sale Yellow IC is used to reduce the quantity of expensive pigment used in granular and liquid plastic master batch production and provide costs savings and rheological benefits: When replacing organic pigments with Safe Yellow IC, efficient dispersion of the organic pigment is of the utmost importance to the success of the procedure. For that reason we recommend, if at all feasible, that when working in the laboratory that the organic pigment is dispersed separately from the Safe Yellow l. C. 1620 Norvell Street, El Cerrito, CA, P 510. 848. 8890 F 510. 848. 8889, www. safepigment. com

In plastic master batch because of single mix process, the most efficient extrusion yields the best results. In some cases lab extruders do not achieve the same level of extrusion as a production extruder, and at the testing level it may result in less than optimum results. Some companies will run the trial on the tail end of a production run so that they can more clearly see what can be accomplished by replacing a percentage of their organic pigment with Safe Yellow IC. 1620 Norvell Street, El Cerrito, CA, P 510. 848. 8890 F 510. 848. 8889, www. safepigment. com

During the initial testing in a typical final plastic compound and prime pigment bag-shake method, we suggest that for the standard color match tests prepare a master batch of the IC based on standard or polymer specific formulations as required. To match the customers’ sample requirement, add pigment to the IC base until the color matches your upper tolerance for color shift. Hereby you essentially have established your trial formula. 1620 Norvell Street, El Cerrito, CA, P 510. 848. 8890 F 510. 848. 8889, www. safepigment. com

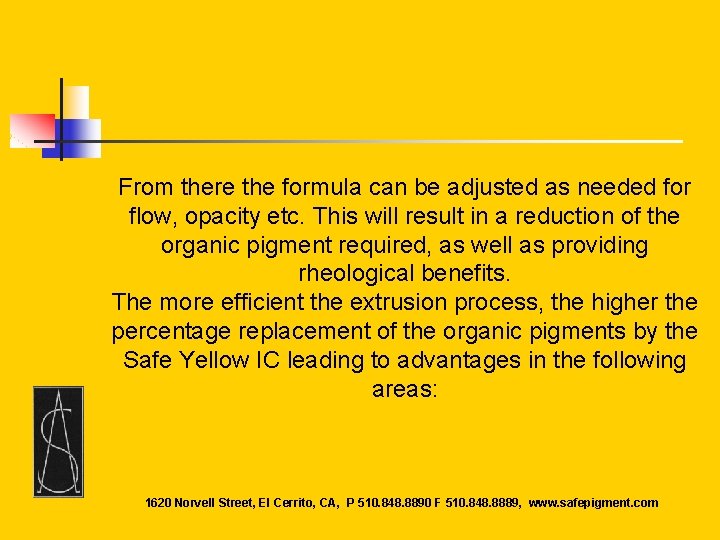

From there the formula can be adjusted as needed for flow, opacity etc. This will result in a reduction of the organic pigment required, as well as providing rheological benefits. The more efficient the extrusion process, the higher the percentage replacement of the organic pigments by the Safe Yellow IC leading to advantages in the following areas: 1620 Norvell Street, El Cerrito, CA, P 510. 848. 8890 F 510. 848. 8889, www. safepigment. com

Reduced Raw Materials Cost — Because heat resistant pigments typically used in Plastic Master batch tend to be expensive, there is typically substantial economic advantage in replacing a percentage of those pigments with Safe Yellow IC. Reduced Viscosity — Sate Yellow Its oil absorption of 10 tan provide noticeable reductions in viscosity resulting in improved flow and higher quality MB. 1620 Norvell Street, El Cerrito, CA, P 510. 848. 8890 F 510. 848. 8889, www. safepigment. com

Increased Opacity — Safe Yellow ICc containing 28% zinc sulfide has some opacity (a refractive index of 2. 01), and when a relatively transparent organic pigment is partially replaced by the relatively opaque SYIC, some opacity is gained. For coatings needing extra opacity we have Safe Yellow ICh containing 58% zinc sulfide has 1. 75 times the hiding power of SYICc, and. 36 times the hiding power of Ti 02. 1620 Norvell Street, El Cerrito, CA, P 510. 848. 8890 F 510. 848. 8889, www. safepigment. com
