Single-phase Rectifiers Date: 18 -10 -2018 Prepared By: Sukant K. Sahoo [SKS] Assistant Professor Department of Electrical Engineering Institute of Technology, NU Mail: sukanta. sahoo@nirmauni. ac. in 1

Definition of Rectifiers § A rectifier is a converter that converts alternating current (AC) , which periodically reverses direction, to direct current (DC), which flows in only one direction. The process is known as rectification. AC DC 2

Classification of Rectifiers 3

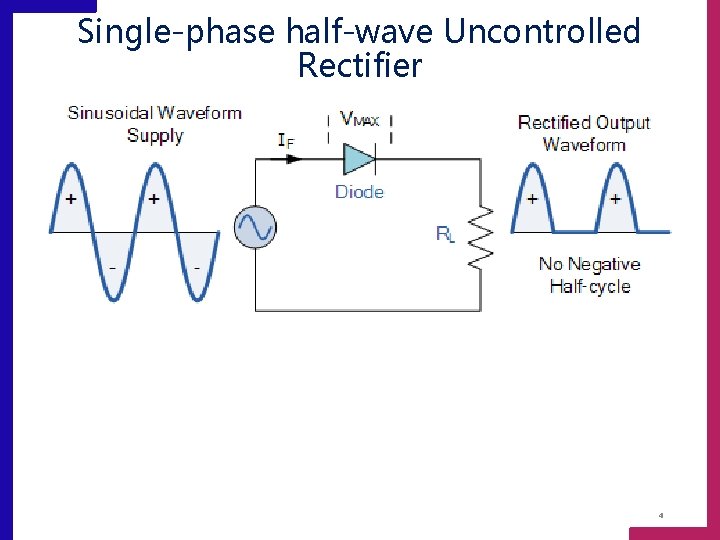

Single-phase half-wave Uncontrolled Rectifier 4

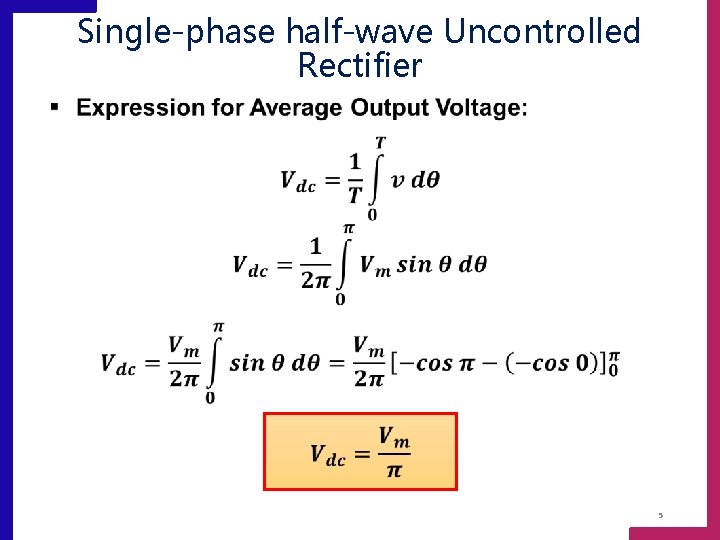

Single-phase half-wave Uncontrolled Rectifier 5

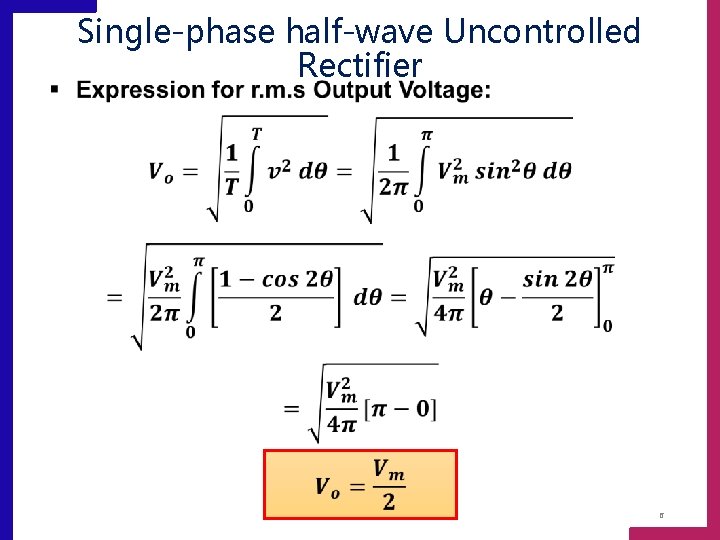

Single-phase half-wave Uncontrolled Rectifier 6

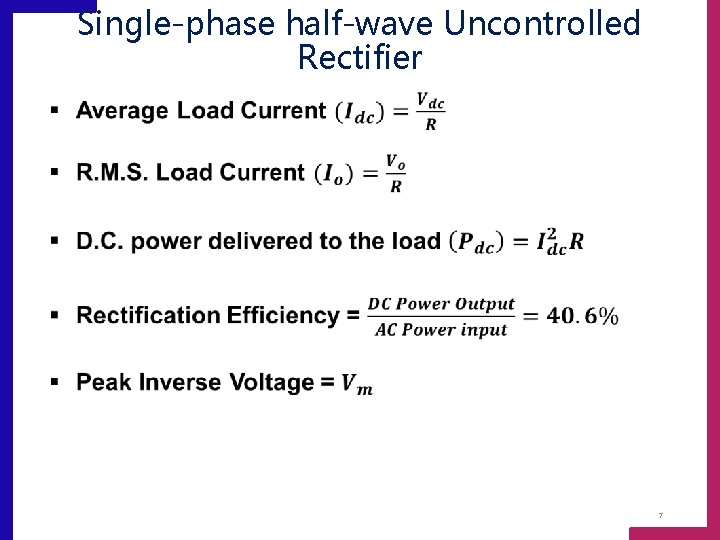

Single-phase half-wave Uncontrolled Rectifier 7

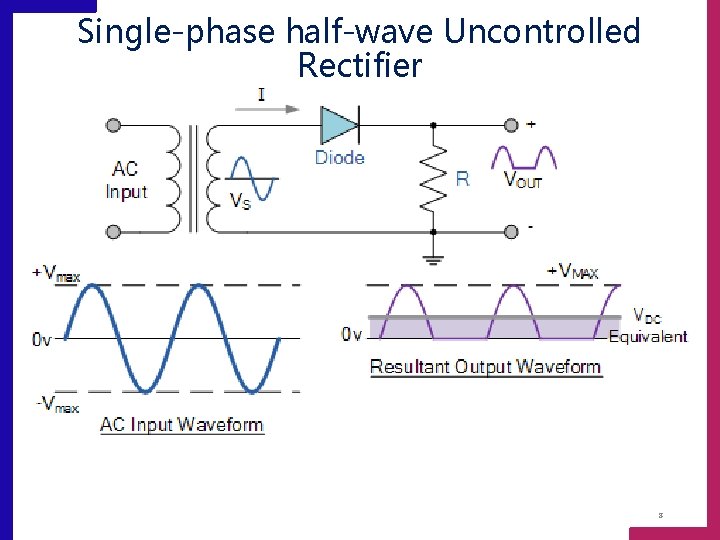

Single-phase half-wave Uncontrolled Rectifier 8

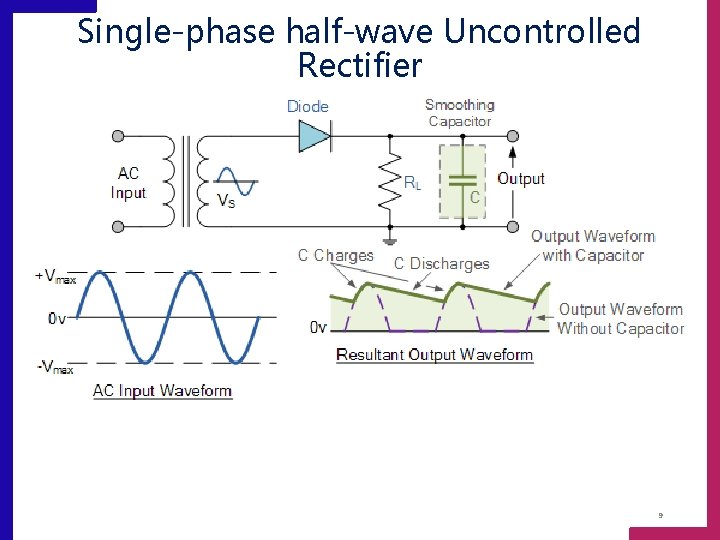

Single-phase half-wave Uncontrolled Rectifier 9

Single-phase Full wave Uncontrolled Rectifier § Center-tap Configuration: 10

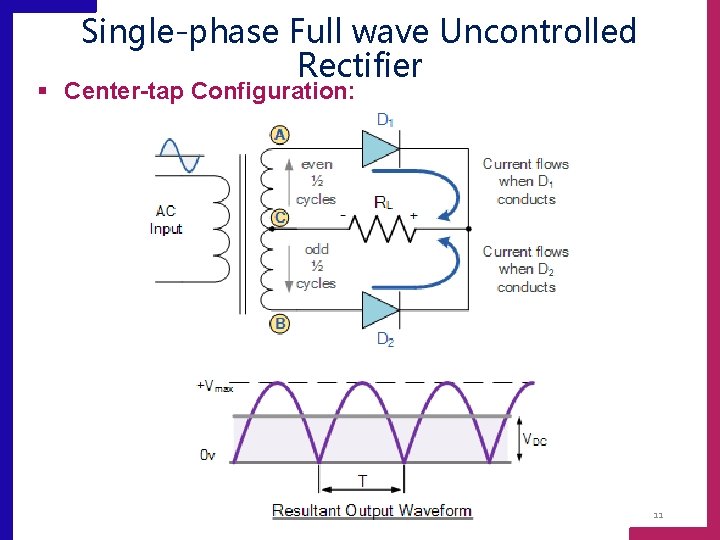

Single-phase Full wave Uncontrolled Rectifier § Center-tap Configuration: 11

Single-phase Full wave Uncontrolled Rectifier § Bridge Configuration: 12

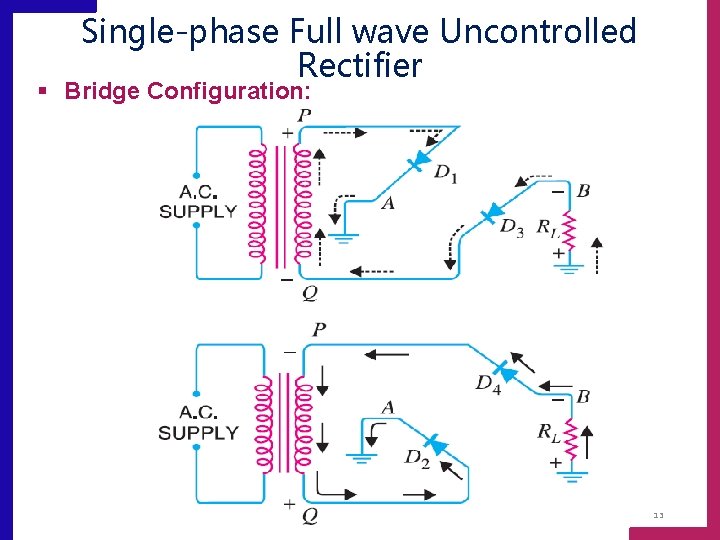

Single-phase Full wave Uncontrolled Rectifier § Bridge Configuration: 13

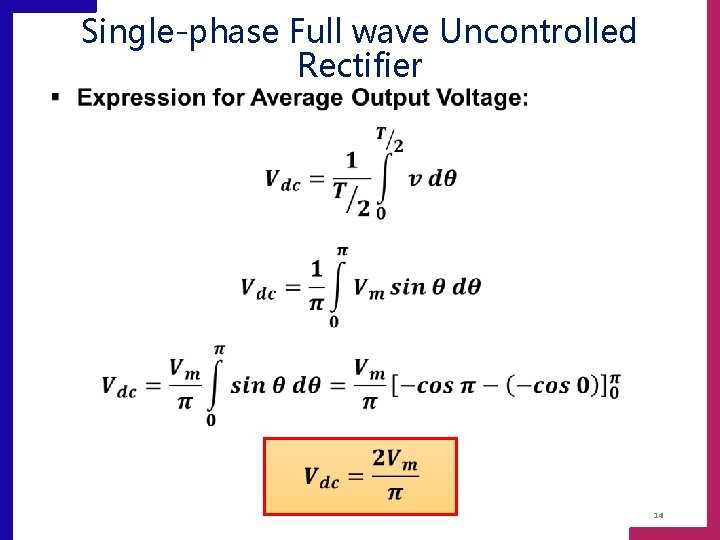

Single-phase Full wave Uncontrolled Rectifier 14

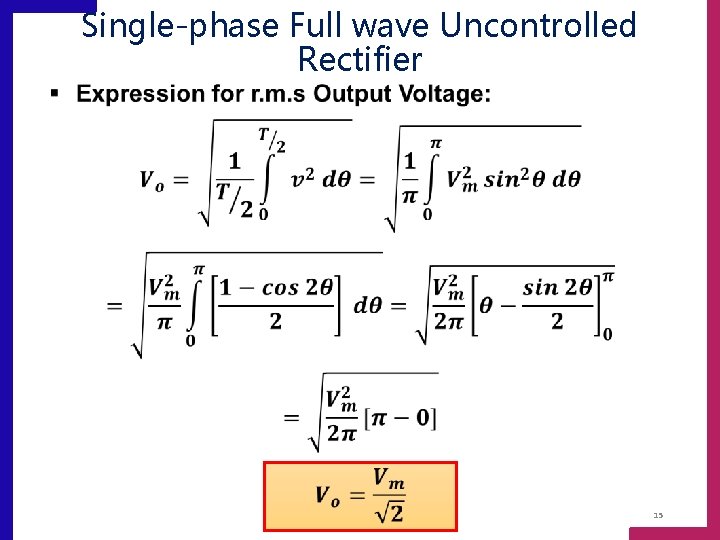

Single-phase Full wave Uncontrolled Rectifier 15

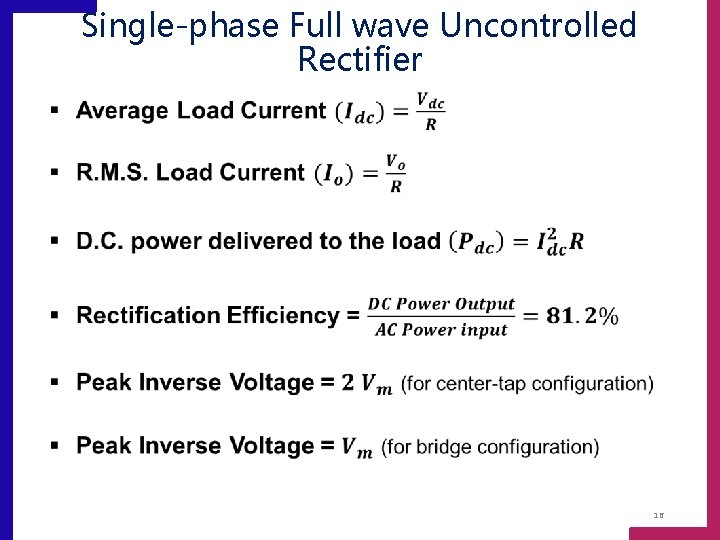

Single-phase Full wave Uncontrolled Rectifier 16

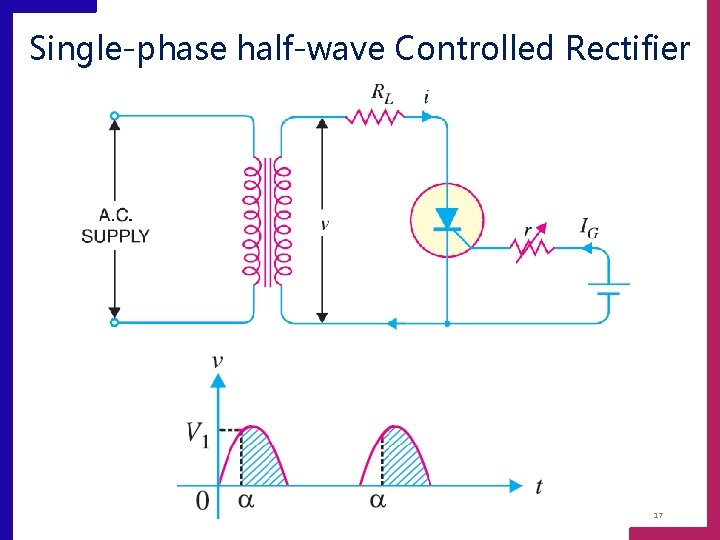

Single-phase half-wave Controlled Rectifier 17

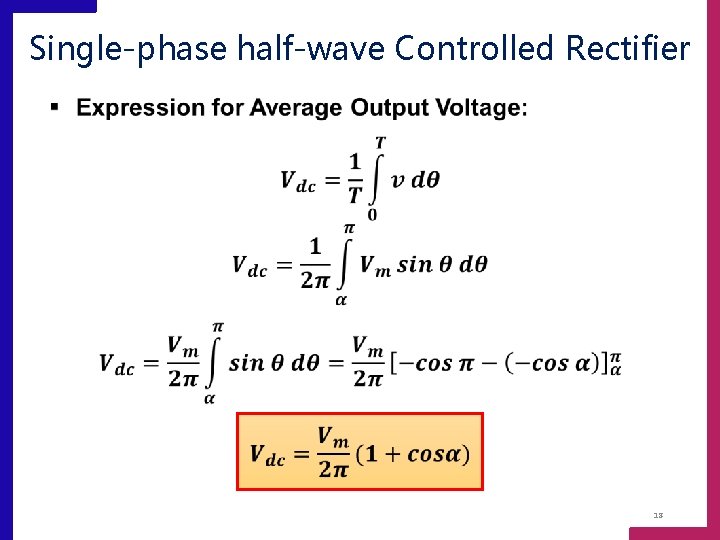

Single-phase half-wave Controlled Rectifier 18

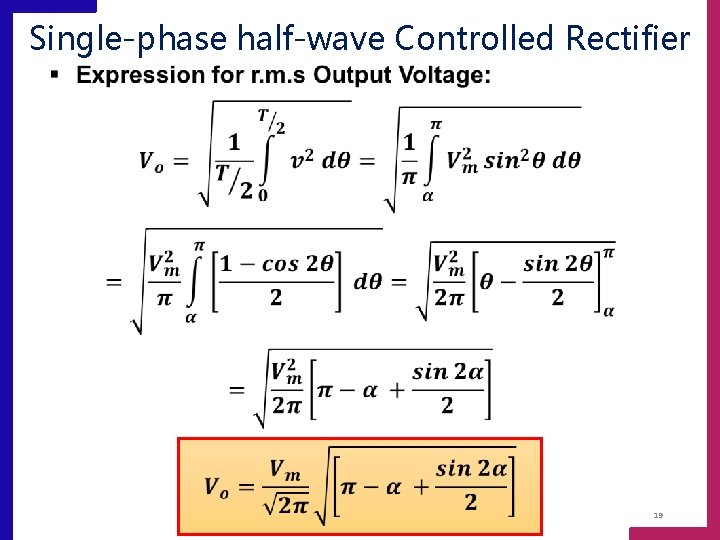

Single-phase half-wave Controlled Rectifier 19

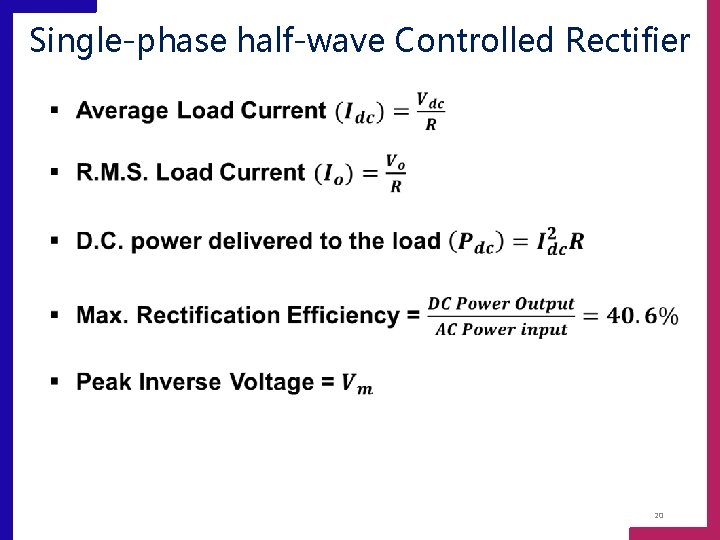

Single-phase half-wave Controlled Rectifier 20

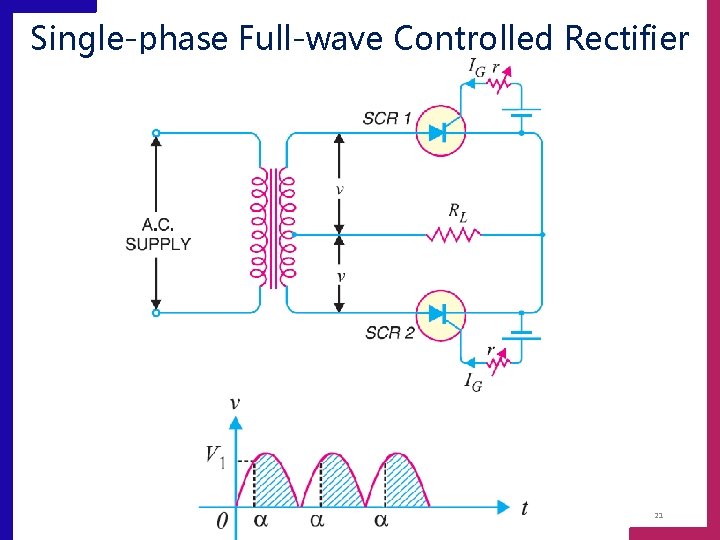

Single-phase Full-wave Controlled Rectifier 21

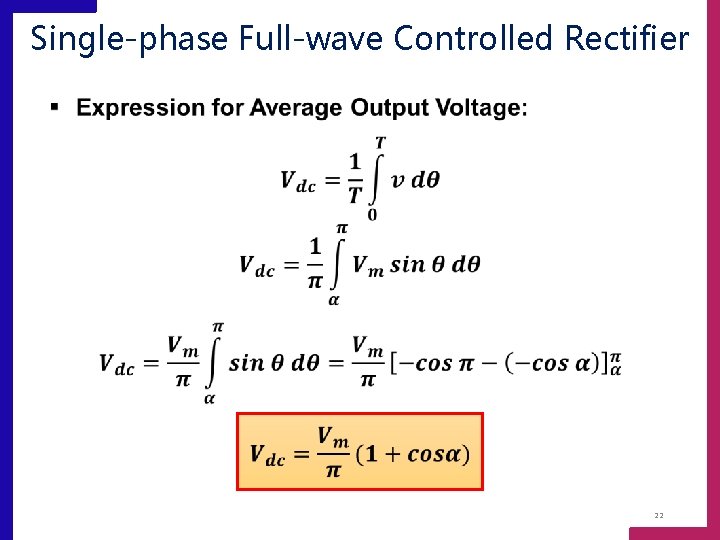

Single-phase Full-wave Controlled Rectifier 22

Single-phase Full-wave Controlled Rectifier 23

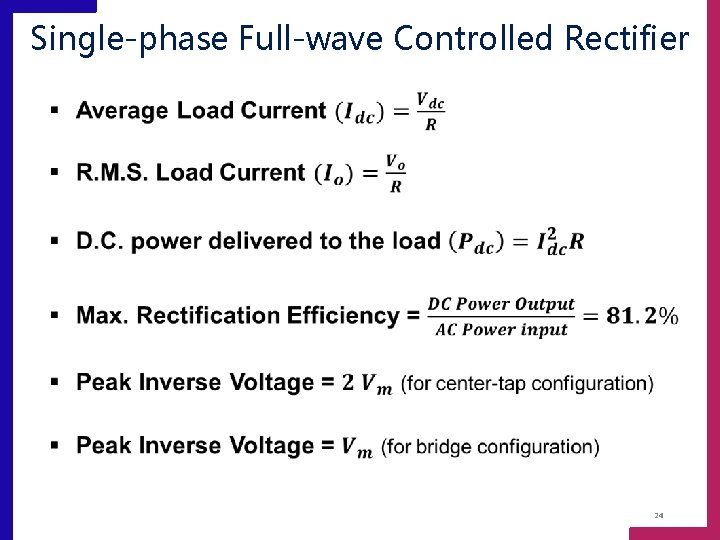

Single-phase Full-wave Controlled Rectifier 24
