Single Site Dispatcher 1 Ethernet Internet Dispatcher 2

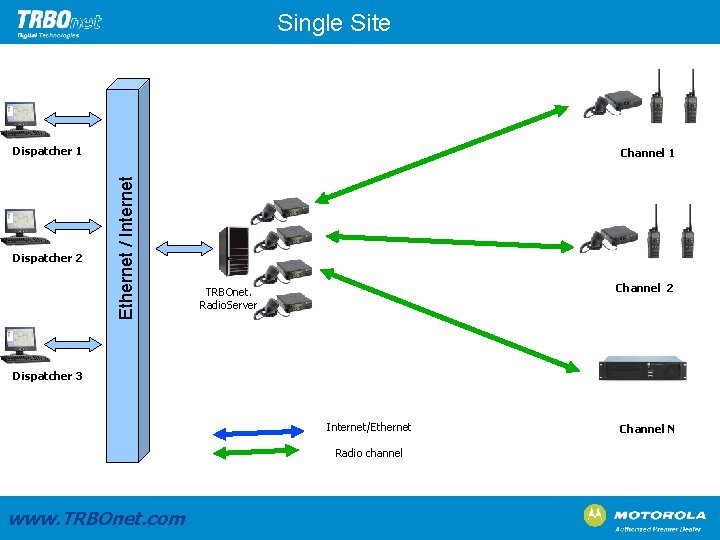

Single Site Dispatcher 1 Ethernet / Internet Dispatcher 2 Channel 1 Channel 2 TRBOnet. Radio. Server Dispatcher 3 Internet/Ethernet Radio channel www. TRBOnet. com Channel N

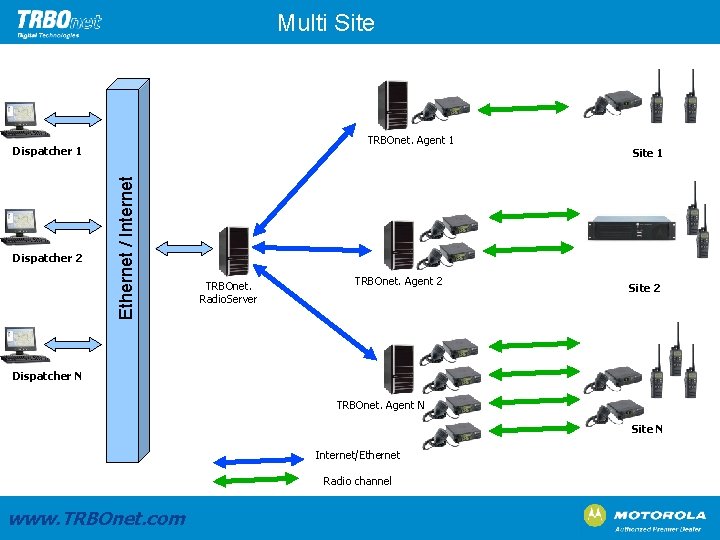

Multi Site TRBOnet. Agent 1 Dispatcher 2 Ethernet / Internet Dispatcher 1 TRBOnet. Radio. Server TRBOnet. Agent 2 Site 1 Site 2 Dispatcher N TRBOnet. Agent N Site N Internet/Ethernet Radio channel www. TRBOnet. com

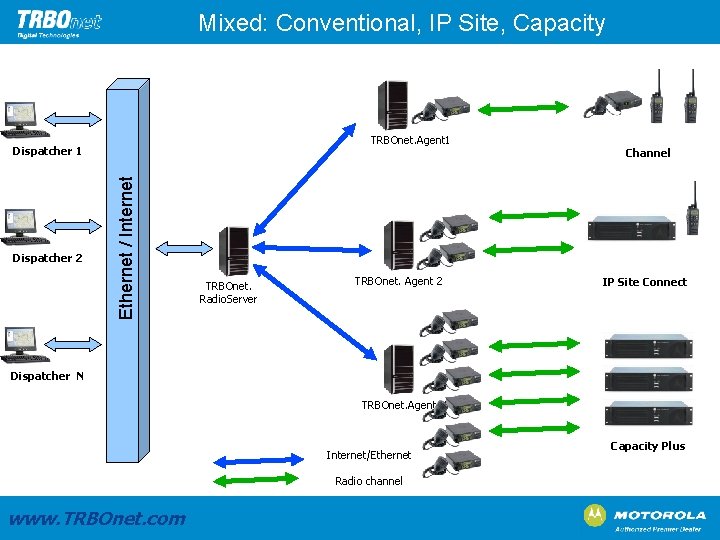

Mixed: Conventional, IP Site, Capacity TRBOnet. Agent 1 Dispatcher 2 Ethernet / Internet Dispatcher 1 TRBOnet. Radio. Server TRBOnet. Agent 2 Channel IP Site Connect Dispatcher N TRBOnet. Agent N Internet/Ethernet Radio channel www. TRBOnet. com Capacity Plus

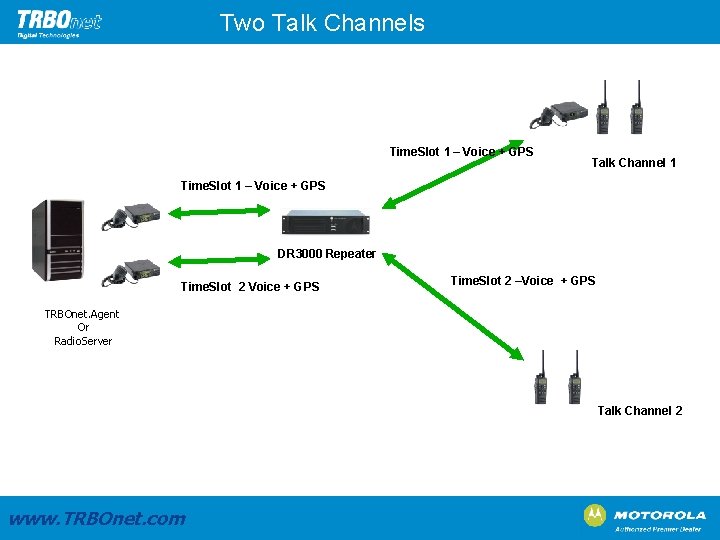

Two Talk Channels Time. Slot 1 – Voice + GPS Talk Channel 1 Time. Slot 1 – Voice + GPS DR 3000 Repeater Time. Slot 2 Voice + GPS Time. Slot 2 –Voice + GPS TRBOnet. Agent Or Radio. Server Talk Channel 2 www. TRBOnet. com

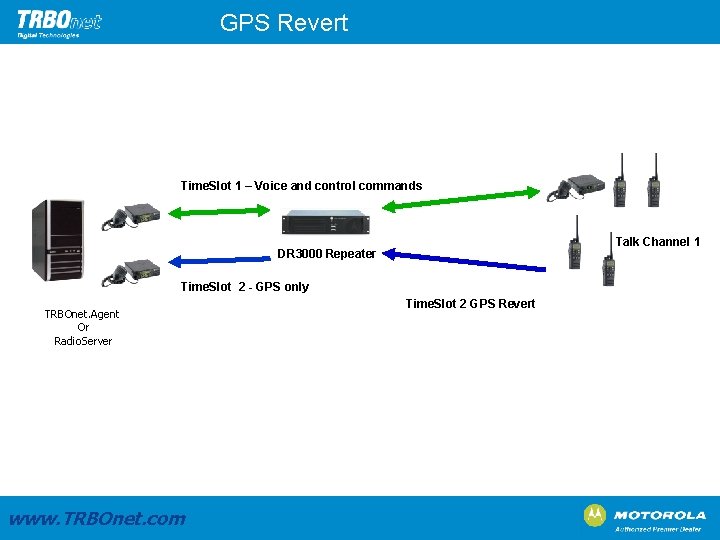

GPS Revert Time. Slot 1 – Voice and control commands Talk Channel 1 DR 3000 Repeater Time. Slot 2 - GPS only TRBOnet. Agent Or Radio. Server www. TRBOnet. com Time. Slot 2 GPS Revert

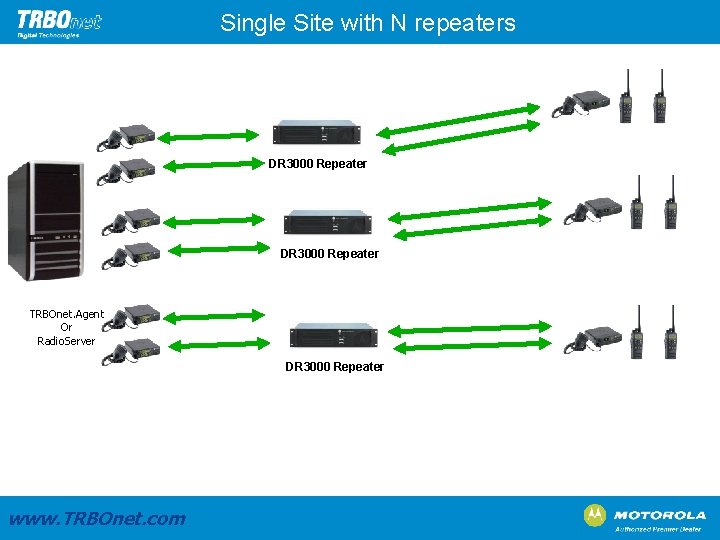

Single Site with N repeaters DR 3000 Repeater TRBOnet. Agent Or Radio. Server DR 3000 Repeater www. TRBOnet. com

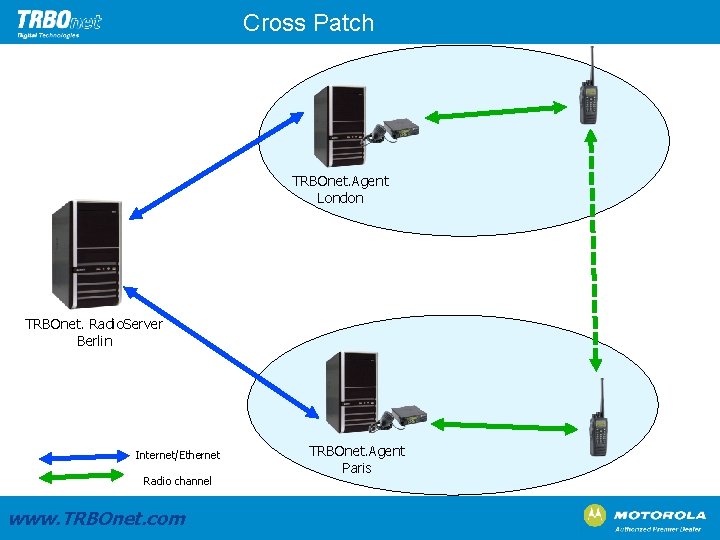

Cross Patch TRBOnet. Agent London TRBOnet. Radio. Server Berlin Internet/Ethernet Radio channel www. TRBOnet. com TRBOnet. Agent Paris

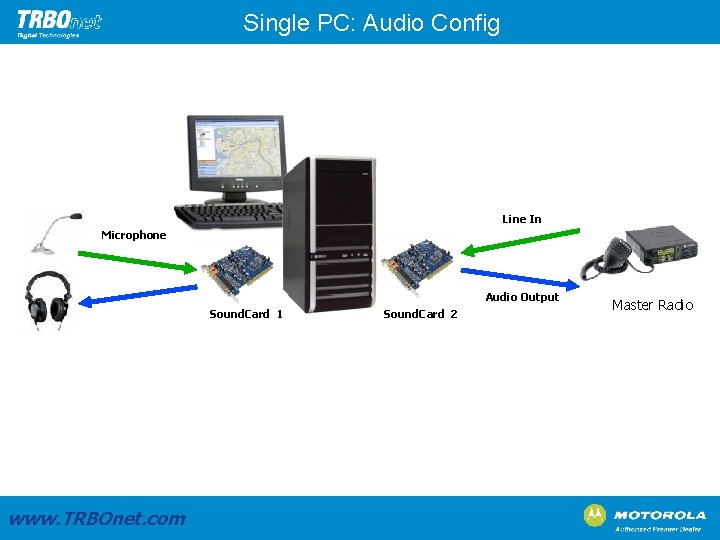

Single PC: Audio Config Line In Microphone Audio Output Sound. Card 1 www. TRBOnet. com Sound. Card 2 Master Radio

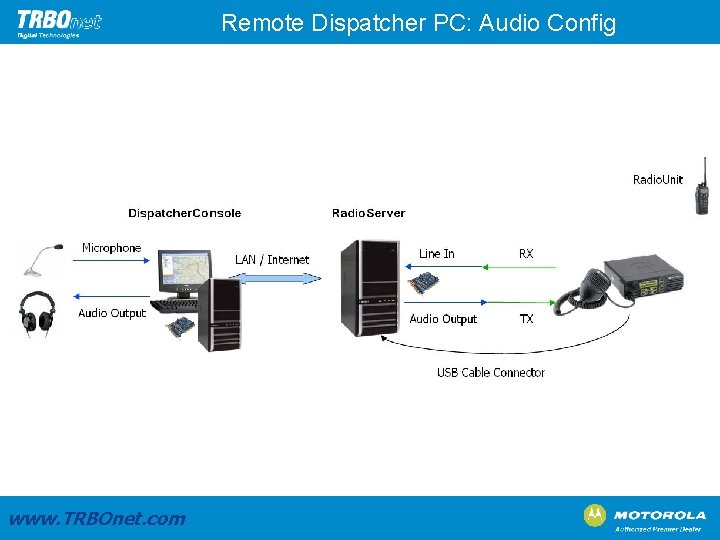

Remote Dispatcher PC: Audio Config www. TRBOnet. com
