Single Instruction Multiple Data Another approach to ILP

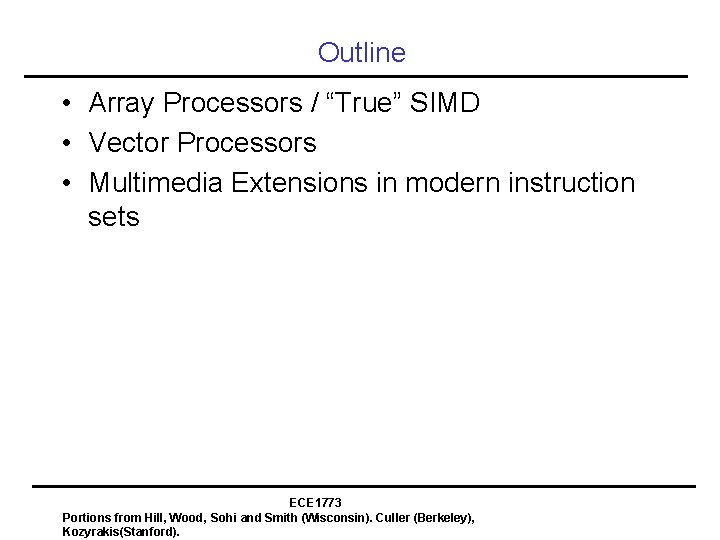

Outline • Array Processors / “True” SIMD • Vector Processors • Multimedia Extensions in

SIMD: Motivation • Let’s start with an example: – ILLIAC IV, U of Illinois,

SIMD: Motivation contd. • Replication to the extreme: Multi-processor Multiprocessor Uniprocessor CU CU ALU

SIMD: Motivation Contd. • Recall: – Part of architecture is understanding application needs •

SIMD Architecture CU μCU regs PE PE PE MEM MEM • Replicate Datapath, not

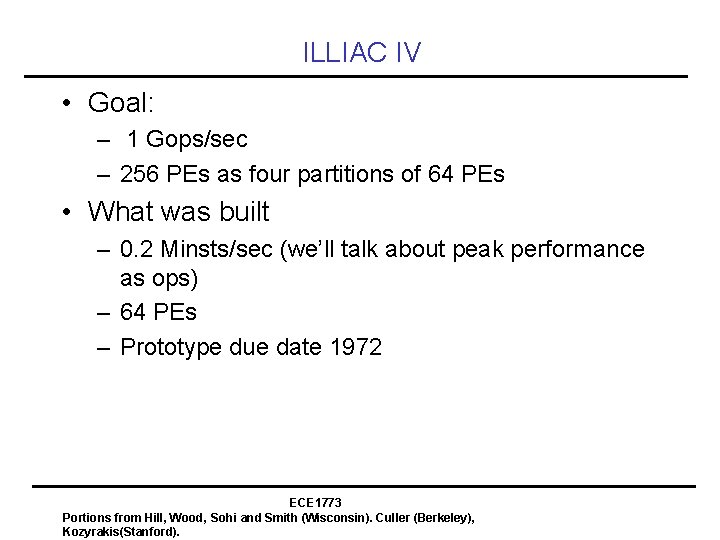

ILLIAC IV • Goal: – 1 Gops/sec – 256 PEs as four partitions of

ILLIAC IV I/O Proc CU PE PE PE PMEM ECE 1773 Portions from Hill,

ILLIAC IV Processing Element (PE) • 64 -bit numbers, float or fixed point •

PE Contd. • • PE mode: Active or Inactive, CU sets mode All PEs

Peak Compute Bandwidth • 64 PEs • Each can perform: – 1 64 b,

Control Unit (CU) • • • A simple CPU Can execute instructions w/o PE

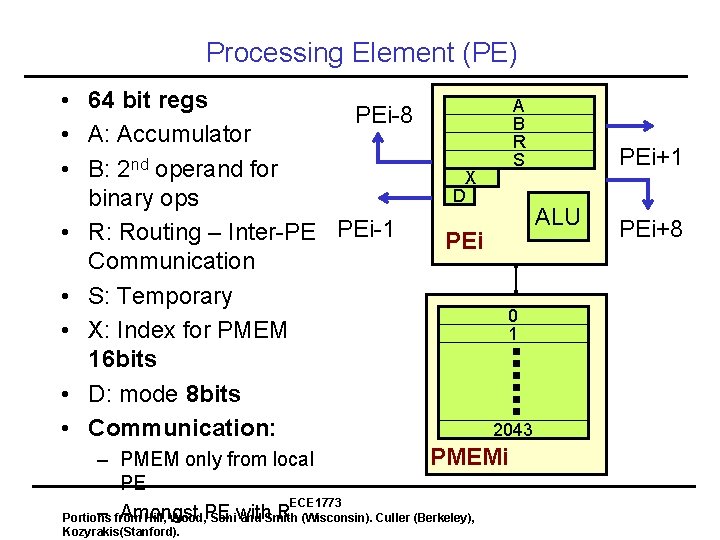

Processing Element (PE) • 64 bit regs PEi-8 • A: Accumulator • B: 2

Datapaths Control Unit Bus CU Mode PE PE PMEM Common Data Bus Routing PE

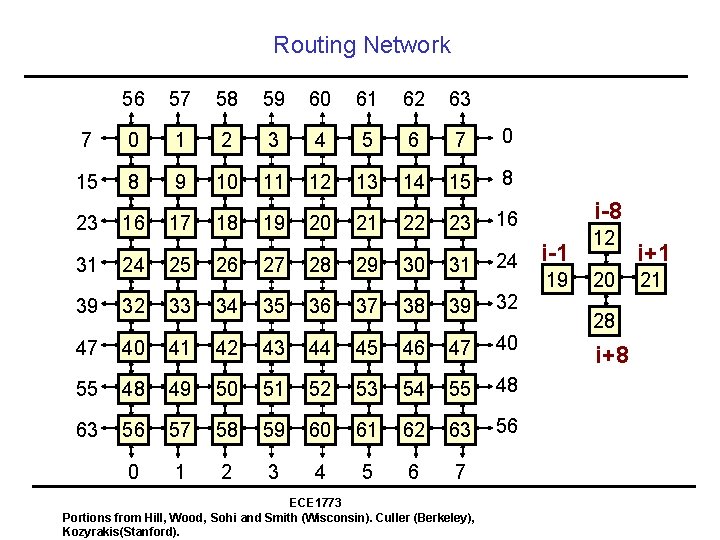

Routing Network 56 57 58 59 60 61 62 63 7 0 1 2

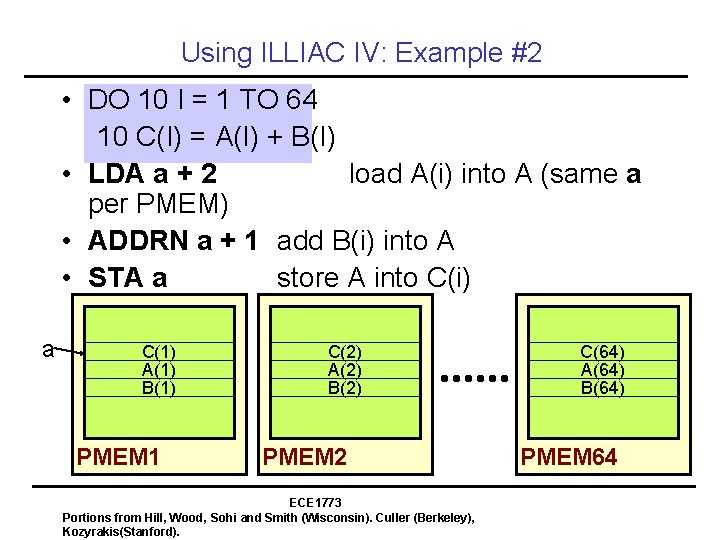

Using ILLIAC IV: Example #2 • DO 10 I = 1 TO 64 10

Using ILLIAC IV: Example #2 • DO 10 I = 2 TO 64 •

Using ILLIAC IV: Example #2 contd. 1. 2. 3. 4. 5. 6. 7. 8.

Using ILLIAC IV: Example #2 contd. • Initial State: – PMEM(1)[a] = A(1) –

Vector Processors SIMD over time ECE 1773 Portions from Hill, Wood, Sohi and Smith

Vector Processors • Vector Datatype • Apply same operation on all elements of the

Properties of Vector Processors • One Vector instruction implies lots of work – Fewer

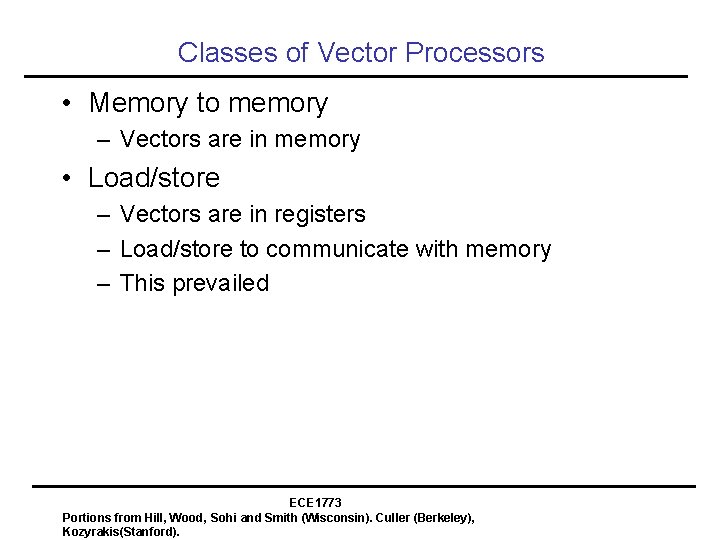

Classes of Vector Processors • Memory to memory – Vectors are in memory •

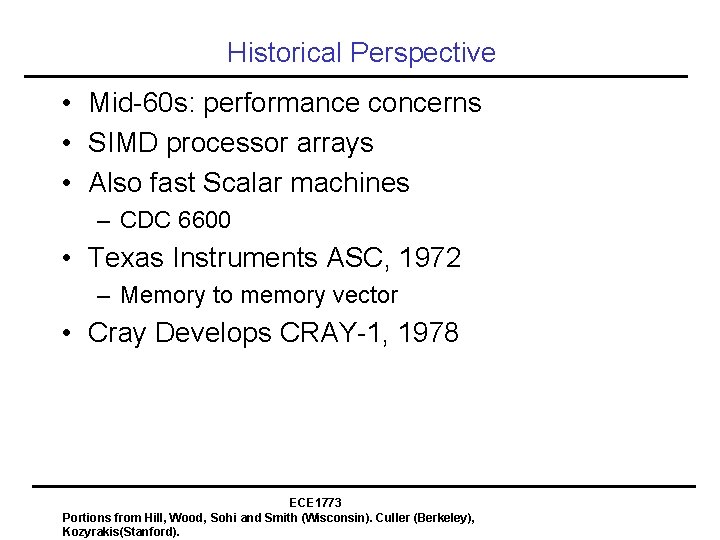

Historical Perspective • Mid-60 s: performance concerns • SIMD processor arrays • Also fast

CRAY-1 • Fast and simple scalar processor – 80 Mhz • Vector register concept

Physical Organization of CRAY-1 ECE 1773 Portions from Hill, Wood, Sohi and Smith (Wisconsin).

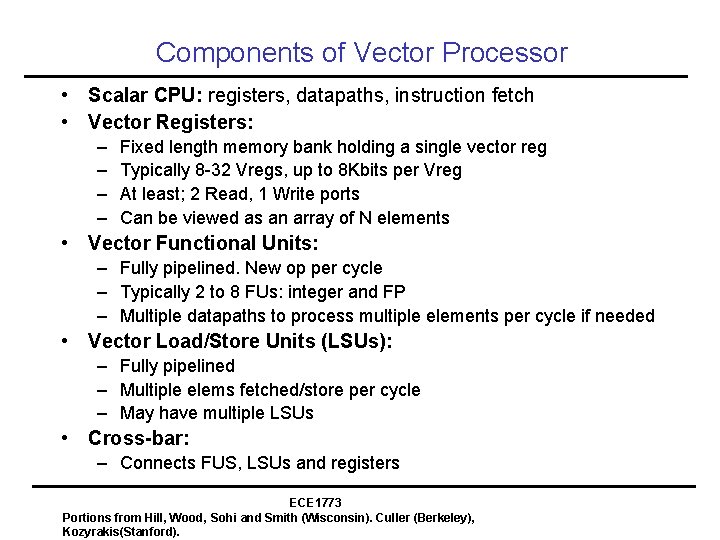

Components of Vector Processor • Scalar CPU: registers, datapaths, instruction fetch • Vector Registers:

CRAY-1 Organization • Simple 16 -bit Reg-to-Reg ISA • Use two 16 -bit to

CRAY-1 CPU • • • Scalar and vector modes 12. 5 ns clock 64

CRAY-1 CPU • Vector Length Register – Can use only a prefix of a

Cray-1 Memory System • 1 M 64 b words + 8 check bits (single

Instruction Format • Fields g h I j • Bits 0 -3 4 -6

Basic Vector Instructions • • • Inst Operands Operation Comment VADD. VV V 1,

Vector Memory Operations • Load/Store move groups of data between memory and registers •

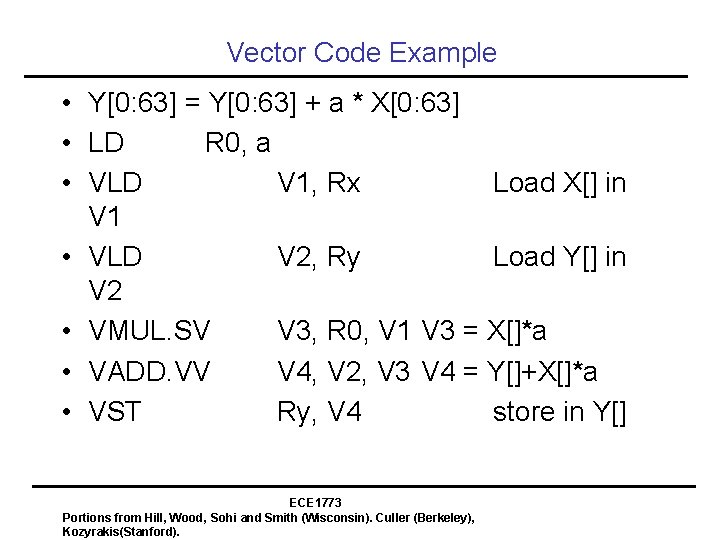

Vector Code Example • Y[0: 63] = Y[0: 63] + a * X[0: 63]

Scalar Equivalent • • • Loop: • • LD R 0, a LI R

Vector Length Register • Allows us to vectorize code where the elements do not

Strip Mining • Suppose (application vector length) AVL > MVL (max vector length) •

Optimization #1: Chaining • Subsequent vector op can be initiated as soon as a

Optimization #2: Conditional Execution • Vector Mask Register – Bit vector: used as predicate

Optimization #3: Multi-lane Implementation • Vectors are interleaved so that multiple elems can be

Two Ways to View Vectorization • Classic Approach: Inner-loop – Think machine as having

Startup Cost ECE 1773 Portions from Hill, Wood, Sohi and Smith (Wisconsin). Culler (Berkeley),

Execution Cost ECE 1773 Portions from Hill, Wood, Sohi and Smith (Wisconsin). Culler (Berkeley),

Multimedia extensions SIMD in modern CPUs ECE 1773 Portions from Hill, Wood, Sohi and

Multimedia ISA Extensions • Intel’s MMX – – – The Basics Instruction Set Examples

MMX: Basics • Multimedia applications are becoming popular • Are current ISAs a good

Multimedia Applications • Most multimedia apps have lots of parallelism: – for I =

Observations • 32 -bit registers are wasted – only using part of them and

MMX Contd. • Can do better than traditional ISA – new data types –

MMX: Example Up to 8 operations (64 bit) go in parallel w Potential improvement:

Data Types ECE 1773 Portions from Hill, Wood, Sohi and Smith (Wisconsin). Culler (Berkeley),

MMX: Instruction Set • 57 new instructions • Integer Arithmetic – – • •

Arithmetic • Conventional: Wrap-around – on overflow, wrap to -1 – on underflow, wrap

Operations • Mult/Add • Compares • Conversion – Interpolation/Transpose – Unpack (e. g. ,

Matrix Transpose 4 x 4 m 03 m 02 m 01 m 00 m

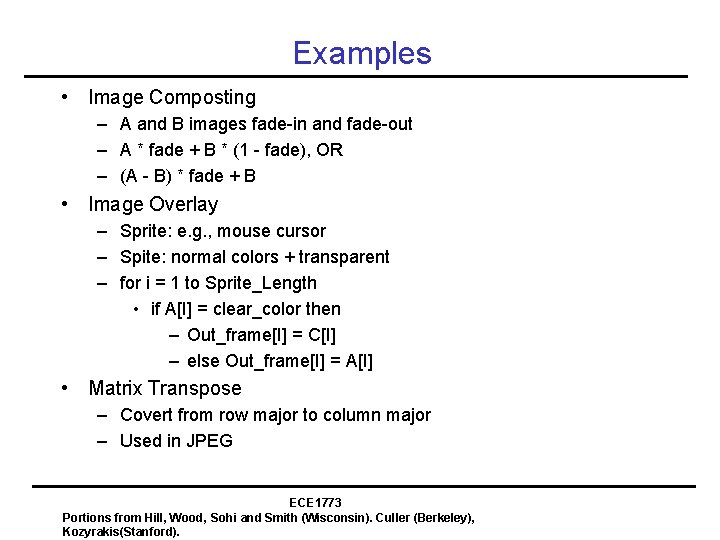

Examples • Image Composting – A and B images fade-in and fade-out – A

Chroma Keying • for (i=0; i<image_size; i++) – if (x[i] == Blue) new_image[i] =y[i]

Chroma Keying Code • Movq mm 3, mem 1 – Load eight pixels from

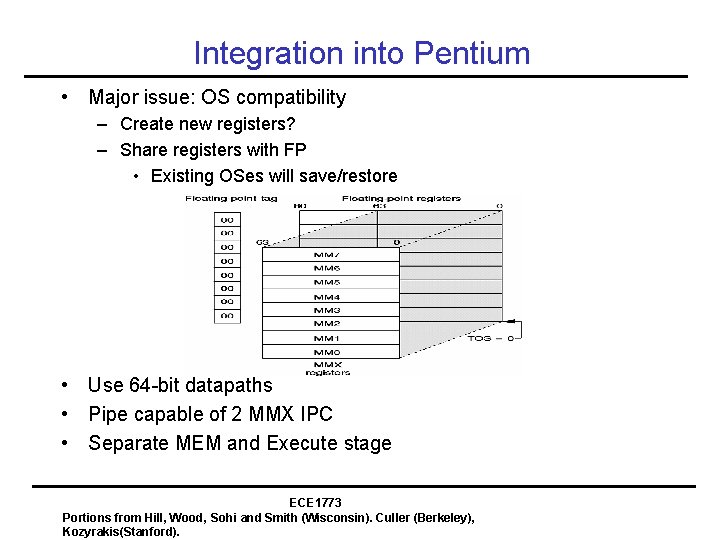

Integration into Pentium • Major issue: OS compatibility – Create new registers? – Share

“Recent” Multimedia Extensions • • Intel MMX: integer arithmetic only New algorithms -> new

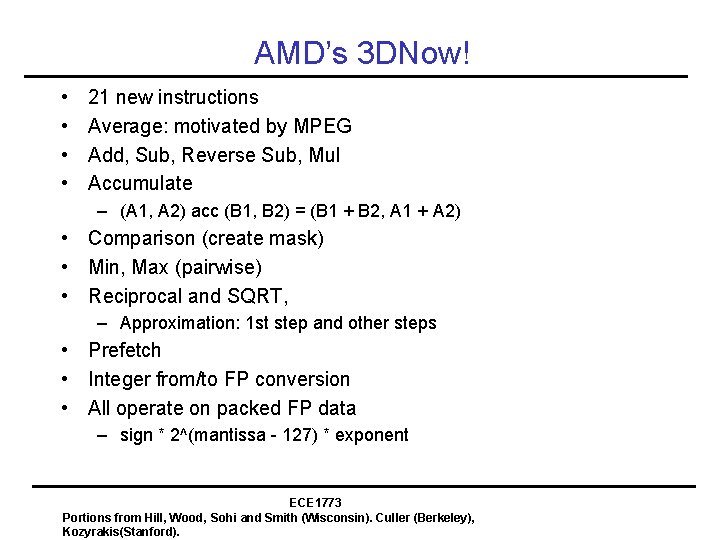

AMD’s 3 DNow! • • 21 new instructions Average: motivated by MPEG Add, Sub,

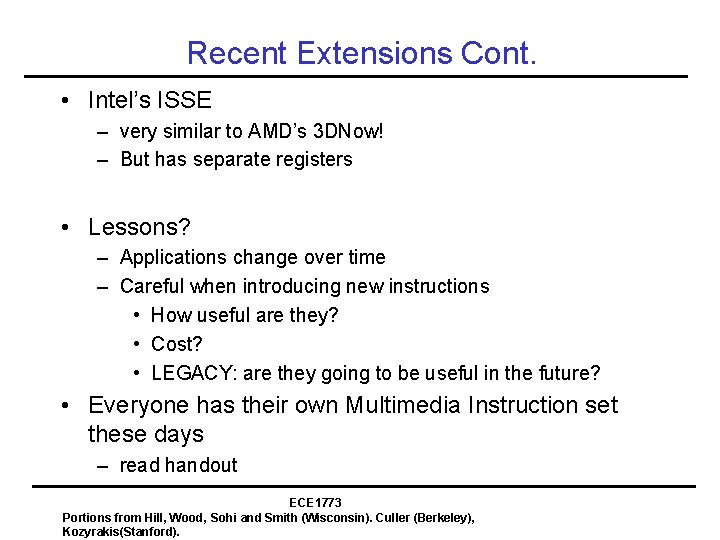

Recent Extensions Cont. • Intel’s ISSE – very similar to AMD’s 3 DNow! –

Intel’s SSE • Multimedia/Internet? • 70 new instructions • Major Types: – SIMD-FP 128

Altivec (Power. PC Mmedia Ext) • • • 128 -bit registers 8, 16, or

Altivec Design Process • Look at Mmedia Kernel • Justify new instructions • Video
