Single Cell Variability The contribution of noise to

Single Cell Variability The contribution of noise to biological systems

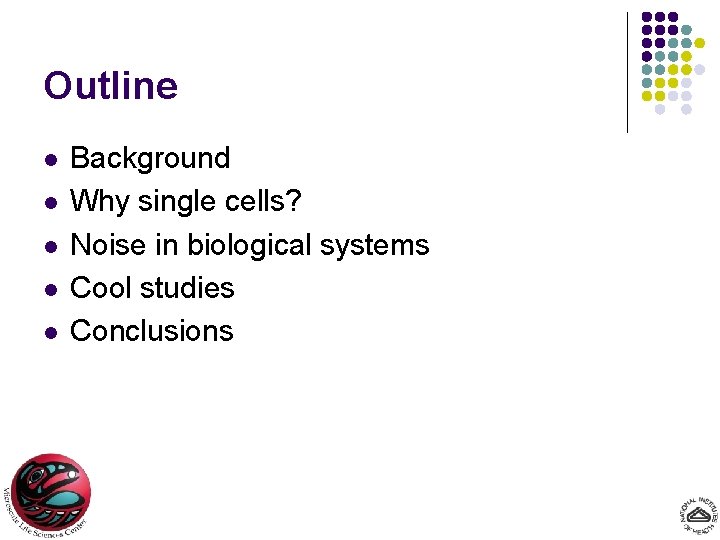

Outline l l l Background Why single cells? Noise in biological systems Cool studies Conclusions

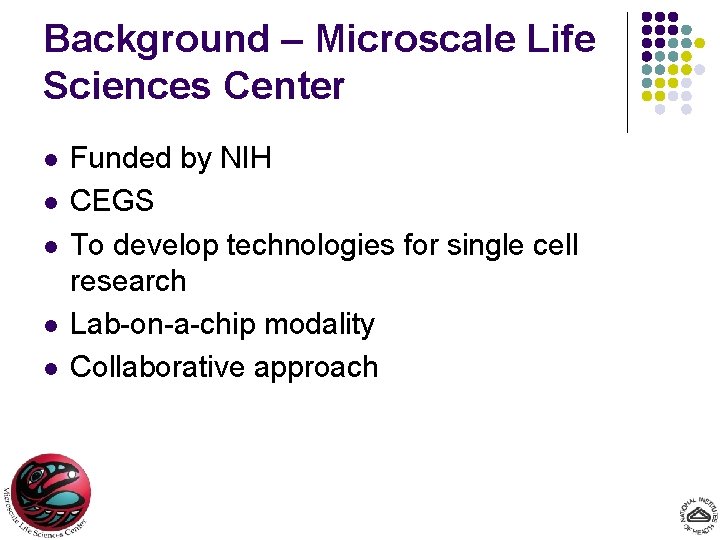

Background – Microscale Life Sciences Center l l l Funded by NIH CEGS To develop technologies for single cell research Lab-on-a-chip modality Collaborative approach

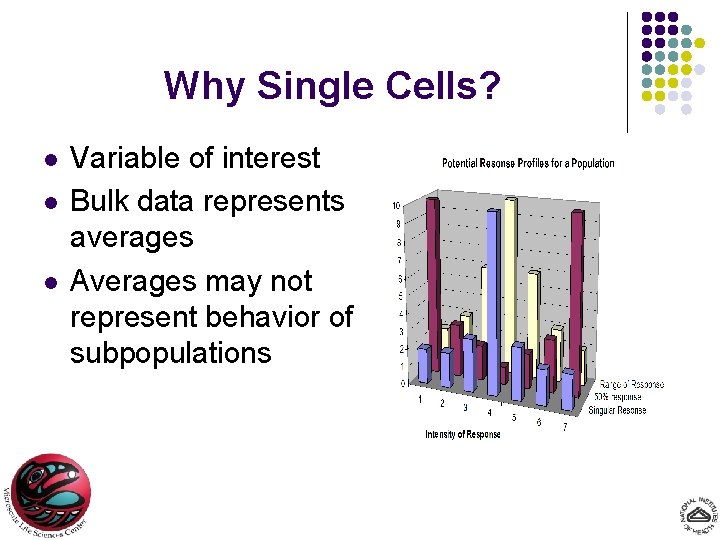

Why Single Cells? l l l Variable of interest Bulk data represents averages Averages may not represent behavior of subpopulations

Why Single Cells? – One Example =?

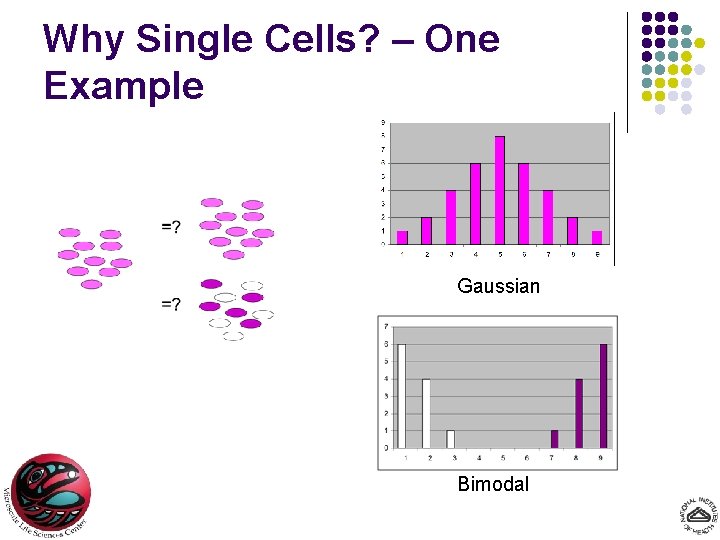

Why Single Cells? – One Example Gaussian Bimodal

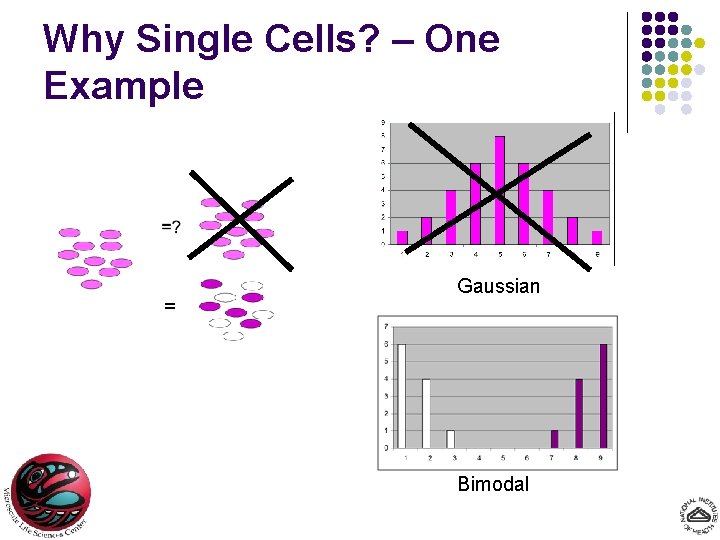

Why Single Cells? – One Example = Gaussian Bimodal

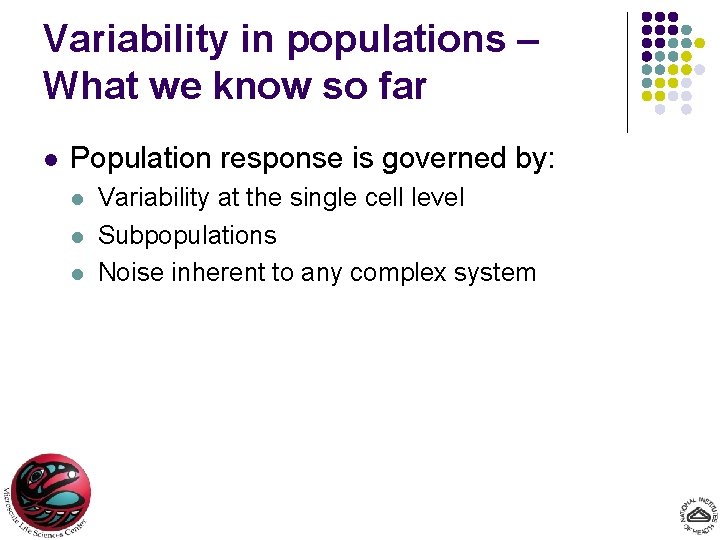

Variability in populations – What we know so far l Population response is governed by: l l l Variability at the single cell level Subpopulations Noise inherent to any complex system

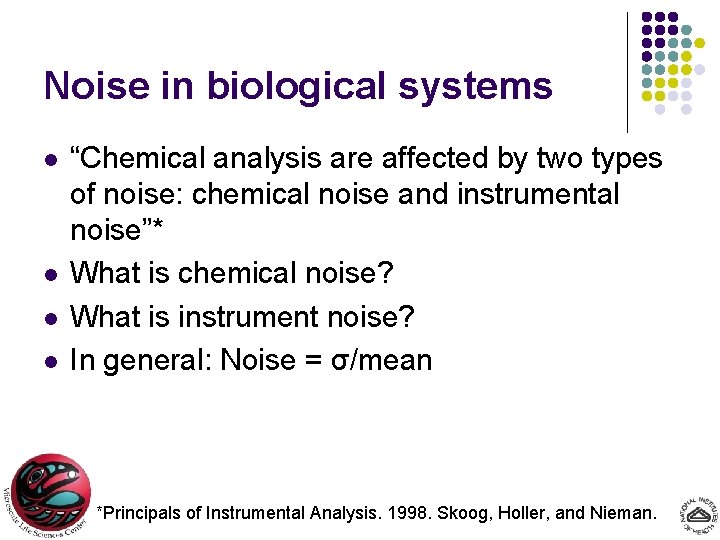

Noise in biological systems l l “Chemical analysis are affected by two types of noise: chemical noise and instrumental noise”* What is chemical noise? What is instrument noise? In general: Noise = σ/mean *Principals of Instrumental Analysis. 1998. Skoog, Holler, and Nieman.

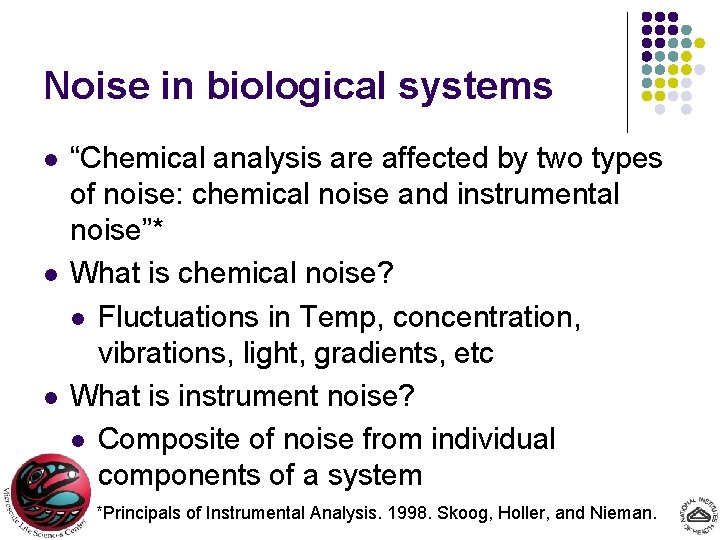

Noise in biological systems l l l “Chemical analysis are affected by two types of noise: chemical noise and instrumental noise”* What is chemical noise? l Fluctuations in Temp, concentration, vibrations, light, gradients, etc What is instrument noise? l Composite of noise from individual components of a system *Principals of Instrumental Analysis. 1998. Skoog, Holler, and Nieman.

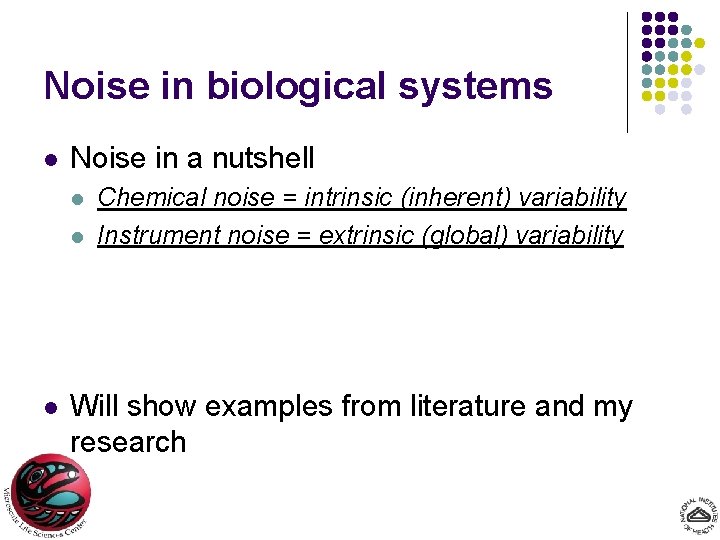

Noise in biological systems l Noise in a nutshell l Chemical noise = intrinsic (inherent) variability Instrument noise = extrinsic (global) variability Will show examples from literature and my research

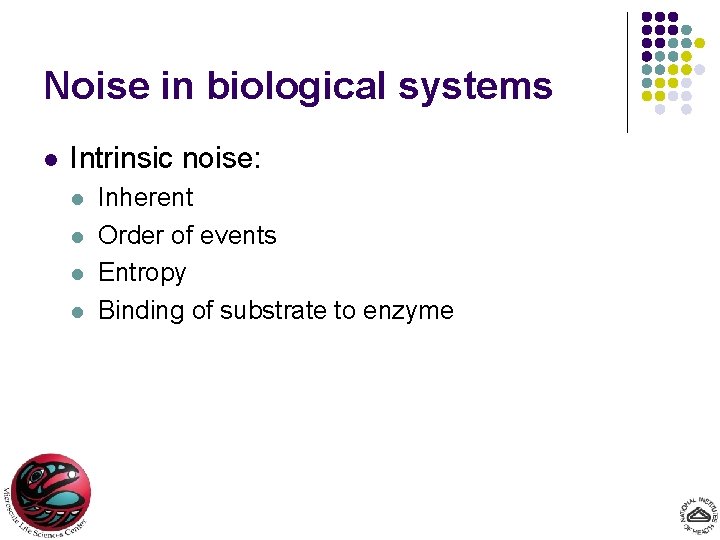

Noise in biological systems l Intrinsic noise: l l Inherent Order of events Entropy Binding of substrate to enzyme

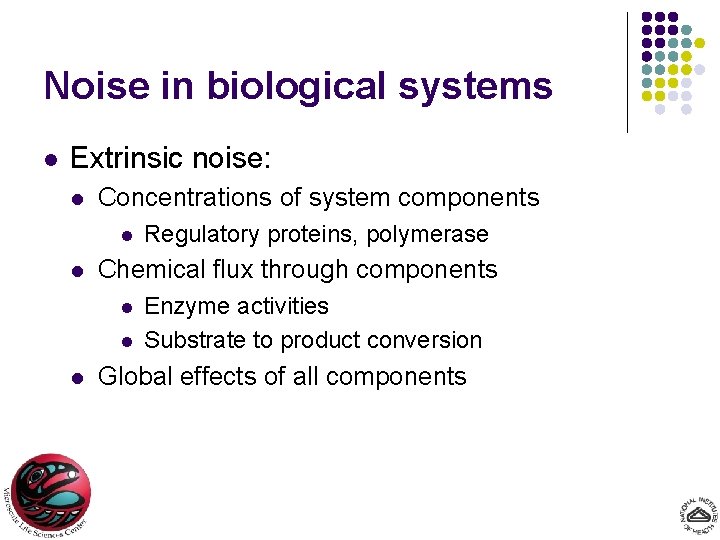

Noise in biological systems l Extrinsic noise: l Concentrations of system components l l Chemical flux through components l l l Regulatory proteins, polymerase Enzyme activities Substrate to product conversion Global effects of all components

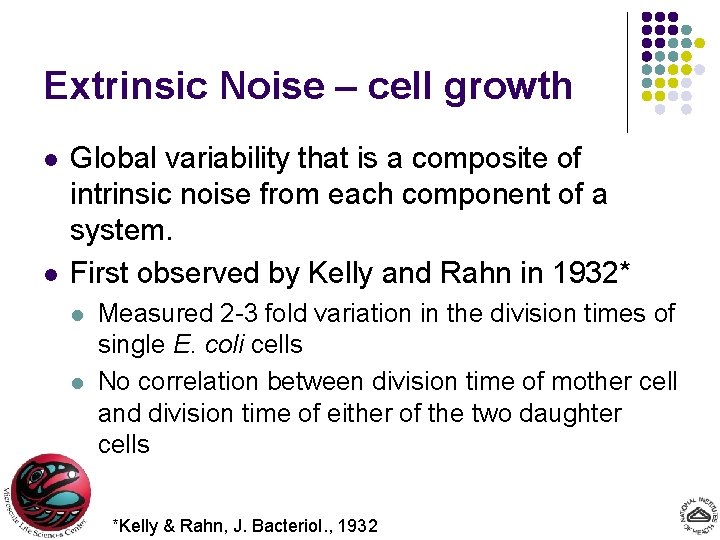

Extrinsic Noise – cell growth l l Global variability that is a composite of intrinsic noise from each component of a system. First observed by Kelly and Rahn in 1932* l l Measured 2 -3 fold variation in the division times of single E. coli cells No correlation between division time of mother cell and division time of either of the two daughter cells *Kelly & Rahn, J. Bacteriol. , 1932

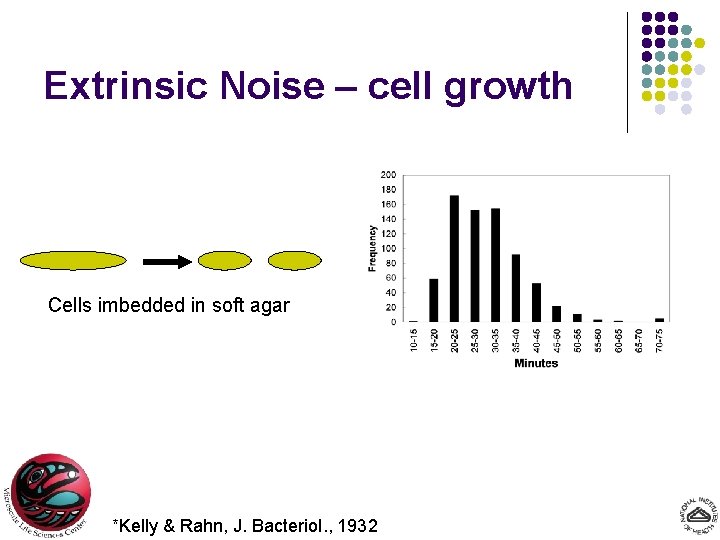

Extrinsic Noise – cell growth Cells imbedded in soft agar *Kelly & Rahn, J. Bacteriol. , 1932

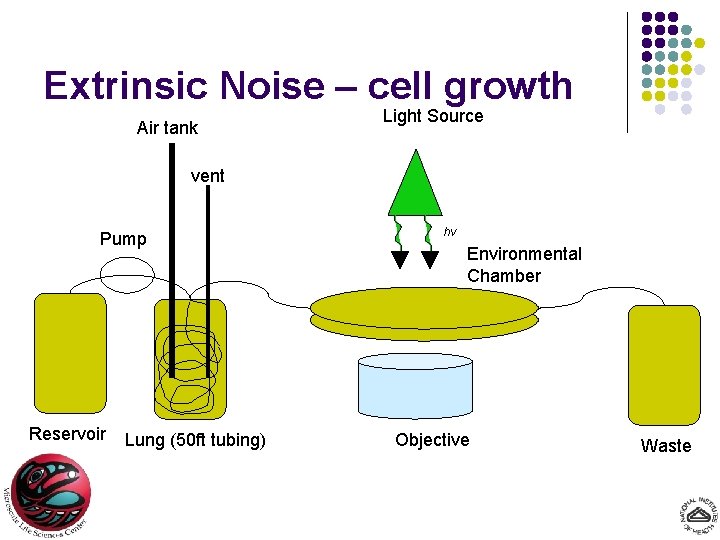

Extrinsic Noise – cell growth Air tank Light Source vent Pump Reservoir Lung (50 ft tubing) hv Environmental Chamber Objective Waste

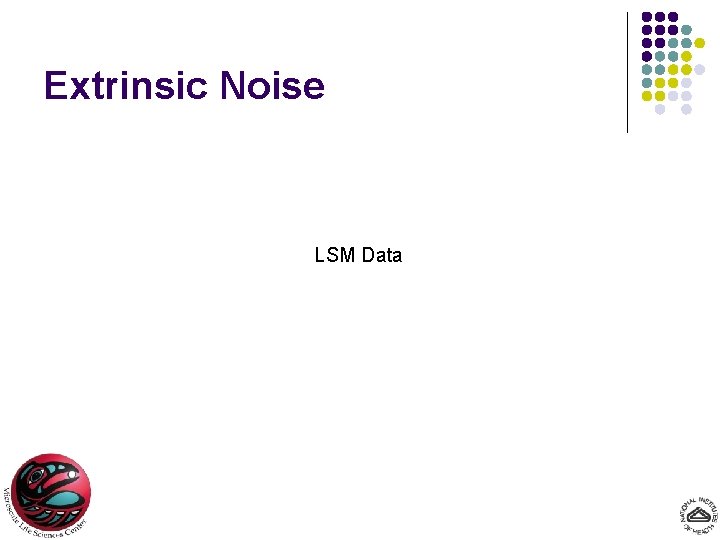

Extrinsic Noise LSM Data

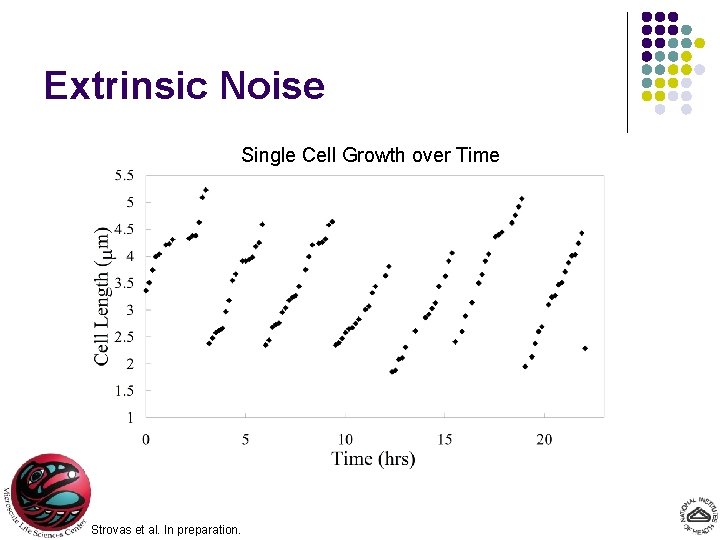

Extrinsic Noise Single Cell Growth over Time Strovas et al. In preparation.

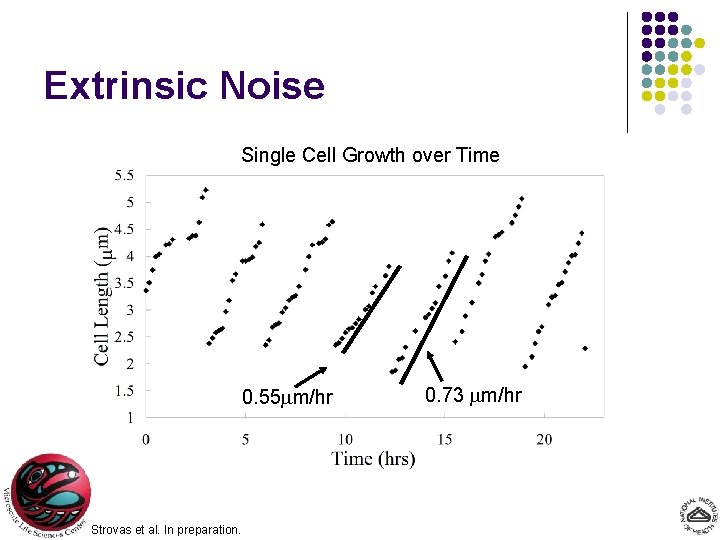

Extrinsic Noise Single Cell Growth over Time 0. 55 mm/hr Strovas et al. In preparation. 0. 73 mm/hr

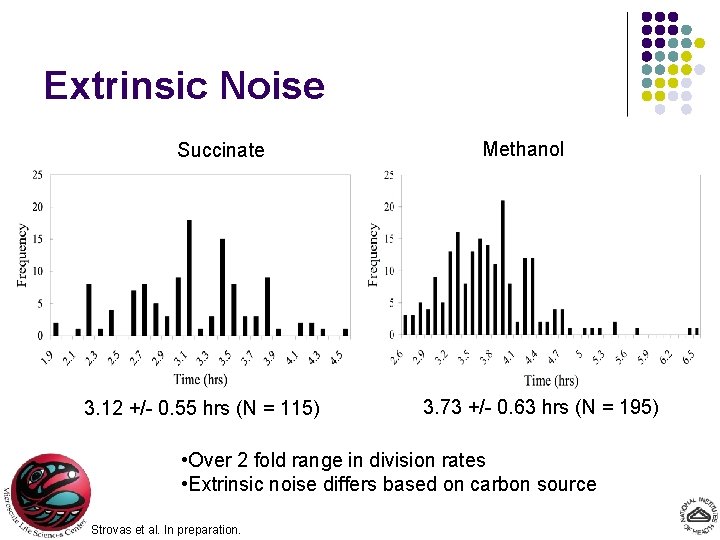

Extrinsic Noise Succinate 3. 12 +/- 0. 55 hrs (N = 115) Methanol 3. 73 +/- 0. 63 hrs (N = 195) • Over 2 fold range in division rates • Extrinsic noise differs based on carbon source Strovas et al. In preparation.

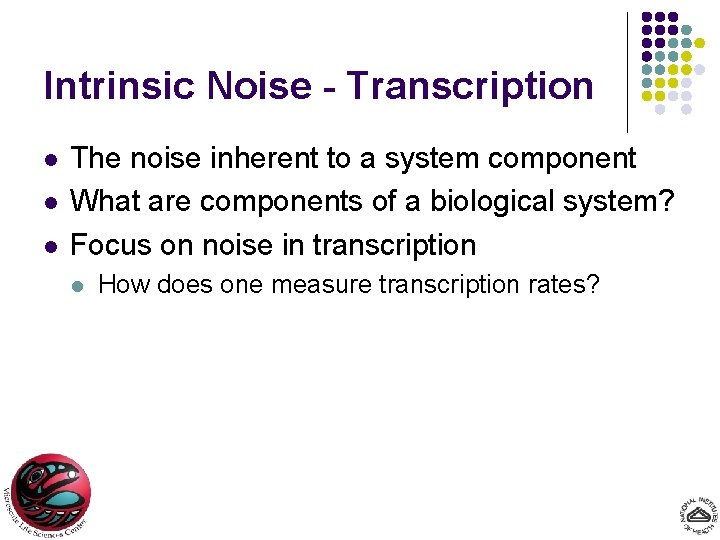

Intrinsic Noise - Transcription l l l The noise inherent to a system component What are components of a biological system? Focus on noise in transcription l How does one measure transcription rates?

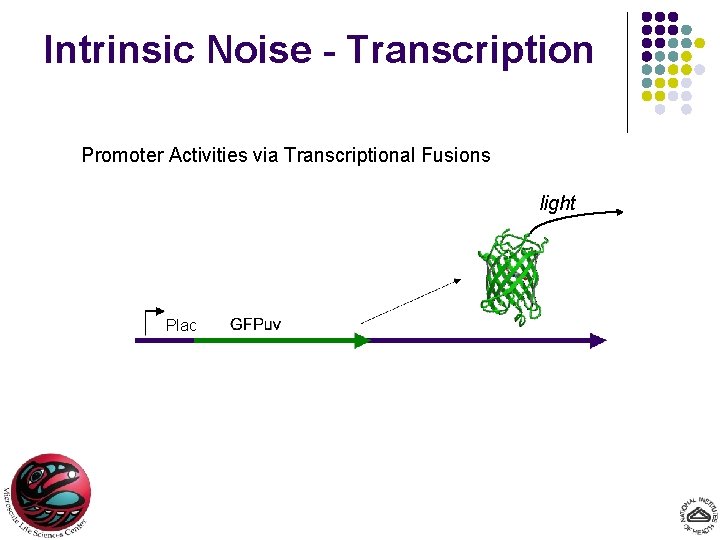

Intrinsic Noise - Transcription Promoter Activities via Transcriptional Fusions light Plac

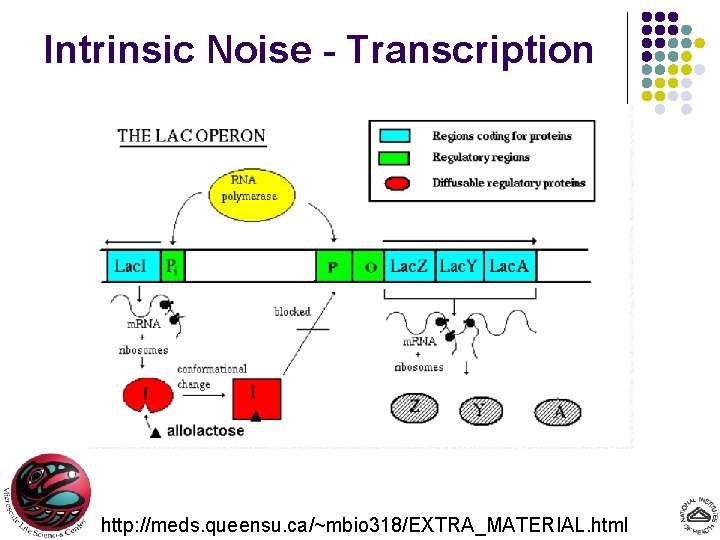

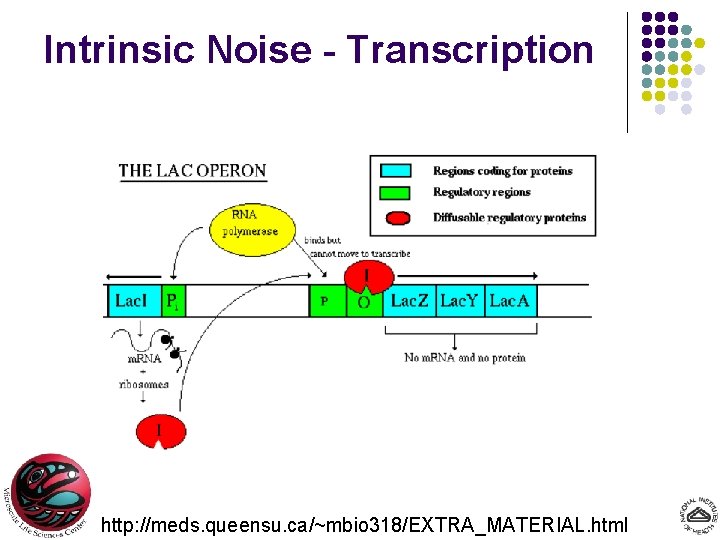

Intrinsic Noise - Transcription http: //meds. queensu. ca/~mbio 318/EXTRA_MATERIAL. html

Intrinsic Noise l Elowitz et al, 2002 l l Elegant experiment to show intrinsic noise Made two transcriptional fusions in E. coli: l l l Plac-YFP Plac-CFP Observed YFP and CFP fluorescence w/ and w/out IPTG present

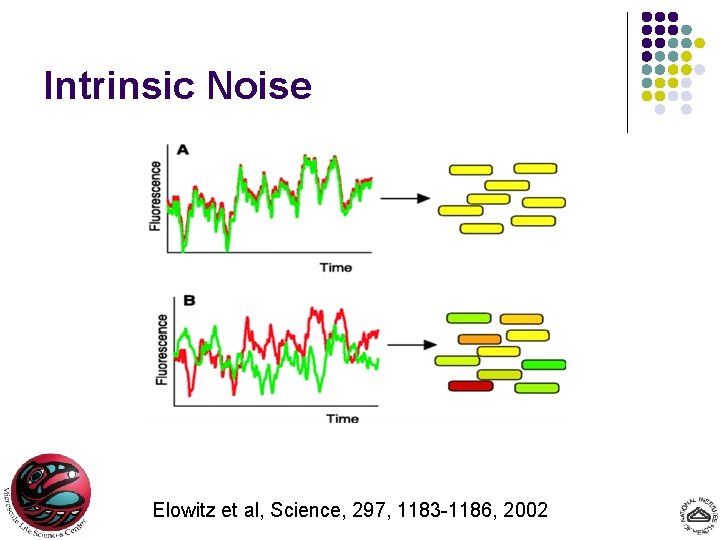

Intrinsic Noise Elowitz et al, Science, 297, 1183 -1186, 2002

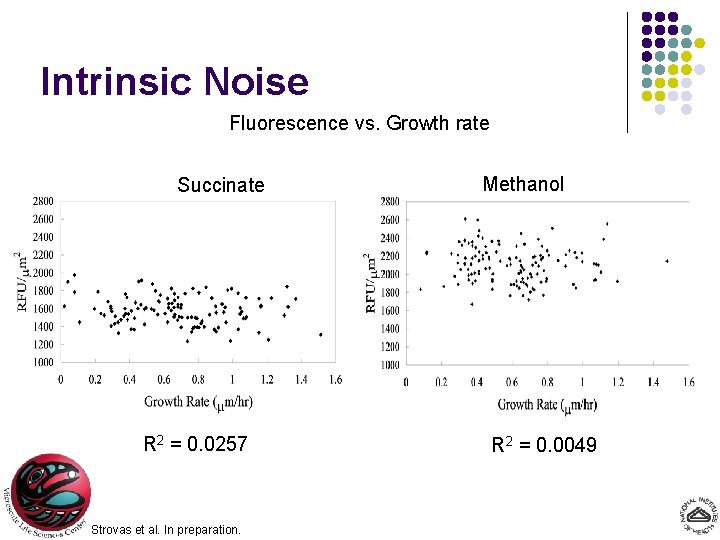

Intrinsic Noise Fluorescence vs. Growth rate Succinate R 2 = 0. 0257 Strovas et al. In preparation. Methanol R 2 = 0. 0049

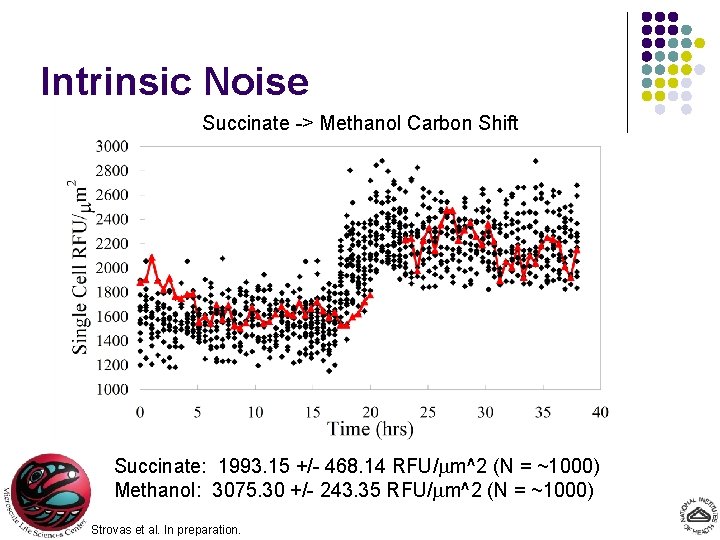

Intrinsic Noise Succinate -> Methanol Carbon Shift Succinate: 1993. 15 +/- 468. 14 RFU/mm^2 (N = ~1000) Methanol: 3075. 30 +/- 243. 35 RFU/mm^2 (N = ~1000) Strovas et al. In preparation.

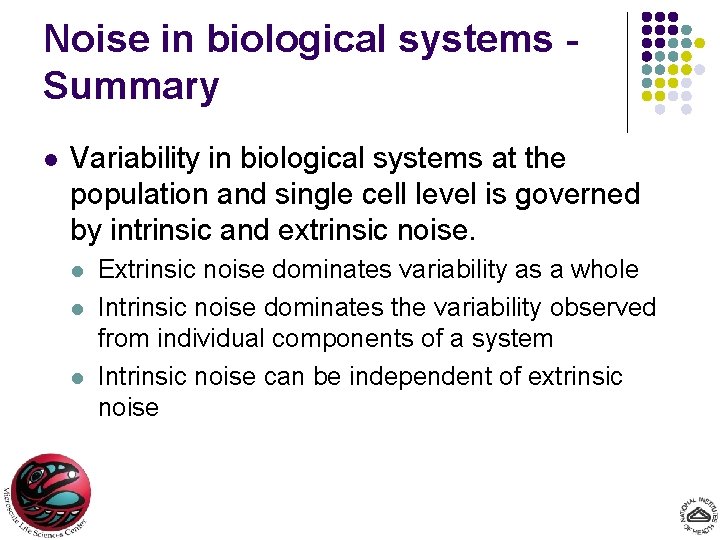

Noise in biological systems Summary l Variability in biological systems at the population and single cell level is governed by intrinsic and extrinsic noise. l l l Extrinsic noise dominates variability as a whole Intrinsic noise dominates the variability observed from individual components of a system Intrinsic noise can be independent of extrinsic noise

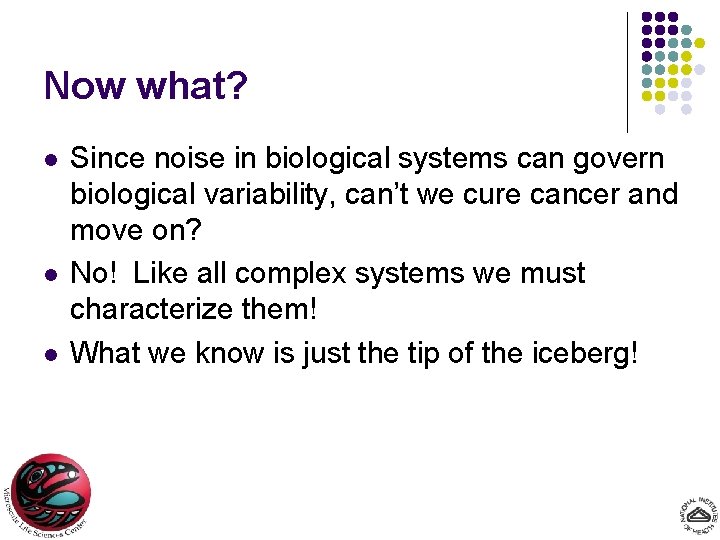

Now what? l l l Since noise in biological systems can govern biological variability, can’t we cure cancer and move on? No! Like all complex systems we must characterize them! What we know is just the tip of the iceberg!

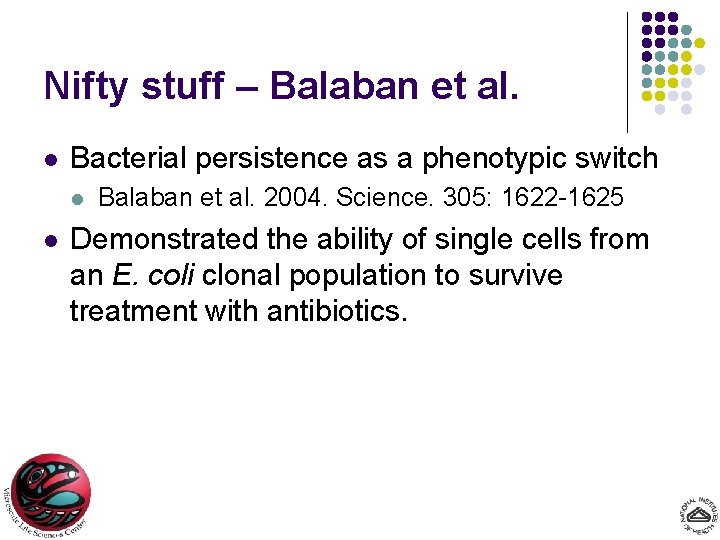

Nifty stuff – Balaban et al. l Bacterial persistence as a phenotypic switch l l Balaban et al. 2004. Science. 305: 1622 -1625 Demonstrated the ability of single cells from an E. coli clonal population to survive treatment with antibiotics.

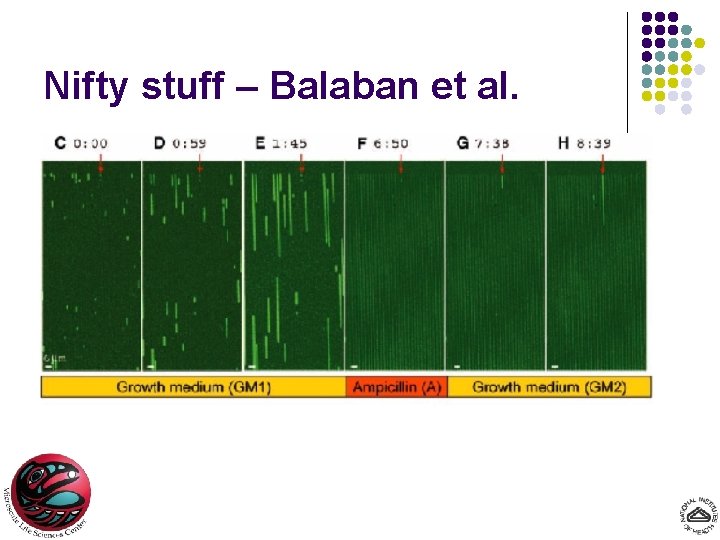

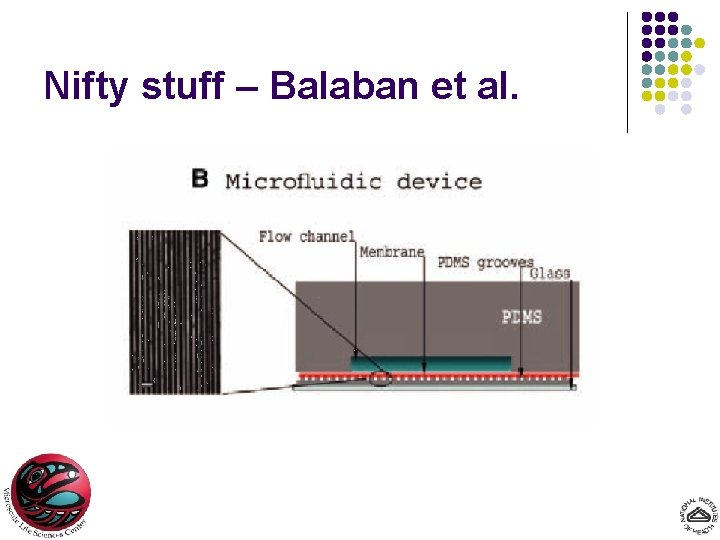

Nifty stuff – Balaban et al.

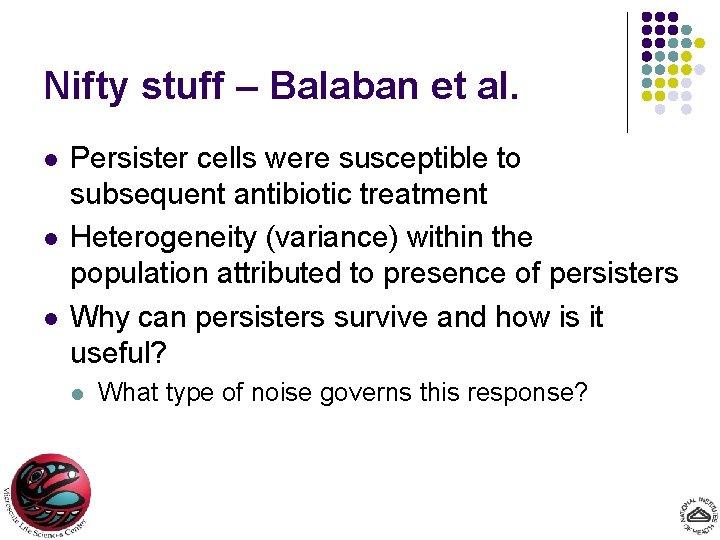

Nifty stuff – Balaban et al. l l l Persister cells were susceptible to subsequent antibiotic treatment Heterogeneity (variance) within the population attributed to presence of persisters Why can persisters survive and how is it useful? l What type of noise governs this response?

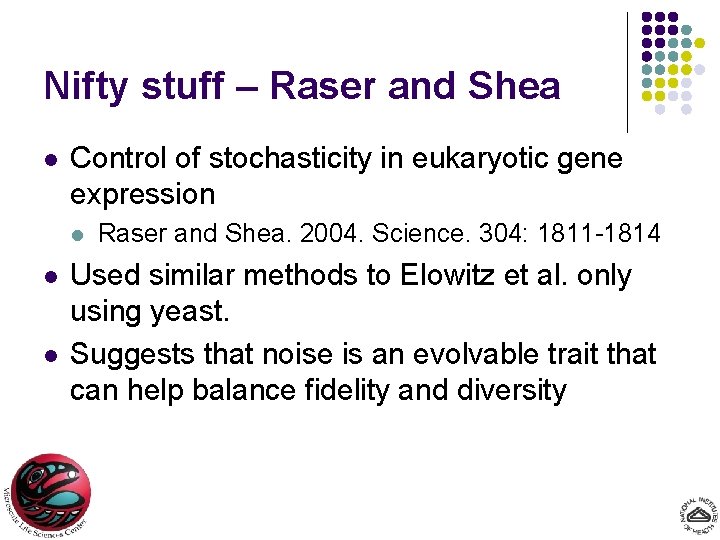

Nifty stuff – Raser and Shea l Control of stochasticity in eukaryotic gene expression l l l Raser and Shea. 2004. Science. 304: 1811 -1814 Used similar methods to Elowitz et al. only using yeast. Suggests that noise is an evolvable trait that can help balance fidelity and diversity

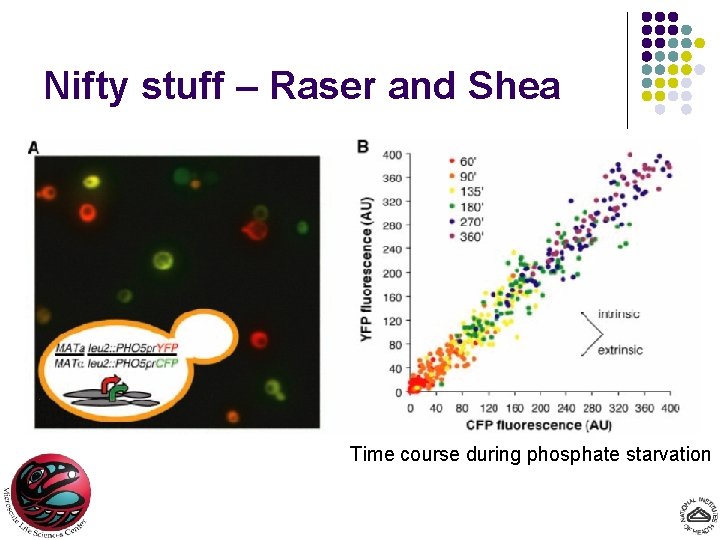

Nifty stuff – Raser and Shea Time course during phosphate starvation

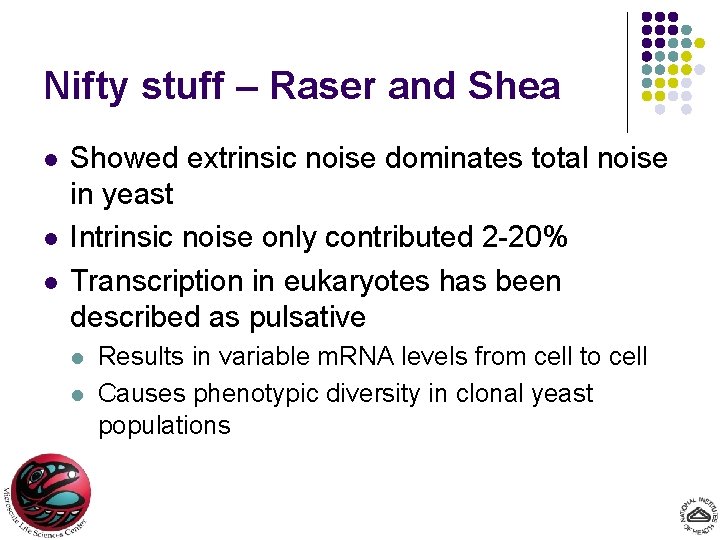

Nifty stuff – Raser and Shea l l l Showed extrinsic noise dominates total noise in yeast Intrinsic noise only contributed 2 -20% Transcription in eukaryotes has been described as pulsative l l Results in variable m. RNA levels from cell to cell Causes phenotypic diversity in clonal yeast populations

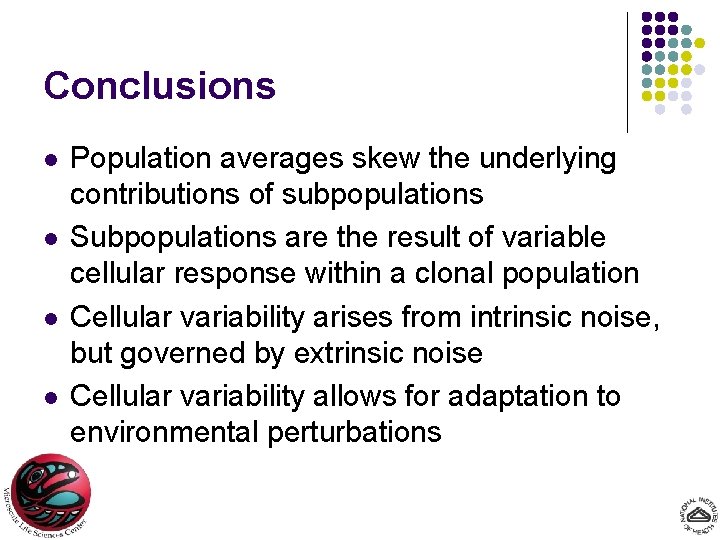

Conclusions l l Population averages skew the underlying contributions of subpopulations Subpopulations are the result of variable cellular response within a clonal population Cellular variability arises from intrinsic noise, but governed by extrinsic noise Cellular variability allows for adaptation to environmental perturbations
