Simulation for Daya. Bay Detectors Liangjian Wen Institute of High Energy Physics Sep 19, 2008 Topical Seminar on Frontier of Particle Physics 2008: Neutrino Physics and Astrophysics 1

Daya. Bay Neutrino Experiment • Daya. Bay Neutrino Experiment is a precise measurement to with a near-far detector configuration. Small-amplitude oscillation due to 13 Determine with a sensitivity to 0. 01 (90% C. L) Large-amplitude oscillation due to 12 2

3

• Detector layout (Far site) Water Pool Inner Water Shield Outer Water Shield (separated by tyvek) 3 -zone AD module Target: Gd-doped scintillator g-catcher: normal scintillator Buffer: Oil 4

Daya. Bay simulation • Our simulation is based on Geant 4 (G 4 dyb), but with modifications and extensions to accommodate the specific requirements of the Daya. Bay Experiment. • We did many validations for our simulation by Ø Comparison with other simulations (FLUKA, MCNPX, Geant 3) Ø Comparison with previous measurement data Ø Comparison with our prototype experiment data 5

Neutrino Detection at Daya. Bay Inverse reaction in Gadolinium-doped Liquid Scintillator (Gd. LS) Two critical things in simulation ØNeutron capture processes ØOptical model of the detector. 6

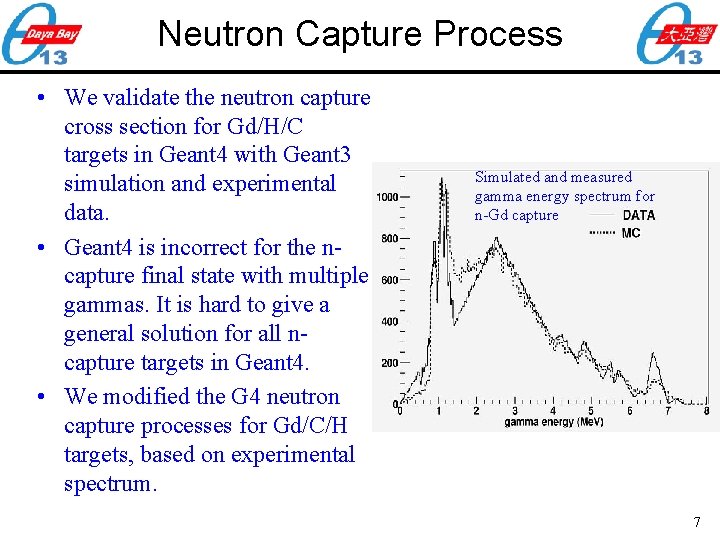

Neutron Capture Process • We validate the neutron capture cross section for Gd/H/C targets in Geant 4 with Geant 3 simulation and experimental data. • Geant 4 is incorrect for the ncapture final state with multiple gammas. It is hard to give a general solution for all ncapture targets in Geant 4. • We modified the G 4 neutron capture processes for Gd/C/H targets, based on experimental spectrum. Simulated and measured gamma energy spectrum for n-Gd capture 7

Scintillation Process: Quenching • No quenching effect in G 4 Scintillation • We write our own scintillation process with the quenching effect be considered (J. B. Birks’ law): • We measured the quenching factor for the Daya. Bay Gd. LS and LS: Gd. LS (ppo, bis-MSB, LAB, 0. 1% Gd) 6. 49(± 1. 06) LS (ppo, bis-MSB, LAB) 8. 21(± 1. 23) unit : 8

Scintillation Process: Re-emission • Use the measured Gd. LS/LS emission spectrum in scintillation processes simulation • Re-emission of Cerenkov light and scintillation light are very important. • Currently an assumed re-emission possibility spectrum is used and we are doing the measurement for our Gd. LS/LS. 9

Other Optical Properties in AD • Detector simulation needs inputs of the optical properties of the detector components from measurements. Ø Ø Ø Light yield Emission spectrum Absorption length for Gd. LS/LS/Oil Refractive index of acrylic vessel Reflectivity of top/bottom reflectors PMT Quantum Efficiency spectrum 10

• Requirements on uncertainties necessary to achieve the 0. 01 sensitivity goal. 11

Positron & Neutron Efficiency • Positron event：Evis>1 Me. V Ø Efficiency = 99. 8% Ø Error ~ 0. 05% assuming 2% energy scale error • Neutron event：Evis>6 Me. V Ø Efficiency ~ 90. 7% (overall) Ø Error ~ 0. 2% assuming 1% energy scale error 12

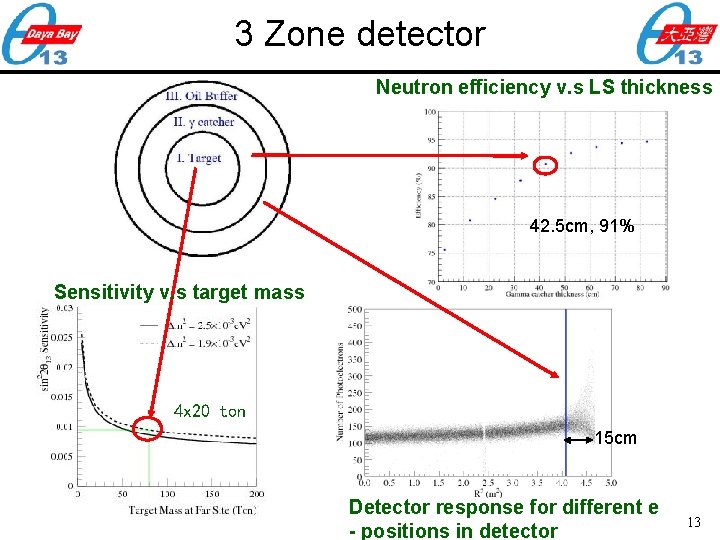

3 Zone detector Neutron efficiency v. s LS thickness 42. 5 cm, 91% Sensitivity v. s target mass 4 x 20 ton 15 cm Detector response for different e - positions in detector 13

Reflector Simulation & Event Reconstruction no reflector simulation with reflector s. E/E = 12%/ E sr = 13 cm reconstruction 14

• Prototype simulation v. s data 60 Co 137 Cs 15

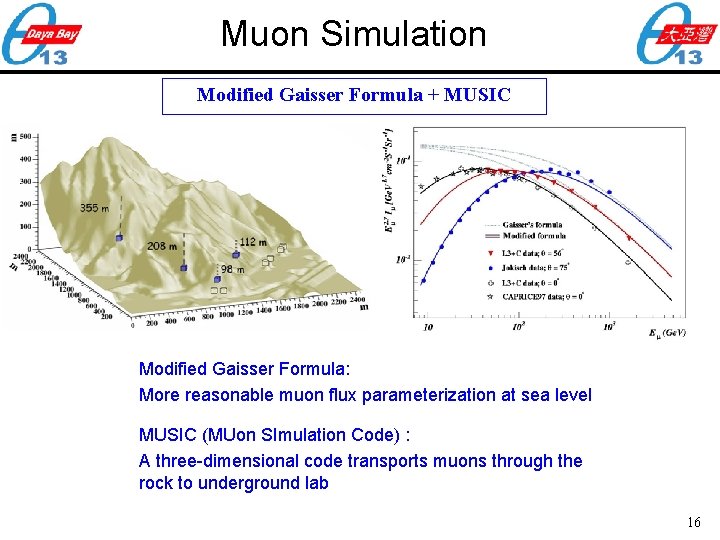

Muon Simulation Modified Gaisser Formula + MUSIC Modified Gaisser Formula: More reasonable muon flux parameterization at sea level MUSIC (MUon SImulation Code) : A three-dimensional code transports muons through the rock to underground lab 16

Muon detection efficiency OWS: threshold 13 PMT, efficiency 97. 7% IWS: threshold 11 PMT, efficiency 98. 1% 17

Neutron Simulation • Muon-induced fast neutron background is an important background. Its rates calculated using Geant 4 are consistent with earlier Geant 3 calculations that used empirical parametrization of measurements, accurate to ~20% (Y. Wang et al. , PRD 64, 013012 (2001)). n n Energy spectrum of fast neutron backgrounds 18

Muon capture • Muons ( ) stop in water pool/antineutrino detector can Ø Decay -> Michel electron (lifetime 2. 2 ) Ø Capture on C, O, Fe and emit a neutron (fast neutron background) Ø Capture on C and form a 12 B (delayed signal) • Muon stopping ratio from Geant 4 simulation is consistent with FLUKA simulation. • Its capture rate on C, O, Fe from Geant 4 simulation is consistent with experimental data. • Yet the neutron energy spectra given by Geant 4 is not in good agreement with measurements. So we implemented new neutron spectrum according to experimental data. 19

Radioactivity Generator • Full decay chains of U, Th, K simulated to provide HEPevt input to G 4 dyb ( U, Th using programs of A. Piepke) • 60 Co simulation for calibration source and background • 68 Ge, 252 Cf and Pu-C simulation for calibration sources 252 Cf neutron from Pu-C prompt signal 252 Cf delayed signal 20

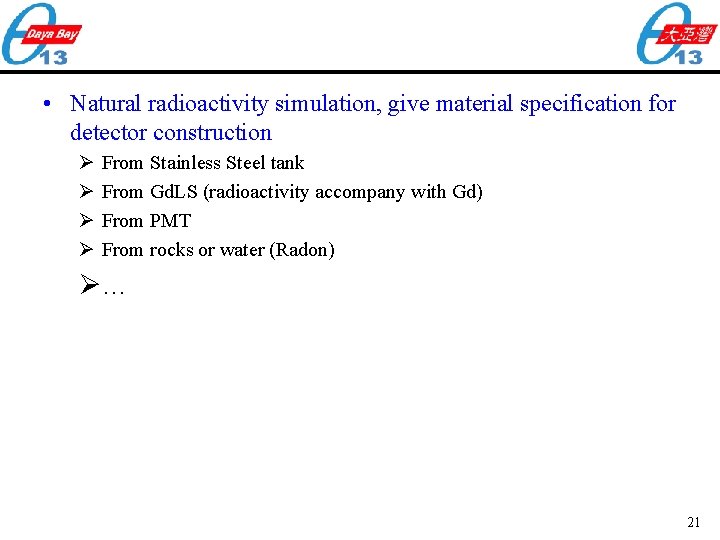

• Natural radioactivity simulation, give material specification for detector construction Ø Ø From Stainless Steel tank From Gd. LS (radioactivity accompany with Gd) From PMT From rocks or water (Radon) Ø… 21

Software Framework Nu. Wa : our Gaudi-based offline software 22

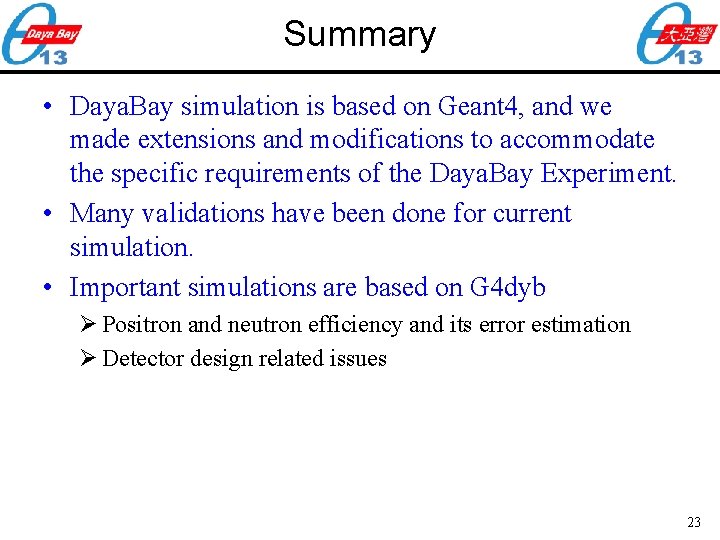

Summary • Daya. Bay simulation is based on Geant 4, and we made extensions and modifications to accommodate the specific requirements of the Daya. Bay Experiment. • Many validations have been done for current simulation. • Important simulations are based on G 4 dyb Ø Positron and neutron efficiency and its error estimation Ø Detector design related issues 23
