Simulación de un Sistema de Comunicacion Digital Bit Error Rate (BER) for BPSK Modulation in an AWGN Channe Cesar A. Azurdia Meza. Principios de Comunicaciones EL 4005

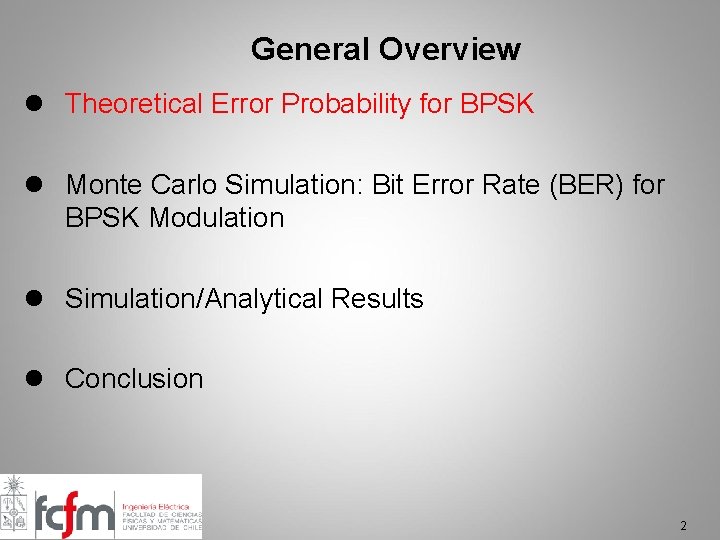

General Overview l Theoretical Error Probability for BPSK l Monte Carlo Simulation: Bit Error Rate (BER) for BPSK Modulation l Simulation/Analytical Results l Conclusion 2

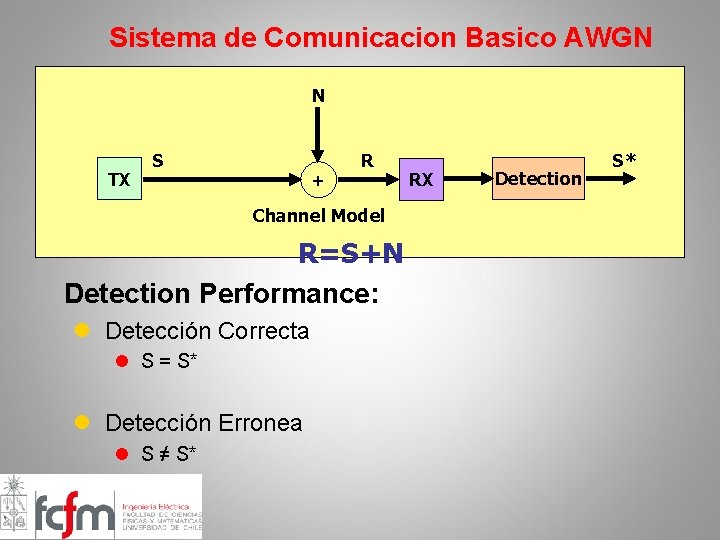

Sistema de Comunicacion Basico AWGN N TX S + R Channel Model R=S+N Detection Performance: l Detección Correcta l S = S* l Detección Erronea l S ≠ S* RX Detection S*

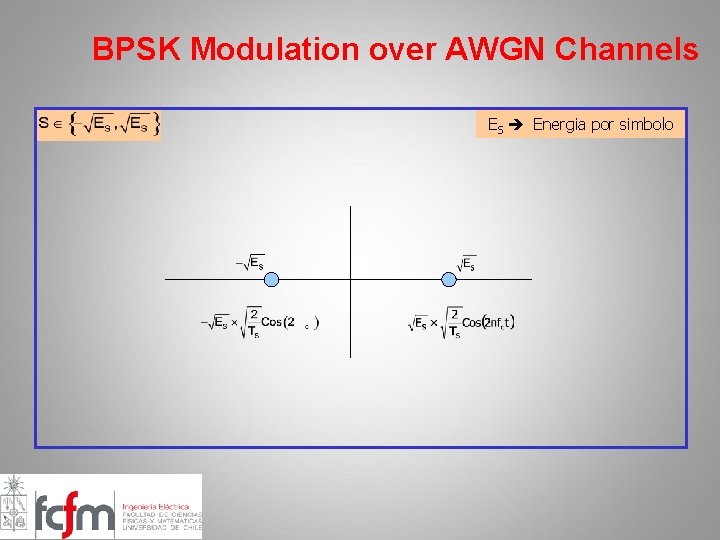

BPSK Modulation over AWGN Channels ES Energia por simbolo

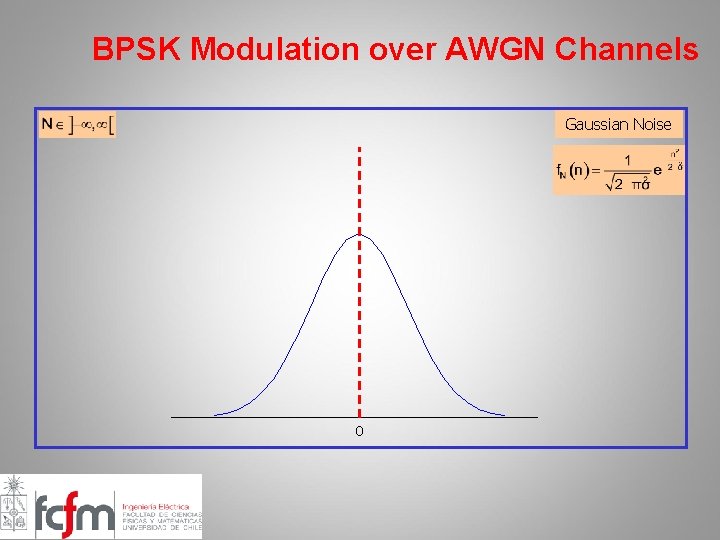

BPSK Modulation over AWGN Channels Gaussian Noise 0

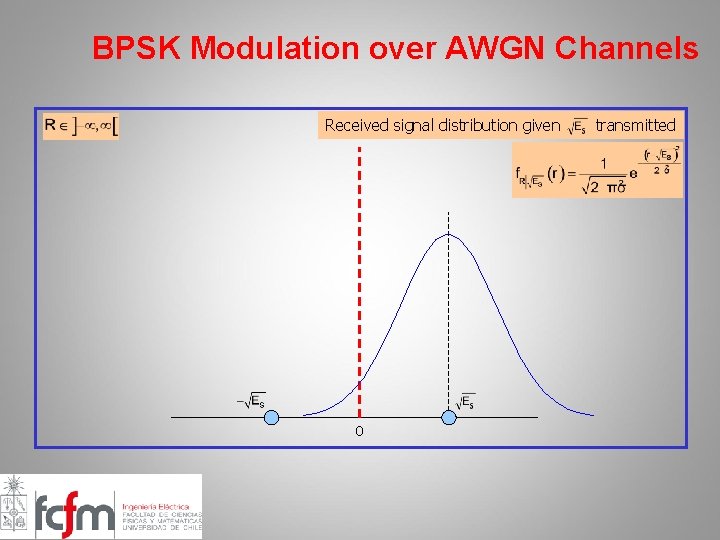

BPSK Modulation over AWGN Channels Received signal distribution given 0 transmitted

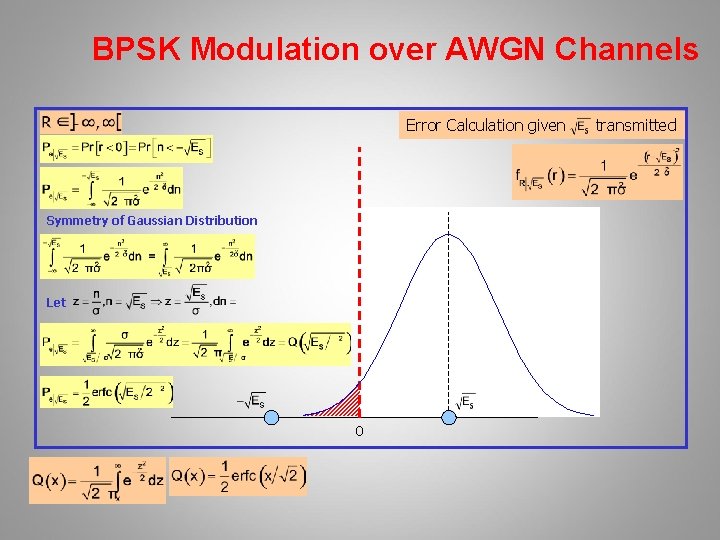

BPSK Modulation over AWGN Channels Error Calculation given Symmetry of Gaussian Distribution Let 0 transmitted

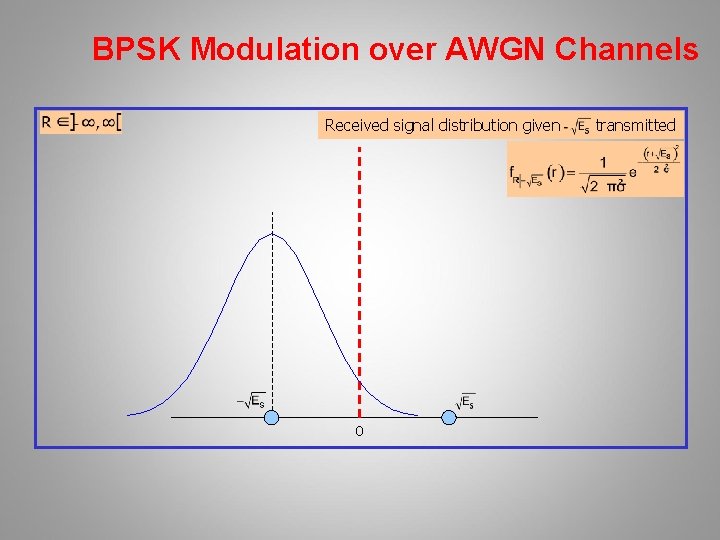

BPSK Modulation over AWGN Channels Received signal distribution given 0 transmitted

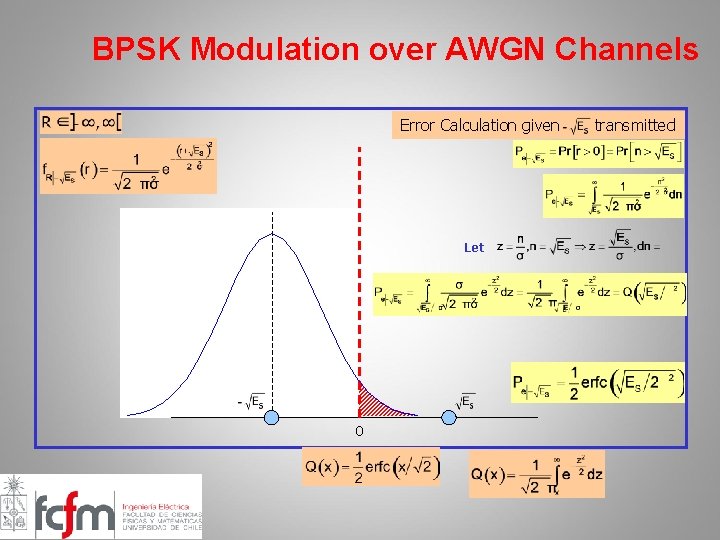

BPSK Modulation over AWGN Channels Error Calculation given Let 0 transmitted

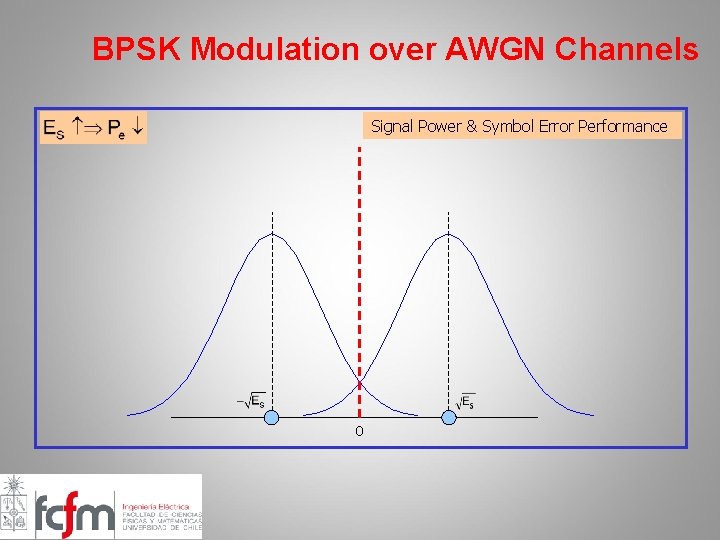

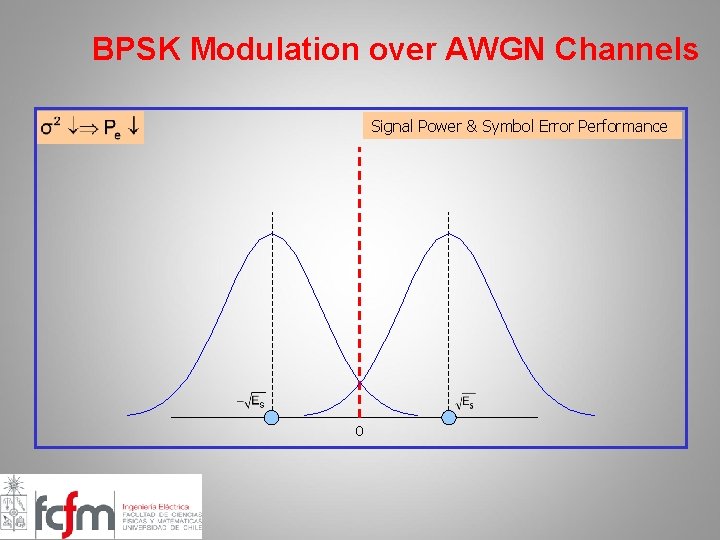

BPSK Modulation over AWGN Channels Signal Power & Symbol Error Performance 0
BPSK Modulation over AWGN Channels Signal Power & Symbol Error Performance 0

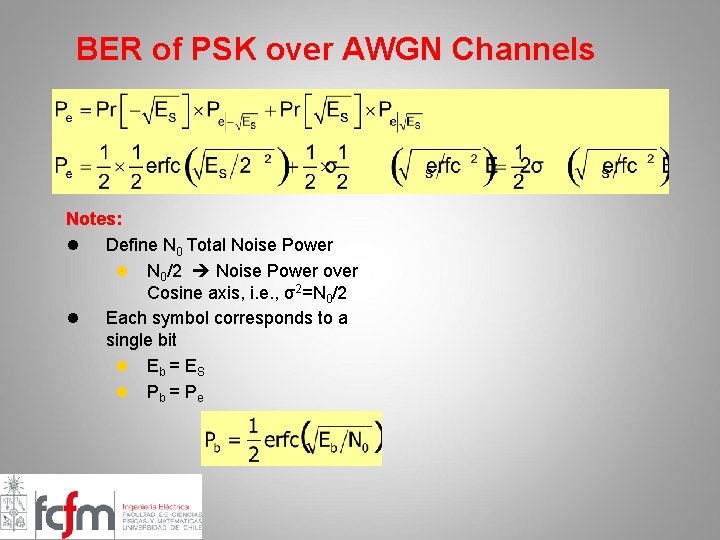

BER of PSK over AWGN Channels Notes: l Define N 0 Total Noise Power l N 0/2 Noise Power over Cosine axis, i. e. , σ2=N 0/2 l Each symbol corresponds to a single bit l Eb = ES l Pb = Pe

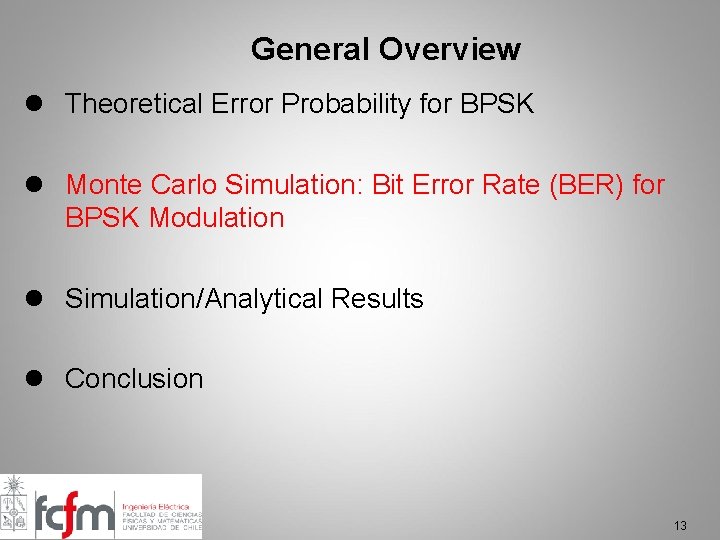

General Overview l Theoretical Error Probability for BPSK l Monte Carlo Simulation: Bit Error Rate (BER) for BPSK Modulation l Simulation/Analytical Results l Conclusion 13

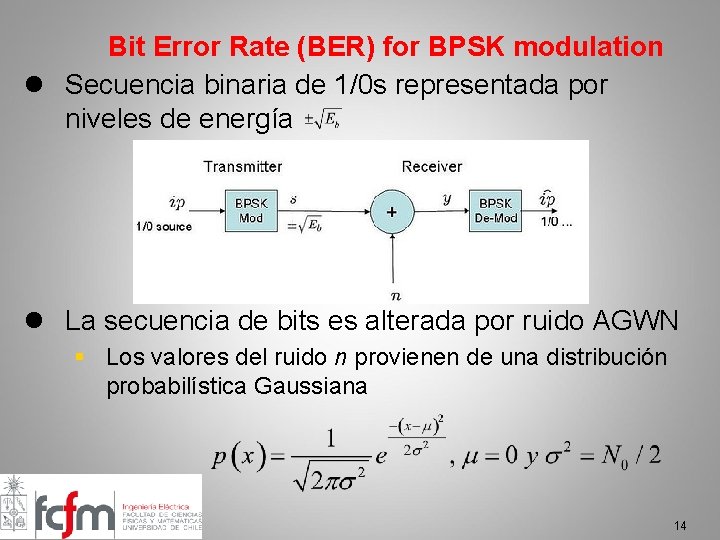

Bit Error Rate (BER) for BPSK modulation l Secuencia binaria de 1/0 s representada por niveles de energía l La secuencia de bits es alterada por ruido AGWN § Los valores del ruido n provienen de una distribución probabilística Gaussiana 14

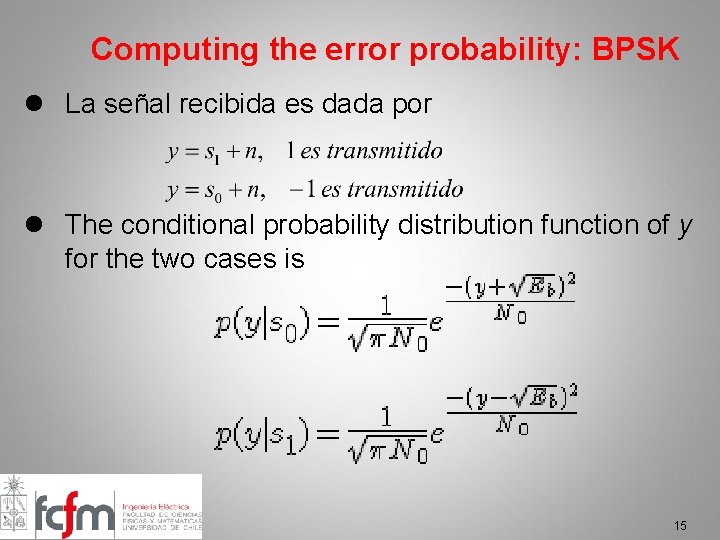

Computing the error probability: BPSK l La señal recibida es dada por l The conditional probability distribution function of y for the two cases is 15

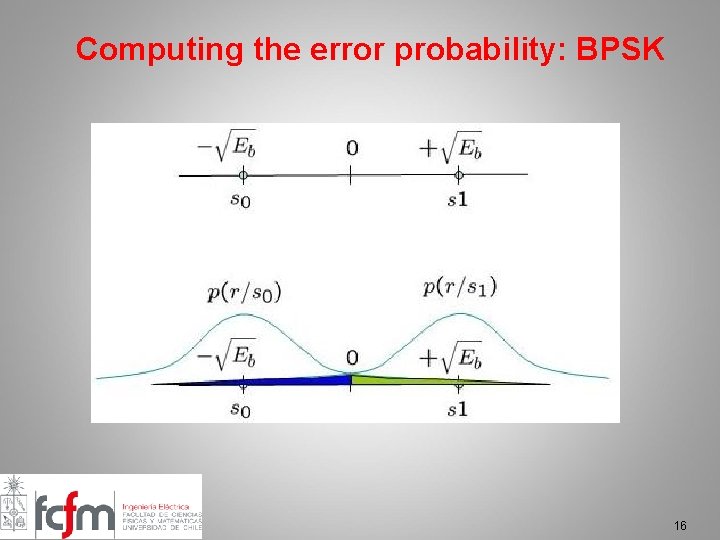

Computing the error probability: BPSK 16

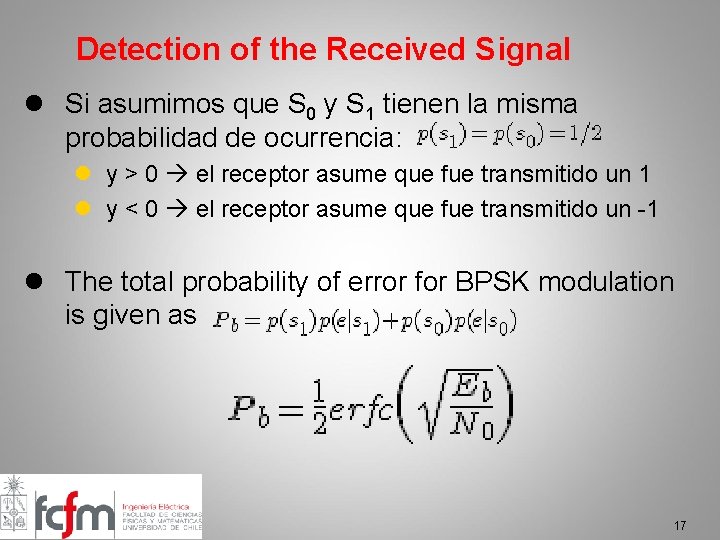

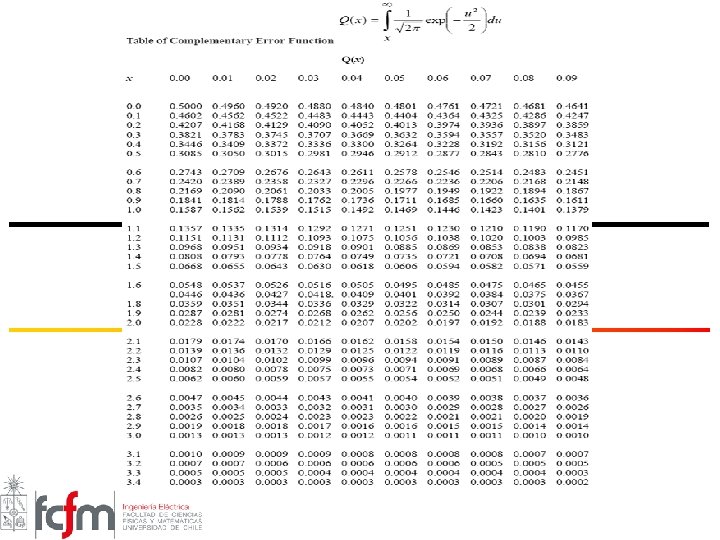

Detection of the Received Signal l Si asumimos que S 0 y S 1 tienen la misma probabilidad de ocurrencia: l y > 0 el receptor asume que fue transmitido un 1 l y < 0 el receptor asume que fue transmitido un -1 l The total probability of error for BPSK modulation is given as 17

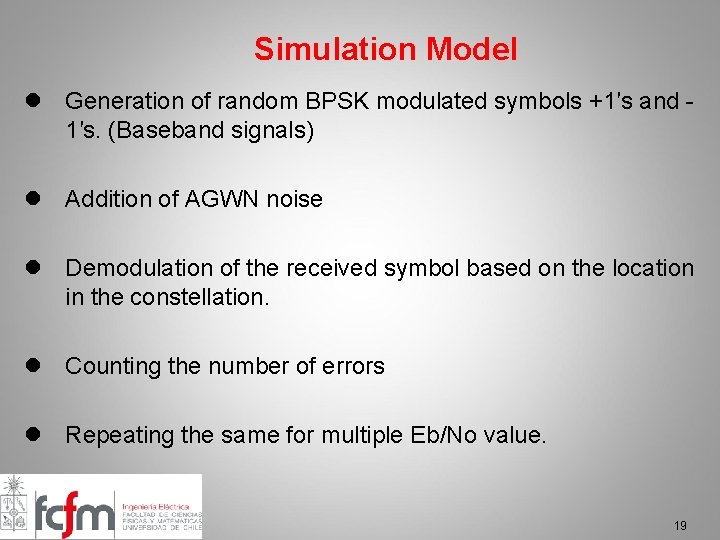

Simulation Model l Generation of random BPSK modulated symbols +1′s and 1′s. (Baseband signals) l Addition of AGWN noise l Demodulation of the received symbol based on the location in the constellation. l Counting the number of errors l Repeating the same for multiple Eb/No value. 19

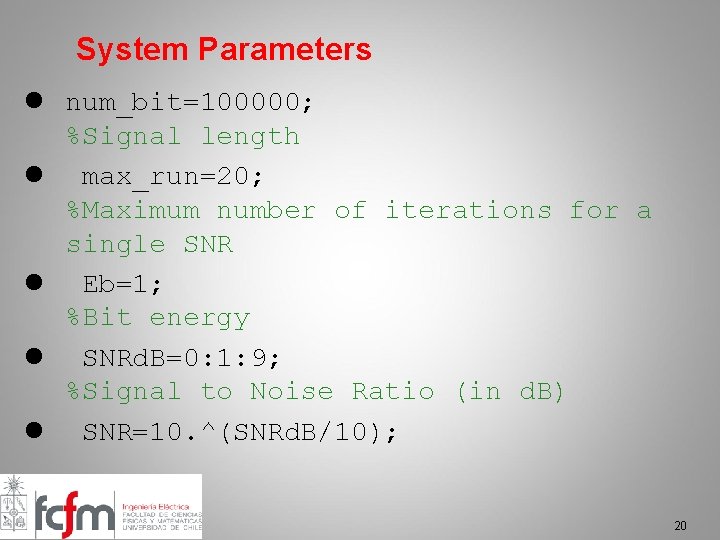

System Parameters l num_bit=100000; %Signal length l max_run=20; %Maximum number of iterations for a single SNR l Eb=1; %Bit energy l SNRd. B=0: 1: 9; %Signal to Noise Ratio (in d. B) l SNR=10. ^(SNRd. B/10); 20

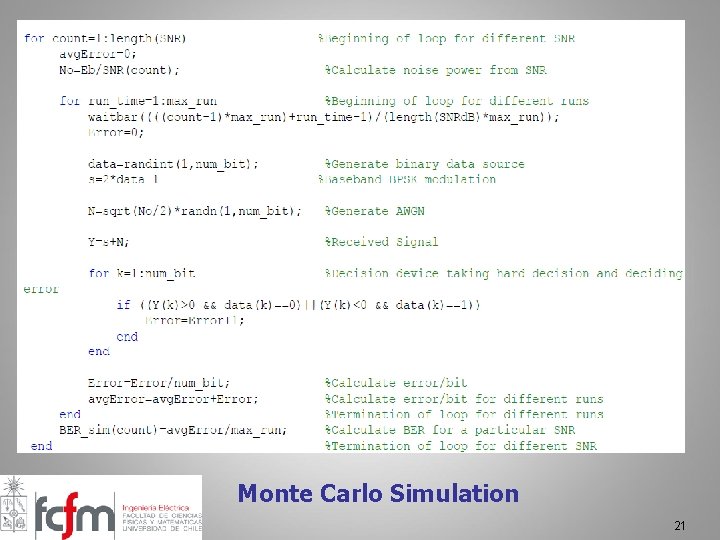

Monte Carlo Simulation 21

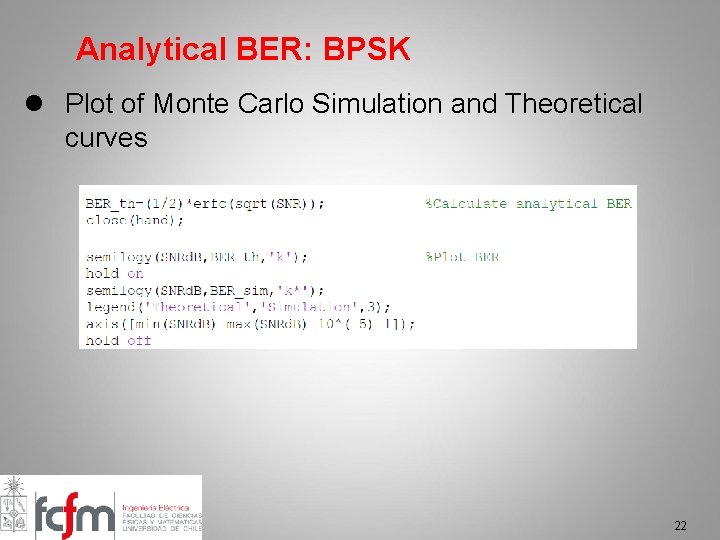

Analytical BER: BPSK l Plot of Monte Carlo Simulation and Theoretical curves 22
General Overview l Theoretical Error Probability for BPSK l Monte Carlo Simulation: Bit Error Rate (BER) for BPSK Modulation l Simulation/Analytical Results l Conclusion 23

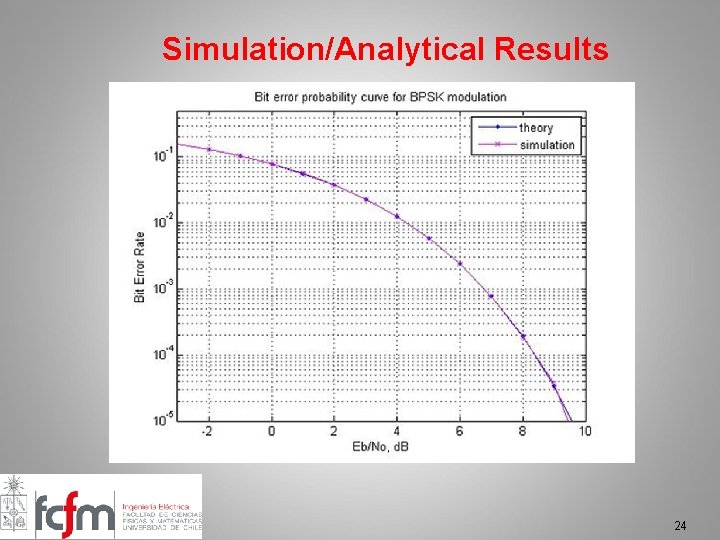

Simulation/Analytical Results 24

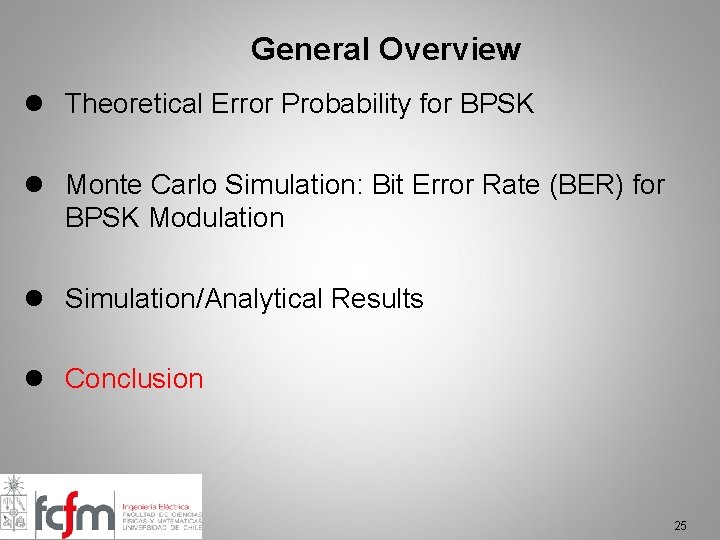

General Overview l Theoretical Error Probability for BPSK l Monte Carlo Simulation: Bit Error Rate (BER) for BPSK Modulation l Simulation/Analytical Results l Conclusion 25

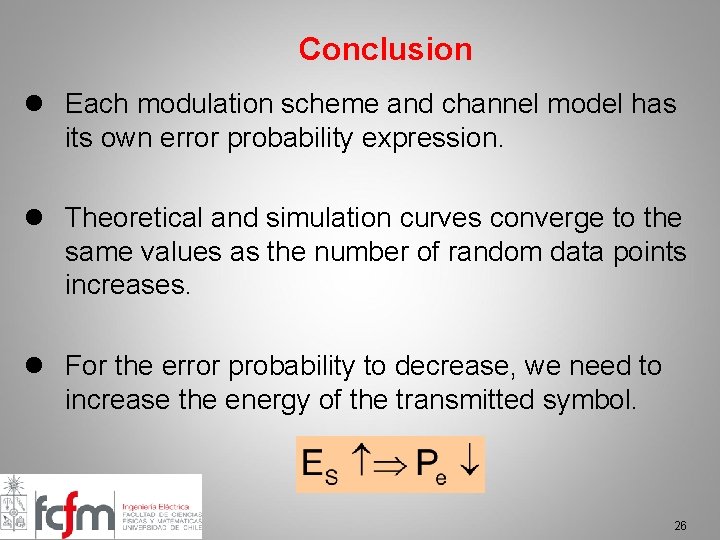

Conclusion l Each modulation scheme and channel model has its own error probability expression. l Theoretical and simulation curves converge to the same values as the number of random data points increases. l For the error probability to decrease, we need to increase the energy of the transmitted symbol. 26
¿Preguntas o Dudas? 27
