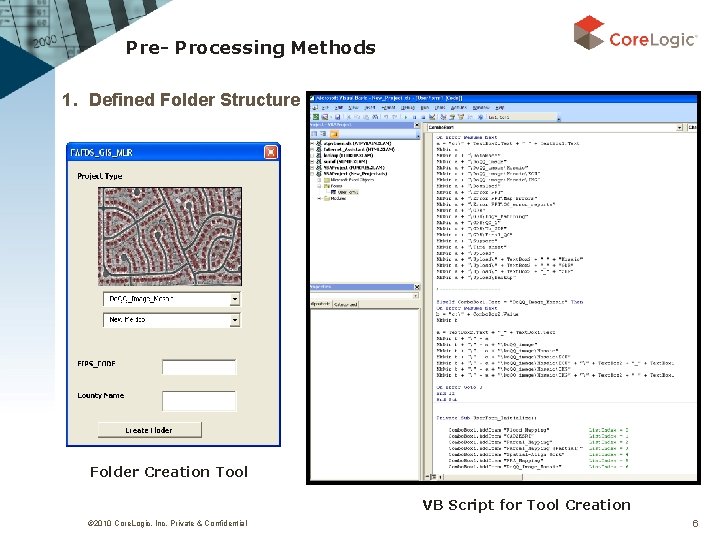

Pre- Processing Methods 1. Defined Folder Structure Folder Creation Tool VB Script for Tool

Create Default Fields © 2010 Core. Logic, Inc. Private & Confidential 7

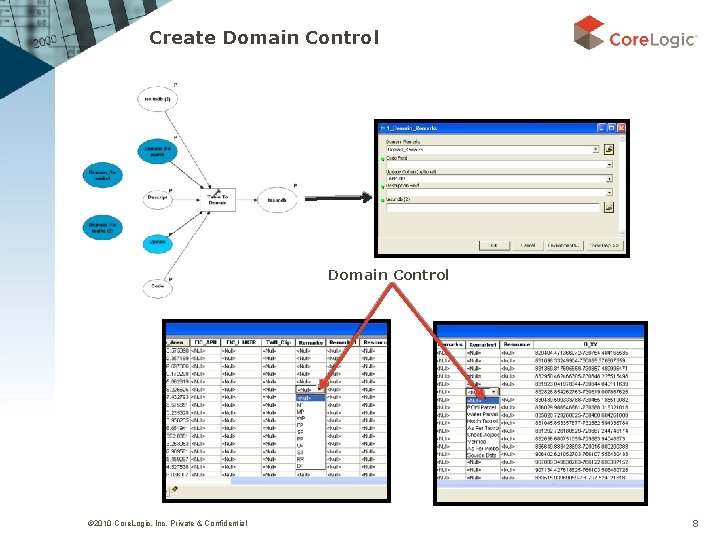

Create Domain Control © 2010 Core. Logic, Inc. Private & Confidential 8

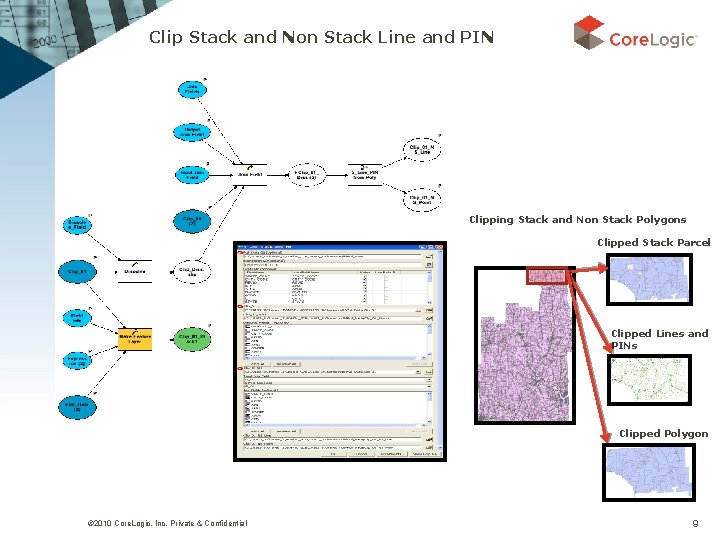

Clip Stack and Non Stack Line and PIN Clipping Stack and Non Stack Polygons

Multiple File Geo Referencing This tool will be useful to Geo. Reference Multiple File

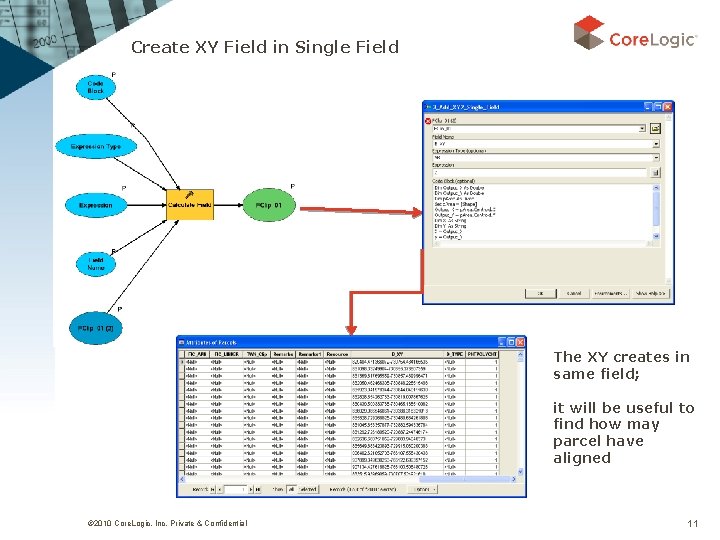

Create XY Field in Single Field The XY creates in same field; it will

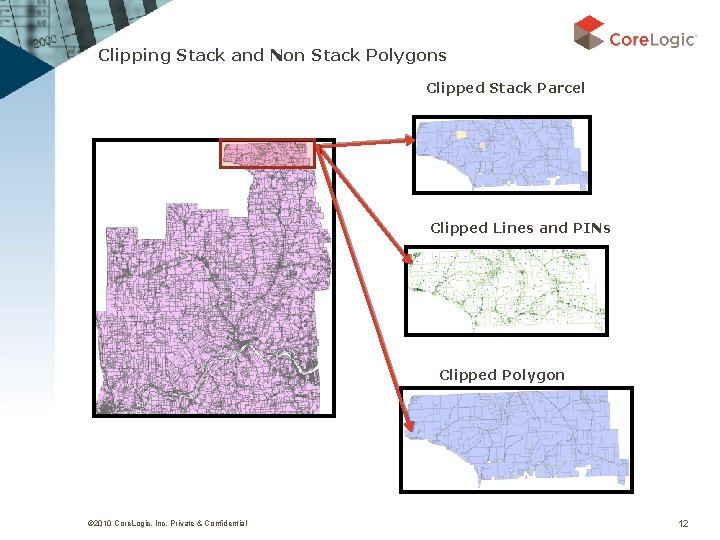

Clipping Stack and Non Stack Polygons Clipped Stack Parcel Clipped Lines and PINs Clipped

Production Process Parcel mapping Production process are classified under five major categories. 1. CAD

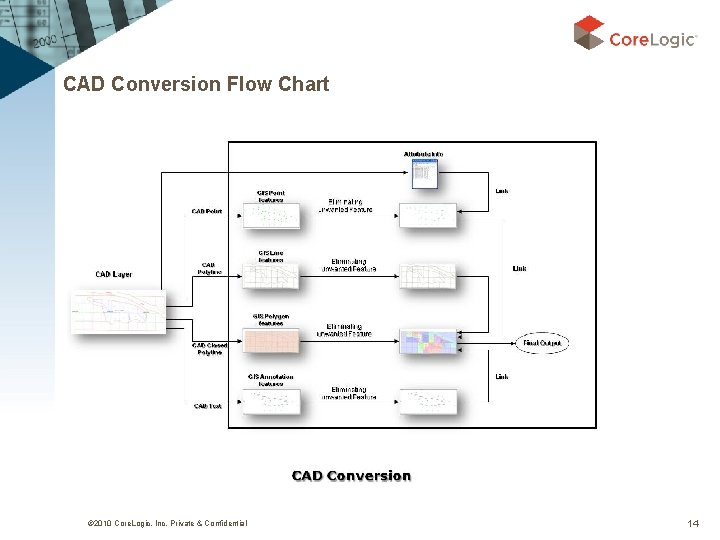

CAD Conversion Flow Chart © 2010 Core. Logic, Inc. Private & Confidential 14

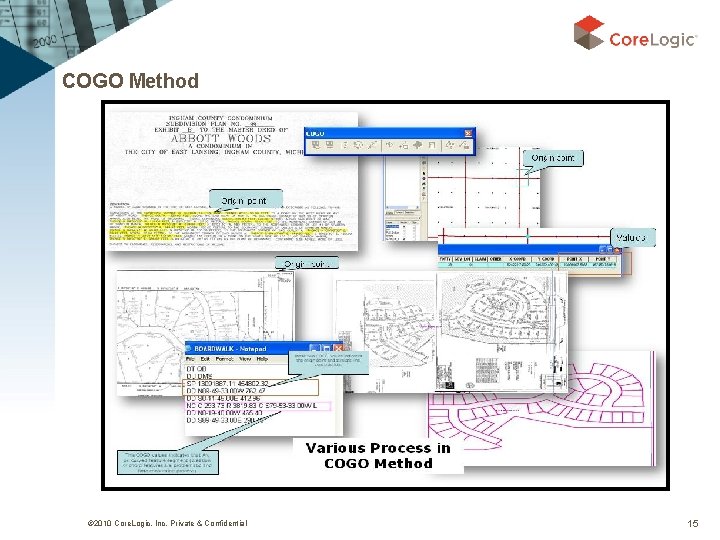

COGO Method © 2010 Core. Logic, Inc. Private & Confidential 15

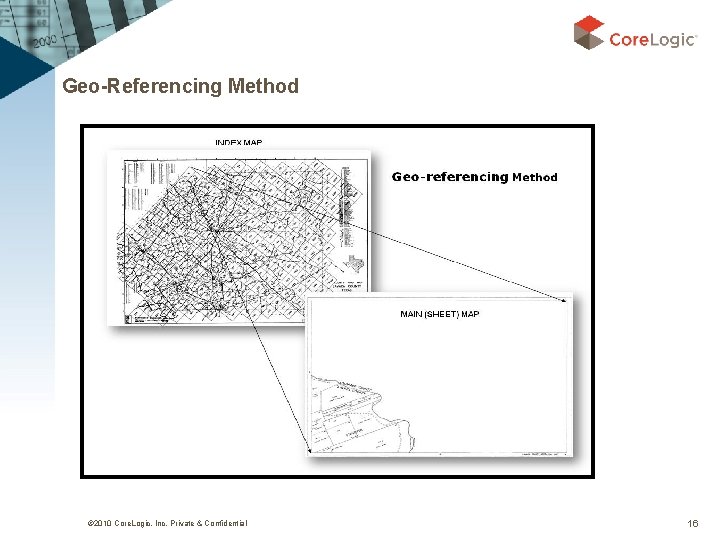

Geo-Referencing Method © 2010 Core. Logic, Inc. Private & Confidential 16

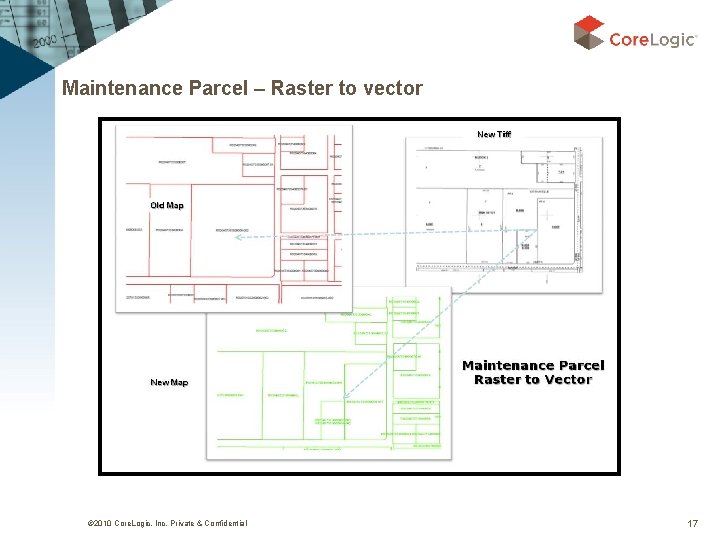

Maintenance Parcel – Raster to vector © 2010 Core. Logic, Inc. Private & Confidential

Maintenance Spatial Alignment © 2010 Core. Logic, Inc. Private & Confidential 18

Existing Data Editing Maintain Existing © 2010 Core. Logic, Inc. Private & Confidential 19

Final Process In Final process following methods are implemented for data accuracy. 1. Arc

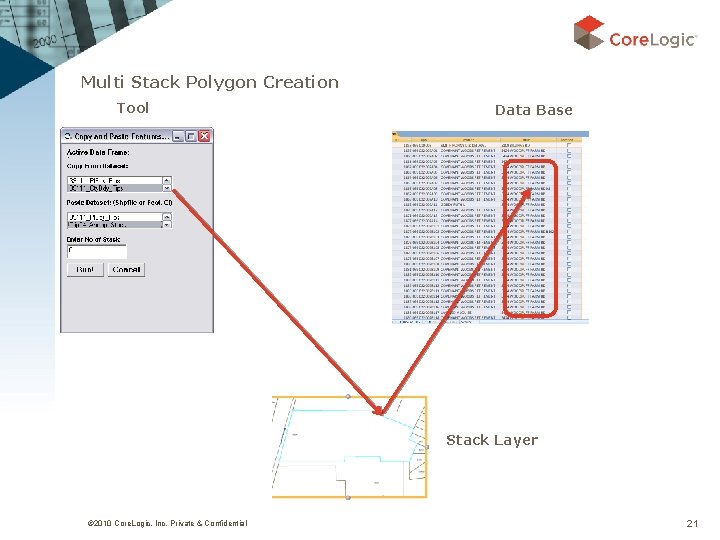

Multi Stack Polygon Creation Tool Data Base Stack Layer © 2010 Core. Logic, Inc.

OID Linking - Multiple Points Identification Polygon is created using the final Line and

Database Forward DB check / Spatial Join Common fields from the Spatial point feature

Non Spatial Reverse DB Check Common fields from the Taxroll data and Spatial point

Summarize Check By summarizing APN and Map column an output of APN count is

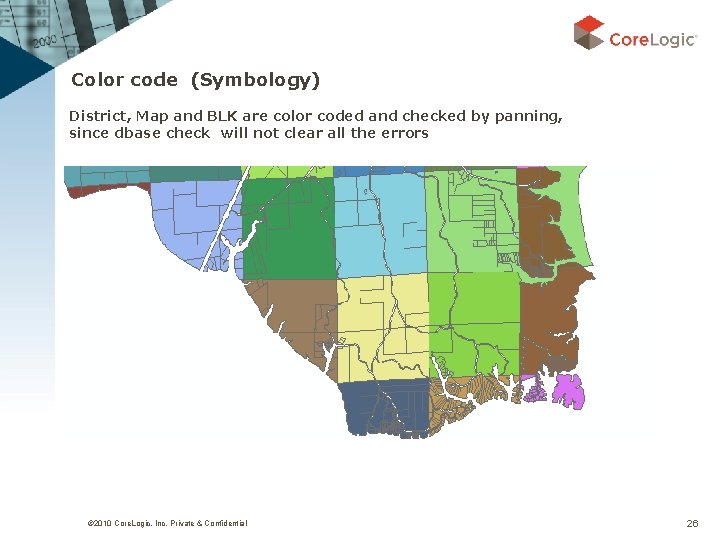

Color code (Symbology) District, Map and BLK are color coded and checked by panning,

Parcel Mapping Applications in Core. Logic • Core. Logic captured 124 million parcels for

Parcel boundary data is applicable to Insurance Applications • Integrating Parcel. Point product with

Various industries relay on Core. Logic for accurate Geospatial Information • Wireless communications companies

Thank You © 2010 Core. Logic, Inc. Private & Confidential 30

Slides: 30

Download presentation

Simplification of Parcel Mapping Process and its Application: Geographical Information System based Approach Dr. K. Ezhil Vendhan

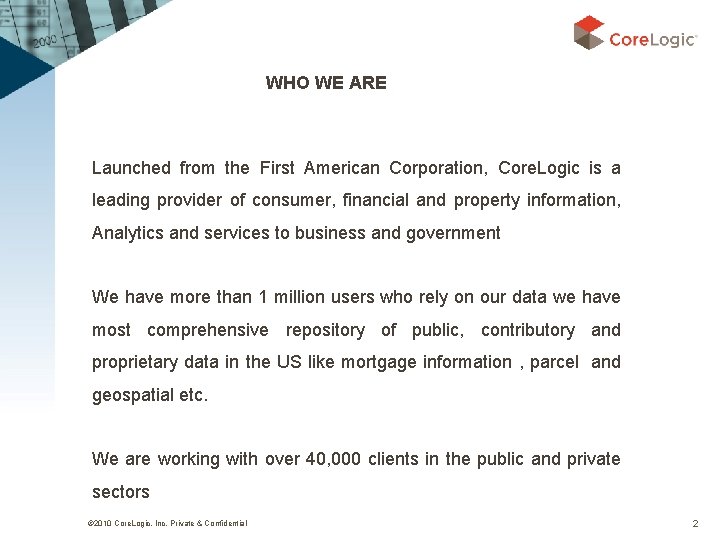

WHO WE ARE Launched from the First American Corporation, Core. Logic is a leading provider of consumer, financial and property information, Analytics and services to business and government We have more than 1 million users who rely on our data we have most comprehensive repository of public, contributory and proprietary data in the US like mortgage information , parcel and geospatial etc. We are working with over 40, 000 clients in the public and private sectors © 2010 Core. Logic, Inc. Private & Confidential 2

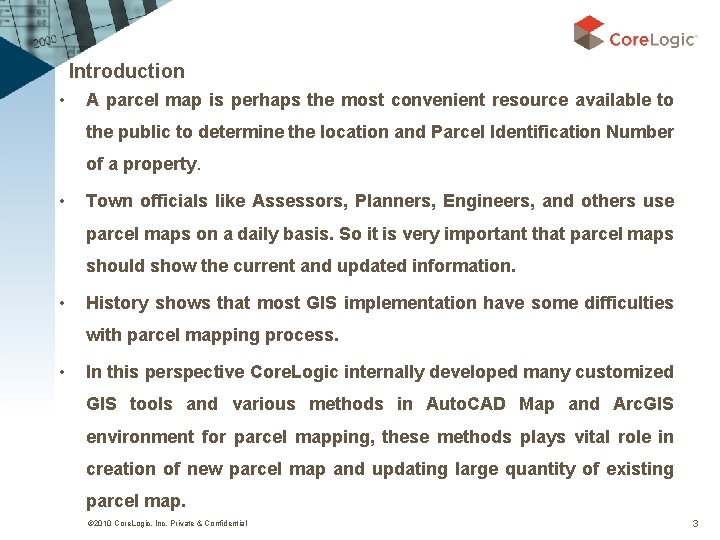

Introduction • A parcel map is perhaps the most convenient resource available to the public to determine the location and Parcel Identification Number of a property. • Town officials like Assessors, Planners, Engineers, and others use parcel maps on a daily basis. So it is very important that parcel maps should show the current and updated information. • History shows that most GIS implementation have some difficulties with parcel mapping process. • In this perspective Core. Logic internally developed many customized GIS tools and various methods in Auto. CAD Map and Arc. GIS environment for parcel mapping, these methods plays vital role in creation of new parcel map and updating large quantity of existing parcel map. © 2010 Core. Logic, Inc. Private & Confidential 3

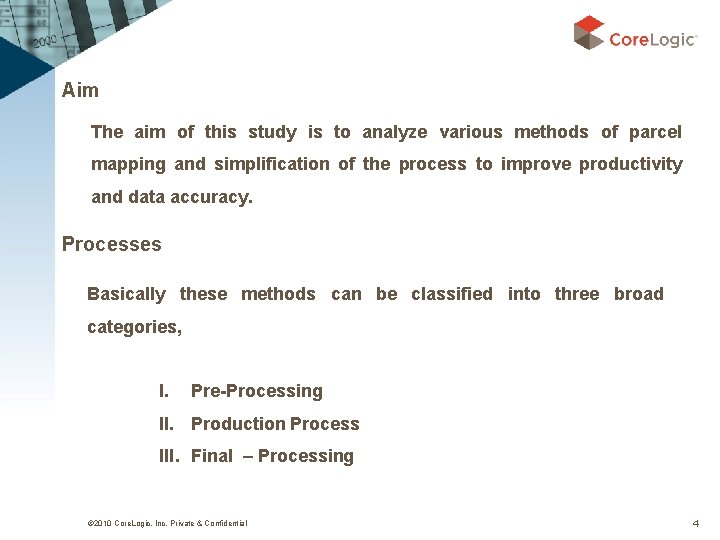

Aim The aim of this study is to analyze various methods of parcel mapping and simplification of the process to improve productivity and data accuracy. Processes Basically these methods can be classified into three broad categories, I. Pre-Processing II. Production Process III. Final – Processing © 2010 Core. Logic, Inc. Private & Confidential 4

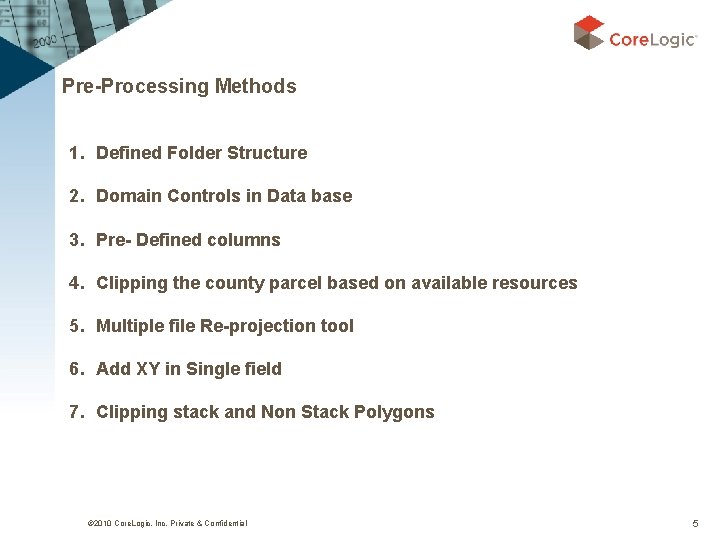

Pre-Processing Methods 1. Defined Folder Structure 2. Domain Controls in Data base 3. Pre- Defined columns 4. Clipping the county parcel based on available resources 5. Multiple file Re-projection tool 6. Add XY in Single field 7. Clipping stack and Non Stack Polygons © 2010 Core. Logic, Inc. Private & Confidential 5

Production Process Parcel mapping Production process are classified under five major categories. 1. CAD conversion 2. Building parcel Raster to Vector (COGO and Georeference) 3. Maintenance Raster to Vector 4. Maintenance Spatial Alignment Process 5. Maintenance Existing data editing © 2010 Core. Logic, Inc. Private & Confidential 13

Final Process In Final process following methods are implemented for data accuracy. 1. Arc Google Synchronize tool 2. Multiple Stack Creation tool 3. Edge Matching 4. Multi Pin Check using Spatial Unique ID Creation 5. Spatial Join/ Forward Link 6. Non- spatial / Reverse Link 7. Summarize Check 8. Color Code © 2010 Core. Logic, Inc. Private & Confidential 20

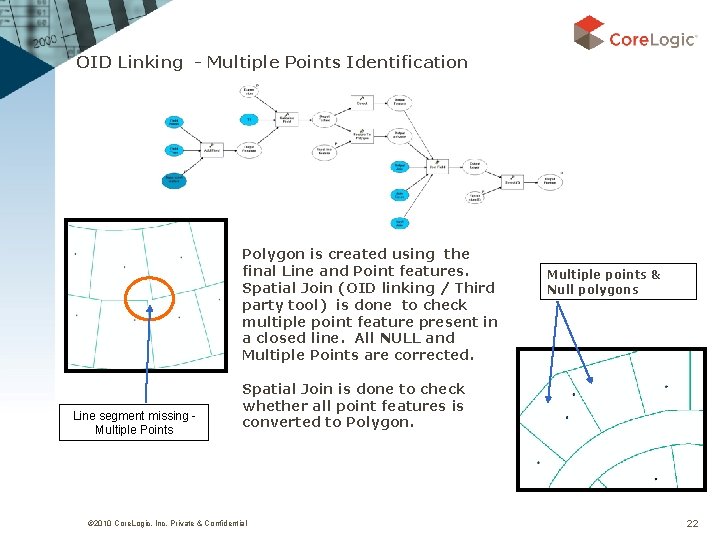

OID Linking - Multiple Points Identification Polygon is created using the final Line and Point features. Spatial Join (OID linking / Third party tool) is done to check multiple point feature present in a closed line. All NULL and Multiple Points are corrected. Line segment missing Multiple Points Multiple points & Null polygons Spatial Join is done to check whether all point features is converted to Polygon. © 2010 Core. Logic, Inc. Private & Confidential 22

Database Forward DB check / Spatial Join Common fields from the Spatial point feature and the Taxroll data are joined Unjoined DB are exported and verified the errors and it is rectified Spatial Data Tax Roll data © 2010 Core. Logic, Inc. Private & Confidential 23

Non Spatial Reverse DB Check Common fields from the Taxroll data and Spatial point feature are joined Tax Roll Data Spatial Data Unjoined DB are exported and verified the errors for rectification This Method is useful for identified Missing parcels and Stack parcel © 2010 Core. Logic, Inc. Private & Confidential 24

Summarize Check By summarizing APN and Map column an output of APN count is obtained for both Tax roll data and Map Data. The Map which has difference in APN count is checked again for errors. © 2010 Core. Logic, Inc. Private & Confidential 25

Parcel Mapping Applications in Core. Logic • Core. Logic captured 124 million parcels for 2, 200 counties and townships Nationwide. • Core. Logic Parcel. Point ® product enables users to access the highest level of positional accuracy for developing location-based solutions. • Each Parcel’s Unique Identifier allows it to be linked to other forms of information, including Valuations, Service Areas, Environmental Factors, Demographics, and Parcel Data also enables sophisticated spatial analysis such as proximity, overlay and buffer zone operations. © 2010 Core. Logic, Inc. Private & Confidential 27

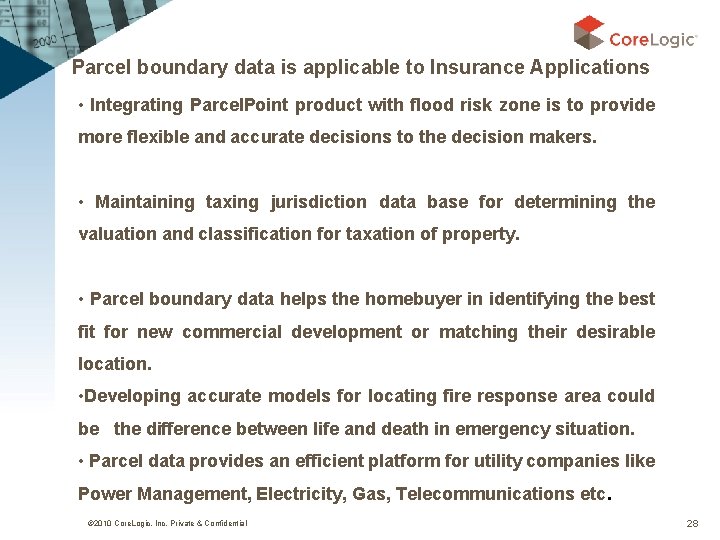

Parcel boundary data is applicable to Insurance Applications • Integrating Parcel. Point product with flood risk zone is to provide more flexible and accurate decisions to the decision makers. • Maintaining taxing jurisdiction data base for determining the valuation and classification for taxation of property. • Parcel boundary data helps the homebuyer in identifying the best fit for new commercial development or matching their desirable location. • Developing accurate models for locating fire response area could be the difference between life and death in emergency situation. • Parcel data provides an efficient platform for utility companies like Power Management, Electricity, Gas, Telecommunications etc. © 2010 Core. Logic, Inc. Private & Confidential 28

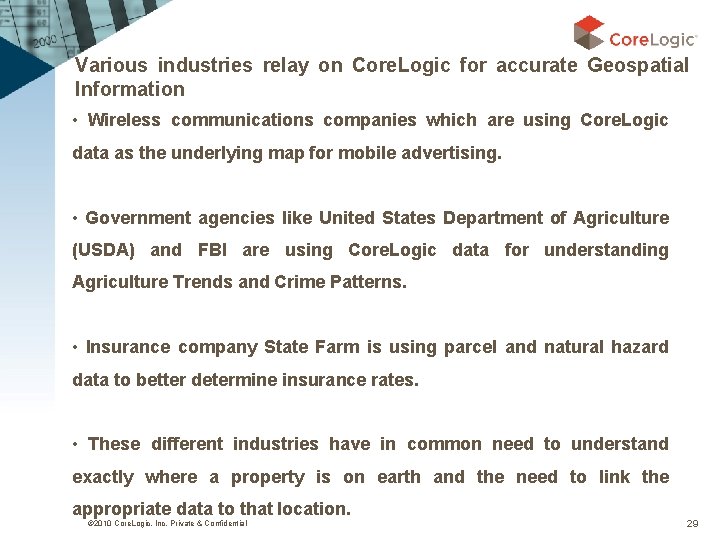

Various industries relay on Core. Logic for accurate Geospatial Information • Wireless communications companies which are using Core. Logic data as the underlying map for mobile advertising. • Government agencies like United States Department of Agriculture (USDA) and FBI are using Core. Logic data for understanding Agriculture Trends and Crime Patterns. • Insurance company State Farm is using parcel and natural hazard data to better determine insurance rates. • These different industries have in common need to understand exactly where a property is on earth and the need to link the appropriate data to that location. © 2010 Core. Logic, Inc. Private & Confidential 29
