Simplicity Series The 1 st FuelConvertible Concentric Vent

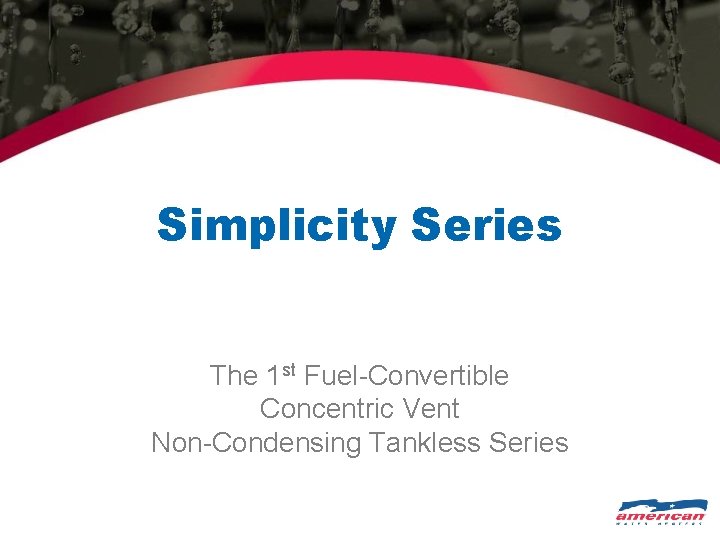

Simplicity Series The 1 st Fuel-Convertible Concentric Vent Non-Condensing Tankless Series

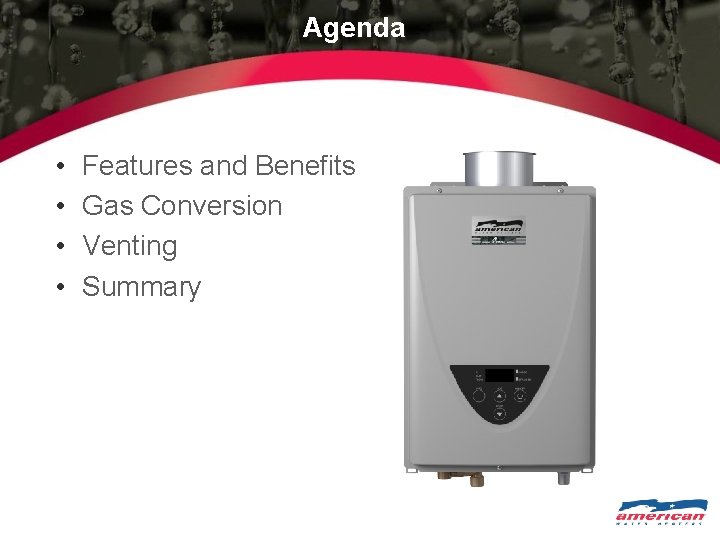

Agenda • • Features and Benefits Gas Conversion Venting Summary

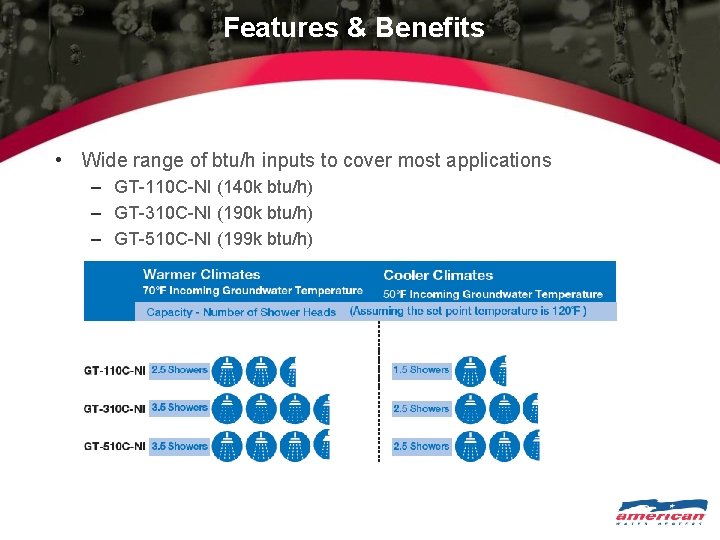

Features & Benefits • Wide range of btu/h inputs to cover most applications – GT-110 C-NI (140 k btu/h) – GT-310 C-NI (190 k btu/h) – GT-510 C-NI (199 k btu/h)

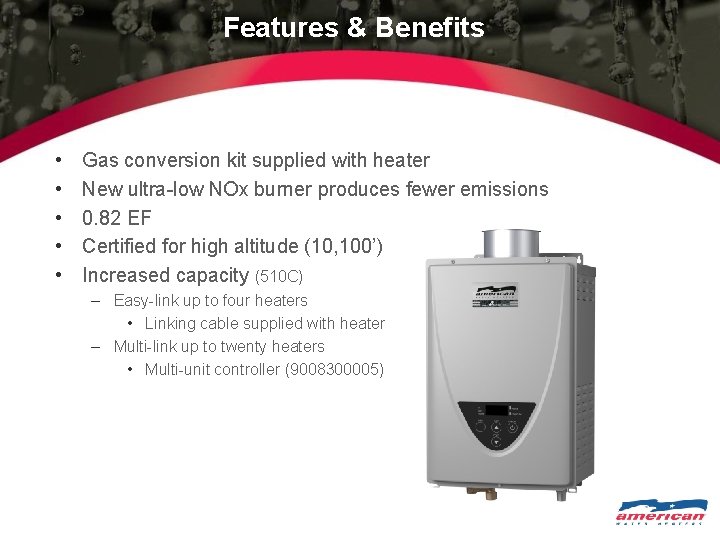

Features & Benefits • • • Gas conversion kit supplied with heater New ultra-low NOx burner produces fewer emissions 0. 82 EF Certified for high altitude (10, 100’) Increased capacity (510 C) – Easy-link up to four heaters • Linking cable supplied with heater – Multi-link up to twenty heaters • Multi-unit controller (9008300005)

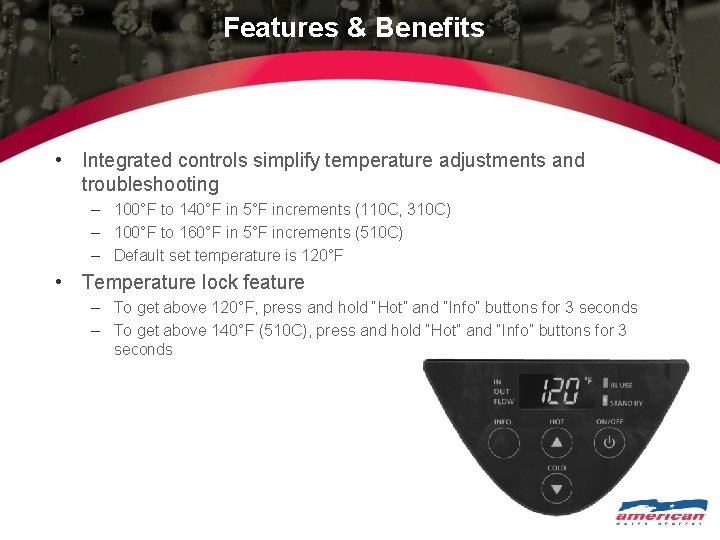

Features & Benefits • Integrated controls simplify temperature adjustments and troubleshooting – 100°F to 140°F in 5°F increments (110 C, 310 C) – 100°F to 160°F in 5°F increments (510 C) – Default set temperature is 120°F • Temperature lock feature – To get above 120°F, press and hold “Hot” and “Info” buttons for 3 seconds – To get above 140°F (510 C), press and hold “Hot” and “Info” buttons for 3 seconds

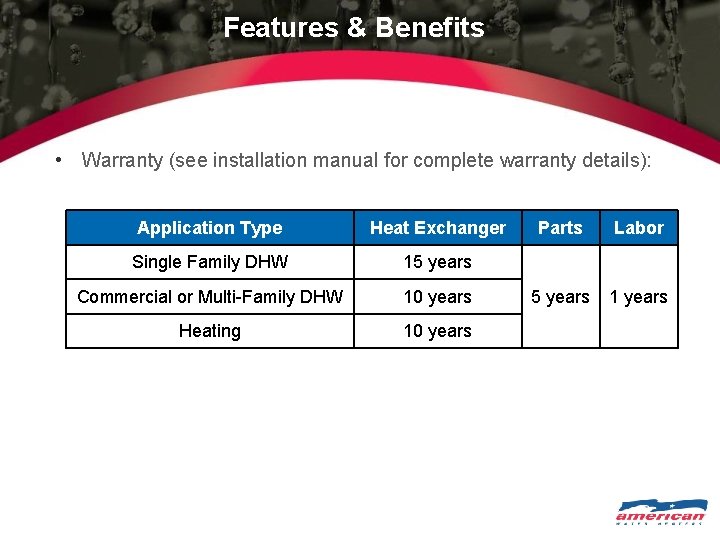

Features & Benefits • Warranty (see installation manual for complete warranty details): Application Type Heat Exchanger Single Family DHW 15 years Commercial or Multi-Family DHW 10 years Heating 10 years Parts Labor 5 years 1 years

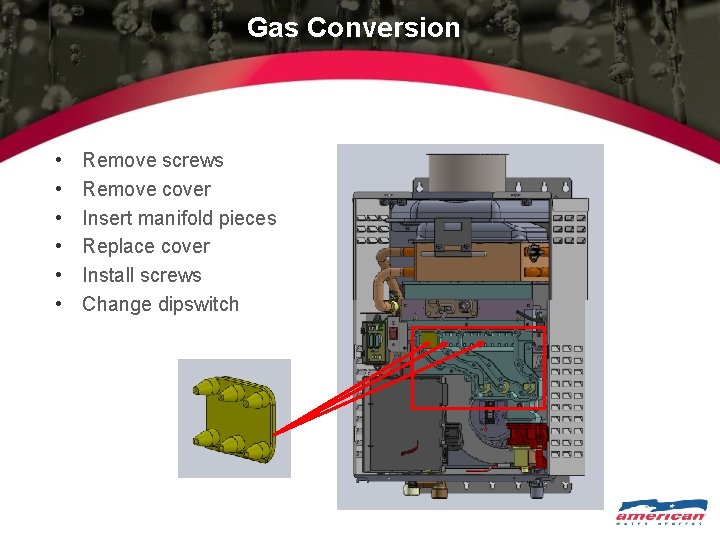

Gas Conversion • • • Remove screws Remove cover Insert manifold pieces Replace cover Install screws Change dipswitch

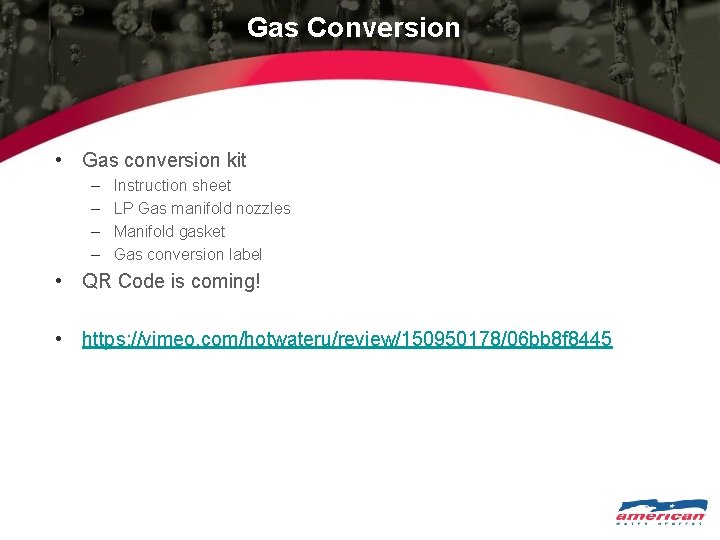

Gas Conversion • Gas conversion kit – – Instruction sheet LP Gas manifold nozzles Manifold gasket Gas conversion label • QR Code is coming! • https: //vimeo. com/hotwateru/review/150950178/06 bb 8 f 8445

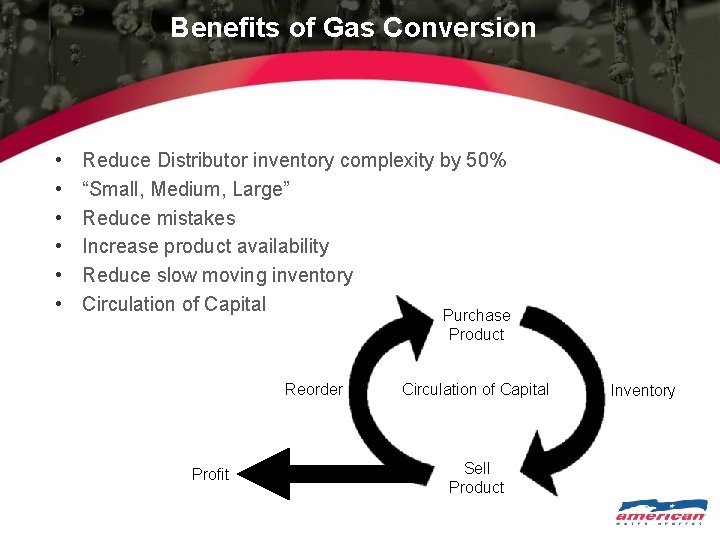

Benefits of Gas Conversion • • • Reduce Distributor inventory complexity by 50% “Small, Medium, Large” Reduce mistakes Increase product availability Reduce slow moving inventory Circulation of Capital Purchase Product Reorder Profit Circulation of Capital Sell Product Inventory

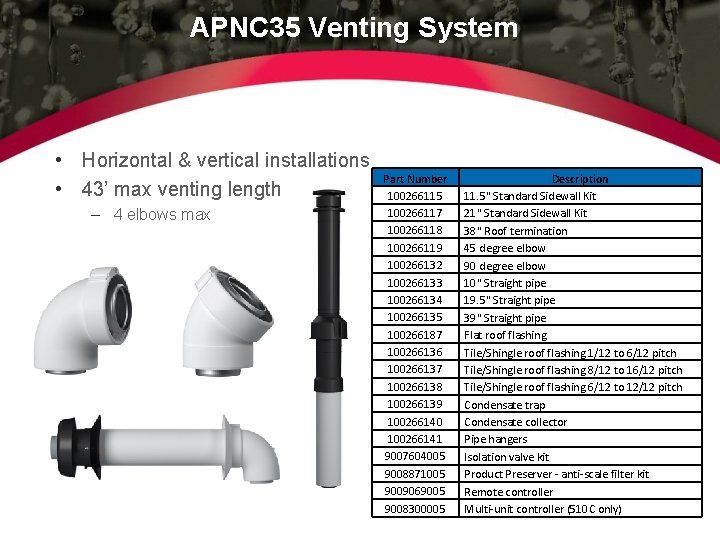

APNC 35 Venting System • Horizontal & vertical installations • 43’ max venting length – 4 elbows max Part Number 100266115 100266117 100266118 100266119 100266132 100266133 100266134 100266135 100266187 100266136 100266137 100266138 100266139 100266140 100266141 9007604005 9008871005 9009069005 9008300005 Description 11. 5" Standard Sidewall Kit 21" Standard Sidewall Kit 38" Roof termination 45 degree elbow 90 degree elbow 10" Straight pipe 19. 5" Straight pipe 39" Straight pipe Flat roof flashing Tile/Shingle roof flashing 1/12 to 6/12 pitch Tile/Shingle roof flashing 8/12 to 16/12 pitch Tile/Shingle roof flashing 6/12 to 12/12 pitch Condensate trap Condensate collector Pipe hangers Isolation valve kit Product Preserver - anti-scale filter kit Remote controller Multi-unit controller (510 C only)

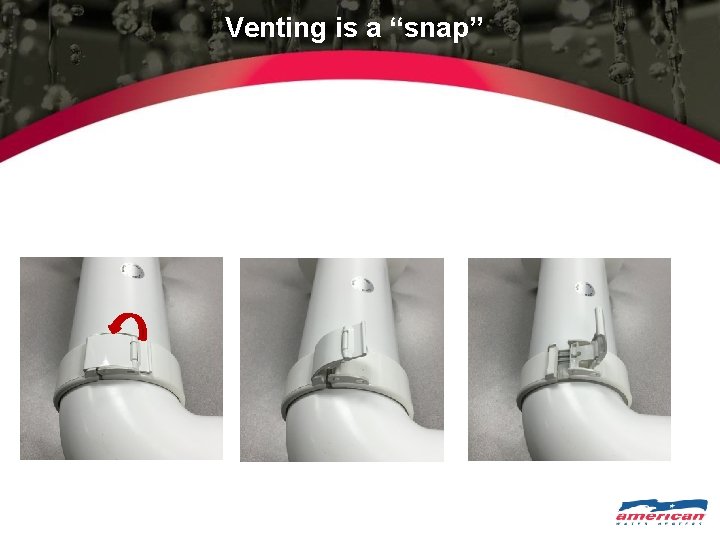

Venting is a “snap”

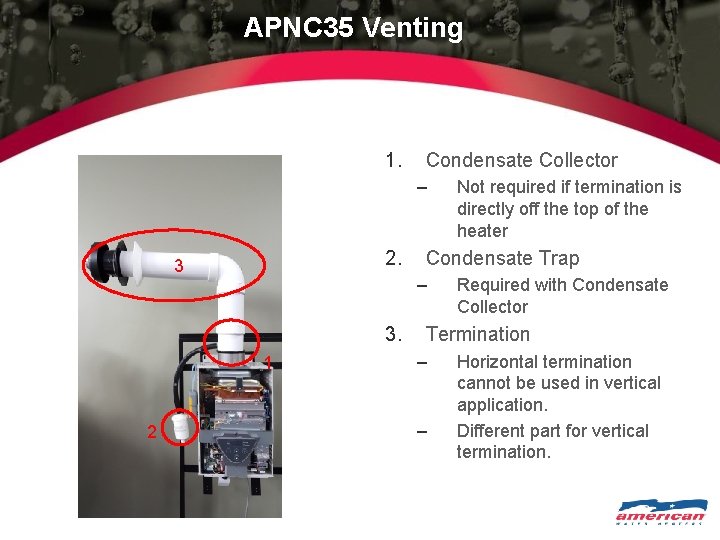

APNC 35 Venting 1. Condensate Collector – 2. 3 1 2 Condensate Trap – 3. Not required if termination is directly off the top of the heater Required with Condensate Collector Termination – – Horizontal termination cannot be used in vertical application. Different part for vertical termination.

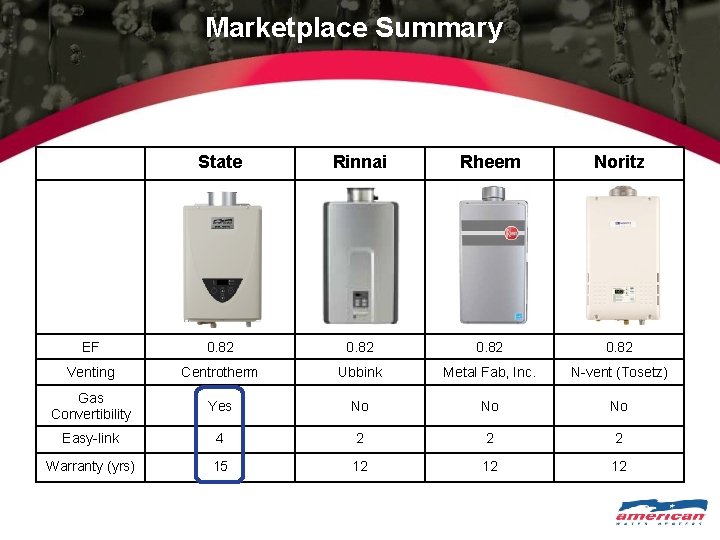

Marketplace Summary State Rinnai Rheem Noritz EF 0. 82 Venting Centrotherm Ubbink Metal Fab, Inc. N-vent (Tosetz) Gas Convertibility Yes No No No Easy-link 4 2 2 2 Warranty (yrs) 15 12 12 12
