Simple Machines By the 5 th Grade Computer

Simple Machines By the 5 th Grade Computer Class

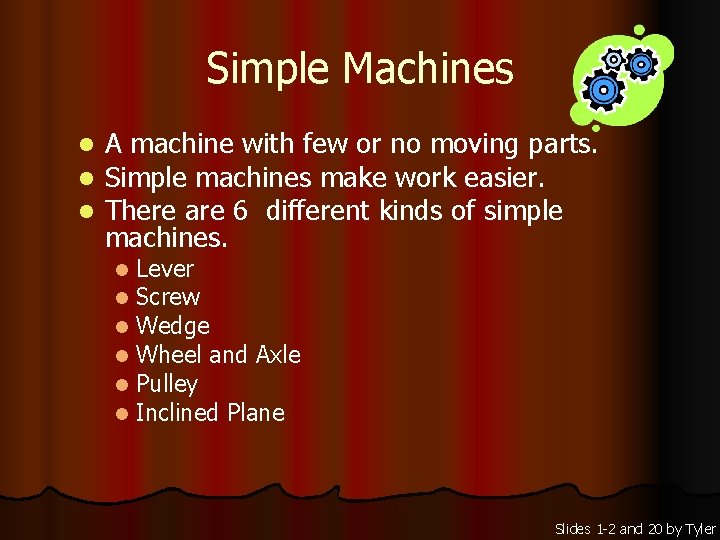

Simple Machines l l l A machine with few or no moving parts. Simple machines make work easier. There are 6 different kinds of simple machines. l l l Lever Screw Wedge Wheel and Axle Pulley Inclined Plane Slides 1 -2 and 20 by Tyler

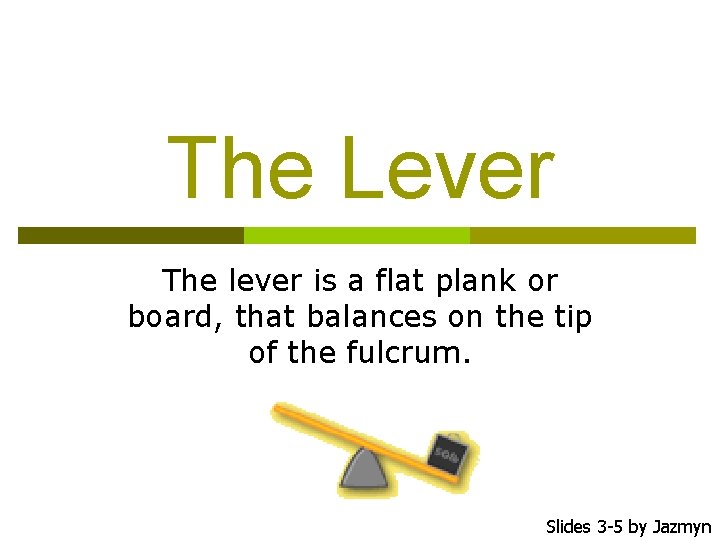

The Lever The lever is a flat plank or board, that balances on the tip of the fulcrum. Slides 3 -5 by Jazmyn

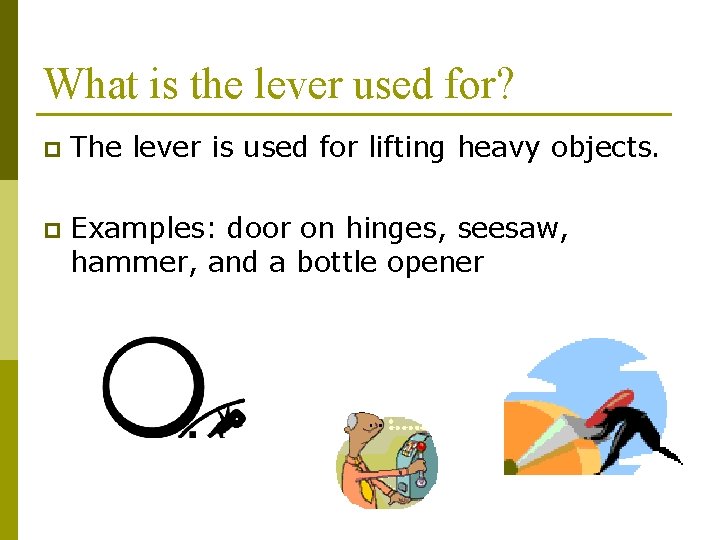

What is the lever used for? p The lever is used for lifting heavy objects. p Examples: door on hinges, seesaw, hammer, and a bottle opener

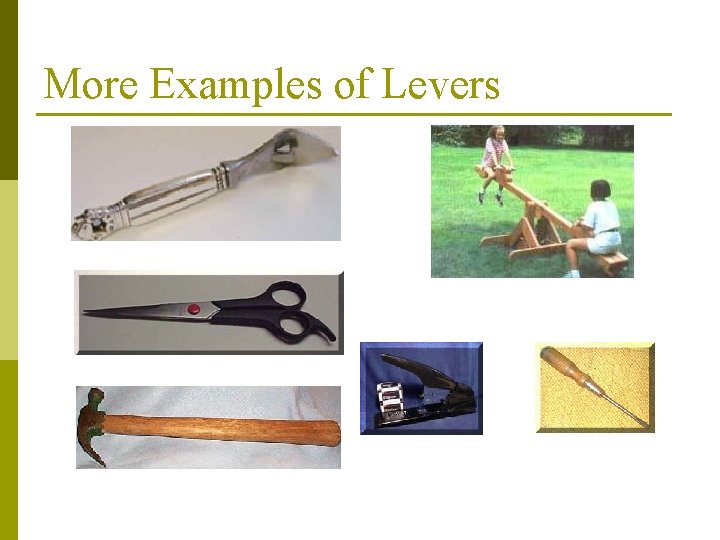

More Examples of Levers

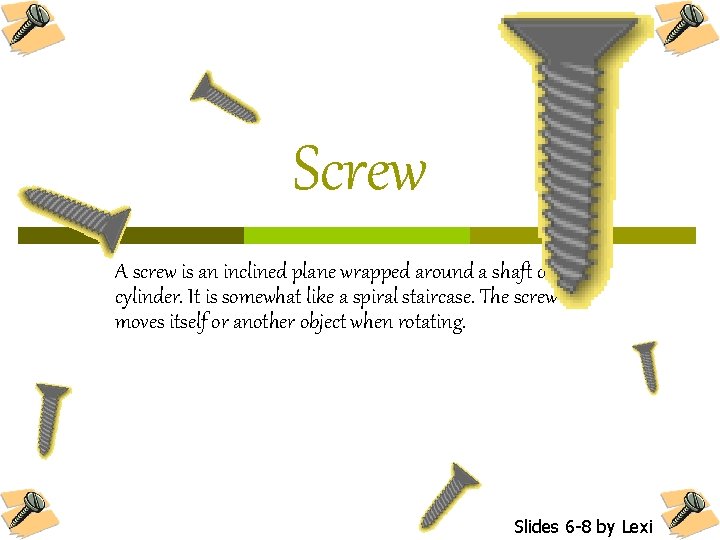

Screw A screw is an inclined plane wrapped around a shaft or cylinder. It is somewhat like a spiral staircase. The screw moves itself or another object when rotating. Slides 6 -8 by Lexi

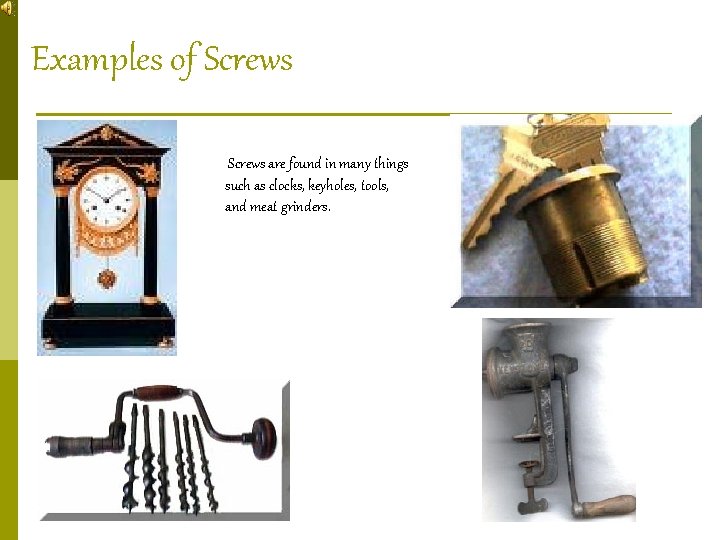

Examples of Screws are found in many things such as clocks, keyholes, tools, and meat grinders.

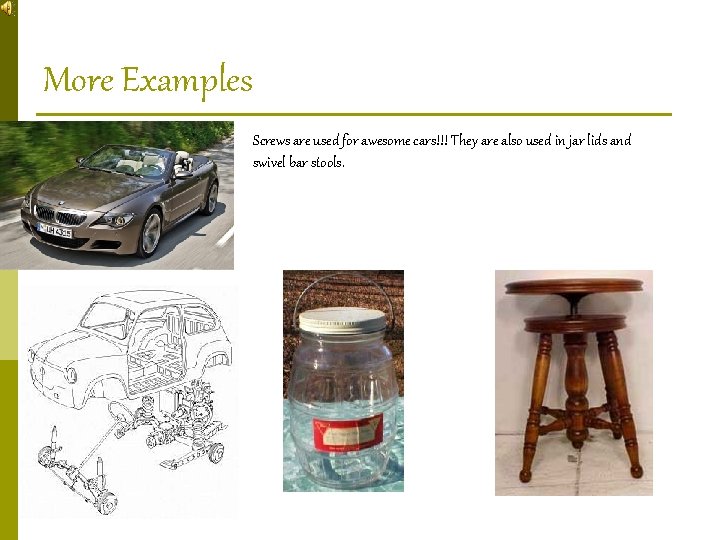

More Examples Screws are used for awesome cars!!! They are also used in jar lids and swivel bar stools.

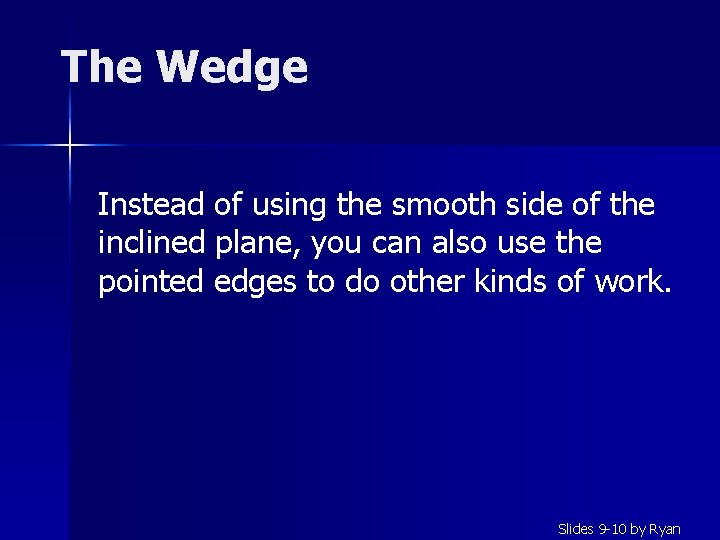

The Wedge Instead of using the smooth side of the inclined plane, you can also use the pointed edges to do other kinds of work. Slides 9 -10 by Ryan

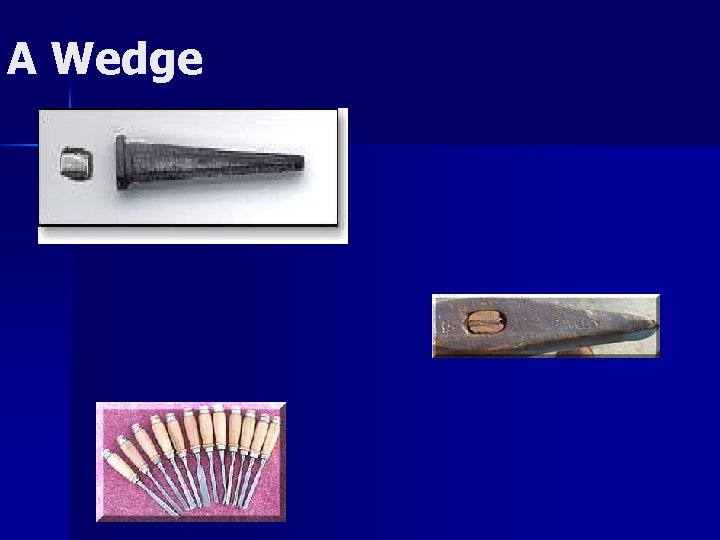

A Wedge

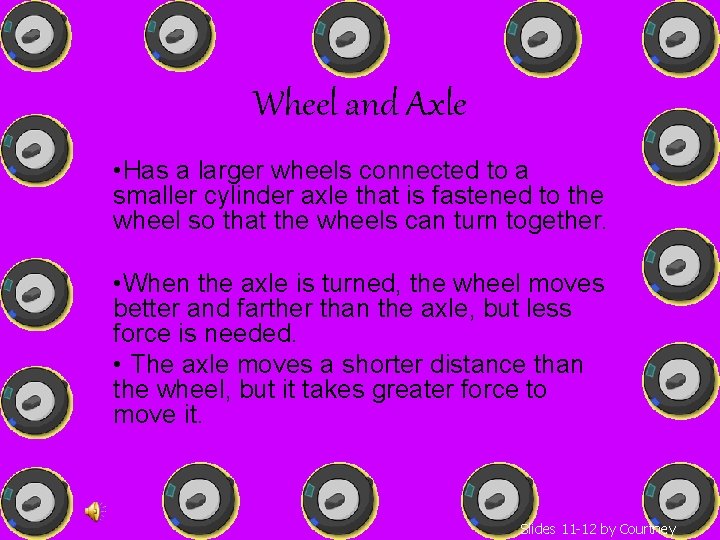

Wheel and Axle • Has a larger wheels connected to a smaller cylinder axle that is fastened to the wheel so that the wheels can turn together. • When the axle is turned, the wheel moves better and farther than the axle, but less force is needed. • The axle moves a shorter distance than the wheel, but it takes greater force to move it. Slides 11 -12 by Courtney

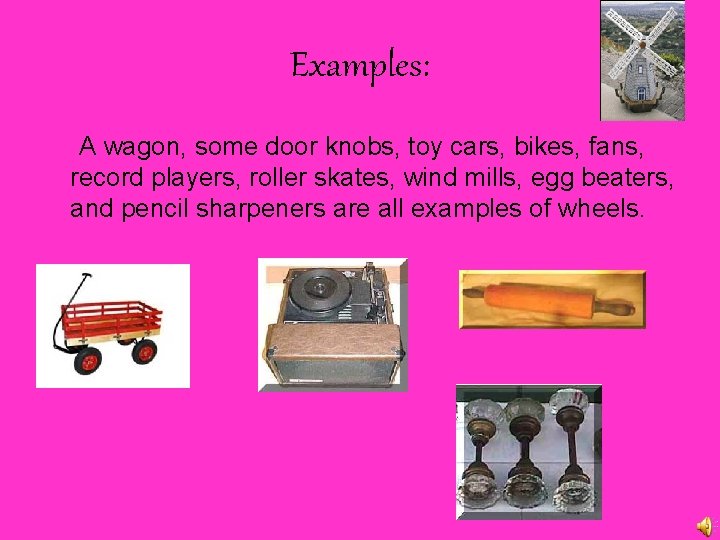

Examples: A wagon, some door knobs, toy cars, bikes, fans, record players, roller skates, wind mills, egg beaters, and pencil sharpeners are all examples of wheels.

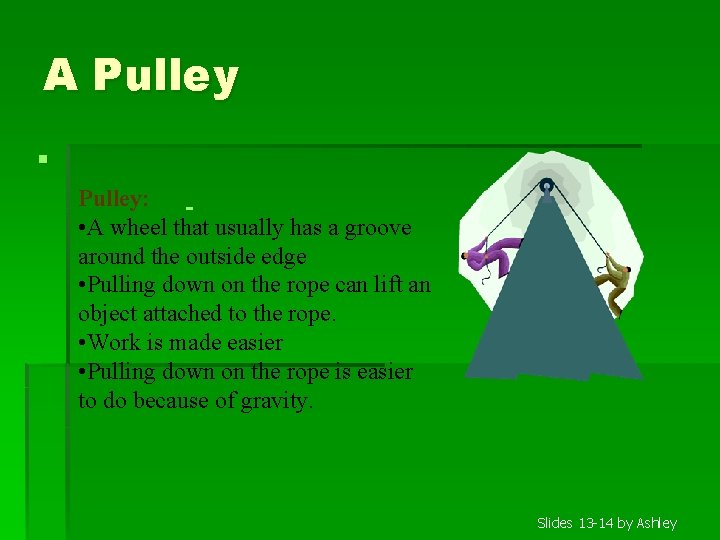

A Pulley § Pulley: • A wheel that usually has a groove around the outside edge • Pulling down on the rope can lift an object attached to the rope. • Work is made easier • Pulling down on the rope is easier to do because of gravity. Slides 13 -14 by Ashley

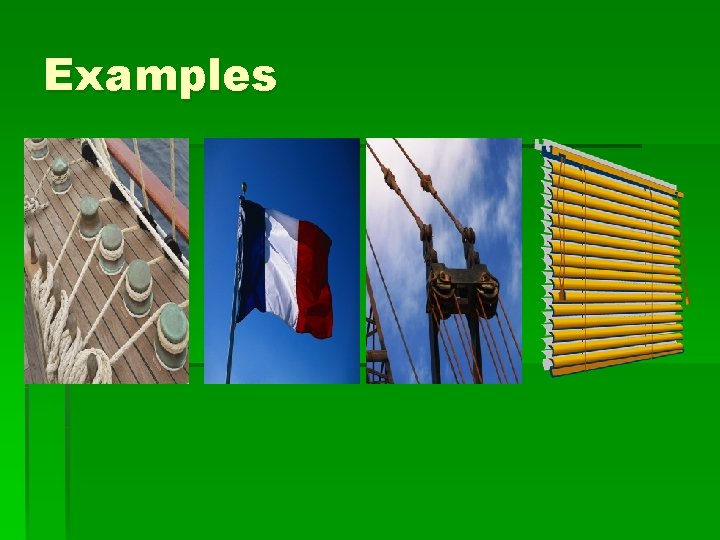

Examples

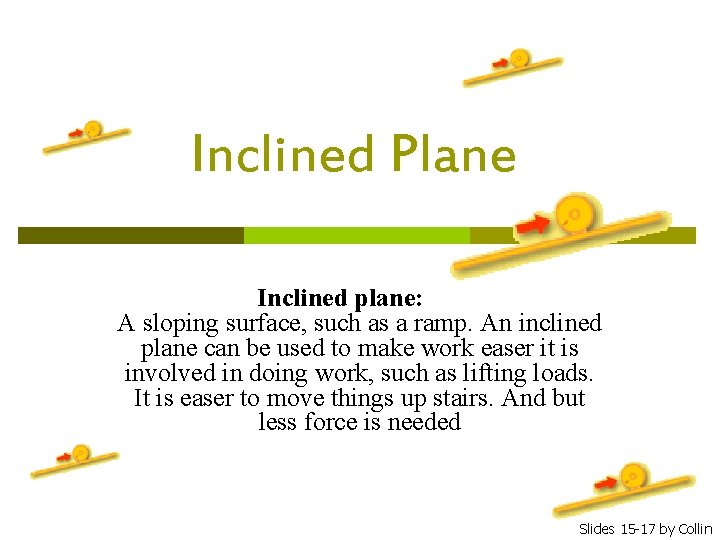

Inclined Plane Inclined plane: A sloping surface, such as a ramp. An inclined plane can be used to make work easer it is involved in doing work, such as lifting loads. It is easer to move things up stairs. And but less force is needed Slides 15 -17 by Collin

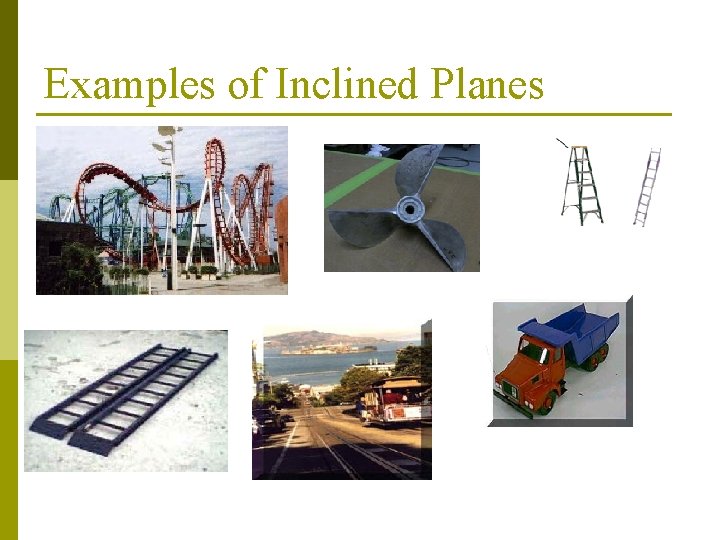

Examples of Inclined Planes

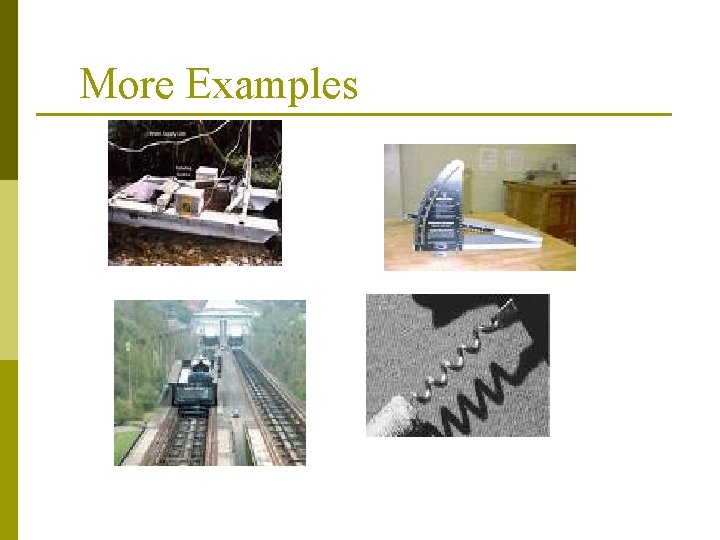

More Examples

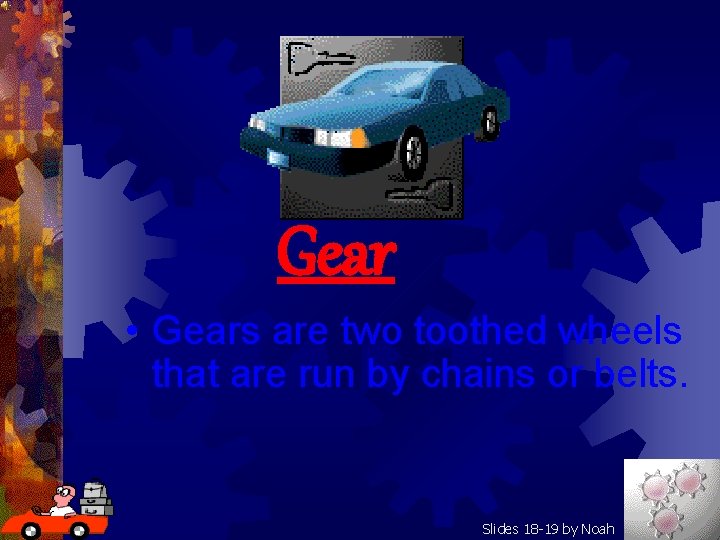

Gear • Gears are two toothed wheels that are run by chains or belts. Slides 18 -19 by Noah

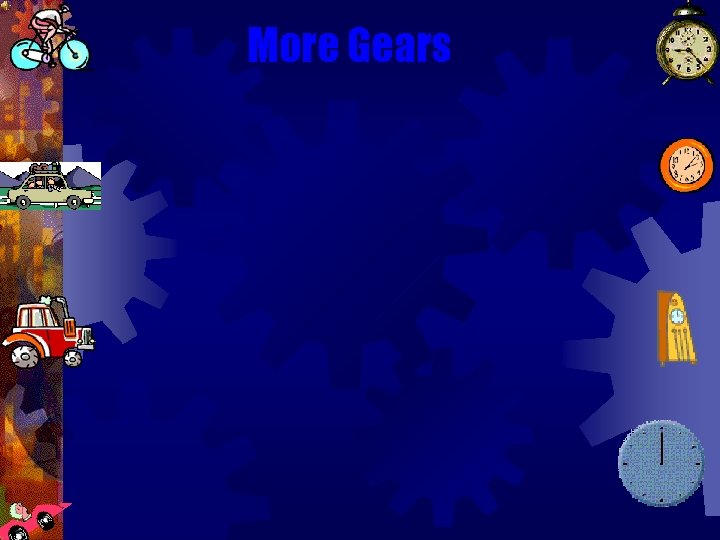

More Gears

The End!
