Simple Machines 7 th Grade Science Created By Brandy Coombs

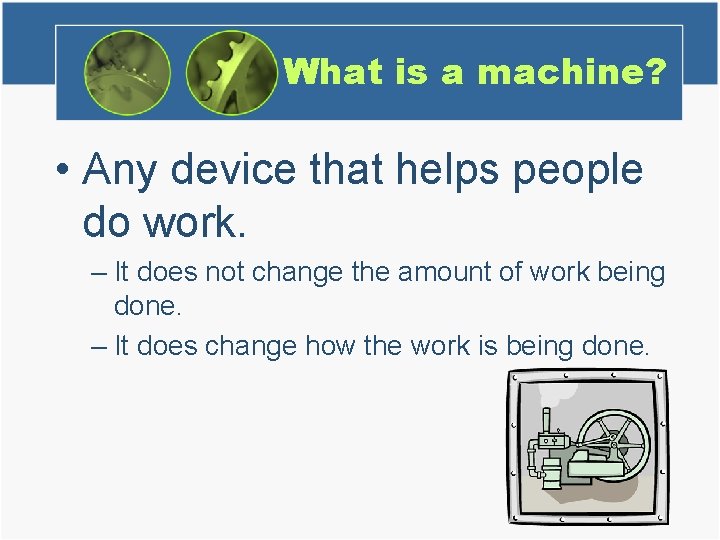

What is a machine? • Any device that helps people do work. – It does not change the amount of work being done. – It does change how the work is being done.

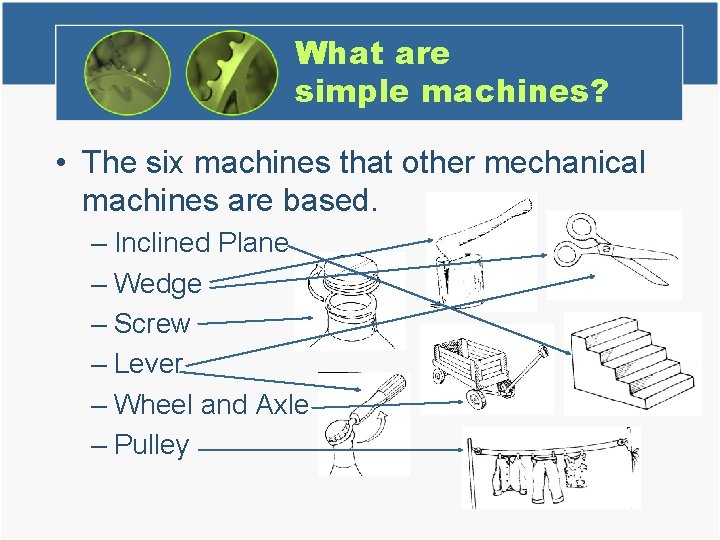

What are simple machines? • The six machines that other mechanical machines are based. – Inclined Plane – Wedge – Screw – Lever – Wheel and Axle – Pulley

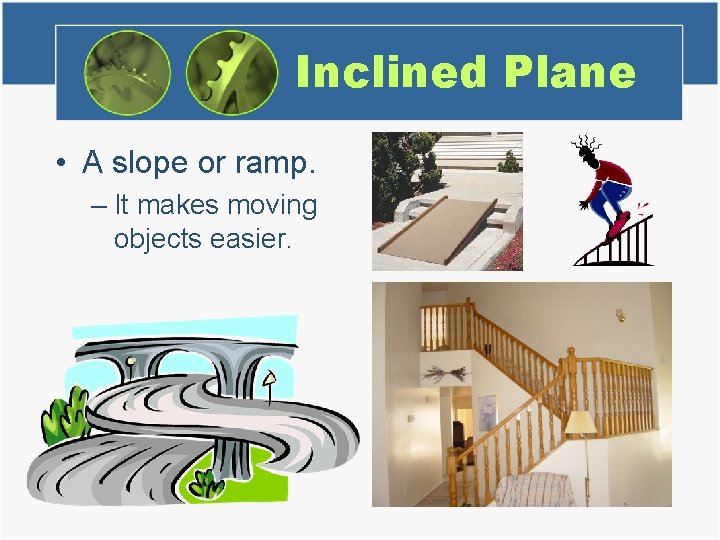

Inclined Plane • A slope or ramp. – It makes moving objects easier.

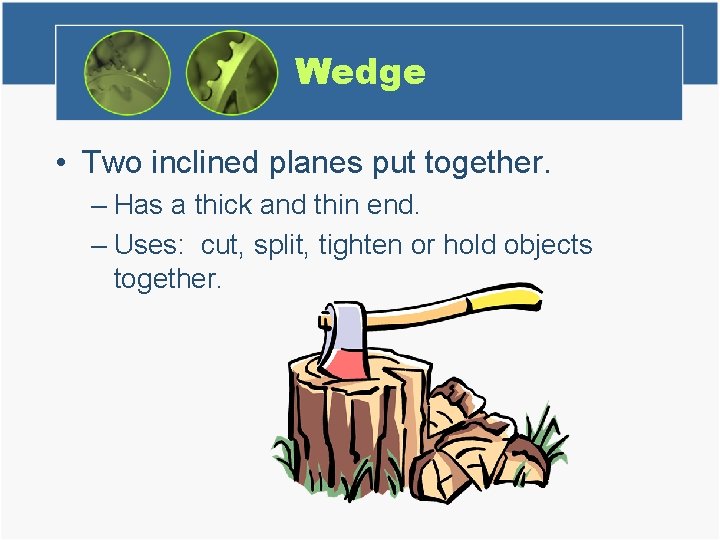

Wedge • Two inclined planes put together. – Has a thick and thin end. – Uses: cut, split, tighten or hold objects together.

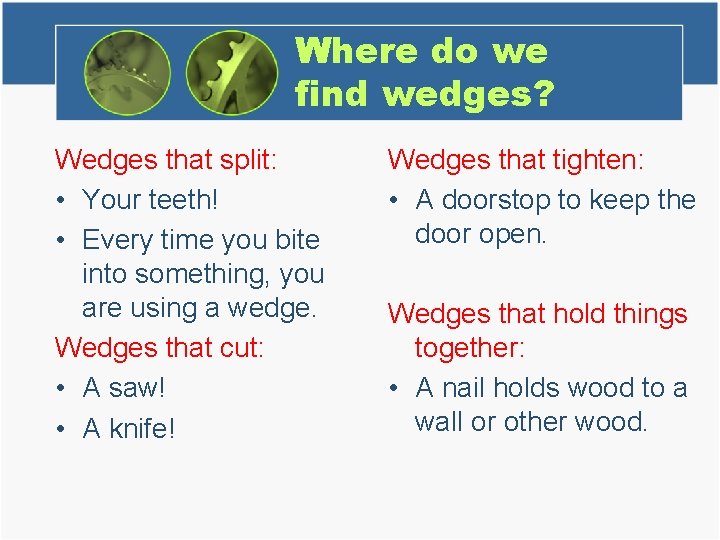

Where do we find wedges? Wedges that split: • Your teeth! • Every time you bite into something, you are using a wedge. Wedges that cut: • A saw! • A knife! Wedges that tighten: • A doorstop to keep the door open. Wedges that hold things together: • A nail holds wood to a wall or other wood.

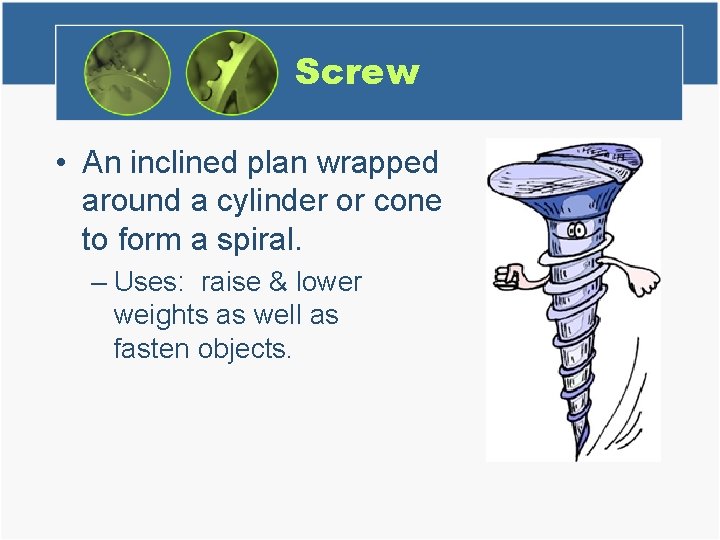

Screw • An inclined plan wrapped around a cylinder or cone to form a spiral. – Uses: raise & lower weights as well as fasten objects.

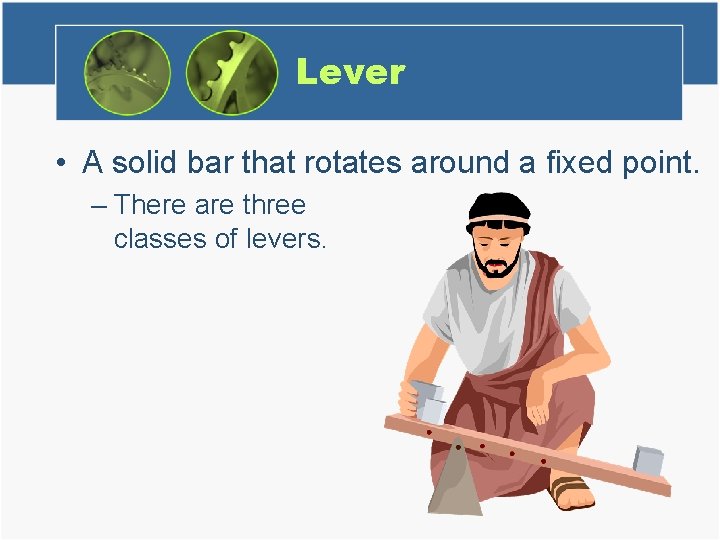

Lever • A solid bar that rotates around a fixed point. – There are three classes of levers.

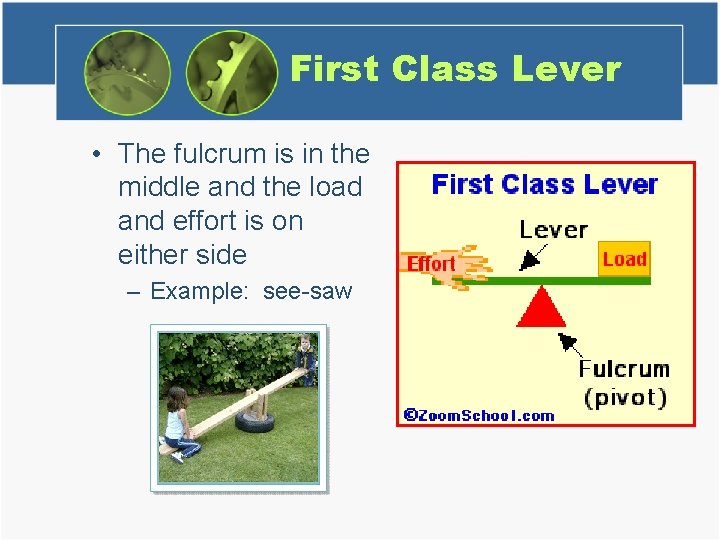

First Class Lever • The fulcrum is in the middle and the load and effort is on either side – Example: see-saw

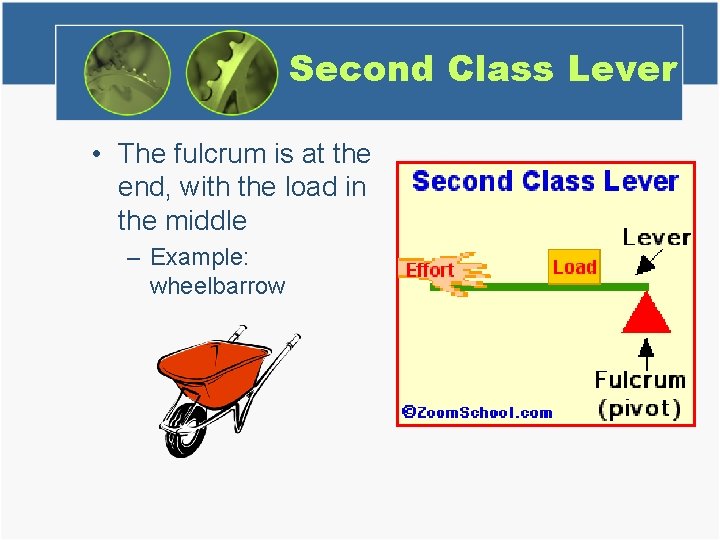

Second Class Lever • The fulcrum is at the end, with the load in the middle – Example: wheelbarrow

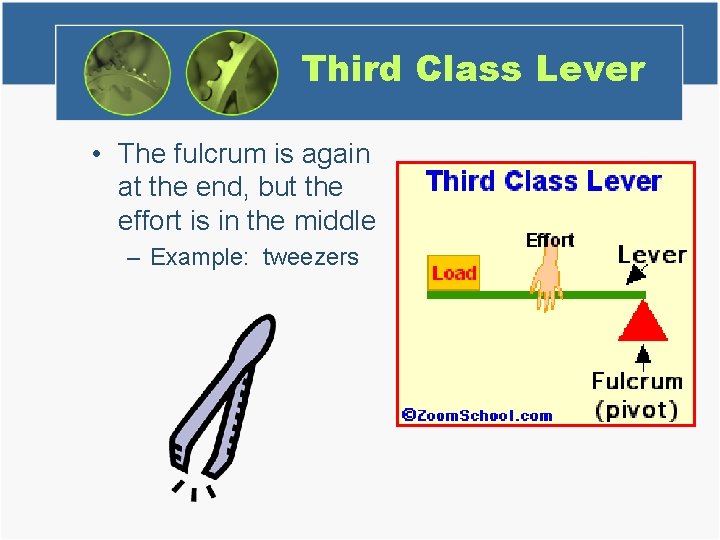

Third Class Lever • The fulcrum is again at the end, but the effort is in the middle – Example: tweezers

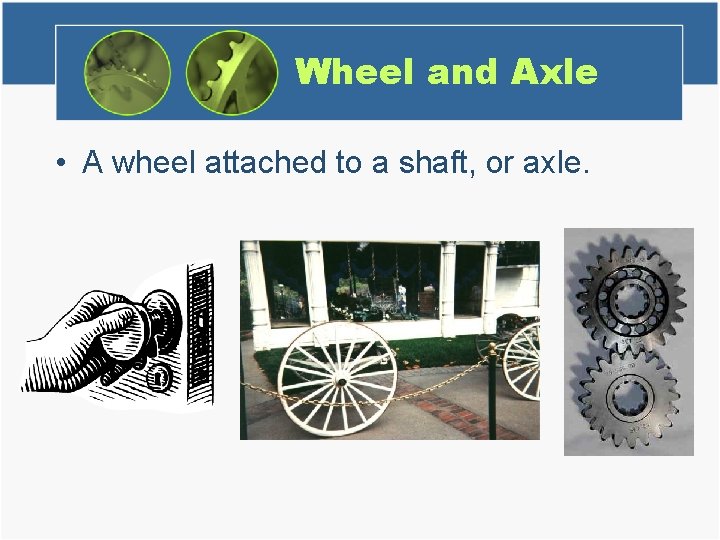

Wheel and Axle • A wheel attached to a shaft, or axle.

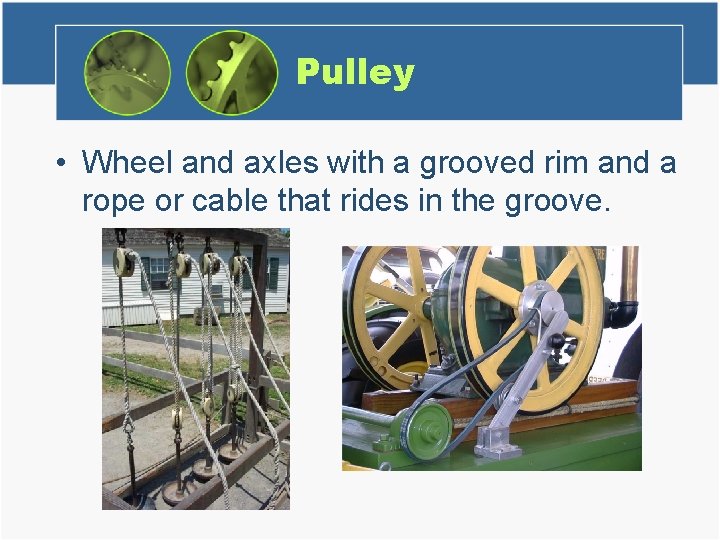

Pulley • Wheel and axles with a grooved rim and a rope or cable that rides in the groove.

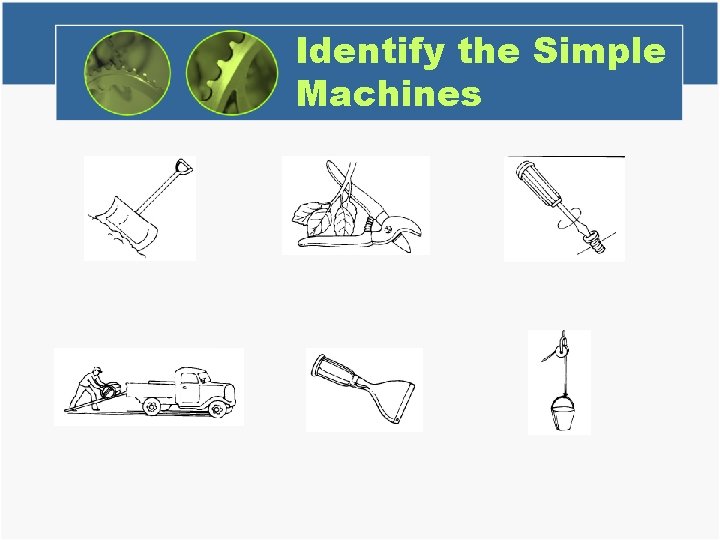

Identify the Simple Machines
