SIMPLE HARMONIC MOTION
Simple Harmonic Motion (SHM) periodic motion about an equilibrium point where the restoring force is proportional to the distance from equilibrium �Periodic motion: Repeated motion �Equilibrium position: Position where object will come to rest. Fnet = 0 For oscillation to be SHM, the forces must always be directed to the center of symmetrical oscillation and the force must be proportional to the displacement.
Simple Harmonic Motion (SHM) Examples: � Pendulum � Spring � Liquid in U-tube

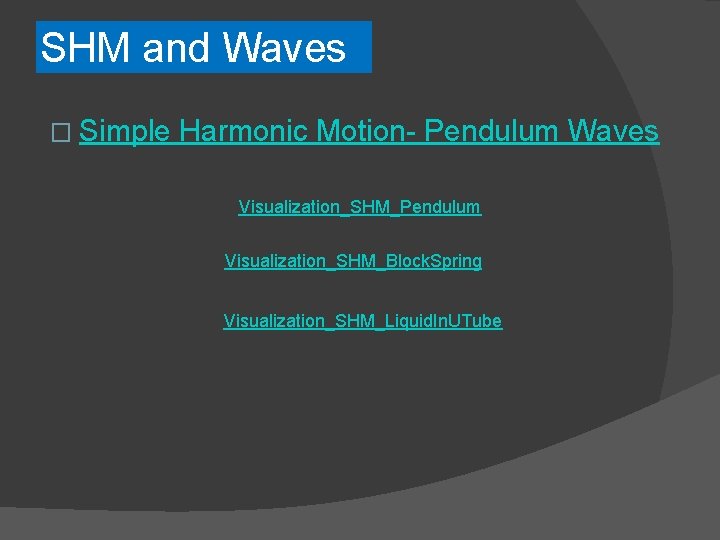

SHM and Waves � Simple Harmonic Motion- Pendulum Waves Visualization_SHM_Pendulum Visualization_SHM_Block. Spring Visualization_SHM_Liquid. In. UTube
Simple Harmonic Motion (SHM) Displacement vs. Time Graph Sinusoid Wave Properties displacement (m) period (T) amplitude time (s) frequency (f) = #cycles per second midline = equilibrium position
Amplitude maximum displacement from equilibrium �Relates to the amount of energy �Unit: meters
Simple Harmonic Motion mass on spring pendulum (small angles) amplitude = A equilibrium amplitude = -A equilibrium amplitude = A
Velocity / Force / Acceleration At equilibrium � Velocity is at a maximum � Net force is zero � Acceleration is zero At maximum amplitude � Velocity is zero � Net force is at a maximum � Acceleration is at its maximum
What happens as the pendulum moves? At point G: At point A: At point D: equilibrium Restoring force works to slow down bob, so it will return to equilibrium.
What happens as the pendulum moves?
Period & Frequency Period (T): time it takes to complete one cycle �Unit: seconds � Frequency (f): number of cycles or vibrations per unit of time �Unit: 1/sec = Hertz (Hz) �
Example 1 An angry bird flaps its wings every 1. 2 seconds. What is the period and frequency of the wings’ motion?
Example 1 An angry bird flaps its wings every 1. 2 seconds. What is the period and frequency of the wings’ motion?
