Simple Harmonic Motion Ph ET mass spring applet

Simple Harmonic Motion

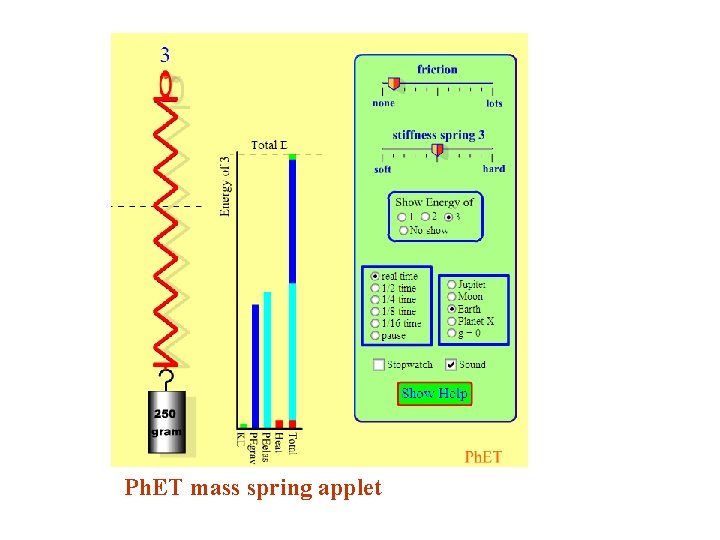

Ph. ET mass spring applet

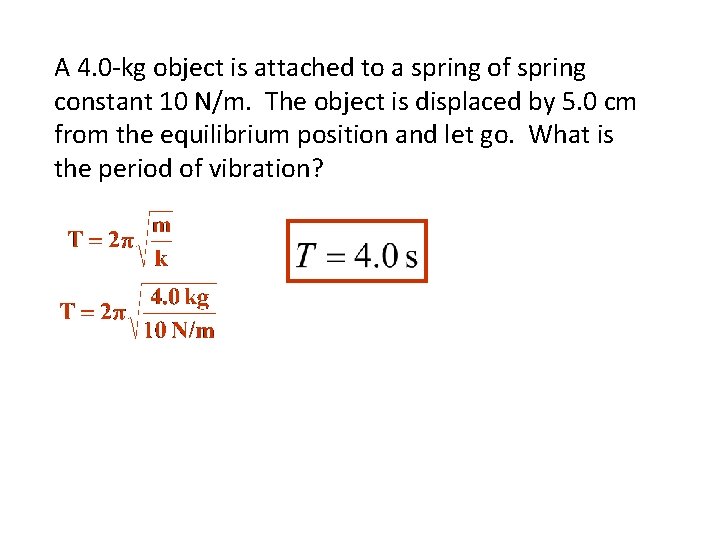

A 4. 0 -kg object is attached to a spring of spring constant 10 N/m. The object is displaced by 5. 0 cm from the equilibrium position and let go. What is the period of vibration?

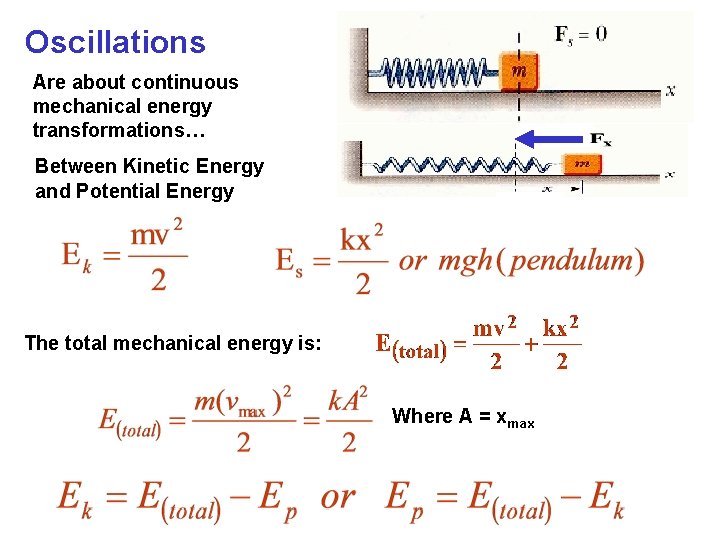

Oscillations Are about continuous mechanical energy transformations… Between Kinetic Energy and Potential Energy The total mechanical energy is: Where A = xmax

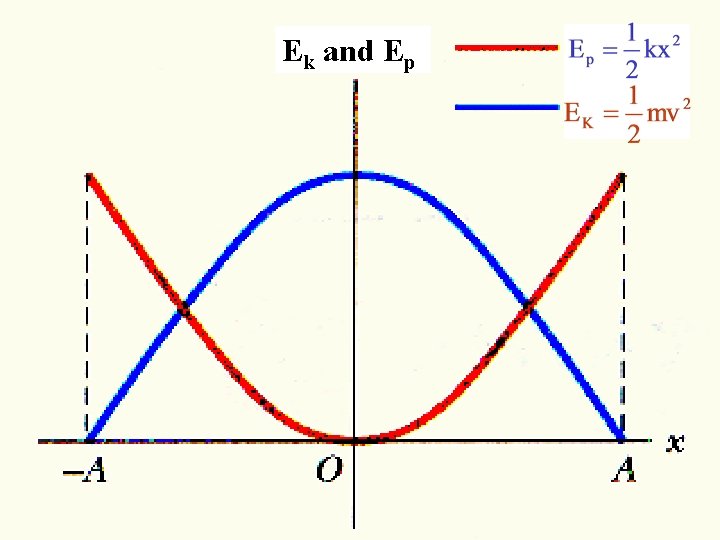

Ek and Ep

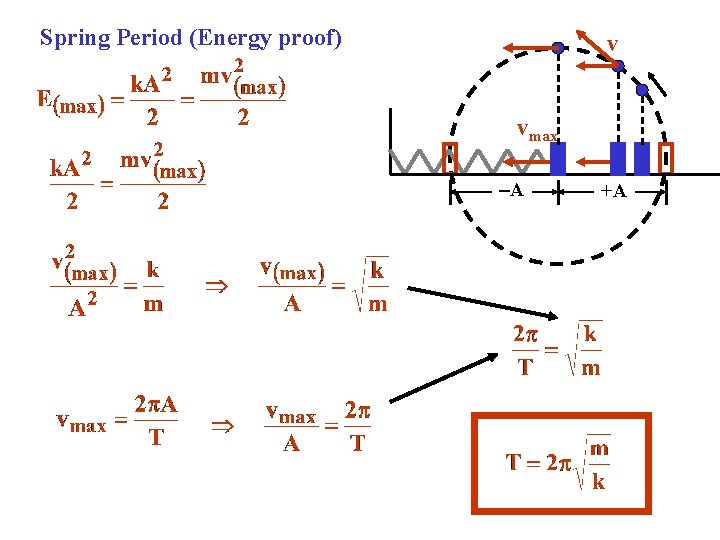

Spring Period (Energy proof) v vmax -A +A

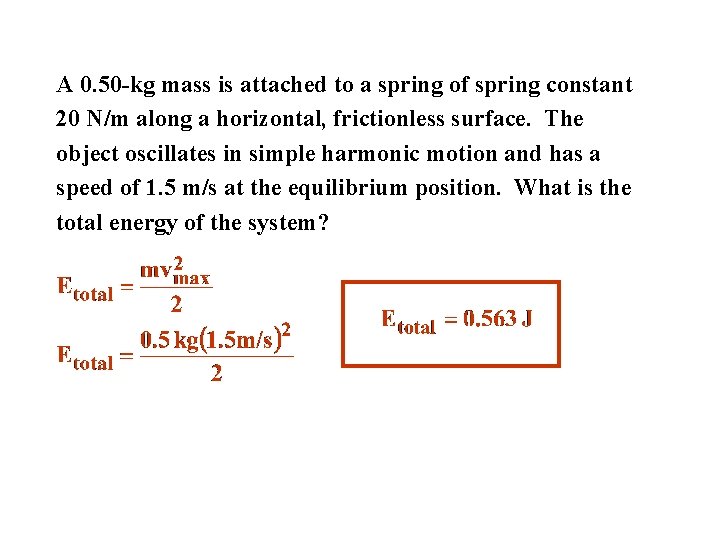

A 0. 50 -kg mass is attached to a spring of spring constant 20 N/m along a horizontal, frictionless surface. The object oscillates in simple harmonic motion and has a speed of 1. 5 m/s at the equilibrium position. What is the total energy of the system?

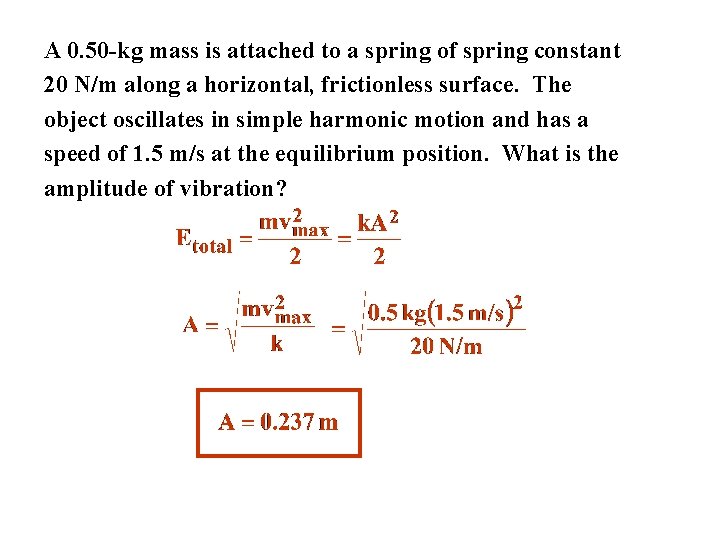

A 0. 50 -kg mass is attached to a spring of spring constant 20 N/m along a horizontal, frictionless surface. The object oscillates in simple harmonic motion and has a speed of 1. 5 m/s at the equilibrium position. What is the amplitude of vibration?

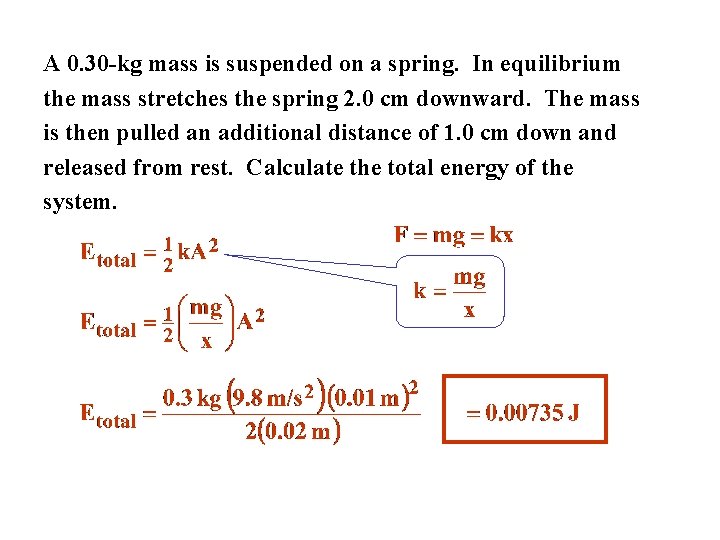

A 0. 30 -kg mass is suspended on a spring. In equilibrium the mass stretches the spring 2. 0 cm downward. The mass is then pulled an additional distance of 1. 0 cm down and released from rest. Calculate the total energy of the system.

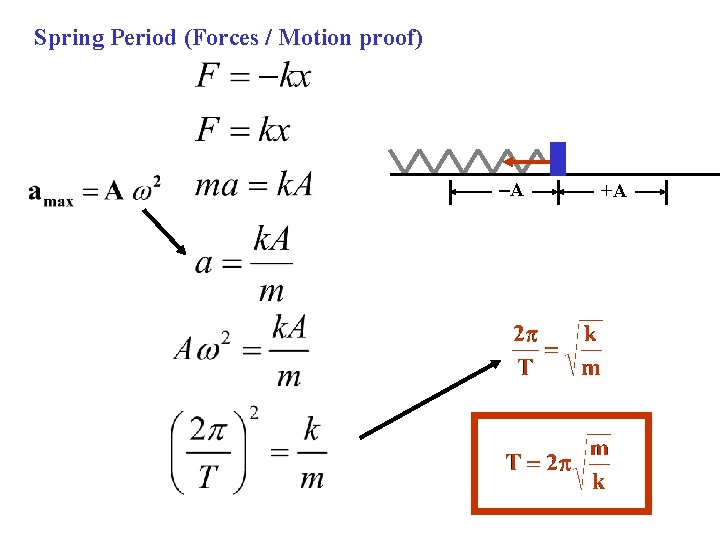

Spring Period (Forces / Motion proof) -A +A

time If the masses are all the same, which spring has the greatest spring constant? A. Black B. Green C. Blue Web Link: Simple Harmonic Motion

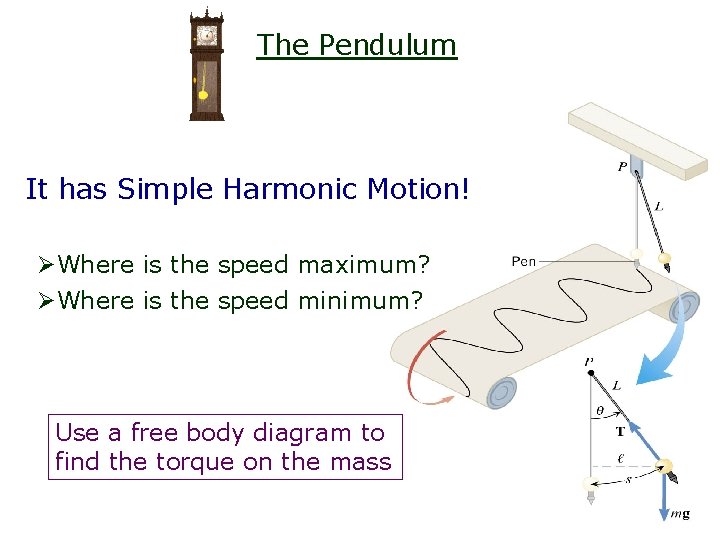

The Pendulum It has Simple Harmonic Motion! ØWhere is the speed maximum? ØWhere is the speed minimum? Use a free body diagram to find the torque on the mass

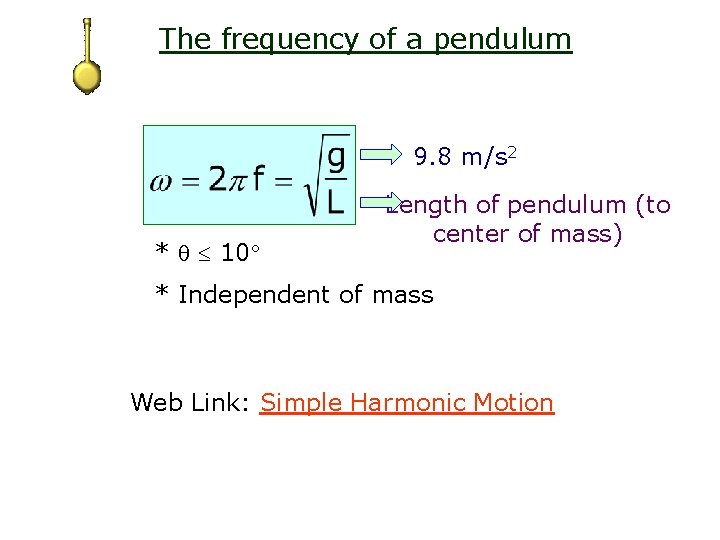

The frequency of a pendulum 9. 8 m/s 2 * 10 Length of pendulum (to center of mass) * Independent of mass Web Link: Simple Harmonic Motion

A person swings on a swing. When the person is seated, the swing oscillates back and forth at its natural frequency. If, instead, the person stands on the swing, the new natural frequency of the swing is 1. greater 2. the same 3. smaller

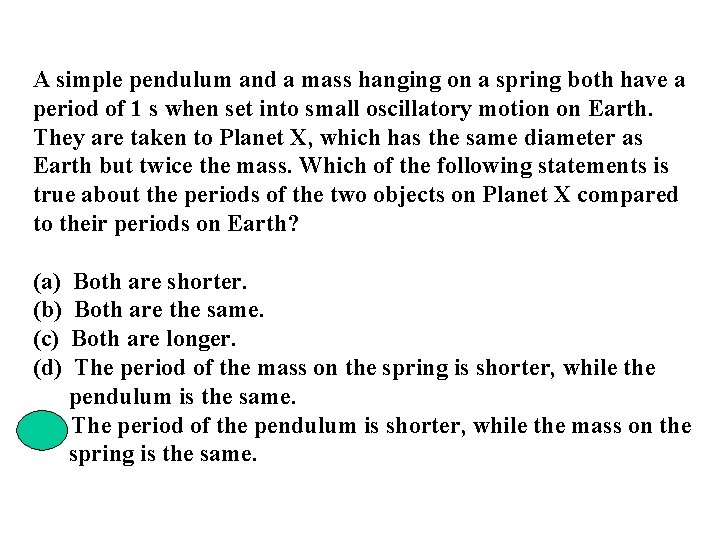

A simple pendulum and a mass hanging on a spring both have a period of 1 s when set into small oscillatory motion on Earth. They are taken to Planet X, which has the same diameter as Earth but twice the mass. Which of the following statements is true about the periods of the two objects on Planet X compared to their periods on Earth? (a) (b) (c) (d) Both are shorter. Both are the same. Both are longer. The period of the mass on the spring is shorter, while the pendulum is the same. (e) The period of the pendulum is shorter, while the mass on the spring is the same.

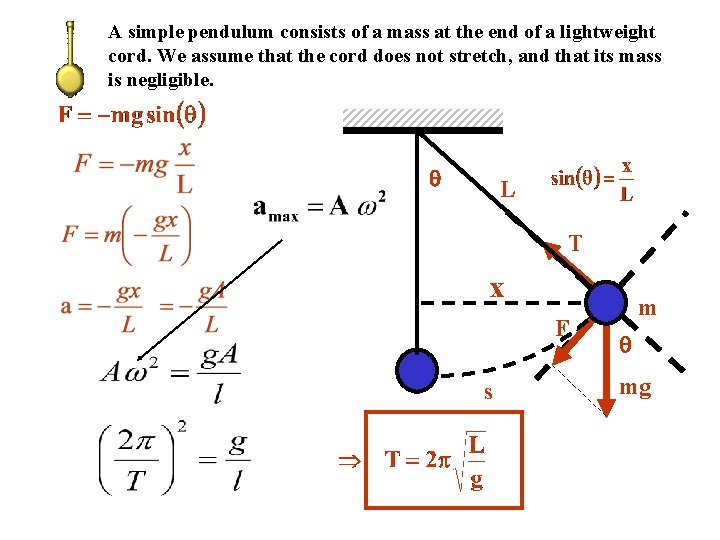

A simple pendulum consists of a mass at the end of a lightweight cord. We assume that the cord does not stretch, and that its mass is negligible. q L T x F s m q mg
