Simple Effects And Factorial Design Hypotheses Outline of

  • Slides: 21
Download presentation

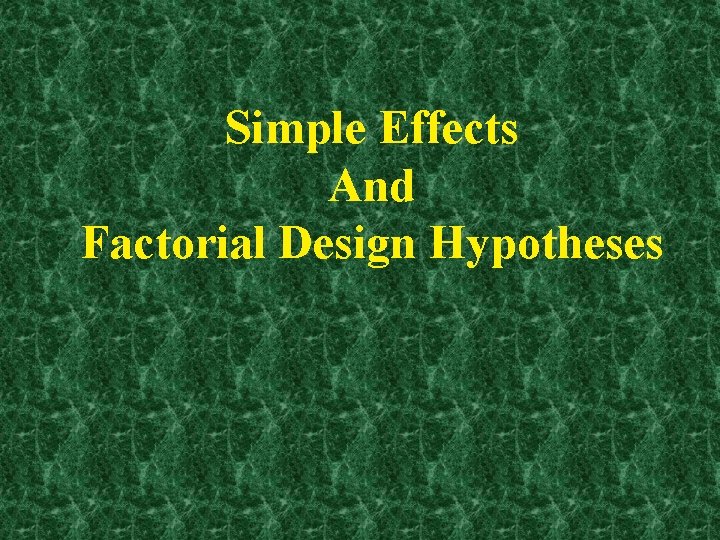

Simple Effects And Factorial Design Hypotheses

Simple Effects And Factorial Design Hypotheses

Outline of Today’s Discussion 1. Simple Effects 2. Hypotheses for Factorial Designs

Outline of Today’s Discussion 1. Simple Effects 2. Hypotheses for Factorial Designs

Part 1 Simple Effects

Part 1 Simple Effects

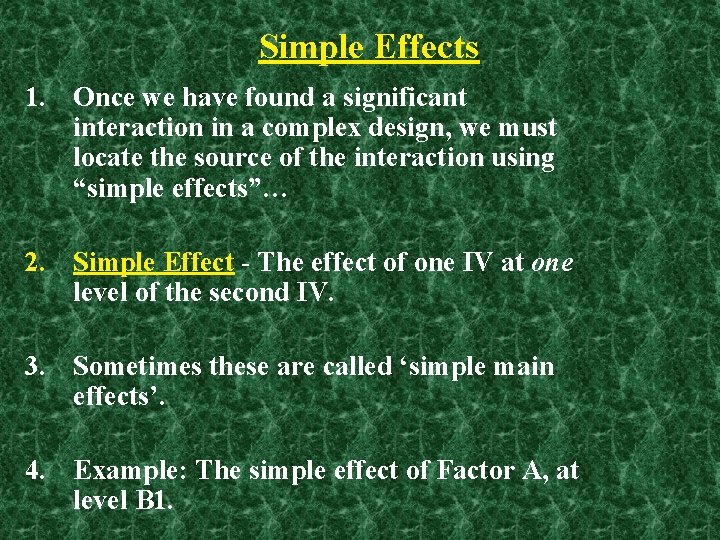

Simple Effects 1. Once we have found a significant interaction in a complex design,

Simple Effects 1. Once we have found a significant interaction in a complex design, we must locate the source of the interaction using “simple effects”… 2. Simple Effect - The effect of one IV at one level of the second IV. 3. Sometimes these are called ‘simple main effects’. 4. Example: The simple effect of Factor A, at level B 1.

Simple Effects Example of Simple Effect From Shaughnessy, Zechmeister & Zechmeister http: //en. wikipedia.

Simple Effects Example of Simple Effect From Shaughnessy, Zechmeister & Zechmeister http: //en. wikipedia. org/wiki/Locus_of_control Would someone please describe the dimensionality of this experiment?

Simple Effects Example of Simple Effect From Shaughnessy, Zechmeister & Zechmeister Let’s see if

Simple Effects Example of Simple Effect From Shaughnessy, Zechmeister & Zechmeister Let’s see if we have an interaction… would someone please walk us through the “subtraction method” ?

Simple Effects 1. In the sessions to come, we’ll have a more formal way

Simple Effects 1. In the sessions to come, we’ll have a more formal way of identifying an interaction (i. e. , an ANOVA that tests the statistical significance of the interaction. ) 2. For now, we’ll assume on the basis of the subtraction method that we have a significant interaction. Work with me here. : -) 3. In our 3 by 2 design, there are five simple effects…

Simple Effects When there is a significant interaction, look at simple effects. From Shaughnessy,

Simple Effects When there is a significant interaction, look at simple effects. From Shaughnessy, Zechmeister & Zechmeister There is a simple effect of Accident (factor A) at each level of Depression (factor B). So, that’s 3 of the 5 simple effects.

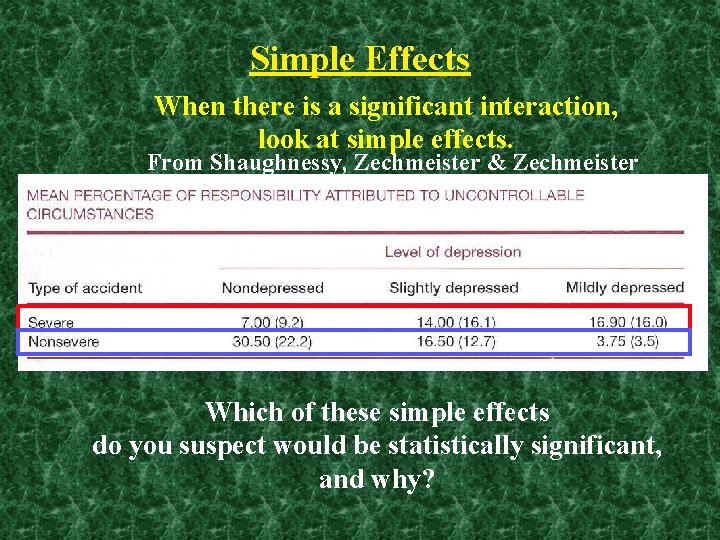

Simple Effects When there is a significant interaction, look at simple effects. From Shaughnessy,

Simple Effects When there is a significant interaction, look at simple effects. From Shaughnessy, Zechmeister & Zechmeister Which of these simple effects do you suspect would be statistically significant, and why?

Simple Effects When there is a significant interaction, look at simple effects. From Shaughnessy,

Simple Effects When there is a significant interaction, look at simple effects. From Shaughnessy, Zechmeister & Zechmeister There is also a simple effect of Depression (factor B) at each level of Accident (factor A). So, that’s 2 of the 5 simple effects.

Simple Effects When there is a significant interaction, look at simple effects. From Shaughnessy,

Simple Effects When there is a significant interaction, look at simple effects. From Shaughnessy, Zechmeister & Zechmeister Which of these simple effects do you suspect would be statistically significant, and why?

Simple Effects When there is a significant interaction, look at simple effects. From Shaughnessy,

Simple Effects When there is a significant interaction, look at simple effects. From Shaughnessy, Zechmeister & Zechmeister Note: Since there are three depression levels at each accident type, we would need some post-hoc (Scheffe or Tukey or Dunnet) tests to determine which pairs differ from each other.

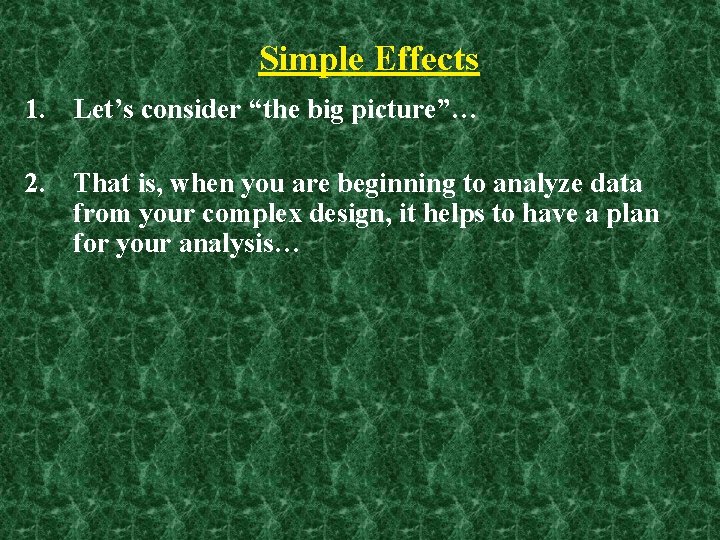

Simple Effects 1. Let’s consider “the big picture”… 2. That is, when you are

Simple Effects 1. Let’s consider “the big picture”… 2. That is, when you are beginning to analyze data from your complex design, it helps to have a plan for your analysis…

Simple Effects Modified From Shaughnessy, Zechmeister & Zechmeister Post Hoc Tests Decision Tree for

Simple Effects Modified From Shaughnessy, Zechmeister & Zechmeister Post Hoc Tests Decision Tree for Analyzing Complex Designs Post hoc tests e. g. , Scheffe, Tukey, Dunnet, Bonferroni.

Simple Effects 1. Potential Pop Quiz Question: What is the simplest possible complex design?

Simple Effects 1. Potential Pop Quiz Question: What is the simplest possible complex design? 2. Potential Pop Quiz Question: In your own words, explain what is meant by the phrase “natural groups design”. 3. Potential Pop Quiz Question: In your own words, explain how researchers could use complex designs to test a theory of why natural groups differ.

Part 2 Hypotheses For Factorial Designs

Part 2 Hypotheses For Factorial Designs

Hypotheses For Factorial Designs • In the population, the means will be the same

Hypotheses For Factorial Designs • In the population, the means will be the same across all levels of Factor A. • In the population, the means will be the same across all levels of Factor B. • In the population, differences among the levels of Factor A will be the same at each level of Factor B.

Hypotheses For Factorial Designs • Consider a study in which a story is presented.

Hypotheses For Factorial Designs • Consider a study in which a story is presented. The story contains either 0, 1, 2, or 3 violations of physical laws (e. g. , gravity is suspended). • Participants rate the plausibility of the story. • The researcher investigates whether plausibility ratings depend on (A) the number of violations, and (B) the extent to which the participant is “manic”.

Hypotheses For Factorial Designs • In the population, mean plausibility ratings will be equal

Hypotheses For Factorial Designs • In the population, mean plausibility ratings will be equal across number-of-violations. • In the population, mean plausibility ratings will be equal across “mania” levels. • In the population, differences among the means for number-of-violations will be the same at each level of mania.

Hypotheses For Factorial Designs 3 -Way Interaction • In the population, the interaction between

Hypotheses For Factorial Designs 3 -Way Interaction • In the population, the interaction between Factor A and Factor B will be the same at each level of factor C. • In the population, the interaction between number-of-violations and mania will be the same at each level of Gender.

Analysis of Complex Designs Shaughnessy, JJ, Shaughnessy, EB, and Zechmesiter, JS. Research Methods Psychology,

Analysis of Complex Designs Shaughnessy, JJ, Shaughnessy, EB, and Zechmesiter, JS. Research Methods Psychology, Hill. What’sin“wrong” with Mc. Graw this graph?
