![SIMILARITY THEOREMS SIMILARITY THEOREMS](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-1.jpg)
SIMILARITY THEOREMS
![Similarity in Triangles AngleAngle Similarity Postulate AA If two angles of one triangle are Similarity in Triangles Angle-Angle Similarity Postulate (AA~)- If two angles of one triangle are](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-2.jpg)

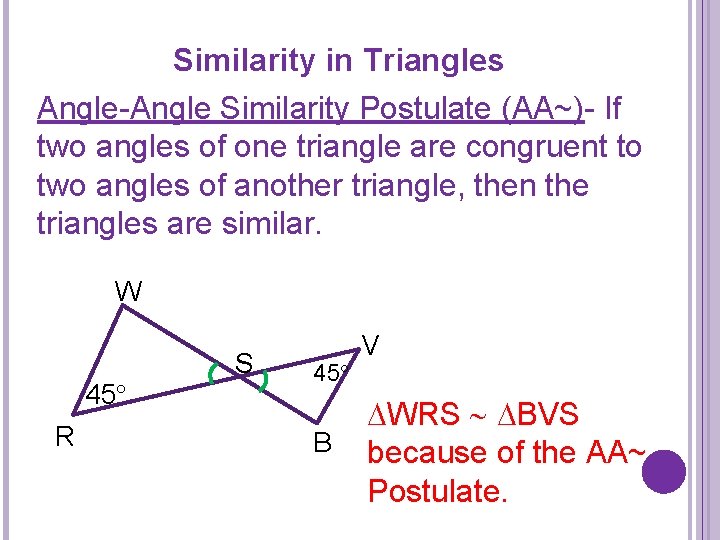

Similarity in Triangles Angle-Angle Similarity Postulate (AA~)- If two angles of one triangle are congruent to two angles of another triangle, then the triangles are similar. W 45 R S 45 B V WRS BVS because of the AA~ Postulate.
![Similarity in Triangles SideAngleSide Similarity Postulate SAS If an angle of one triangle is Similarity in Triangles Side-Angle-Side Similarity Postulate (SAS~)- If an angle of one triangle is](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-3.jpg)
Similarity in Triangles Side-Angle-Side Similarity Postulate (SAS~)- If an angle of one triangle is congruent to an angle of a second triangle, and the sides including the angles are proportional, then the triangles are similar. 16 C T 32 28 12 E U P 21 TEA CUP because of the A SAS~ Postulate. The scale factor is 4: 3.
![Similarity in Triangles SideSide Similarity Postulate SSSIf the corresponding sides of two triangles are Similarity in Triangles Side-Side Similarity Postulate (SSS~)If the corresponding sides of two triangles are](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-4.jpg)
Similarity in Triangles Side-Side Similarity Postulate (SSS~)If the corresponding sides of two triangles are proportional, then the triangles are similar. A 30 15 B C Q 20 ABC QRS 3 because of the R S SSS~ Postulate. 4 The scale factor is 1: 5. 6
![Are the following triangles similar If so what similarity statement can be made Name Are the following triangles similar? If so, what similarity statement can be made. Name](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-5.jpg)

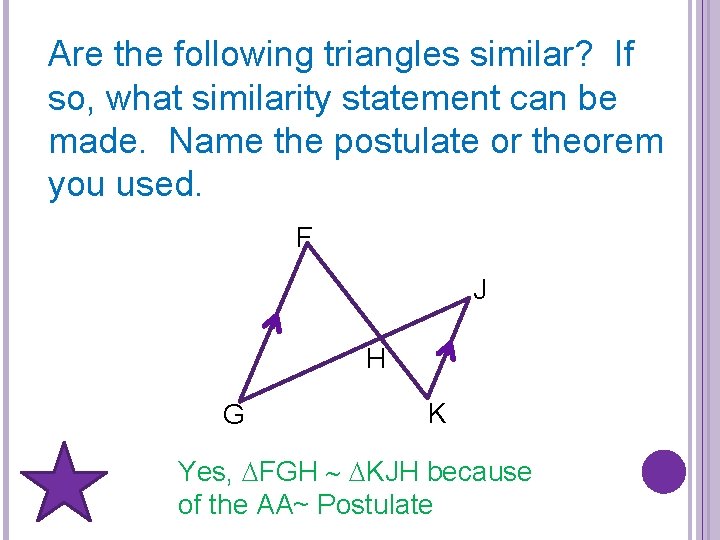

Are the following triangles similar? If so, what similarity statement can be made. Name the postulate or theorem you used. F J H G K Yes, FGH KJH because of the AA~ Postulate
![Are the following triangles similar If so what similarity statement can be made Name Are the following triangles similar? If so, what similarity statement can be made. Name](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-6.jpg)
Are the following triangles similar? If so, what similarity statement can be made. Name the postulate or theorem you used. M 6 O G 3 H R 10 No, these are not similar because 4 I
![Are the following triangles similar If so what similarity statement can be made Name Are the following triangles similar? If so, what similarity statement can be made. Name](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-7.jpg)
Are the following triangles similar? If so, what similarity statement can be made. Name the postulate or theorem you used. A 20 X 25 25 Y 30 B No, these are not similar because C
![Are the following triangles similar If so what similarity statement can be made Name Are the following triangles similar? If so, what similarity statement can be made. Name](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-8.jpg)

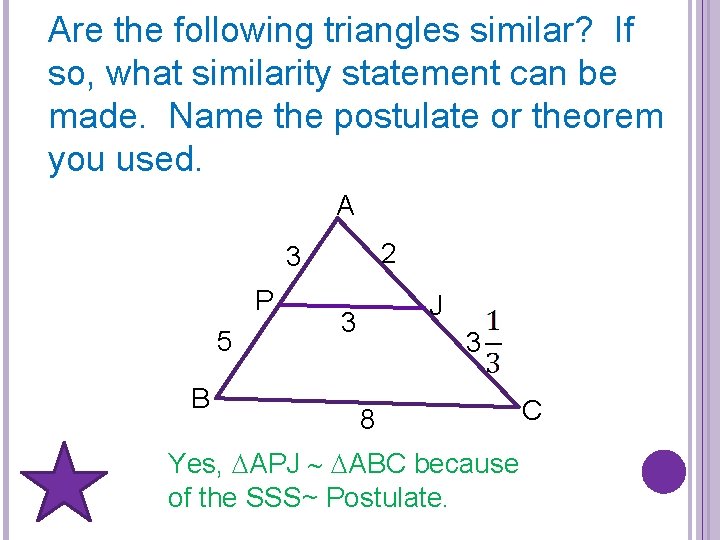

Are the following triangles similar? If so, what similarity statement can be made. Name the postulate or theorem you used. A 2 3 P 5 B J 3 3 8 Yes, APJ ABC because of the SSS~ Postulate. C
![Explain why these triangles are similar Then find the value of x 4 5 Explain why these triangles are similar. Then find the value of x. 4. 5](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-9.jpg)

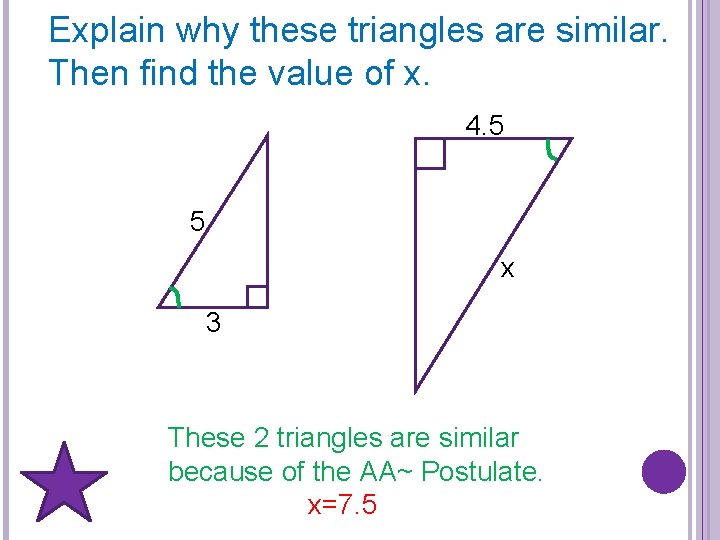

Explain why these triangles are similar. Then find the value of x. 4. 5 5 x 3 These 2 triangles are similar because of the AA~ Postulate. x=7. 5
![Explain why these triangles are similar Then find the value of x 5 x Explain why these triangles are similar. Then find the value of x. 5 x](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-10.jpg)
Explain why these triangles are similar. Then find the value of x. 5 x 70 3 110 3 These 2 triangles are similar because of the AA~ Postulate. x=2. 5
![Explain why these triangles are similar Then find the value of x x 24 Explain why these triangles are similar. Then find the value of x. x 24](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-11.jpg)
Explain why these triangles are similar. Then find the value of x. x 24 14 22 These 2 triangles are similar because of the AA~ Postulate. x=12
![Explain why these triangles are similar Then find the value of x 6 9 Explain why these triangles are similar. Then find the value of x. 6 9](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-12.jpg)

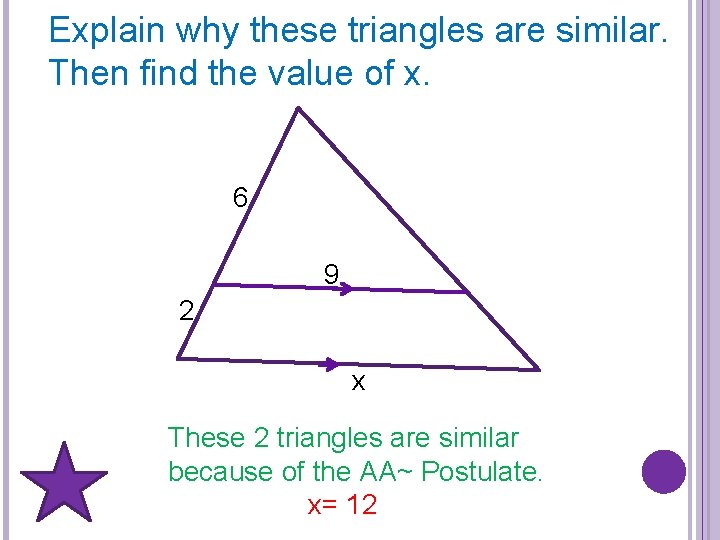

Explain why these triangles are similar. Then find the value of x. 6 9 2 x These 2 triangles are similar because of the AA~ Postulate. x= 12
![Explain why these triangles are similar Then find the value of x 4 5 Explain why these triangles are similar. Then find the value of x. 4 5](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-13.jpg)
Explain why these triangles are similar. Then find the value of x. 4 5 x 15 These 2 triangles are similar because of the AA~ Postulate. x=8
![Explain why these triangles are similar Then find the value of x x 7 Explain why these triangles are similar. Then find the value of x. x 7.](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-14.jpg)

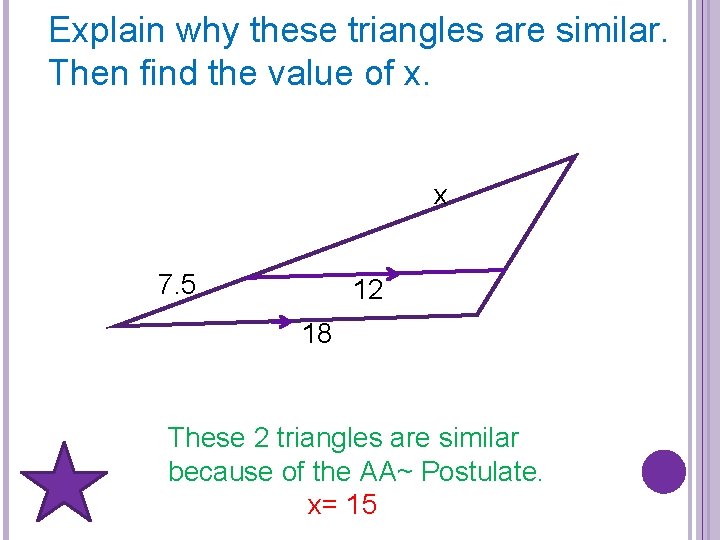

Explain why these triangles are similar. Then find the value of x. x 7. 5 12 18 These 2 triangles are similar because of the AA~ Postulate. x= 15
![Similarity in Triangles Side Splitter Theorem If a line is parallel to one Similarity in Triangles Side Splitter Theorem - If a line is parallel to one](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-15.jpg)
Similarity in Triangles Side Splitter Theorem - If a line is parallel to one side of a triangle and intersects the other two sides, then it divides those sides You can either proportionally. use T x or S 16 R 5 U 10 V
![Theorem Triangle Angle Bisector Theorem If a ray bisects an angle of a triangle Theorem Triangle Angle Bisector Theorem -If a ray bisects an angle of a triangle,](https://slidetodoc.com/presentation_image_h2/12aab23ac7a84fda265ec608dfc3cfd5/image-16.jpg)
Theorem Triangle Angle Bisector Theorem -If a ray bisects an angle of a triangle, then it divides the opposite side on the triangle into two segments that are proportional to the other two sides of the triangle. A C D B
