SIMATIC 管理器 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 1 Information and Training Center Knowledge for Automation
从过程到项目 项目管理 SIMATIC 管理器 硬件 FB 21 OB 1 I 1. 0 过程 SIMATIC S 7 Siemens AG 2000. All rights reserved. I 1. 1 Q 4. 0 软件 Date: File: 2021/3/9 SSP 1_04 C. 2 Information and Training Center Knowledge for Automation
STEP 7 具 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 3 Information and Training Center Knowledge for Automation
练习 4. 1: 检查PG 接口 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 4 Information and Training Center Knowledge for Automation
启动 SIMATIC 管理器 或 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 5 Information and Training Center Knowledge for Automation
SIMATIC 管理器菜单和 具栏 标题栏 菜单栏 具栏 状态栏 任务栏 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 6 Information and Training Center Knowledge for Automation
SIMATIC 管理器中的 具条 Windows 95 符号 STEP 7 符号 显示可访问的接点 S 7 存储器卡 下载 (到 PLC) 定义过滤器 选择的过滤器 仿真模块 (S 7 -PLCSIM) SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 7 Information and Training Center Knowledge for Automation
STEP 7 项目结构 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 8 Information and Training Center Knowledge for Automation
SIMATIC 管理器中离线/在线 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 9 Information and Training Center Knowledge for Automation
项目的存储位置 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 10 Information and Training Center Knowledge for Automation
建立项目 这里选择项 目名,用 “OK”确认。 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 12 Information and Training Center Knowledge for Automation
插入一个站 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 13 Information and Training Center Knowledge for Automation
启动硬件组态 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 14 Information and Training Center Knowledge for Automation

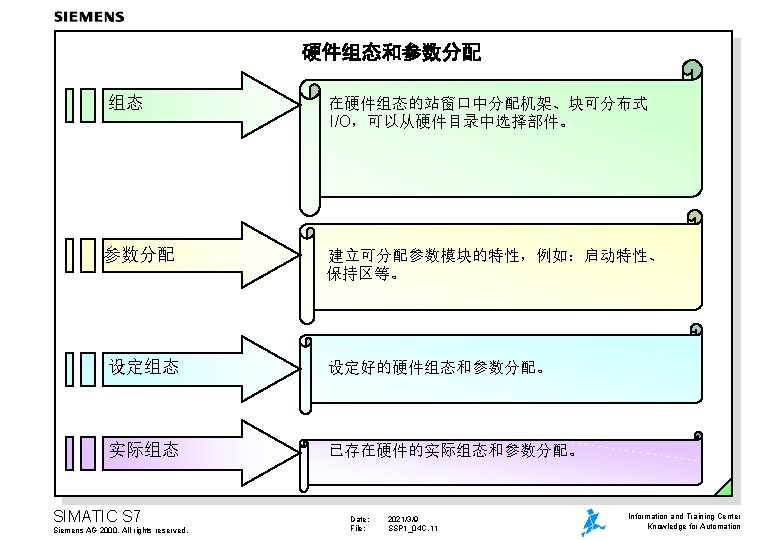

产生硬件设定组态 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 15 Information and Training Center Knowledge for Automation
模块地址概况 “地址概况” SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 16 Information and Training Center Knowledge for Automation
CPU 属性 2 x SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 17 Information and Training Center Knowledge for Automation
CPU 属性:概述 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 18 Information and Training Center Knowledge for Automation
CPU 属性:启动 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 19 Information and Training Center Knowledge for Automation
CPU 属性:保持 仅当 如果CPU 没有 后备电池时有效 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 20 Information and Training Center Knowledge for Automation
CPU 属性:循环/时钟存储器位 频率 (Hz) 周期 (s) SIMATIC S 7 Siemens AG 2000. All rights reserved. 7 6 0. 5 0. 62 2 1. 6 5 4 3 2 1 0 1 1. 25 2 2. 5 5 10 1 0. 8 0. 5 0. 4 0. 2 0. 1 Date: File: 2021/3/9 SSP 1_04 C. 21 Information and Training Center Knowledge for Automation
CPU 属性:保护 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 22 Information and Training Center Knowledge for Automation
CPU 属性:诊断/时钟 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 23 Information and Training Center Knowledge for Automation
保存硬件设定组态与下载到模块 下载 (只有CPU在 STOP 模式) SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 24 Information and Training Center Knowledge for Automation
上载硬件实际组态到编程器 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 25 Information and Training Center Knowledge for Automation
SIMATIC 管理器中显示硬件诊断 2 x SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 26 Information and Training Center Knowledge for Automation

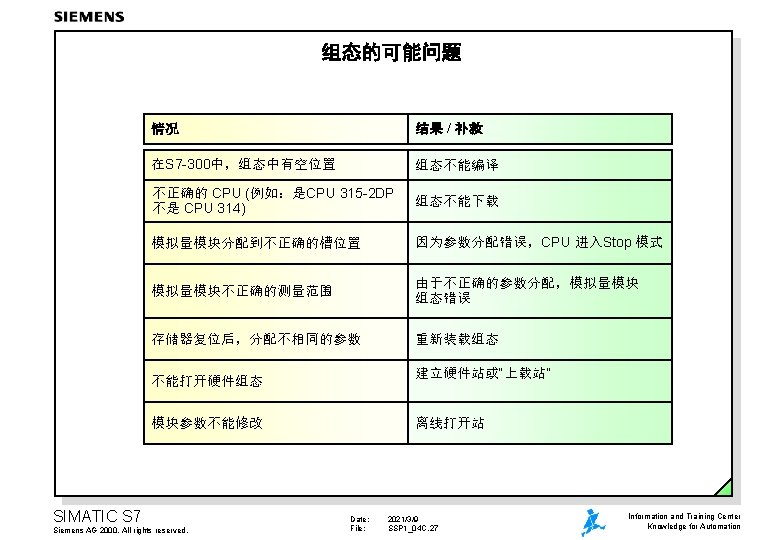

可变寻址 2 x SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 28 Information and Training Center Knowledge for Automation
访问符号表 一次右击 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 29 Information and Training Center Knowledge for Automation
插入 S 7 程序 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 30 Information and Training Center Knowledge for Automation
插入S 7 块 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 31 Information and Training Center Knowledge for Automation
STEP 7 帮助系统 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 32 Information and Training Center Knowledge for Automation
STEP 7上下文帮助 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 33 Information and Training Center Knowledge for Automation
标准库 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 34 Information and Training Center Knowledge for Automation
练习 4. 2:建立项目 在这里输入 项目名,用 “OK”确认 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 35 Information and Training Center Knowledge for Automation
练习 4. 3:插入 S 7 程序 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 36 Information and Training Center Knowledge for Automation

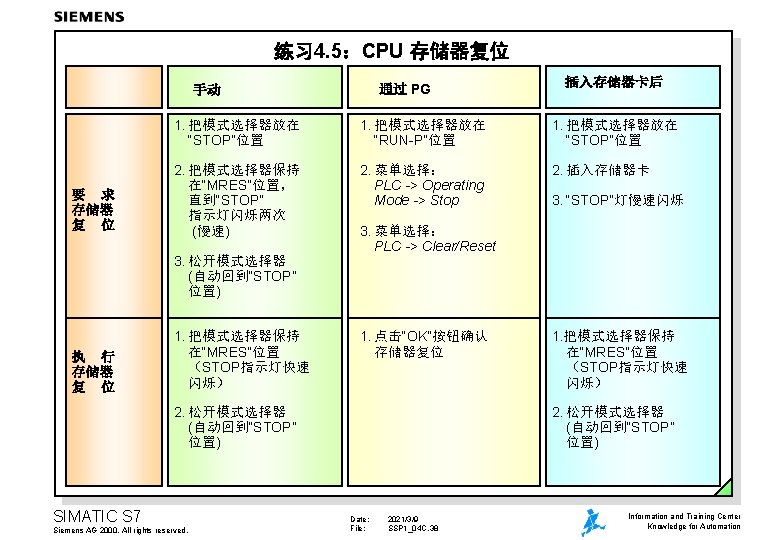

练习 4. 4:插入 S 7 块 SIMATIC S 7 Siemens AG 2000. All rights reserved. Date: File: 2021/3/9 SSP 1_04 C. 37 Information and Training Center Knowledge for Automation
