![符号 SIMATIC S 7 Siemens AG 2003 All rights reserved Date File 12172021 Symbols 符号 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols.](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-1.jpg)

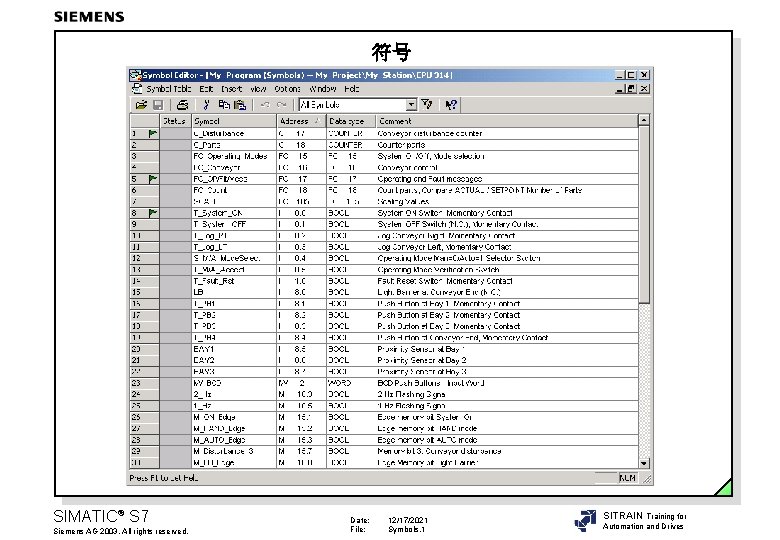

符号 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 1 SITRAIN Training for Automation and Drives

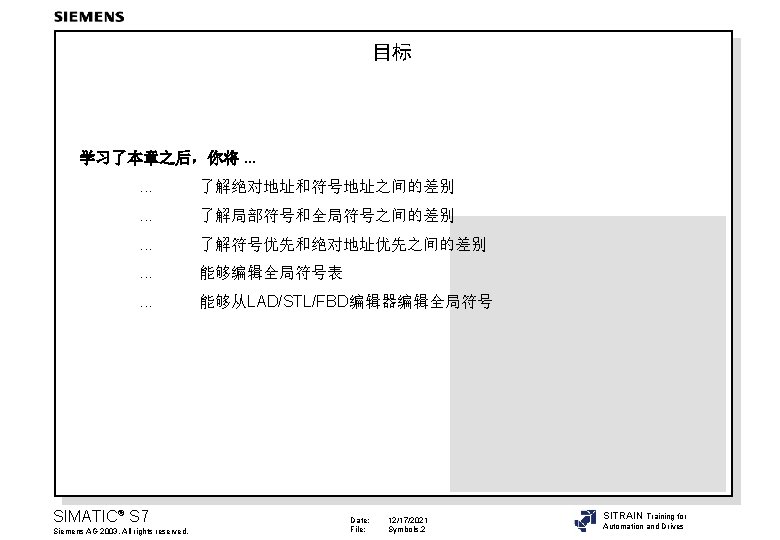

![](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-2.jpg)
![绝对寻址和符号寻址 A I 0 0 A TSystemON Q 4 1 LSYSTEM A 绝对寻址和符号寻址 A I 0. 0 A "T_System_ON" = Q 4. 1 = "L_SYSTEM" A](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-3.jpg)

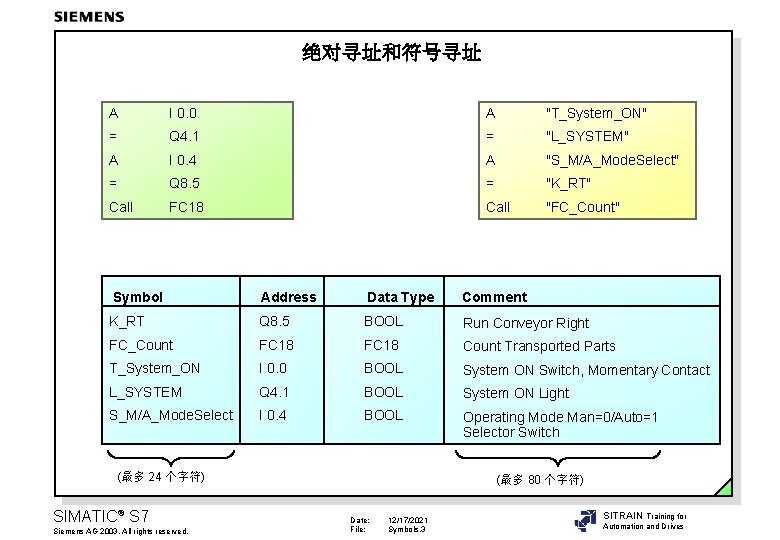

绝对寻址和符号寻址 A I 0. 0 A "T_System_ON" = Q 4. 1 = "L_SYSTEM" A I 0. 4 A "S_M/A_Mode. Select" = Q 8. 5 = "K_RT" Call FC 18 Call "FC_Count" Symbol Address Data Type Comment K_RT Q 8. 5 BOOL Run Conveyor Right FC_Count FC 18 Count Transported Parts T_System_ON I 0. 0 BOOL System ON Switch, Momentary Contact L_SYSTEM Q 4. 1 BOOL System ON Light S_M/A_Mode. Select I 0. 4 BOOL Operating Mode Man=0/Auto=1 Selector Switch (最多 24 个字符) SIMATIC® S 7 Siemens AG 2003. All rights reserved. (最多 80 个字符) Date: File: 12/17/2021 Symbols. 3 SITRAIN Training for Automation and Drives

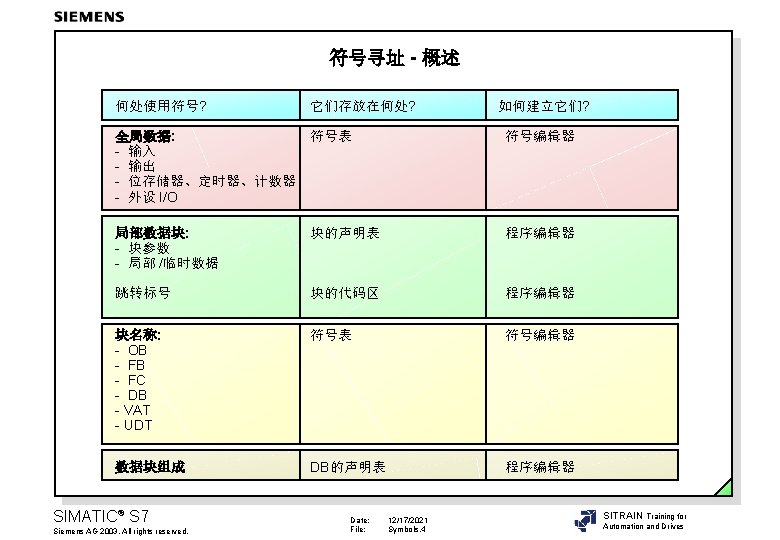

![](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-4.jpg)
![符号表 双击 SIMATIC S 7 Siemens AG 2003 All rights reserved Date File 12172021 符号表 双击 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-5.jpg)
符号表 双击 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 5 SITRAIN Training for Automation and Drives
![编辑查找与替换 SIMATIC S 7 Siemens AG 2003 All rights reserved Date File 12172021 Symbols 编辑:查找与替换 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols.](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-6.jpg)

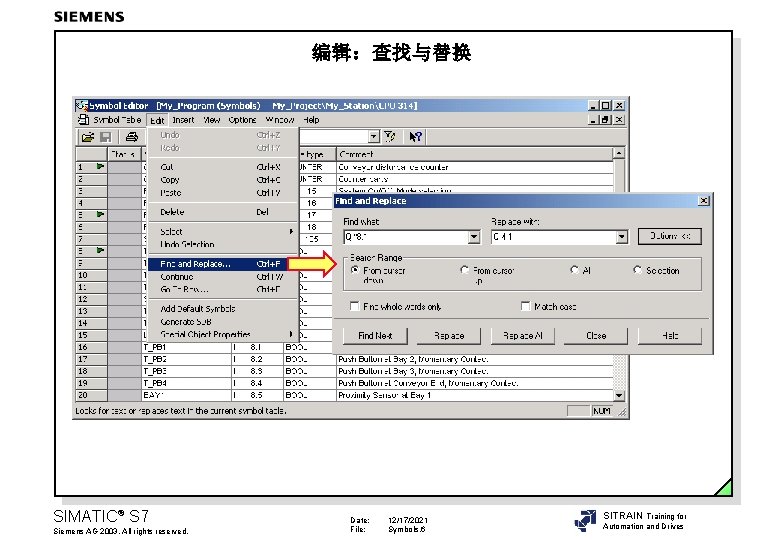

编辑:查找与替换 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 6 SITRAIN Training for Automation and Drives
![查看过滤器 SIMATIC S 7 Siemens AG 2003 All rights reserved Date File 12172021 Symbols 查看:过滤器 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols.](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-7.jpg)

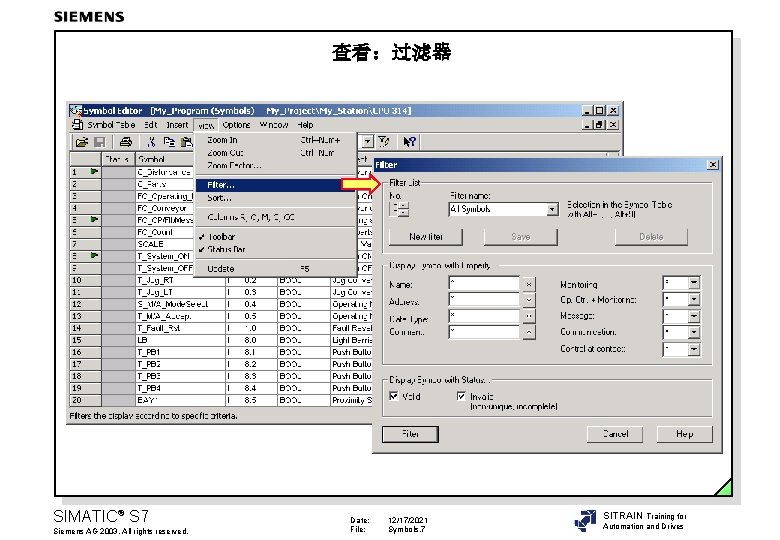

查看:过滤器 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 7 SITRAIN Training for Automation and Drives
![查看排序 SIMATIC S 7 Siemens AG 2003 All rights reserved Date File 12172021 Symbols 查看:排序 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols.](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-8.jpg)

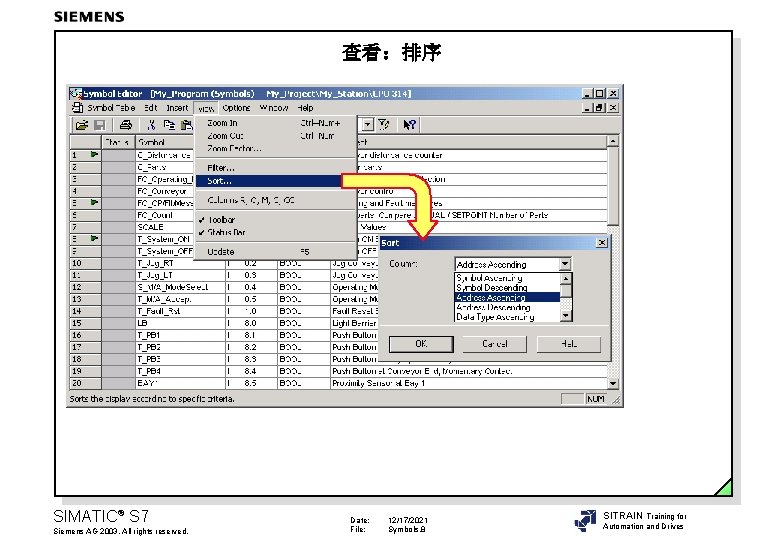

查看:排序 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 8 SITRAIN Training for Automation and Drives
![在 LADSTLFBD 编辑器中编辑符号 SIMATIC S 7 Siemens AG 2003 All rights reserved Date File 在 LAD/STL/FBD 编辑器中编辑符号 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File:](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-9.jpg)

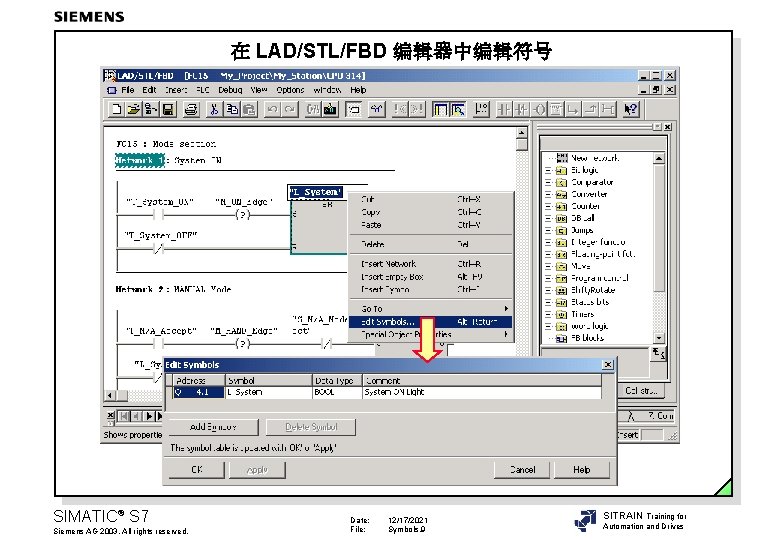

在 LAD/STL/FBD 编辑器中编辑符号 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 9 SITRAIN Training for Automation and Drives
![在 LADSTLFBD 编辑器中符号信息 SIMATIC S 7 Siemens AG 2003 All rights reserved Date File 在 LAD/STL/FBD 编辑器中符号信息 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File:](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-10.jpg)

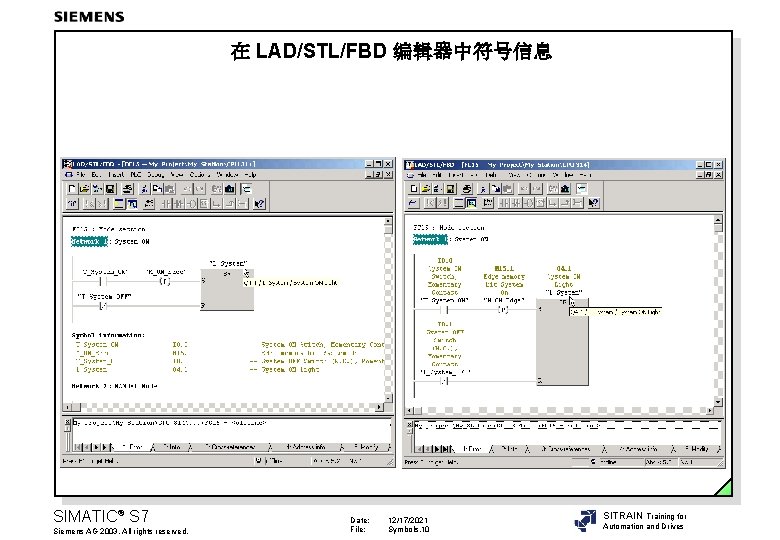

在 LAD/STL/FBD 编辑器中符号信息 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 10 SITRAIN Training for Automation and Drives
![在 LADSTLFBD 编辑器中符号选择 SIMATIC S 7 Siemens AG 2003 All rights reserved Date File 在 LAD/STL/FBD 编辑器中符号选择 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File:](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-11.jpg)

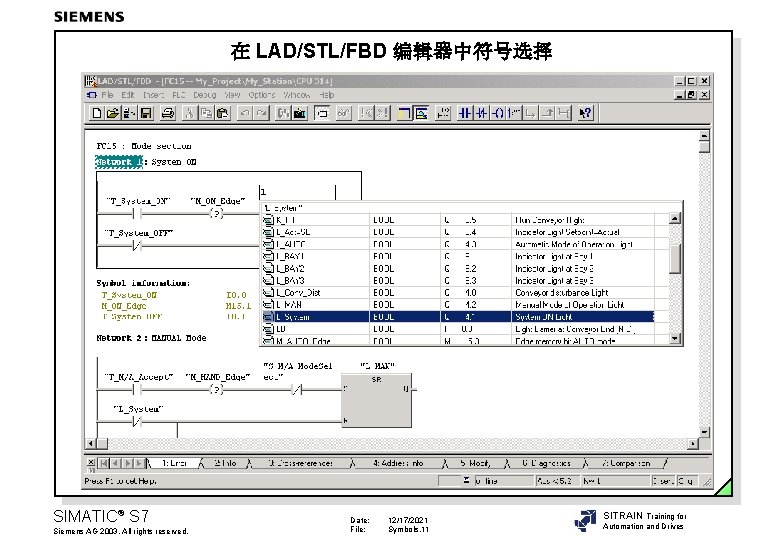

在 LAD/STL/FBD 编辑器中符号选择 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 11 SITRAIN Training for Automation and Drives
![练习为Conveyor Model建立符号表 SIMATIC S 7 Siemens AG 2003 All rights reserved Date File 12172021 练习:为Conveyor Model建立符号表 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-12.jpg)

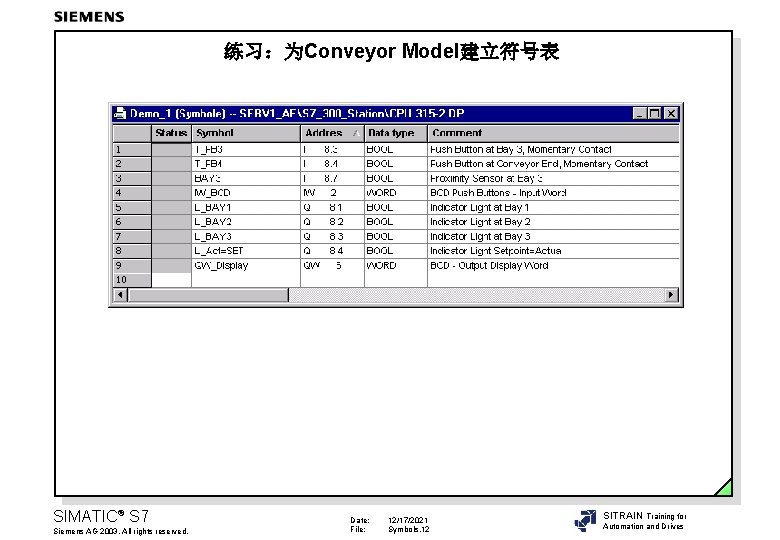

练习:为Conveyor Model建立符号表 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 12 SITRAIN Training for Automation and Drives
![如果你想知道更多 SIMATIC S 7 Siemens AG 2003 All rights reserved Date File 12172021 Symbols 如果你想知道更多 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols.](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-13.jpg)
如果你想知道更多 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 13 SITRAIN Training for Automation and Drives
![符号表导出 要把表存到何处 把表存成何种格式 SIMATIC S 7 Siemens AG 2003 All rights reserved Date 符号表:导出 要把表存到何处 ? 把表存成何种格式? SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date:](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-14.jpg)

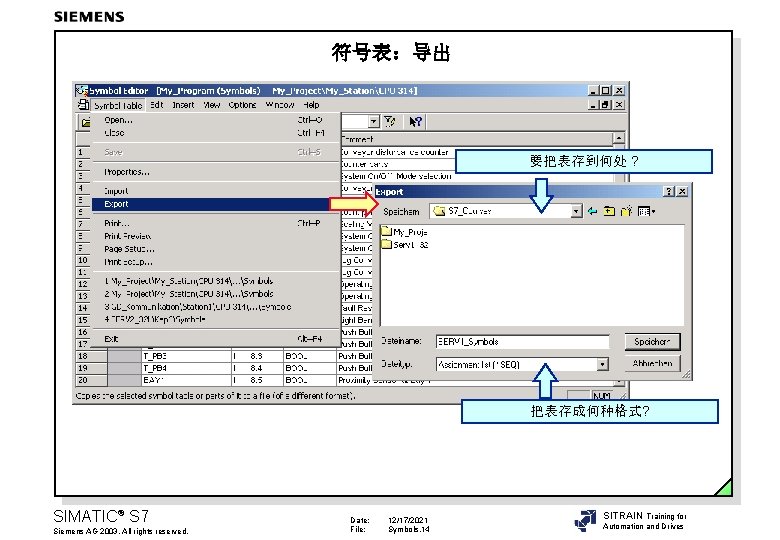

符号表:导出 要把表存到何处 ? 把表存成何种格式? SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 14 SITRAIN Training for Automation and Drives
![符号表导入 这里选择目录路径 输入文件名 选择格式 SIMATIC S 7 Siemens AG 2003 All rights reserved Date 符号表:导入 这里选择目录路径 输入文件名 选择格式 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date:](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-15.jpg)

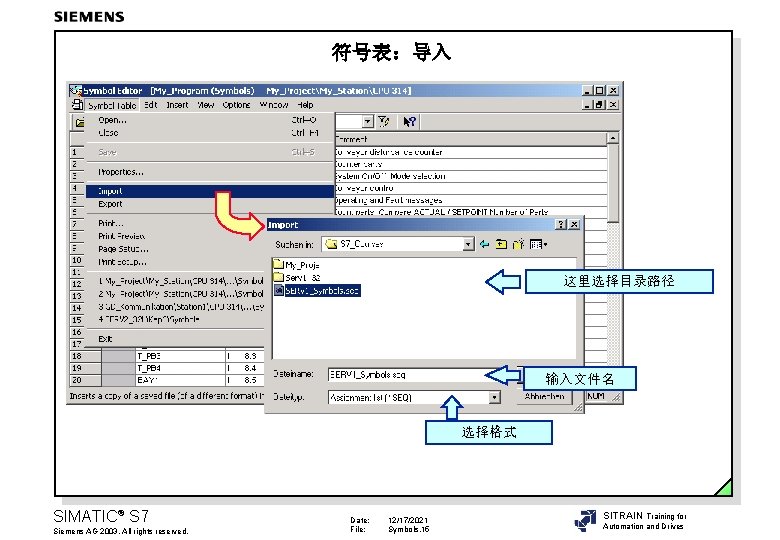

符号表:导入 这里选择目录路径 输入文件名 选择格式 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 15 SITRAIN Training for Automation and Drives
![符号优先 Symbol Table 优先 绝对地址 Old Entry System ON Q 8 0 优先 "符号优先" Symbol Table 优先: 绝对地址 Old Entry: System ON = Q 8. 0 优先:](https://slidetodoc.com/presentation_image_h2/139b76a4b61ac6881a91f68f52cb7680/image-16.jpg)

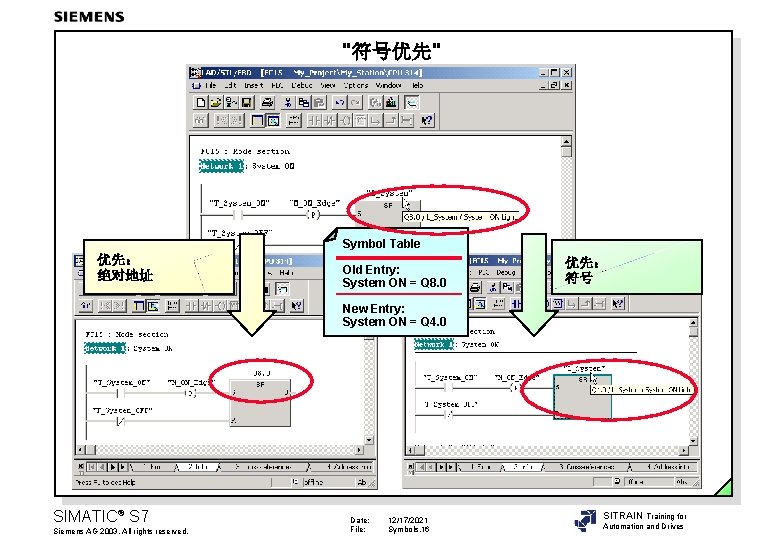

"符号优先" Symbol Table 优先: 绝对地址 Old Entry: System ON = Q 8. 0 优先: 符号 New Entry: System ON = Q 4. 0 SIMATIC® S 7 Siemens AG 2003. All rights reserved. Date: File: 12/17/2021 Symbols. 16 SITRAIN Training for Automation and Drives
