SIMATIC HMI Basic Panels 2 nd Generation Technical

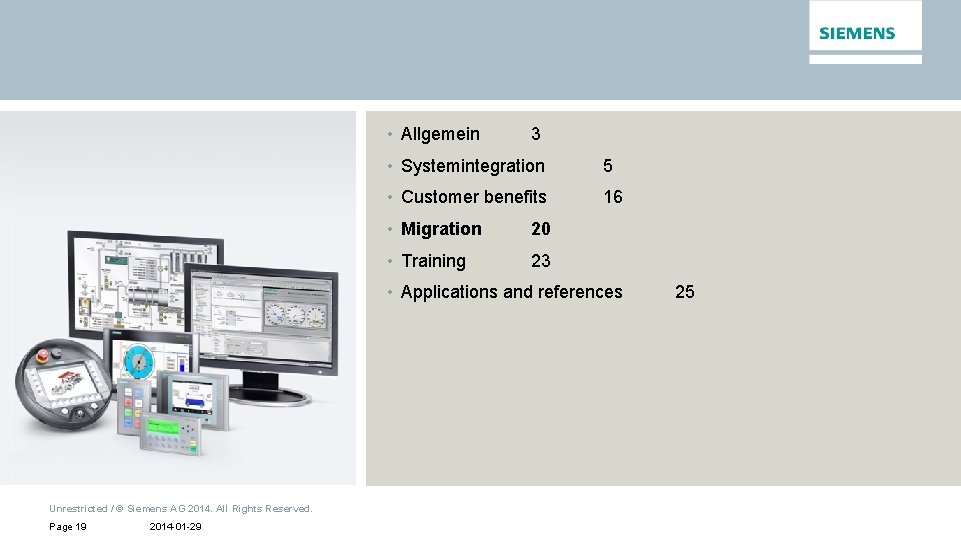

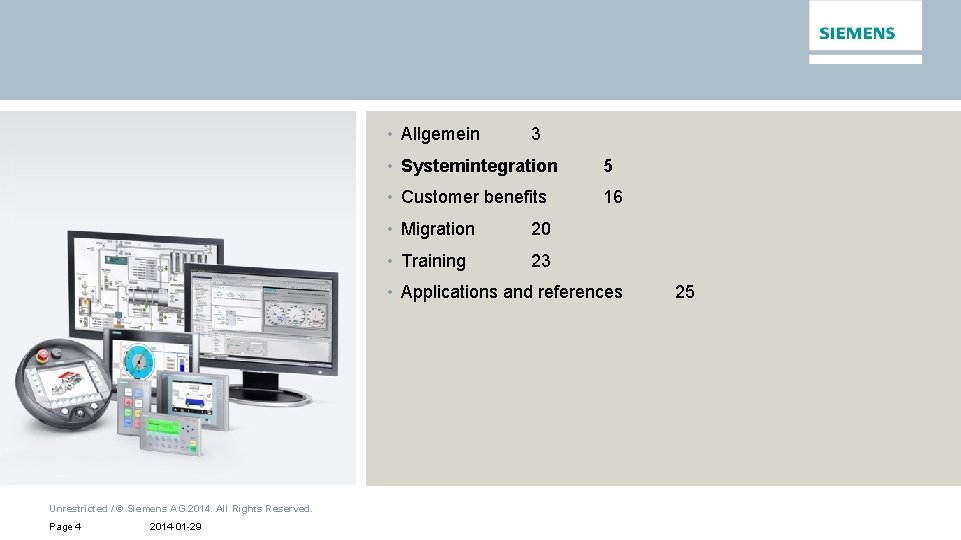

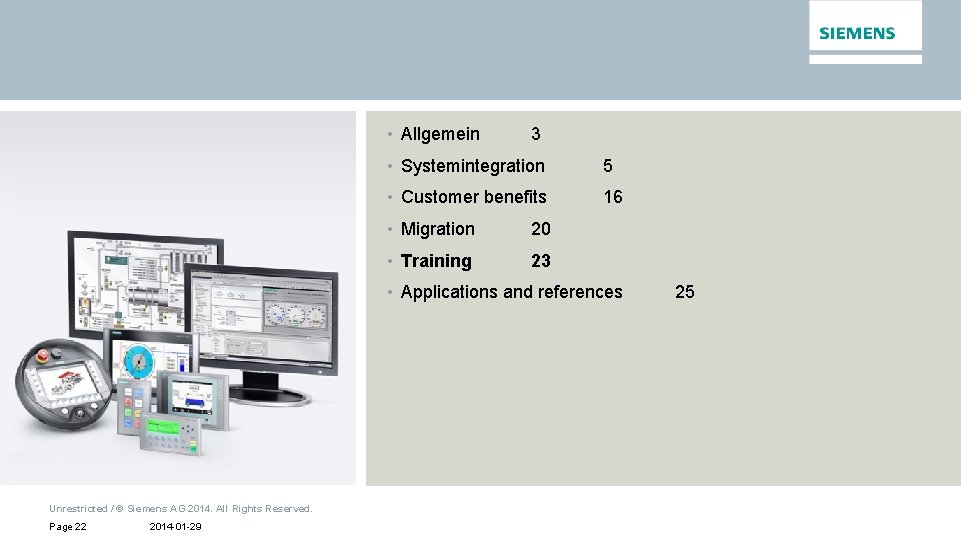

• Allgemein 3 • Systemintegration 5 • Customer benefits 16 • Migration 20

SIMATIC HMI Basic Panels 2 nd Generation The right product for simple applications Increasing requirements at performance and feature, higher level of integrated functionalities and the increase of the demands for quality of functionalities require the innovation of the basic panel on technical level. Usability in service, high resolution wide screen display and an innovative graphical user interface provide a variety of ways to Experience and control. The optics of the Basic Panels 2 nd Generation evaluates equipment and machinery. PN / DP interfaces enable the connection with various PLC. Efficient Engineering with SIMATIC TIA portal reduces costs and time. Perfect Interplay with SIMATIC S 7, especially S 7 -1200 controller offers great added value. Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 3 2014 -01 -29

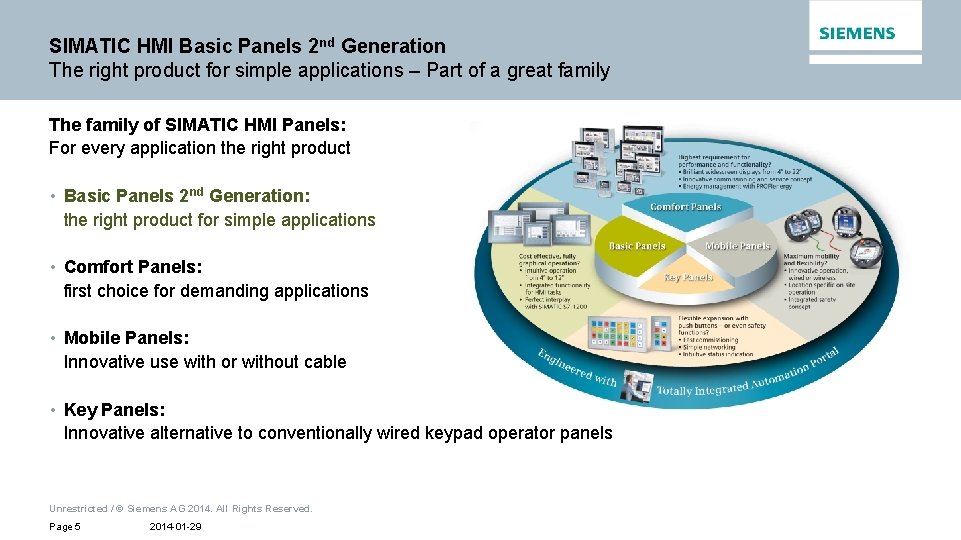

SIMATIC HMI Basic Panels 2 nd Generation The right product for simple applications – Part of a great family The family of SIMATIC HMI Panels: For every application the right product • Basic Panels 2 nd Generation: the right product for simple applications • Comfort Panels: first choice for demanding applications • Mobile Panels: Innovative use with or without cable • Key Panels: Innovative alternative to conventionally wired keypad operator panels Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 5 2014 -01 -29

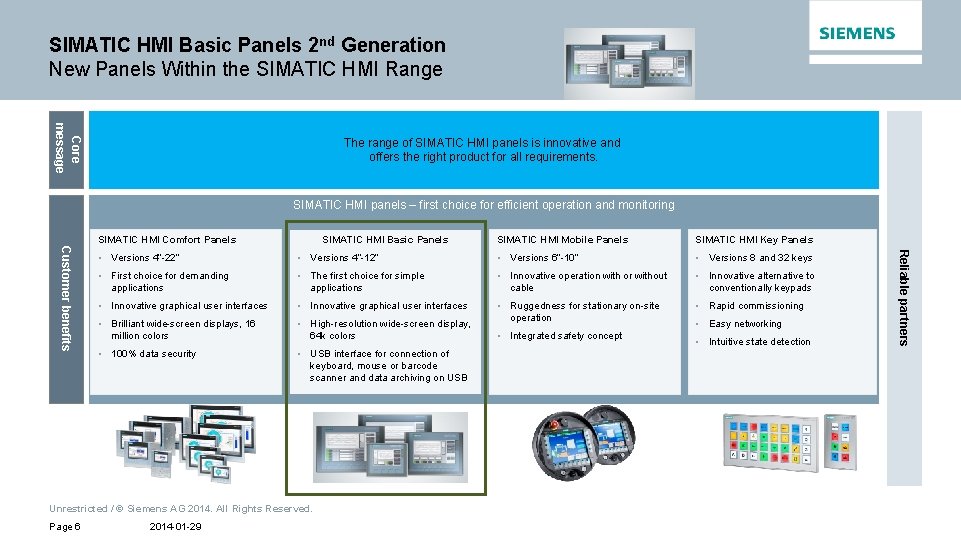

SIMATIC HMI Basic Panels 2 nd Generation New Panels Within the SIMATIC HMI Range Core message The range of SIMATIC HMI panels is innovative and offers the right product for all requirements. SIMATIC HMI panels – first choice for efficient operation and monitoring SIMATIC HMI Comfort Panels SIMATIC HMI Basic Panels SIMATIC HMI Key Panels • Versions 4”-12” • Versions 6”-10” • Versions 8 and 32 keys • First choice for demanding applications • The first choice for simple applications • Innovative operation with or without cable • Innovative alternative to conventionally keypads • Innovative graphical user interfaces • Rapid commissioning • Brilliant wide-screen displays, 16 million colors • High-resolution wide-screen display, 64 k colors • Ruggedness for stationary on-site operation • 100% data security • USB interface for connection of keyboard, mouse or barcode scanner and data archiving on USB 2014 -01 -29 • Integrated safety concept • Easy networking • Intuitive state detection Reliable partners Customer benefits • Versions 4”-22” Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 6 SIMATIC HMI Mobile Panels

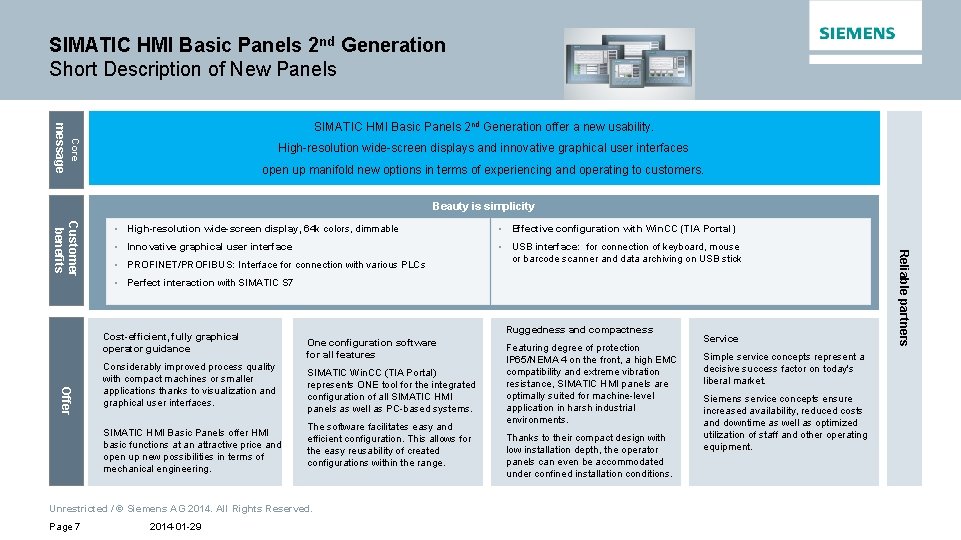

SIMATIC HMI Basic Panels 2 nd Generation Short Description of New Panels Core message SIMATIC HMI Basic Panels 2 nd Generation offer a new usability. High-resolution wide-screen displays and innovative graphical user interfaces open up manifold new options in terms of experiencing and operating to customers. Beauty is simplicity • Effective configuration with Win. CC (TIA Portal) • Innovative graphical user interface • USB interface: for connection of keyboard, mouse or barcode scanner and data archiving on USB stick • PROFINET/PROFIBUS: Interface for connection with various PLCs • Perfect interaction with SIMATIC S 7 Cost-efficient, fully graphical operator guidance Offer Considerably improved process quality with compact machines or smaller applications thanks to visualization and graphical user interfaces. SIMATIC HMI Basic Panels offer HMI basic functions at an attractive price and open up new possibilities in terms of mechanical engineering. Ruggedness and compactness One configuration software for all features SIMATIC Win. CC (TIA Portal) represents ONE tool for the integrated configuration of all SIMATIC HMI panels as well as PC-based systems. The software facilitates easy and efficient configuration. This allows for the easy reusability of created configurations within the range. Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 7 2014 -01 -29 Featuring degree of protection IP 65/NEMA 4 on the front, a high EMC compatibility and extreme vibration resistance, SIMATIC HMI panels are optimally suited for machine-level application in harsh industrial environments. Thanks to their compact design with low installation depth, the operator panels can even be accommodated under confined installation conditions. Service Simple service concepts represent a decisive success factor on today's liberal market. Siemens service concepts ensure increased availability, reduced costs and downtime as well as optimized utilization of staff and other operating equipment. Reliable partners Customer benefits • High-resolution wide-screen display, 64 k colors, dimmable

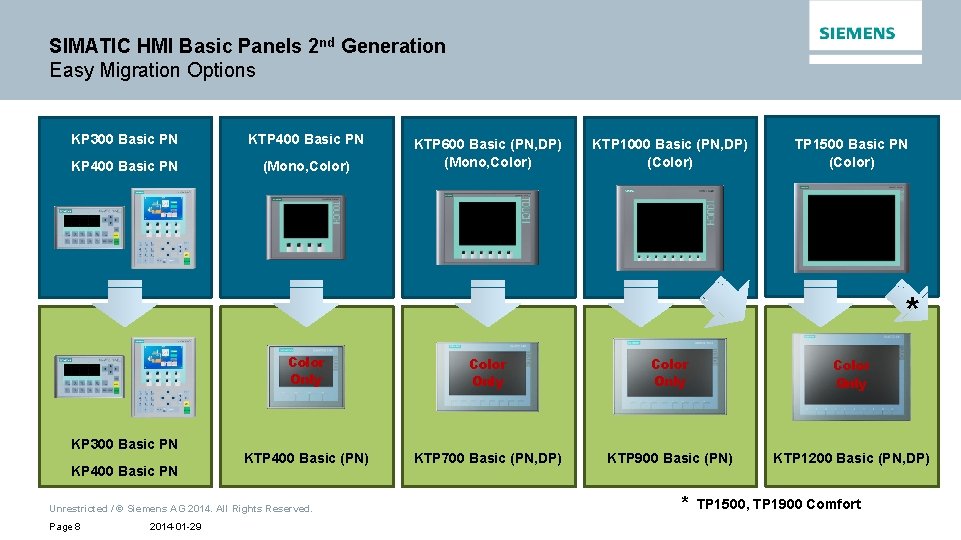

SIMATIC HMI Basic Panels 2 nd Generation Easy Migration Options KP 300 Basic PN KTP 400 Basic PN KP 400 Basic PN (Mono, Color) KTP 600 Basic (PN, DP) (Mono, Color) KTP 1000 Basic (PN, DP) (Color) TP 1500 Basic PN (Color) * KP 300 Basic PN KP 400 Basic PN Color Only KTP 400 Basic (PN) KTP 700 Basic (PN, DP) KTP 900 Basic (PN) KTP 1200 Basic (PN, DP) Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 8 2014 -01 -29 * TP 1500, TP 1900 Comfort

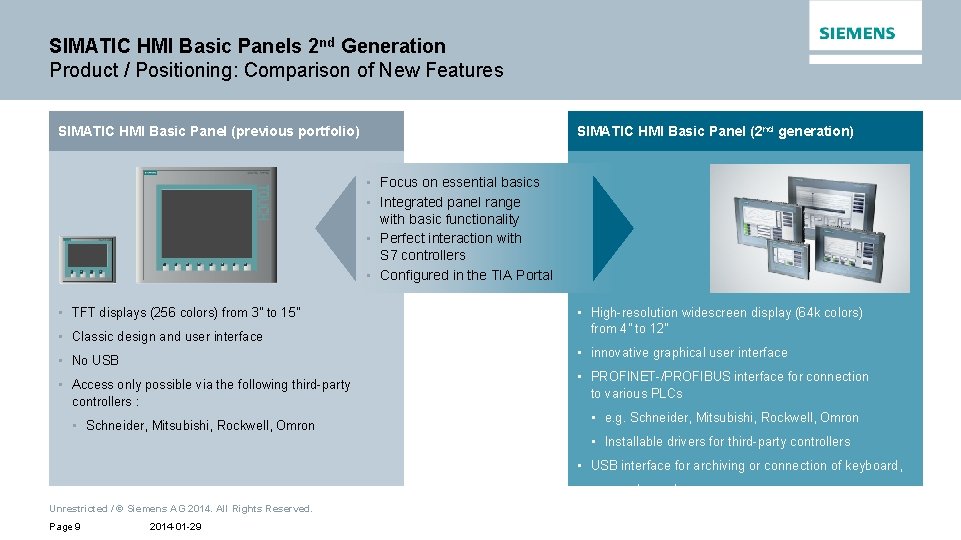

SIMATIC HMI Basic Panels 2 nd Generation Product / Positioning: Comparison of New Features SIMATIC HMI Basic Panel (previous portfolio) SIMATIC HMI Basic Panel (2 nd generation) • Focus on essential basics • Integrated panel range with basic functionality • Perfect interaction with S 7 controllers • Configured in the TIA Portal • TFT displays (256 colors) from 3” to 15” • Classic design and user interface • High-resolution widescreen display (64 k colors) from 4” to 12” • innovative graphical user interface • No USB • Access only possible via the following third-party controllers : • Schneider, Mitsubishi, Rockwell, Omron • PROFINET-/PROFIBUS interface for connection to various PLCs • e. g. Schneider, Mitsubishi, Rockwell, Omron • Installable drivers for third-party controllers • USB interface for archiving or connection of keyboard, mouse, barcode scanner Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 9 2014 -01 -29

SIMATIC HMI Basic Panels 2 nd Generation Product / Positioning: Comparison of New Features SIMATIC HMI Basic Panel 2 nd generation Beauty is Simplicity SIMATIC HMI Comfort Panel Brilliant – intelligent – practical • Innovative graphical user interface • Perfect interaction with S 7 controllers • Configured in the TIA Portal • High-resolution wide-screen display (64 k colors) from 4“to 12" with new user interface • Integrated panel range with basic functionality • Easy archiving • One process interface (DP or PN) • Plastic enclosure Internal / © Siemens AG 2013. All rights reserved. Page 10 22. 07. 2013 • Brilliant wide-screen display (16 million colors) with wide view angle from 4“ to 22" with new user interface • Integrated panel range with high-end functionality • Automatic backup & restoration on USB stick / SD card or network • Advanced logging with 100% data security • Multiple process interfaces (PN and DP) • Additional options for Comfort Panels (camera control, printing, etc. ) • Aluminum enclosure

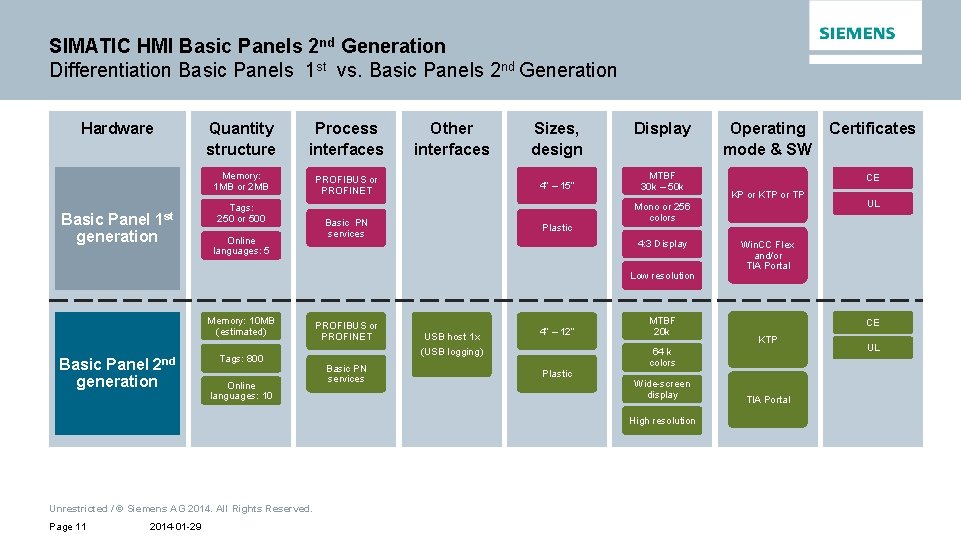

SIMATIC HMI Basic Panels 2 nd Generation Differentiation Basic Panels 1 st vs. Basic Panels 2 nd Generation Hardware Basic Panel 1 st generation Quantity structure Process interfaces Memory: 1 MB or 2 MB PROFIBUS or PROFINET Tags: 250 or 500 Online languages: 5 Other interfaces Sizes, design 4” – 15” Basic PN services Plastic Display MTBF 30 k – 50 k 4: 3 Display Basic Panel 2 nd generation Tags: 800 Online languages: 10 PROFIBUS or PROFINET Basic PN services USB host 1 x (USB logging) 4” – 12” Plastic MTBF 20 k High resolution Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 11 2014 -01 -29 KP or KTP or TP UL Win. CC Flex and/or TIA Portal CE KTP 64 k colors Wide-screen display Certificates CE Mono or 256 colors Low resolution Memory: 10 MB (estimated) Operating mode & SW TIA Portal UL

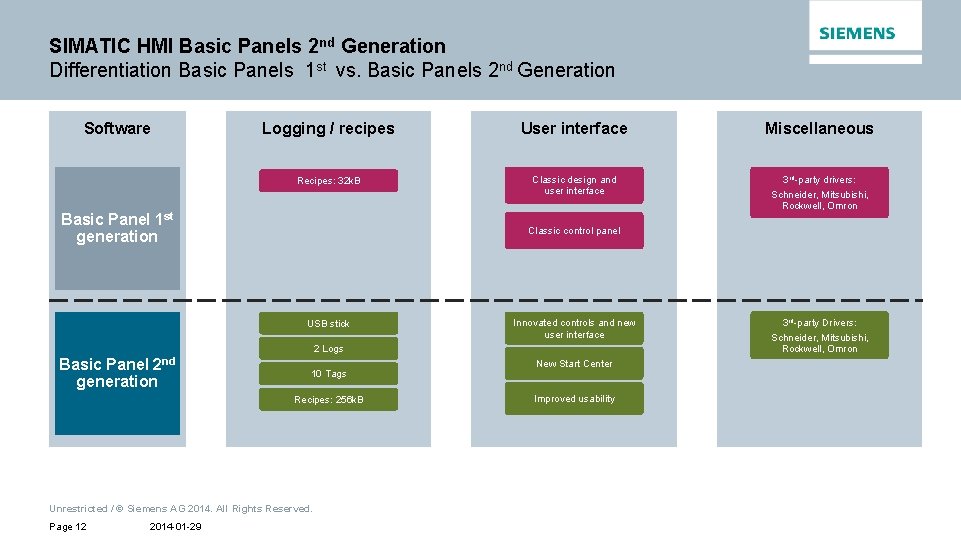

SIMATIC HMI Basic Panels 2 nd Generation Differentiation Basic Panels 1 st vs. Basic Panels 2 nd Generation Software Logging / recipes User interface Miscellaneous Recipes: 32 k. B Classic design and user interface 3 rd-party drivers: Schneider, Mitsubishi, Rockwell, Omron Basic Panel 1 st generation Classic control panel USB stick Innovated controls and new user interface 2 Logs 2 nd Basic Panel generation 10 Tags Recipes: 256 k. B Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 12 2014 -01 -29 New Start Center Improved usability 3 rd-party Drivers: Schneider, Mitsubishi, Rockwell, Omron

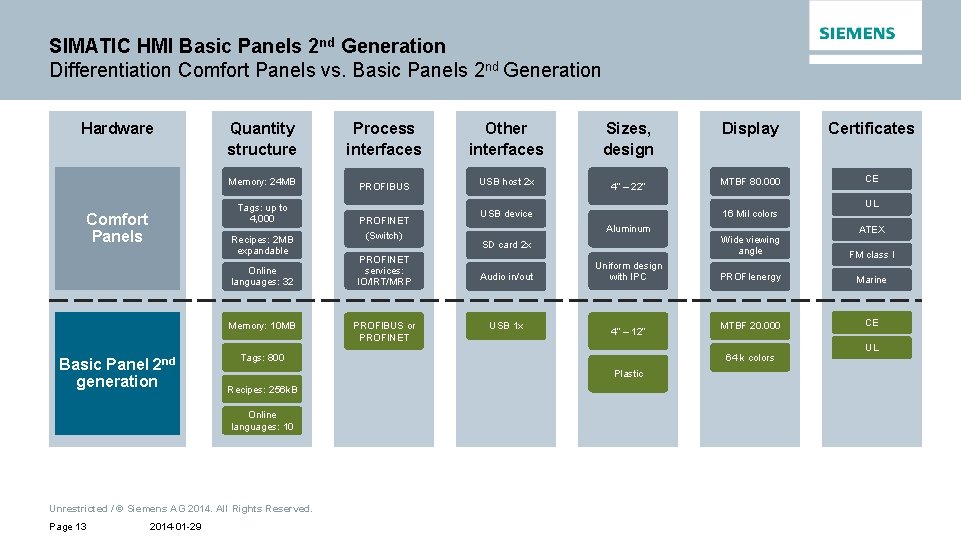

SIMATIC HMI Basic Panels 2 nd Generation Differentiation Comfort Panels vs. Basic Panels 2 nd Generation Hardware Quantity structure Process interfaces Other interfaces Sizes, design Display Certificates Memory: 24 MB PROFIBUS USB host 2 x 4” – 22” MTBF 80. 000 CE Tags: up to 4, 000 Comfort Panels Recipes: 2 MB expandable Online languages: 32 Memory: 10 MB Basic Panel 2 nd generation PROFIBUS or PROFINET Aluminum SD card 2 x Audio in/out USB 1 x Uniform design with IPC 4” – 12” Recipes: 256 k. B UL ATEX Wide viewing angle FM class I PROFIenergy Marine MTBF 20. 000 CE 64 k colors Plastic Unrestricted / © Siemens AG 2014. All Rights Reserved. 2014 -01 -29 PROFINET services: IO/IRT/MRP 16 Mil colors Tags: 800 Online languages: 10 Page 13 PROFINET (Switch) USB device UL

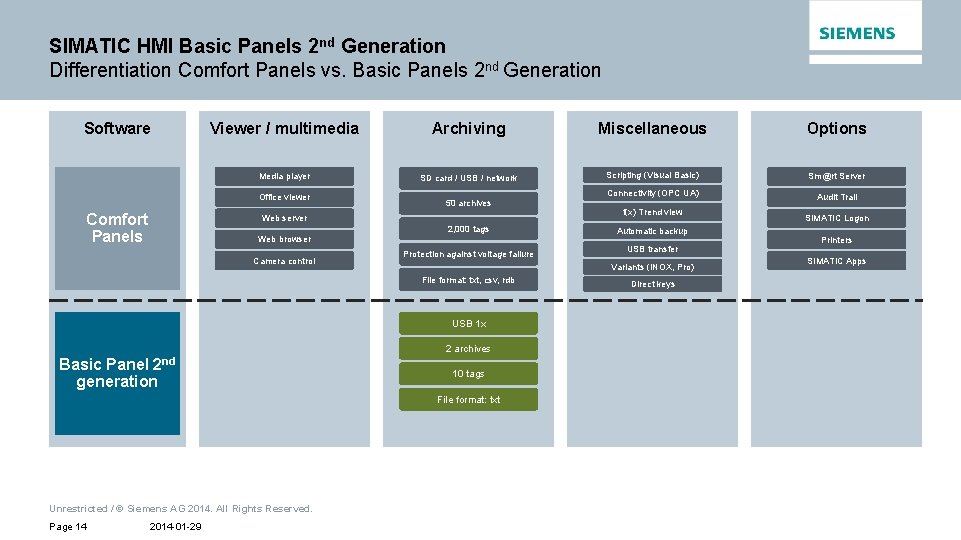

SIMATIC HMI Basic Panels 2 nd Generation Differentiation Comfort Panels vs. Basic Panels 2 nd Generation Software Viewer / multimedia Archiving Miscellaneous Options Media player SD card / USB / network Scripting (Visual Basic) Sm@rt Server Office viewer Comfort Panels Connectivity (OPC UA) 50 archives Web server 2, 000 tags Web browser Camera control Protection against voltage failure USB 1 x 2 archives Basic Panel generation 10 tags File format: txt Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 14 2014 -01 -29 Automatic backup USB transfer Variants (INOX, Pro) File format: txt, csv, rdb 2 nd f(x) Trend view Direct keys Audit Trail SIMATIC Logon Printers SIMATIC Apps

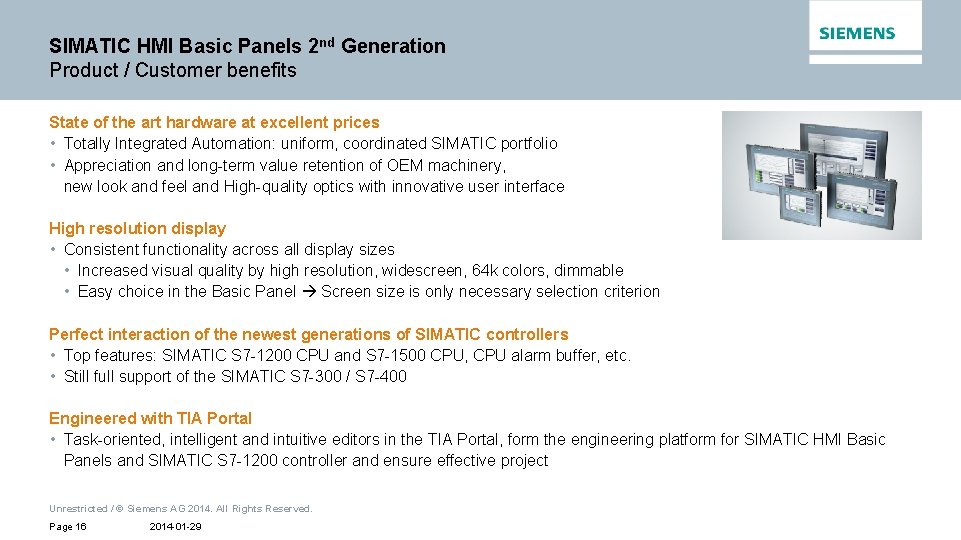

SIMATIC HMI Basic Panels 2 nd Generation Product / Customer benefits State of the art hardware at excellent prices • Totally Integrated Automation: uniform, coordinated SIMATIC portfolio • Appreciation and long-term value retention of OEM machinery, new look and feel and High-quality optics with innovative user interface High resolution display • Consistent functionality across all display sizes • Increased visual quality by high resolution, widescreen, 64 k colors, dimmable • Easy choice in the Basic Panel Screen size is only necessary selection criterion Perfect interaction of the newest generations of SIMATIC controllers • Top features: SIMATIC S 7 -1200 CPU and S 7 -1500 CPU, CPU alarm buffer, etc. • Still full support of the SIMATIC S 7 -300 / S 7 -400 Engineered with TIA Portal • Task-oriented, intelligent and intuitive editors in the TIA Portal, form the engineering platform for SIMATIC HMI Basic Panels and SIMATIC S 7 -1200 controller and ensure effective project Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 16 2014 -01 -29

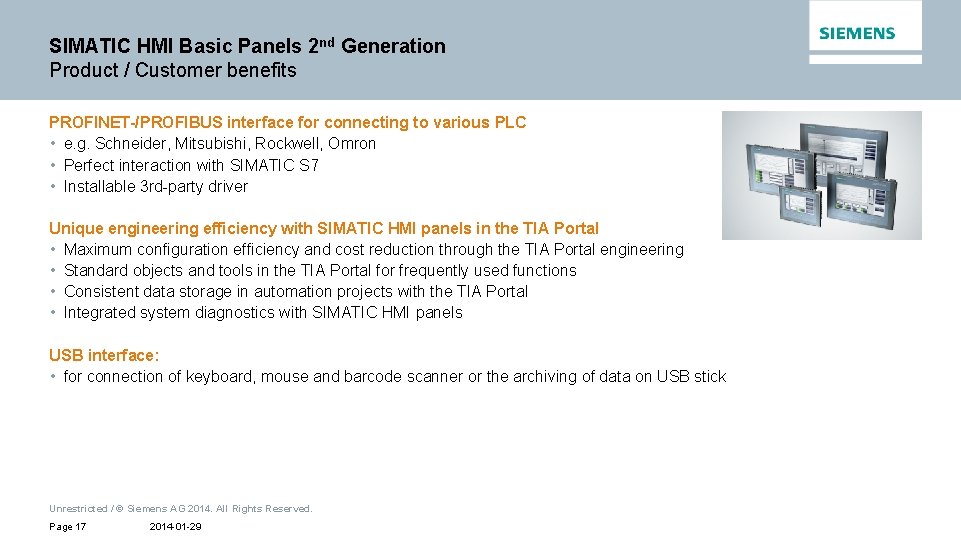

SIMATIC HMI Basic Panels 2 nd Generation Product / Customer benefits PROFINET-/PROFIBUS interface for connecting to various PLC • e. g. Schneider, Mitsubishi, Rockwell, Omron • Perfect interaction with SIMATIC S 7 • Installable 3 rd-party driver Unique engineering efficiency with SIMATIC HMI panels in the TIA Portal • Maximum configuration efficiency and cost reduction through the TIA Portal engineering • Standard objects and tools in the TIA Portal for frequently used functions • Consistent data storage in automation projects with the TIA Portal • Integrated system diagnostics with SIMATIC HMI panels USB interface: • for connection of keyboard, mouse and barcode scanner or the archiving of data on USB stick Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 17 2014 -01 -29

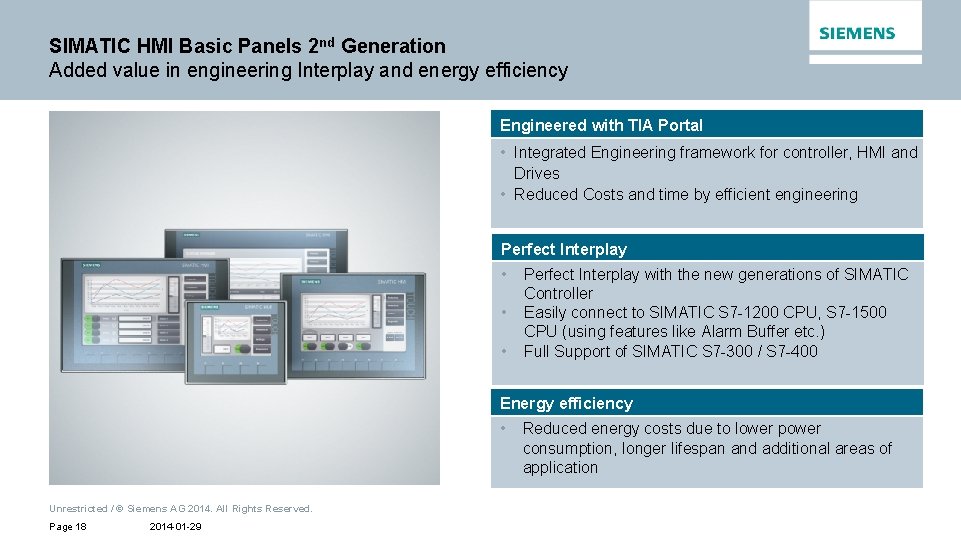

SIMATIC HMI Basic Panels 2 nd Generation Added value in engineering Interplay and energy efficiency Engineered with TIA Portal • Integrated Engineering framework for controller, HMI and Drives • Reduced Costs and time by efficient engineering Perfect Interplay • • • Perfect Interplay with the new generations of SIMATIC Controller Easily connect to SIMATIC S 7 -1200 CPU, S 7 -1500 CPU (using features like Alarm Buffer etc. ) Full Support of SIMATIC S 7 -300 / S 7 -400 Energy efficiency • Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 18 2014 -01 -29 Reduced energy costs due to lower power consumption, longer lifespan and additional areas of application

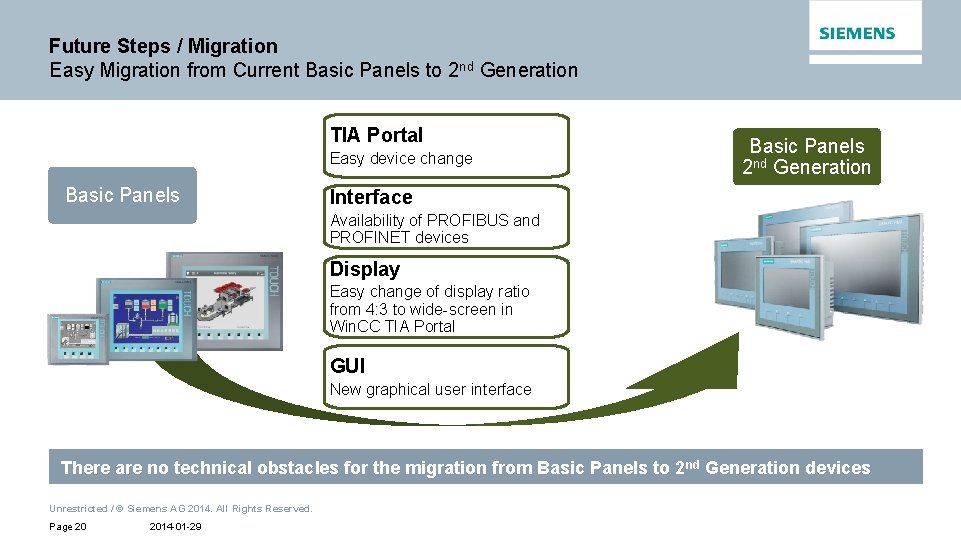

Future Steps / Migration Easy Migration from Current Basic Panels to 2 nd Generation TIA Portal Easy device change Basic Panels 2 nd Generation Interface Availability of PROFIBUS and PROFINET devices Display Easy change of display ratio from 4: 3 to wide-screen in Win. CC TIA Portal GUI New graphical user interface There are no technical obstacles for the migration from Basic Panels to 2 nd Generation devices Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 20 2014 -01 -29

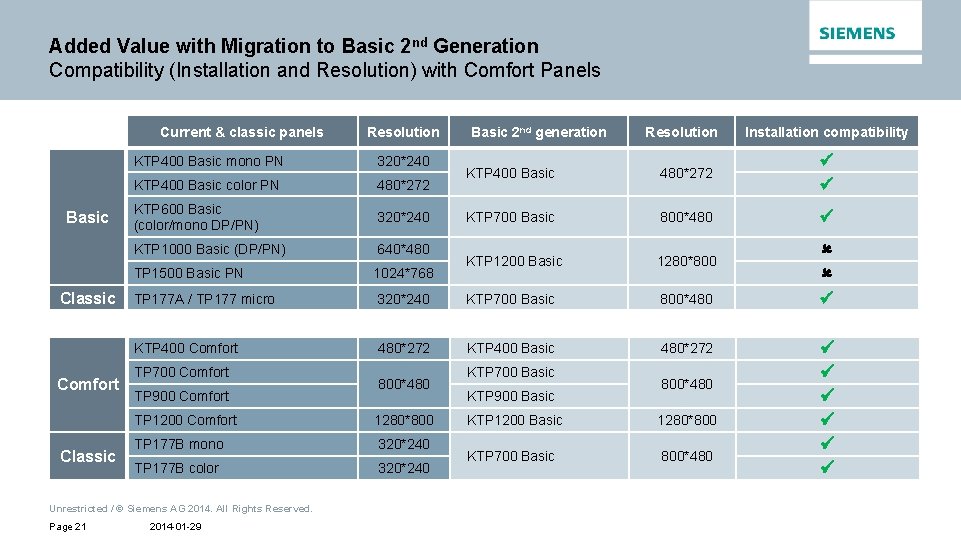

Added Value with Migration to Basic 2 nd Generation Compatibility (Installation and Resolution) with Comfort Panels Current & classic panels Basic Classic Comfort Classic KTP 700 Basic 800*480 KTP 1200 Basic 1280*800 320*240 KTP 700 Basic 800*480 480*272 KTP 400 Basic 480*272 KTP 600 Basic (color/mono DP/PN) 320*240 KTP 1000 Basic (DP/PN) 640*480 TP 1500 Basic PN 1024*768 TP 177 A / TP 177 micro KTP 400 Comfort 800*480 TP 1200 Comfort 1280*800 TP 177 B mono 320*240 TP 177 B color 320*240 2014 -01 -29 Installation compatibility KTP 400 Basic color PN TP 900 Comfort Resolution 480*272 320*240 TP 700 Comfort Basic 2 nd generation KTP 400 Basic mono PN Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 21 Resolution KTP 700 Basic KTP 900 Basic 800*480 KTP 1200 Basic 1280*800 KTP 700 Basic 800*480

SIMATIC HMI Basic Panels 2 nd Generation The right device for easy applications Focus on OEM and End customers • • • textile machine tool printing and packaging machines ceramic and glass machines in the processing of rubber and plastic machines for the manufacturing of Nu. G Applications • Integrated operating and visualization concepts optimize plant engineering e. g. in automotive production • Visualization solutions with amazing function integration for efficiency increase in water supply plants • Increase of the efficiency degree of biological gas facilities Unrestricted / © Siemens AG 2014. All Rights Reserved. Page 24 2014 -01 -29
