Significant Figures The Four Rules Rule 1 All

Rule #1: All non-zero numbers are always… SIGNIFICANT!!! 4 6 9 3 2 7

So, the only number to worry about is… 0

Using Othello to understand Rule #2 Zeros between non-zero numbers are always significant

The Other Zero Rules Rule #3: All final zeros to the ______ right of

For rule #3 and #4, it can be summarized by these two questions: 1)

Another note: if a number is written in scientific notation, all numbers before the

Significant Non-Significant 16407. 100 0. 00010080 904008000 8 sig figs 5 sig figs 6

Let’s look at some examples a. 508. 0 L b. 820 400. 0 L

Let’s look at some examples a. 0. 049 450 s b. 0. 000 482

So, why are significant figures important? Significant figures and math

Addition and Subtraction • When adding or subtracting—the answer has the least number of

Multiplication and Division • When multiplying or dividing—the product has the least number of

Addition a) 43. 2 cm 51. 0 cm + 48. 7 cm 142. 9

Multiplication a) 24 m x 3. 26 m = 78. 24 m = 78

Why do we have them? When we measure things, we want to measure to

So, they show the uncertainty in our measurements

Since the marks on this ruler are subdivided as they are, our answer for

However, we only have significant figures when we are measuring something. Counting will give

Slides: 23

Download presentation

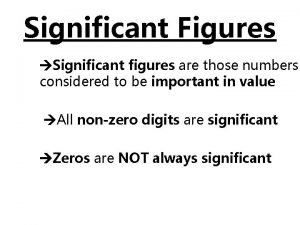

Significant Figures The Four Rules

Rule #1: All non-zero numbers are always… SIGNIFICANT!!! 4 6 9 3 2 7 1 8 5

So, the only number to worry about is… 0

Using Othello to understand Rule #2 Zeros between non-zero numbers are always significant

The Other Zero Rules Rule #3: All final zeros to the ______ right of a decimal point are significant. 0. 0000340000 Rule #4: Zeros that act as ______ placeholders are NOT significant.

For rule #3 and #4, it can be summarized by these two questions: 1) Is there a decimal point? 2) Is there a number in front of the zero? Answering yes to both of these questions means that the zeros are significant figures.

Significant? 1000000. 0

Another note: if a number is written in scientific notation, all numbers before the x 10 are significant, all numbers after are not significant.

Is It Significant?

Significant Non-Significant 16407. 100 0. 00010080 904008000 8 sig figs 5 sig figs 6 sig figs

Let’s look at some examples a. 508. 0 L b. 820 400. 0 L 4 significant figures 7 significant figures c. 1. 0200 x 105 kg 5 significant figures d. 807 000 kg 3 significant figures

Let’s look at some examples a. 0. 049 450 s b. 0. 000 482 m. L 5 significant figures 3 significant figures c. 3. 1587 x 10 -8 g 5 significant figures d. 0. 0084 m. L 2 significant figures

So, why are significant figures important? Significant figures and math

Addition and Subtraction • When adding or subtracting—the answer has the least number of decimal places • Hint: Before adding and subtracting, line up all the numbers so the decimal points align. 187. 6 + 2. 303 961. 95 - 943 189. 903 18. 95 189. 9 19

Multiplication and Division • When multiplying or dividing—the product has the least number of significant figures 21. 6 x 0. 067 1. 4472 1. 4 (3 sig figs) (2 sig figs) 7216 ÷ 0. 034 (4 sig figs) (2 sig figs) 212235. 294118 (2 sig figs) 210000 Or 2. 1 x 105

Now, try some of these on your own

Addition a) 43. 2 cm 51. 0 cm + 48. 7 cm 142. 9 cm b) 258. 3 kg 257. 1 1 kg + 253 768. 41 kg kg 768 kg c) 0. 0487 mg 0. 05834 mg + 0. 00483 mg 0. 1 1 1 87 mg 0. 1119 mg

Multiplication a) 24 m x 3. 26 m = 78. 24 m = 78 m b) 120 m x 0. 10 m = 12 m c) 1. 23 m x 2. 0 m = 2. 46 m = 2. 5 m d) 53. 0 m x 1. 53 m = 81. 09 m = 81. 1 m

Why do we have them? When we measure things, we want to measure to the place we are sure of and guess one more space.

So, they show the uncertainty in our measurements

Since the marks on this ruler are subdivided as they are, our answer for the length of this nail has 3 significant figures.

However, we only have significant figures when we are measuring something. Counting will give you an exact number.
