Signals Systems Theory COMM 401 Tutorial 11 Done

Signals & Systems Theory (COMM 401) Tutorial 11 Done by: Eng. Nada Ayman Supervised By: Prof. Dr. Ahmed El-Mahdy Faculty of Information Engineering & Technologhy Department of Communication Engineering 1

Fourier Transform 2

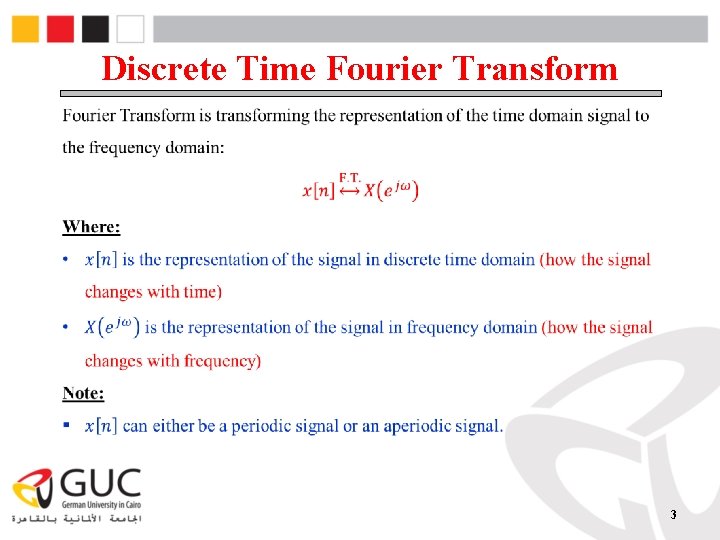

Discrete Time Fourier Transform 3

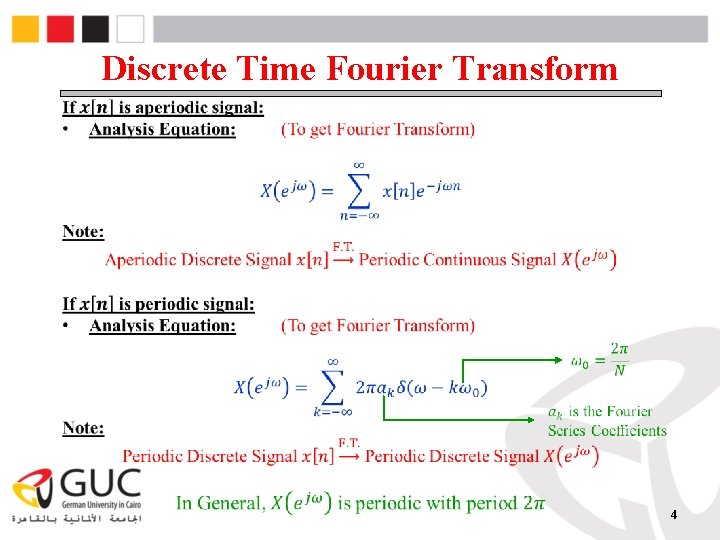

Discrete Time Fourier Transform 4

Discrete Time Fourier Transform 5

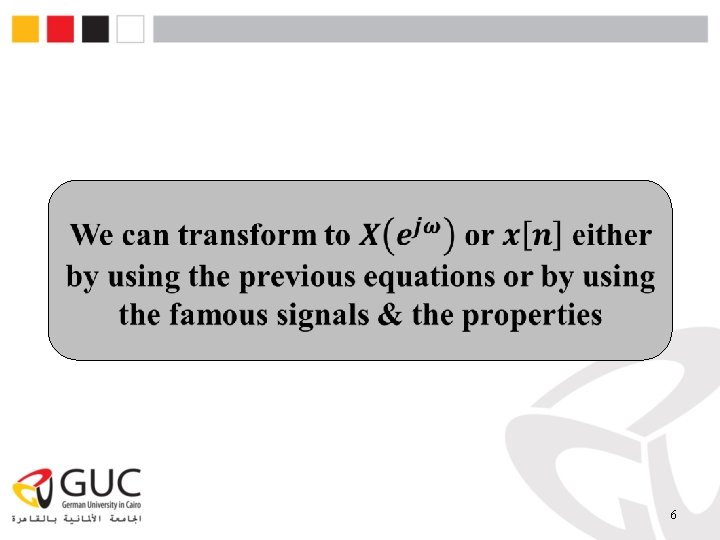

6

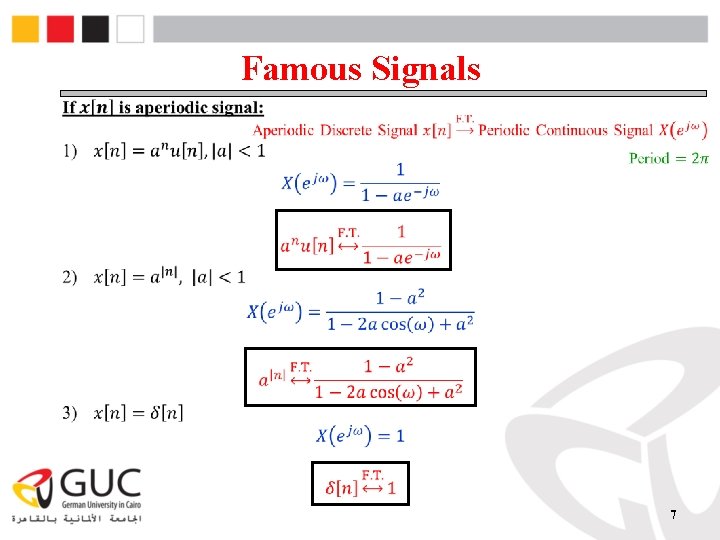

Famous Signals 7

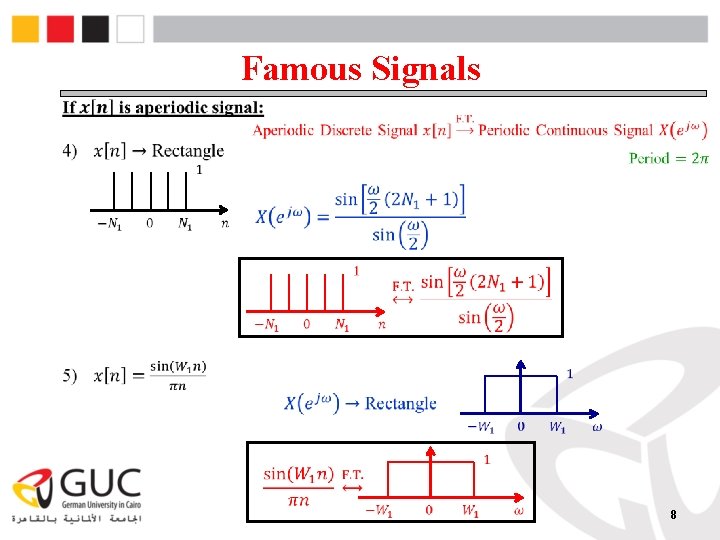

Famous Signals 8

Famous Signals 9

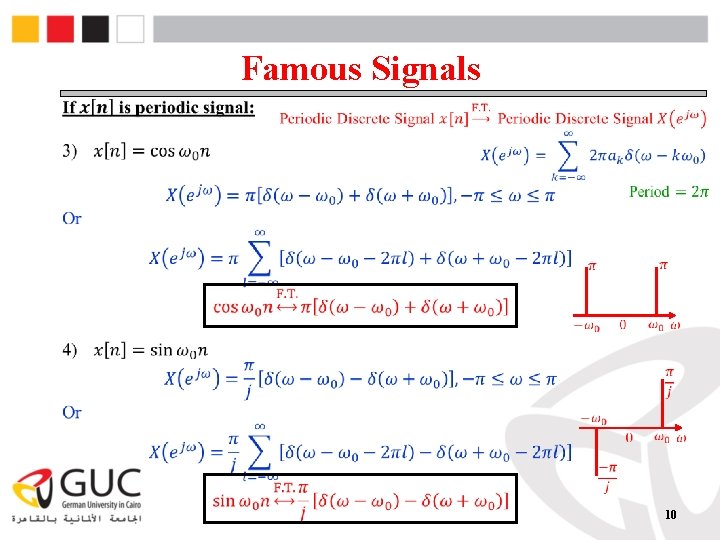

Famous Signals 10

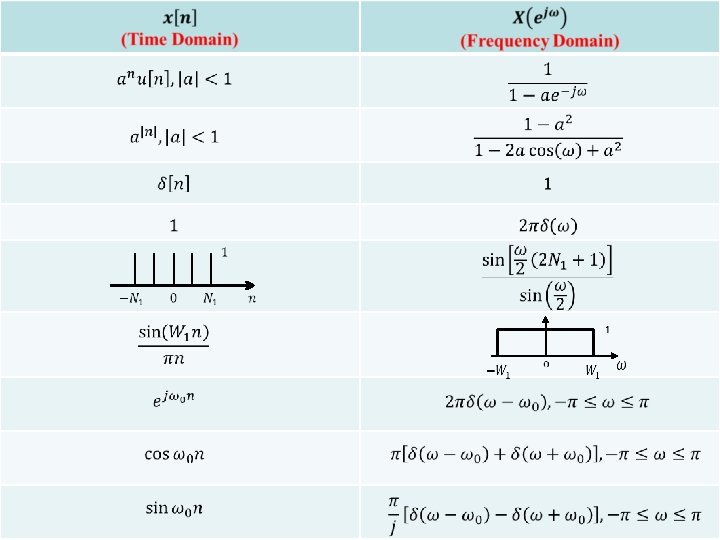

11

Properties 12

Properties 13

Properties Very Important 14

Sheet 8 15

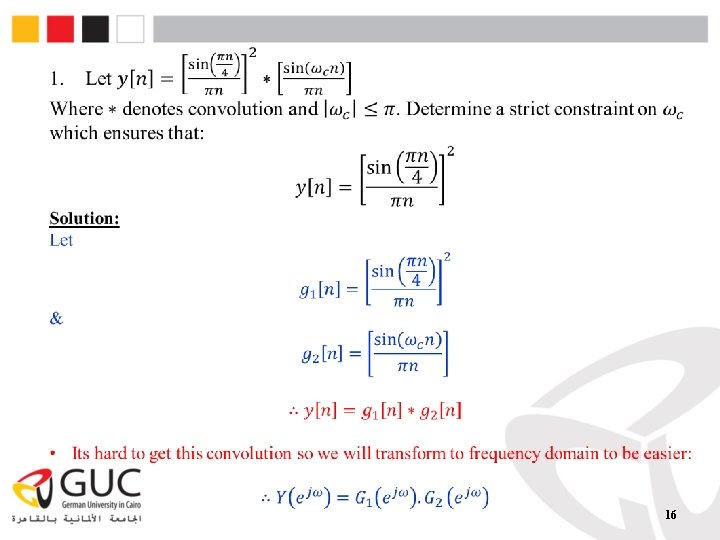

16

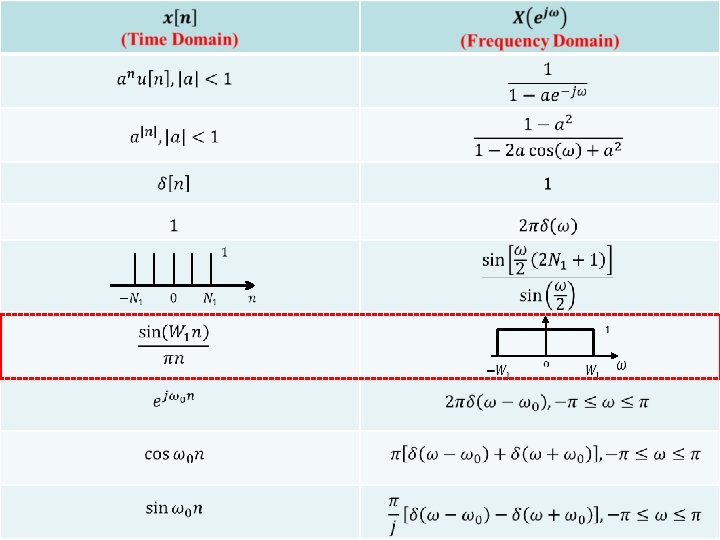

17

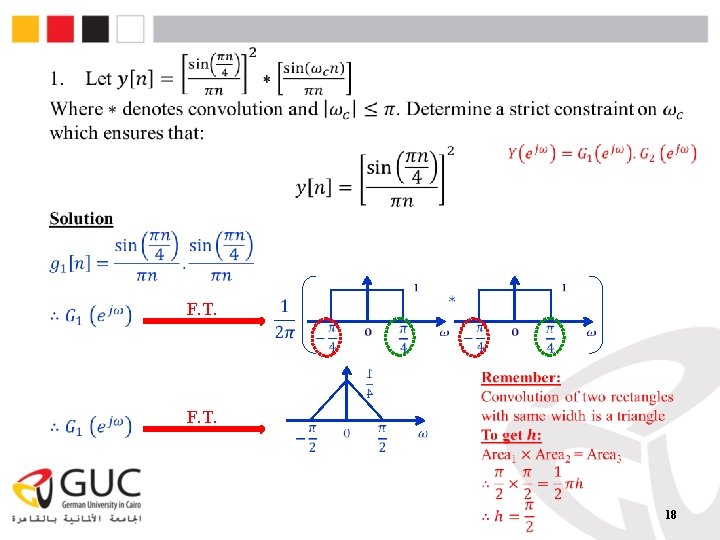

F. T. 18

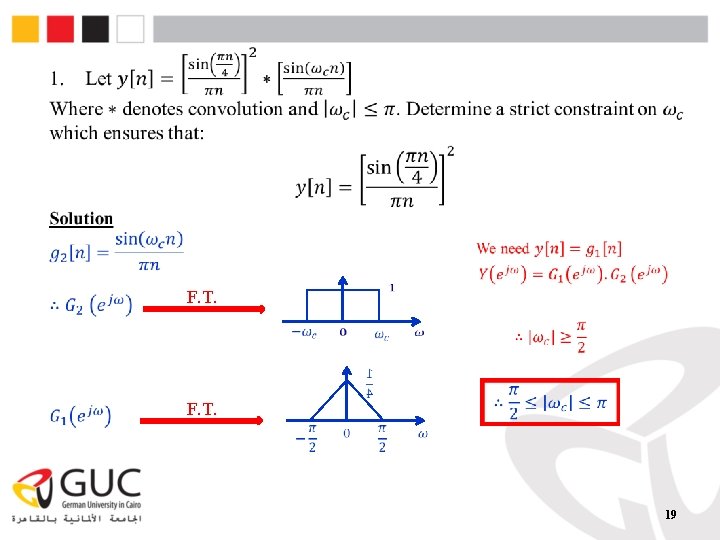

F. T. 19

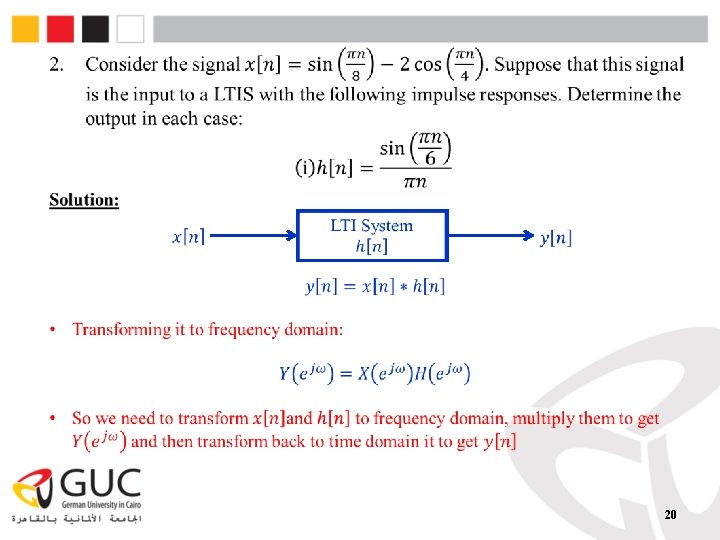

20

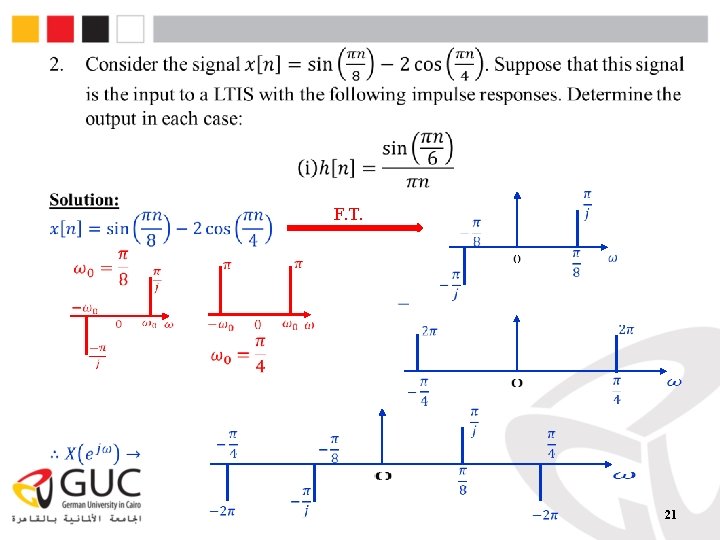

F. T. 21

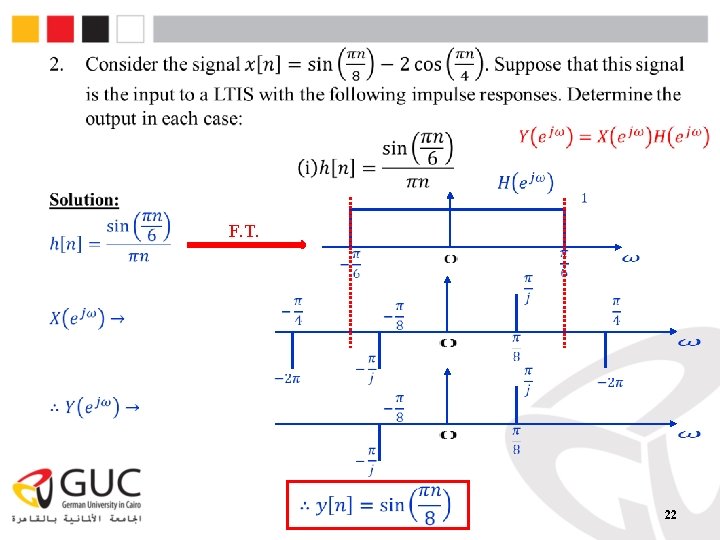

F. T. 22

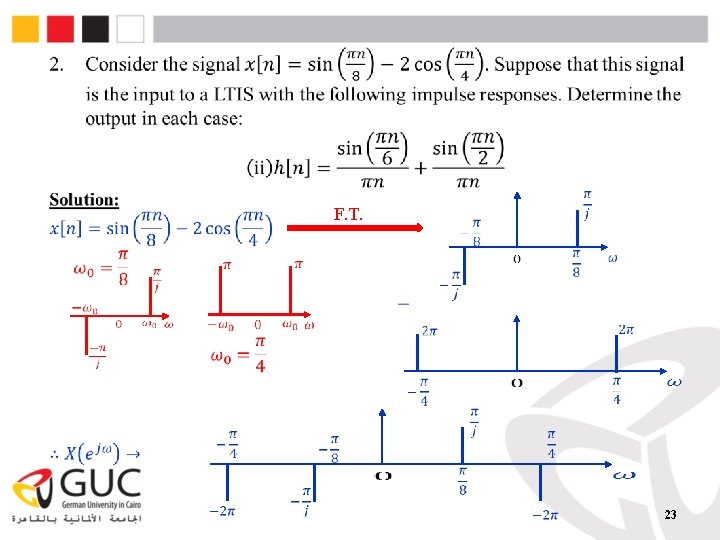

F. T. 23

F. T. 24

25

F. T. 26

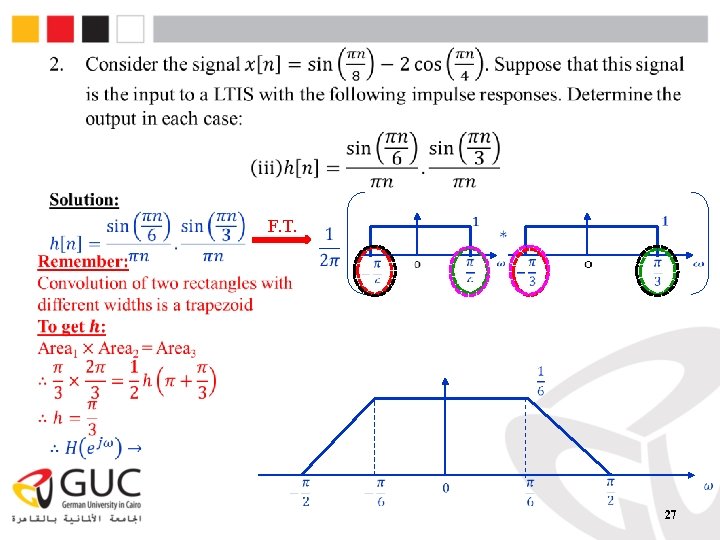

F. T. 27

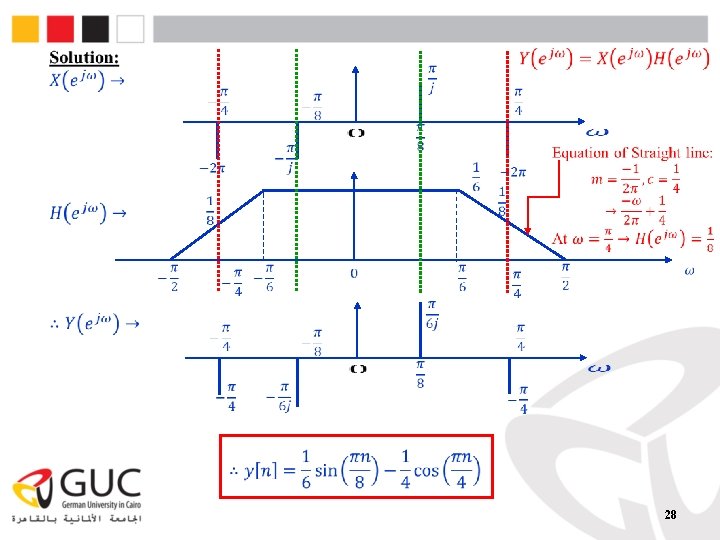

28

F. T. 29

F. T. 30

31

Thank you Good Luck =) 32
