Signal Processing Systems Prof Jae Young Choi Signal

  • Slides: 51
Download presentation
Signal Processing & Systems (신호 및 시스템) 연속 주기 신호의 주파수 해석 Prof. Jae

Signal Processing & Systems (신호 및 시스템) 연속 주기 신호의 주파수 해석 Prof. Jae Young Choi (최재영 교수) Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

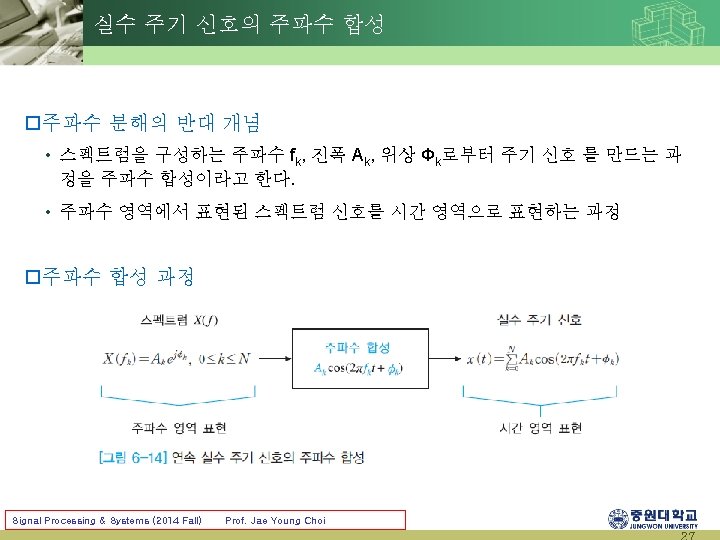

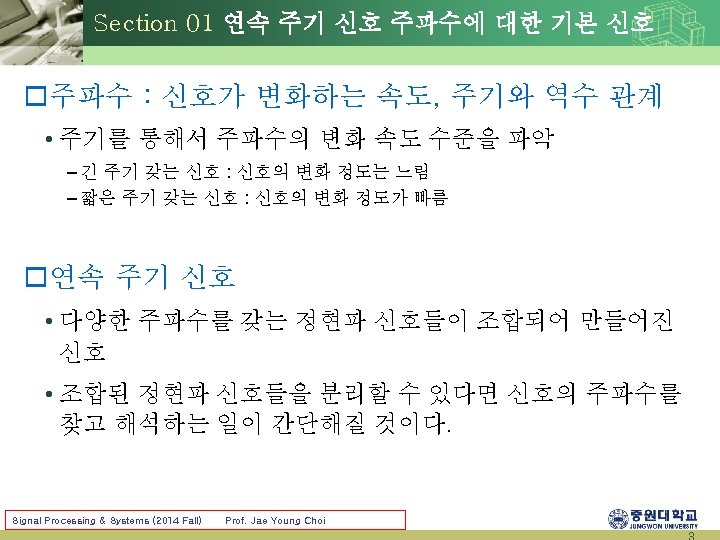

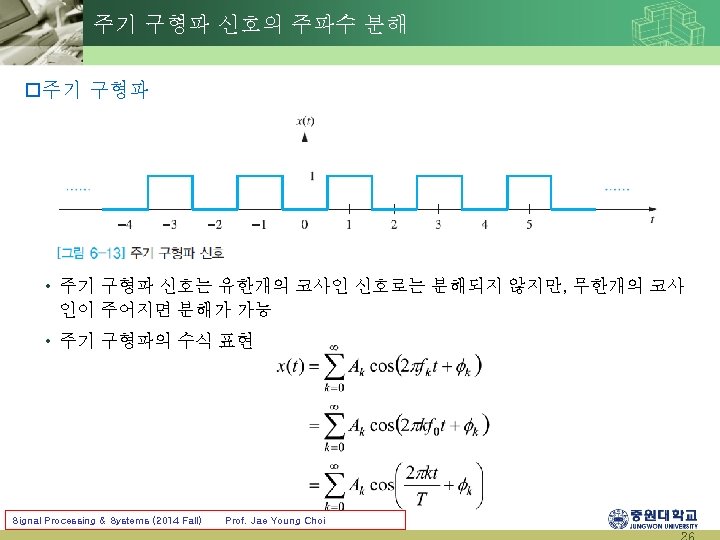

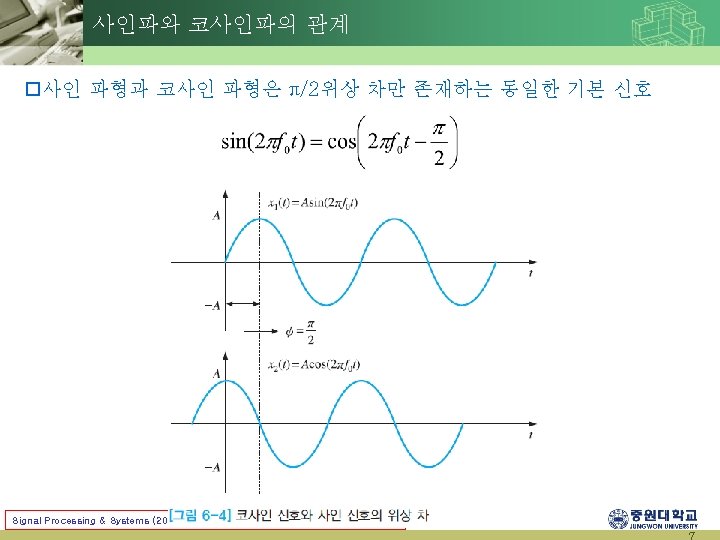

주기 신호의 정현파 구성 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

주기 신호의 정현파 구성 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi 참고: Fourier Series

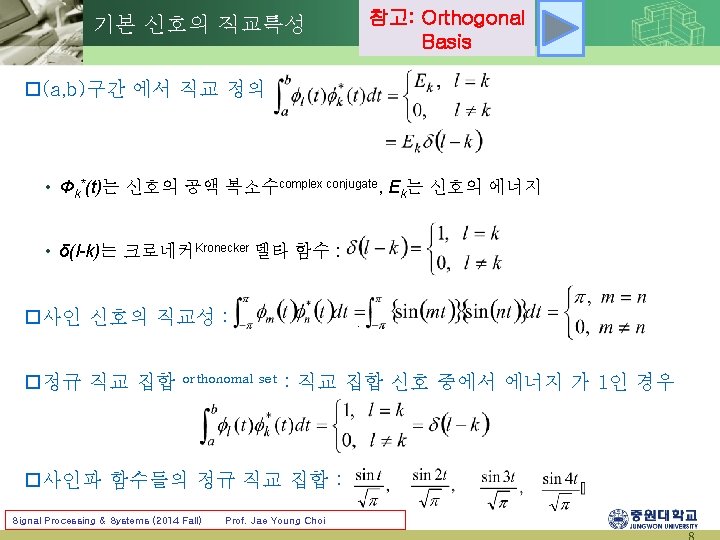

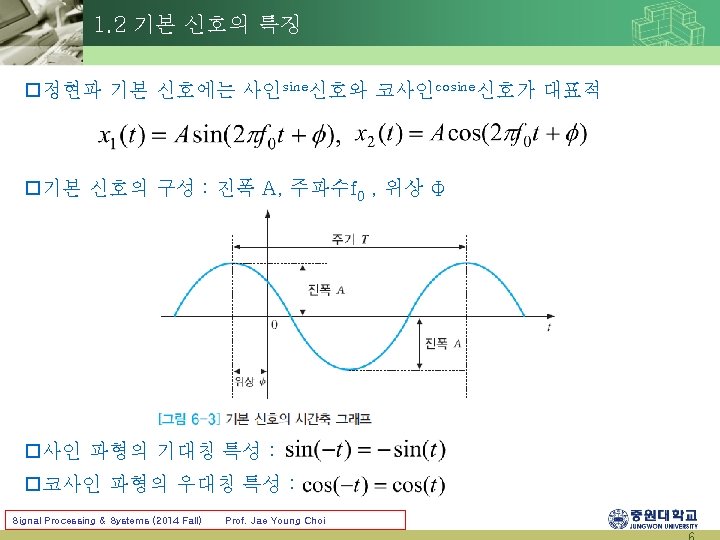

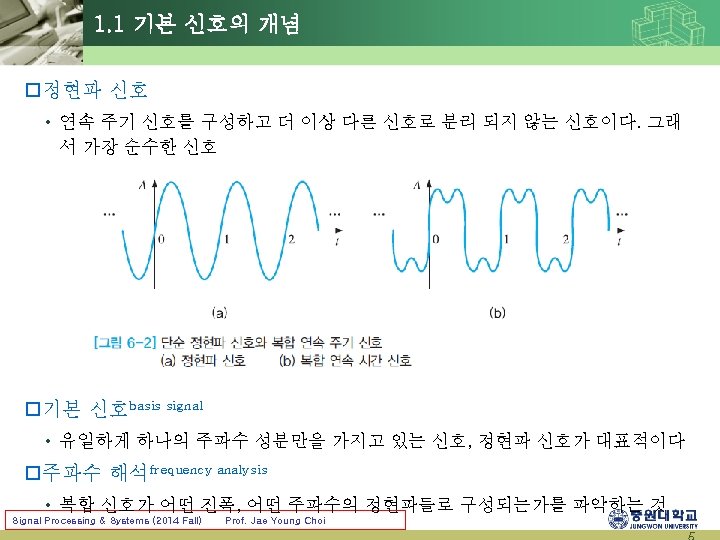

1. 2 기본 신호의 특징 Signal Processing & Systems (2014 Fall) Prof. Jae Young

1. 2 기본 신호의 특징 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

1. 2 기본 신호의 특징 Signal Processing & Systems (2014 Fall) Prof. Jae Young

1. 2 기본 신호의 특징 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

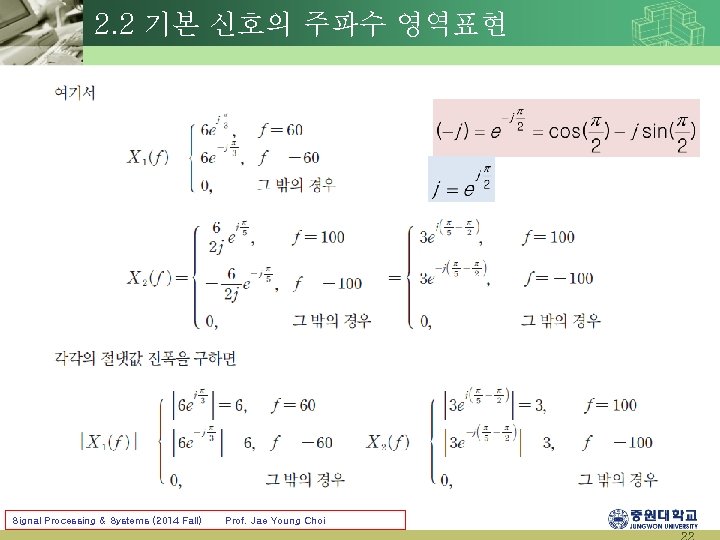

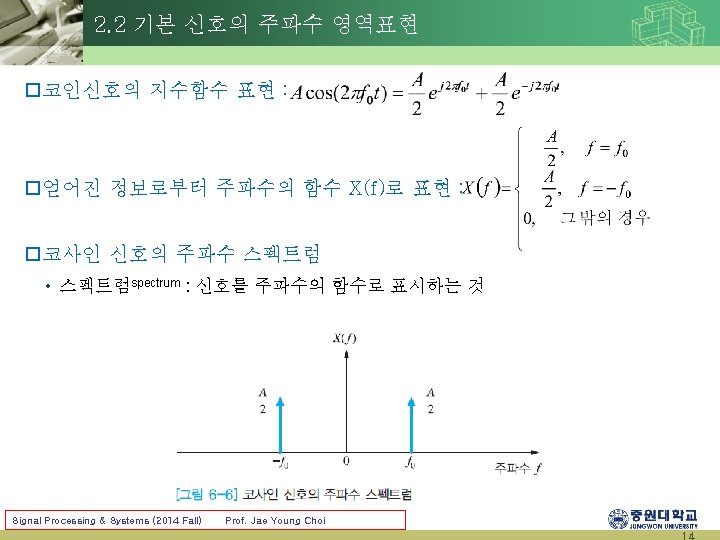

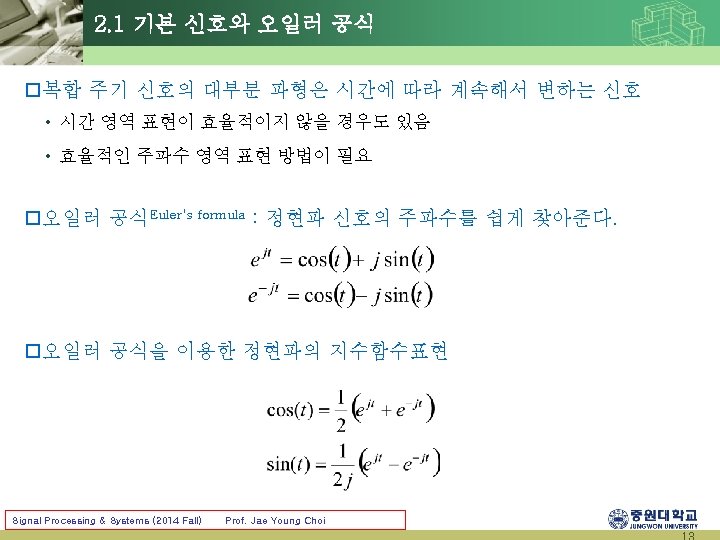

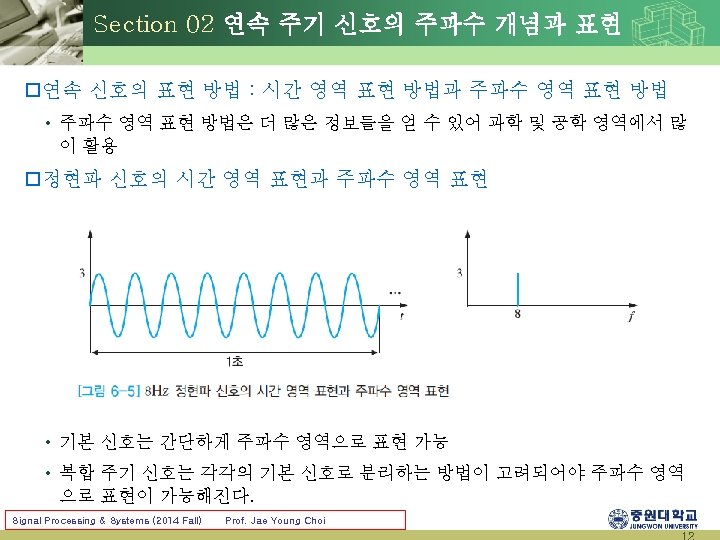

2. 2 기본 신호의 주파수 영역표현 Signal Processing & Systems (2014 Fall) Prof. Jae

2. 2 기본 신호의 주파수 영역표현 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

2. 2 기본 신호의 주파수 영역표현 Signal Processing & Systems (2014 Fall) Prof. Jae

2. 2 기본 신호의 주파수 영역표현 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

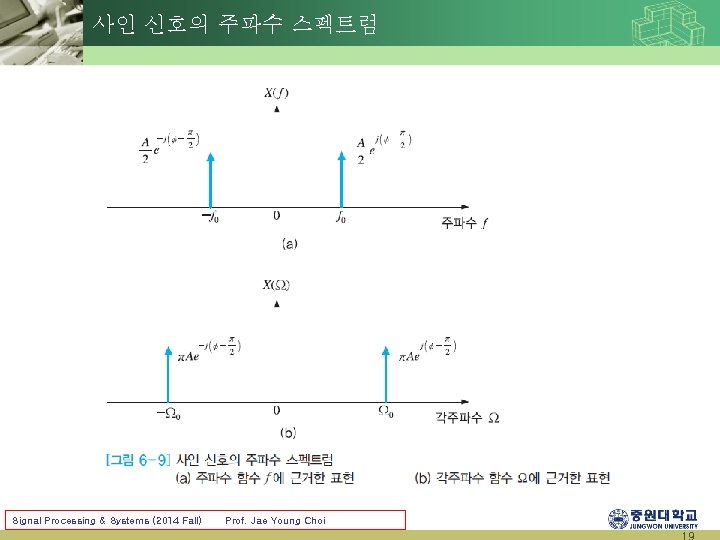

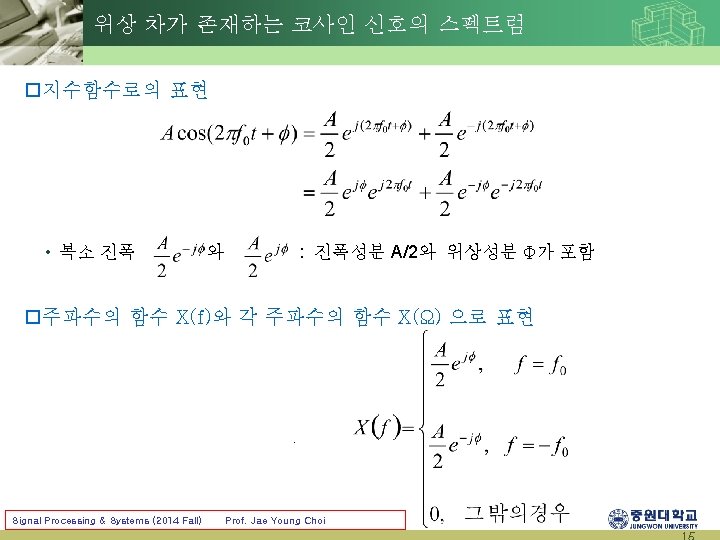

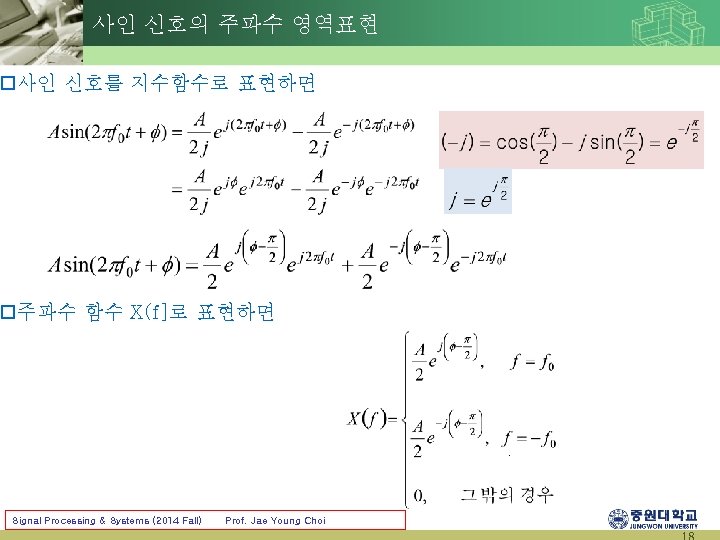

사인 신호의 주파수 스펙트럼 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

사인 신호의 주파수 스펙트럼 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

2. 2 기본 신호의 주파수 영역표현 Signal Processing & Systems (2014 Fall) Prof. Jae

2. 2 기본 신호의 주파수 영역표현 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

2. 2 기본 신호의 주파수 영역표현 Signal Processing & Systems (2014 Fall) Prof. Jae

2. 2 기본 신호의 주파수 영역표현 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

2. 2 기본 신호의 주파수 영역표현 Signal Processing & Systems (2014 Fall) Prof. Jae

2. 2 기본 신호의 주파수 영역표현 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

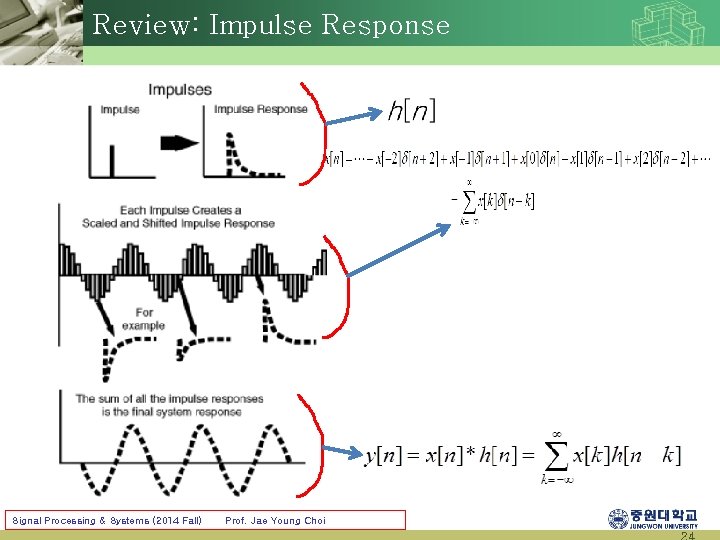

Review: Impulse Response Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

Review: Impulse Response Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

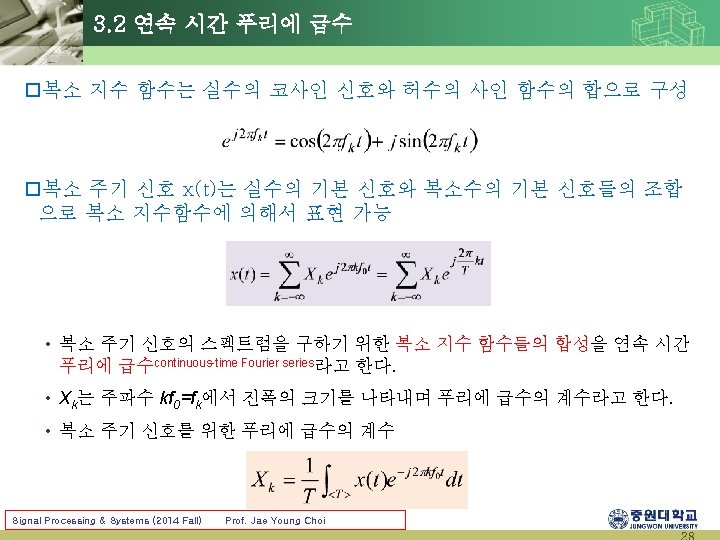

3. 2 연속 시간 푸리에 급수 Signal Processing & Systems (2014 Fall) Prof. Jae

3. 2 연속 시간 푸리에 급수 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

3. 2 연속 시간 푸리에 급수 Signal Processing & Systems (2014 Fall) Prof. Jae

3. 2 연속 시간 푸리에 급수 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

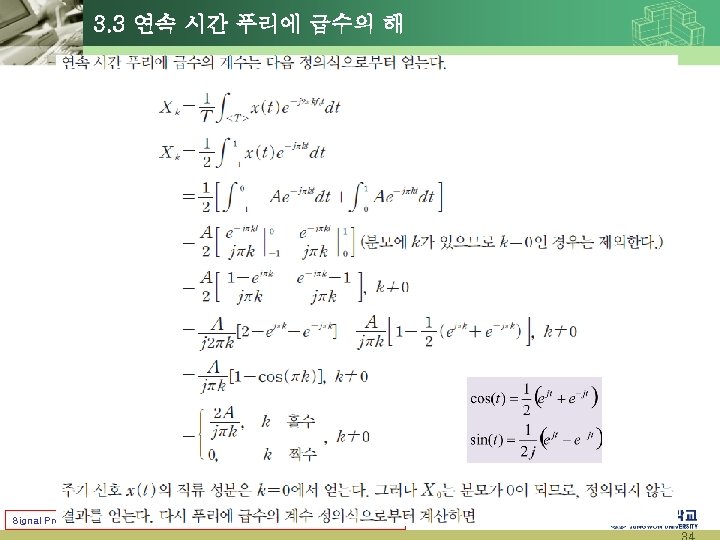

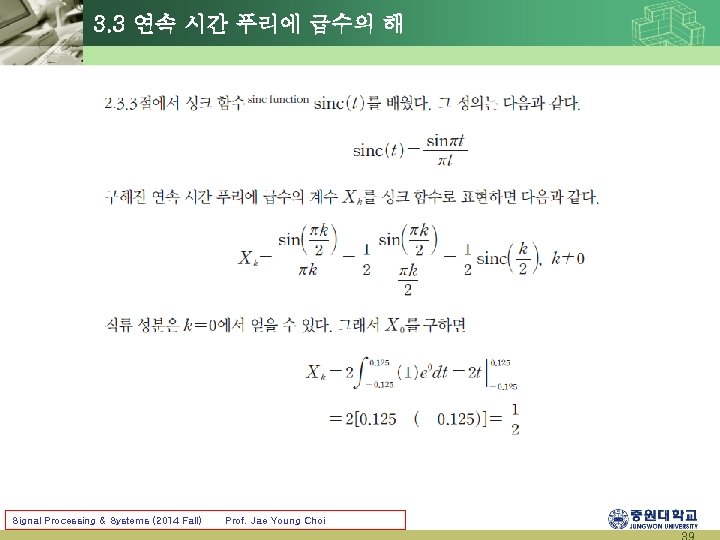

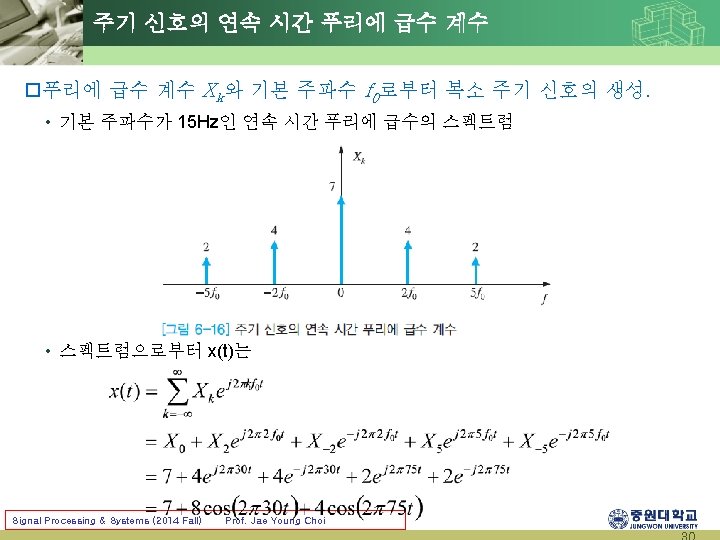

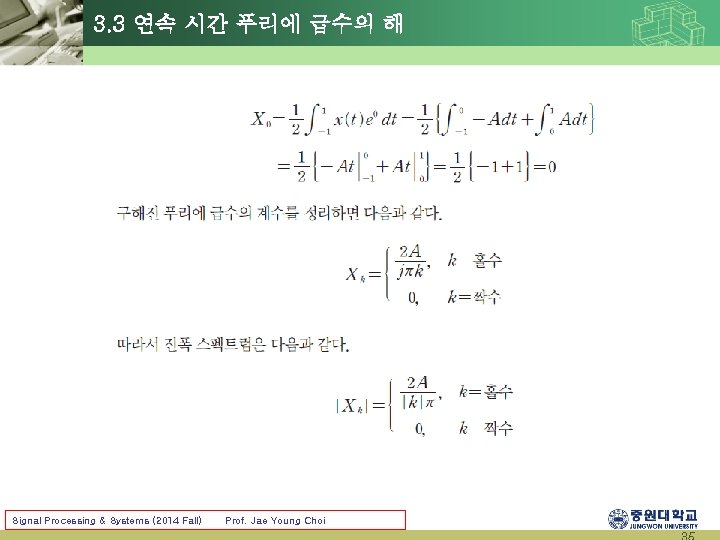

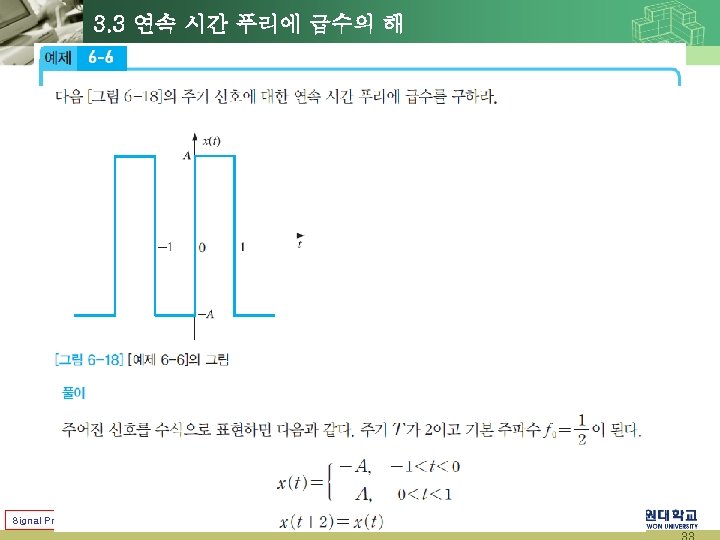

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof.

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof.

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof.

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof.

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof.

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof.

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof.

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof.

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof.

3. 3 연속 시간 푸리에 급수의 해 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

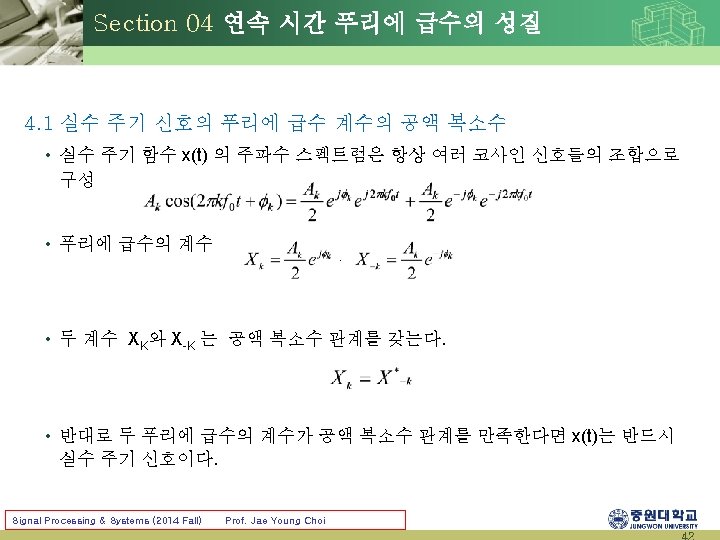

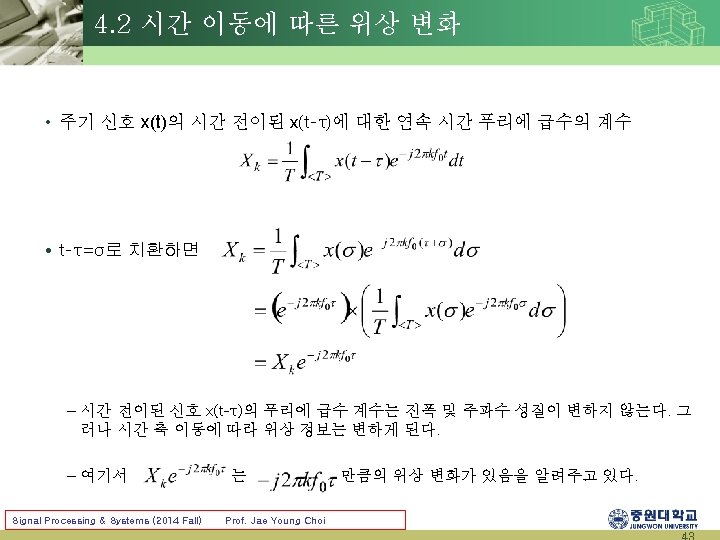

시간축 전이와 연속 시간 푸리에 급수 계수의 위상 변화 관계 Signal Processing & Systems

시간축 전이와 연속 시간 푸리에 급수 계수의 위상 변화 관계 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

시간축 전이와 연속 시간 푸리에 급수 계수 변화 Signal Processing & Systems (2014 Fall)

시간축 전이와 연속 시간 푸리에 급수 계수 변화 Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

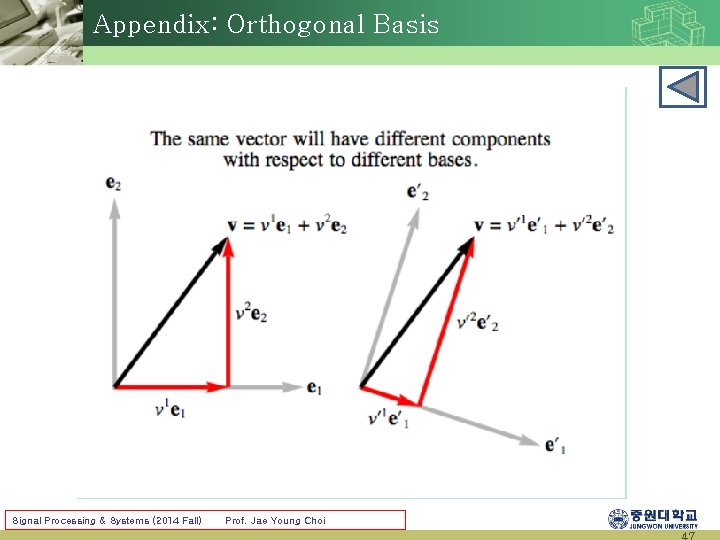

Appendix: Orthogonal Basis Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

Appendix: Orthogonal Basis Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

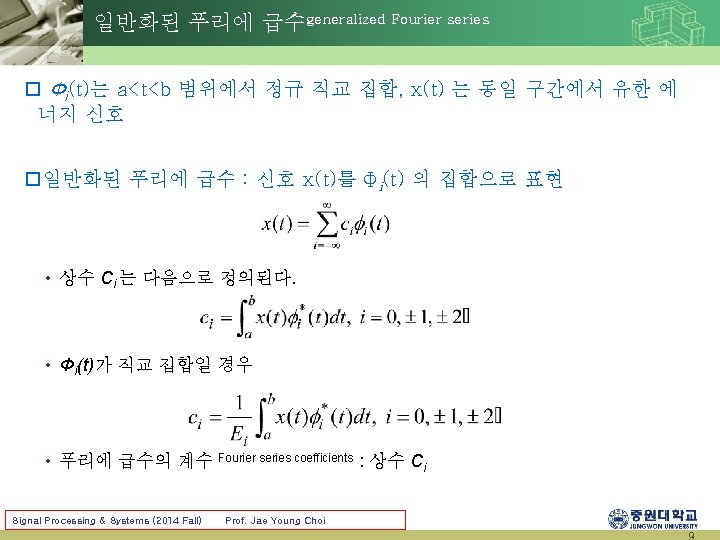

Appendix: Concept of Fourier Series Weighted linear combination of orthogonal basis functions Signal Processing

Appendix: Concept of Fourier Series Weighted linear combination of orthogonal basis functions Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

Appendix: Magnitude and Phase Spectrum Signal Processing & Systems (2014 Fall) Prof. Jae Young

Appendix: Magnitude and Phase Spectrum Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

Appendix: Magnitude and Phase Spectrum Signal Processing & Systems (2014 Fall) Prof. Jae Young

Appendix: Magnitude and Phase Spectrum Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi

Appendix: Magnitude and Phase Spectrum Signal Processing & Systems (2014 Fall) Prof. Jae Young

Appendix: Magnitude and Phase Spectrum Signal Processing & Systems (2014 Fall) Prof. Jae Young Choi
