SIGNAL ACQUISITION Overview of Biosignal Data Acquisition Biological

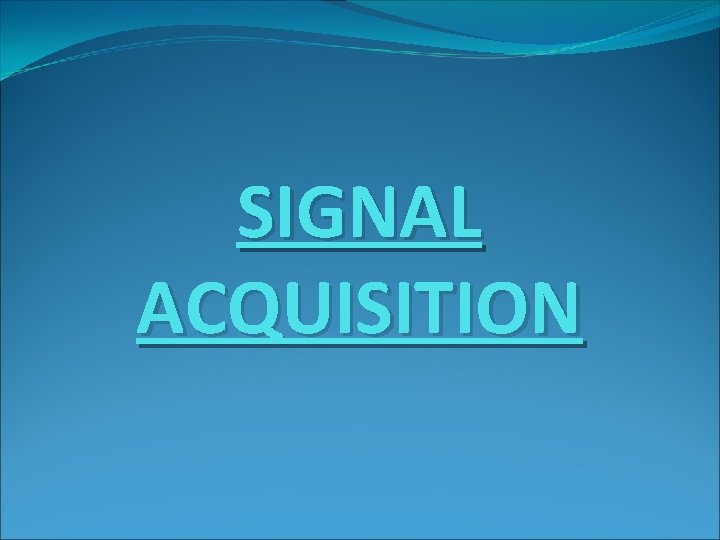

SIGNAL ACQUISITION

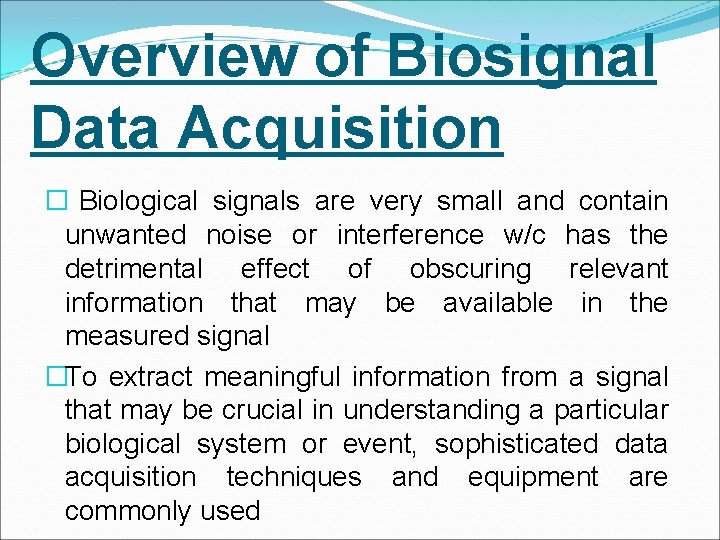

Overview of Biosignal Data Acquisition � Biological signals are very small and contain unwanted noise or interference w/c has the detrimental effect of obscuring relevant information that may be available in the measured signal �To extract meaningful information from a signal that may be crucial in understanding a particular biological system or event, sophisticated data acquisition techniques and equipment are commonly used
�High-precision low-noise equipment is often necessary to minimize the effects of unwanted noise �Since these signals are often used to aid the diagnosis of pathological disorders , the procedures of amplification, analog filtering, and A/D conversion should not generate misleading or untraceable distortions. �Distortions in a signal measurement could lead to an improper diagnosis.

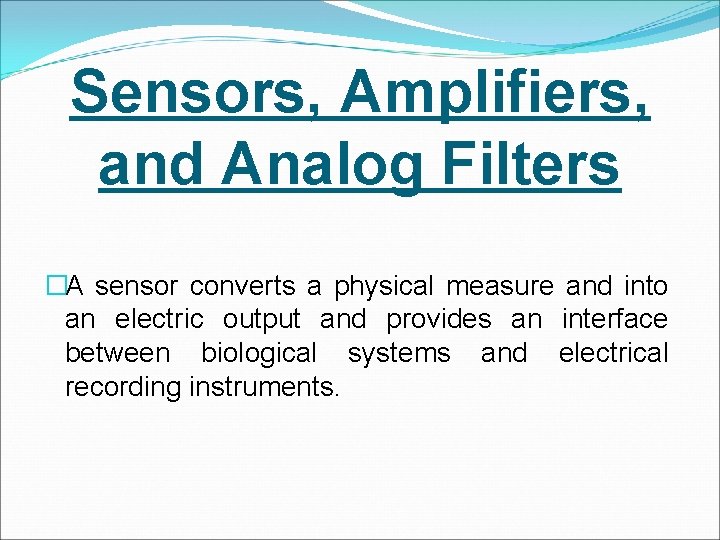

Sensors, Amplifiers, and Analog Filters �A sensor converts a physical measure and into an electric output and provides an interface between biological systems and electrical recording instruments.

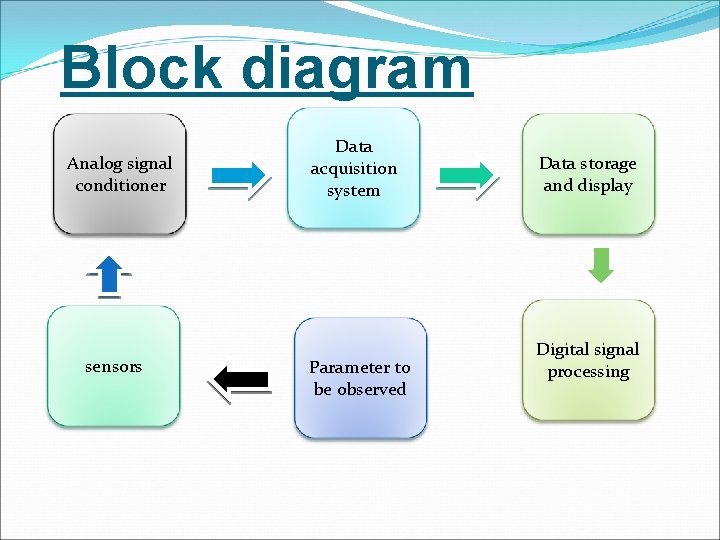

Block diagram Analog signal conditioner sensors Data acquisition system Parameter to be observed Data storage and display Digital signal processing

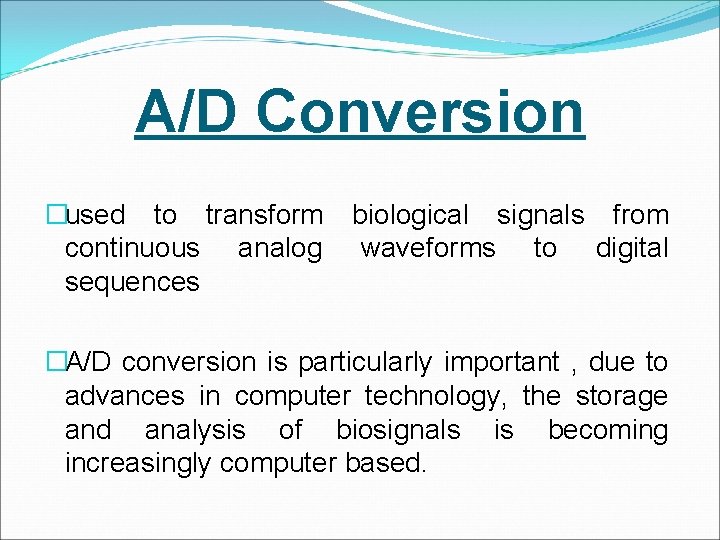

A/D Conversion �used to transform continuous analog sequences biological signals from waveforms to digital �A/D conversion is particularly important , due to advances in computer technology, the storage and analysis of biosignals is becoming increasingly computer based.

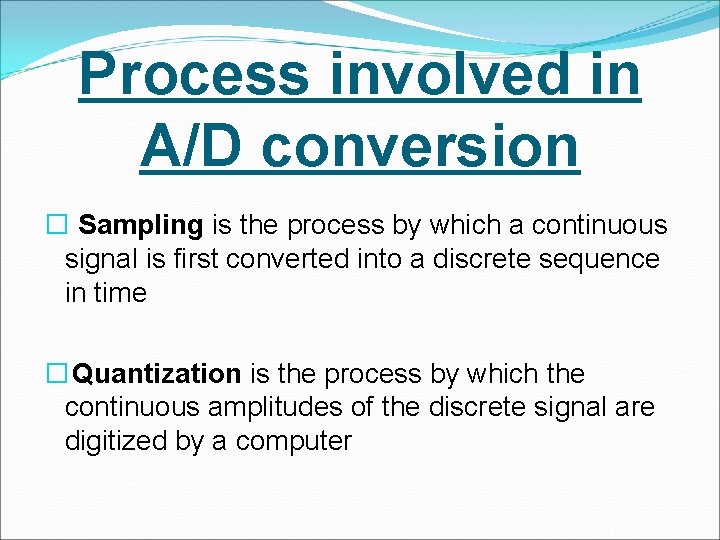

Process involved in A/D conversion � Sampling is the process by which a continuous signal is first converted into a discrete sequence in time � Quantization is the process by which the continuous amplitudes of the discrete signal are digitized by a computer
