Sigfigs Measurement and Significant Figures Every experimental measurement
- Slides: 17
Sig-figs
Measurement and Significant Figures • Every experimental measurement has a degree of uncertainty. • The volume, V, at right is certain in the 10’s place, 10 m. L<V<20 m. L • The 1’s digit is also certain, 17 m. L<V<18 m. L • A best guess is needed for the tenths place. Chapter Two 2

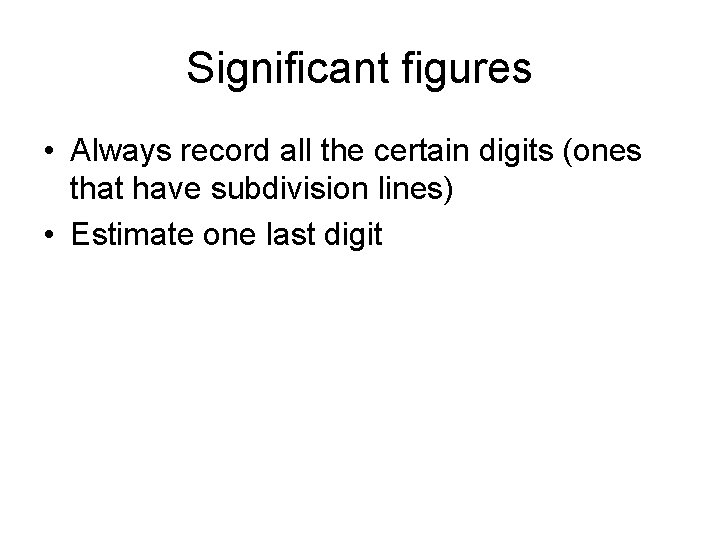

Significant figures • Always record all the certain digits (ones that have subdivision lines) • Estimate one last digit
What is the Length? • • We can see the markings between 1. 6 -1. 7 cm We must estimate between. 6 &. 7 We record 1. 67 cm as our measurement The last digit an 7 was our guess. . . stop there 4
Learning Check What is the length of the wooden stick? 1) 4. 5 cm 2) 4. 54 cm 3) 4. 547 cm
Significant Figures There are 2 different types of numbers – Exact – Measured • Exact numbers don’t have error. – Example: there are 12 = 1 dozen • Measured number are measured with a measuring device so these numbers have ERROR. Chapter Two 6
Learning Check Classify each of the following as an exact or a measured number. 1 yard = 3 feet The diameter of a red blood cell is 6 x 10 -4 cm. There are 6 hats on the shelf. Gold melts at 1064°C. 7
• Sig figs are counted only for measured numbers. • All nonzero digits should be counted as significant. • RULE 1. Zeros in the middle of a number are always significant. – So, 94. 072 g has five significant figures. Chapter Two 8

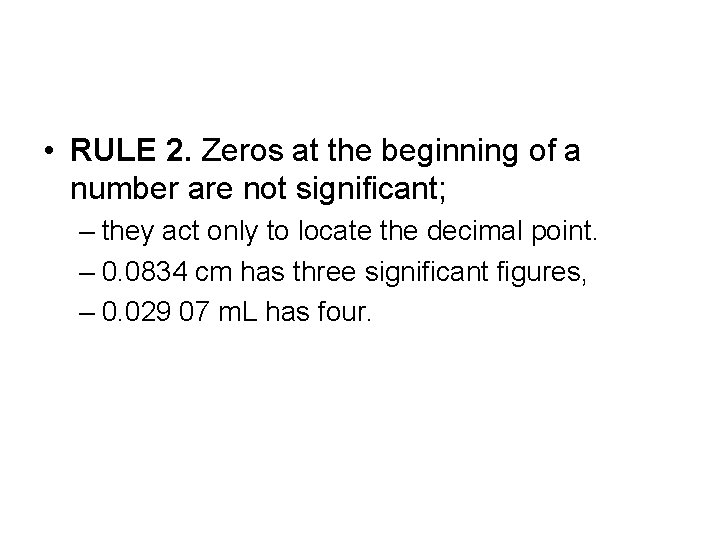

• RULE 2. Zeros at the beginning of a number are not significant; – they act only to locate the decimal point. – 0. 0834 cm has three significant figures, – 0. 029 07 m. L has four.
• RULE 3. Zeros at the end of a number and after the decimal point are significant. – It is assumed that these zeros would not be shown unless they were significant. – 138. 200 m has six significant figures. Chapter Two 10
• RULE 4. Zeros at the end of a number and before a decimal point may or may not be significant. – If the decimal point is shown the zeros are significant. – If the decimal point is not shown the zeros are not. • 17000. vs 17000
Practice Rule #1 Zeros 45. 8736 6 • All digits count 6 . 000239 3 • Leading 0’s don’t 3 . 00023900 5 • Trailing 0’s do 5 48000. 5 • 0’s count w/ decimal 5 48000 2 • 0’s don’t count w/o decimal 2 3. 982 106 4 1. 00040 6 • All digits count 4 • 0’s between digits count as well as trailing in decimal form 6

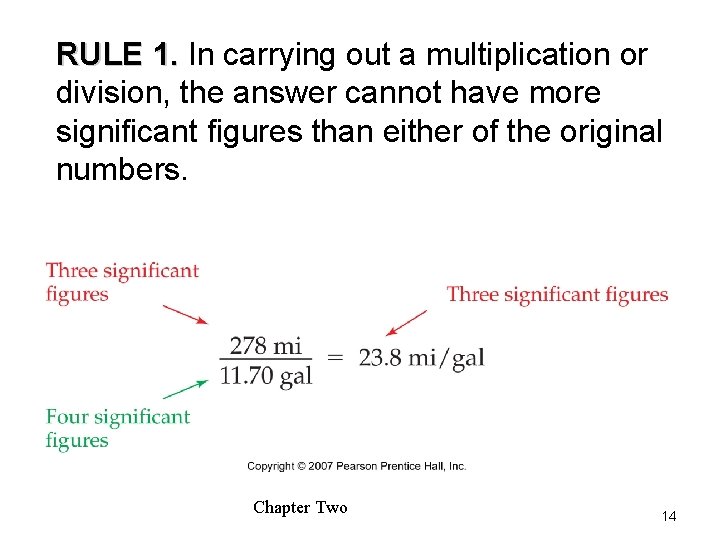

RULE 1. In carrying out a multiplication or division, the answer cannot have more significant figures than either of the original numbers. Chapter Two 14
Multiplication and division 32. 27 1. 54 = 49. 6958 49. 7 3. 68 . 07925 = 46. 4353312 46. 4 1. 750 . 0342000 = 0. 05985 3. 2650 106 4. 858 = 1. 586137 107 1. 586 107 6. 022 1023 1. 661 10 -24 = 1. 000000 1. 000
• RULE 2. In carrying out an addition or subtraction, the answer cannot have more digits after the decimal point than either of the original numbers. Chapter Two 16
Addition and Subtraction. 56 __ +. 153 ___ =. 713 . 71 __ 82000 + 5. 32 = 82005. 32 82005 10. 0 - 9. 8742 =. 12580 . 1 10 – 9. 8742 =. 12580 0 Look for the last important digit
