Siemens Sky Web Local Multipoint Distribution Services Vladimir

Siemens Sky. Web Local Multipoint Distribution Services Vladimir Dimitrov COM TS 20 -Apr-06

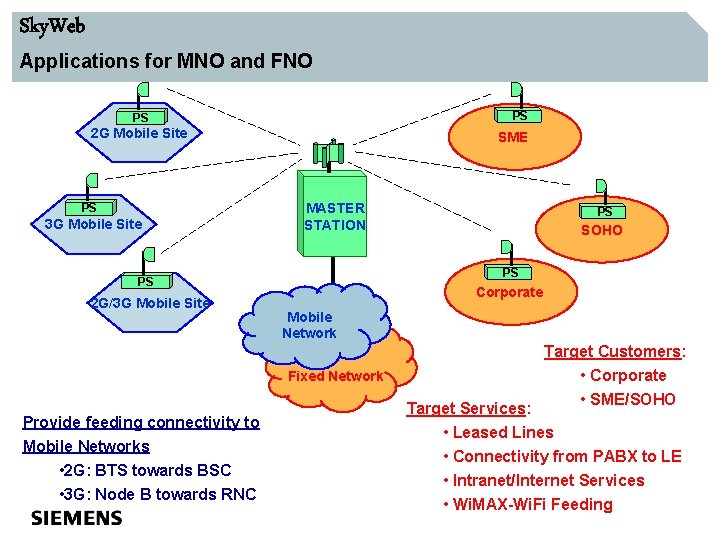

Sky. Web Applications for MNO and FNO PS PS 2 G Mobile Site PS 3 G Mobile Site SME MASTER STATION Corporate Mobile Network Fixed Network Provide feeding connectivity to Mobile Networks • 2 G: BTS towards BSC • 3 G: Node B towards RNC SOHO PS PS 2 G/3 G Mobile Site PS Target Customers: • Corporate Target Services: • Leased Lines • SME/SOHO • Connectivity from PABX to LE • Intranet/Internet Services • Wi. MAX-Wi. Fi Feeding

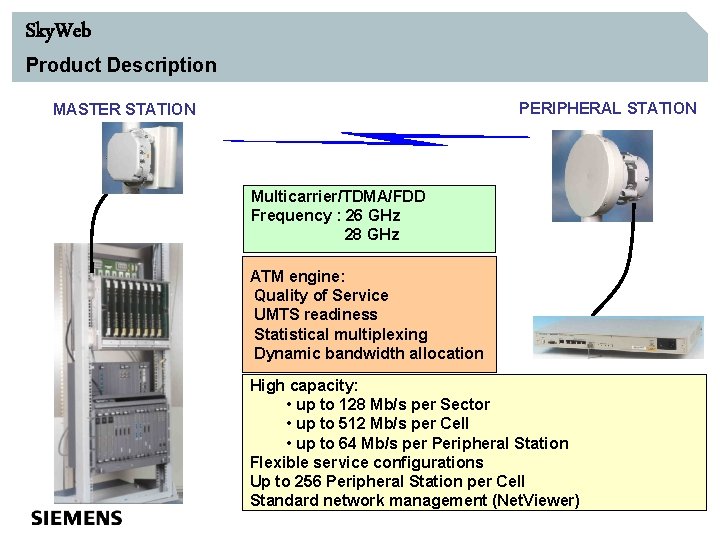

Sky. Web Product Description PERIPHERAL STATION MASTER STATION Multicarrier/TDMA/FDD Frequency : 26 GHz 28 GHz ATM engine: Quality of Service UMTS readiness Statistical multiplexing Dynamic bandwidth allocation High capacity: • up to 128 Mb/s per Sector • up to 512 Mb/s per Cell • up to 64 Mb/s per Peripheral Station Flexible service configurations Up to 256 Peripheral Station per Cell Standard network management (Net. Viewer)

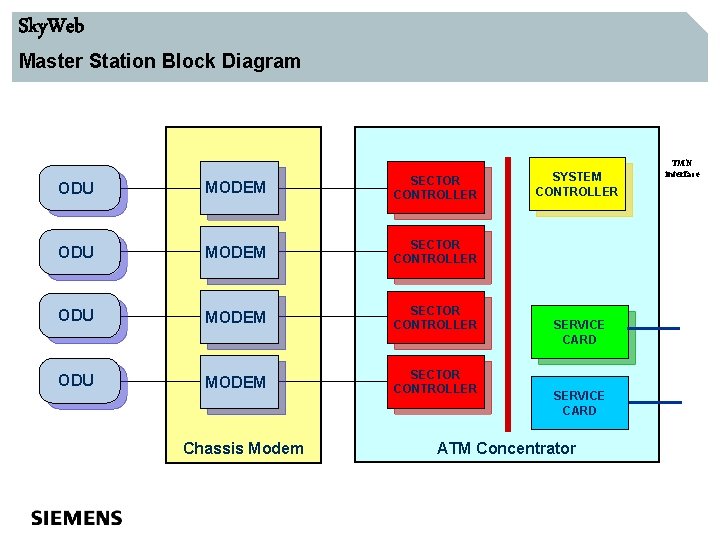

Sky. Web Master Station Block Diagram ODU MODEM SECTOR CONTROLLER Sector Controller ODU ODU MODEM SECTOR CONTROLLER SYSTEM CONTROLLER ATM BUS Local Insertion Sector MODEM SECTOR Controller CONTROLLER SECTOR System Controller CONTROLLER Master Clock SERVICE CARD ATM Trunk Interface SERVICE CARD Control BUS Chassis Modem ATM Concentrator IDU TMN interface

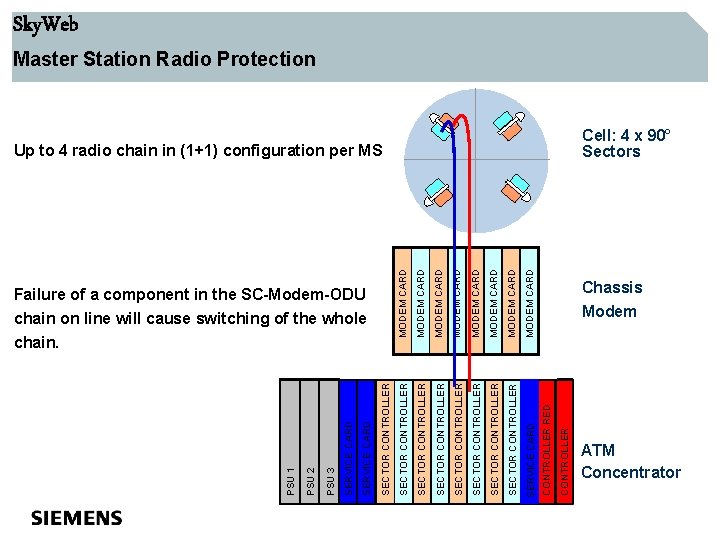

MODEM CARD MODEM CARD SECTOR CONTROLLER SECTOR CONTROLLER SERVICE CARD CONTROLLER RED MODEM CARD Failure of a component in the SC-Modem-ODU chain on line will cause switching of the whole chain. SECTOR CONTROLLER SERVICE CARD PSU 3 PSU 2 PSU 1 Sky. Web Master Station Radio Protection Up to 4 radio chain in (1+1) configuration per MS Cell: 4 x 90° Sectors Chassis Modem ATM Concentrator

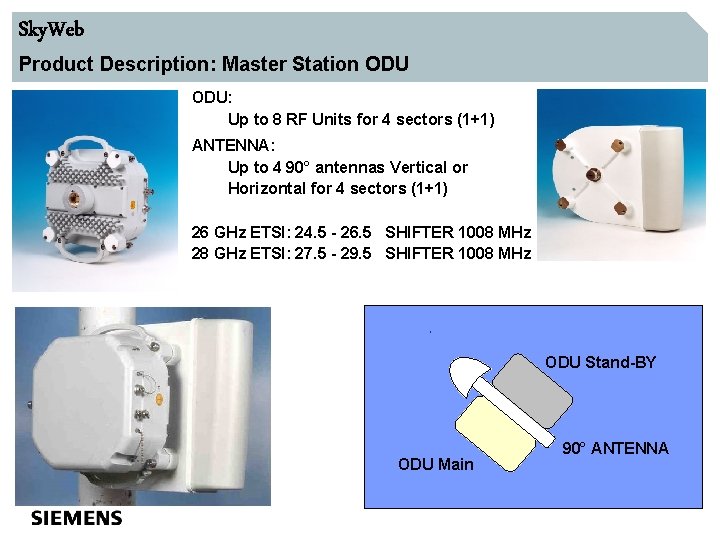

Sky. Web Product Description: Master Station ODU: Up to 8 RF Units for 4 sectors (1+1) ANTENNA: Up to 4 90° antennas Vertical or Horizontal for 4 sectors (1+1) 26 GHz ETSI: 24. 5 - 26. 5 SHIFTER 1008 MHz 28 GHz ETSI: 27. 5 - 29. 5 SHIFTER 1008 MHz ODU Stand-BY ODU Main 90° ANTENNA

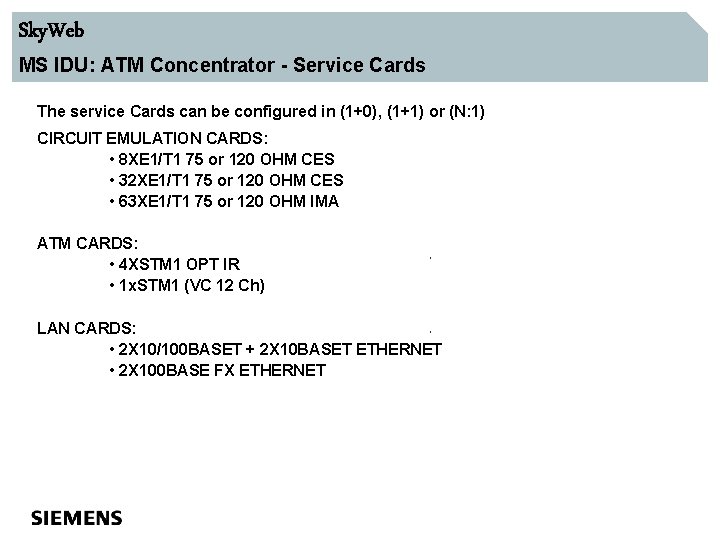

Sky. Web MS IDU: ATM Concentrator - Service Cards The service Cards can be configured in (1+0), (1+1) or (N: 1) CIRCUIT EMULATION CARDS: • 8 XE 1/T 1 75 or 120 OHM CES • 32 XE 1/T 1 75 or 120 OHM CES • 63 XE 1/T 1 75 or 120 OHM IMA ATM CARDS: • 4 XSTM 1 OPT IR • 1 x. STM 1 (VC 12 Ch) LAN CARDS: • 2 X 10/100 BASET + 2 X 10 BASET ETHERNET • 2 X 100 BASE FX ETHERNET

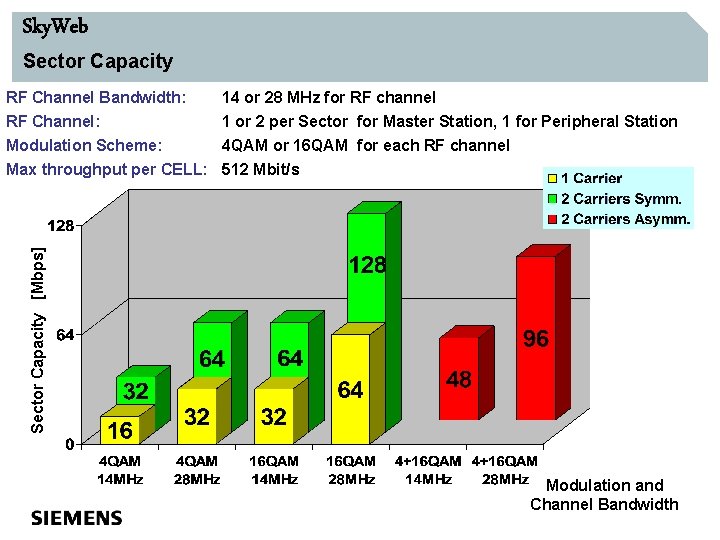

Sky. Web Sector Capacity RF Channel Bandwidth: RF Channel: 14 or 28 MHz for RF channel 1 or 2 per Sector for Master Station, 1 for Peripheral Station Sector Capacity [Mbps] Modulation Scheme: 4 QAM or 16 QAM for each RF channel Max throughput per CELL: 512 Mbit/s Modulation and Channel Bandwidth

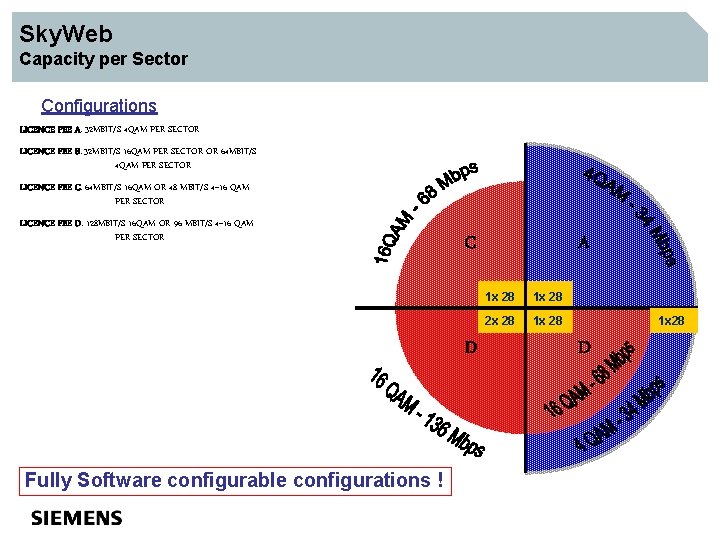

Sky. Web Capacity per Sector Configurations LICENCE FEE A: 32 MBIT/S 4 QAM PER SECTOR LICENCE FEE B: 32 MBIT/S 16 QAM PER SECTOR OR 64 MBIT/S 4 QAM PER SECTOR LICENCE FEE C: 64 MBIT/S 16 QAM OR 48 MBIT/S 4+16 QAM PER SECTOR LICENCE FEE D: 128 MBIT/S 16 QAM OR 96 MBIT/S 4+16 QAM PER SECTOR C D Fully Software configurable configurations ! A 1 x 28 2 x 28 1 x 28 D

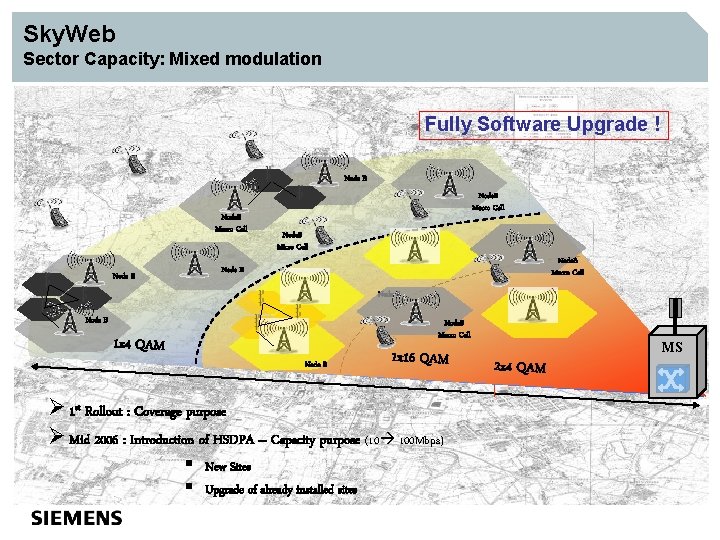

Sky. Web Sector Capacity: Mixed modulation Fully Software Upgrade ! Node B Node. B Macro Cell Node. B Micro Cell Node. B Macro Cell Node B Node. B Macro Cell 1 x 4 QAM Node B 1 x 16 QAM Ø 1 st Rollout : Coverage purpose Ø Mid 2006 : Introduction of HSDPA – Capacity purpose (10 100 Mbps) § § New Sites Upgrade of already installed sites MS 2 x 4 QAM

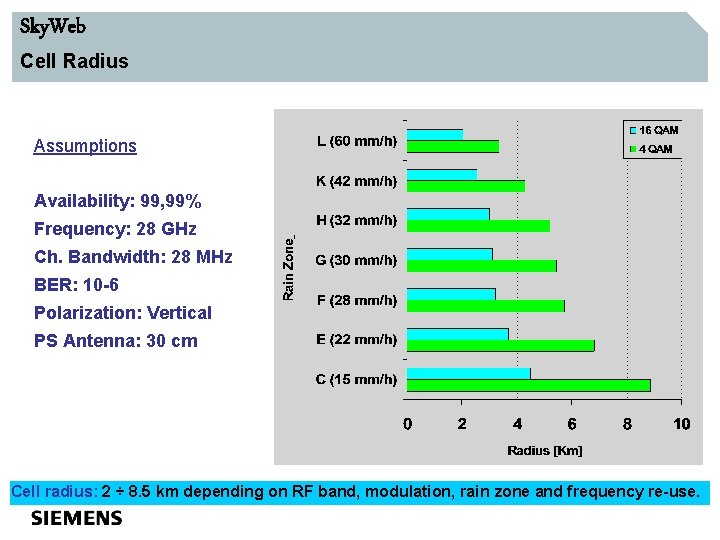

Sky. Web Cell Radius Assumptions Availability: 99, 99% Frequency: 28 GHz Ch. Bandwidth: 28 MHz BER: 10 -6 Polarization: Vertical PS Antenna: 30 cm Cell radius: 2 ÷ 8. 5 km depending on RF band, modulation, rain zone and frequency re-use.

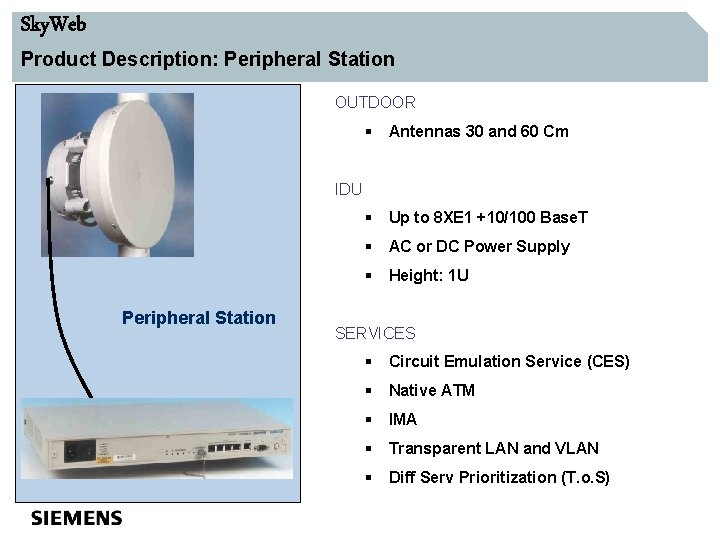

Sky. Web Product Description: Peripheral Station OUTDOOR § Antennas 30 and 60 Cm IDU § Up to 8 XE 1 +10/100 Base. T § AC or DC Power Supply § Height: 1 U Peripheral Station SERVICES § Circuit Emulation Service (CES) 4/8 x. E 1 10/100 Base. T § Native ATM § IMA § Transparent LAN and VLAN § Diff Serv Prioritization (T. o. S)

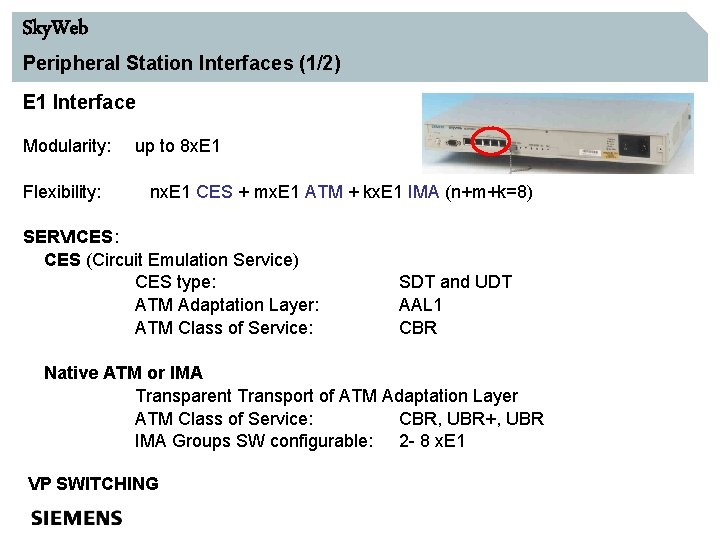

Sky. Web Peripheral Station Interfaces (1/2) E 1 Interface Modularity: Flexibility: up to 8 x. E 1 nx. E 1 CES + mx. E 1 ATM + kx. E 1 IMA (n+m+k=8) SERVICES: CES (Circuit Emulation Service) CES type: ATM Adaptation Layer: ATM Class of Service: SDT and UDT AAL 1 CBR Native ATM or IMA Transparent Transport of ATM Adaptation Layer ATM Class of Service: CBR, UBR+, UBR IMA Groups SW configurable: 2 - 8 x. E 1 VP SWITCHING

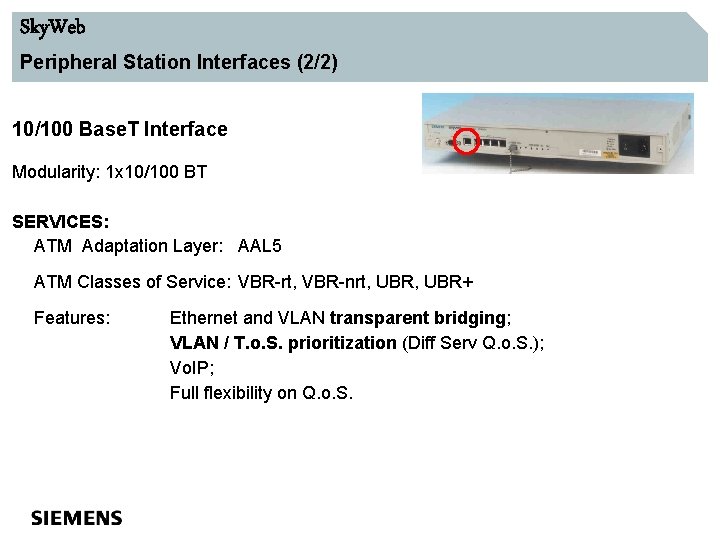

Sky. Web Peripheral Station Interfaces (2/2) 10/100 Base. T Interface Modularity: 1 x 10/100 BT SERVICES: ATM Adaptation Layer: AAL 5 ATM Classes of Service: VBR-rt, VBR-nrt, UBR+ Features: Ethernet and VLAN transparent bridging; VLAN / T. o. S. prioritization (Diff Serv Q. o. S. ); Vo. IP; Full flexibility on Q. o. S.

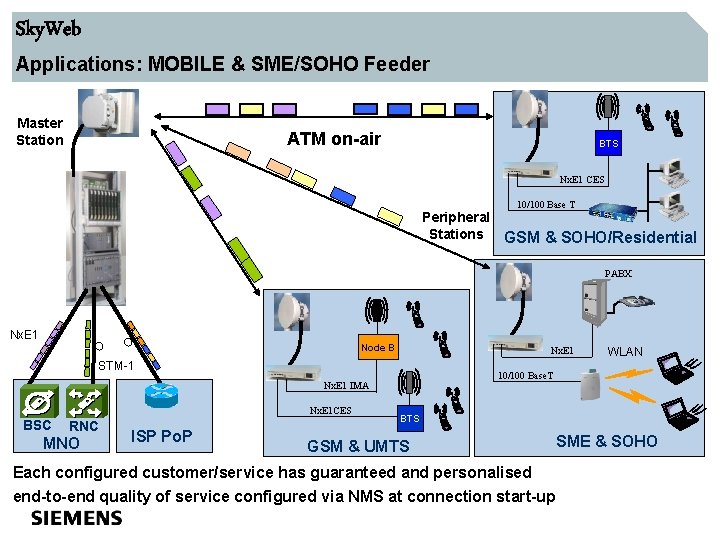

Sky. Web Applications: MOBILE & SME/SOHO Feeder Master Station ATM on-air BTS Nx. E 1 CES 10/100 Base T Peripheral Stations GSM & SOHO/Residential PABX Nx. E 1 Node B Nx. E 1 STM-1 10/100 Base. T Nx. E 1 IMA Nx. E 1 CES BSC RNC MNO ISP Po. P WLAN BTS GSM & UMTS Each configured customer/service has guaranteed and personalised end-to-end quality of service configured via NMS at connection start-up SME & SOHO

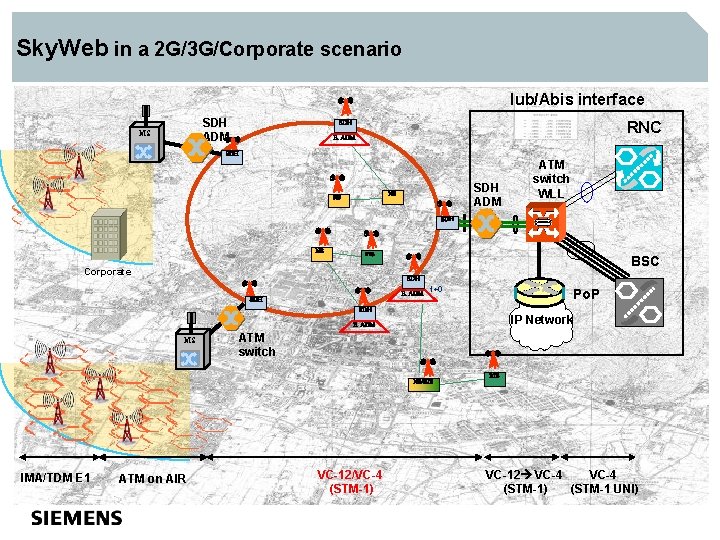

Sky. Web in a 2 G/3 G/Corporate scenario Iub/Abis interface SDH ADM MS SDH RNC E. ADM SDH ADM NB NB ATM switch WLL SDH NB BTS Corporate SDH MS ATM switch BSC SDH E. ADM 1+0 IP Network E. ADM NB/BTS IMA/TDM E 1 ATM on AIR Po. P SDH VC-12/VC-4 (STM-1) BTS VC-12 VC-4 (STM-1) (STM-1 UNI)

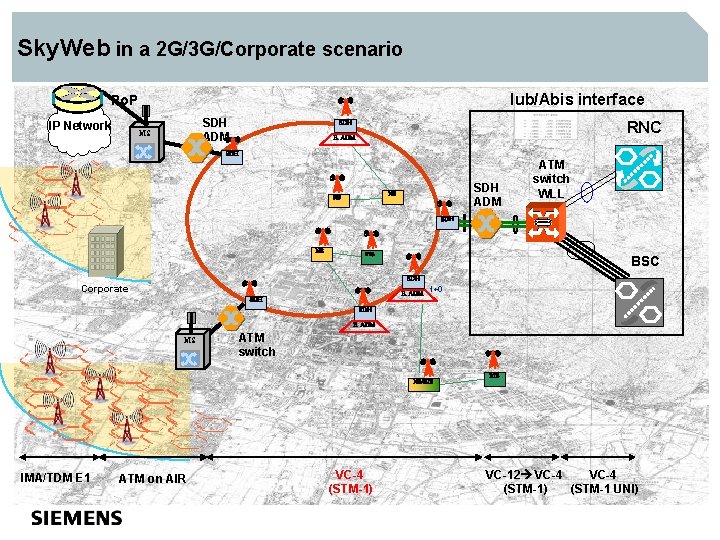

Sky. Web in a 2 G/3 G/Corporate scenario Iub/Abis interface Po. P IP Network SDH ADM MS SDH RNC E. ADM SDH ADM NB NB ATM switch WLL SDH NB BTS SDH E. ADM 1+0 Corporate SDH MS ATM switch BSC SDH E. ADM NB/BTS IMA/TDM E 1 ATM on AIR VC-4 (STM-1) BTS VC-12 VC-4 (STM-1) (STM-1 UNI)

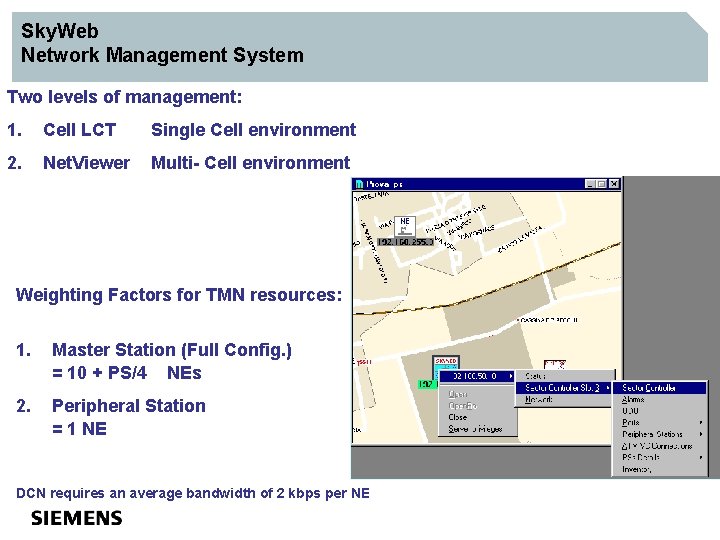

Sky. Web Network Management System Two levels of management: 1. Cell LCT Single Cell environment 2. Net. Viewer Multi- Cell environment Weighting Factors for TMN resources: 1. Master Station (Full Config. ) = 10 + PS/4 NEs 2. Peripheral Station = 1 NE DCN requires an average bandwidth of 2 kbps per NE

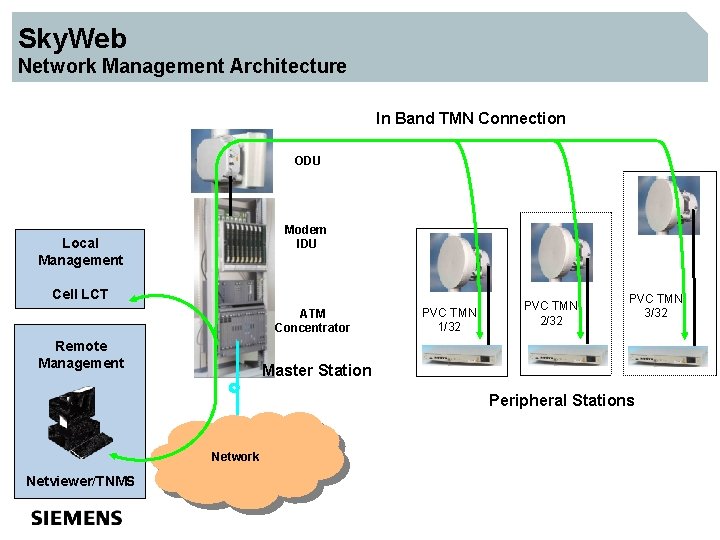

Sky. Web Network Management Architecture In Band TMN Connection ODU Modem IDU Local Management Cell LCT ATM Concentrator Remote Management PVC TMN 1/32 PVC TMN 2/32 PVC TMN 3/32 Master Station Peripheral Stations Network Netviewer/TNMS

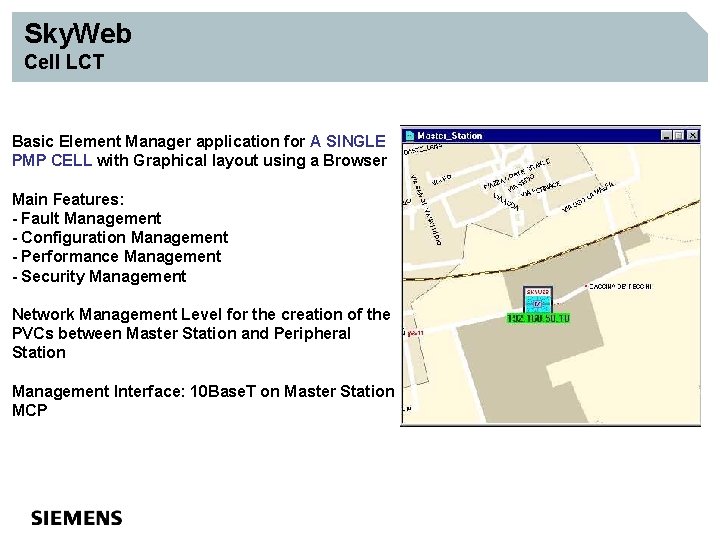

Sky. Web Cell LCT Basic Element Manager application for A SINGLE PMP CELL with Graphical layout using a Browser Main Features: - Fault Management - Configuration Management - Performance Management - Security Management Network Management Level for the creation of the PVCs between Master Station and Peripheral Station Management Interface: 10 Base. T on Master Station MCP

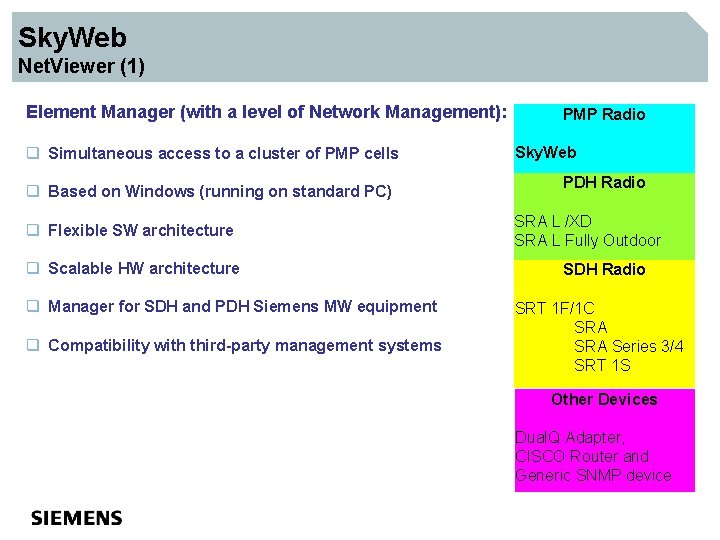

Sky. Web Net. Viewer (1) Element Manager (with a level of Network Management): q Simultaneous access to a cluster of PMP cells q Based on Windows (running on standard PC) q Flexible SW architecture q Scalable HW architecture q Manager for SDH and PDH Siemens MW equipment q Compatibility with third-party management systems PMP Radio Sky. Web PDH Radio SRA L /XD SRA L Fully Outdoor SDH Radio SRT 1 F/1 C SRA Series 3/4 SRT 1 S Other Devices Dual. Q Adapter, CISCO Router and Generic SNMP device

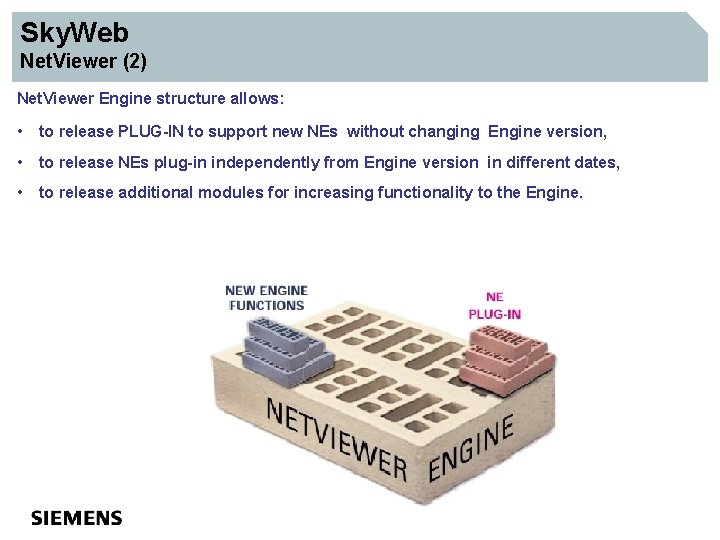

Sky. Web Net. Viewer (2) Net. Viewer Engine structure allows: • to release PLUG-IN to support new NEs without changing Engine version, • to release NEs plug-in independently from Engine version in different dates, • to release additional modules for increasing functionality to the Engine.

Thanks!
