Siemens Automation Cooperates with Education SCE SCE TrainerPackages

Siemens Automation Cooperates with Education (SCE) SCE Trainer-Packages

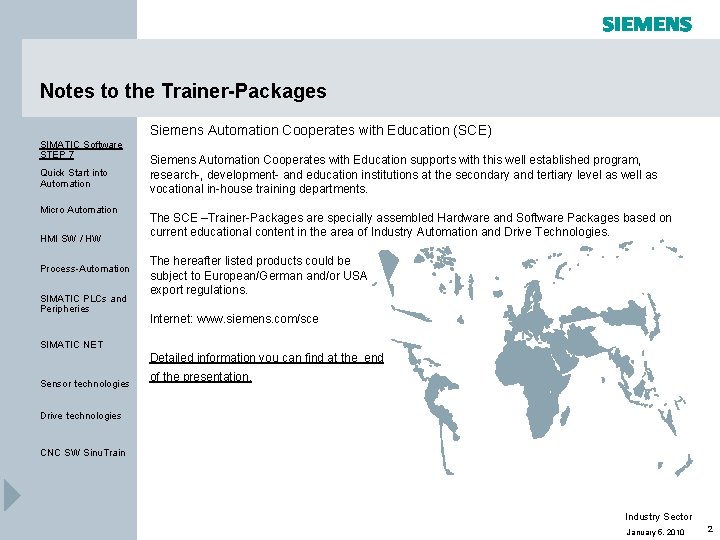

Notes to the Trainer-Packages Siemens Automation Cooperates with Education (SCE) SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries Siemens Automation Cooperates with Education supports with this well established program, research-, development- and education institutions at the secondary and tertiary level as well as vocational in-house training departments. The SCE –Trainer-Packages are specially assembled Hardware and Software Packages based on current educational content in the area of Industry Automation and Drive Technologies. The hereafter listed products could be subject to European/German and/or USA export regulations. Internet: www. siemens. com/sce SIMATIC NET Detailed information you can find at the end Sensor technologies of the presentation. Drive technologies CNC SW Sinu. Train Industry Sector January 5, 2010 2

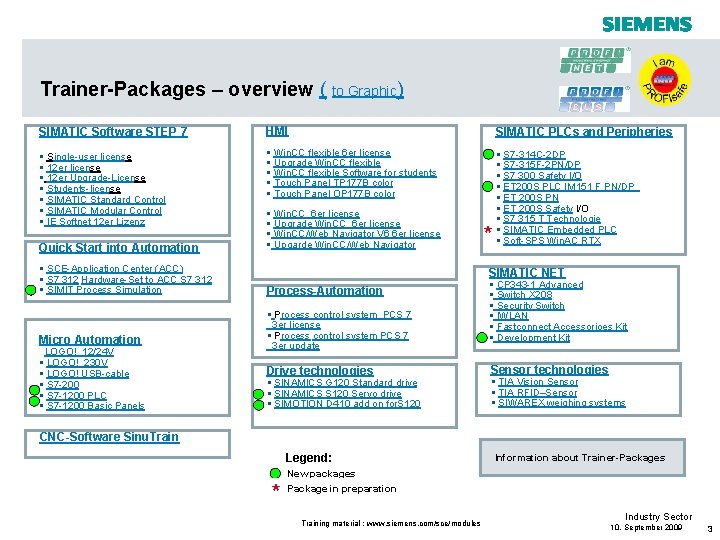

Trainer-Packages – overview ( to Graphic) SIMATIC Software STEP 7 HMI SIMATIC PLCs and Peripheries § Single-user license § 12 er Upgrade-License § Students-license § SIMATIC Standard Control § SIMATIC Modular Control § IE Softnet 12 er Lizenz § Win. CC flexible 6 er license § Upgrade Win. CC flexible § Win. CC flexible Software for students § Touch Panel TP 177 B color § Touch Panel OP 177 B color § S 7 -314 C-2 DP § S 7 -315 F-2 PN/DP § S 7 300 Safety I/O § ET 200 S PLC IM 151 F PN/DP § ET 200 S PN § ET 200 S Safety I/O § S 7 315 T Technologie § SIMATIC Embedded PLC § Soft-SPS Win. AC RTX Quick Start into Automation § Win. CC 6 er license § Upgrade Win. CC 6 er license § Win. CC/Web Navigator V 6 6 er license § Upgarde Win. CC/Web Navigator § SCE-Application Center (ACC) § S 7 312 Hardware-Set to ACC S 7 312 § SIMIT Process Simulation Process-Automation Micro Automation § Process control system PCS 7 3 er license § Process control system PCS 7 3 er update LOGO! 12/24 V § LOGO! 230 V § LOGO! USB-cable § S 7 -200 § S 7 -1200 PLC § S 7 -1200 Basic Panels * SIMATIC NET Drive technologies § SINAMICS G 120 Standard drive § SINAMICS S 120 Servo drive § SIMOTION D 410 add on for. S 120 § CP 343 -1 Advanced § Switch X 208 § Security Switch § IWLAN § Fastconnect Accessorioes Kit § Development Kit Sensor technologies § TIA Vision Sensor § TIA RFID–Sensor § SIWAREX weighing systems CNC-Software Sinu. Train Legend: Information about Trainer-Packages New packages * Package in preparation Training material : www. siemens. com/sce/modules Industry Sector 10. September 2009 3

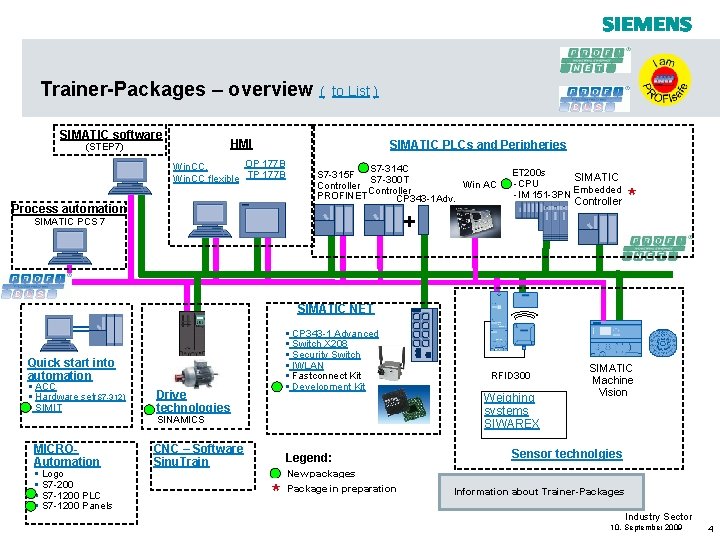

Trainer-Packages – overview ( SIMATIC software to List ) HMI (STEP 7) SIMATIC PLCs and Peripheries OP 177 B Win. CC, Win. CC flexible TP 177 B Process automation S 7 -314 C S 7 -315 F S 7 -300 T Win AC Controller PROFINET CP 343 -1 Adv. ET 200 s SIMATIC -CPU Embedded -IM 151 -3 PN * Controller + SIMATIC PCS 7 SIMATIC NET Quick start into automation § ACC § Hardware set(S 7 -312) § SIMIT Drive technologies § CP 343 -1 Advanced § Switch X 208 § Security Switch § IWLAN § Fastconnect Kit § Development Kit SINAMICS MICROAutomation § Logo § S 7 -200 § S 7 -1200 PLC § S 7 -1200 Panels CNC – Software Sinu. Train Legend: RFID 300 Weighing systems SIWAREX SIMATIC Machine Vision Sensor technolgies New packages * Package in preparation Information about Trainer-Packages Industry Sector 10. September 2009 4

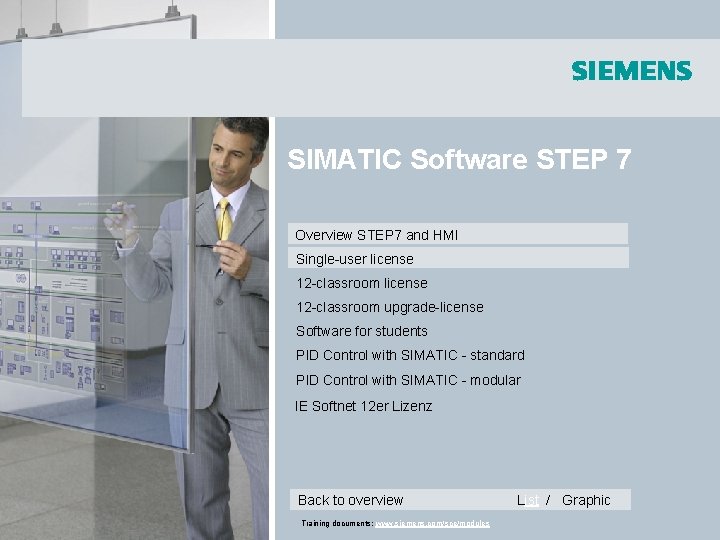

SIMATIC Software STEP 7 Overview STEP 7 and HMI Single-user license 12 -classroom upgrade-license Software for students PID Control with SIMATIC - standard PID Control with SIMATIC - modular IE Softnet 12 er Lizenz Back to overview Training documents: www. siemens. com/sce/modules List / Graphic

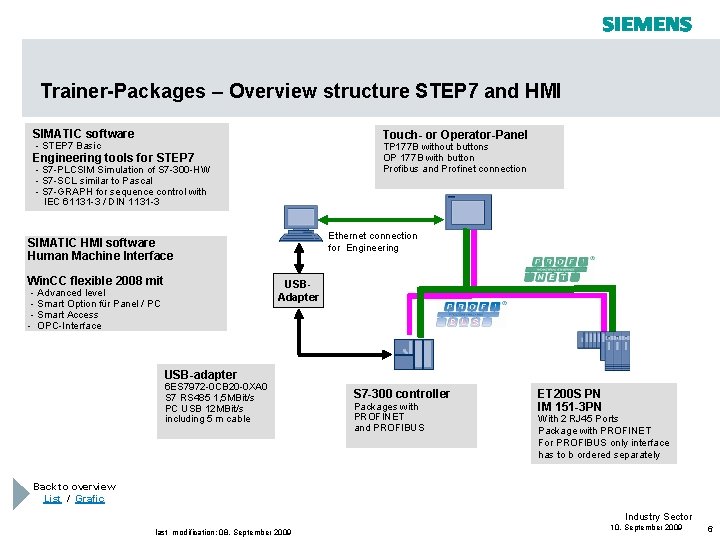

Trainer-Packages – Overview structure STEP 7 and HMI SIMATIC software Touch- or Operator-Panel - STEP 7 Basic TP 177 B without buttons OP 177 B with button Profibus and Profinet connection Engineering tools for STEP 7 - S 7 -PLCSIM Simulation of S 7 -300 -HW - S 7 -SCL similar to Pascal - S 7 -GRAPH for sequence control with IEC 61131 -3 / DIN 1131 -3 Ethernet connection for Engineering SIMATIC HMI software Human Machine Interface Win. CC flexible 2008 mit USBAdapter - Advanced level - Smart Option für Panel / PC - Smart Access - OPC-Interface USB-adapter 6 ES 7972 -0 CB 20 -0 XA 0 S 7 RS 485 1, 5 MBit/s PC USB 12 MBit/s including 5 m cable S 7 -300 controller Packages with PROFINET and PROFIBUS ET 200 S PN IM 151 -3 PN With 2 RJ 45 Ports Package with PROFINET For PROFIBUS only interface has to b ordered separately Back to overview List / Grafic Industry Sector last modification: 08. September 2009 10. September 2009 6

SIMATIC STEP 7 Professional - single-user license SIMATIC Software STEP 7 Software for Training 2006 (Trainer Package) 1 x STEP 7 Professional 2006 SR 6 STEP 7 V 5. 4 incl. SP 5 S 7 -GRAPH V 5. 3 incl. SP 6 S 7 -SCL V 5. 3 incl. SP 5 S 7 -PLCSIM V 5. 4 incl. SP 3 Iidentical to the industry STEP 7 Professional System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: Back to overview List / Grafic Order number: 6 ES 7810 -5 CC 10 -4 YA 5 L price: 330, - EUR Industry Sector last modification: 08. September 2009 10. September 2009 7

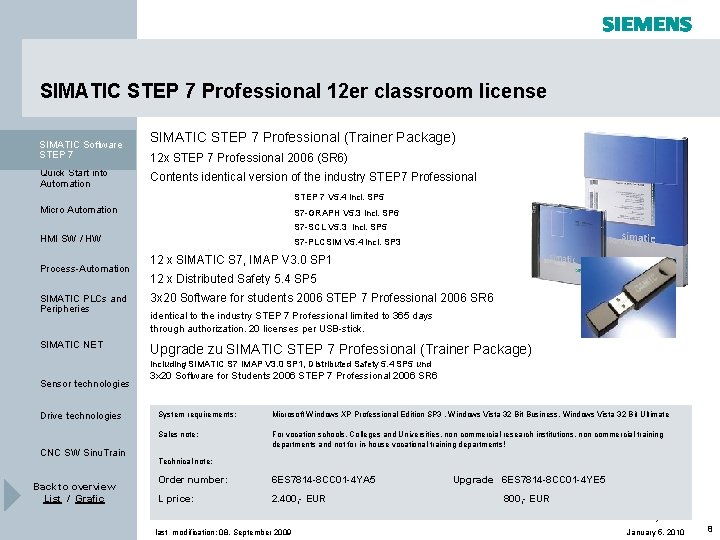

SIMATIC STEP 7 Professional 12 er classroom license SIMATIC Software STEP 7 Quick Start into Automation SIMATIC STEP 7 Professional (Trainer Package) 12 x STEP 7 Professional 2006 (SR 6) Contents identical version of the industry STEP 7 Professional STEP 7 V 5. 4 incl. SP 5 Micro Automation S 7 -GRAPH V 5. 3 incl. SP 6 S 7 -SCL V 5. 3 incl. SP 5 HMI SW / HW Process-Automation S 7 -PLCSIM V 5. 4 incl. SP 3 12 x SIMATIC S 7, IMAP V 3. 0 SP 1 12 x Distributed Safety 5. 4 SP 5 SIMATIC PLCs and Peripheries 3 x 20 Software for students 2006 STEP 7 Professional 2006 SR 6 SIMATIC NET Upgrade zu SIMATIC STEP 7 Professional (Trainer Package) identical to the industry STEP 7 Professional limited to 365 days through authorization. 20 licenses per USB-stick. including SIMATIC S 7 IMAP V 3. 0 SP 1, Distributed Safety 5. 4 SP 5 und Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic 3 x 20 Software for Students 2006 STEP 7 Professional 2006 SR 6 System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocation schools, Colleges and Universities, non commercial research institutions, non commercial training departments and not for in-house vocational training departments! Technical note: Order number: 6 ES 7814 -8 CC 01 -4 YA 5 L price: 2. 400, - EUR Upgrade 6 ES 7814 -8 CC 01 -4 YE 5 800, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 8

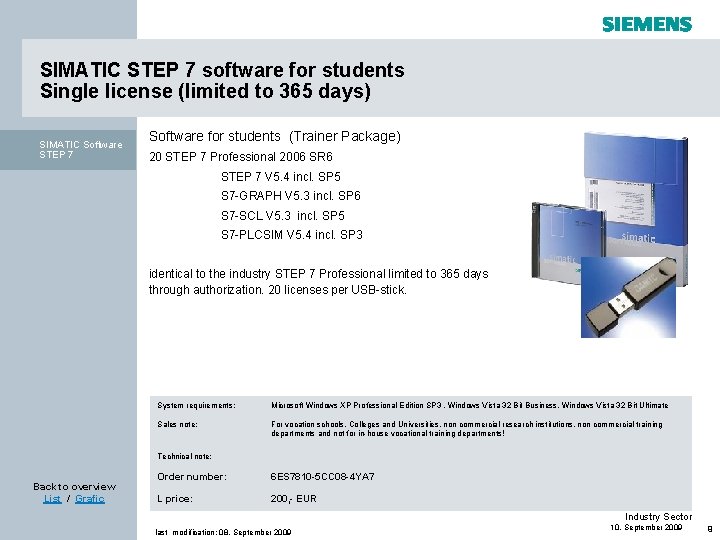

SIMATIC STEP 7 software for students Single license (limited to 365 days) SIMATIC Software STEP 7 Software for students (Trainer Package) 20 STEP 7 Professional 2006 SR 6 STEP 7 V 5. 4 incl. SP 5 S 7 -GRAPH V 5. 3 incl. SP 6 S 7 -SCL V 5. 3 incl. SP 5 S 7 -PLCSIM V 5. 4 incl. SP 3 identical to the industry STEP 7 Professional limited to 365 days through authorization. 20 licenses per USB-stick. System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocation schools, Colleges and Universities, non commercial research institutions, non commercial training departments and not for in-house vocational training departments! Technical note: Back to overview List / Grafic Order number: 6 ES 7810 -5 CC 08 -4 YA 7 L price: 200, - EUR Industry Sector last modification: 08. September 2009 10. September 2009 9

SIMATIC S 7 PID Control with SIMATIC – Standard and Modular SIMATIC Software STEP 7 SIMATIC S 7 PID-control for 6 licenses Standard-control consisting of: 6 x parameterization setting software Version 5. 1 6 x function block Version 5. 1 Integration continuous PID controller, impulse controller, step controller into the Step 7 application program starting from PLC SIMATIC S 7 -313. Modular control consisting of: 6 x Start-up-tool Version 5. 0 6 x function block Version 5. 0 Extended features when used with the Standard-Modul starting from PLC SIMATIC S 7 -313. Each package contains additionally 6 x PID Self-Tuner V 5. 0 for Online-parameterization and Online-adaption while the application is running. Back to overview List / Grafic System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: Standard 6 ES 7860 -2 AA 00 -4 YX 0 Modular 6 ES 7860 -1 AA 00 -4 YX 0 L price: 890, - EUR Industry Sector last modification: 08. September 2009 10

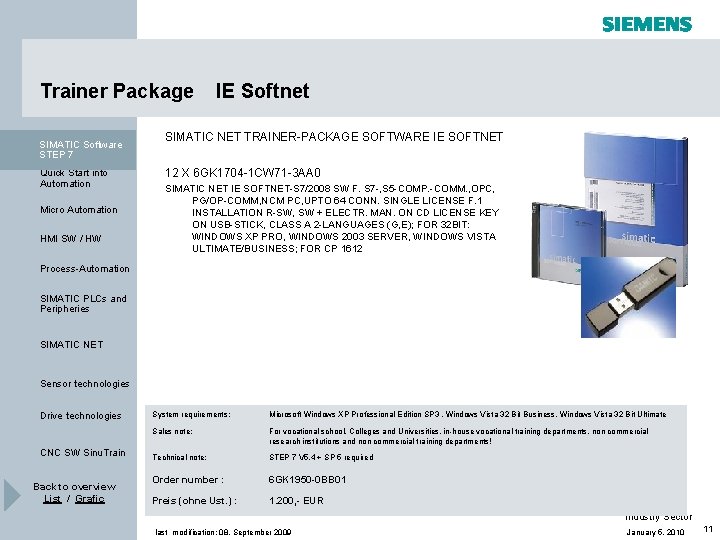

Trainer Package SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW IE Softnet SIMATIC NET TRAINER-PACKAGE SOFTWARE IE SOFTNET 12 X 6 GK 1704 -1 CW 71 -3 AA 0 SIMATIC NET IE SOFTNET-S 7/2008 SW F. S 7 -, S 5 -COMP. -COMM. , OPC, PG/OP-COMM, NCM PC, UPTO 64 CONN. SINGLE LICENSE F. 1 INSTALLATION R-SW, SW + ELECTR. MAN. ON CD LICENSE KEY ON USB-STICK, CLASS A 2 -LANGUAGES (G, E); FOR 32 BIT: WINDOWS XP PRO, WINDOWS 2003 SERVER, WINDOWS VISTA ULTIMATE/BUSINESS; FOR CP 1612 Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number : 6 GK 1950 -0 BB 01 Preis (ohne Ust. ) : 1. 200, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 11

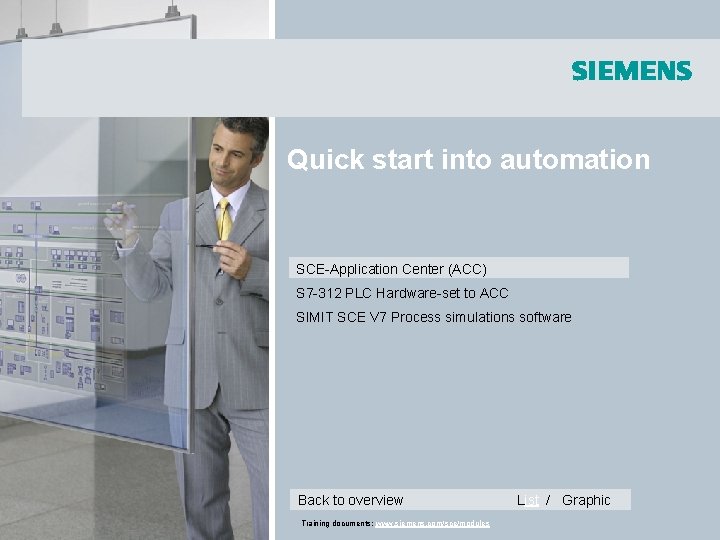

Quick start into automation SCE-Application Center (ACC) S 7 -312 PLC Hardware-set to ACC SIMIT SCE V 7 Process simulations software Back to overview Training documents: www. siemens. com/sce/modules List / Graphic

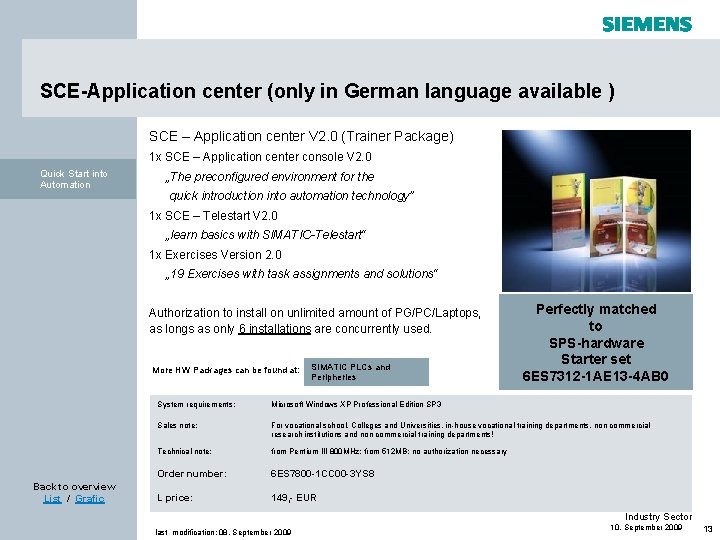

SCE-Application center (only in German language available ) SCE – Application center V 2. 0 (Trainer Package) 1 x SCE – Application center console V 2. 0 Quick Start into Automation „The preconfigured environment for the quick introduction into automation technology” 1 x SCE – Telestart V 2. 0 „learn basics with SIMATIC-Telestart“ 1 x Exercises Version 2. 0 „ 19 Exercises with task assignments and solutions“ Authorization to install on unlimited amount of PG/PC/Laptops, as longs as only 6 installations are concurrently used. More HW Packages can be found at: Back to overview List / Grafic SIMATIC PLCs and Peripheries Perfectly matched to SPS-hardware Starter set 6 ES 7312 -1 AE 13 -4 AB 0 System requirements: Microsoft Windows XP Professional Edition SP 3 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: from Pentium III 800 MHz; from 512 MB; no authorization necessary Order number: 6 ES 7800 -1 CC 00 -3 YS 8 L price: 149, - EUR Industry Sector last modification: 08. September 2009 10. September 2009 13

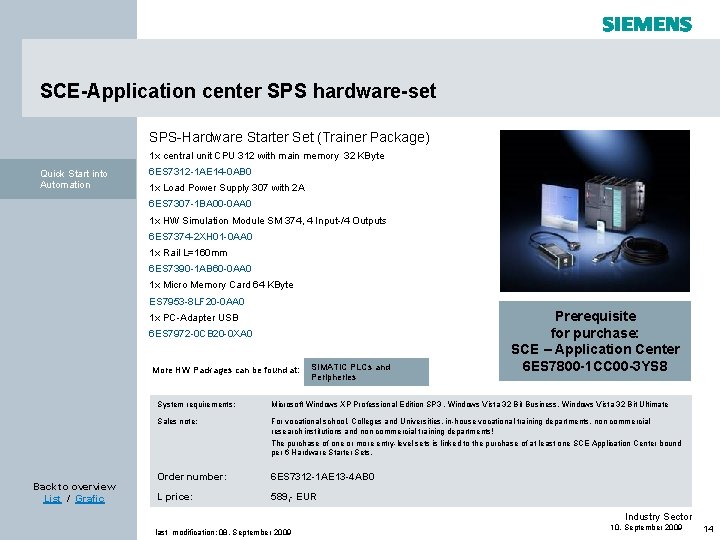

SCE-Application center SPS hardware-set SPS-Hardware Starter Set (Trainer Package) 1 x central unit CPU 312 with main memory 32 KByte Quick Start into Automation 6 ES 7312 -1 AE 14 -0 AB 0 1 x Load Power Supply 307 with 2 A 6 ES 7307 -1 BA 00 -0 AA 0 1 x HW Simulation Module SM 374, 4 Input-/4 Outputs 6 ES 7374 -2 XH 01 -0 AA 0 1 x Rail L=160 mm 6 ES 7390 -1 AB 60 -0 AA 0 1 x Micro Memory Card 64 KByte ES 7953 -8 LF 20 -0 AA 0 1 x PC-Adapter USB 6 ES 7972 -0 CB 20 -0 XA 0 More HW Packages can be found at: SIMATIC PLCs and Peripheries Prerequisite for purchase: SCE – Application Center 6 ES 7800 -1 CC 00 -3 YS 8 System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! The purchase of one or more entry-level sets is linked to the purchase of at least one SCE Application Center bound per 6 Hardware Starter Sets. Back to overview List / Grafic Order number: 6 ES 7312 -1 AE 13 -4 AB 0 L price: 589, - EUR Industry Sector last modification: 08. September 2009 10. September 2009 14

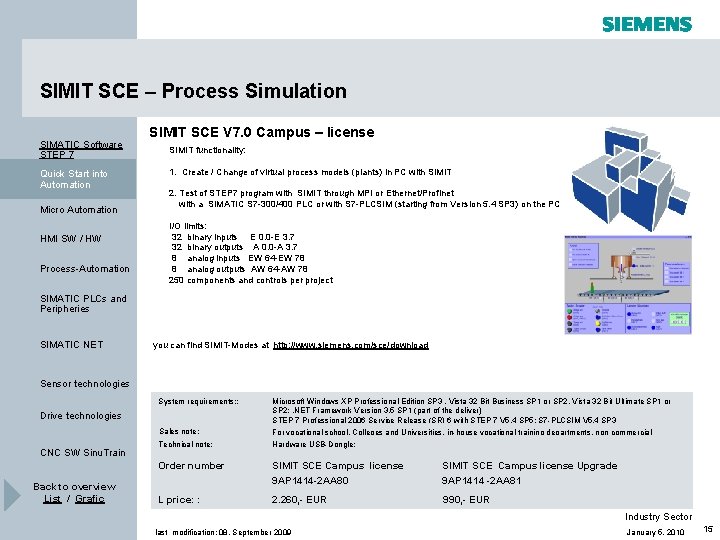

SIMIT SCE – Process Simulation SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation SIMIT SCE V 7. 0 Campus – license SIMIT functionality: 1. Create / Change of virtual process models (plants) in PC with SIMIT 2. Test of STEP 7 program with SIMIT through MPI or Ethernet/Profinet with a SIMATIC S 7 -300/400 PLC or with S 7 -PLCSIM (starting from Version 5. 4 SP 3) on the PC I/O limits: 32 binary inputs E 0. 0 -E 3. 7 32 binary outputs A 0. 0 -A 3. 7 8 analog inputs EW 64 -EW 78 8 analog outputs AW 64 -AW 78 250 components and controls per project SIMATIC PLCs and Peripheries SIMATIC NET you can find SIMIT-Modes at http: //www. siemens. com/sce/download Sensor technologies System requirements: : Microsoft Windows XP Professional Edition SP 3 , Vista 32 Bit Business SP 1 or SP 2, Vista 32 Bit Ultimate SP 1 or SP 2; . NET Framework Version 3. 5 SP 1 (part of the deliver) STEP 7 Professional 2006 Service Release (SR) 6 with STEP 7 V 5. 4 SP 5; S 7 -PLCSIM V 5. 4 SP 3 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Hardware USB-Dongle; Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Technical note: Order number SIMIT SCE Campus license 9 AP 1414 -2 AA 80 SIMIT SCE Campus license Upgrade 9 AP 1414 -2 AA 81 L price: : 2. 260, - EUR 990, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 15

SIMIT SCE – use cases SIMATIC Software STEP 7 Teacher at school „X“ free exchange of archived SIMIT-Models Teacher at school „Y“ Quick Start into Automation Micro Automation HMI SW / HW Process-Automation Dongel owner: § Create, adapt, export and share models § Generation of the executable simulation model for the students with password for the unlimited use at the own campus SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Executable Simulation model With unlimited users Drive technologies CNC SW Sinu. Train Students Test of a Step 7 application program Back to overview List / Grafic Students Test of a Step 7 application program Industry Sector last modification: 08. September 2009 January 5, 2010 16

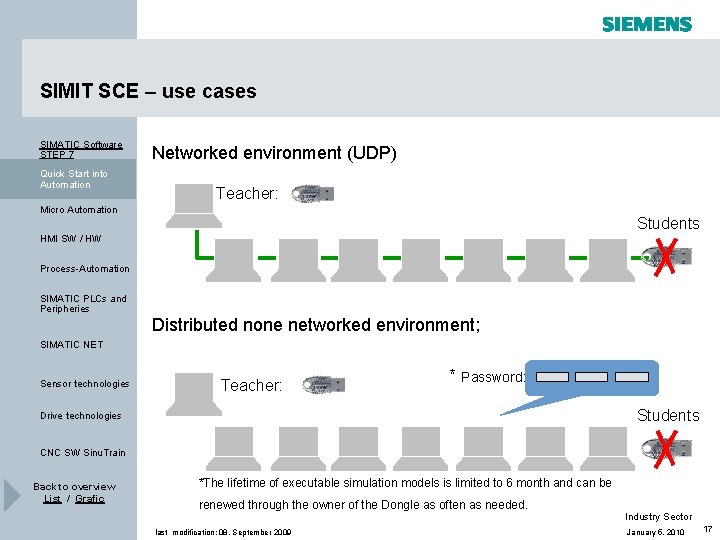

SIMIT SCE – use cases SIMATIC Software STEP 7 Quick Start into Automation Networked environment (UDP) Teacher: Micro Automation Students HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries Distributed none networked environment; SIMATIC NET Sensor technologies Teacher: * Password: Students Drive technologies CNC SW Sinu. Train Back to overview List / Grafic *The lifetime of executable simulation models is limited to 6 month and can be renewed through the owner of the Dongle as often as needed. last modification: 08. September 2009 Industry Sector January 5, 2010 17

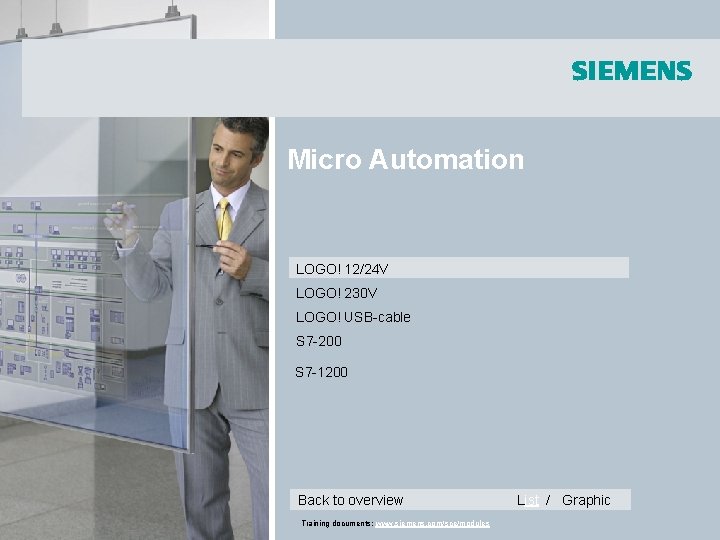

Micro Automation LOGO! 12/24 V LOGO! 230 V LOGO! USB-cable S 7 -200 S 7 -1200 Back to overview Training documents: www. siemens. com/sce/modules List / Graphic

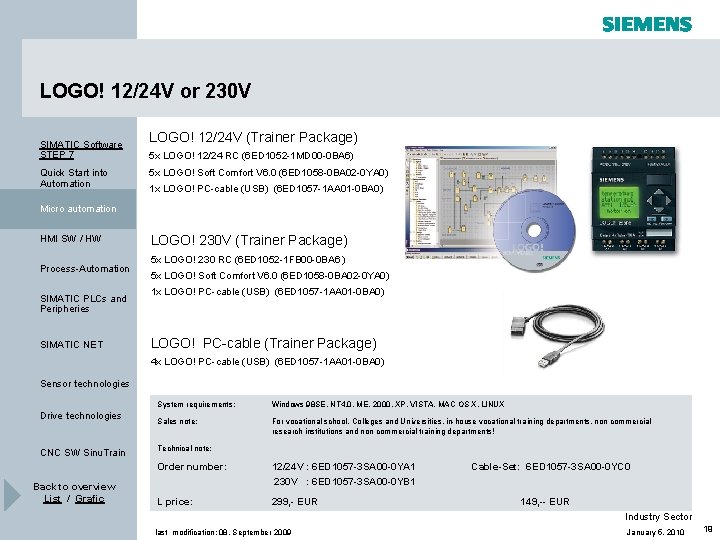

LOGO! 12/24 V or 230 V SIMATIC Software STEP 7 Quick Start into Automation LOGO! 12/24 V (Trainer Package) 5 x LOGO! 12/24 RC (6 ED 1052 -1 MD 00 -0 BA 6) 5 x LOGO! Soft Comfort V 6. 0 (6 ED 1058 -0 BA 02 -0 YA 0) 1 x LOGO! PC-cable (USB) (6 ED 1057 -1 AA 01 -0 BA 0) Micro automation Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET LOGO! 230 V (Trainer Package) 5 x LOGO! 230 RC (6 ED 1052 -1 FB 00 -0 BA 6 ) 5 x LOGO! Soft Comfort V 6. 0 (6 ED 1058 -0 BA 02 -0 YA 0) 1 x LOGO! PC-cable (USB) (6 ED 1057 -1 AA 01 -0 BA 0) LOGO! PC-cable (Trainer Package) 4 x LOGO! PC-cable (USB) (6 ED 1057 -1 AA 01 -0 BA 0) Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic System requirements: Windows 98 SE, NT 4. 0, ME, 2000, XP, VISTA, MAC OS X, LINUX Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: Order number: 12/24 V : 6 ED 1057 -3 SA 00 -0 YA 1 230 V : 6 ED 1057 -3 SA 00 -0 YB 1 L price: 299, - EUR Cable-Set: 6 ED 1057 -3 SA 00 -0 YC 0 149, -- EUR Industry Sector last modification: 08. September 2009 January 5, 2010 19

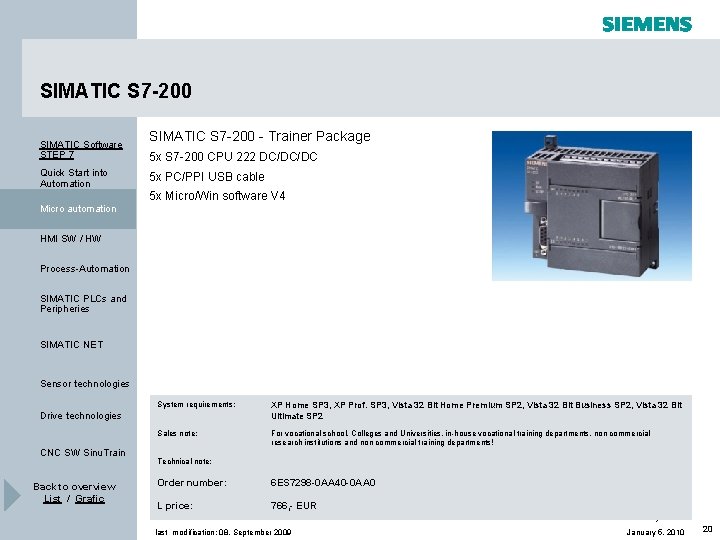

SIMATIC S 7 -200 SIMATIC Software STEP 7 Quick Start into Automation SIMATIC S 7 -200 - Trainer Package 5 x S 7 -200 CPU 222 DC/DC/DC 5 x PC/PPI USB cable 5 x Micro/Win software V 4 Micro automation Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies System requirements: XP Home SP 3, XP Prof. SP 3, Vista 32 Bit Home Premium SP 2, Vista 32 Bit Business SP 2, Vista 32 Bit Ultimate SP 2 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Technical note: Order number: 6 ES 7298 -0 AA 40 -0 AA 0 L price: 766, - EUR last modification: 08. September 2009 Industry Sector January 5, 2010 20

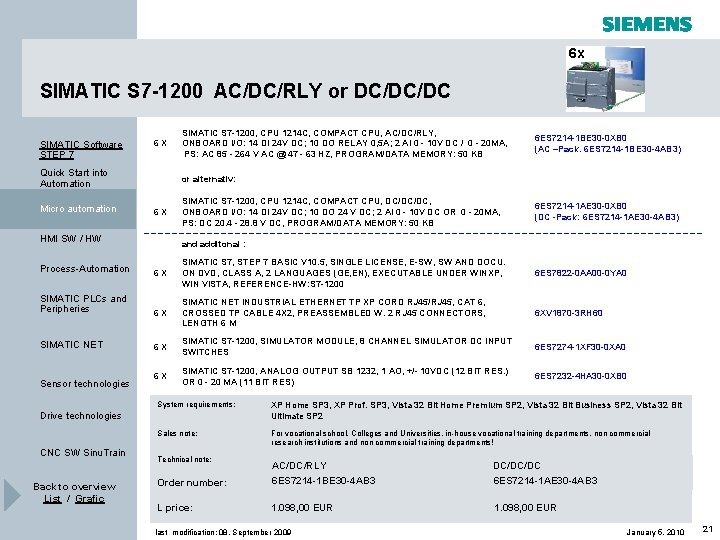

6 x SIMATIC S 7 -1200 AC/DC/RLY or DC/DC/DC SIMATIC Software STEP 7 6 X Quick Start into Automation Micro automation Automation SIMATIC S 7 -1200, CPU 1214 C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 14 DI 24 V DC; 10 DO RELAY 0, 5 A; 2 AI 0 - 10 V DC / 0 - 20 MA, PS: AC 85 - 264 V AC @ 47 - 63 HZ, PROGRAM/DATA MEMORY: 50 KB 6 ES 7214 -1 BE 30 -0 XB 0 (AC –Pack. 6 ES 7214 -1 BE 30 -4 AB 3) or alternativ: 6 X HMI SW / HW SIMATIC S 7 -1200, CPU 1214 C, COMPACT CPU, DC/DC/DC, ONBOARD I/O: 14 DI 24 V DC; 10 DO 24 V DC; 2 AI 0 - 10 V DC OR 0 - 20 MA, PS: DC 20. 4 - 28. 8 V DC, PROGRAM/DATA MEMORY: 50 KB 6 ES 7214 -1 AE 30 -0 XB 0 (DC -Pack: 6 ES 7214 -1 AE 30 -4 AB 3) and additonal : Process-Automation 6 X SIMATIC S 7, STEP 7 BASIC V 10. 5, SINGLE LICENSE, E-SW, SW AND DOCU. ON DVD, CLASS A, 2 LANGUAGES (GE, EN), EXECUTABLE UNDER WINXP, WIN VISTA, REFERENCE-HW: S 7 -1200 6 ES 7822 -0 AA 00 -0 YA 0 SIMATIC PLCs and Peripheries 6 X SIMATIC NET INDUSTRIAL ETHERNET TP XP CORD RJ 45/RJ 45, CAT 6, CROSSED TP CABLE 4 X 2, PREASSEMBLED W. 2 RJ 45 CONNECTORS, LENGTH 6 M 6 XV 1870 -3 RH 60 SIMATIC NET 6 X SIMATIC S 7 -1200, SIMULATOR MODULE, 8 CHANNEL SIMULATOR DC INPUT SWITCHES 6 ES 7274 -1 XF 30 -0 XA 0 6 X SIMATIC S 7 -1200, ANALOG OUTPUT SB 1232, 1 AO, +/- 10 VDC (12 BIT RES. ) OR 0 - 20 MA (11 BIT RES) 6 ES 7232 -4 HA 30 -0 XB 0 Sensor technologies System requirements: XP Home SP 3, XP Prof. SP 3, Vista 32 Bit Home Premium SP 2, Vista 32 Bit Business SP 2, Vista 32 Bit Ultimate SP 2 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: Autorisierung auf USB-Stick Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Order number: AC/DC/RLY 6 ES 7214 -1 BE 30 -4 AB 3 DC/DC/DC 6 ES 7214 -1 AE 30 -4 AB 3 L price: 1. 098, 00 EUR last modification: 08. September 2009 Industry Sector January 5, 2010 21

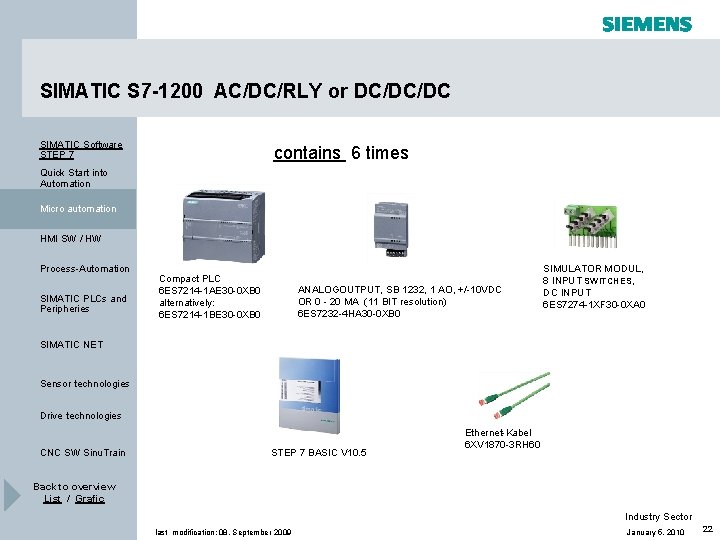

SIMATIC S 7 -1200 AC/DC/RLY or DC/DC/DC SIMATIC Software STEP 7 contains 6 times Quick Start into Automation Micro automation Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries Compact PLC 6 ES 7214 -1 AE 30 -0 XB 0 alternatively: 6 ES 7214 -1 BE 30 -0 XB 0 ANALOGOUTPUT, SB 1232, 1 AO, +/-10 VDC OR 0 - 20 MA (11 BIT resolution) 6 ES 7232 -4 HA 30 -0 XB 0 SIMULATOR MODUL, 8 INPUT SWITCHES, DC INPUT 6 ES 7274 -1 XF 30 -0 XA 0 SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train STEP 7 BASIC V 10. 5 Ethernet-Kabel 6 XV 1870 -3 RH 60 Back to overview List / Grafic Industry Sector last modification: 08. September 2009 January 5, 2010 22

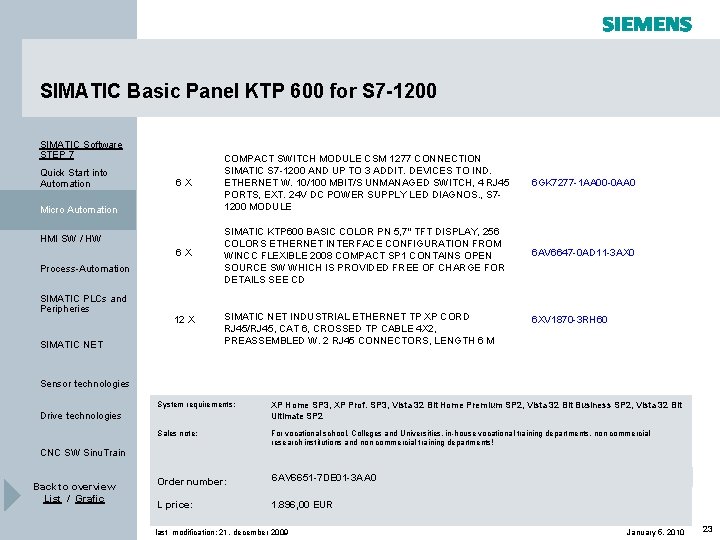

SIMATIC Basic Panel KTP 600 for S 7 -1200 SIMATIC Software STEP 7 Quick Start into Automation 6 X COMPACT SWITCH MODULE CSM 1277 CONNECTION SIMATIC S 7 -1200 AND UP TO 3 ADDIT. DEVICES TO IND. ETHERNET W. 10/100 MBIT/S UNMANAGED SWITCH, 4 RJ 45 PORTS, EXT. 24 V DC POWER SUPPLY LED DIAGNOS. , S 71200 MODULE 6 GK 7277 -1 AA 00 -0 AA 0 6 X SIMATIC KTP 600 BASIC COLOR PN 5, 7" TFT DISPLAY, 256 COLORS ETHERNET INTERFACE CONFIGURATION FROM WINCC FLEXIBLE 2008 COMPACT SP 1 CONTAINS OPEN SOURCE SW WHICH IS PROVIDED FREE OF CHARGE FOR DETAILS SEE CD 6 AV 6647 -0 AD 11 -3 AX 0 Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries 12 X SIMATIC NET INDUSTRIAL ETHERNET TP XP CORD RJ 45/RJ 45, CAT 6, CROSSED TP CABLE 4 X 2, PREASSEMBLED W. 2 RJ 45 CONNECTORS, LENGTH 6 M 6 XV 1870 -3 RH 60 Sensor technologies System requirements: XP Home SP 3, XP Prof. SP 3, Vista 32 Bit Home Premium SP 2, Vista 32 Bit Business SP 2, Vista 32 Bit Ultimate SP 2 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Order number: 6 AV 6651 -7 DE 01 -3 AA 0 L price: 1. 896, 00 EUR Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Industry Sector last modification: 21. december 2009 January 5, 2010 23

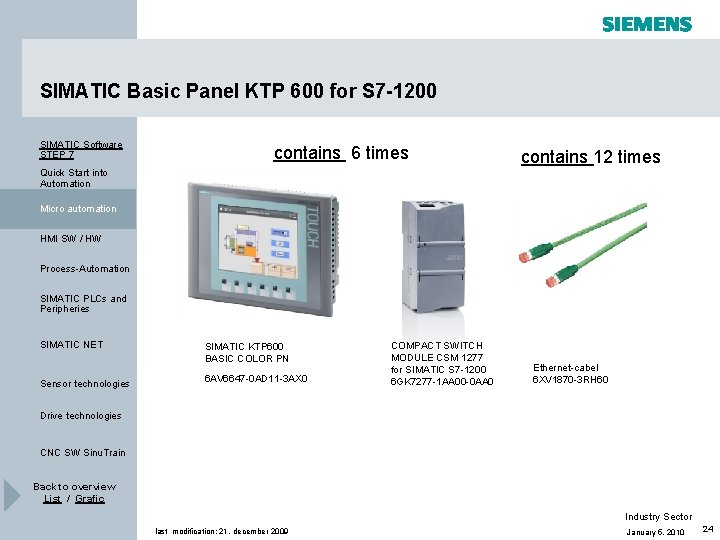

SIMATIC Basic Panel KTP 600 for S 7 -1200 SIMATIC Software STEP 7 contains 6 times contains 12 times Quick Start into Automation Micro automation Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET SIMATIC KTP 600 BASIC COLOR PN Sensor technologies 6 AV 6647 -0 AD 11 -3 AX 0 COMPACT SWITCH MODULE CSM 1277 for SIMATIC S 7 -1200 6 GK 7277 -1 AA 00 -0 AA 0 Ethernet-cabel 6 XV 1870 -3 RH 60 Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Industry Sector last modification: 21. december 2009 January 5, 2010 24

HMI Overview STEP 7 and HMI Win. CC flexible 6 er license Win. CC flexible Software for students Touch panel TP 177 B color Touch panel OP 177 B color Win. CC V 7 6 er license Upgrade Win. CC V 7 6 er license Win. CC/Web Navigator V 7 6 er license Upgrade Win. CC/Web navigator V 7 6 er license Back to overview Training documents: www. siemens. com/sce/modules List / Graphic

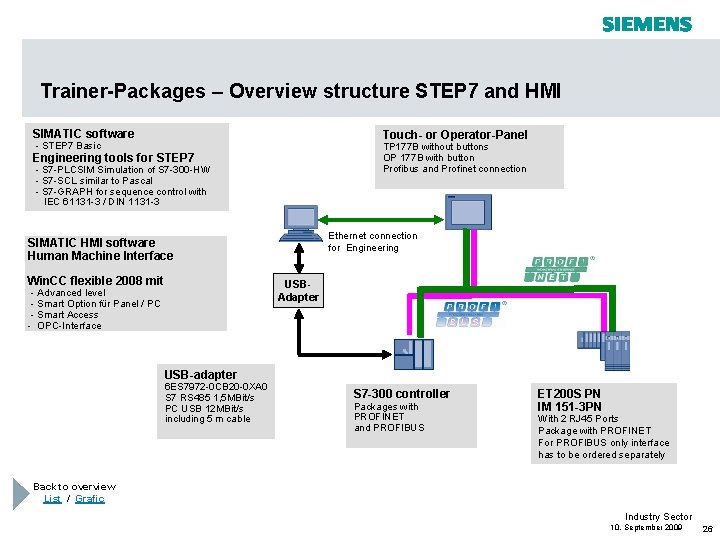

Trainer-Packages – Overview structure STEP 7 and HMI SIMATIC software Touch- or Operator-Panel - STEP 7 Basic TP 177 B without buttons OP 177 B with button Profibus and Profinet connection Engineering tools for STEP 7 - S 7 -PLCSIM Simulation of S 7 -300 -HW - S 7 -SCL similar to Pascal - S 7 -GRAPH for sequence control with IEC 61131 -3 / DIN 1131 -3 Ethernet connection for Engineering SIMATIC HMI software Human Machine Interface Win. CC flexible 2008 mit USBAdapter - Advanced level - Smart Option für Panel / PC - Smart Access - OPC-Interface USB-adapter 6 ES 7972 -0 CB 20 -0 XA 0 S 7 RS 485 1, 5 MBit/s PC USB 12 MBit/s including 5 m cable S 7 -300 controller Packages with PROFINET and PROFIBUS ET 200 S PN IM 151 -3 PN With 2 RJ 45 Ports Package with PROFINET For PROFIBUS only interface has to be ordered separately Back to overview List / Grafic Industry Sector 10. September 2009 26

SIMATIC Win. CC flexible 6 er classroom license SIMATIC Software STEP 7 Win. CC flexible (Trainer Package) 6 x Win. CC flexible 2008 Advanced SP 1 Quick Start into Automation 6 x Win. CC flexible 2008 Runtime 128 Power. Tags Micro Automation 6 x Win. CC flexible/Archives + Recipes for Win. CC flexible Runtime HMI SW SW // HW HW HMI 6 x Win. CC flexible /OPC-Server for Win. CC flexible Runtime Process-Automation 6 x Win. CC flexible Sm@rt. Access und Sm@rt. Service SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic for SIMATIC Panel und PC in 6 er-Packege: 6 AV 6613 -1 BA 01 -3 AS 0 including: 2 x Software for Students Win. CC flexible 2008 6 AV 6613 -1 BA 51 -3 CS 7 (2 x 20 licenses limited to 365 days) System requirements: Windows XP Professional SP 3, Windows Vista Business, Windows Vista Ultimate STEP 7 V 5. 4 SP 5 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Upgrade: (auf 2008 SP 1) Order number: 6 AV 6613 -1 BA 01 -3 AS 0 6 AV 6613 -1 XA 01 -3 CS 0 L price: 870, - EUR 200, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 27

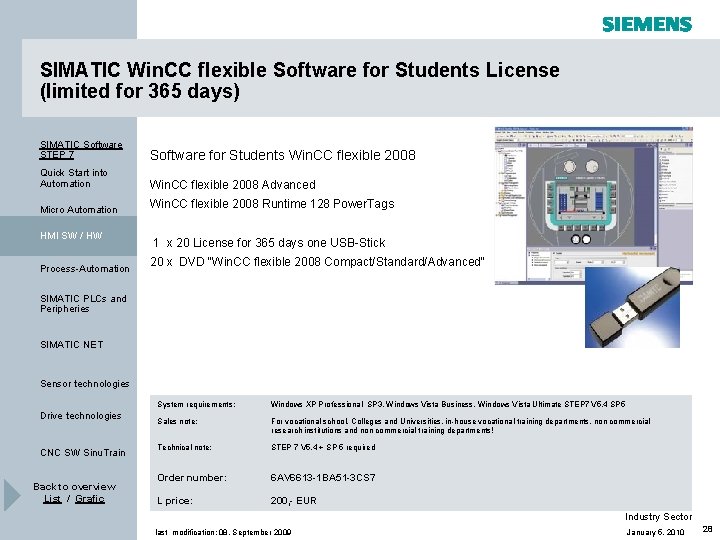

SIMATIC Win. CC flexible Software for Students License (limited for 365 days) SIMATIC Software STEP 7 Software for Students Win. CC flexible 2008 Quick Start into Automation Win. CC flexible 2008 Advanced Micro Automation Win. CC flexible 2008 Runtime 128 Power. Tags HMI SW SW // HW HW HMI Process-Automation 1 x 20 License for 365 days one USB-Stick 20 x DVD "Win. CC flexible 2008 Compact/Standard/Advanced" SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic System requirements: Windows XP Professional SP 3, Windows Vista Business, Windows Vista Ultimate STEP 7 V 5. 4 SP 5 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 AV 6613 -1 BA 51 -3 CS 7 L price: 200, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 28

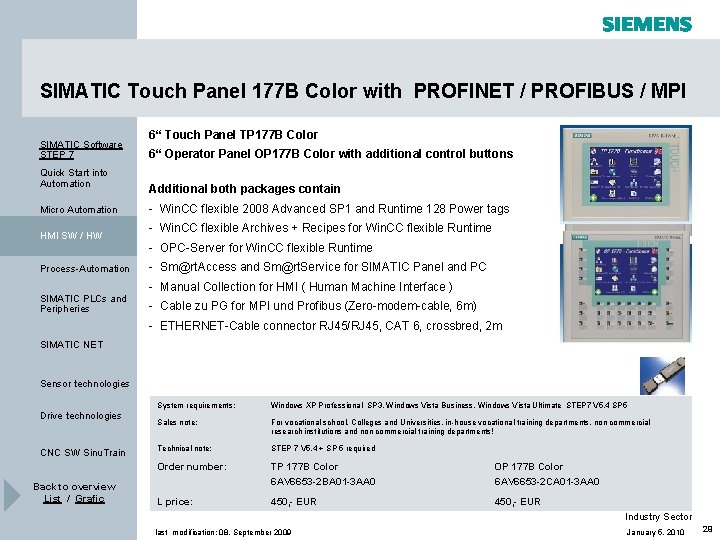

SIMATIC Touch Panel 177 B Color with PROFINET / PROFIBUS / MPI SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW SW // HW HW HMI Process-Automation SIMATIC PLCs and Peripheries 6“ Touch Panel TP 177 B Color 6“ Operator Panel OP 177 B Color with additional control buttons Additional both packages contain - Win. CC flexible 2008 Advanced SP 1 and Runtime 128 Power tags - Win. CC flexible Archives + Recipes for Win. CC flexible Runtime - OPC-Server for Win. CC flexible Runtime - Sm@rt. Access and Sm@rt. Service for SIMATIC Panel and PC - Manual Collection for HMI ( Human Machine Interface ) - Cable zu PG for MPI und Profibus (Zero-modem-cable, 6 m) - ETHERNET-Cable connector RJ 45/RJ 45, CAT 6, crossbred, 2 m SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic System requirements: Windows XP Professional SP 3, Windows Vista Business, Windows Vista Ultimate STEP 7 V 5. 4 SP 5 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: TP 177 B Color 6 AV 6653 -2 BA 01 -3 AA 0 OP 177 B Color 6 AV 6653 -2 CA 01 -3 AA 0 L price: 450, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 29

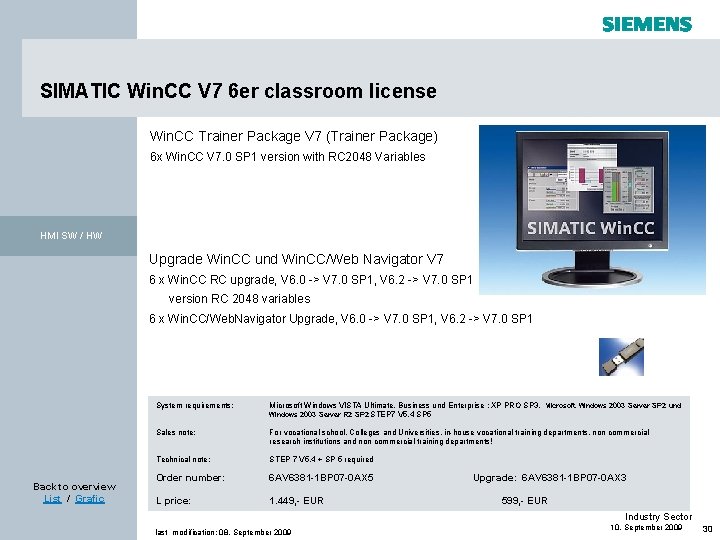

SIMATIC Win. CC V 7 6 er classroom license Win. CC Trainer Package V 7 (Trainer Package) 6 x Win. CC V 7. 0 SP 1 version with RC 2048 Variables HMI SW / HW Upgrade Win. CC und Win. CC/Web Navigator V 7 6 x Win. CC RC upgrade, V 6. 0 -> V 7. 0 SP 1, V 6. 2 -> V 7. 0 SP 1 version RC 2048 variables 6 x Win. CC/Web. Navigator Upgrade, V 6. 0 -> V 7. 0 SP 1, V 6. 2 -> V 7. 0 SP 1 Back to overview List / Grafic System requirements: Microsoft Windows VISTA Ultimate, Business und Enterprise ; XP PRO SP 3, Microsoft Windows 2003 Server SP 2 und Windows 2003 Server R 2 SP 2 STEP 7 V 5. 4 SP 5 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 AV 6381 -1 BP 07 -0 AX 5 L price: 1. 449, - EUR Upgrade: 6 AV 6381 -1 BP 07 -0 AX 3 599, - EUR Industry Sector last modification: 08. September 2009 10. September 2009 30

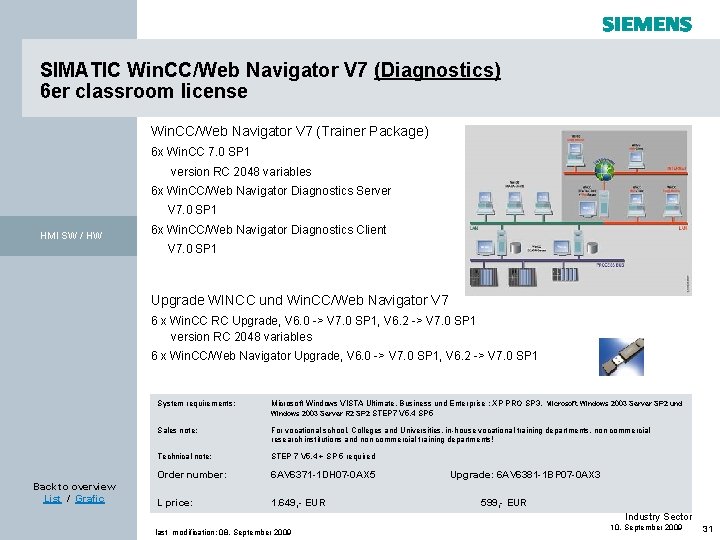

SIMATIC Win. CC/Web Navigator V 7 (Diagnostics) 6 er classroom license Win. CC/Web Navigator V 7 (Trainer Package) 6 x Win. CC 7. 0 SP 1 version RC 2048 variables 6 x Win. CC/Web Navigator Diagnostics Server V 7. 0 SP 1 HMI SW / HW 6 x Win. CC/Web Navigator Diagnostics Client V 7. 0 SP 1 Upgrade WINCC und Win. CC/Web Navigator V 7 6 x Win. CC RC Upgrade, V 6. 0 -> V 7. 0 SP 1, V 6. 2 -> V 7. 0 SP 1 version RC 2048 variables 6 x Win. CC/Web Navigator Upgrade, V 6. 0 -> V 7. 0 SP 1, V 6. 2 -> V 7. 0 SP 1 Back to overview List / Grafic System requirements: Microsoft Windows VISTA Ultimate, Business und Enterprise ; XP PRO SP 3, Microsoft Windows 2003 Server SP 2 und Windows 2003 Server R 2 SP 2 STEP 7 V 5. 4 SP 5 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 AV 6371 -1 DH 07 -0 AX 5 L price: 1. 649, - EUR Upgrade: 6 AV 6381 -1 BP 07 -0 AX 3 599, - EUR Industry Sector last modification: 08. September 2009 10. September 2009 31

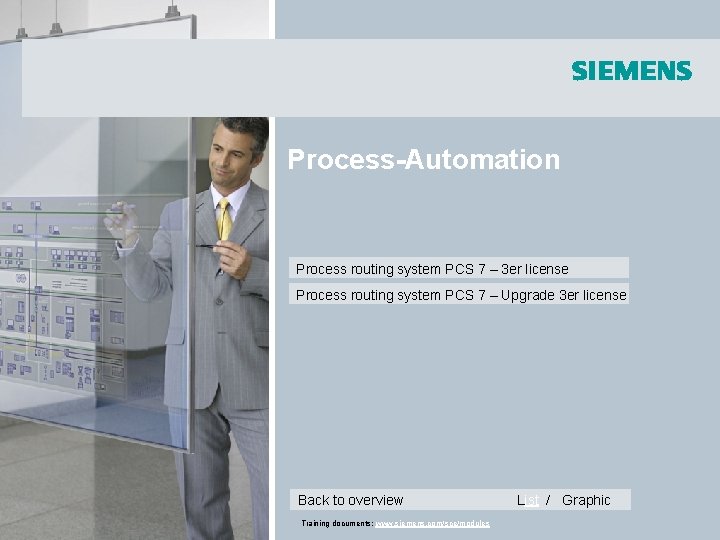

Process-Automation Process routing system PCS 7 – 3 er license Process routing system PCS 7 – Upgrade 3 er license Back to overview Training documents: www. siemens. com/sce/modules List / Graphic

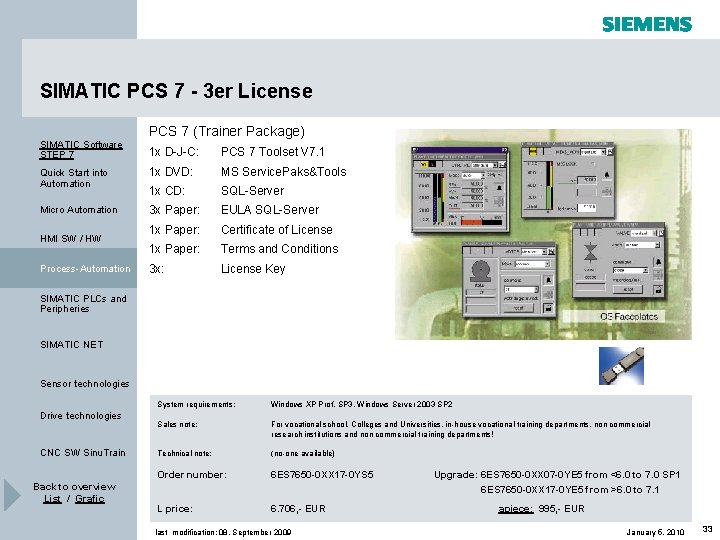

SIMATIC PCS 7 - 3 er License SIMATIC Software STEP 7 PCS 7 (Trainer Package) 1 x D-J-C: PCS 7 Toolset V 7. 1 Quick Start into Automation 1 x DVD: MS Service. Paks&Tools 1 x CD: SQL-Server Micro Automation 3 x Paper: EULA SQL-Server 1 x Paper: Certificate of License 1 x Paper: Terms and Conditions 3 x: License Key HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic System requirements: Windows XP Prof. SP 3, Windows Server 2003 SP 2 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: (no-one available) Order number: 6 ES 7650 -0 XX 17 -0 YS 5 L price: 6. 706, - EUR last modification: 08. September 2009 Upgrade: 6 ES 7650 -0 XX 07 -0 YE 5 from <6. 0 to 7. 0 SP 1 6 ES 7650 -0 XX 17 -0 YE 5 from >6. 0 to 7. 1 apiece: 995, - EUR Industry Sector January 5, 2010 33

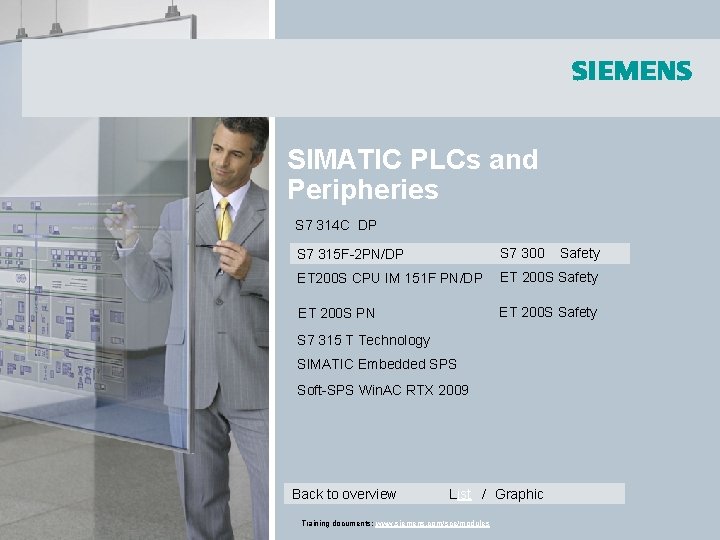

SIMATIC PLCs and Peripheries S 7 314 C DP S 7 315 F-2 PN/DP S 7 300 ET 200 S CPU IM 151 F PN/DP ET 200 S Safety ET 200 S PN ET 200 S Safety S 7 315 T Technology SIMATIC Embedded SPS Soft-SPS Win. AC RTX 2009 Back to overview List / Graphic Training documents: www. siemens. com/sce/modules Safety

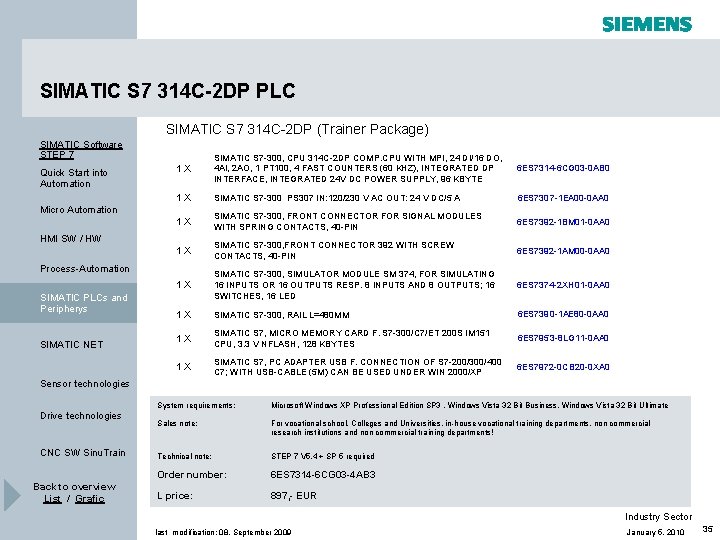

SIMATIC S 7 314 C-2 DP PLC SIMATIC S 7 314 C-2 DP (Trainer Package) SIMATIC Software STEP 7 Quick Start into Automation 1 X SIMATIC S 7 -300, CPU 314 C-2 DP COMP. CPU WITH MPI, 24 DI/16 DO, 4 AI, 2 AO, 1 PT 100, 4 FAST COUNTERS (60 KHZ), INTEGRATED DP INTERFACE, INTEGRATED 24 V DC POWER SUPPLY, 96 KBYTE 6 ES 7314 -6 CG 03 -0 AB 0 1 X SIMATIC S 7 -300 PS 307 IN: 120/230 V AC OUT: 24 V DC/5 A 6 ES 7307 -1 EA 00 -0 AA 0 1 X SIMATIC S 7 -300, FRONT CONNECTOR FOR SIGNAL MODULES WITH SPRING CONTACTS, 40 -PIN 6 ES 7392 -1 BM 01 -0 AA 0 1 X SIMATIC S 7 -300, FRONT CONNECTOR 392 WITH SCREW CONTACTS, 40 -PIN 6 ES 7392 -1 AM 00 -0 AA 0 1 X SIMATIC S 7 -300, SIMULATOR MODULE SM 374, FOR SIMULATING 16 INPUTS OR 16 OUTPUTS RESP. 8 INPUTS AND 8 OUTPUTS; 16 SWITCHES, 16 LED 6 ES 7374 -2 XH 01 -0 AA 0 1 X SIMATIC S 7 -300, RAIL L=480 MM 6 ES 7390 -1 AE 80 -0 AA 0 1 X SIMATIC S 7, MICRO MEMORY CARD F. S 7 -300/C 7/ET 200 S IM 151 CPU, 3. 3 V NFLASH, 128 KBYTES 6 ES 7953 -8 LG 11 -0 AA 0 1 X SIMATIC S 7, PC ADAPTER USB F. CONNECTION OF S 7 -200/300/400 C 7; WITH USB-CABLE (5 M) CAN BE USED UNDER WIN 2000/XP 6 ES 7972 -0 CB 20 -0 XA 0 Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripherys Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 ES 7314 -6 CG 03 -4 AB 3 L price: 897, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 35

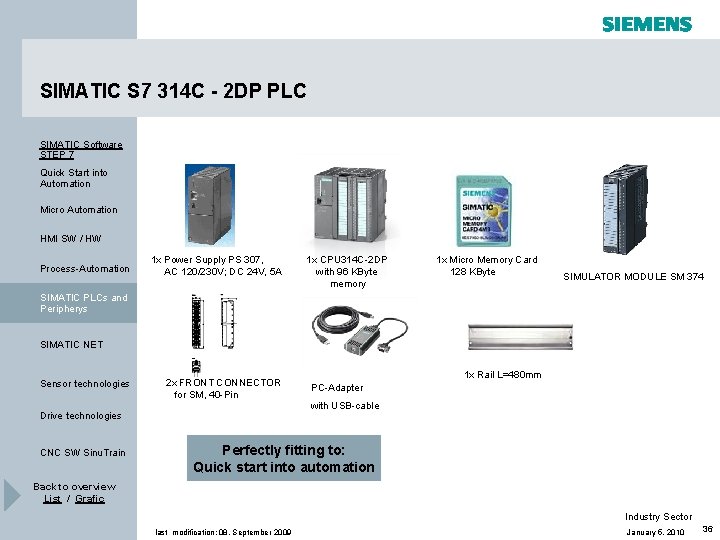

SIMATIC S 7 314 C - 2 DP PLC SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation 1 x Power Supply PS 307, AC 120/230 V; DC 24 V, 5 A 1 x CPU 314 C-2 DP with 96 KByte memory 1 x Micro Memory Card 128 KByte SIMULATOR MODULE SM 374 SIMATIC PLCs and Peripherys Peripheries SIMATIC NET Sensor technologies 2 x FRONT CONNECTOR for SM, 40 -Pin with USB-cable Drive technologies CNC SW Sinu. Train 1 x Rail L=480 mm PC-Adapter Perfectly fitting to: Quick start into automation Back to overview List / Grafic Industry Sector last modification: 08. September 2009 January 5, 2010 36

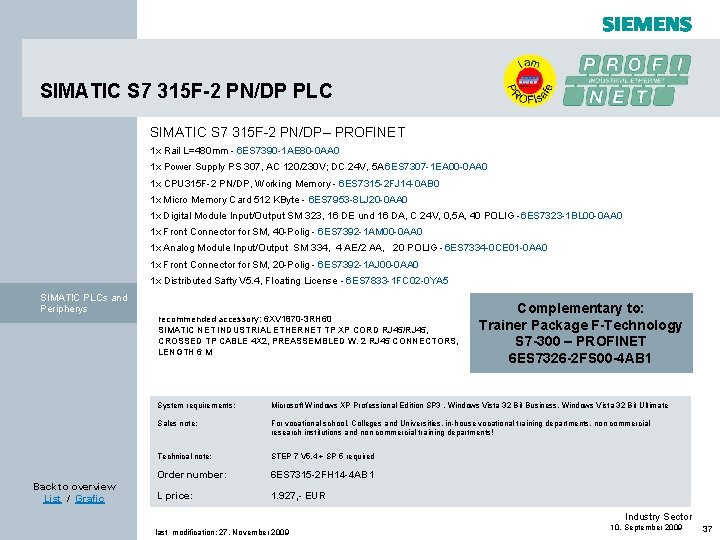

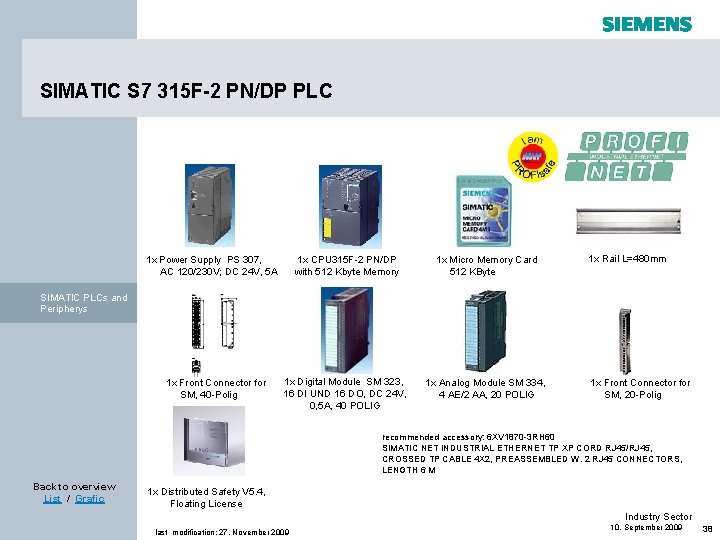

SIMATIC S 7 315 F-2 PN/DP PLC SIMATIC S 7 315 F-2 PN/DP– PROFINET 1 x Rail L=480 mm - 6 ES 7390 -1 AE 80 -0 AA 0 1 x Power Supply PS 307, AC 120/230 V; DC 24 V, 5 A 6 ES 7307 -1 EA 00 -0 AA 0 1 x CPU 315 F-2 PN/DP, Working Memory - 6 ES 7315 -2 FJ 14 -0 AB 0 1 x Micro Memory Card 512 KByte - 6 ES 7953 -8 LJ 20 -0 AA 0 1 x Digital Module Input/Output SM 323, 16 DE und 16 DA, C 24 V, 0, 5 A, 40 POLIG - 6 ES 7323 -1 BL 00 -0 AA 0 1 x Front Connector for SM, 40 -Polig - 6 ES 7392 -1 AM 00 -0 AA 0 1 x Analog Module Input/Output SM 334, 4 AE/2 AA, 20 POLIG - 6 ES 7334 -0 CE 01 -0 AA 0 1 x Front Connector for SM, 20 -Polig - 6 ES 7392 -1 AJ 00 -0 AA 0 1 x Distributed Safty V 5. 4, Floating License - 6 ES 7833 -1 FC 02 -0 YA 5 SIMATIC PLCs and Peripherys Back to overview List / Grafic recommended accessory: 6 XV 1870 -3 RH 60 SIMATIC NET INDUSTRIAL ETHERNET TP XP CORD RJ 45/RJ 45, CROSSED TP CABLE 4 X 2, PREASSEMBLED W. 2 RJ 45 CONNECTORS, LENGTH 6 M Complementary to: Trainer Package F-Technology S 7 -300 – PROFINET 6 ES 7326 -2 FS 00 -4 AB 1 System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 ES 7315 -2 FH 14 -4 AB 1 L price: 1. 927, - EUR Industry Sector last modification: 27. November 2009 10. September 2009 37

SIMATIC S 7 315 F-2 PN/DP PLC 1 x CPU 315 F-2 PN/DP with 512 Kbyte Memory 1 x Micro Memory Card 512 KByte 1 x Digital Module SM 323, 16 DI UND 16 DO, DC 24 V, 0, 5 A, 40 POLIG 1 x Analog Module SM 334, 4 AE/2 AA, 20 POLIG 1 x Power Supply PS 307, AC 120/230 V; DC 24 V, 5 A 1 x Rail L=480 mm SIMATIC PLCs and Peripherys 1 x Front Connector for SM, 40 -Polig 1 x Front Connector for SM, 20 -Polig recommended accessory: 6 XV 1870 -3 RH 60 SIMATIC NET INDUSTRIAL ETHERNET TP XP CORD RJ 45/RJ 45, CROSSED TP CABLE 4 X 2, PREASSEMBLED W. 2 RJ 45 CONNECTORS, LENGTH 6 M Back to overview List / Grafic 1 x Distributed Safety V 5. 4, Floating License Industry Sector last modification: 27. November 2009 10. September 2009 38

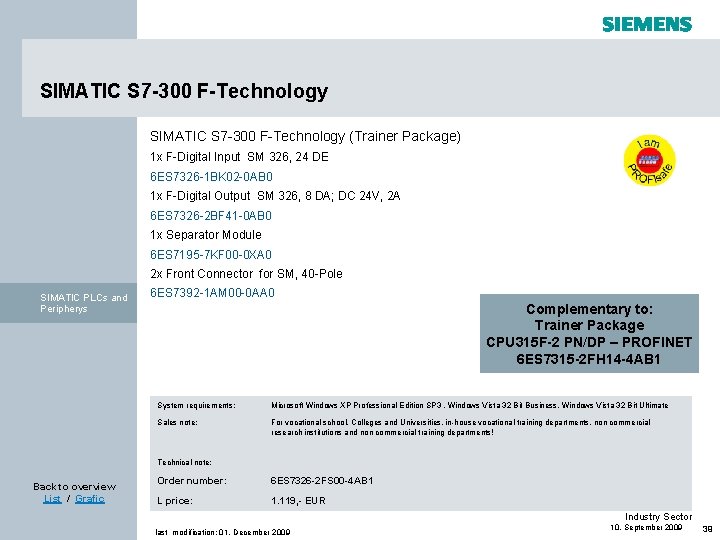

SIMATIC S 7 -300 F-Technology (Trainer Package) 1 x F-Digital Input SM 326, 24 DE 6 ES 7326 -1 BK 02 -0 AB 0 1 x F-Digital Output SM 326, 8 DA; DC 24 V, 2 A 6 ES 7326 -2 BF 41 -0 AB 0 1 x Separator Module 6 ES 7195 -7 KF 00 -0 XA 0 2 x Front Connector for SM, 40 -Pole SIMATIC PLCs and Peripherys 6 ES 7392 -1 AM 00 -0 AA 0 Complementary to: Trainer Package CPU 315 F-2 PN/DP – PROFINET 6 ES 7315 -2 FH 14 -4 AB 1 System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: Back to overview List / Grafic Order number: 6 ES 7326 -2 FS 00 -4 AB 1 L price: 1. 119, - EUR Industry Sector last modification: 01. December 2009 10. September 2009 39

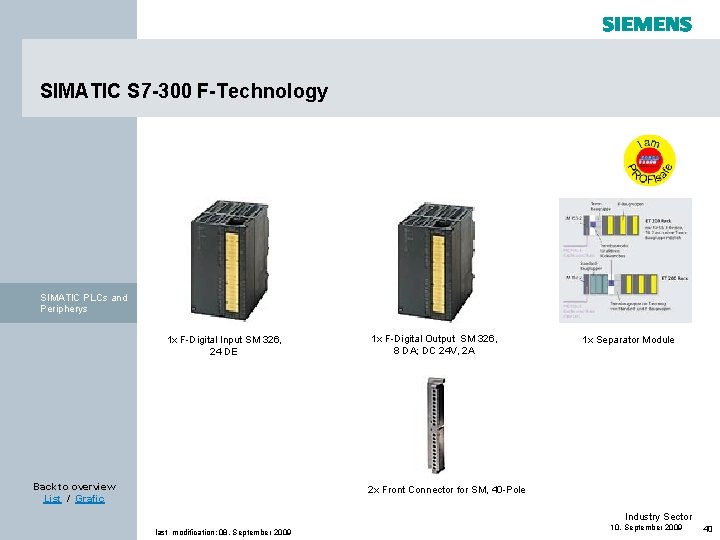

SIMATIC S 7 -300 F-Technology SIMATIC PLCs and Peripherys 1 x F-Digital Input SM 326, 24 DE Back to overview List / Grafic 1 x F-Digital Output SM 326, 8 DA; DC 24 V, 2 A 1 x Separator Module 2 x Front Connector for SM, 40 -Pole Industry Sector last modification: 08. September 2009 10. September 2009 40

SIMATIC ET 200 s CPU IM 151 F PN/DP PLC SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripherys Peripheries Complementary to: TP F-Technik ET 200 S PN PROFINET 6 ES 7138 -4 FS 01 -4 AB 1 SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number : 6 ES 7151 -8 FB 00 -4 AB 1 Preis (ohne Ust. ) : 997, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 41

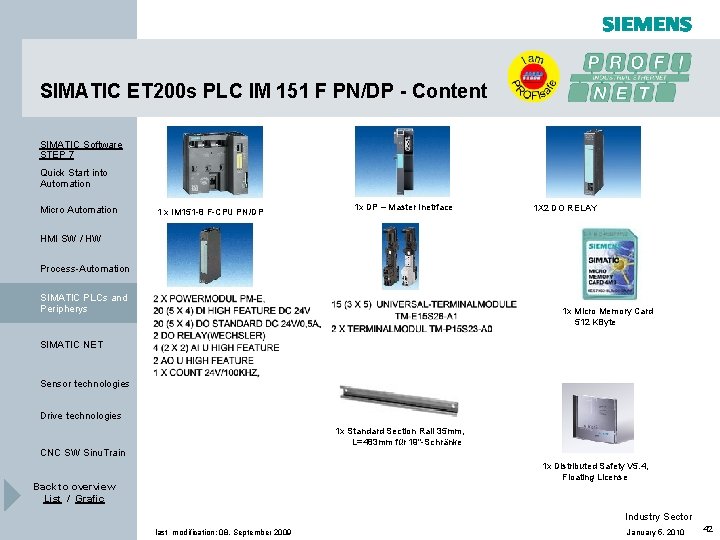

SIMATIC ET 200 s PLC IM 151 F PN/DP - Content SIMATIC Software STEP 7 Quick Start into Automation Micro Automation 1 x IM 151 -8 F-CPU PN/DP 1 x DP – Master Inetrface 1 X 2 DO RELAY HMI SW / HW Process-Automation SIMATIC PLCs and Peripherys Peripheries 1 x Micro Memory Card 512 KByte SIMATIC NET Sensor technologies Drive technologies 1 x Standard Section Rail 35 mm, L=483 mm für 19"-Schränke CNC SW Sinu. Train 1 x Distributed Safety V 5. 4, Floating License Back to overview List / Grafic Industry Sector last modification: 08. September 2009 January 5, 2010 42

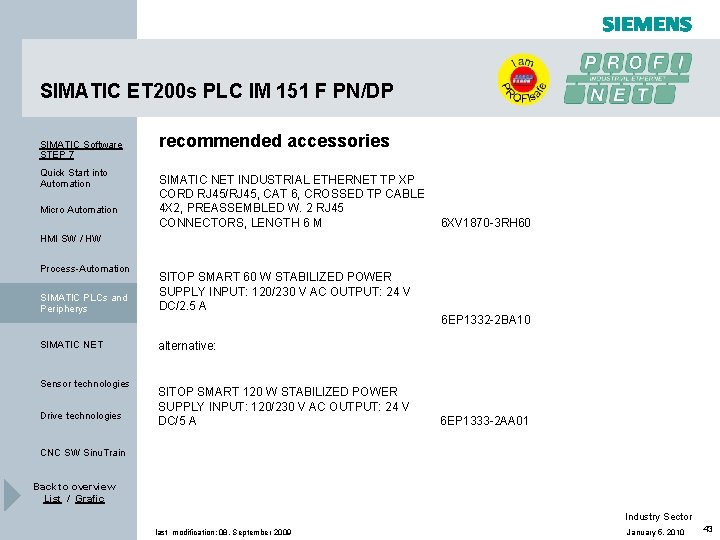

SIMATIC ET 200 s PLC IM 151 F PN/DP SIMATIC Software STEP 7 Quick Start into Automation Micro Automation recommended accessories SIMATIC NET INDUSTRIAL ETHERNET TP XP CORD RJ 45/RJ 45, CAT 6, CROSSED TP CABLE 4 X 2, PREASSEMBLED W. 2 RJ 45 CONNECTORS, LENGTH 6 M 6 XV 1870 -3 RH 60 HMI SW / HW Process-Automation SIMATIC PLCs and Peripherys Peripheries SITOP SMART 60 W STABILIZED POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/2. 5 A SIMATIC NET alternative: Sensor technologies Drive technologies 6 EP 1332 -2 BA 10 SITOP SMART 120 W STABILIZED POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/5 A 6 EP 1333 -2 AA 01 CNC SW Sinu. Train Back to overview List / Grafic Industry Sector last modification: 08. September 2009 January 5, 2010 43

SIMATIC ET 200 S PN - PROFINET (Trainer Package) 1 x ET 200 S, Digital Input, 2 DI HF, DC 24 V, 5 ST. (Total 10 DE) 6 ES 7131 -4 BB 01 -0 AB 0 1 x ET 200 S, Digital Input, 2 DO HF, DC 24 V, 0, 5 A, 5 ST. (Total 10 DA) 6 ES 7132 -4 BB 01 -0 AB 0 2 x ET 200 S, Power Module. PM-E, DC 24 -48 V 6 ES 7138 -4 CA 50 -0 AB 0 2 x ET 200 S, Terminal Module, TM-E 15 S 24 -A 1 5 ST. (Total 10) 6 ES 7193 -4 CA 20 -0 AA 0 2 x ET 200 S, Terminal Module, TM-P 15 S 23 -A 0 SIMATIC PLCs and Peripherys 6 ES 7193 -4 CD 20 -0 AA 0 Complementary to: Trainer Package F-Technology ET 200 S PN - PROFINET 6 ES 7138 -4 FS 00 -4 AB 1 1 x ET 200 S, Interface Module IM 151 -3 PN HF 2 Bus Interfacing about RJ 45 6 ES 7151 -3 BA 23 -0 AB 0 1 x Micro Memory Card 64 KByte - 6 ES 7953 -8 LF 20 -0 AA 0 1 x Stand Sectional Rail 35 mm, L=483 mm for 19"-Cabinets - 6 ES 5710 -8 MA 11 Back to overview List / Grafic System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 ES 7151 -3 BA 20 -4 AB 1 L price: 439, - EUR Industry Sector last modification: 08. September 2009 10. September 2009 44

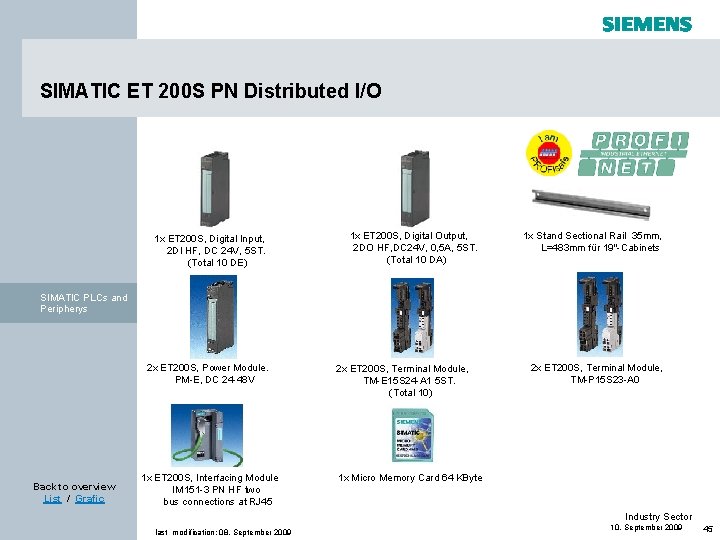

SIMATIC ET 200 S PN Distributed I/O 1 x ET 200 S, Digital Input, 2 DI HF, DC 24 V, 5 ST. (Total 10 DE) 1 x ET 200 S, Digital Output, 2 DO HF, DC 24 V, 0, 5 A, 5 ST. (Total 10 DA) 1 x Stand Sectional Rail 35 mm, L=483 mm für 19"-Cabinets SIMATIC PLCs and Peripherys 2 x ET 200 S, Power Module. PM-E, DC 24 -48 V Back to overview List / Grafic 1 x ET 200 S, Interfacing Module IM 151 -3 PN HF two bus connections at RJ 45 2 x ET 200 S, Terminal Module, TM-E 15 S 24 -A 1 5 ST. (Total 10) 2 x ET 200 S, Terminal Module, TM-P 15 S 23 -A 0 1 x Micro Memory Card 64 KByte Industry Sector last modification: 08. September 2009 10. September 2009 45

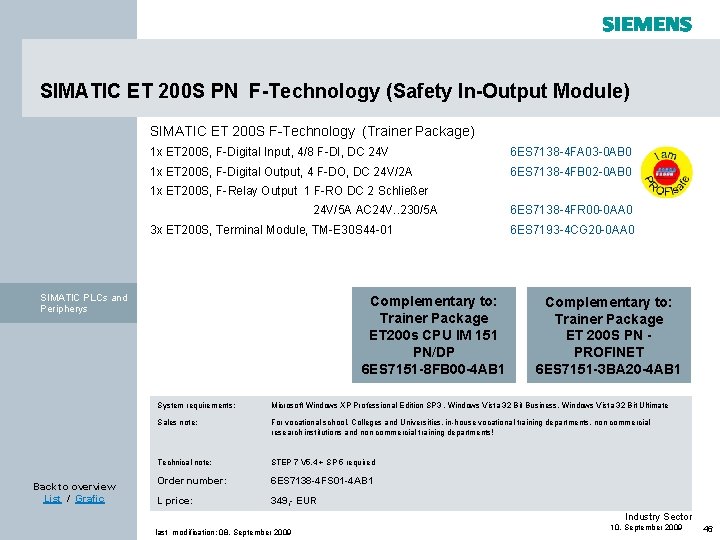

SIMATIC ET 200 S PN F-Technology (Safety In-Output Module) SIMATIC ET 200 S F-Technology (Trainer Package) 1 x ET 200 S, F-Digital Input, 4/8 F-DI, DC 24 V 6 ES 7138 -4 FA 03 -0 AB 0 1 x ET 200 S, F-Digital Output, 4 F-DO, DC 24 V/2 A 6 ES 7138 -4 FB 02 -0 AB 0 1 x ET 200 S, F-Relay Output 1 F-RO DC 2 Schließer 24 V/5 A AC 24 V. . 230/5 A 3 x ET 200 S, Terminal Module, TM-E 30 S 44 -01 SIMATIC PLCs and Peripherys Back to overview List / Grafic Complementary to: Trainer Package ET 200 s CPU IM 151 PN/DP 6 ES 7151 -8 FB 00 -4 AB 1 6 ES 7138 -4 FR 00 -0 AA 0 6 ES 7193 -4 CG 20 -0 AA 0 Complementary to: Trainer Package ET 200 S PN PROFINET 6 ES 7151 -3 BA 20 -4 AB 1 System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 ES 7138 -4 FS 01 -4 AB 1 L price: 349, - EUR Industry Sector last modification: 08. September 2009 10. September 2009 46

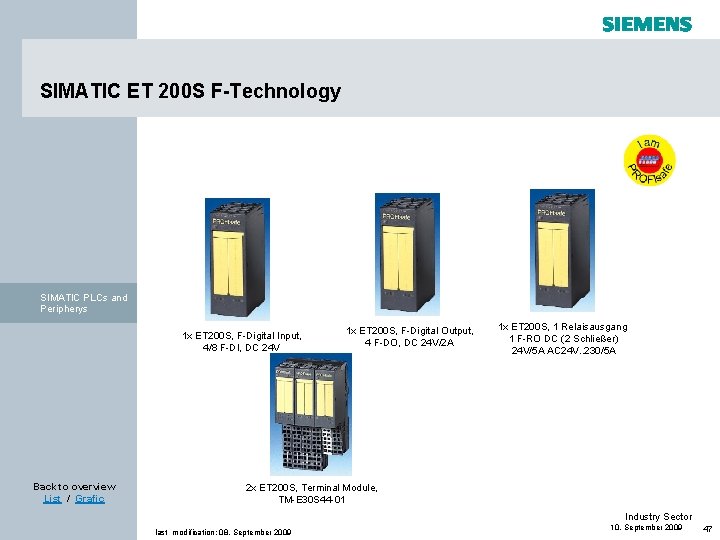

SIMATIC ET 200 S F-Technology SIMATIC PLCs and Peripherys 1 x ET 200 S, F-Digital Input, 4/8 F-DI, DC 24 V Back to overview List / Grafic 1 x ET 200 S, F-Digital Output, 4 F-DO, DC 24 V/2 A 1 x ET 200 S, 1 Relaisausgang 1 F-RO DC (2 Schließer) 24 V/5 A AC 24 V. . 230/5 A 2 x ET 200 S, Terminal Module, TM-E 30 S 44 -01 Industry Sector last modification: 08. September 2009 10. September 2009 47

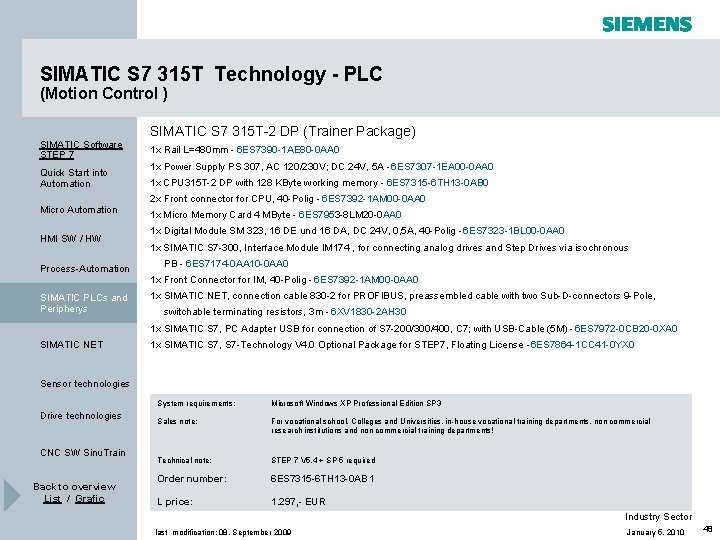

SIMATIC S 7 315 T Technology - PLC (Motion Control ) SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripherys Peripheries SIMATIC S 7 315 T-2 DP (Trainer Package) 1 x Rail L=480 mm - 6 ES 7390 -1 AE 80 -0 AA 0 1 x Power Supply PS 307, AC 120/230 V; DC 24 V, 5 A - 6 ES 7307 -1 EA 00 -0 AA 0 1 x CPU 315 T-2 DP with 128 KByte working memory - 6 ES 7315 -6 TH 13 -0 AB 0 2 x Front connector for CPU, 40 -Polig - 6 ES 7392 -1 AM 00 -0 AA 0 1 x Micro Memory Card 4 MByte - 6 ES 7953 -8 LM 20 -0 AA 0 1 x Digital Module SM 323, 16 DE und 16 DA, DC 24 V, 0, 5 A, 40 -Polig - 6 ES 7323 -1 BL 00 -0 AA 0 1 x SIMATIC S 7 -300, Interface Module IM 174 , for connecting analog drives and Step Drives via isochronous PB - 6 ES 7174 -0 AA 10 -0 AA 0 1 x Front Connector for IM, 40 -Polig - 6 ES 7392 -1 AM 00 -0 AA 0 1 x SIMATIC NET, connection cable 830 -2 for PROFIBUS, preassembled cable with two Sub-D-connectors 9 -Pole, switchable terminating resistors, 3 m - 6 XV 1830 -2 AH 30 1 x SIMATIC S 7, PC Adapter USB for connection of S 7 -200/300/400, C 7; with USB-Cable (5 M) - 6 ES 7972 -0 CB 20 -0 XA 0 SIMATIC NET 1 x SIMATIC S 7, S 7 -Technology V 4. 0 Optional Package for STEP 7, Floating License - 6 ES 7864 -1 CC 41 -0 YX 0 Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic System requirements: Microsoft Windows XP Professional Edition SP 3 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 ES 7315 -6 TH 13 -0 AB 1 L price: 1. 297, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 48

SIMATIC S 7 315 T Technology PLC (Motion Control ) SIMATIC Software STEP 7 Quick Start into Automation Micro Automation 1 x Power Supply PS 307, AC 120/230 V; DC 24 V, 5 A 1 x Rail L=480 mm HMI SW / HW 1 x CPU 315 T-2 DP with 128 KByte Working Memory 1 x Micro Memory Card 4 MByte Process-Automation SIMATIC PLCs and Peripherys Peripheries SIMATIC NET Sensor technologies 3 x Front Connector for SM, 40 -Pole 1 x Digital Module SM 323, 16 DI und 16 DO, DC 24 V, 0, 5 A, 40 Pole 1 x SIMATIC S 7 -300, Interface Module IM 174, Connection for analog Drives and Step Drives via isochronous PB Drive technologies CNC SW Sinu. Train Back to overview List / Grafic 1 x SIMATIC S 7, S 7 -Technology V 4. 0 Options Package at STEP 7, Floating License Industry Sector last modification: 08. September 2009 January 5, 2010 49

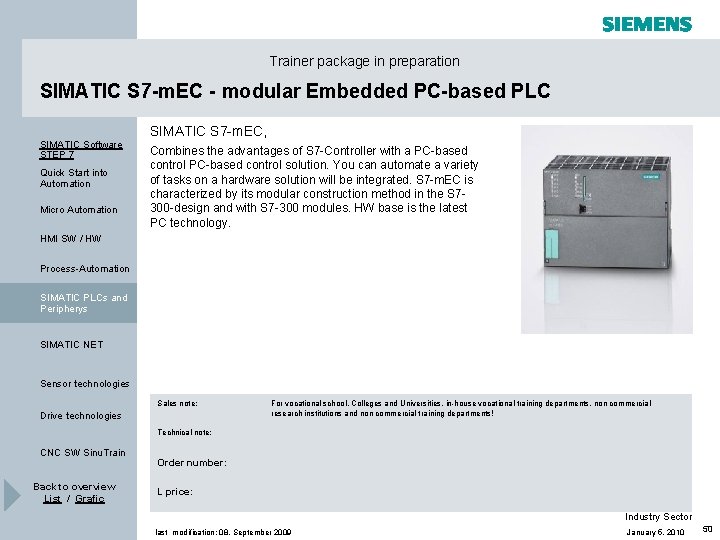

Trainer package in preparation SIMATIC S 7 -m. EC - modular Embedded PC-based PLC SIMATIC Software STEP 7 Quick Start into Automation Micro Automation SIMATIC S 7 -m. EC, Combines the advantages of S 7 -Controller with a PC-based control solution. You can automate a variety of tasks on a hardware solution will be integrated. S 7 -m. EC is characterized by its modular construction method in the S 7300 -design and with S 7 -300 modules. HW base is the latest PC technology. HMI SW / HW Process-Automation SIMATIC PLCs and Peripherys Peripheries SIMATIC NET Sensor technologies Sales note: Drive technologies For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: CNC SW Sinu. Train Back to overview List / Grafic Order number: L price: Industry Sector last modification: 08. September 2009 January 5, 2010 50

SIMATIC Win. AC RTX 2009 PC-based Control SIMATIC Software STEP 7 SIMATIC Win. AC (Trainer Package) Quick Start into Automation 1 x Win. AC Basis RTX 2009 Micro Automation Single License for 1 Installation, HMI SW / HW Process-Automation SIMATIC PLCs and Peripherys Peripheries CP 5621 PCI-Card for PROFIBUS DP Runtime-SW, SW and Documentation on DVD, SW-Class A, 3 -speaking (D, E, F), Reference-Hardware: SIMATIC PC, SIMATIC S 7 -m. EC SIMATIC NET Sensor technologies System requirements: Microsoft Windows XP Professional Edition SP 3 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 ES 7671 -0 RC 07 -0 YS 0 L price: 724, - EUR Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Upgrade 6 ES 7671 -0 RC 07 -0 YE 0 (without CP 5621) 450, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 51

SIMATIC NET CP 343 -1 Advanced Switch X 208 Security Switch IWLAN Fastconnect Accessories Kit Development Kit Back to overview Training documents: www. siemens. com/sce/modules List / Graphic

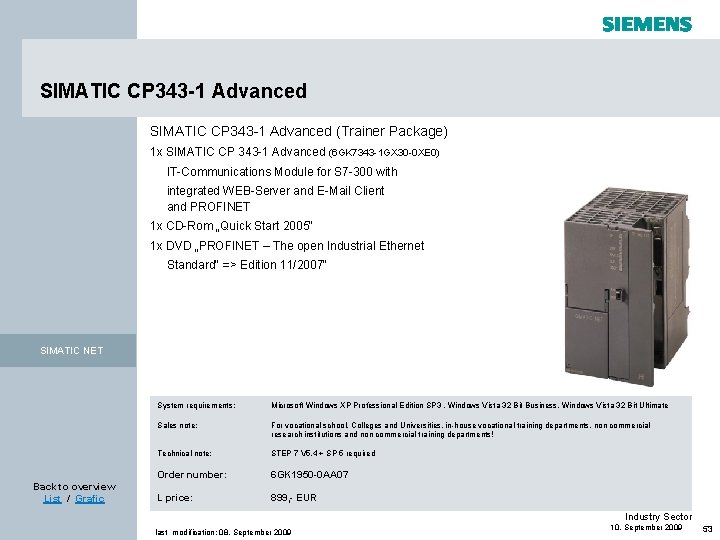

SIMATIC CP 343 -1 Advanced (Trainer Package) 1 x SIMATIC CP 343 -1 Advanced (6 GK 7343 -1 GX 30 -0 XE 0) IT-Communications Module for S 7 -300 with integrated WEB-Server and E-Mail Client and PROFINET 1 x CD-Rom „Quick Start 2005“ 1 x DVD „PROFINET – The open Industrial Ethernet Standard“ => Edition 11/2007“ SIMATIC NET Back to overview List / Grafic System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 GK 1950 -0 AA 07 L price: 899, - EUR Industry Sector last modification: 08. September 2009 10. September 2009 53

Switch Scalance PROFINET SIMATIC Software STEP 7 Quick Start into Automation Micro Automation SIMATIC NET, SCALANCE X 208 1 x SCALANCE X 208 (6 GK 5208 -0 BA 10 -2 AA 3) SIMATIC NET, SCALANCE X 208, MANAGED IE SWITCH, 8 X 10/100 MBIT/S RJ 45 PORTS, LED DIAGNOSTICS, ERROR SIGNAL CONTACT WITH SET BUTTON, REDUNDANT POWER SUPPLY, PROFINET-IO DEVICE, NETWORK MANAGEMENT, INTEGRATED REDUNDANCY MANAGER, INCL. ELECTRONIC MANUAL ON CD HMI SW / HW 1 x SIMATIC NET, C-PLUG (6 GK 1900 -0 AB 00) Process-Automation SIMATIC NET, C- PLUG REPLACEABLE , FOR SIMPLE DEVICE EXCHANGE IN CASE OF FAILURE, FOR STORAGE OF CONFIGURATION OR USER DATA, APPLICATION IN SIMATIC NET PRODUCTS WITH C-PLUG SLOT SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 GK 1950 -0 BB 02 L price: 390, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 54

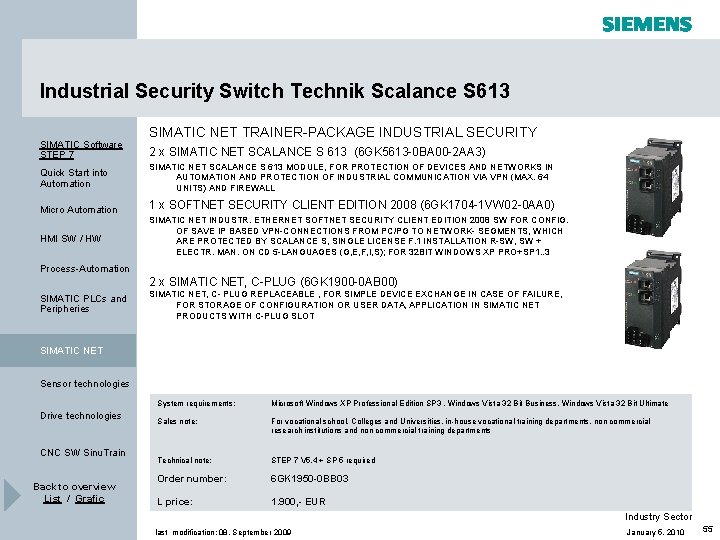

Industrial Security Switch Technik Scalance S 613 SIMATIC Software STEP 7 SIMATIC NET TRAINER-PACKAGE INDUSTRIAL SECURITY 2 x SIMATIC NET SCALANCE S 613 (6 GK 5613 -0 BA 00 -2 AA 3) Quick Start into Automation SIMATIC NET SCALANCE S 613 MODULE, FOR PROTECTION OF DEVICES AND NETWORKS IN AUTOMATION AND PROTECTION OF INDUSTRIAL COMMUNICATION VIA VPN (MAX. 64 UNITS) AND FIREWALL Micro Automation 1 x SOFTNET SECURITY CLIENT EDITION 2008 (6 GK 1704 -1 VW 02 -0 AA 0) HMI SW / HW SIMATIC NET INDUSTR. ETHERNET SOFTNET SECURITY CLIENT EDITION 2008 SW FOR CONFIG. OF SAVE IP BASED VPN-CONNECTIONS FROM PC/PG TO NETWORK- SEGMENTS, WHICH ARE PROTECTED BY SCALANCE S, SINGLE LICENSE F. 1 INSTALLATION R-SW, SW + ELECTR. MAN. ON CD 5 -LANGUAGES (G, E, F, I, S); FOR 32 BIT WINDOWS XP PRO+SP 1. . 3 Process-Automation 2 x SIMATIC NET, C-PLUG (6 GK 1900 -0 AB 00) SIMATIC PLCs and Peripheries SIMATIC NET, C- PLUG REPLACEABLE , FOR SIMPLE DEVICE EXCHANGE IN CASE OF FAILURE, FOR STORAGE OF CONFIGURATION OR USER DATA, APPLICATION IN SIMATIC NET PRODUCTS WITH C-PLUG SLOT SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 GK 1950 -0 BB 03 L price: 1. 900, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 55

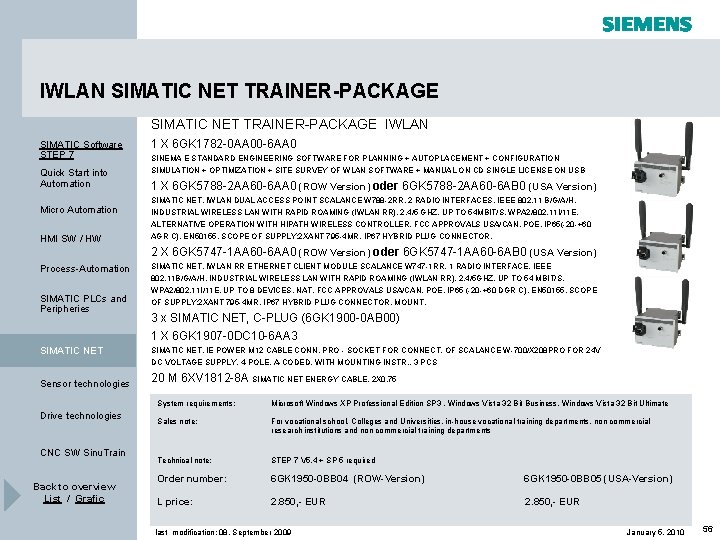

IWLAN SIMATIC NET TRAINER-PACKAGE IWLAN SIMATIC Software STEP 7 1 X 6 GK 1782 -0 AA 00 -6 AA 0 Quick Start into Automation SIMULATION + OPTIMIZATION + SITE SURVEY OF WLAN SOFTWARE + MANUAL ON CD SINGLE LICENSE ON USB Micro Automation HMI SW / HW SINEMA E STANDARD ENGINEERING SOFTWARE FOR PLANNING + AUTOPLACEMENT + CONFIGURATION 1 X 6 GK 5788 -2 AA 60 -6 AA 0 (ROW Version) oder 6 GK 5788 -2 AA 60 -6 AB 0 (USA Version) SIMATIC NET, IWLAN DUAL ACCESS POINT SCALANCE W 788 -2 RR, 2 RADIO INTERFACES, IEEE 802. 11 B/G/A/H, INDUSTRIAL WIRELESS LAN WITH RAPID ROAMING (IWLAN RR), 2. 4/5 GHZ, UP TO 54 MBIT/S, WPA 2/802. 11 I/11 E, ALTERNATIVE OPERATION WITH HIPATH WIRELESS CONTROLLER, FCC APPROVALS USA/CAN, POE, IP 65(-20 -+60 AGR C), EN 50155, SCOPE OF SUPPLY: 2 XANT 795 -4 MR, IP 67 HYBRID PLUG CONNECTOR, 2 X 6 GK 5747 -1 AA 60 -6 AA 0 (ROW Version) oder 6 GK 5747 -1 AA 60 -6 AB 0 (USA Version) Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic SIMATIC NET, IWLAN RR ETHERNET CLIENT MODULE SCALANCE W 747 -1 RR, 1 RADIO INTERFACE, IEEE 802. 11 B/G/A/H, INDUSTRIAL WIRELESS LAN WITH RAPID ROAMING (IWLAN RR), 2. 4/5 GHZ, UP TO 54 MBIT/S, WPA 2/802. 11 I/11 E, UP TO 8 DEVICES, NAT, FCC APPROVALS USA/CAN, POE, IP 65 (-20 -+60 DGR C), EN 50155, SCOPE OF SUPPLY: 2 XANT 795 -4 MR, IP 67 HYBRID PLUG CONNECTOR, MOUNT. 3 x SIMATIC NET, C-PLUG (6 GK 1900 -0 AB 00) 1 X 6 GK 1907 -0 DC 10 -6 AA 3 SIMATIC NET, IE POWER M 12 CABLE CONN. PRO - SOCKET FOR CONNECT. OF SCALANCE W-700/X 208 PRO FOR 24 V DC VOLTAGE SUPPLY, 4 -POLE, A-CODED, WITH MOUNTING INSTR. , 3 PCS 20 M 6 XV 1812 -8 A SIMATIC NET ENERGY CABLE, 2 X 0, 75 System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 GK 1950 -0 BB 04 (ROW-Version) 6 GK 1950 -0 BB 05 (USA-Version) L price: 2. 850, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 56

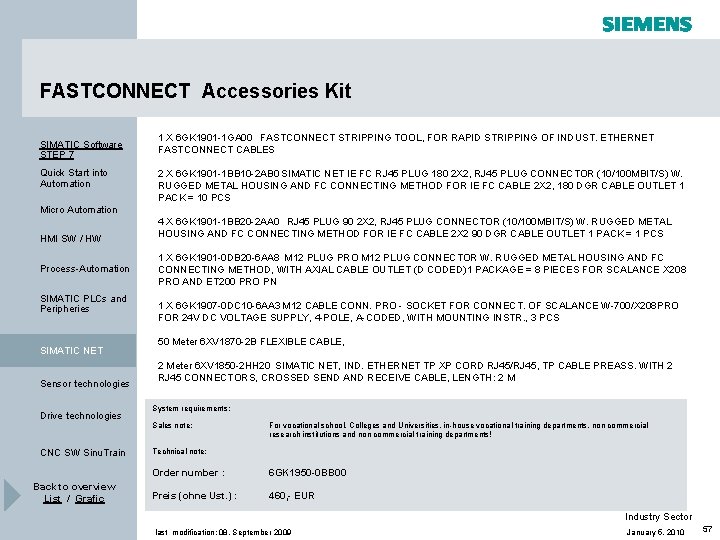

FASTCONNECT Accessories Kit SIMATIC Software STEP 7 Quick Start into Automation 1 X 6 GK 1901 -1 GA 00 FASTCONNECT STRIPPING TOOL, FOR RAPID STRIPPING OF INDUST. ETHERNET FASTCONNECT CABLES 2 X 6 GK 1901 -1 BB 10 -2 AB 0 SIMATIC NET IE FC RJ 45 PLUG 180 2 X 2, RJ 45 PLUG CONNECTOR (10/100 MBIT/S) W. RUGGED METAL HOUSING AND FC CONNECTING METHOD FOR IE FC CABLE 2 X 2, 180 DGR CABLE OUTLET 1 PACK = 10 PCS Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic 4 X 6 GK 1901 -1 BB 20 -2 AA 0 RJ 45 PLUG 90 2 X 2, RJ 45 PLUG CONNECTOR (10/100 MBIT/S) W. RUGGED METAL HOUSING AND FC CONNECTING METHOD FOR IE FC CABLE 2 X 2 90 DGR CABLE OUTLET 1 PACK = 1 PCS 1 X 6 GK 1901 -0 DB 20 -6 AA 8 M 12 PLUG PRO M 12 PLUG CONNECTOR W. RUGGED METAL HOUSING AND FC CONNECTING METHOD, WITH AXIAL CABLE OUTLET (D CODED)1 PACKAGE = 8 PIECES FOR SCALANCE X 208 PRO AND ET 200 PRO PN 1 X 6 GK 1907 -0 DC 10 -6 AA 3 M 12 CABLE CONN. PRO - SOCKET FOR CONNECT. OF SCALANCE W-700/X 208 PRO FOR 24 V DC VOLTAGE SUPPLY, 4 -POLE, A-CODED, WITH MOUNTING INSTR. , 3 PCS 50 Meter 6 XV 1870 -2 B FLEXIBLE CABLE, 2 Meter 6 XV 1850 -2 HH 20 SIMATIC NET, IND. ETHERNET TP XP CORD RJ 45/RJ 45, TP CABLE PREASS. WITH 2 RJ 45 CONNECTORS, CROSSED SEND AND RECEIVE CABLE, LENGTH: 2 M System requirements: Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: Order number : 6 GK 1950 -0 BB 00 Preis (ohne Ust. ) : 460, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 57

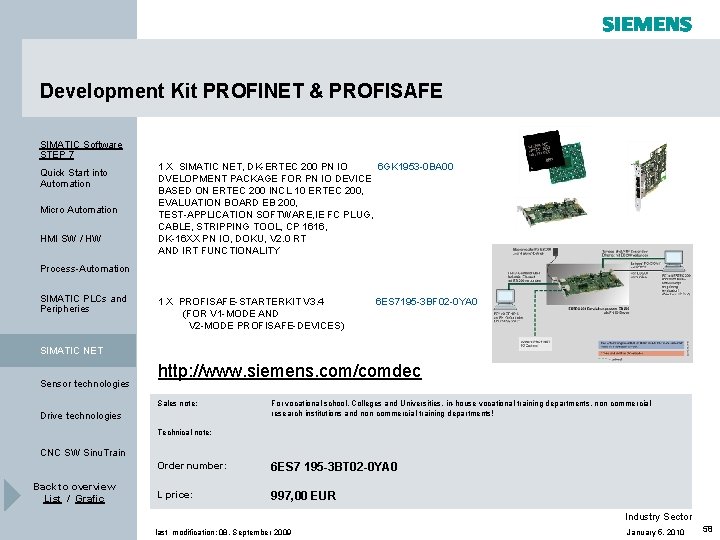

Development Kit PROFINET & PROFISAFE SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW 1 X SIMATIC NET, DK-ERTEC 200 PN IO 6 GK 1953 -0 BA 00 DVELOPMENT PACKAGE FOR PN IO DEVICE BASED ON ERTEC 200 INCL 10 ERTEC 200, EVALUATION BOARD EB 200, TEST-APPLICATION SOFTWARE, IE FC PLUG, CABLE, STRIPPING TOOL, CP 1616, DK-16 XX PN IO, DOKU, V 2. 0 RT AND IRT FUNCTIONALITY Process-Automation SIMATIC PLCs and Peripheries 1 X PROFISAFE-STARTERKIT V 3. 4 (FOR V 1 -MODE AND V 2 -MODE PROFISAFE-DEVICES) 6 ES 7195 -3 BF 02 -0 YA 0 SIMATIC NET Sensor technologies http: //www. siemens. com/comdec Sales note: Drive technologies For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: CNC SW Sinu. Train Back to overview List / Grafic Order number: 6 ES 7 195 -3 BT 02 -0 YA 0 L price: 997, 00 EUR Industry Sector last modification: 08. September 2009 January 5, 2010 58

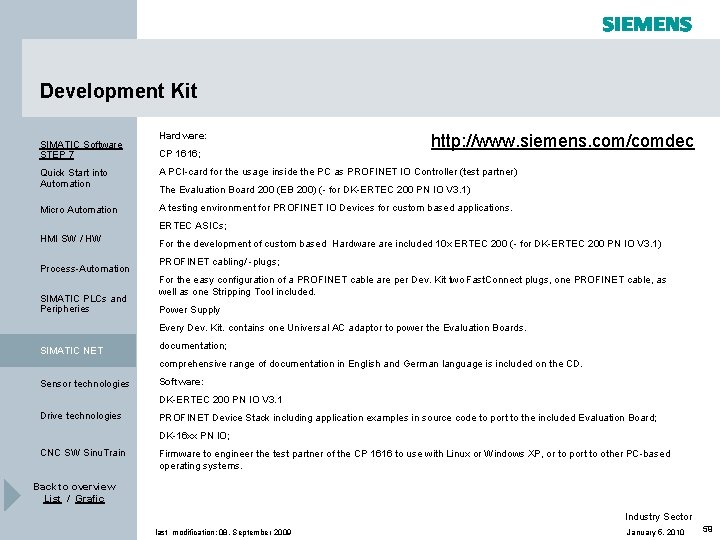

Development Kit SIMATIC Software STEP 7 Hardware: CP 1616; http: //www. siemens. com/comdec Quick Start into Automation A PCI-card for the usage inside the PC as PROFINET IO Controller (test partner) Micro Automation A testing environment for PROFINET IO Devices for custom based applications. The Evaluation Board 200 (EB 200) (- for DK-ERTEC 200 PN IO V 3. 1) ERTEC ASICs; HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries For the development of custom based Hardware included 10 x ERTEC 200 (- for DK-ERTEC 200 PN IO V 3. 1) PROFINET cabling/ -plugs; For the easy configuration of a PROFINET cable are per Dev. Kit two Fast. Connect plugs, one PROFINET cable, as well as one Stripping Tool included. Power Supply Every Dev. Kit. contains one Universal AC adaptor to power the Evaluation Boards. SIMATIC NET documentation; comprehensive range of documentation in English and German language is included on the CD. Sensor technologies Software: DK-ERTEC 200 PN IO V 3. 1 Drive technologies PROFINET Device Stack including application examples in source code to port to the included Evaluation Board; DK-16 xx PN IO; CNC SW Sinu. Train Firmware to engineer the test partner of the CP 1616 to use with Linux or Windows XP, or to port to other PC-based operating systems. Back to overview List / Grafic Industry Sector last modification: 08. September 2009 January 5, 2010 59

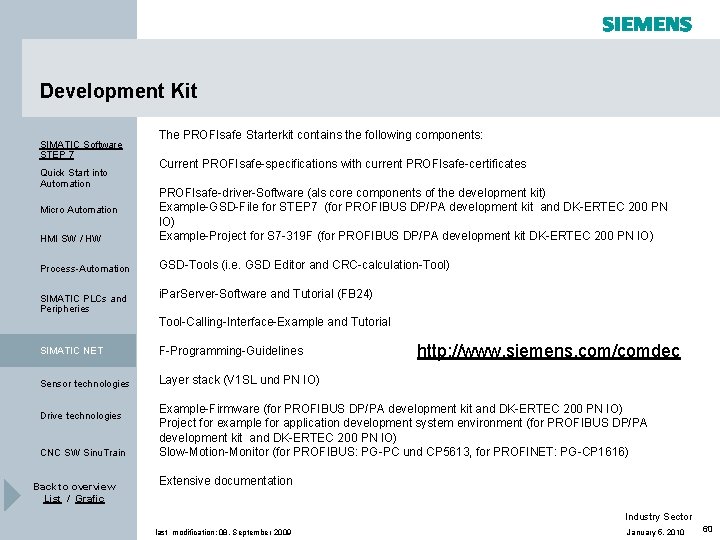

Development Kit SIMATIC Software STEP 7 Quick Start into Automation The PROFIsafe Starterkit contains the following components: Current PROFIsafe-specifications with current PROFIsafe-certificates HMI SW / HW PROFIsafe-driver-Software (als core components of the development kit) Example-GSD-File for STEP 7 (for PROFIBUS DP/PA development kit and DK-ERTEC 200 PN IO) Example-Project for S 7 -319 F (for PROFIBUS DP/PA development kit DK-ERTEC 200 PN IO) Process-Automation GSD-Tools (i. e. GSD Editor and CRC-calculation-Tool) Micro Automation SIMATIC PLCs and Peripheries i. Par. Server-Software and Tutorial (FB 24) Tool-Calling-Interface-Example and Tutorial SIMATIC NET F-Programming-Guidelines Sensor technologies Layer stack (V 1 SL und PN IO) Drive technologies CNC SW Sinu. Train Back to overview List / Grafic http: //www. siemens. com/comdec Example-Firmware (for PROFIBUS DP/PA development kit and DK-ERTEC 200 PN IO) Project for example for application development system environment (for PROFIBUS DP/PA development kit and DK-ERTEC 200 PN IO) Slow-Motion-Monitor (for PROFIBUS: PG-PC und CP 5613, for PROFINET: PG-CP 1616) Extensive documentation Industry Sector last modification: 08. September 2009 January 5, 2010 60

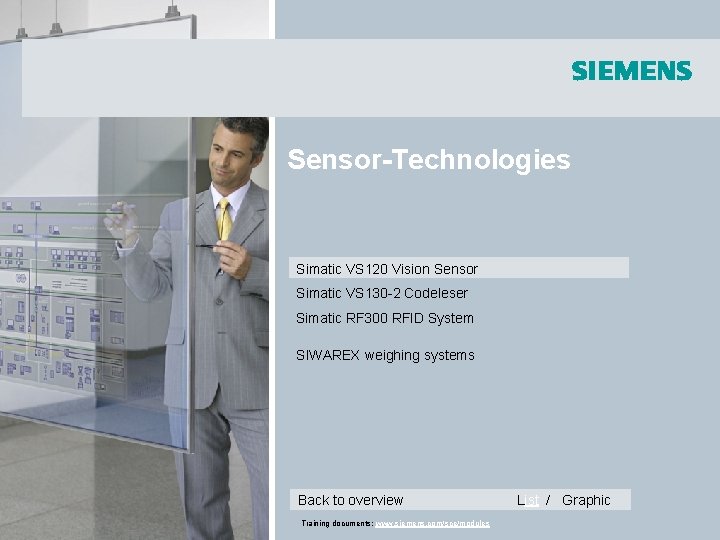

Sensor-Technologies Simatic VS 120 Vision Sensor Simatic VS 130 -2 Codeleser Simatic RF 300 RFID System SIWAREX weighing systems Back to overview Training documents: www. siemens. com/sce/modules List / Graphic

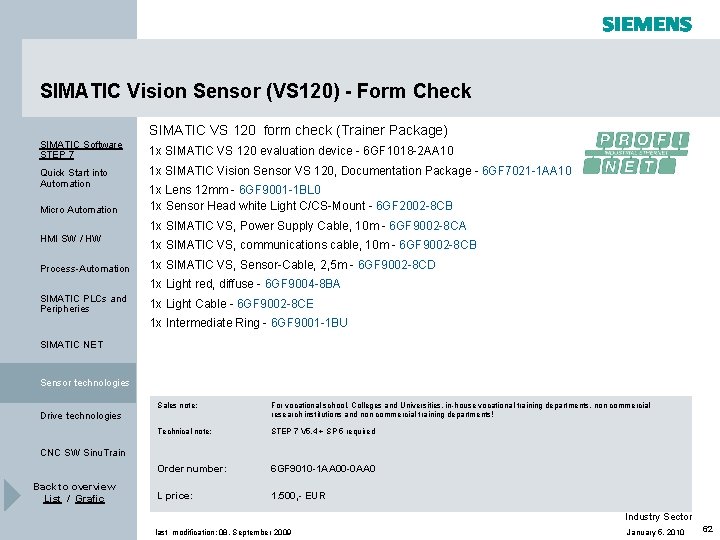

SIMATIC Vision Sensor (VS 120) - Form Check SIMATIC VS 120 form check (Trainer Package) SIMATIC Software STEP 7 Quick Start into Automation Micro Automation 1 x SIMATIC VS 120 evaluation device - 6 GF 1018 -2 AA 10 1 x SIMATIC Vision Sensor VS 120, Documentation Package - 6 GF 7021 -1 AA 10 1 x Lens 12 mm - 6 GF 9001 -1 BL 0 1 x Sensor Head white Light C/CS-Mount - 6 GF 2002 -8 CB 1 x SIMATIC VS, Power Supply Cable, 10 m - 6 GF 9002 -8 CA HMI SW / HW Process-Automation 1 x SIMATIC VS, communications cable, 10 m - 6 GF 9002 -8 CB 1 x SIMATIC VS, Sensor-Cable, 2, 5 m - 6 GF 9002 -8 CD 1 x Light red, diffuse - 6 GF 9004 -8 BA SIMATIC PLCs and Peripheries 1 x Light Cable - 6 GF 9002 -8 CE 1 x Intermediate Ring - 6 GF 9001 -1 BU SIMATIC NET Sensor technologies Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 GF 9010 -1 AA 00 -0 AA 0 L price: 1. 500, - EUR Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Industry Sector last modification: 08. September 2009 January 5, 2010 62

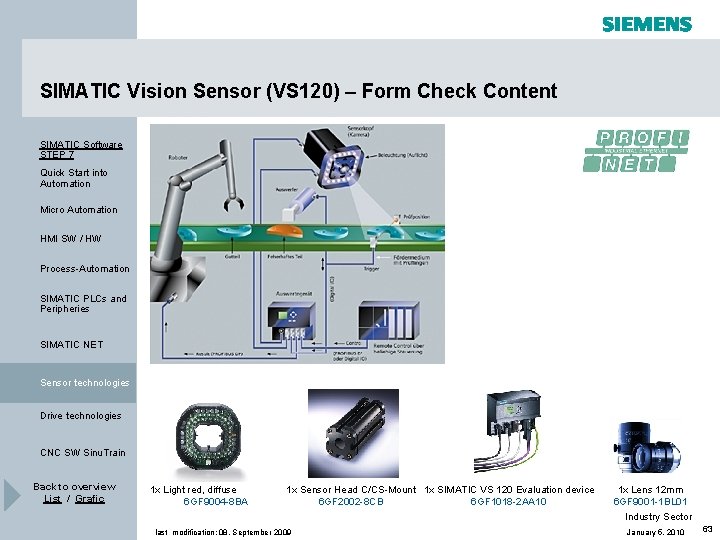

SIMATIC Vision Sensor (VS 120) – Form Check Content SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic 1 x Light red, diffuse 6 GF 9004 -8 BA 1 x Sensor Head C/CS-Mount 1 x SIMATIC VS 120 Evaluation device 6 GF 1018 -2 AA 10 6 GF 2002 -8 CB last modification: 08. September 2009 1 x Lens 12 mm 6 GF 9001 -1 BL 01 Industry Sector January 5, 2010 63

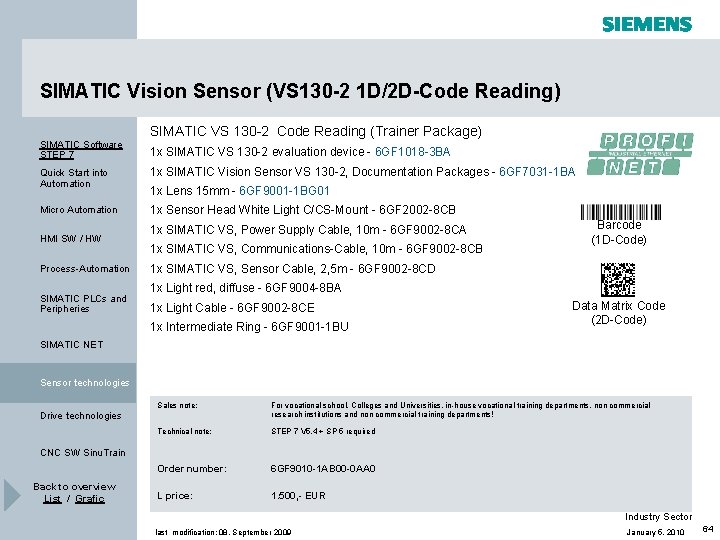

SIMATIC Vision Sensor (VS 130 -2 1 D/2 D-Code Reading) SIMATIC Software STEP 7 SIMATIC VS 130 -2 Code Reading (Trainer Package) 1 x SIMATIC VS 130 -2 evaluation device - 6 GF 1018 -3 BA Quick Start into Automation 1 x SIMATIC Vision Sensor VS 130 -2, Documentation Packages - 6 GF 7031 -1 BA Micro Automation 1 x Sensor Head White Light C/CS-Mount - 6 GF 2002 -8 CB HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries 1 x Lens 15 mm - 6 GF 9001 -1 BG 01 1 x SIMATIC VS, Power Supply Cable, 10 m - 6 GF 9002 -8 CA 1 x SIMATIC VS, Communications-Cable, 10 m - 6 GF 9002 -8 CB Barcode (1 D-Code) 1 x SIMATIC VS, Sensor Cable, 2, 5 m - 6 GF 9002 -8 CD 1 x Light red, diffuse - 6 GF 9004 -8 BA 1 x Light Cable - 6 GF 9002 -8 CE 1 x Intermediate Ring - 6 GF 9001 -1 BU Data Matrix Code (2 D-Code) SIMATIC NET Sensor technologies Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 GF 9010 -1 AB 00 -0 AA 0 L price: 1. 500, - EUR Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Industry Sector last modification: 08. September 2009 January 5, 2010 64

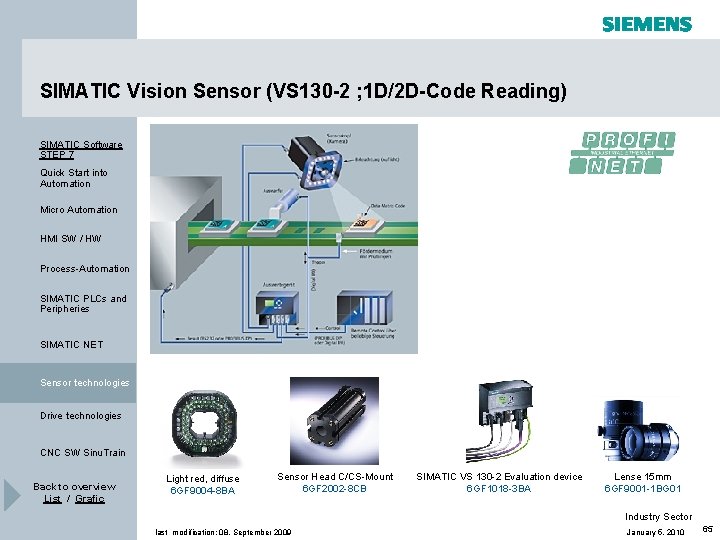

SIMATIC Vision Sensor (VS 130 -2 ; 1 D/2 D-Code Reading) SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Light red, diffuse 6 GF 9004 -8 BA Sensor Head C/CS-Mount 6 GF 2002 -8 CB SIMATIC VS 130 -2 Evaluation device 6 GF 1018 -3 BA Lense 15 mm 6 GF 9001 -1 BG 01 Industry Sector last modification: 08. September 2009 January 5, 2010 65

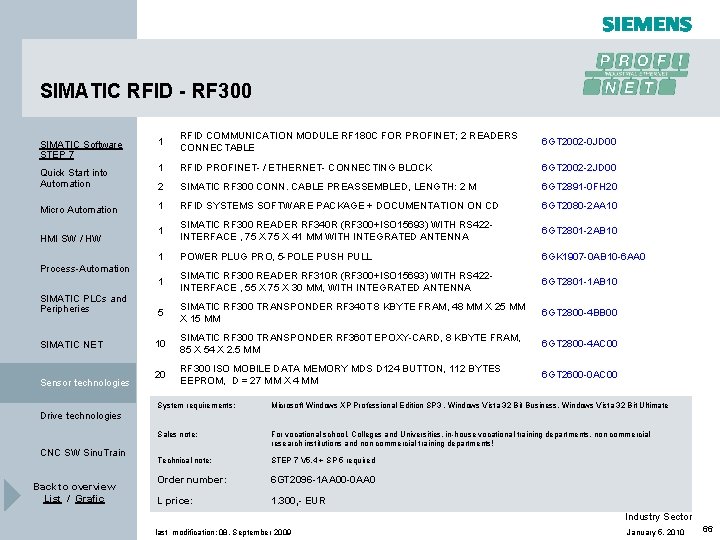

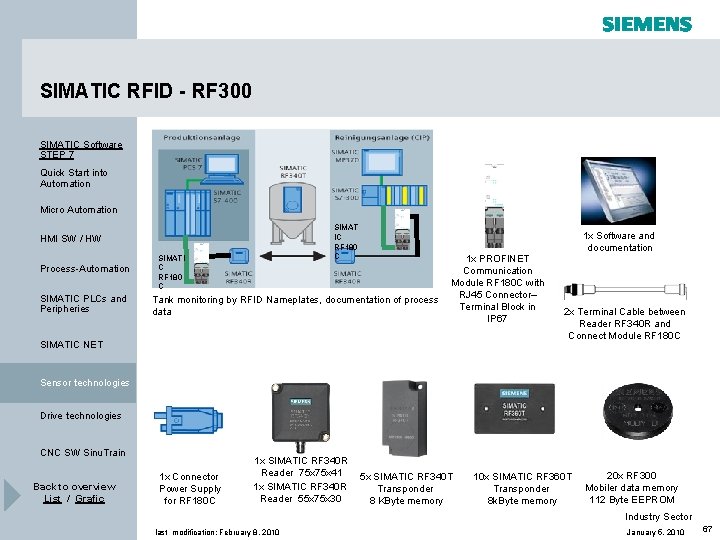

SIMATIC RFID - RF 300 1 RFID COMMUNICATION MODULE RF 180 C FOR PROFINET; 2 READERS CONNECTABLE 6 GT 2002 -0 JD 00 1 RFID PROFINET- / ETHERNET- CONNECTING BLOCK 6 GT 2002 -2 JD 00 2 SIMATIC RF 300 CONN. CABLE PREASSEMBLED, LENGTH: 2 M 6 GT 2891 -0 FH 20 1 RFID SYSTEMS SOFTWARE PACKAGE + DOCUMENTATION ON CD 6 GT 2080 -2 AA 10 1 SIMATIC RF 300 READER RF 340 R (RF 300+ISO 15693) WITH RS 422 INTERFACE , 75 X 41 MM WITH INTEGRATED ANTENNA 6 GT 2801 -2 AB 10 1 POWER PLUG PRO, 5 -POLE PUSH PULL 6 GK 1907 -0 AB 10 -6 AA 0 1 6 GT 2801 -1 AB 10 SIMATIC PLCs and Peripheries SIMATIC RF 300 READER RF 310 R (RF 300+ISO 15693) WITH RS 422 INTERFACE , 55 X 75 X 30 MM, WITH INTEGRATED ANTENNA 5 SIMATIC RF 300 TRANSPONDER RF 340 T 8 KBYTE FRAM, 48 MM X 25 MM X 15 MM 6 GT 2800 -4 BB 00 SIMATIC NET 10 SIMATIC RF 300 TRANSPONDER RF 360 T EPOXY-CARD, 8 KBYTE FRAM, 85 X 54 X 2. 5 MM 6 GT 2800 -4 AC 00 20 RF 300 ISO MOBILE DATA MEMORY MDS D 124 BUTTON, 112 BYTES EEPROM, D = 27 MM X 4 MM 6 GT 2600 -0 AC 00 SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation Sensor technologies System requirements: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: STEP 7 V 5. 4 + SP 5 required Order number: 6 GT 2096 -1 AA 00 -0 AA 0 L price: 1. 300, - EUR Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Industry Sector last modification: 08. September 2009 January 5, 2010 66

SIMATIC RFID - RF 300 SIMATIC Software STEP 7 Quick Start into Automation Micro Automation SIMAT IC RF 180 C HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATI C RF 180 C 1 x Software and documentation Tank monitoring by RFID Nameplates, documentation of process data 1 x PROFINET Communication Module RF 180 C with RJ 45 Connector– Terminal Block in IP 67 SIMATIC NET 2 x Terminal Cable between Reader RF 340 R and Connect Module RF 180 C Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic 1 x Connector Power Supply for RF 180 C 1 x SIMATIC RF 340 R Reader 75 x 41 1 x SIMATIC RF 340 R Reader 55 x 75 x 30 5 x SIMATIC RF 340 T Transponder 8 KByte memory 10 x SIMATIC RF 360 T Transponder 8 k. Byte memory 20 x RF 300 Mobiler data memory 112 Byte EEPROM Industry Sector last modification: February 8. 2010 January 5, 2010 67

SIMATIC SIWAREX weighing systems (Trainer Package) 1 x SIWAREX FTA - Project engineering package FTA - Connecting cable (RS 232 C) - Documentation on CD-Rom 1 x SIWAREX U Load cell, series BB - Project engineering package U - Connecting cable (RS 232 C) - Documentation on CD-Rom 1 x Load cell series BB, nominal load 10 kg 1 x base plate with overload protection 1 x Elastomer bearing 1 x License agreement SIWAREX U Sensor technologies SIWAREX FTA System requirements: Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: Back to overview List / Grafic Order number: 7 MH 4901 -0 AA 10 L price: 1. 568, - EUR Industry Sector last modification: 08. September 2009 10. September 2009 68

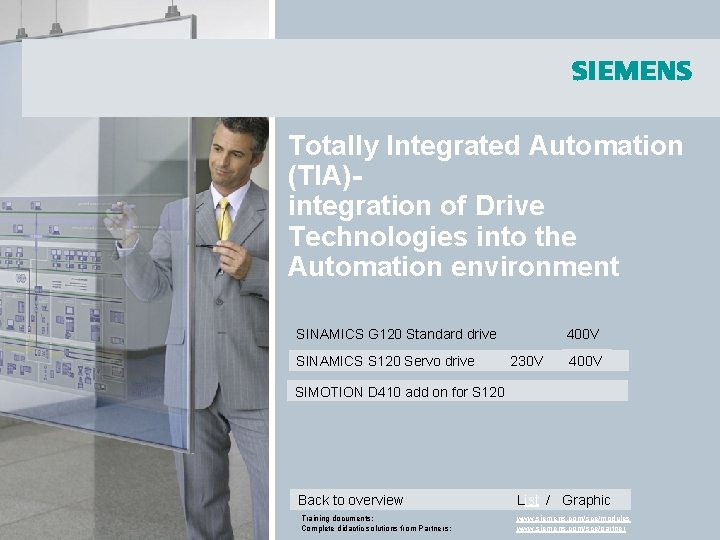

Totally Integrated Automation (TIA)integration of Drive Technologies into the Automation environment SINAMICS G 120 Standard drive SINAMICS S 120 Servo drive 400 V 230 V 400 V SIMOTION D 410 add on for S 120 Back to overview Training documents: Complete didactic solutions from Partners: List / Graphic www. siemens. com/sce/modules www. siemens. com/sce/partner

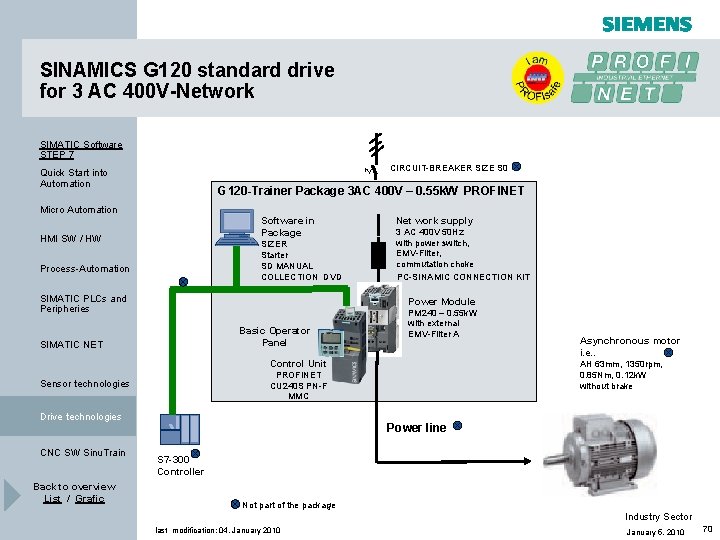

SINAMICS G 120 standard drive for 3 AC 400 V-Network SIMATIC Software STEP 7 CIRCUIT-BREAKER SIZE S 0 Quick Start into Automation G 120 -Trainer Package 3 AC 400 V – 0. 55 k. W PROFINET Micro Automation Software in Package HMI SW / HW SIZER Starter SD MANUAL COLLECTION DVD Process-Automation SIMATIC PLCs and Peripheries Net work supply 3 AC 400 V 50 Hz with power switch, EMV-Filter, commutation choke PC-SINAMIC CONNECTION KIT Power Module Basic Operator Panel SIMATIC NET PM 240 – 0. 55 k. W with external EMV-Filter A Control Unit Drive technologies CNC SW Sinu. Train Back to overview List / Grafic AH 63 mm, 1350 rpm, 0. 85 Nm, 0. 12 k. W without brake PROFINET CU 240 S PN-F MMC Sensor technologies Asynchronous motor i. e. . Power line S 7 -300 Controller Not part of the package Industry Sector last modification: 04. January 2010 January 5, 2010 70

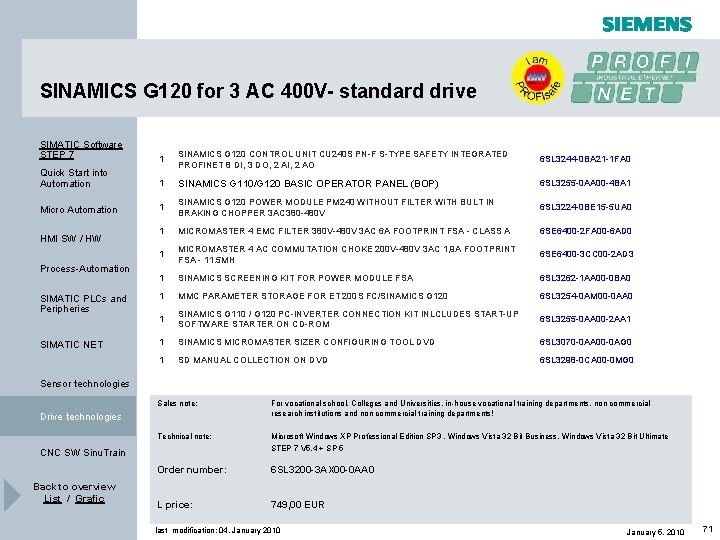

SINAMICS G 120 for 3 AC 400 V- standard drive SIMATIC Software STEP 7 1 6 SL 3244 -0 BA 21 -1 FA 0 Quick Start into Automation SINAMICS G 120 CONTROL UNIT CU 240 S PN-F S-TYPE SAFETY INTEGRATED PROFINET 8 DI, 3 DO, 2 AI, 2 AO 1 SINAMICS G 110/G 120 BASIC OPERATOR PANEL (BOP) 6 SL 3255 -0 AA 00 -4 BA 1 Micro Automation 1 SINAMICS G 120 POWER MODULE PM 240 WITHOUT FILTER WITH BULT IN BRAKING CHOPPER 3 AC 380 -480 V 6 SL 3224 -0 BE 15 -5 UA 0 1 MICROMASTER 4 EMC FILTER 380 V-480 V 3 AC 6 A FOOTPRINT FSA - CLASS A 6 SE 6400 -2 FA 00 -6 AD 0 1 MICROMASTER 4 AC COMMUTATION CHOKE 200 V-480 V 3 AC 1, 9 A FOOTPRINT FSA - 11. 5 MH 6 SE 6400 -3 CC 00 -2 AD 3 1 SINAMICS SCREENING KIT FOR POWER MODULE FSA 6 SL 3262 -1 AA 00 -0 BA 0 SIMATIC PLCs and Peripheries 1 MMC PARAMETER STORAGE FOR ET 200 S FC/SINAMICS G 120 6 SL 3254 -0 AM 00 -0 AA 0 1 SINAMICS G 110 / G 120 PC-INVERTER CONNECTION KIT INLCLUDES START-UP SOFTWARE STARTER ON CD-ROM 6 SL 3255 -0 AA 00 -2 AA 1 SIMATIC NET 1 SINAMICS MICROMASTER SIZER CONFIGURING TOOL DVD 6 SL 3070 -0 AA 00 -0 AG 0 1 SD MANUAL COLLECTION ON DVD 6 SL 3298 -0 CA 00 -0 MG 0 HMI SW / HW Process-Automation Sensor technologies Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate STEP 7 V 5. 4 + SP 5 Order number: 6 SL 3200 -3 AX 00 -0 AA 0 L price: 749, 00 EUR Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Industry Sector last modification: 04. January 2010 January 5, 2010 71

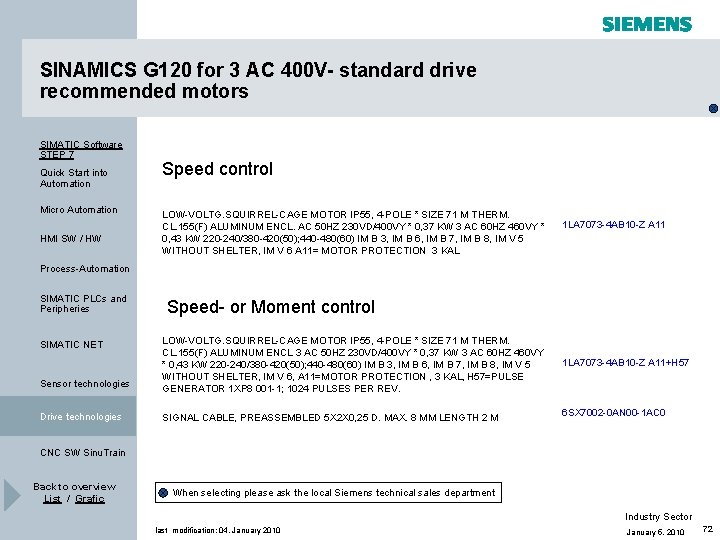

SINAMICS G 120 for 3 AC 400 V- standard drive recommended motors SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Speed control LOW-VOLTG. SQUIRREL-CAGE MOTOR IP 55, 4 -POLE * SIZE 71 M THERM. CL. 155(F) ALUMINUM ENCL. AC 50 HZ 230 VD/400 VY * 0, 37 KW 3 AC 60 HZ 460 VY * 0, 43 KW 220 -240/380 -420(50); 440 -480(60) IM B 3, IM B 6, IM B 7, IM B 8, IM V 5 WITHOUT SHELTER, IM V 6 A 11= MOTOR PROTECTION 3 KAL 1 LA 7073 -4 AB 10 -Z A 11 Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies Speed- or Moment control LOW-VOLTG. SQUIRREL-CAGE MOTOR IP 55, 4 -POLE * SIZE 71 M THERM. CL. 155(F) ALUMINUM ENCL 3 AC 50 HZ 230 VD/400 VY * 0, 37 KW 3 AC 60 HZ 460 VY * 0, 43 KW 220 -240/380 -420(50); 440 -480(60) IM B 3, IM B 6, IM B 7, IM B 8, IM V 5 WITHOUT SHELTER, IM V 6, A 11=MOTOR PROTECTION , 3 KAL, H 57=PULSE GENERATOR 1 XP 8 001 -1; 1024 PULSES PER REV. 1 LA 7073 -4 AB 10 -Z A 11+H 57 SIGNAL CABLE, PREASSEMBLED 5 X 2 X 0, 25 D. MAX. 8 MM LENGTH 2 M 6 SX 7002 -0 AN 00 -1 AC 0 CNC SW Sinu. Train Back to overview List / Grafic ^ When selecting please ask the local Siemens technical sales department Industry Sector last modification: 04. January 2010 January 5, 2010 72

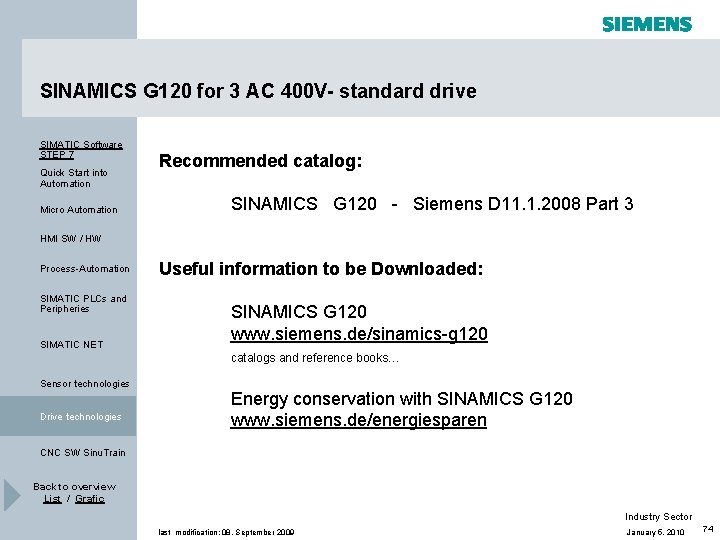

SINAMICS G 120 for 3 AC 400 V- standard drive SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Recommended Accessories: 3 RV 1021 -1 DA 10 CIRCUIT-BREAKER SIZE S 0, FOR MOTOR PROTECTION, CLASS 10, A-REL. 2. 2. . . 3. 2 A, N-REL. 42 A, SCREW TERMINAL, STANDARD SWITCHING CAPACITY 6 SW 1700 -5 JA 00 -4 AA 0 DRIVE ES BASIC V 5. 4 SP 4 PLANNING-SW FOR DRIVES. 5 -LANGUAGE CD WITH ELECTR. DOCUMENTATION, FOR STEP 7 V 5. 4 SPX FLOATING LICENSE (MINIMUM-INSTALL. -REQUIREMENTS STEP 7 V 5. 3 SP 1 OR LATER) 6 SW 1700 -5 JC 00 -4 AA 0 DRIVE ES SIMATIC V 5. 4 BLOCK LIBRARIES FOR SIMATIC S 7 FOR COMMUNICATION WITH DRIVES 5 LANGUAGE CD; WITH ELECTR. DOCUMENTATION, REQUIRES STEP 7 STARTING V 5. 4, SINGLE LICENSE 6 XV 1870 -3 RH 60 SIMATIC NET INDUSTRIAL ETHERNET TP XP CORD RJ 45/RJ 45, CAT 6, CROSSED TP CABLE 4 X 2, PREASSEMBLED W. 2 RJ 45 CONNECTORS, LENGTH 6 M Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic ^ When selecting please ask the local Siemens technical sales department Industry Sector last modification: 04. January 2010 January 5, 2010 73

SINAMICS G 120 for 3 AC 400 V- standard drive SIMATIC Software STEP 7 Quick Start into Automation Micro Automation Recommended catalog: SINAMICS G 120 - Siemens D 11. 1. 2008 Part 3 HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Useful information to be Downloaded: SINAMICS G 120 www. siemens. de/sinamics-g 120 catalogs and reference books… Sensor technologies Drive technologies Energy conservation with SINAMICS G 120 www. siemens. de/energiesparen CNC SW Sinu. Train Back to overview List / Grafic Industry Sector last modification: 08. September 2009 January 5, 2010 74

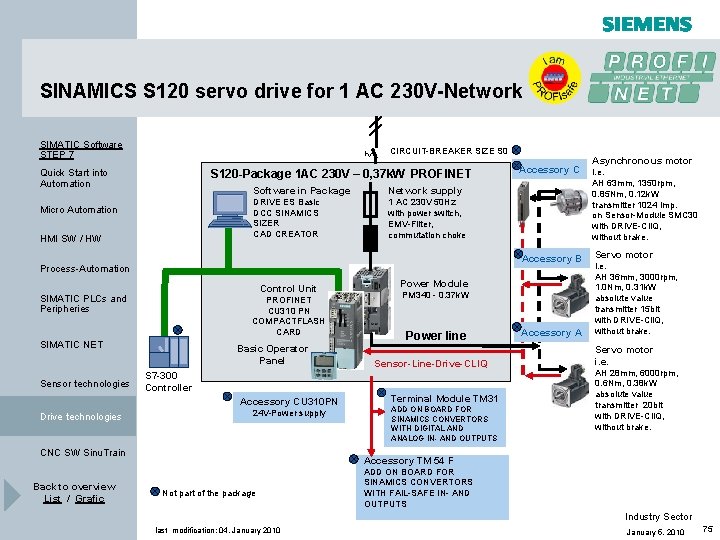

SINAMICS S 120 servo drive for 1 AC 230 V-Network SIMATIC Software STEP 7 CIRCUIT-BREAKER SIZE S 0 S 120 -Package 1 AC 230 V – 0, 37 k. W PROFINET Quick Start into Automation Micro Automation HMI SW / HW Software in Package Network supply DRIVE ES Basic DCC SINAMICS SIZER CAD CREATOR 1 AC 230 V 50 Hz with power switch, EMV-Filter, commutation choke Accessory B Process-Automation Control Unit SIMATIC PLCs and Peripheries PROFINET CU 310 PN COMPACTFLASH CARD SIMATIC NET Sensor technologies Basic Operator Panel 24 V-Power supply CNC SW Sinu. Train Back to overview List / Grafic Power Module PM 340 - 0. 37 k. W Power line Sensor-Line-Drive-CLIQ S 7 -300 Controller Accessory CU 310 PN Drive technologies Accessory C Terminal Module TM 31 ADD ON BOARD FOR SINAMICS CONVERTORS WITH DIGITAL AND ANALOG IN- AND OUTPUTS Accessory A Asynchronous motor i. e. AH 63 mm, 1350 rpm, 0. 85 Nm, 0. 12 k. W transmitter 1024 Imp. on Sensor-Module SMC 30 with DRIVE-Cli. Q, without brake. Servo motor i. e. AH 36 mm, 3000 rpm, 1. 0 Nm, 0. 31 k. W absolute value transmitter 15 bit with DRIVE-Cli. Q, without brake. Servo motor i. e. AH 28 mm, 6000 rpm, 0. 6 Nm, 0. 38 k. W absolute value transmitter 20 bit with DRIVE-Cli. Q, without brake. Accessory TM 54 F Not part of the package ADD ON BOARD FOR SINAMICS CONVERTORS WITH FAIL-SAFE IN- AND OUTPUTS Industry Sector last modification: 04. January 2010 January 5, 2010 75

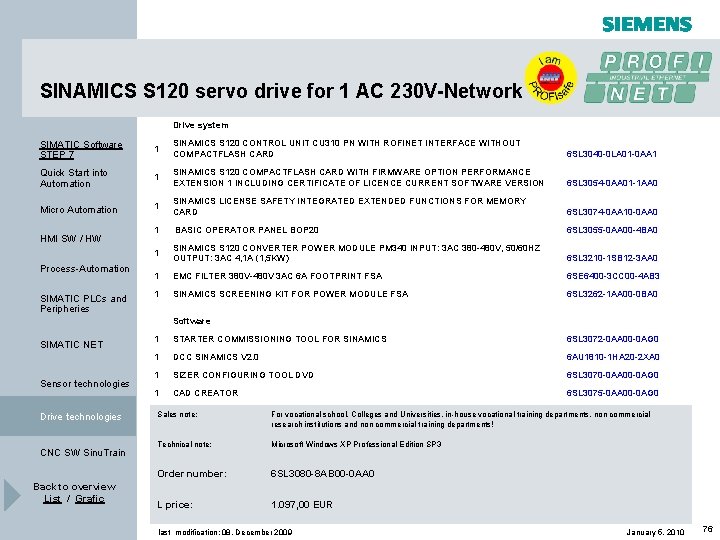

SINAMICS S 120 servo drive for 1 AC 230 V-Network Drive system SIMATIC Software STEP 7 1 SINAMICS S 120 CONTROL UNIT CU 310 PN WITH ROFINET INTERFACE WITHOUT COMPACTFLASH CARD 6 SL 3040 -0 LA 01 -0 AA 1 Quick Start into Automation 1 SINAMICS S 120 COMPACTFLASH CARD WITH FIRMWARE OPTION PERFORMANCE EXTENSION 1 INCLUDING CERTIFICATE OF LICENCE CURRENT SOFTWARE VERSION 6 SL 3054 -0 AA 01 -1 AA 0 Micro Automation 1 SINAMICS LICENSE SAFETY INTEGRATED EXTENDED FUNCTIONS FOR MEMORY CARD 6 SL 3074 -0 AA 10 -0 AA 0 1 BASIC OPERATOR PANEL BOP 20 6 SL 3055 -0 AA 00 -4 BA 0 1 SINAMICS S 120 CONVERTER POWER MODULE PM 340 INPUT: 3 AC 380 -480 V, 50/60 HZ OUTPUT: 3 AC 4, 1 A (1, 5 KW) 6 SL 3210 -1 SB 12 -3 AA 0 1 EMC FILTER 380 V-480 V 3 AC 6 A FOOTPRINT FSA 6 SE 6400 -3 CC 00 -4 AB 3 1 SINAMICS SCREENING KIT FOR POWER MODULE FSA 6 SL 3262 -1 AA 00 -0 BA 0 HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries Software SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic 1 STARTER COMMISSIONING TOOL FOR SINAMICS 6 SL 3072 -0 AA 00 -0 AG 0 1 DCC SINAMICS V 2. 0 6 AU 1810 -1 HA 20 -2 XA 0 1 SIZER CONFIGURING TOOL DVD 6 SL 3070 -0 AA 00 -0 AG 0 1 CAD CREATOR 6 SL 3075 -0 AA 00 -0 AG 0 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: Microsoft Windows XP Professional Edition SP 3 Order number: 6 SL 3080 -8 AB 00 -0 AA 0 L price: 1. 097, 00 EUR Industry Sector last modification: 08. December 2009 January 5, 2010 76

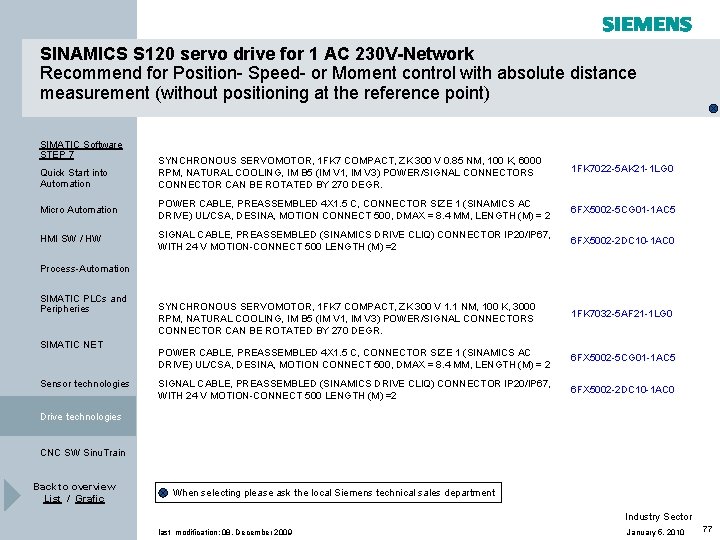

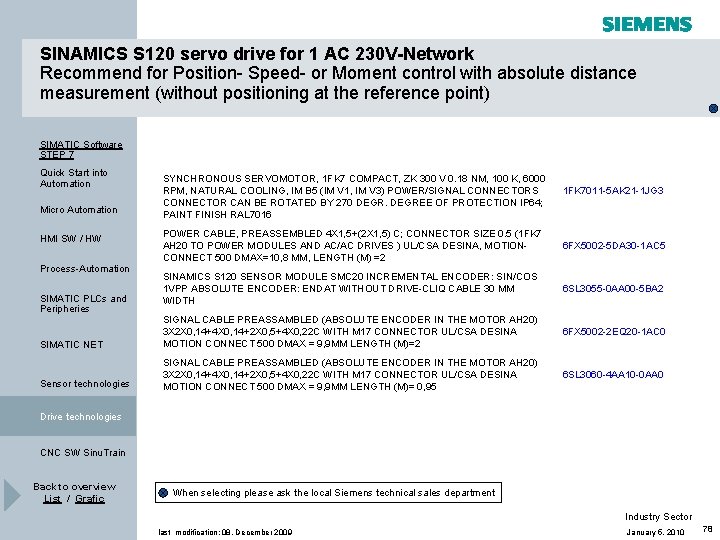

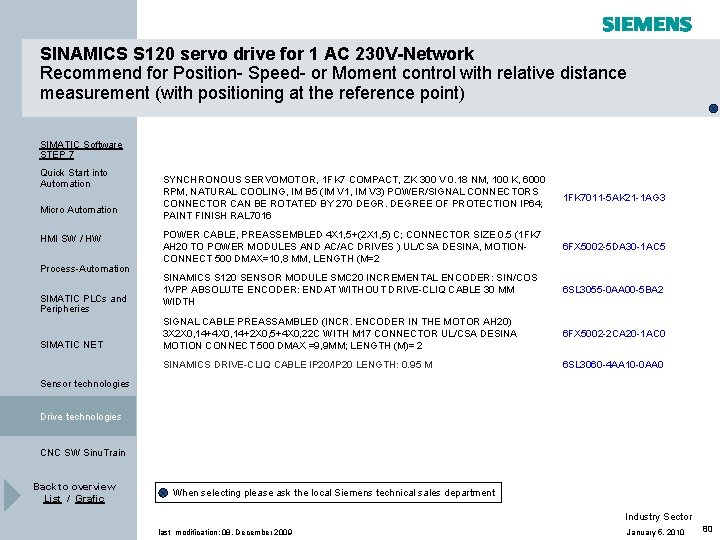

SINAMICS S 120 servo drive for 1 AC 230 V-Network Recommend for Position- Speed- or Moment control with absolute distance measurement (without positioning at the reference point) SIMATIC Software STEP 7 SYNCHRONOUS SERVOMOTOR, 1 FK 7 COMPACT, ZK 300 V 0. 85 NM, 100 K, 6000 RPM, NATURAL COOLING, IM B 5 (IM V 1, IM V 3) POWER/SIGNAL CONNECTORS CONNECTOR CAN BE ROTATED BY 270 DEGR. 1 FK 7022 -5 AK 21 -1 LG 0 Micro Automation POWER CABLE, PREASSEMBLED 4 X 1. 5 C, CONNECTOR SIZE 1 (SINAMICS AC DRIVE) UL/CSA, DESINA, MOTION CONNECT 500, DMAX = 8. 4 MM, LENGTH (M) = 2 6 FX 5002 -5 CG 01 -1 AC 5 HMI SW / HW SIGNAL CABLE, PREASSEMBLED (SINAMICS DRIVE CLIQ) CONNECTOR IP 20/IP 67, WITH 24 V MOTION-CONNECT 500 LENGTH (M) =2 6 FX 5002 -2 DC 10 -1 AC 0 Quick Start into Automation Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies SYNCHRONOUS SERVOMOTOR, 1 FK 7 COMPACT, ZK 300 V 1. 1 NM, 100 K, 3000 RPM, NATURAL COOLING, IM B 5 (IM V 1, IM V 3) POWER/SIGNAL CONNECTORS CONNECTOR CAN BE ROTATED BY 270 DEGR. 1 FK 7032 -5 AF 21 -1 LG 0 POWER CABLE, PREASSEMBLED 4 X 1. 5 C, CONNECTOR SIZE 1 (SINAMICS AC DRIVE) UL/CSA, DESINA, MOTION CONNECT 500, DMAX = 8. 4 MM, LENGTH (M) = 2 6 FX 5002 -5 CG 01 -1 AC 5 SIGNAL CABLE, PREASSEMBLED (SINAMICS DRIVE CLIQ) CONNECTOR IP 20/IP 67, WITH 24 V MOTION-CONNECT 500 LENGTH (M) =2 6 FX 5002 -2 DC 10 -1 AC 0 Drive technologies CNC SW Sinu. Train Back to overview List / Grafic ^ When selecting please ask the local Siemens technical sales department Industry Sector last modification: 08. December 2009 January 5, 2010 77

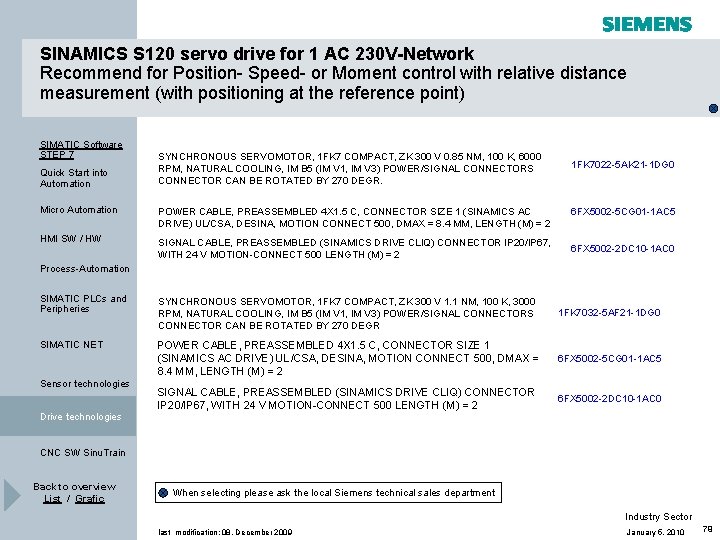

SINAMICS S 120 servo drive for 1 AC 230 V-Network Recommend for Position- Speed- or Moment control with absolute distance measurement (without positioning at the reference point) SIMATIC Software STEP 7 Quick Start into Automation Micro Automation SYNCHRONOUS SERVOMOTOR, 1 FK 7 COMPACT, ZK 300 V 0. 18 NM, 100 K, 6000 RPM, NATURAL COOLING, IM B 5 (IM V 1, IM V 3) POWER/SIGNAL CONNECTORS CONNECTOR CAN BE ROTATED BY 270 DEGREE OF PROTECTION IP 64; PAINT FINISH RAL 7016 1 FK 7011 -5 AK 21 -1 JG 3 POWER CABLE, PREASSEMBLED 4 X 1, 5+(2 X 1, 5) C; CONNECTOR SIZE 0. 5 (1 FK 7 AH 20 TO POWER MODULES AND AC/AC DRIVES ) UL/CSA DESINA, MOTIONCONNECT 500 DMAX=10, 8 MM, LENGTH (M) =2 6 FX 5002 -5 DA 30 -1 AC 5 SINAMICS S 120 SENSOR MODULE SMC 20 INCREMENTAL ENCODER: SIN/COS 1 VPP ABSOLUTE ENCODER: ENDAT WITHOUT DRIVE-CLIQ CABLE 30 MM WIDTH 6 SL 3055 -0 AA 00 -5 BA 2 6 FX 5002 -2 EQ 20 -1 AC 0 SIMATIC NET SIGNAL CABLE PREASSAMBLED (ABSOLUTE ENCODER IN THE MOTOR AH 20) 3 X 2 X 0, 14+4 X 0, 14+2 X 0, 5+4 X 0, 22 C WITH M 17 CONNECTOR UL/CSA DESINA MOTION CONNECT 500 DMAX = 9, 9 MM LENGTH (M)=2 Sensor technologies SIGNAL CABLE PREASSAMBLED (ABSOLUTE ENCODER IN THE MOTOR AH 20) 3 X 2 X 0, 14+4 X 0, 14+2 X 0, 5+4 X 0, 22 C WITH M 17 CONNECTOR UL/CSA DESINA MOTION CONNECT 500 DMAX = 9, 9 MM LENGTH (M)= 0, 95 6 SL 3060 -4 AA 10 -0 AA 0 HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries Drive technologies CNC SW Sinu. Train Back to overview List / Grafic ^ When selecting please ask the local Siemens technical sales department Industry Sector last modification: 08. December 2009 January 5, 2010 78

SINAMICS S 120 servo drive for 1 AC 230 V-Network Recommend for Position- Speed- or Moment control with relative distance measurement (with positioning at the reference point) SIMATIC Software STEP 7 Quick Start into Automation SYNCHRONOUS SERVOMOTOR, 1 FK 7 COMPACT, ZK 300 V 0. 85 NM, 100 K, 6000 RPM, NATURAL COOLING, IM B 5 (IM V 1, IM V 3) POWER/SIGNAL CONNECTORS CONNECTOR CAN BE ROTATED BY 270 DEGR. Micro Automation POWER CABLE, PREASSEMBLED 4 X 1. 5 C, CONNECTOR SIZE 1 (SINAMICS AC DRIVE) UL/CSA, DESINA, MOTION CONNECT 500, DMAX = 8. 4 MM, LENGTH (M) = 2 HMI SW / HW SIGNAL CABLE, PREASSEMBLED (SINAMICS DRIVE CLIQ) CONNECTOR IP 20/IP 67, WITH 24 V MOTION-CONNECT 500 LENGTH (M) = 2 1 FK 7022 -5 AK 21 -1 DG 0 6 FX 5002 -5 CG 01 -1 AC 5 6 FX 5002 -2 DC 10 -1 AC 0 Process-Automation SIMATIC PLCs and Peripheries SYNCHRONOUS SERVOMOTOR, 1 FK 7 COMPACT, ZK 300 V 1. 1 NM, 100 K, 3000 RPM, NATURAL COOLING, IM B 5 (IM V 1, IM V 3) POWER/SIGNAL CONNECTORS CONNECTOR CAN BE ROTATED BY 270 DEGR 1 FK 7032 -5 AF 21 -1 DG 0 SIMATIC NET POWER CABLE, PREASSEMBLED 4 X 1. 5 C, CONNECTOR SIZE 1 (SINAMICS AC DRIVE) UL/CSA, DESINA, MOTION CONNECT 500, DMAX = 8. 4 MM, LENGTH (M) = 2 6 FX 5002 -5 CG 01 -1 AC 5 SIGNAL CABLE, PREASSEMBLED (SINAMICS DRIVE CLIQ) CONNECTOR IP 20/IP 67, WITH 24 V MOTION-CONNECT 500 LENGTH (M) = 2 6 FX 5002 -2 DC 10 -1 AC 0 Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic ^ When selecting please ask the local Siemens technical sales department Industry Sector last modification: 08. December 2009 January 5, 2010 79

SINAMICS S 120 servo drive for 1 AC 230 V-Network Recommend for Position- Speed- or Moment control with relative distance measurement (with positioning at the reference point) SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET SYNCHRONOUS SERVOMOTOR, 1 FK 7 COMPACT, ZK 300 V 0. 18 NM, 100 K, 6000 RPM, NATURAL COOLING, IM B 5 (IM V 1, IM V 3) POWER/SIGNAL CONNECTORS CONNECTOR CAN BE ROTATED BY 270 DEGREE OF PROTECTION IP 64; PAINT FINISH RAL 7016 1 FK 7011 -5 AK 21 -1 AG 3 POWER CABLE, PREASSEMBLED 4 X 1, 5+(2 X 1, 5) C; CONNECTOR SIZE 0. 5 (1 FK 7 AH 20 TO POWER MODULES AND AC/AC DRIVES ) UL/CSA DESINA, MOTIONCONNECT 500 DMAX=10, 8 MM, LENGTH (M=2 6 FX 5002 -5 DA 30 -1 AC 5 SINAMICS S 120 SENSOR MODULE SMC 20 INCREMENTAL ENCODER: SIN/COS 1 VPP ABSOLUTE ENCODER: ENDAT WITHOUT DRIVE-CLIQ CABLE 30 MM WIDTH 6 SL 3055 -0 AA 00 -5 BA 2 SIGNAL CABLE PREASSAMBLED (INCR. ENCODER IN THE MOTOR AH 20) 3 X 2 X 0, 14+4 X 0, 14+2 X 0, 5+4 X 0, 22 C WITH M 17 CONNECTOR UL/CSA DESINA MOTION CONNECT 500 DMAX =9, 9 MM; LENGTH (M)= 2 6 FX 5002 -2 CA 20 -1 AC 0 SINAMICS DRIVE-CLIQ CABLE IP 20/IP 20 LENGTH: 0. 95 M 6 SL 3060 -4 AA 10 -0 AA 0 Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic ^ When selecting please ask the local Siemens technical sales department Industry Sector last modification: 08. December 2009 January 5, 2010 80

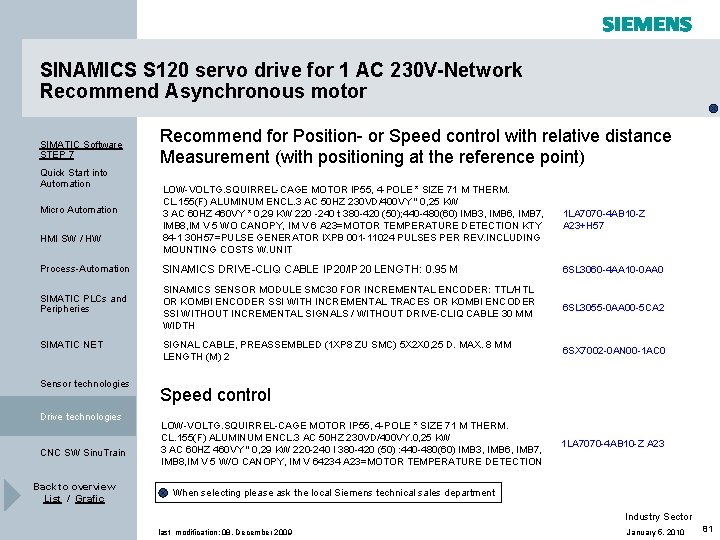

SINAMICS S 120 servo drive for 1 AC 230 V-Network Recommend Asynchronous motor SIMATIC Software STEP 7 Quick Start into Automation Recommend for Position- or Speed control with relative distance Measurement (with positioning at the reference point) LOW-VOLTG. SQUIRREL-CAGE MOTOR IP 55, 4 -POLE * SIZE 71 M THERM. CL. 155(F) ALUMINUM ENCL. 3 AC 50 HZ 230 VD/400 VY " 0, 25 KW 3 AC 60 HZ 460 VY * 0, 29 KW 220 -240 t 380 -420 (50); 440 -480(60) IMB 3, IMB 6, IMB 7, IMB 8, IM V 5 WO CANOPY, IM V 6 A 23=MOTOR TEMPERATURE DETECTION KTY 84 -1 30 H 57=PULSE GENERATOR l. XPB 001 -11024 PULSES PER REV. INCLUDING MOUNTING COSTS W. UNIT 1 LA 7070 -4 AB 10 -Z A 23+H 57 Process-Automation SINAMICS DRIVE-CLIQ CABLE IP 20/IP 20 LENGTH: 0. 95 M 6 SL 3060 -4 AA 10 -0 AA 0 SIMATIC PLCs and Peripheries SINAMICS SENSOR MODULE SMC 30 FOR INCREMENTAL ENCODER: TTL/HTL OR KOMBI ENCODER SSI WITH INCREMENTAL TRACES OR KOMBI ENCODER SSI WITHOUT INCREMENTAL SIGNALS / WITHOUT DRIVE-CLIQ CABLE 30 MM WIDTH 6 SL 3055 -0 AA 00 -5 CA 2 SIGNAL CABLE, PREASSEMBLED (1 XP 8 ZU SMC) 5 X 2 X 0, 25 D. MAX. 8 MM LENGTH (M) 2 6 SX 7002 -0 AN 00 -1 AC 0 Micro Automation HMI SW / HW SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Speed control LOW-VOLTG. SQUIRREL-CAGE MOTOR IP 55, 4 -POLE * SIZE 71 M THERM. CL. 155(F) ALUMINUM ENCL. 3 AC 50 HZ 230 VD/400 VY. 0, 25 KW 3 AC 60 HZ 460 VY " 0, 29 KW 220 -240 I 380 -420 (50) : 440 -480(60) IMB 3, IMB 6, IMB 7, IMB 8, IM V 5 W/O CANOPY, IM V 64234 A 23=MOTOR TEMPERATURE DETECTION 1 LA 7070 -4 AB 10 -Z A 23 ^ When selecting please ask the local Siemens technical sales department Industry Sector last modification: 08. December 2009 January 5, 2010 81

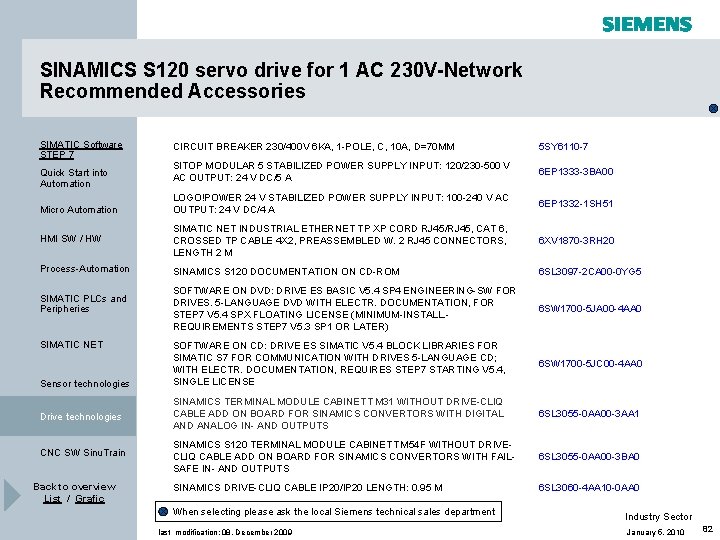

SINAMICS S 120 servo drive for 1 AC 230 V-Network Recommended Accessories SIMATIC Software STEP 7 CIRCUIT BREAKER 230/400 V 6 KA, 1 -POLE, C, 10 A, D=70 MM 5 SY 6110 -7 SITOP MODULAR 5 STABILIZED POWER SUPPLY INPUT: 120/230 -500 V AC OUTPUT: 24 V DC/5 A 6 EP 1333 -3 BA 00 LOGO!POWER 24 V STABILIZED POWER SUPPLY INPUT: 100 -240 V AC OUTPUT: 24 V DC/4 A 6 EP 1332 -1 SH 51 HMI SW / HW SIMATIC NET INDUSTRIAL ETHERNET TP XP CORD RJ 45/RJ 45, CAT 6, CROSSED TP CABLE 4 X 2, PREASSEMBLED W. 2 RJ 45 CONNECTORS, LENGTH 2 M 6 XV 1870 -3 RH 20 Process-Automation SINAMICS S 120 DOCUMENTATION ON CD-ROM 6 SL 3097 -2 CA 00 -0 YG 5 SOFTWARE ON DVD: DRIVE ES BASIC V 5. 4 SP 4 ENGINEERING-SW FOR DRIVES. 5 -LANGUAGE DVD WITH ELECTR. DOCUMENTATION, FOR STEP 7 V 5. 4 SPX FLOATING LICENSE (MINIMUM-INSTALL. REQUIREMENTS STEP 7 V 5. 3 SP 1 OR LATER) 6 SW 1700 -5 JA 00 -4 AA 0 SOFTWARE ON CD: DRIVE ES SIMATIC V 5. 4 BLOCK LIBRARIES FOR SIMATIC S 7 FOR COMMUNICATION WITH DRIVES 5 -LANGUAGE CD; WITH ELECTR. DOCUMENTATION, REQUIRES STEP 7 STARTING V 5. 4, SINGLE LICENSE 6 SW 1700 -5 JC 00 -4 AA 0 Drive technologies SINAMICS TERMINAL MODULE CABINET TM 31 WITHOUT DRIVE-CLIQ CABLE ADD ON BOARD FOR SINAMICS CONVERTORS WITH DIGITAL AND ANALOG IN- AND OUTPUTS 6 SL 3055 -0 AA 00 -3 AA 1 CNC SW Sinu. Train SINAMICS S 120 TERMINAL MODULE CABINET TM 54 F WITHOUT DRIVECLIQ CABLE ADD ON BOARD FOR SINAMICS CONVERTORS WITH FAILSAFE IN- AND OUTPUTS 6 SL 3055 -0 AA 00 -3 BA 0 SINAMICS DRIVE-CLIQ CABLE IP 20/IP 20 LENGTH: 0. 95 M 6 SL 3060 -4 AA 10 -0 AA 0 Quick Start into Automation Micro Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Back to overview List / Grafic ^ When selecting please ask the local Siemens technical sales department last modification: 08. December 2009 Industry Sector January 5, 2010 82

SINAMICS S 120 Servo drive for 3 AC 400 V-Network SIMATIC Software STEP 7 CIRCUIT-BREAKER SIZE S 0 S 120 -package 3 AC 400 V – 1. 5 k. W PROFINET Quick Start into Automation Software in Package DCC SINAMICS SIZER CAD CREATOR Starter Micro Automation HMI SW / HW Process-Automation Control Unit PROFINET CU 310 PN Flash Card SIMATIC PLCs and Peripheries Operator Panel SIMATIC NET Net work supply 3 AC 400 V 50 Hz with power switch, EMV-Filter, commutation choke PM 340 - 1. 5 k. W Accessory A Servo drive Power line Sensor-Line-Drive-CLIQ Drive technologies CNC SW Sinu. Train AH 63 mm, 1350 rpm, 0. 85 Nm, 0. 12 k. W transmitter 1024 Imp. on Sensor-Module SMC 30 with DRIVE-Cli. Q, without brake. Power Module S 7 -300 Sensor technologies Controller Accessory CU 310 PN 24 V-Power supply Asynchronous drive Accessory B i. e. AH 48 mm, 3000 rpm, 2. 6 Nm, 0. 82 k. W absolute value transmitter 22 bit with Drive-Cli. Q, without brake. Terminal Module TM 31 ADD ON BOARD FOR SINAMICS CONVERTORS WITH DIGITAL AND ANALOG IN- AND OUTPUTS Accessory TM 54 F ADD ON BOARD FOR SINAMICS CONVERTORS WITH FAIL-SAFE IN- AND OUTPUTS Back to overview List / Grafic Industry Sector last modification: 04. January 2010 January 5, 2010 83

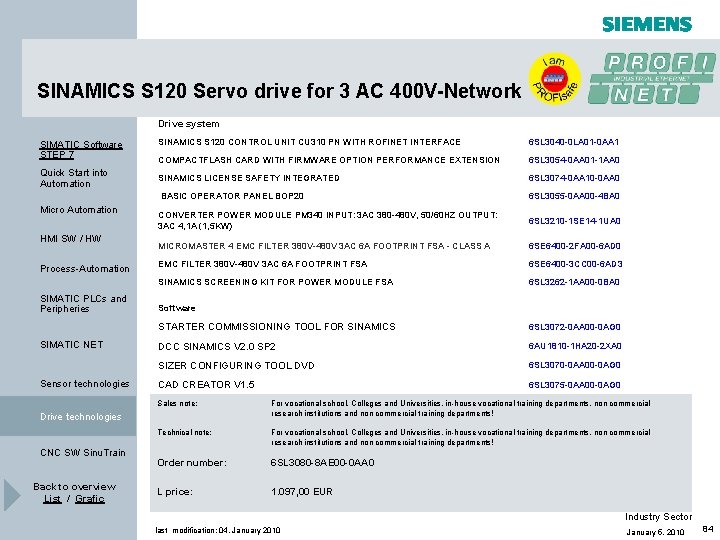

SINAMICS S 120 Servo drive for 3 AC 400 V-Network Drive system SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies SINAMICS S 120 CONTROL UNIT CU 310 PN WITH ROFINET INTERFACE 6 SL 3040 -0 LA 01 -0 AA 1 COMPACTFLASH CARD WITH FIRMWARE OPTION PERFORMANCE EXTENSION 6 SL 3054 -0 AA 01 -1 AA 0 SINAMICS LICENSE SAFETY INTEGRATED 6 SL 3074 -0 AA 10 -0 AA 0 BASIC OPERATOR PANEL BOP 20 6 SL 3055 -0 AA 00 -4 BA 0 CONVERTER POWER MODULE PM 340 INPUT: 3 AC 380 -480 V, 50/60 HZ OUTPUT: 3 AC 4, 1 A (1, 5 KW) 6 SL 3210 -1 SE 14 -1 UA 0 MICROMASTER 4 EMC FILTER 380 V-480 V 3 AC 6 A FOOTPRINT FSA - CLASS A 6 SE 6400 -2 FA 00 -6 AD 0 EMC FILTER 380 V-480 V 3 AC 6 A FOOTPRINT FSA 6 SE 6400 -3 CC 00 -6 AD 3 SINAMICS SCREENING KIT FOR POWER MODULE FSA 6 SL 3262 -1 AA 00 -0 BA 0 Software STARTER COMMISSIONING TOOL FOR SINAMICS 6 SL 3072 -0 AA 00 -0 AG 0 DCC SINAMICS V 2. 0 SP 2 6 AU 1810 -1 HA 20 -2 XA 0 SIZER CONFIGURING TOOL DVD 6 SL 3070 -0 AA 00 -0 AG 0 CAD CREATOR V 1. 5 6 SL 3075 -0 AA 00 -0 AG 0 Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Order number: 6 SL 3080 -8 AE 00 -0 AA 0 L price: 1. 097, 00 EUR Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Industry Sector last modification: 04. January 2010 January 5, 2010 84

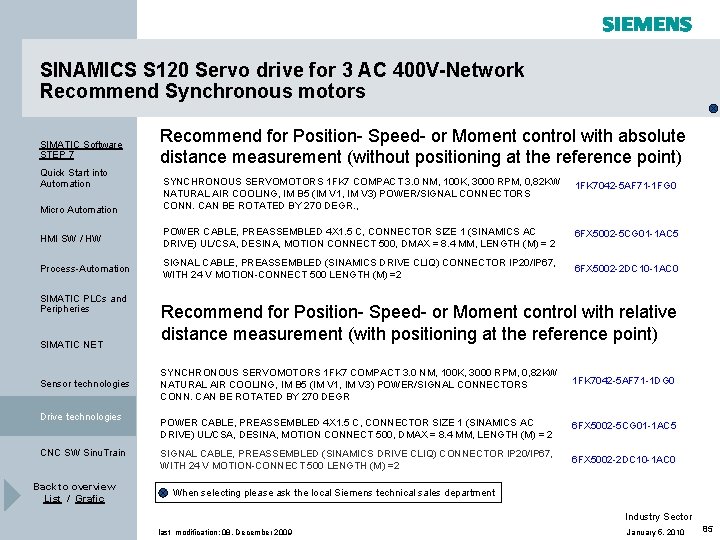

SINAMICS S 120 Servo drive for 3 AC 400 V-Network Recommend Synchronous motors SIMATIC Software STEP 7 Quick Start into Automation Recommend for Position- Speed- or Moment control with absolute distance measurement (without positioning at the reference point) 1 FK 7042 -5 AF 71 -1 FG 0 Micro Automation SYNCHRONOUS SERVOMOTORS 1 FK 7 COMPACT 3. 0 NM, 100 K, 3000 RPM, 0, 82 KW NATURAL AIR COOLING, IM B 5 (IM V 1, IM V 3) POWER/SIGNAL CONNECTORS CONN. CAN BE ROTATED BY 270 DEGR. , HMI SW / HW POWER CABLE, PREASSEMBLED 4 X 1. 5 C, CONNECTOR SIZE 1 (SINAMICS AC DRIVE) UL/CSA, DESINA, MOTION CONNECT 500, DMAX = 8. 4 MM, LENGTH (M) = 2 6 FX 5002 -5 CG 01 -1 AC 5 Process-Automation SIGNAL CABLE, PREASSEMBLED (SINAMICS DRIVE CLIQ) CONNECTOR IP 20/IP 67, WITH 24 V MOTION-CONNECT 500 LENGTH (M) =2 6 FX 5002 -2 DC 10 -1 AC 0 SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Recommend for Position- Speed- or Moment control with relative distance measurement (with positioning at the reference point) SYNCHRONOUS SERVOMOTORS 1 FK 7 COMPACT 3. 0 NM, 100 K, 3000 RPM, 0, 82 KW NATURAL AIR COOLING, IM B 5 (IM V 1, IM V 3) POWER/SIGNAL CONNECTORS CONN. CAN BE ROTATED BY 270 DEGR 1 FK 7042 -5 AF 71 -1 DG 0 POWER CABLE, PREASSEMBLED 4 X 1. 5 C, CONNECTOR SIZE 1 (SINAMICS AC DRIVE) UL/CSA, DESINA, MOTION CONNECT 500, DMAX = 8. 4 MM, LENGTH (M) = 2 6 FX 5002 -5 CG 01 -1 AC 5 SIGNAL CABLE, PREASSEMBLED (SINAMICS DRIVE CLIQ) CONNECTOR IP 20/IP 67, WITH 24 V MOTION-CONNECT 500 LENGTH (M) =2 6 FX 5002 -2 DC 10 -1 AC 0 ^ When selecting please ask the local Siemens technical sales department Industry Sector last modification: 08. December 2009 January 5, 2010 85

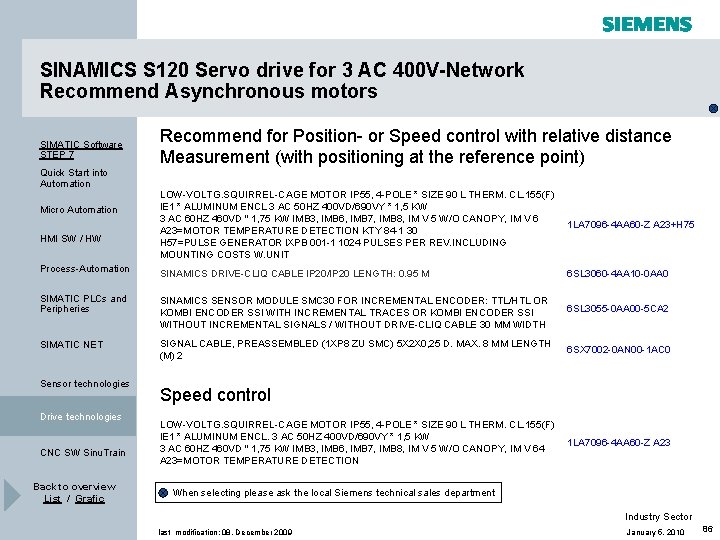

SINAMICS S 120 Servo drive for 3 AC 400 V-Network Recommend Asynchronous motors SIMATIC Software STEP 7 Quick Start into Automation Recommend for Position- or Speed control with relative distance Measurement (with positioning at the reference point) LOW-VOLTG. SQUIRREL-CAGE MOTOR IP 55, 4 -POLE * SIZE 90 L THERM. CL. 155(F) IE 1 * ALUMINUM ENCL 3 AC 50 HZ 400 VD/690 VY * 1, 5 KW 3 AC 60 HZ 460 VD " 1, 75 KW IMB 3, IMB 6, IMB 7, IMB 8, IM V 5 W/O CANOPY, IM V 6 A 23=MOTOR TEMPERATURE DETECTION KTY 84 -1 30 H 57=PULSE GENERATOR l. XPB 001 -1 1024 PULSES PER REV. INCLUDING MOUNTING COSTS W. UNIT 1 LA 7096 -4 AA 60 -Z A 23+H 75 Process-Automation SINAMICS DRIVE-CLIQ CABLE IP 20/IP 20 LENGTH: 0. 95 M 6 SL 3060 -4 AA 10 -0 AA 0 SIMATIC PLCs and Peripheries SINAMICS SENSOR MODULE SMC 30 FOR INCREMENTAL ENCODER: TTL/HTL OR KOMBI ENCODER SSI WITH INCREMENTAL TRACES OR KOMBI ENCODER SSI WITHOUT INCREMENTAL SIGNALS / WITHOUT DRIVE-CLIQ CABLE 30 MM WIDTH 6 SL 3055 -0 AA 00 -5 CA 2 SIMATIC NET SIGNAL CABLE, PREASSEMBLED (1 XP 8 ZU SMC) 5 X 2 X 0, 25 D. MAX. 8 MM LENGTH (M) 2 6 SX 7002 -0 AN 00 -1 AC 0 Micro Automation HMI SW / HW Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Speed control LOW-VOLTG. SQUIRREL-CAGE MOTOR IP 55, 4 -POLE * SIZE 90 L THERM. CL. 155(F) IE 1 * ALUMINUM ENCL. 3 AC 50 HZ 400 VD/690 VY * 1, 5 KW 3 AC 60 HZ 460 VD " 1, 75 KW IMB 3, IMB 6, IMB 7, IMB 8, IM V 5 W/O CANOPY, IM V 64 A 23=MOTOR TEMPERATURE DETECTION 1 LA 7096 -4 AA 60 -Z A 23 ^ When selecting please ask the local Siemens technical sales department Industry Sector last modification: 08. December 2009 January 5, 2010 86

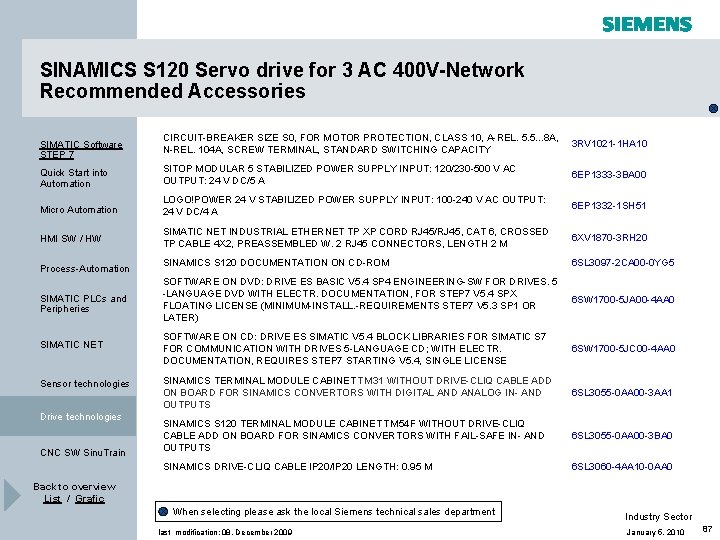

SINAMICS S 120 Servo drive for 3 AC 400 V-Network Recommended Accessories SIMATIC Software STEP 7 CIRCUIT-BREAKER SIZE S 0, FOR MOTOR PROTECTION, CLASS 10, A-REL. 5. 5. . . 8 A, N-REL. 104 A, SCREW TERMINAL, STANDARD SWITCHING CAPACITY 3 RV 1021 -1 HA 10 Quick Start into Automation SITOP MODULAR 5 STABILIZED POWER SUPPLY INPUT: 120/230 -500 V AC OUTPUT: 24 V DC/5 A 6 EP 1333 -3 BA 00 Micro Automation LOGO!POWER 24 V STABILIZED POWER SUPPLY INPUT: 100 -240 V AC OUTPUT: 24 V DC/4 A 6 EP 1332 -1 SH 51 HMI SW / HW SIMATIC NET INDUSTRIAL ETHERNET TP XP CORD RJ 45/RJ 45, CAT 6, CROSSED TP CABLE 4 X 2, PREASSEMBLED W. 2 RJ 45 CONNECTORS, LENGTH 2 M 6 XV 1870 -3 RH 20 SINAMICS S 120 DOCUMENTATION ON CD-ROM 6 SL 3097 -2 CA 00 -0 YG 5 SIMATIC PLCs and Peripheries SOFTWARE ON DVD: DRIVE ES BASIC V 5. 4 SP 4 ENGINEERING-SW FOR DRIVES. 5 -LANGUAGE DVD WITH ELECTR. DOCUMENTATION, FOR STEP 7 V 5. 4 SPX FLOATING LICENSE (MINIMUM-INSTALL. -REQUIREMENTS STEP 7 V 5. 3 SP 1 OR LATER) 6 SW 1700 -5 JA 00 -4 AA 0 SIMATIC NET SOFTWARE ON CD: DRIVE ES SIMATIC V 5. 4 BLOCK LIBRARIES FOR SIMATIC S 7 FOR COMMUNICATION WITH DRIVES 5 -LANGUAGE CD; WITH ELECTR. DOCUMENTATION, REQUIRES STEP 7 STARTING V 5. 4, SINGLE LICENSE 6 SW 1700 -5 JC 00 -4 AA 0 SINAMICS TERMINAL MODULE CABINET TM 31 WITHOUT DRIVE-CLIQ CABLE ADD ON BOARD FOR SINAMICS CONVERTORS WITH DIGITAL AND ANALOG IN- AND OUTPUTS 6 SL 3055 -0 AA 00 -3 AA 1 SINAMICS S 120 TERMINAL MODULE CABINET TM 54 F WITHOUT DRIVE-CLIQ CABLE ADD ON BOARD FOR SINAMICS CONVERTORS WITH FAIL-SAFE IN- AND OUTPUTS 6 SL 3055 -0 AA 00 -3 BA 0 SINAMICS DRIVE-CLIQ CABLE IP 20/IP 20 LENGTH: 0. 95 M 6 SL 3060 -4 AA 10 -0 AA 0 Process-Automation Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic ^ When selecting please ask the local Siemens technical sales department last modification: 08. December 2009 Industry Sector January 5, 2010 87

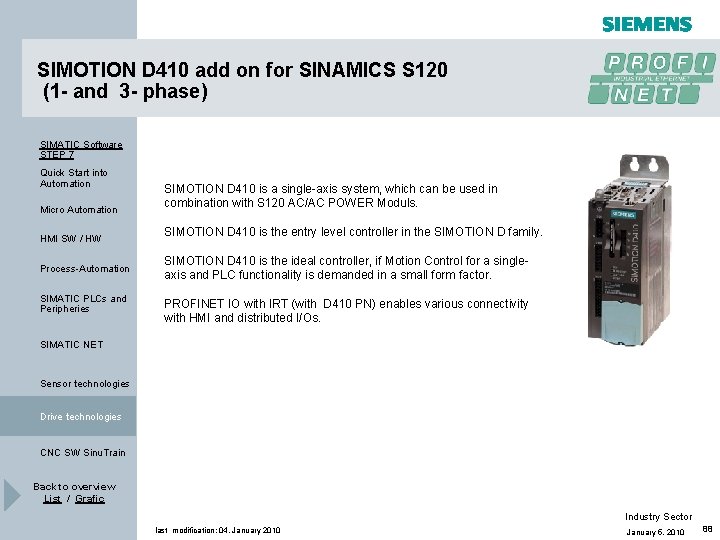

SIMOTION D 410 add on for SINAMICS S 120 (1 - and 3 - phase) SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMOTION D 410 is a single-axis system, which can be used in combination with S 120 AC/AC POWER Moduls. SIMOTION D 410 is the entry level controller in the SIMOTION D family. SIMOTION D 410 is the ideal controller, if Motion Control for a singleaxis and PLC functionality is demanded in a small form factor. PROFINET IO with IRT (with D 410 PN) enables various connectivity with HMI and distributed I/Os. SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Industry Sector last modification: 04. January 2010 January 5, 2010 88

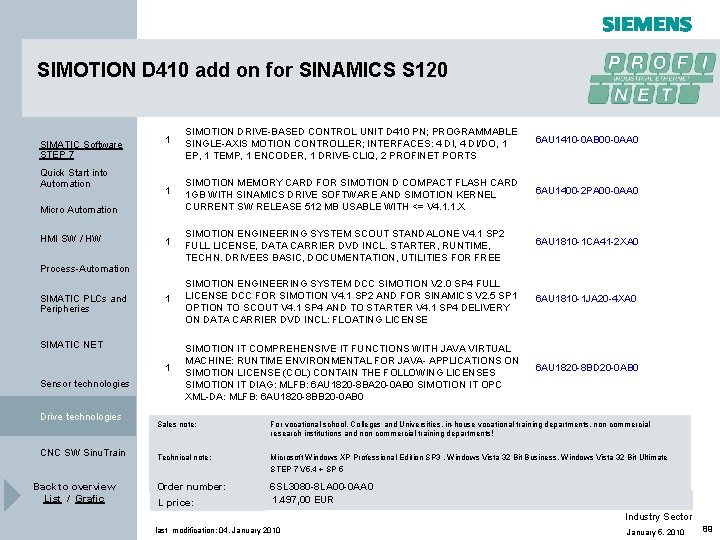

SIMOTION D 410 add on for SINAMICS S 120 SIMATIC Software STEP 7 Quick Start into Automation 1 SIMOTION DRIVE-BASED CONTROL UNIT D 410 PN; PROGRAMMABLE SINGLE-AXIS MOTION CONTROLLER; INTERFACES: 4 DI, 4 DI/DO, 1 EP, 1 TEMP, 1 ENCODER, 1 DRIVE-CLIQ, 2 PROFINET PORTS 6 AU 1410 -0 AB 00 -0 AA 0 1 SIMOTION MEMORY CARD FOR SIMOTION D COMPACT FLASH CARD 1 GB WITH SINAMICS DRIVE SOFTWARE AND SIMOTION KERNEL CURRENT SW RELEASE 512 MB USABLE WITH <= V 4. 1. 1. X 6 AU 1400 -2 PA 00 -0 AA 0 1 SIMOTION ENGINEERING SYSTEM SCOUT STANDALONE V 4. 1 SP 2 FULL LICENSE, DATA CARRIER DVD INCL. STARTER, RUNTIME, TECHN. DRIVEES BASIC, DOCUMENTATION, UTILITIES FOR FREE 6 AU 1810 -1 CA 41 -2 XA 0 1 SIMOTION ENGINEERING SYSTEM DCC SIMOTION V 2. 0 SP 4 FULL LICENSE DCC FOR SIMOTION V 4. 1 SP 2 AND FOR SINAMICS V 2. 5 SP 1 OPTION TO SCOUT V 4. 1 SP 4 AND TO STARTER V 4. 1 SP 4 DELIVERY ON DATA CARRIER DVD INCL: FLOATING LICENSE 6 AU 1810 -1 JA 20 -4 XA 0 1 SIMOTION IT COMPREHENSIVE IT FUNCTIONS WITH JAVA VIRTUAL MACHINE: RUNTIME ENVIRONMENTAL FOR JAVA- APPLICATIONS ON SIMOTION LICENSE (COL) CONTAIN THE FOLLOWING LICENSES SIMOTION IT DIAG: MLFB: 6 AU 1820 -8 BA 20 -0 AB 0 SIMOTION IT OPC XML-DA: MLFB: 6 AU 1820 -8 BB 20 -0 AB 0 6 AU 1820 -8 BD 20 -0 AB 0 Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Sales note: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Technical note: Microsoft Windows XP Professional Edition SP 3 , Windows Vista 32 Bit Business, Windows Vista 32 Bit Ultimate STEP 7 V 5. 4 + SP 5 Order number: 6 SL 3080 -8 LA 00 -0 AA 0 1. 497, 00 EUR L price: Industry Sector last modification: 04. January 2010 January 5, 2010 89

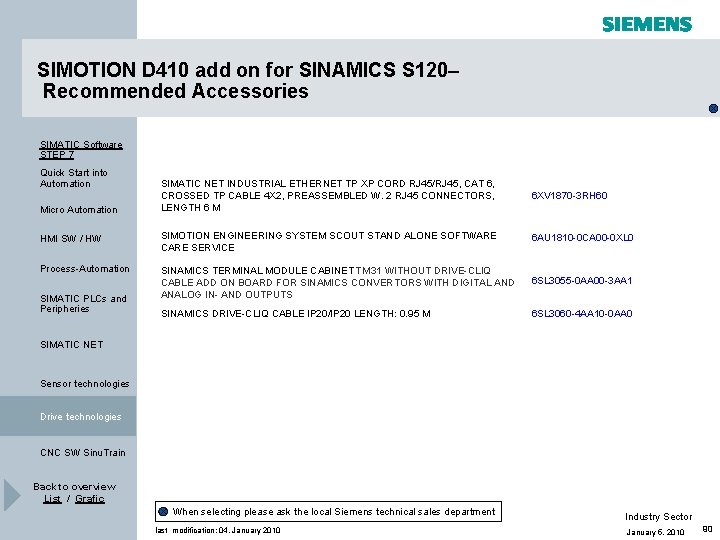

SIMOTION D 410 add on for SINAMICS S 120– Recommended Accessories SIMATIC Software STEP 7 Quick Start into Automation SIMATIC NET INDUSTRIAL ETHERNET TP XP CORD RJ 45/RJ 45, CAT 6, CROSSED TP CABLE 4 X 2, PREASSEMBLED W. 2 RJ 45 CONNECTORS, LENGTH 6 M 6 XV 1870 -3 RH 60 HMI SW / HW SIMOTION ENGINEERING SYSTEM SCOUT STAND ALONE SOFTWARE CARE SERVICE 6 AU 1810 -0 CA 00 -0 XL 0 Process-Automation SINAMICS TERMINAL MODULE CABINET TM 31 WITHOUT DRIVE-CLIQ CABLE ADD ON BOARD FOR SINAMICS CONVERTORS WITH DIGITAL AND ANALOG IN- AND OUTPUTS 6 SL 3055 -0 AA 00 -3 AA 1 SINAMICS DRIVE-CLIQ CABLE IP 20/IP 20 LENGTH: 0. 95 M 6 SL 3060 -4 AA 10 -0 AA 0 Micro Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic ^ When selecting please ask the local Siemens technical sales department last modification: 04. January 2010 Industry Sector January 5, 2010 90

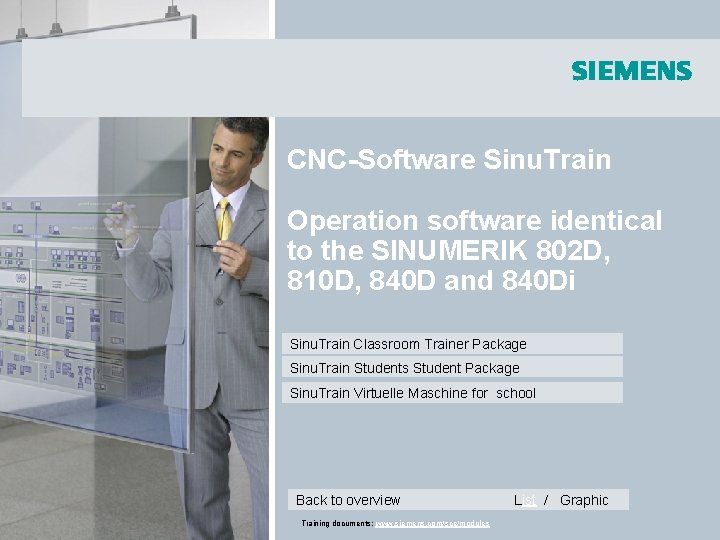

CNC-Software Sinu. Train Operation software identical to the SINUMERIK 802 D, 810 D, 840 D and 840 Di Sinu. Train Classroom Trainer Package Sinu. Train Students Student Package Sinu. Train Virtuelle Maschine for school Back to overview Training documents: www. siemens. com/sce/modules List / Graphic

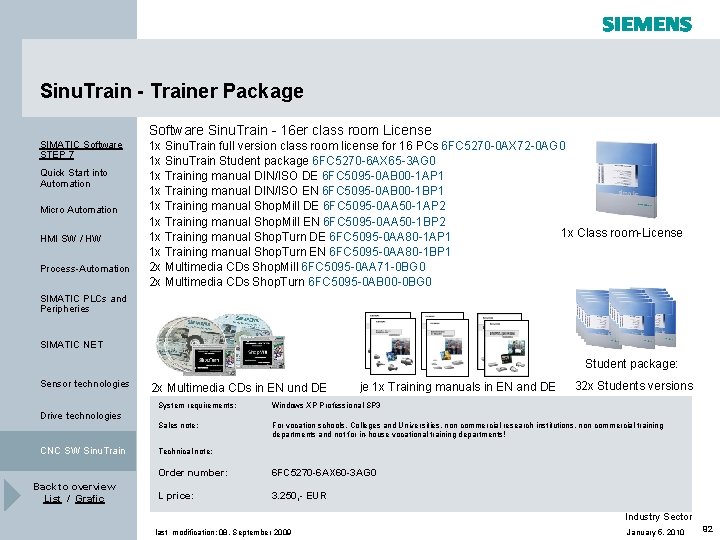

Sinu. Train - Trainer Package Software Sinu. Train - 16 er class room License SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Process-Automation 1 x Sinu. Train full version class room license for 16 PCs 6 FC 5270 -0 AX 72 -0 AG 0 1 x Sinu. Train Student package 6 FC 5270 -6 AX 65 -3 AG 0 1 x Training manual DIN/ISO DE 6 FC 5095 -0 AB 00 -1 AP 1 1 x Training manual DIN/ISO EN 6 FC 5095 -0 AB 00 -1 BP 1 1 x Training manual Shop. Mill DE 6 FC 5095 -0 AA 50 -1 AP 2 1 x Training manual Shop. Mill EN 6 FC 5095 -0 AA 50 -1 BP 2 1 x Class room-License 1 x Training manual Shop. Turn DE 6 FC 5095 -0 AA 80 -1 AP 1 1 x Training manual Shop. Turn EN 6 FC 5095 -0 AA 80 -1 BP 1 2 x Multimedia CDs Shop. Mill 6 FC 5095 -0 AA 71 -0 BG 0 2 x Multimedia CDs Shop. Turn 6 FC 5095 -0 AB 00 -0 BG 0 SIMATIC PLCs and Peripheries SIMATIC NET Student package: Sensor technologies Drive technologies CNC SW Sinu. Train Back to overview List / Grafic 2 x Multimedia CDs in EN und DE je 1 x Training manuals in EN and DE 32 x Students versions System requirements: Windows XP Professional SP 3 Sales note: For vocation schools, Colleges and Universities, non commercial research institutions, non commercial training departments and not for in-house vocational training departments! Technical note: Order number: 6 FC 5270 -6 AX 60 -3 AG 0 L price: 3. 250, - EUR Industry Sector last modification: 08. September 2009 January 5, 2010 92

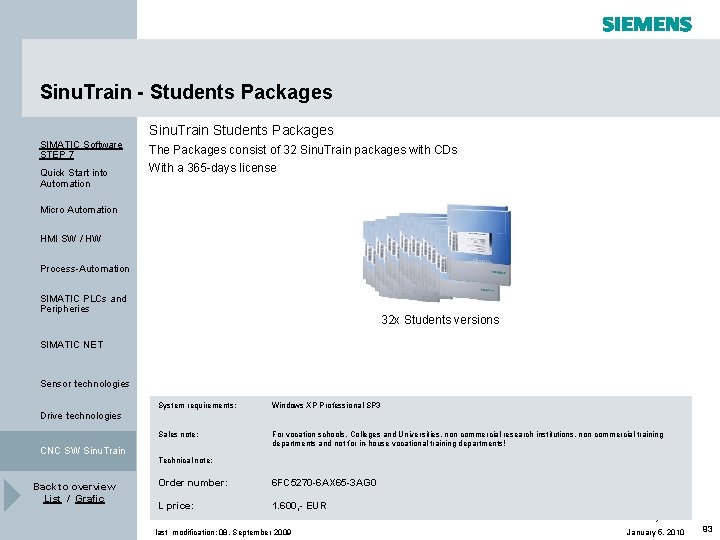

Sinu. Train - Students Packages Sinu. Train Students Packages SIMATIC Software STEP 7 Quick Start into Automation The Packages consist of 32 Sinu. Train packages with CDs With a 365 -days license Micro Automation HMI SW / HW Process-Automation SIMATIC PLCs and Peripheries 32 x Students versions SIMATIC NET Sensor technologies System requirements: Windows XP Professional SP 3 Sales note: For vocation schools, Colleges and Universities, non commercial research institutions, non commercial training departments and not for in-house vocational training departments! Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Technical note: Order number: 6 FC 5270 -6 AX 65 -3 AG 0 L price: 1. 600, - EUR last modification: 08. September 2009 Industry Sector January 5, 2010 93

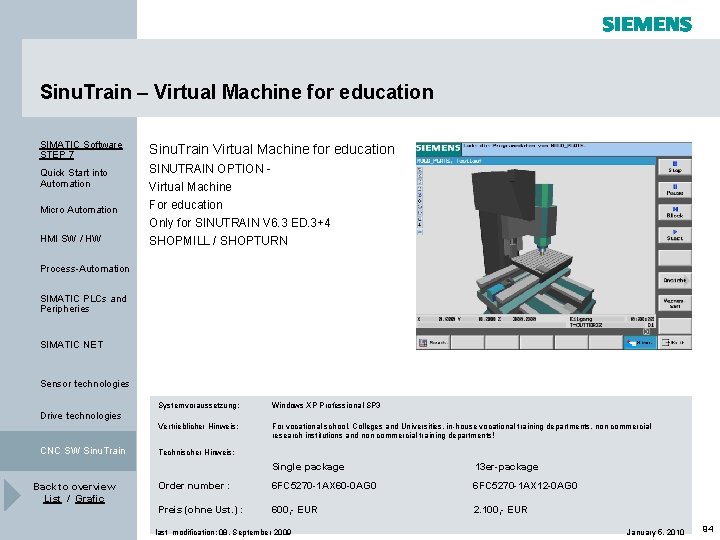

Sinu. Train – Virtual Machine for education SIMATIC Software STEP 7 Quick Start into Automation Micro Automation HMI SW / HW Sinu. Train Virtual Machine for education SINUTRAIN OPTION Virtual Machine For education Only for SINUTRAIN V 6. 3 ED. 3+4 SHOPMILL / SHOPTURN Process-Automation SIMATIC PLCs and Peripheries SIMATIC NET Sensor technologies Systemvoraussetzung: Windows XP Professional SP 3 Vertrieblicher Hinweis: For vocational school, Colleges and Universities, in-house vocational training departments, non commercial research institutions and non commercial training departments! Drive technologies CNC SW Sinu. Train Back to overview List / Grafic Technischer Hinweis: Single package 13 er-package Order number : 6 FC 5270 -1 AX 60 -0 AG 0 6 FC 5270 -1 AX 12 -0 AG 0 Preis (ohne Ust. ) : 600, - EUR 2. 100, - EUR last modification: 08. September 2009 Industry Sector January 5, 2010 94

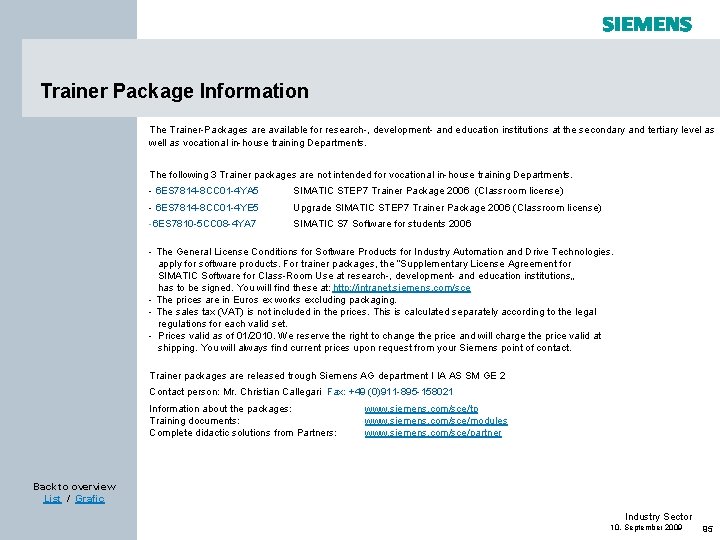

Trainer Package Information The Trainer-Packages are available for research-, development- and education institutions at the secondary and tertiary level as well as vocational in-house training Departments. The following 3 Trainer packages are not intended for vocational in-house training Departments. - 6 ES 7814 -8 CC 01 -4 YA 5 SIMATIC STEP 7 Trainer Package 2006 (Classroom license) - 6 ES 7814 -8 CC 01 -4 YE 5 Upgrade SIMATIC STEP 7 Trainer Package 2006 (Classroom license) -6 ES 7810 -5 CC 08 -4 YA 7 SIMATIC S 7 Software for students 2006 - The General License Conditions for Software Products for Industry Automation and Drive Technologies. apply for software products. For trainer packages, the “Supplementary License Agreement for SIMATIC Software for Class-Room Use at research-, development- and education institutions„ has to be signed. You will find these at: http: //intranet. siemens. com/sce - The prices are in Euros ex works excluding packaging. - The sales tax (VAT) is not included in the prices. This is calculated separately according to the legal regulations for each valid set. - Prices valid as of 01/2010. We reserve the right to change the price and will charge the price valid at shipping. You will always find current prices upon request from your Siemens point of contact. Trainer packages are released trough Siemens AG department I IA AS SM GE 2 Contact person: Mr. Christian Callegari Fax: +49 (0)911 -895 -158021 Information about the packages: Training documents: Complete didactic solutions from Partners: www. siemens. com/sce/tp www. siemens. com/sce/modules www. siemens. com/sce/partner Back to overview List / Grafic Industry Sector 10. September 2009 95

Thanks Title of the presentation Name: Christian Callegari Division: I IA AS SM GE 2 Mail: christian. callegari@siemens. com Internet: www. siemens. com/sce
