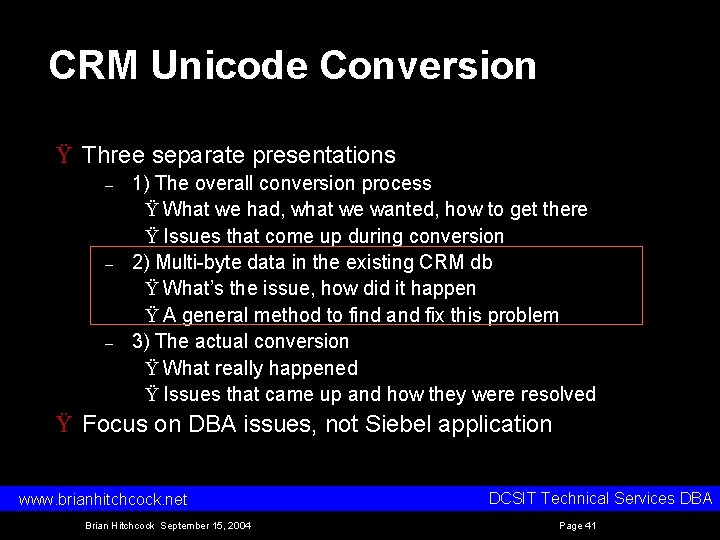

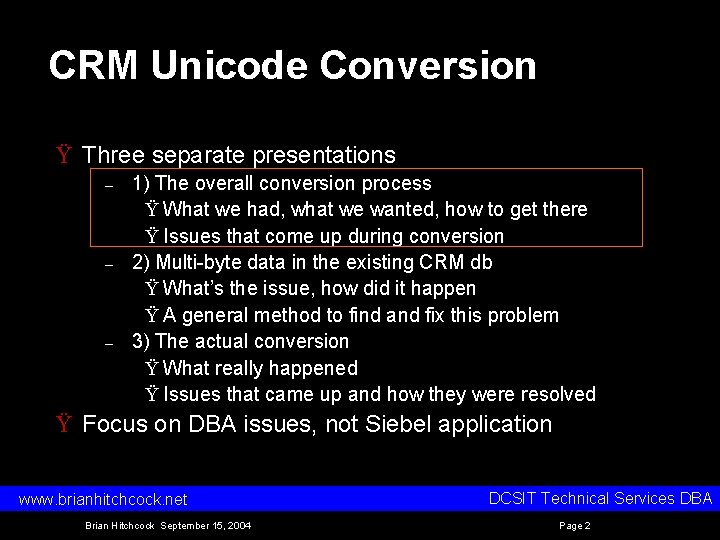

CRM Unicode Conversion Ÿ Three separate presentations – – – 1) The overall conversion process Ÿ What we had, what we wanted, how to get there Ÿ Issues that come up during conversion 2) Multi byte data in the existing CRM db Ÿ What’s the issue, how did it happen Ÿ A general method to find and fix this problem 3) The actual conversion Ÿ What really happened Ÿ Issues that came up and how they were resolved Ÿ Focus on DBA issues, not Siebel application www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 2

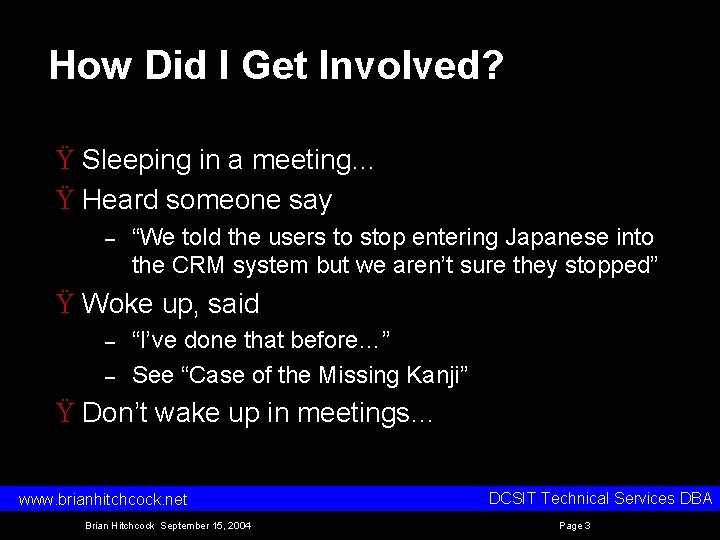

How Did I Get Involved? Ÿ Sleeping in a meeting… Ÿ Heard someone say – “We told the users to stop entering Japanese into the CRM system but we aren’t sure they stopped” Ÿ Woke up, said – – “I’ve done that before…” See “Case of the Missing Kanji” Ÿ Don’t wake up in meetings… www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 3

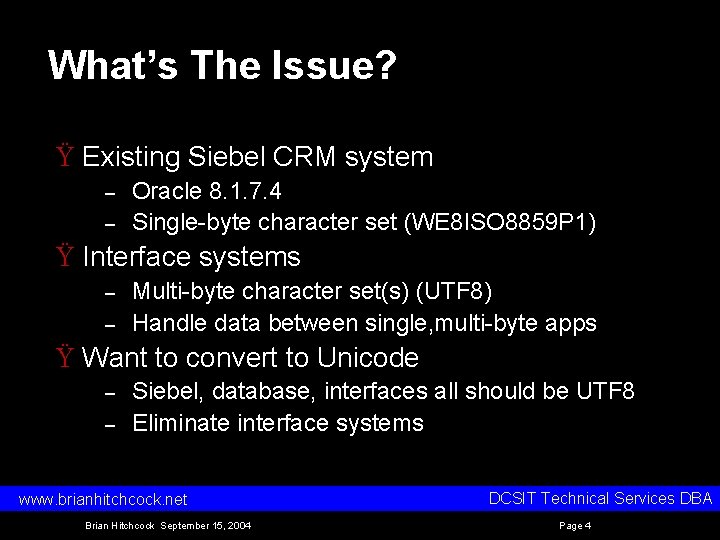

What’s The Issue? Ÿ Existing Siebel CRM system – – Oracle 8. 1. 7. 4 Single byte character set (WE 8 ISO 8859 P 1) Ÿ Interface systems – – Multi byte character set(s) (UTF 8) Handle data between single, multi byte apps Ÿ Want to convert to Unicode – – Siebel, database, interfaces all should be UTF 8 Eliminate interface systems www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 4

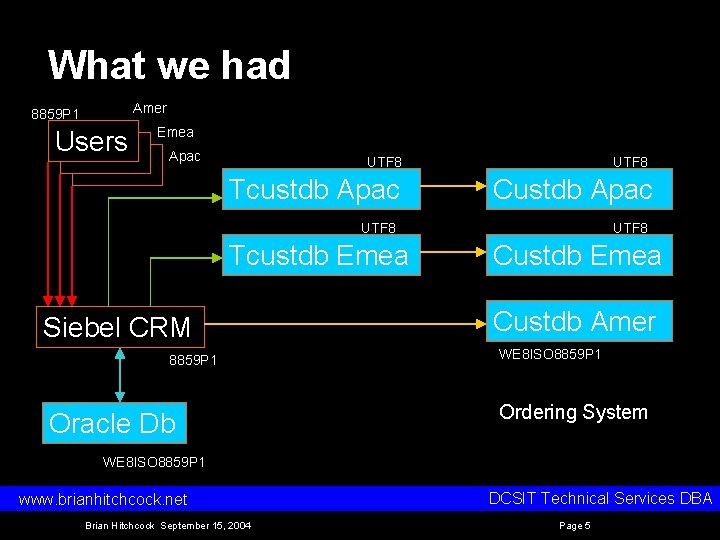

What we had Amer 8859 P 1 Users Emea Apac UTF 8 Tcustdb Apac UTF 8 Custdb Apac UTF 8 Tcustdb Emea Siebel CRM 8859 P 1 Oracle Db UTF 8 Custdb Emea Custdb Amer WE 8 ISO 8859 P 1 Ordering System WE 8 ISO 8859 P 1 www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 5

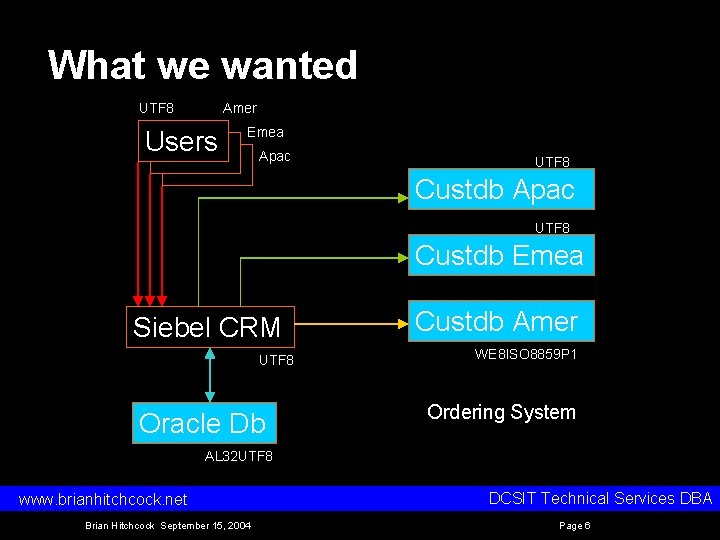

What we wanted UTF 8 Amer Users Emea Apac UTF 8 Custdb Emea Siebel CRM UTF 8 Oracle Db Custdb Amer WE 8 ISO 8859 P 1 Ordering System AL 32 UTF 8 www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 6

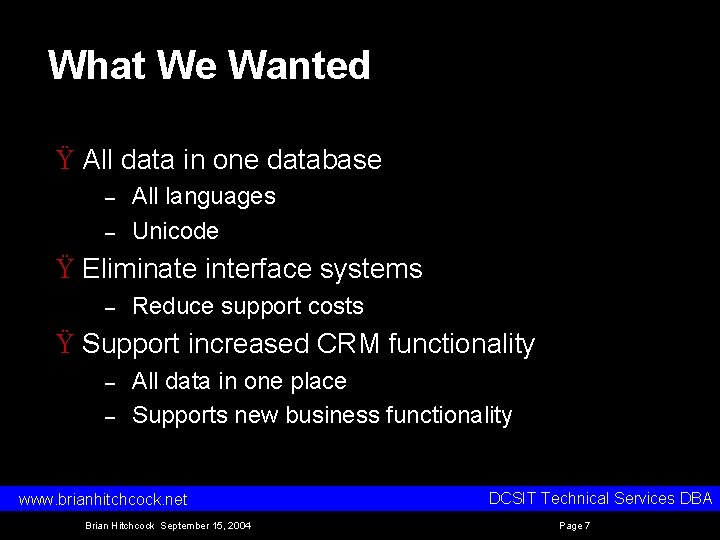

What We Wanted Ÿ All data in one database – – All languages Unicode Ÿ Eliminate interface systems – Reduce support costs Ÿ Support increased CRM functionality – – All data in one place Supports new business functionality www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 7

Would you like fries with that? Ÿ Unicode conversion includes – Oracle db Ÿ Convert to AL 32 UTF 8 character set Required by Siebel for Unicode Ÿ Upgrade to 9. 2. 0. 4 Required to get AL 32 UTF 8 character set – Remove Tcustdb databases Ÿ Modify triggers that link source db to Tcustdb www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 8

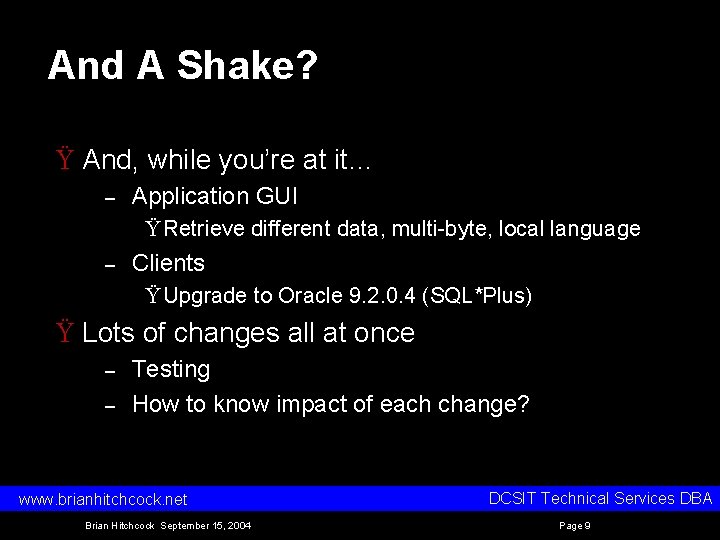

And A Shake? Ÿ And, while you’re at it… – Application GUI Ÿ Retrieve different data, multi byte, local language – Clients Ÿ Upgrade to Oracle 9. 2. 0. 4 (SQL*Plus) Ÿ Lots of changes all at once – – Testing How to know impact of each change? www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 9

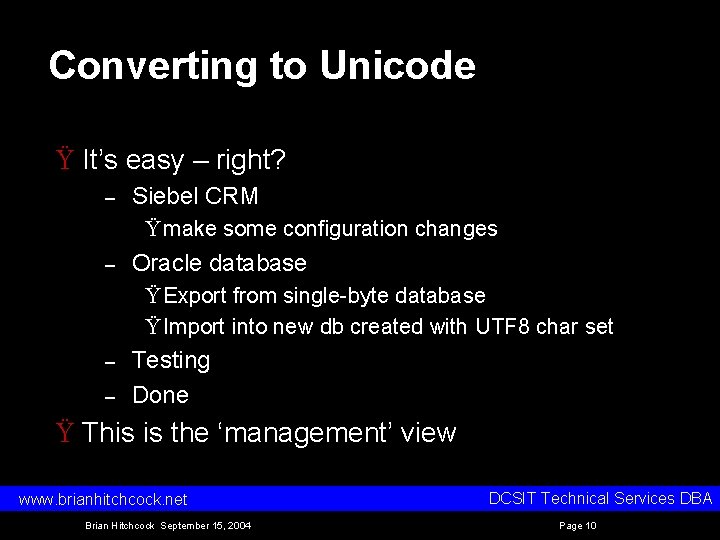

Converting to Unicode Ÿ It’s easy – right? – Siebel CRM Ÿ make some configuration changes – Oracle database Ÿ Export from single byte database Ÿ Import into new db created with UTF 8 char set – – Testing Done Ÿ This is the ‘management’ view www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 10

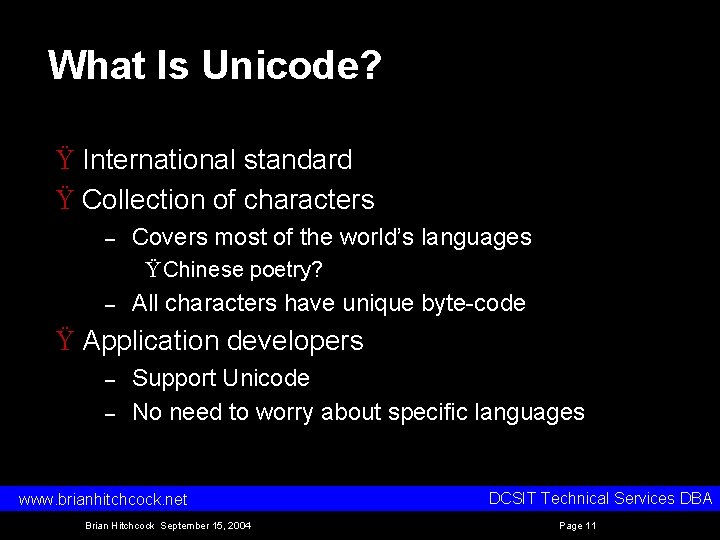

What Is Unicode? Ÿ International standard Ÿ Collection of characters – Covers most of the world’s languages Ÿ Chinese poetry? – All characters have unique byte code Ÿ Application developers – – Support Unicode No need to worry about specific languages www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 11

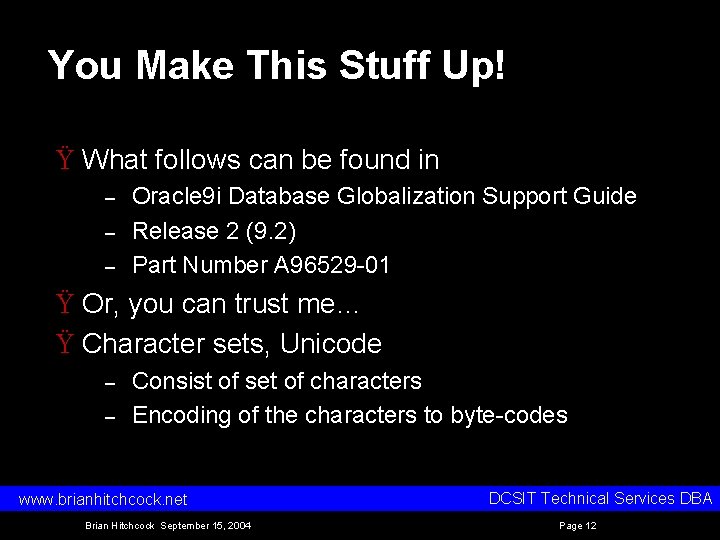

You Make This Stuff Up! Ÿ What follows can be found in – – – Oracle 9 i Database Globalization Support Guide Release 2 (9. 2) Part Number A 96529 01 Ÿ Or, you can trust me… Ÿ Character sets, Unicode – – Consist of set of characters Encoding of the characters to byte codes www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 12

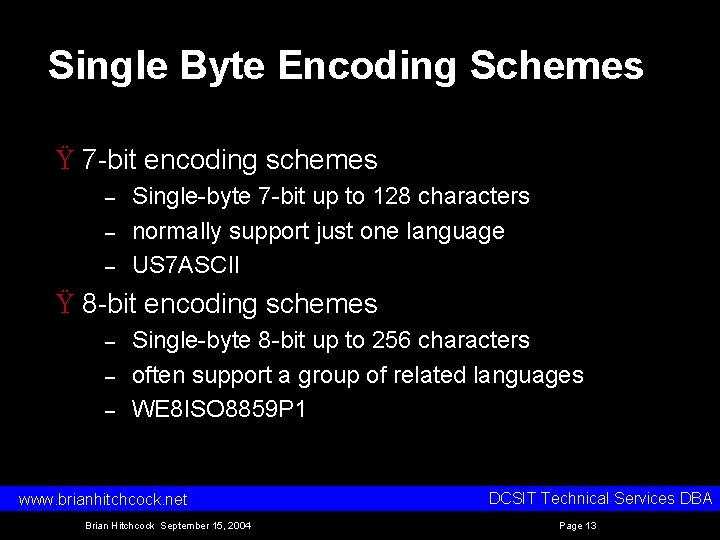

Single Byte Encoding Schemes Ÿ 7 bit encoding schemes – – – Single byte 7 bit up to 128 characters normally support just one language US 7 ASCII Ÿ 8 bit encoding schemes – – – Single byte 8 bit up to 256 characters often support a group of related languages WE 8 ISO 8859 P 1 www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 13

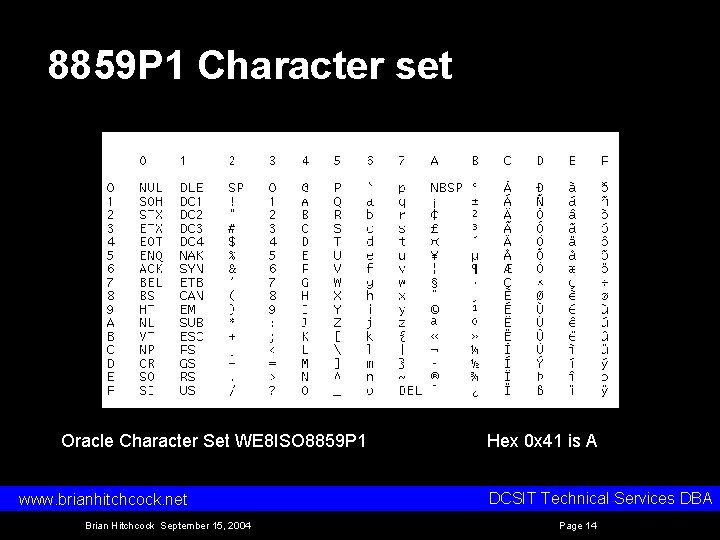

8859 P 1 Character set Oracle Character Set WE 8 ISO 8859 P 1 www. brianhitchcock. net Brian Hitchcock September 15, 2004 Hex 0 x 41 is A DCSIT Technical Services DBA Page 14

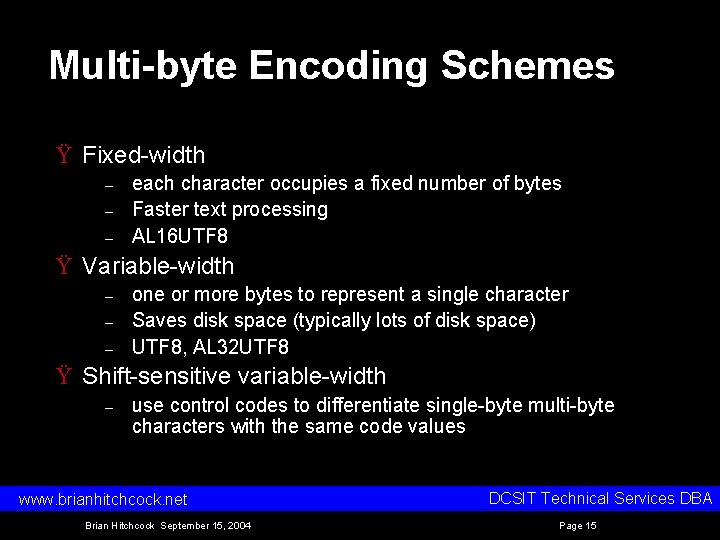

Multi-byte Encoding Schemes Ÿ Fixed width – – – each character occupies a fixed number of bytes Faster text processing AL 16 UTF 8 Ÿ Variable width – – – one or more bytes to represent a single character Saves disk space (typically lots of disk space) UTF 8, AL 32 UTF 8 Ÿ Shift sensitive variable width – use control codes to differentiate single byte multi byte characters with the same code values www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 15

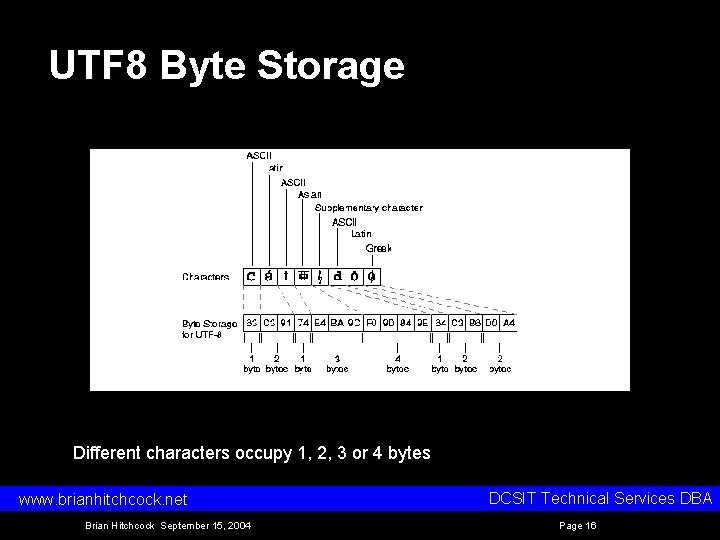

UTF 8 Byte Storage Different characters occupy 1, 2, 3 or 4 bytes www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 16

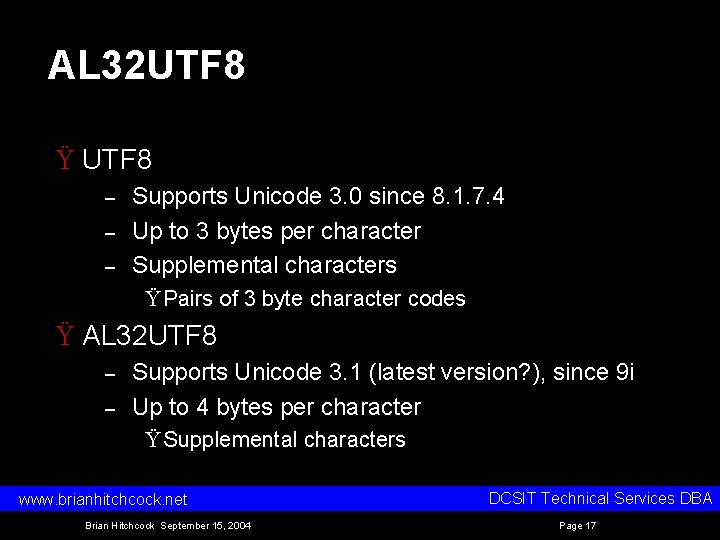

AL 32 UTF 8 Ÿ UTF 8 – – – Supports Unicode 3. 0 since 8. 1. 7. 4 Up to 3 bytes per character Supplemental characters Ÿ Pairs of 3 byte character codes Ÿ AL 32 UTF 8 – – Supports Unicode 3. 1 (latest version? ), since 9 i Up to 4 bytes per character Ÿ Supplemental characters www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 17

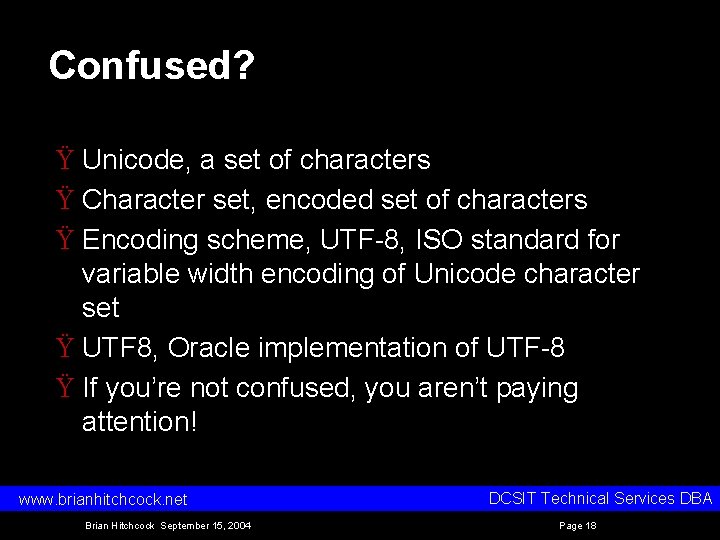

Confused? Ÿ Unicode, a set of characters Ÿ Character set, encoded set of characters Ÿ Encoding scheme, UTF 8, ISO standard for variable width encoding of Unicode character set Ÿ UTF 8, Oracle implementation of UTF 8 Ÿ If you’re not confused, you aren’t paying attention! www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 18

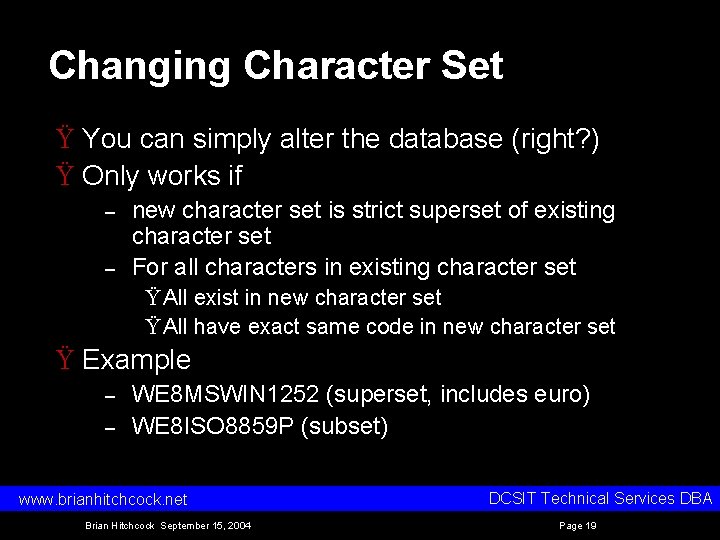

Changing Character Set Ÿ You can simply alter the database (right? ) Ÿ Only works if – – new character set is strict superset of existing character set For all characters in existing character set Ÿ All exist in new character set Ÿ All have exact same code in new character set Ÿ Example – – WE 8 MSWIN 1252 (superset, includes euro) WE 8 ISO 8859 P (subset) www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 19

Complexities Ÿ Even for the same character – Different encoding in different character set Ÿ Example – – – Latin (Western European) character á E 1 in WE 8 ISO 8859 P 1 C 391 in UTF 8 Ÿ If existing character not in new char set – ? (replacement character) displayed www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 20

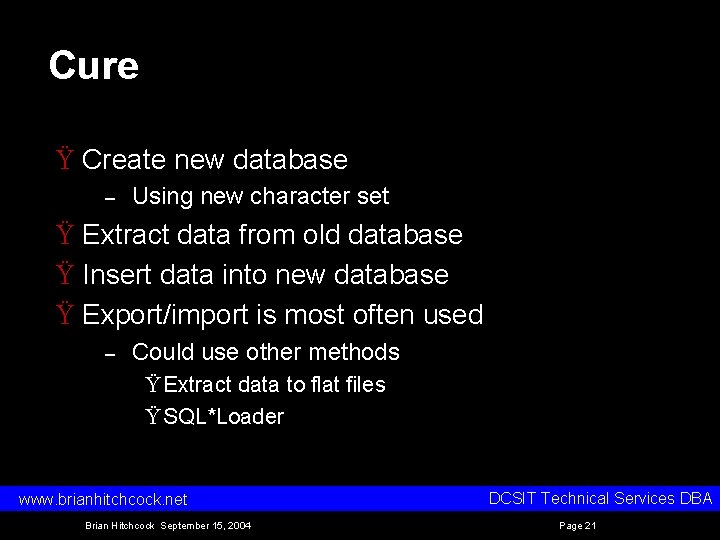

Cure Ÿ Create new database – Using new character set Ÿ Extract data from old database Ÿ Insert data into new database Ÿ Export/import is most often used – Could use other methods Ÿ Extract data to flat files Ÿ SQL*Loader www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 21

Database Conversion Ÿ Serial – Upgrade source, export, drop schemas, import Ÿ Parallel – – – Create target Export source Import to target Ÿ Chose Parallel – Source still available after target in use Ÿ User tablespace issue for example www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 22

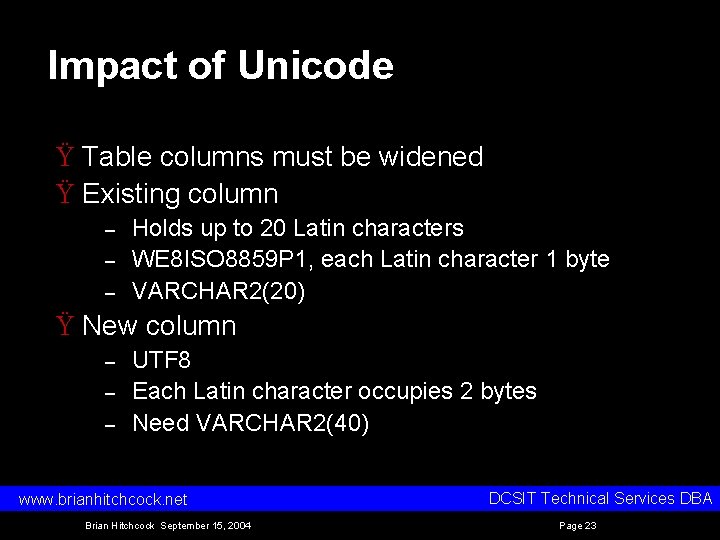

Impact of Unicode Ÿ Table columns must be widened Ÿ Existing column – – – Holds up to 20 Latin characters WE 8 ISO 8859 P 1, each Latin character 1 byte VARCHAR 2(20) Ÿ New column – – – UTF 8 Each Latin character occupies 2 bytes Need VARCHAR 2(40) www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 23

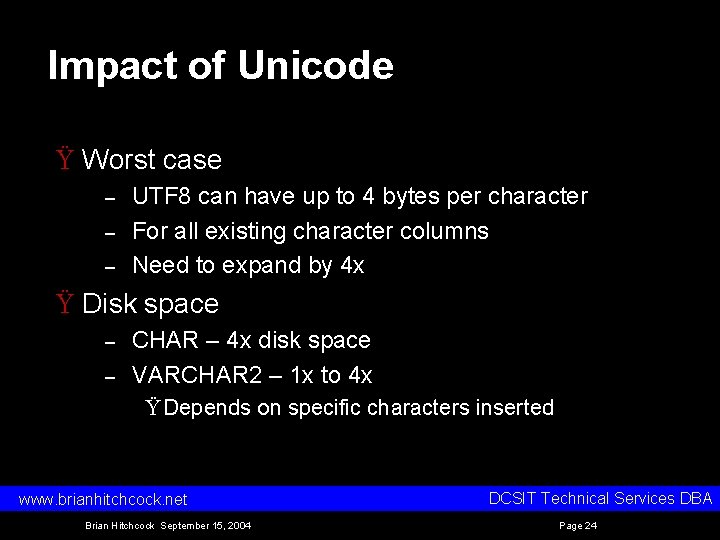

Impact of Unicode Ÿ Worst case – – – UTF 8 can have up to 4 bytes per character For all existing character columns Need to expand by 4 x Ÿ Disk space – – CHAR – 4 x disk space VARCHAR 2 – 1 x to 4 x Ÿ Depends on specific characters inserted www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 24

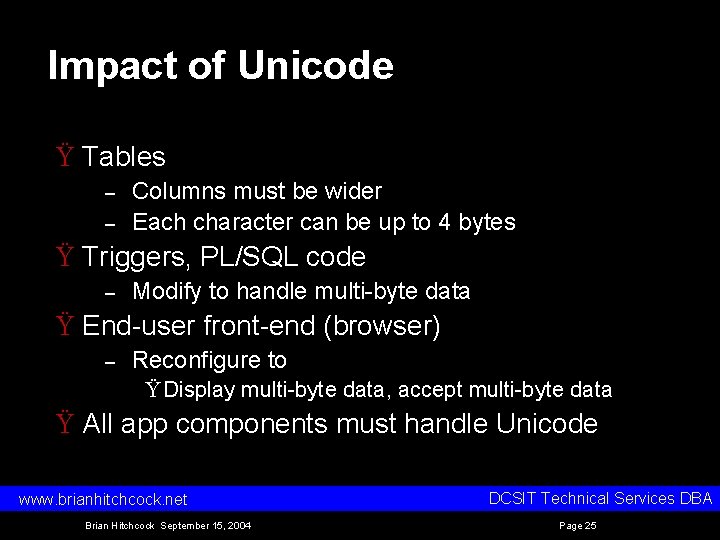

Impact of Unicode Ÿ Tables – – Columns must be wider Each character can be up to 4 bytes Ÿ Triggers, PL/SQL code – Modify to handle multi byte data Ÿ End user front end (browser) – Reconfigure to Ÿ Display multi byte data, accept multi byte data Ÿ All app components must handle Unicode www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 25

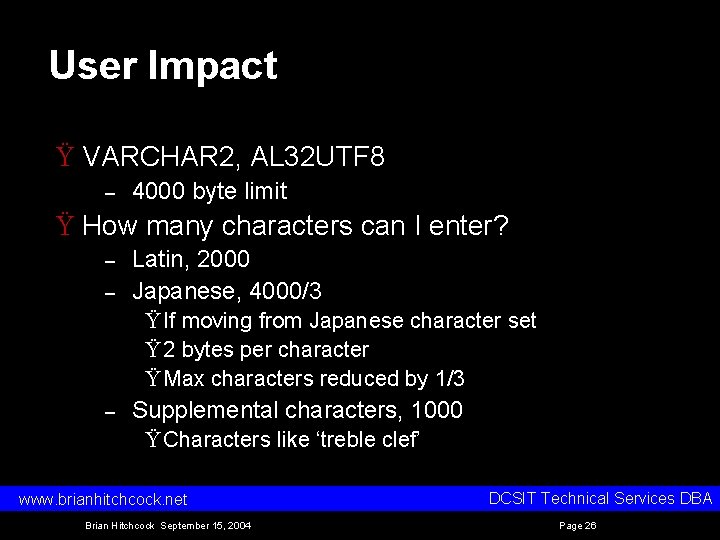

User Impact Ÿ VARCHAR 2, AL 32 UTF 8 – 4000 byte limit Ÿ How many characters can I enter? – – Latin, 2000 Japanese, 4000/3 Ÿ If moving from Japanese character set Ÿ 2 bytes per character Ÿ Max characters reduced by 1/3 – Supplemental characters, 1000 Ÿ Characters like ‘treble clef’ www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 26

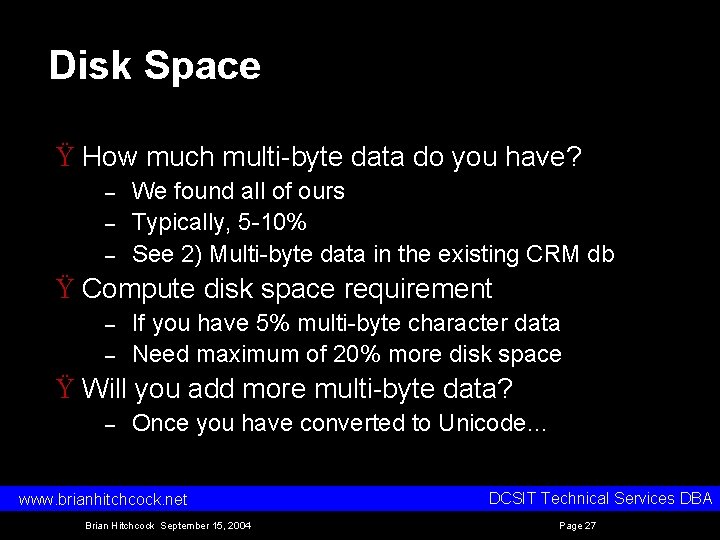

Disk Space Ÿ How much multi byte data do you have? – – – We found all of ours Typically, 5 10% See 2) Multi byte data in the existing CRM db Ÿ Compute disk space requirement – – If you have 5% multi byte character data Need maximum of 20% more disk space Ÿ Will you add more multi byte data? – Once you have converted to Unicode… www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 27

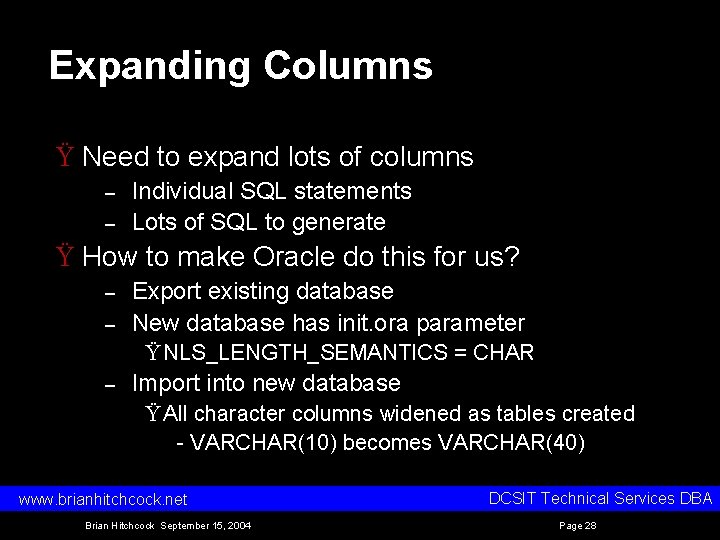

Expanding Columns Ÿ Need to expand lots of columns – – Individual SQL statements Lots of SQL to generate Ÿ How to make Oracle do this for us? – – Export existing database New database has init. ora parameter Ÿ NLS_LENGTH_SEMANTICS = CHAR – Import into new database Ÿ All character columns widened as tables created VARCHAR(10) becomes VARCHAR(40) www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 28

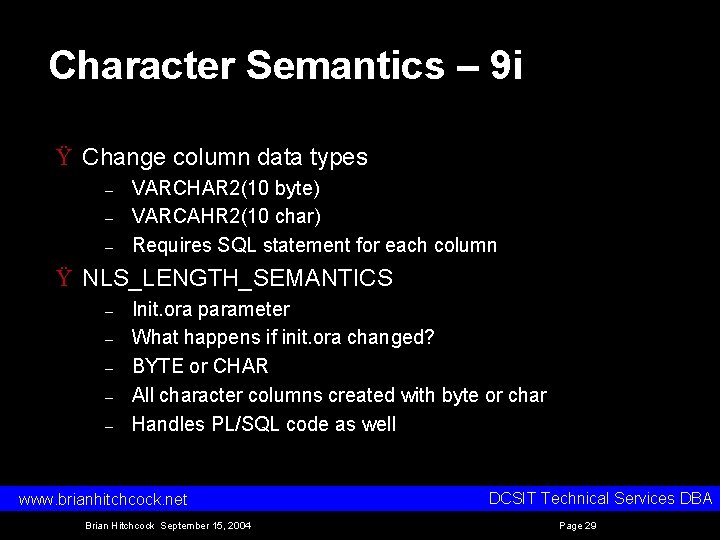

Character Semantics – 9 i Ÿ Change column data types – – – VARCHAR 2(10 byte) VARCAHR 2(10 char) Requires SQL statement for each column Ÿ NLS_LENGTH_SEMANTICS – – – Init. ora parameter What happens if init. ora changed? BYTE or CHAR All character columns created with byte or char Handles PL/SQL code as well www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 29

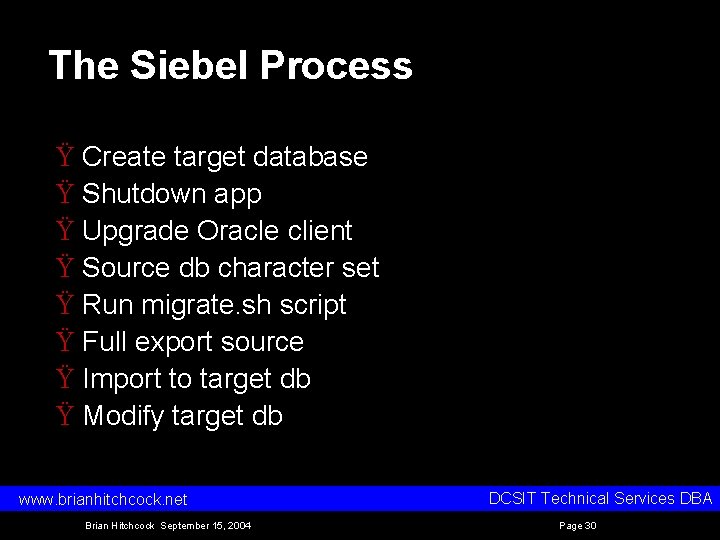

The Siebel Process Ÿ Create target database Ÿ Shutdown app Ÿ Upgrade Oracle client Ÿ Source db character set Ÿ Run migrate. sh script Ÿ Full export source Ÿ Import to target db Ÿ Modify target db www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 30

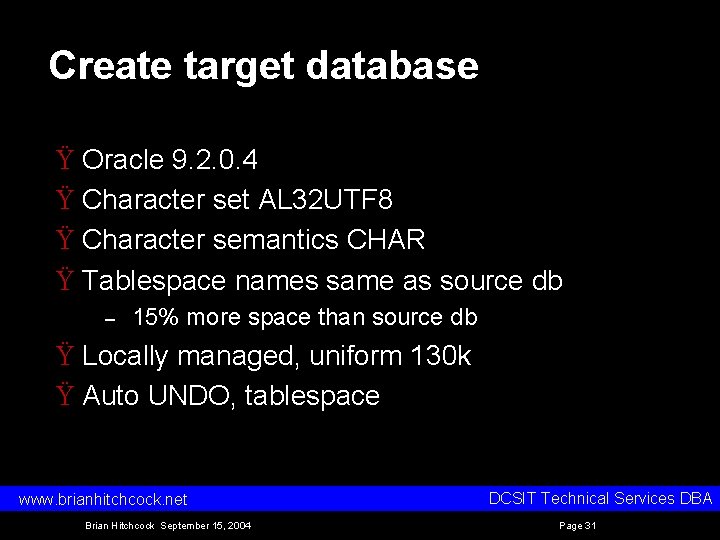

Create target database Ÿ Oracle 9. 2. 0. 4 Ÿ Character set AL 32 UTF 8 Ÿ Character semantics CHAR Ÿ Tablespace names same as source db – 15% more space than source db Ÿ Locally managed, uniform 130 k Ÿ Auto UNDO, tablespace www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 31

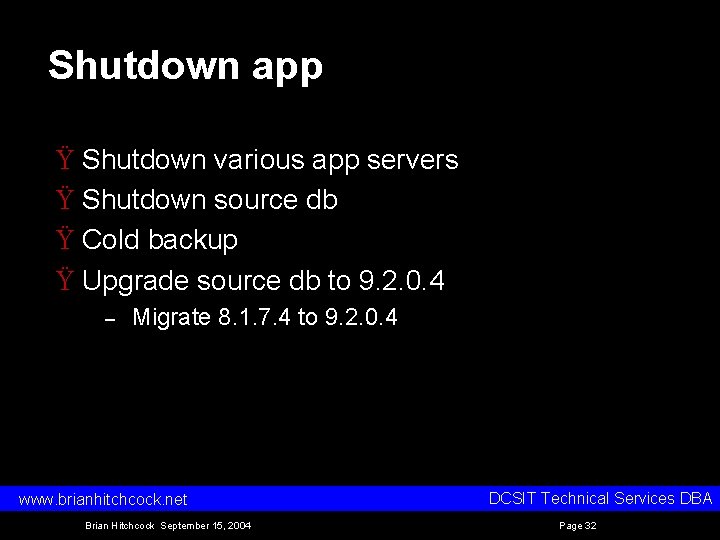

Shutdown app Ÿ Shutdown various app servers Ÿ Shutdown source db Ÿ Cold backup Ÿ Upgrade source db to 9. 2. 0. 4 – Migrate 8. 1. 7. 4 to 9. 2. 0. 4 www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 32

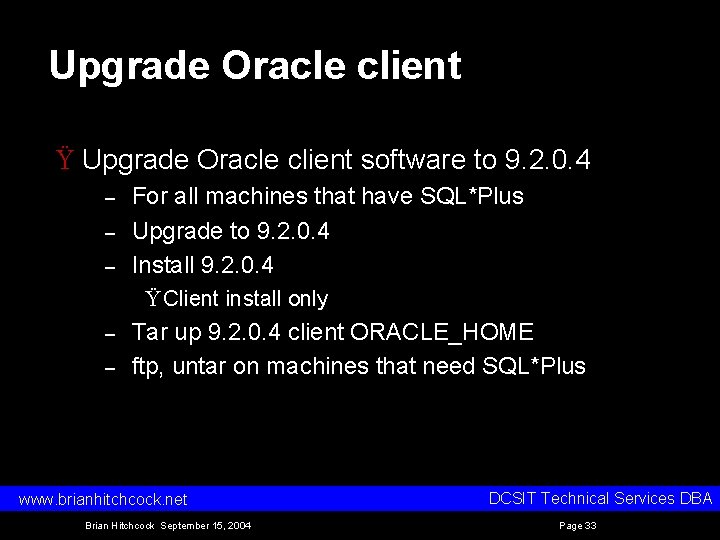

Upgrade Oracle client Ÿ Upgrade Oracle client software to 9. 2. 0. 4 – – – For all machines that have SQL*Plus Upgrade to 9. 2. 0. 4 Install 9. 2. 0. 4 Ÿ Client install only – – Tar up 9. 2. 0. 4 client ORACLE_HOME ftp, untar on machines that need SQL*Plus www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 33

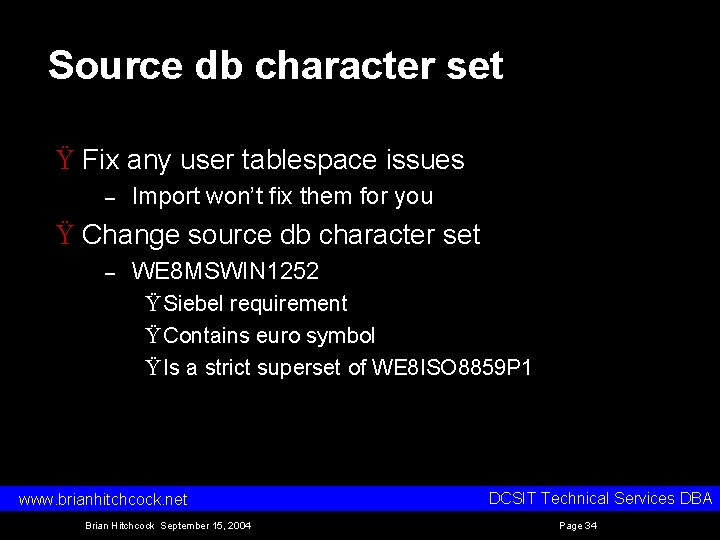

Source db character set Ÿ Fix any user tablespace issues – Import won’t fix them for you Ÿ Change source db character set – WE 8 MSWIN 1252 Ÿ Siebel requirement Ÿ Contains euro symbol Ÿ Is a strict superset of WE 8 ISO 8859 P 1 www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 34

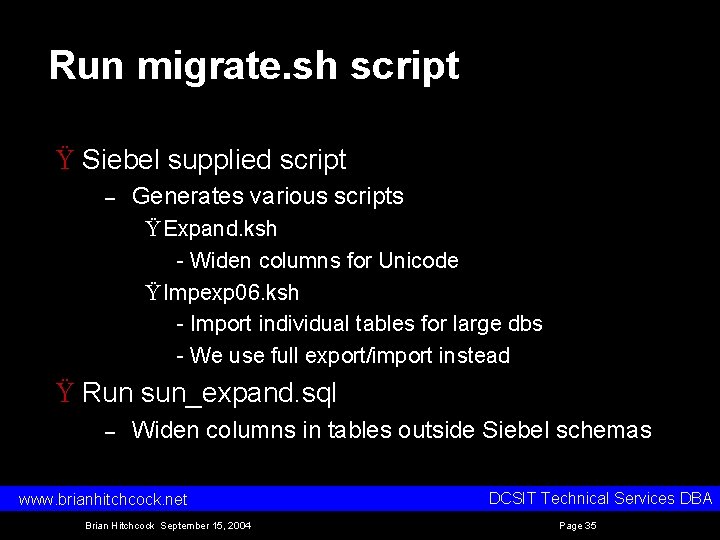

Run migrate. sh script Ÿ Siebel supplied script – Generates various scripts Ÿ Expand. ksh Widen columns for Unicode Ÿ Impexp 06. ksh Import individual tables for large dbs We use full export/import instead Ÿ Run sun_expand. sql – Widen columns in tables outside Siebel schemas www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 35

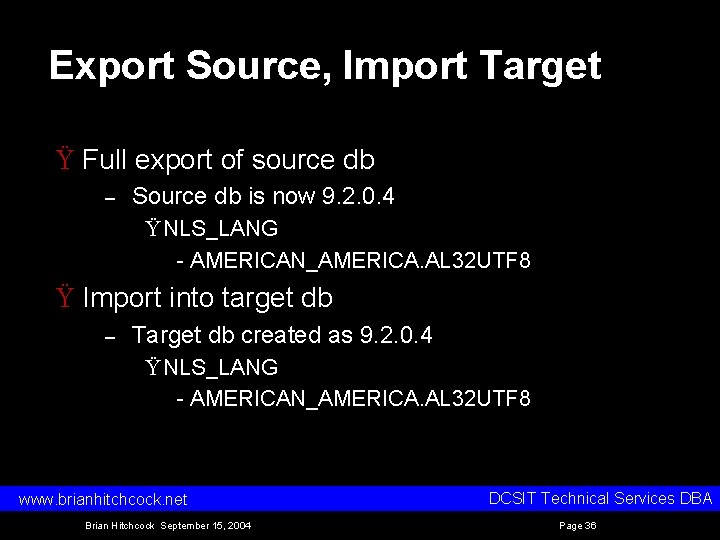

Export Source, Import Target Ÿ Full export of source db – Source db is now 9. 2. 0. 4 Ÿ NLS_LANG AMERICAN_AMERICA. AL 32 UTF 8 Ÿ Import into target db – Target db created as 9. 2. 0. 4 Ÿ NLS_LANG AMERICAN_AMERICA. AL 32 UTF 8 www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 36

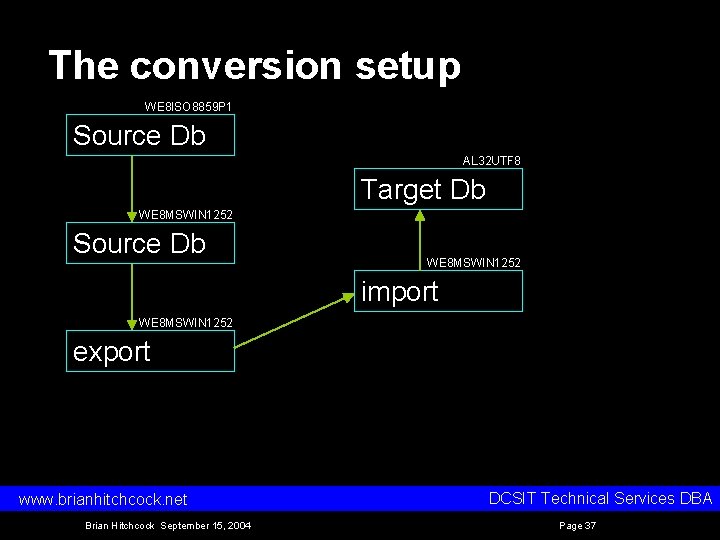

The conversion setup WE 8 ISO 8859 P 1 Source Db AL 32 UTF 8 Target Db WE 8 MSWIN 1252 Source Db WE 8 MSWIN 1252 import WE 8 MSWIN 1252 export www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 37

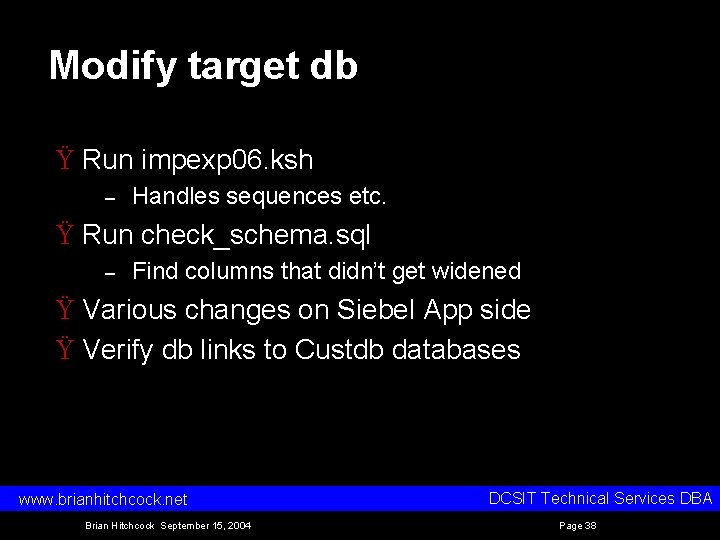

Modify target db Ÿ Run impexp 06. ksh – Handles sequences etc. Ÿ Run check_schema. sql – Find columns that didn’t get widened Ÿ Various changes on Siebel App side Ÿ Verify db links to Custdb databases www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 38

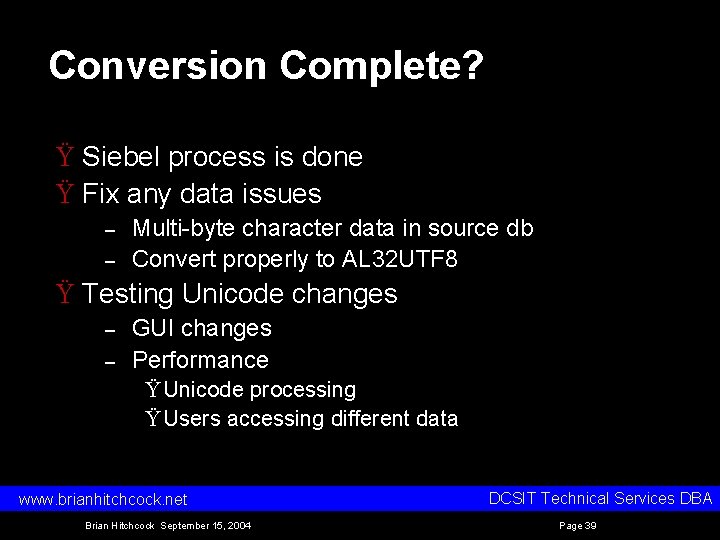

Conversion Complete? Ÿ Siebel process is done Ÿ Fix any data issues – – Multi byte character data in source db Convert properly to AL 32 UTF 8 Ÿ Testing Unicode changes – – GUI changes Performance Ÿ Unicode processing Ÿ Users accessing different data www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 39

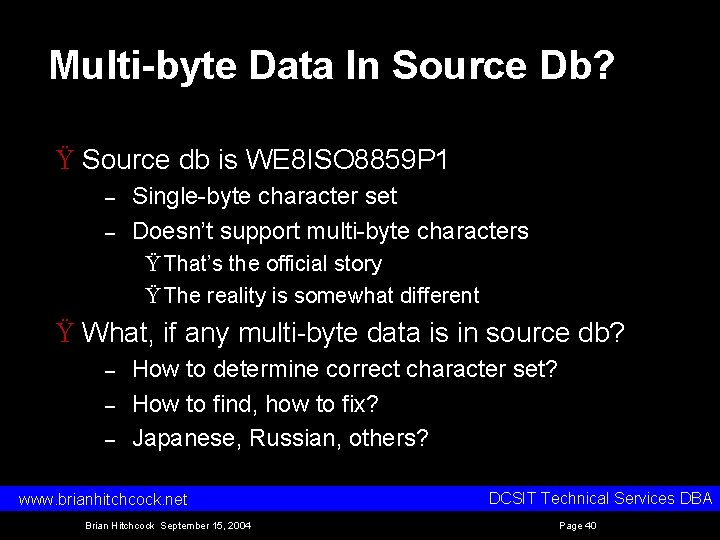

Multi-byte Data In Source Db? Ÿ Source db is WE 8 ISO 8859 P 1 – – Single byte character set Doesn’t support multi byte characters Ÿ That’s the official story Ÿ The reality is somewhat different Ÿ What, if any multi byte data is in source db? – – – How to determine correct character set? How to find, how to fix? Japanese, Russian, others? www. brianhitchcock. net Brian Hitchcock September 15, 2004 DCSIT Technical Services DBA Page 40
