Sickle Cell Anemia Prepared by Ibtisam H Al

Sickle Cell Anemia Prepared by: Ibtisam H. Al Aswad Reham S. Hammad

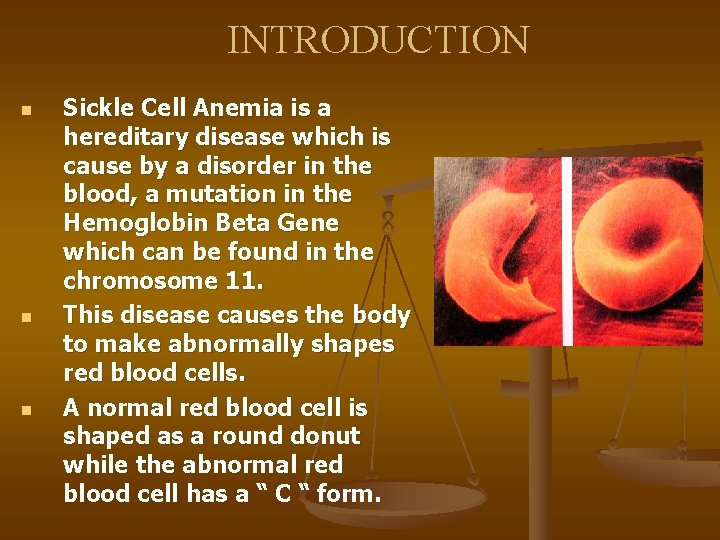

INTRODUCTION n n n Sickle Cell Anemia is a hereditary disease which is cause by a disorder in the blood, a mutation in the Hemoglobin Beta Gene which can be found in the chromosome 11. This disease causes the body to make abnormally shapes red blood cells. A normal red blood cell is shaped as a round donut while the abnormal red blood cell has a “ C “ form.

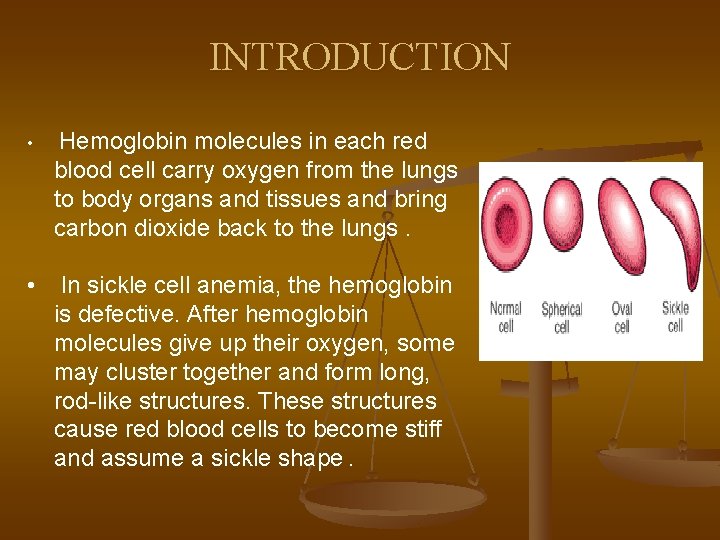

INTRODUCTION • Hemoglobin molecules in each red blood cell carry oxygen from the lungs to body organs and tissues and bring carbon dioxide back to the lungs. • In sickle cell anemia, the hemoglobin is defective. After hemoglobin molecules give up their oxygen, some may cluster together and form long, rod-like structures. These structures cause red blood cells to become stiff and assume a sickle shape.

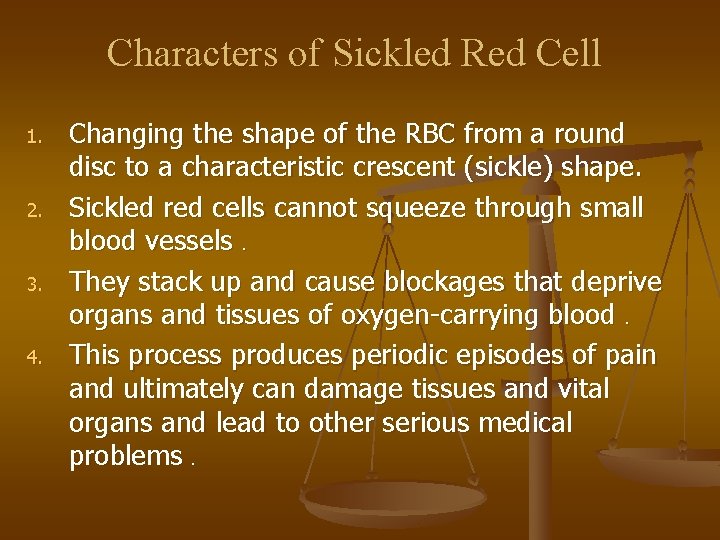

Characters of Sickled Red Cell 1. 2. 3. 4. Changing the shape of the RBC from a round disc to a characteristic crescent (sickle) shape. Sickled red cells cannot squeeze through small blood vessels. They stack up and cause blockages that deprive organs and tissues of oxygen-carrying blood. This process produces periodic episodes of pain and ultimately can damage tissues and vital organs and lead to other serious medical problems.

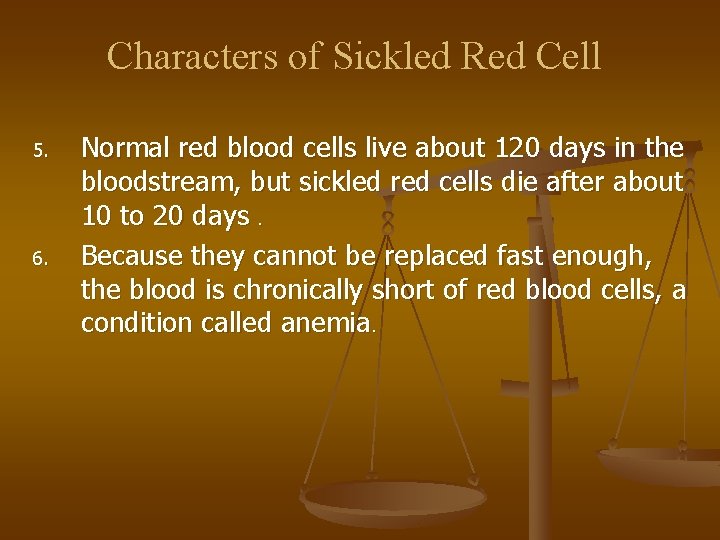

Characters of Sickled Red Cell 5. 6. Normal red blood cells live about 120 days in the bloodstream, but sickled red cells die after about 10 to 20 days. Because they cannot be replaced fast enough, the blood is chronically short of red blood cells, a condition called anemia.

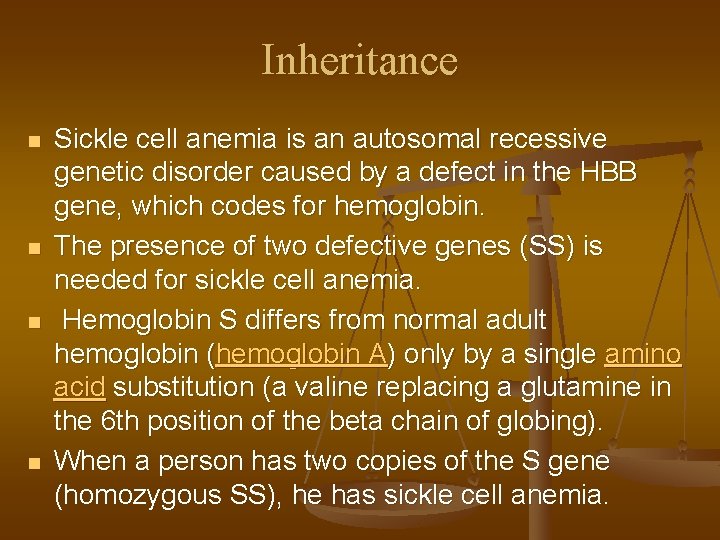

Inheritance n n Sickle cell anemia is an autosomal recessive genetic disorder caused by a defect in the HBB gene, which codes for hemoglobin. The presence of two defective genes (SS) is needed for sickle cell anemia. Hemoglobin S differs from normal adult hemoglobin (hemoglobin A) only by a single amino acid substitution (a valine replacing a glutamine in the 6 th position of the beta chain of globing). When a person has two copies of the S gene (homozygous SS), he has sickle cell anemia.

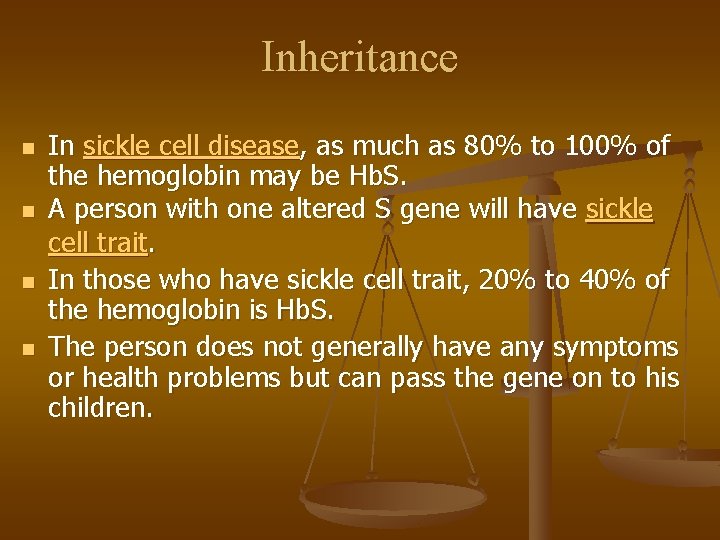

Inheritance n n In sickle cell disease, as much as 80% to 100% of the hemoglobin may be Hb. S. A person with one altered S gene will have sickle cell trait. In those who have sickle cell trait, 20% to 40% of the hemoglobin is Hb. S. The person does not generally have any symptoms or health problems but can pass the gene on to his children.

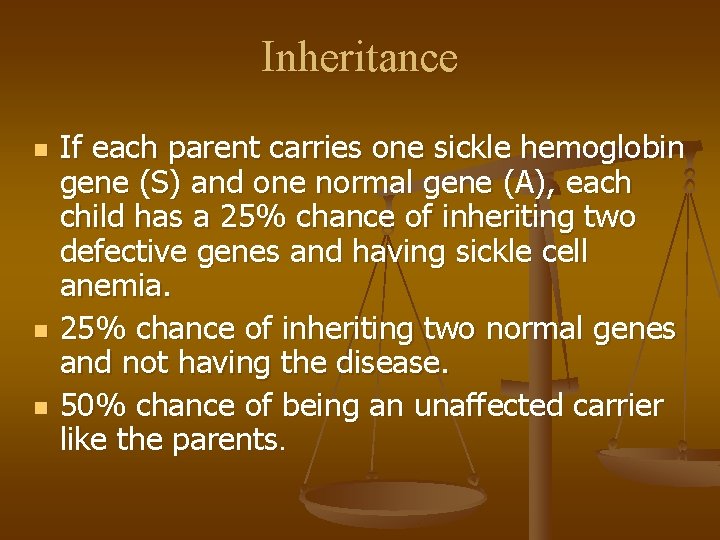

Inheritance n n n If each parent carries one sickle hemoglobin gene (S) and one normal gene (A), each child has a 25% chance of inheriting two defective genes and having sickle cell anemia. 25% chance of inheriting two normal genes and not having the disease. 50% chance of being an unaffected carrier like the parents.

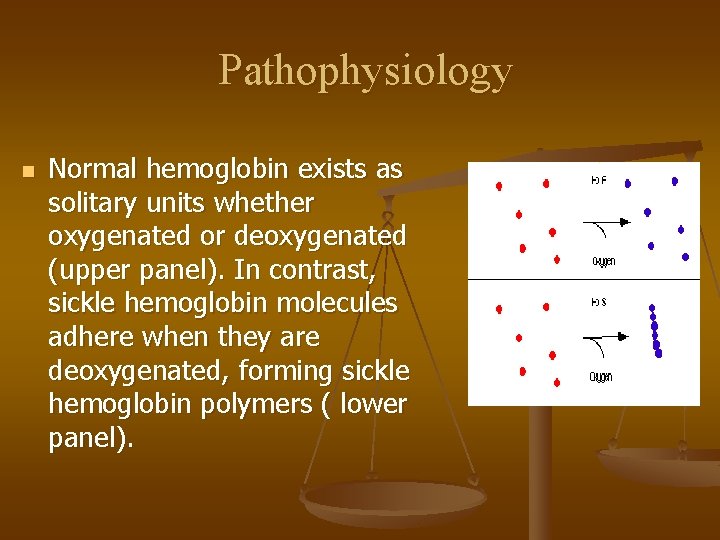

Pathophysiology n Normal hemoglobin exists as solitary units whether oxygenated or deoxygenated (upper panel). In contrast, sickle hemoglobin molecules adhere when they are deoxygenated, forming sickle hemoglobin polymers ( lower panel).

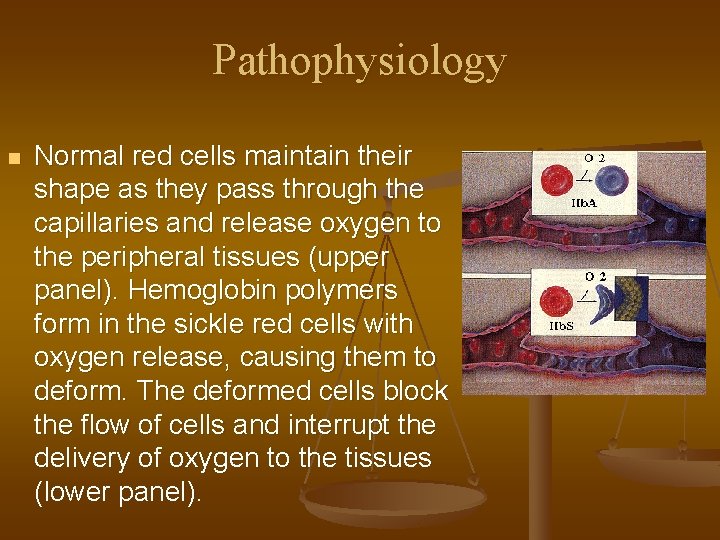

Pathophysiology n Normal red cells maintain their shape as they pass through the capillaries and release oxygen to the peripheral tissues (upper panel). Hemoglobin polymers form in the sickle red cells with oxygen release, causing them to deform. The deformed cells block the flow of cells and interrupt the delivery of oxygen to the tissues (lower panel).

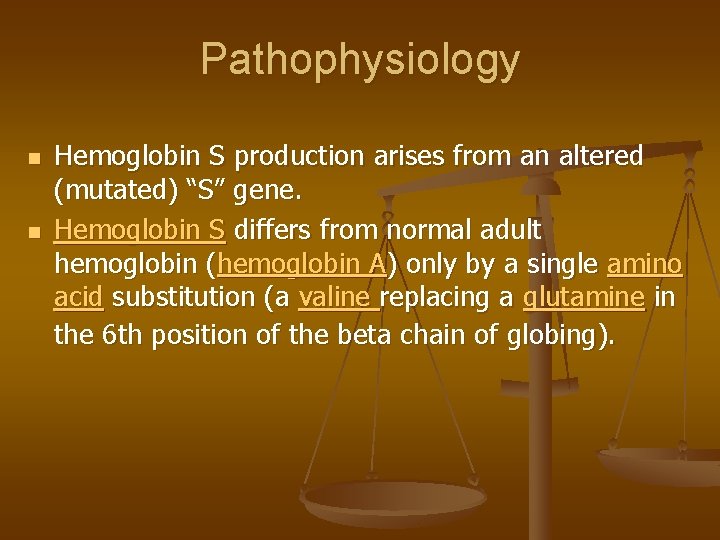

Pathophysiology n n Hemoglobin S production arises from an altered (mutated) “S” gene. Hemoglobin S differs from normal adult hemoglobin (hemoglobin A) only by a single amino acid substitution (a valine replacing a glutamine in the 6 th position of the beta chain of globing).

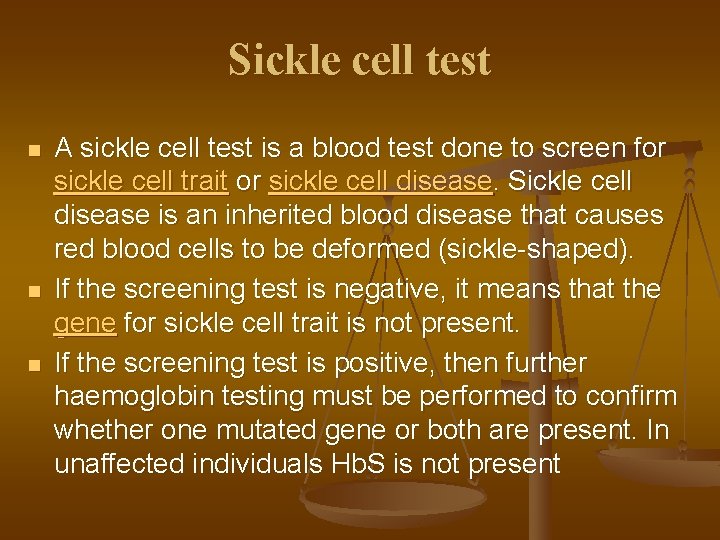

Sickle cell test n n n A sickle cell test is a blood test done to screen for sickle cell trait or sickle cell disease. Sickle cell disease is an inherited blood disease that causes red blood cells to be deformed (sickle-shaped). If the screening test is negative, it means that the gene for sickle cell trait is not present. If the screening test is positive, then further haemoglobin testing must be performed to confirm whether one mutated gene or both are present. In unaffected individuals Hb. S is not present

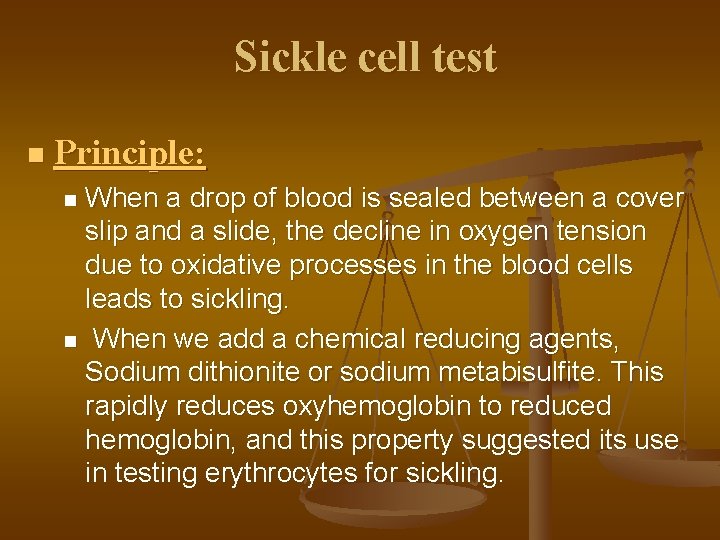

Sickle cell test n Principle: When a drop of blood is sealed between a cover slip and a slide, the decline in oxygen tension due to oxidative processes in the blood cells leads to sickling. n When we add a chemical reducing agents, Sodium dithionite or sodium metabisulfite. This rapidly reduces oxyhemoglobin to reduced hemoglobin, and this property suggested its use in testing erythrocytes for sickling. n

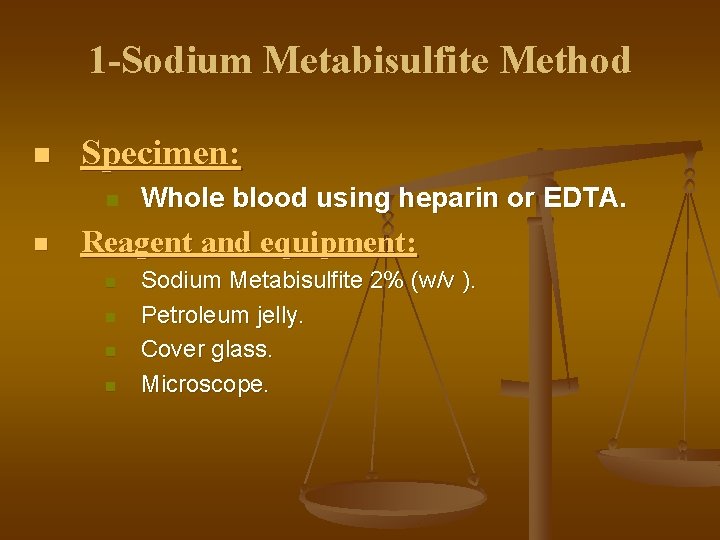

1 -Sodium Metabisulfite Method n Specimen: n n Whole blood using heparin or EDTA. Reagent and equipment: n n Sodium Metabisulfite 2% (w/v ). Petroleum jelly. Cover glass. Microscope.

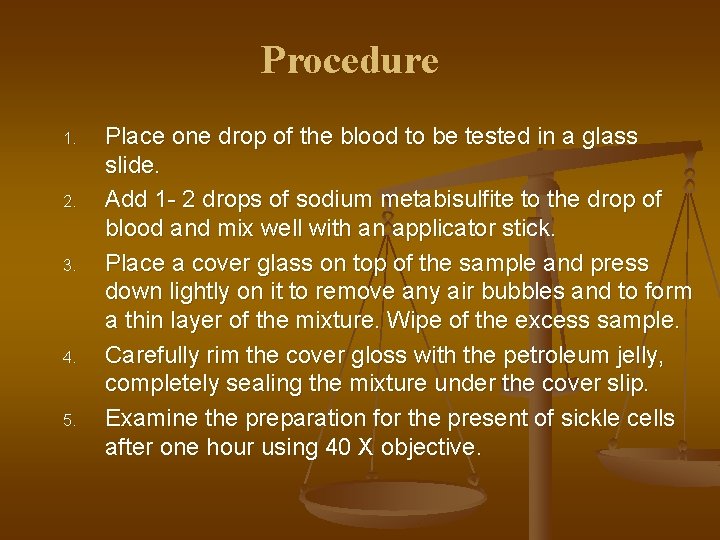

Procedure 1. 2. 3. 4. 5. Place one drop of the blood to be tested in a glass slide. Add 1 - 2 drops of sodium metabisulfite to the drop of blood and mix well with an applicator stick. Place a cover glass on top of the sample and press down lightly on it to remove any air bubbles and to form a thin layer of the mixture. Wipe of the excess sample. Carefully rim the cover gloss with the petroleum jelly, completely sealing the mixture under the cover slip. Examine the preparation for the present of sickle cells after one hour using 40 X objective.

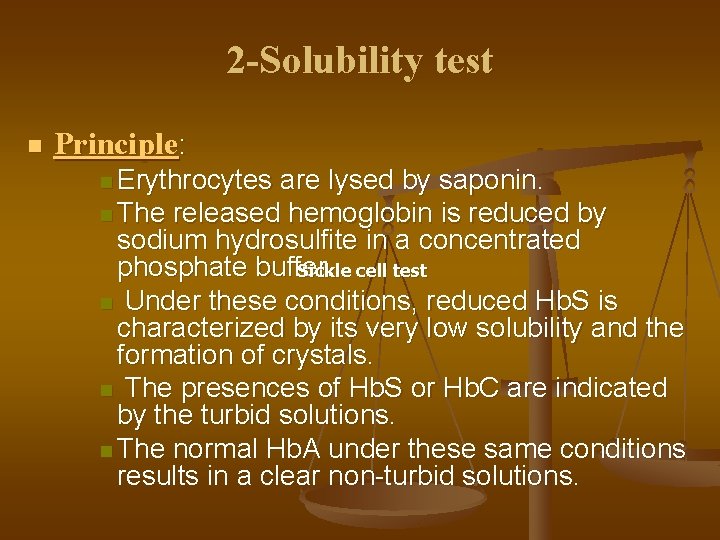

2 -Solubility test n Principle: n Erythrocytes are lysed by saponin. n The released hemoglobin is reduced by sodium hydrosulfite in a concentrated phosphate buffer. Sickle cell test n Under these conditions, reduced Hb. S is characterized by its very low solubility and the formation of crystals. n The presences of Hb. S or Hb. C are indicated by the turbid solutions. n The normal Hb. A under these same conditions results in a clear non-turbid solutions.
