Sickle Cell Anemia Emergency management of acute neurologic

Sickle Cell Anemia Emergency management of acute neurologic events in children Dr. Mary-Lou O’Byrne September 25, 2003

OUTLINE • Case presentation • Sickle Cell Anemia fundamentals – Genetics – Pathogenesis – “Crises” • Sickle Cell Disease Care Consortium guidelines • Therapies • Prevention

CASE (C. F. ) • 6 ½ year old black Canadian with known Sickle Cell Disease • Well for 3 years • Prior hx of splenic sequestration events • Admitted to PLC x 3 in first 3 years of life • Meds: Pen V and Folate • Immunizations: UTD

Presentation (C. F. ) • Well at bedtime • @ 23: 00 woke crying with bilaterally painful legs • Mother is rubbing her legs when pt stops crying, stiffens, and has a large emesis • Generalized tonic seizure x 5 minutes • EMS called

On arrival in E. D. • Eyes closed but will open eyes to voice commands • c/o headache and abd pain • Oriented to place and self • PERL, marked nystagmus, diplopia on lateral gazes w/ R>L lat rectus palsy • Ataxia, unable to sit • Vomiting with any mvmt • Marked dysmetria • DTR symmetric and brisk, Plantars downgoing

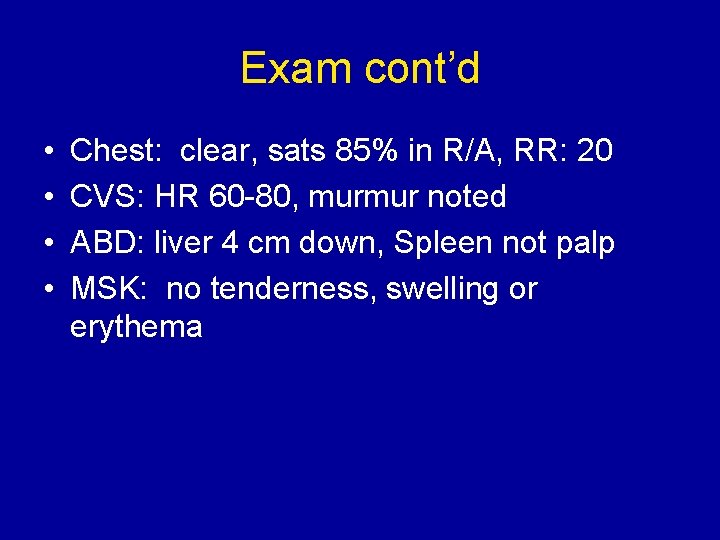

Exam cont’d • • Chest: clear, sats 85% in R/A, RR: 20 CVS: HR 60 -80, murmur noted ABD: liver 4 cm down, Spleen not palp MSK: no tenderness, swelling or erythema

Investigations • • CXR: mild cardiomegaly Hgb 73 WBC 16. 0 => 9 to 12 in hospital Plt 529 CBG: p. H 7. 41 p. CO 2 38 p. O 2 191 Lytes N INR 1. 2 PTT 23 Type and screen done CT head done immediately and “normal”

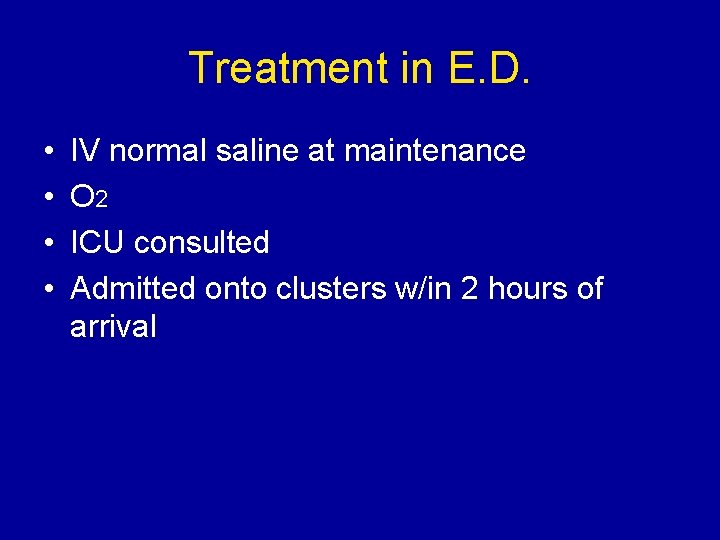

Treatment in E. D. • • IV normal saline at maintenance O 2 ICU consulted Admitted onto clusters w/in 2 hours of arrival

Course in Hosp • Resolution of most of her neurologic findings within a few hours • I phoned neurology after my shift and they had not been consulted yet • Hematology consulted later in day • ECHO and ECG confirmed mild rt and left ventricular enlargement and norm ventricular func • MRI/MRA done and abnormal

T 2 Axial MRI

MRI (FLAIR) vs. CT

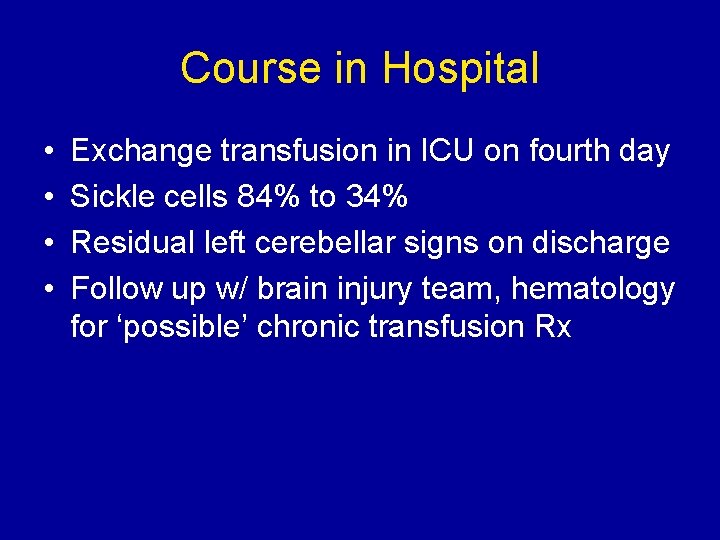

Course in Hospital • • Exchange transfusion in ICU on fourth day Sickle cells 84% to 34% Residual left cerebellar signs on discharge Follow up w/ brain injury team, hematology for ‘possible’ chronic transfusion Rx

Sickle Cell Anemia

Normal RBC vs. Sickle Cells

Sickle Cell Anemia • Hereditary hemoglobinopathy – 8% of black Americans heterozygous for Hb. S • 1910 Herrick first described ‘sickled’ cells • Heterozygote (40% Hb. S) protects against falciparum malaria • African descent > Hispanic, Arabians, Indians and whites • 1973 life expectancy = 14. 3 years • 1994 life expectancy = 42 years men / 48 years women • Most American states screen all newborns • (1: 625 Afro-American births)

Sickle Cell Anemia • Structurally abnormal hemoglobin • Normally tetramer of 4 globin chains: – 96%Hb. A (alpha 2 beta 2) – 3% Hb. A 2 (alpha 2 delta 2) – 1% Hb. F (alpha 2 gamma 2) • SCD: Hb. S is abnormal Beta chain • Valine replaces glutamine on beta-globin – Charge at site altered, allows polymerization of Hb • Copolymerization w/ Hb. S>C>D etc

SCD – point mutation

Pathogenesis • On deoxygenation Hb. S aggregates and polymerizes (like viscous gel) • Sickling is initially reversible w/ O 2 • Hb. S returns to depolymerized state • Recurrent sickling => memb damage and irreversible sickling • RBCs lose K+ & H 2 O and gain Ca++ – Dehydrated cells

Pathogenesis - 2 • Hb. F (fetal = alpha 2 gamma 2) inhibits polymerization of Hb. S • Newborns protected until 5 -6 months • Coexistent alpha-thalassemia is protective b/c it reduces the conc of Hb in a RBC • Acidosis reduces O 2 affinity of Hb and deoxygenates Hb. S • Hb. S causes: 1)chronic hemolytic anemia 2)occlusion of small blood vessels ==> ischemic tissue damage

Pathogenesis - 3 • RBC lasts 17 - 20 days • % of sickled cells correlates to degree of anemia/hemolysis • No correlation b/w sickling and microvascular events • Non-sickled cells with memb damage adhere to the endothelium of the microvessels. • Lowest O 2 is in microcirculation

Pathogenesis - spleen • Early childhood spleen enlarged w/ congestion, sickled RBC in splenic cords and sinusoids • Erythrostasis => thrombosis/infarction and tissue hypoxia • Scarring => shrinkage =>autosplenectomy by adolescence • By age 5 y 95% have functional asplenia

Autosplenectomy

Immunodeficiency • Impaired splenic function • Defects in alternative complement pathway impairs opsonization of encapsulated bacteria • Increased susceptibility to Salmonella osteomyelitis (bone necrosis) • Pneumococci and Haemophilus influenzae septicemia/meningitis most common causes of death in SCD children

“Crises” 1. 2. 3. 4. 5. 6. Dactylitis Splenic sequestration Aplastic anemia Acute painful events Acute chest syndrome Neurological events

Dactylitis • • • Common presentation of SCD in children <2 yrs Swollen, tender hands and feet Usually bilateral Ischemia/necrosis of bone Full resolution expected • Humeral > femoral heads prone to necrosis in older children/adults >50% dev avascular necrosis of femoral head by 35 yr

Dactylitis

Splenic sequestration • 30% incidence in young children • Rapid, severe worsening of anemia w/ good reticulocytosis • Enlarging, tender spleen • Hypovolemic shock • 15% mortality, 50% recurrent • Often concurrent with viral illnesses • Parents taught to palpate for spleen • Rx: fluid resuscitation. + O 2 + transfusion

Aplastic anemia • Young children very sensitive to Parvovirus B 19 marrow suppression (68%) • Supraphysiologic oxygen decreases erythropoietin production and decreases retic w/in 2 days • Supportive transfusions until retic return

Acute painful events • Most frequent symptom after age 2 yrs • Vaso-occlusion vs. shunting of blood flow • Rx: hydration, O 2 and aggressive narcotic use. Avoid Demerol (incr dependence and possible seizures) • Cause usually not identified • Peripheral/extremities in younger pts and proximal (back, chest, abdomen) in adults

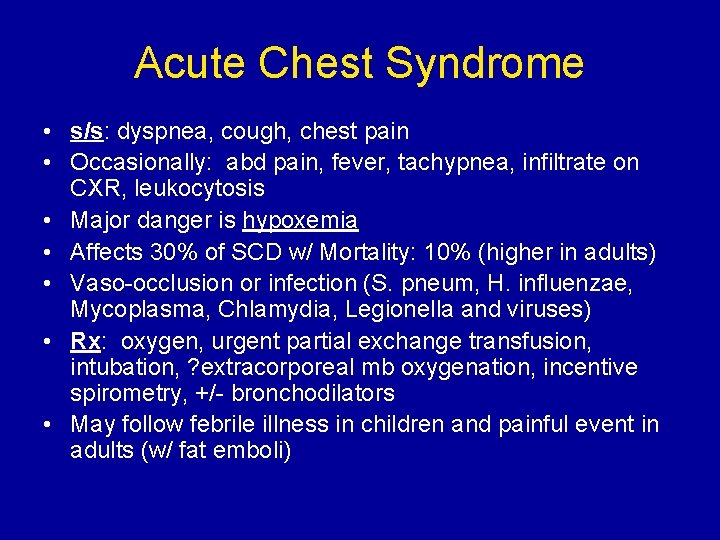

Acute Chest Syndrome • s/s: dyspnea, cough, chest pain • Occasionally: abd pain, fever, tachypnea, infiltrate on CXR, leukocytosis • Major danger is hypoxemia • Affects 30% of SCD w/ Mortality: 10% (higher in adults) • Vaso-occlusion or infection (S. pneum, H. influenzae, Mycoplasma, Chlamydia, Legionella and viruses) • Rx: oxygen, urgent partial exchange transfusion, intubation, ? extracorporeal mb oxygenation, incentive spirometry, +/- bronchodilators • May follow febrile illness in children and painful event in adults (w/ fat emboli)

Acute CNS events • • Overt CVA ~ 5% of children w/ SCD Greatest incidence in 5 -10 year olds Silent infarcts in 17% before age 20 Correlates with: – – – seizures lower painful event rate incr leukocyte ct >11. 8 incr pocked RBC (>3. 5% considered evid of splenic dysfunc) SEN beta. S globin gene haplotype • Cooperative Study of Sickle Cell Disease in USA • Followed patients for 20 years, from 6 months of age – (Pediatrics March 1999)

Stroke • Watershed perfusion areas in most occult CVA • Most strokes are ischemic, rarely hemorrhagic • Anterior vessels of Circle of Willis show progressive narrowing w/ eventual occlusion, collateral vessel dev and occ moya

(C. F. ) MRA

Circle of Willis

SICKLE CELL DISEASE IN CHILDREN AND ADOLESCENTS: DIAGNOSIS, GUIDELINES FOR COMPREHENSIVE CARE, AND CARE PATHS AND PROTOCOLS FOR MANAGEMENT OF ACUTE AND CHRONIC COMPLICATIONS* Peter A. Lane, George R. Buchanan, John J. Hutter, Robert F. Austin, Howard A. Britton, Zora R. Rogers, James R. Eckman, Michael R. De. Baun, Winfred C. Wang, Prasad Mathew, Sarah Iden, Michael Recht, Jesse D. Cohen, Ernest Frugé, Leanne Embry, Lewis Hsu, Brigitta U. Mueller, Robert Goldsby, Charles T. Quinn, Marie Mann, and Michele A. Lloyd-Puryear for the Sickle Cell Disease Care Consortium** *Revised at the Annual Meeting of the Sickle Cell Disease Care Consortium, Sedona, AZ, November 10 -12, 2001

ACUTE STROKE OR NEUROLOGIC EVENT IN CHILD WITH SICKLE CELL DISEASE DEFINITION: Stroke, defined as an acute, clinically apparent neurological event, occurs in 8 -11% of children with Hb SS. Common presenting symptoms and signs include hemiparesis, monoparesis, aphasia or dysphasia, seizures, severe headache, cranial nerve palsy, stupor, and coma. Stroke may occur without warning as an isolated event or may complicate other complications of sickle cell disease such as acute chest syndrome or aplastic crisis. Acute neurologic symptoms or signs require urgent evaluation and treatment. CONSULTS: Hematology Neurology Physical Medicine and Rehabilitation MONITORING: 1. Rapid triage - urgent hematology consultation 2. Hospitalize. Consider ICU admission and/or CR monitor first 24 hr and until stable. 3. Vital signs, neuro checks q 2 hr. 4. Record I & O, daily weight. DIAGNOSTICS: 1. Document duration of acute symptoms, any prior neurologic symptoms or trauma, and results of any previous CNS imaging studies (ie. CT, MRI, MRA, or TCD). 2. Document details of the neurologic exam. 3. Type and crossmatch for transfusion (see Medication/Treatment below). Consider requesting, if available, minor-antigen-matched, sickle-negative, and leukocytedepleted RBC. 4. CBC, diff, platelet count, and reticulocyte count initially and as clinically indicated (compare with patient's baseline data). 5. RBC minor-antigen phenotype if not previously documented. 6. Consider screening coagulation profile. 7. Blood and urine cultures if febrile. 8. Electrolytes initially and daily until stable. 9. MRI and MRA. If MRI/MRA not immediately available, CT without contrast to exclude intracranial hemorrhage with MRI/MRA later when available. Initiation of transfusion therapy should not be delayed by arrangements for imaging studies. 10. Consider CSF culture if febrile and no contraindication present. FLUIDS, GENERAL: 1. IV + PO@ 1 x maintenance MEDICATION/TREATMENT: 1. Partial exchange transfusion or erythrocytapheresis to Hb 10 gm/dl and Hb S (patient's RBC) 30% (may require transfusion medicine consult for erythrocytapheresis). Remove femoral or central venous catheter as soon as possible after exchange transfusion to reduce risk of thrombosis. 2. Simple transfusion with RBC to Hb approximately 10 gm/dl may be considered as an alternative to partial exchange transfusion for stable patients with Hb <6 -7 gm/dl (do not transfuse acutely to Hb >10 gm/dl, Hct >30%). 3. Rx seizures if present. 4. Rx increased intracranial pressure if present. 5. 02 by nasal cannula or face mask if needed to keep pulse ox 92% or patient's baseline, if >92%. The etiology of a new or increasing supplemental 02 requirement should be investigated. 6. Consider hemoglobin electrophoresis after partial exchange transfusion or at discharge. 7. Cefotaxime or cefuroxime 50 mg/kg IV q 8 h if febrile. Substitute clindamycin 10 mg/kg IV q 6 hr for known or suspected cephalosporin allergy. Strongly consider adding vancomycin 10 -15 mg/kg IV q 8 hr for severe febrile illness or for proven or suspected CNS infection. 8. If applicable, continue prophylactic penicillin. Prophylactic penicillin should be discontinued while patient is receiving broad-spectrum antibiotics. 9. See other Clinical Care Paths for pain, acute chest syndrome, acute splenic sequestration, aplastic crisis, priapism, if present. DISCHARGE CRITERIA: 1. Clinically and neurologically stable 24 hr. after transfusions. 2. Afebrile 24 hr. with negative cultures for 24 -48 hr. if applicable. 3. Taking adequate oral fluids and able to take oral medication if applicable. 4. Hematology, rehabilitation, and physical therapy follow-up organized. 5. Initiate chronic transfusion program (see p. 27).

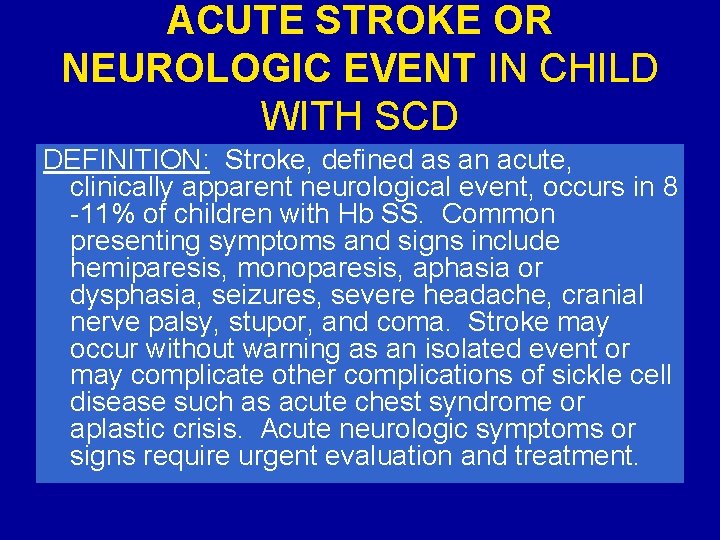

ACUTE STROKE OR NEUROLOGIC EVENT IN CHILD WITH SCD DEFINITION: Stroke, defined as an acute, clinically apparent neurological event, occurs in 8 -11% of children with Hb SS. Common presenting symptoms and signs include hemiparesis, monoparesis, aphasia or dysphasia, seizures, severe headache, cranial nerve palsy, stupor, and coma. Stroke may occur without warning as an isolated event or may complicate other complications of sickle cell disease such as acute chest syndrome or aplastic crisis. Acute neurologic symptoms or signs require urgent evaluation and treatment.

DIAGNOSTICS: 1. Document duration of acute symptoms, any prior neurologic symptoms or trauma, and results of any previous CNS imaging studies (ie. CT, MRI, MRA, or TCD). 2. Document details of the neurologic exam. 3. Type and crossmatch for transfusion (see Medication/Treatment below). Consider requesting, if available, minor-antigen-matched, sickle-negative, and leukocyte-depleted RBC. 4. CBC, diff, platelet count, and reticulocyte count initially and as clinically indicated (compare with patient's baseline data). 5. RBC minor-antigen phenotype if not previously documented. 6. Consider screening coagulation profile. 7. Blood and urine cultures if febrile. 8. Electrolytes initially and daily until stable. 9. MRI and MRA. If MRI/MRA not immediately available, CT without contrast to exclude intracranial hemorrhage with MRI/MRA later when available. Initiation of transfusion therapy should not be delayed by arrangements for imaging studies. 10. Consider CSF culture if febrile and no contraindication present

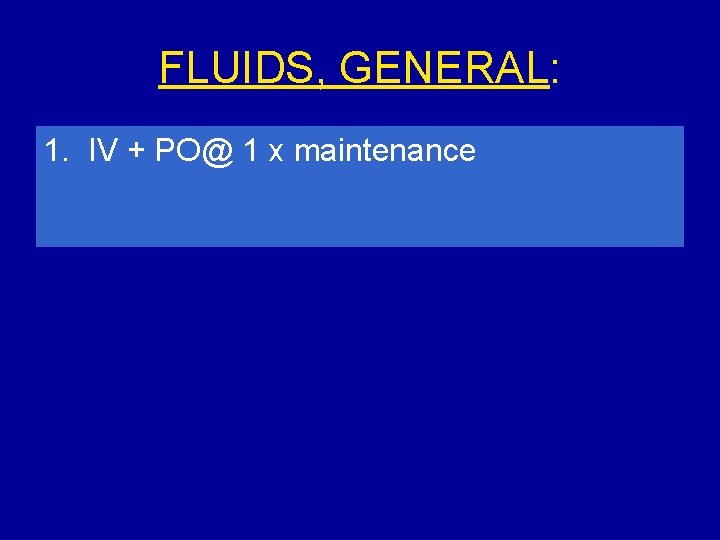

FLUIDS, GENERAL: 1. IV + PO@ 1 x maintenance

MONITORING: 1. Rapid triage - urgent hematology consultation 2. Hospitalize. Consider ICU admission and/or CR monitor first 24 hr and until stable. 3. Vital signs, neuro checks q 2 hr. 4. Record I & O, daily weight.

MEDICATION/TREATMENT: Partial exchange transfusion or erythrocytapheresis to Hb 10 gm/dl and Hb S (patient's RBC) 30% (may require transfusion medicine consult for erythrocytapheresis). Remove femoral or central venous catheter as soon as possible after exchange transfusion to reduce risk of thrombosis. 2. Simple transfusion with RBC to Hb approximately 10 gm/dl may be considered as an alternative to partial exchange transfusion for stable patients with Hb <6 -7 gm/dl (do not transfuse acutely to Hb >10 gm/dl, Hct >30%). 3. Rx seizures if present. 4. Rx increased intracranial pressure if present. 1.

MEDICATION/TREATMENT 5. 02 by nasal cannula or face mask if needed to keep pulse ox 92% or patient's baseline, if >92%. The etiology of a new or increasing supplemental 02 requirement should be investigated. 6. Consider hemoglobin electrophoresis after partial exchange transfusion or at discharge. 7. Cefotaxime or cefuroxime 50 mg/kg IV q 8 h if febrile. Substitute clindamycin 10 mg/kg IV q 6 hr for known or suspected cephalosporin allergy. Strongly consider adding vancomycin 10 -15 mg/kg IV q 8 hr for severe febrile illness or for proven or suspected CNS infection. 8. If applicable, continue prophylactic penicillin. Prophylactic penicillin should be discontinued while patient is receiving broad-spectrum antibiotics. 9. See other Clinical Care Paths for pain, acute chest syndrome, acute splenic sequestration, aplastic crisis, priapism, if present.

DISCHARGE CRITERIA: 1. Clinically and neurologically stable 24 hr. after transfusions. 2. Afebrile 24 hr. with negative cultures for 2448 hr. if applicable. 3. Taking adequate oral fluids and able to take oral medication if applicable. 4. Hematology, rehabilitation, and physical therapy follow-up organized. 5. Initiate chronic transfusion program (see p. 27).

CVA treatment • Risk of recurrence is 70 -90% and may be fatal • Chronic monthly transfusion regimen to maintain Hb. S <30% – Reduces recurrence by 90% – Continue until 18 years old • Transcranial Doppler ultrasound to assess velocity of flow in circle of Willis every year to screen children • Not readily available for children here • MRI/MRA • If velocity >200 cm/sec, stroke risk is 10% per year – start monthly transfusion therapy – Reduces risk of stroke by 90% » Recommendation from the Stroke Prevention in Sickle Cell Anemia Trial (STOP)

Stroke Rx – Adult vs. Children • • • CVA in adults to be treated as per non-SCD pts t-PA can be considered ASA and other antiplatelet drugs can be used t-PA data in children not available Most important in children to reverse the sickling Expect much better recovery in children post CVA

New Therapies • Hydroxyurea • Chronic Transfusion therapy • Bone Marrow transplant

Hydroxyurea • Increases fetal Hb (10 to 25%) • Decreases mortality in adults • Early information on children suggest safe but efficacy data pending

Chronic Transfusion Rx • Essential in strokes and Acute Chest Syndrome • Risks: – Iron overload – Infection – Alloimmunization (Afro-Amer don’t express many of the minor red cell antigens present on Caucasian RBC) • Does not reverse ischemic damage • Does not prevent avascular necrosis of hum/fem

Bone Marrow Transplant • • • Very select population <16 years old With an HLA-matched sibling 5% mortality Consider nonmyeloablative regime – Stable stem cell chimera w/ phenotypic overexpression of the healthy graft can produce an asymptomatic pt

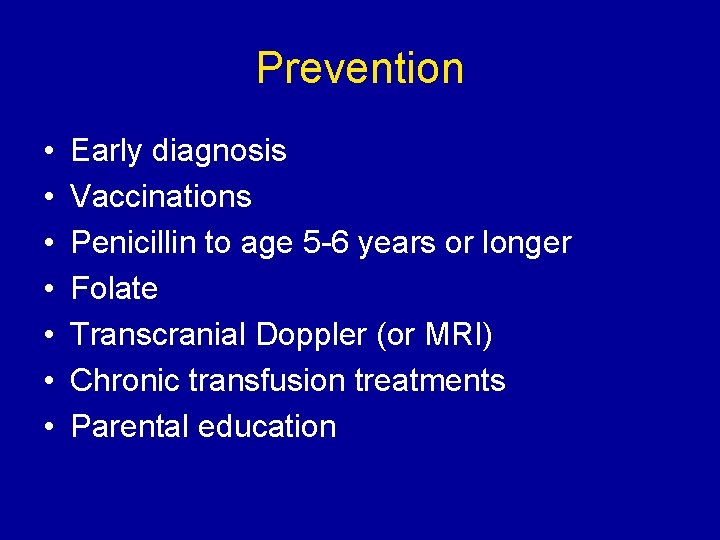

Prevention • • Early diagnosis Vaccinations Penicillin to age 5 -6 years or longer Folate Transcranial Doppler (or MRI) Chronic transfusion treatments Parental education
