Si Strip Monitor Comparison Plots Alexis Kalogeropoulos DQM

Si. Strip. Monitor Comparison Plots Alexis Kalogeropoulos DQM meeting IIHE 7. 1. 10

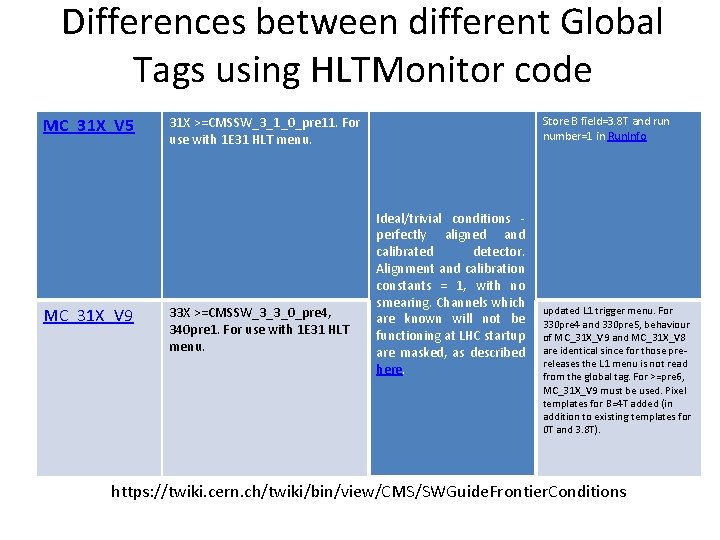

Differences between different Global Tags using HLTMonitor code MC_31 X_V 5 MC_31 X_V 9 31 X >=CMSSW_3_1_0_pre 11. For use with 1 E 31 HLT menu. 33 X >=CMSSW_3_3_0_pre 4, 340 pre 1. For use with 1 E 31 HLT menu. Store B field=3. 8 T and run number=1 in Run. Info Ideal/trivial conditions perfectly aligned and calibrated detector. Alignment and calibration constants = 1, with no smearing. Channels which are known will not be functioning at LHC startup are masked, as described here. updated L 1 trigger menu. For 330 pre 4 and 330 pre 5, behaviour of MC_31 X_V 9 and MC_31 X_V 8 are identical since for those prereleases the L 1 menu is not read from the global tag. For >=pre 6, MC_31 X_V 9 must be used. Pixel templates for B=4 T added (in addition to existing templates for 0 T and 3. 8 T). https: //twiki. cern. ch/twiki/bin/view/CMS/SWGuide. Frontier. Conditions

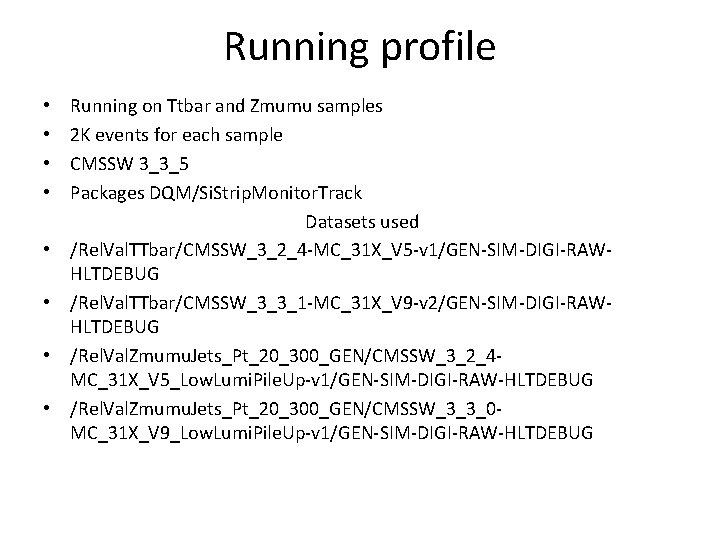

Running profile • • Running on Ttbar and Zmumu samples 2 K events for each sample CMSSW 3_3_5 Packages DQM/Si. Strip. Monitor. Track Datasets used /Rel. Val. TTbar/CMSSW_3_2_4 -MC_31 X_V 5 -v 1/GEN-SIM-DIGI-RAWHLTDEBUG /Rel. Val. TTbar/CMSSW_3_3_1 -MC_31 X_V 9 -v 2/GEN-SIM-DIGI-RAWHLTDEBUG /Rel. Val. Zmumu. Jets_Pt_20_300_GEN/CMSSW_3_2_4 MC_31 X_V 5_Low. Lumi. Pile. Up-v 1/GEN-SIM-DIGI-RAW-HLTDEBUG /Rel. Val. Zmumu. Jets_Pt_20_300_GEN/CMSSW_3_3_0 MC_31 X_V 9_Low. Lumi. Pile. Up-v 1/GEN-SIM-DIGI-RAW-HLTDEBUG

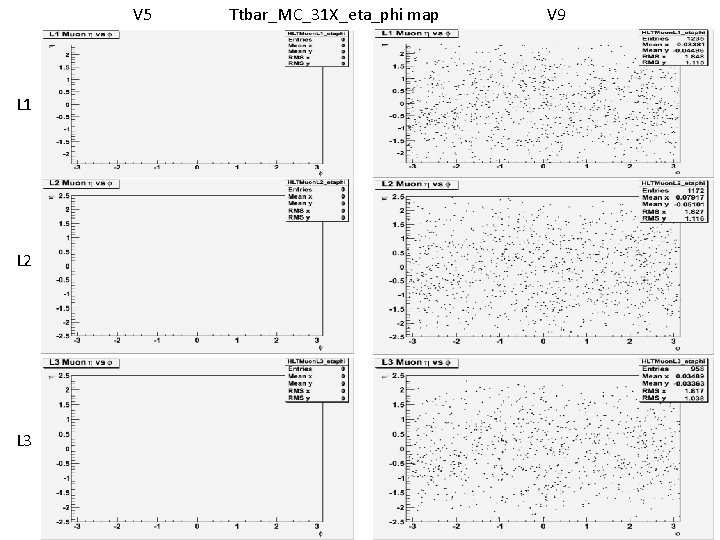

V 5 L 1 L 2 L 3 Ttbar_MC_31 X_eta_phi map V 9

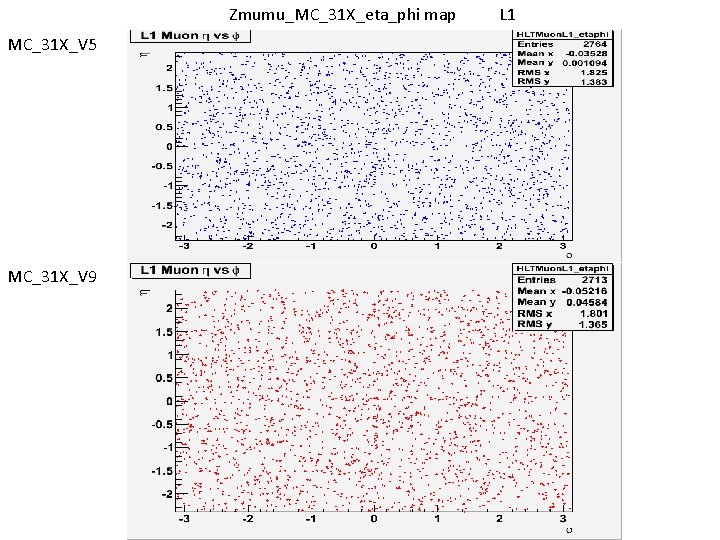

Zmumu_MC_31 X_eta_phi map MC_31 X_V 5 MC_31 X_V 9 L 1

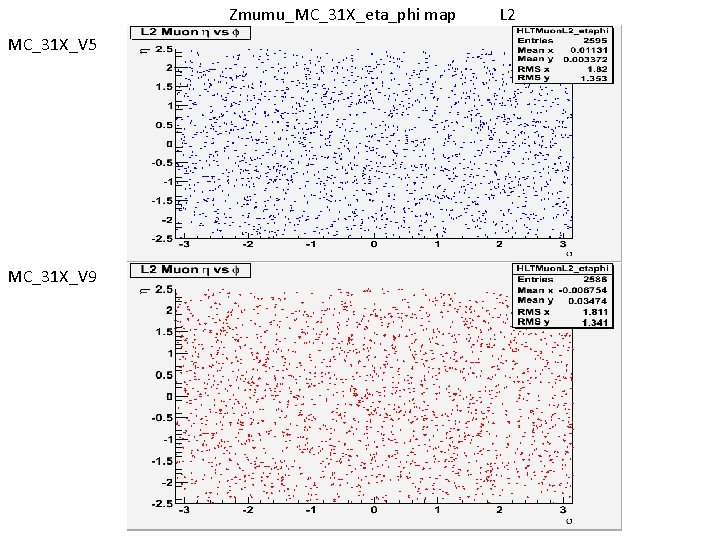

Zmumu_MC_31 X_eta_phi map MC_31 X_V 5 MC_31 X_V 9 L 2

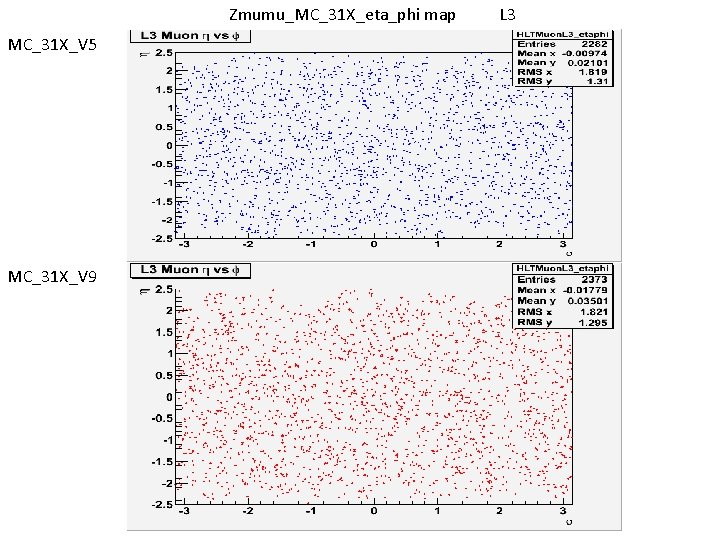

Zmumu_MC_31 X_eta_phi map MC_31 X_V 5 MC_31 X_V 9 L 3
