Shuttletrack GPS on Safe Rides With support from

Shuttletrack: GPS on Safe. Rides With support from MIT-Microsoft i. Campus Project Shuttletrack

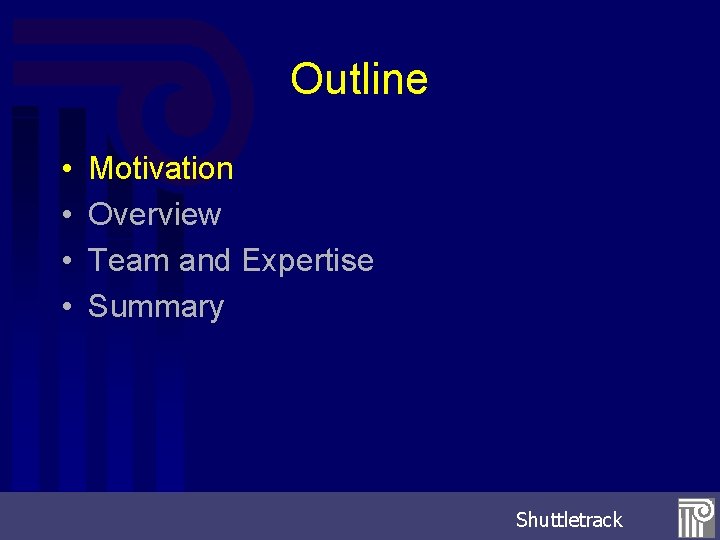

Outline • • Motivation Overview Team and Expertise Summary Shuttletrack

Outline • • Motivation Overview Team and Expertise Summary Shuttletrack

Everyday in a student’s life. . Works late in the night… MIT saferide Late night commute might be dangerous. . Provides a safe ride Shuttletrack

Looking around our campus • Campus safety issue • More demand for saferides New dorms coming near campus Shuttletrack

Shuttle. Track reliable MIT Students need a safe transit service Why? Inclement weather and traffic causes delay Solution: GPS tracking of Saferides Shuttletrack

Ideally, what people want is… Shuttletrack

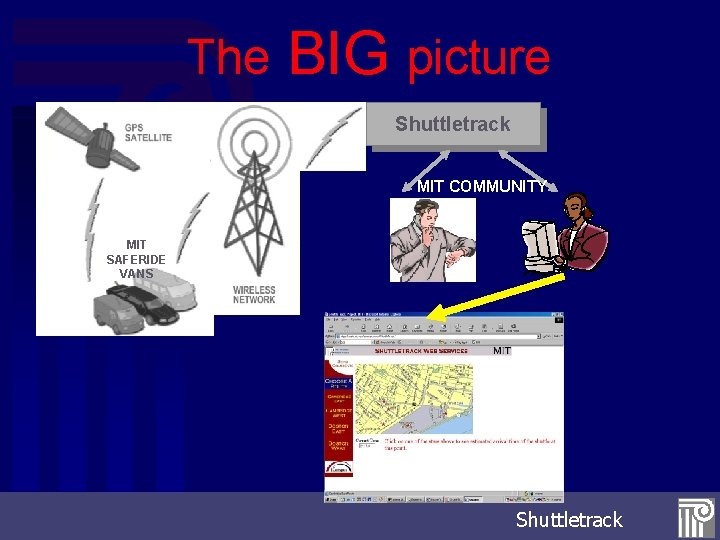

The BIG picture Shuttletrack MIT COMMUNITY MIT SAFERIDE VANS Shuttletrack

Seems easy. Haven’t people already done it ? Google lists over 100 companies* doing GPS fleet tracking. Why not borrow their idea and install on our vans? Features: • CDPD/cellular service Too expensive • Need commercial GIS software Maintenance is difficult • Generic nation-wide product Not optimal for Saferide *http: //directory. google. com/Top/Business/Industries/Telecommunications/Wireless/Location_Based_Services/Vehicle_Tracking/ Shuttletrack

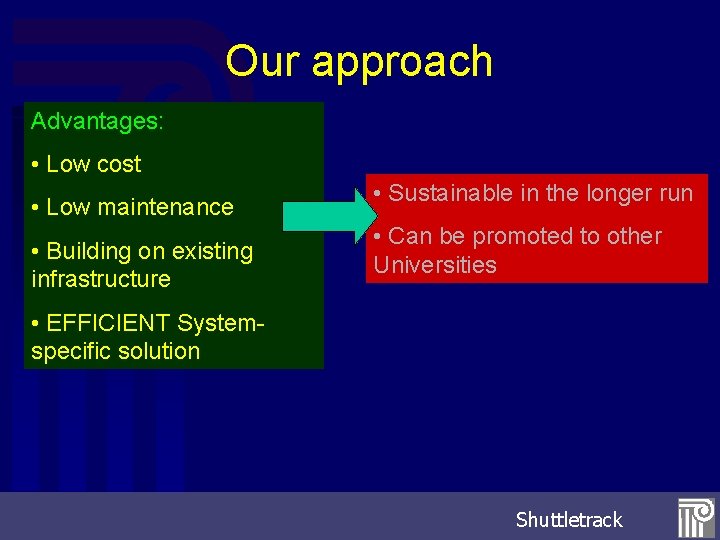

Our approach Advantages: • Low cost • Low maintenance • Building on existing infrastructure • Sustainable in the longer run • Can be promoted to other Universities • EFFICIENT Systemspecific solution Shuttletrack

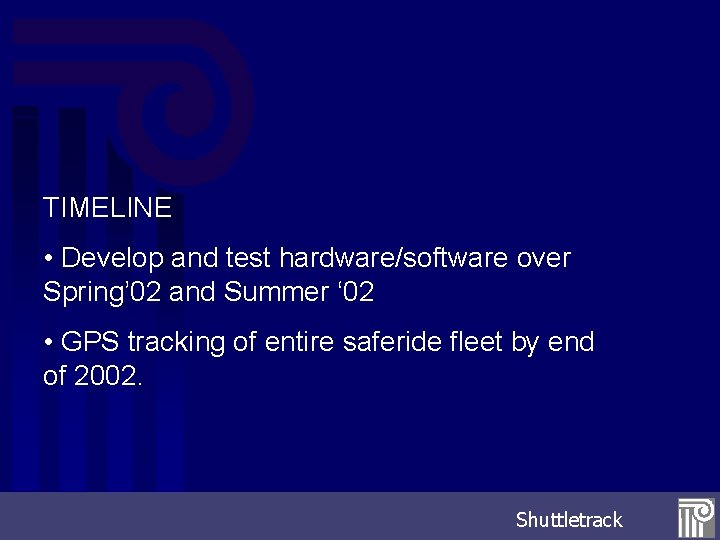

TIMELINE • Develop and test hardware/software over Spring’ 02 and Summer ‘ 02 • GPS tracking of entire saferide fleet by end of 2002. Shuttletrack

Outline • • Motivation Overview Team and Expertise Summary Shuttletrack

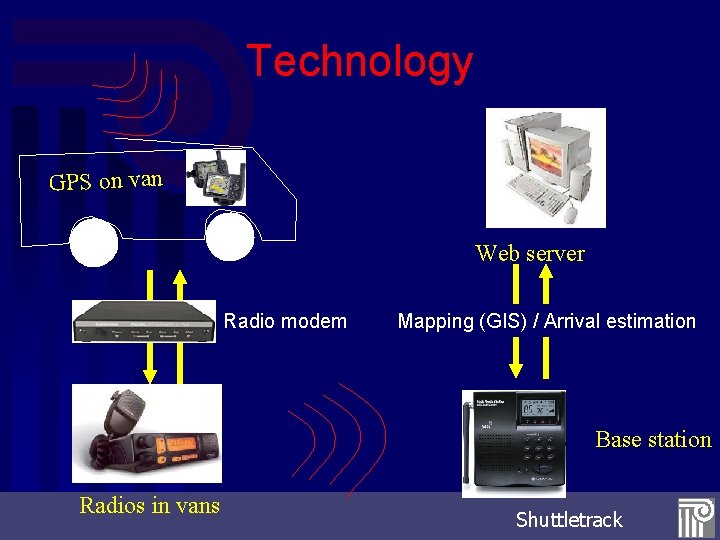

Technology GPS on van Web server Radio modem Mapping (GIS) / Arrival estimation Base station Radios in vans Shuttletrack

Communications Technology Modem Radio Modem Step 1: Establish Modem Communication Step 2: Send GPS data over radio Step 3: Receive radio transmission Step 4: Check and correct for interference Shuttletrack

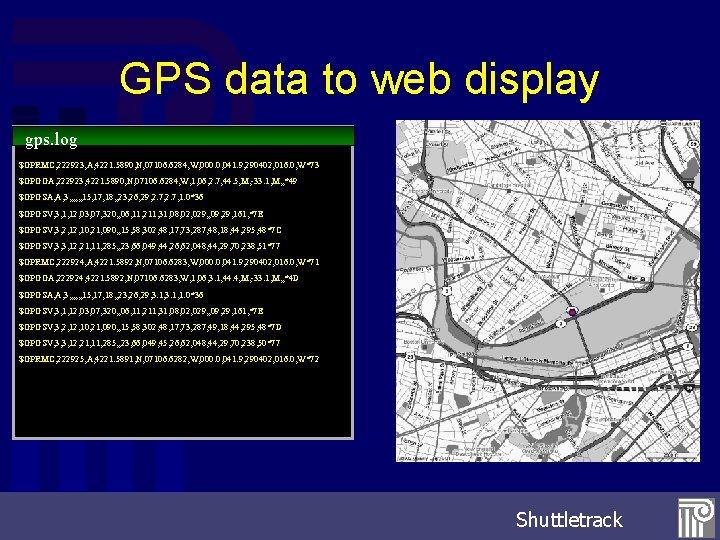

GPS data to web display gps. log $GPRMC, 222923, A, 4221. 5890, N, 07106. 6284, W, 000. 0, 041. 9, 290402, 016. 0, W*73 $GPGGA, 222923, 4221. 5890, N, 07106. 6284, W, 1, 06, 2. 7, 44. 5, M, -33. 1, M, , *49 $GPGSA, A, 3, , , 15, 17, 18, , 23, 26, 29, 2. 7, 1. 0*36 $GPGSV, 3, 1, 12, 03, 07, 320, , 06, 11, 211, 31, 08, 029, , 09, 29, 161, *7 E $GPGSV, 3, 2, 10, 21, 090, , 15, 58, 302, 48, 17, 73, 287, 48, 18, 44, 295, 48*7 C $GPGSV, 3, 3, 12, 21, 11, 285, , 23, 66, 049, 44, 26, 62, 048, 44, 29, 70, 238, 51*77 $GPRMC, 222924, A, 4221. 5892, N, 07106. 6283, W, 000. 0, 041. 9, 290402, 016. 0, W*71 $GPGGA, 222924, 4221. 5892, N, 07106. 6283, W, 1, 06, 3. 1, 44. 4, M, -33. 1, M, , *4 D $GPGSA, A, 3, , , 15, 17, 18, , 23, 26, 29, 3. 1, 1. 0*36 $GPGSV, 3, 1, 12, 03, 07, 320, , 06, 11, 211, 31, 08, 029, , 09, 29, 161, *7 E $GPGSV, 3, 2, 10, 21, 090, , 15, 58, 302, 48, 17, 73, 287, 49, 18, 44, 295, 48*7 D $GPGSV, 3, 3, 12, 21, 11, 285, , 23, 66, 049, 45, 26, 62, 048, 44, 29, 70, 238, 50*77 $GPRMC, 222925, A, 4221. 5891, N, 07106. 6282, W, 000. 0, 041. 9, 290402, 016. 0, W*72 Shuttletrack

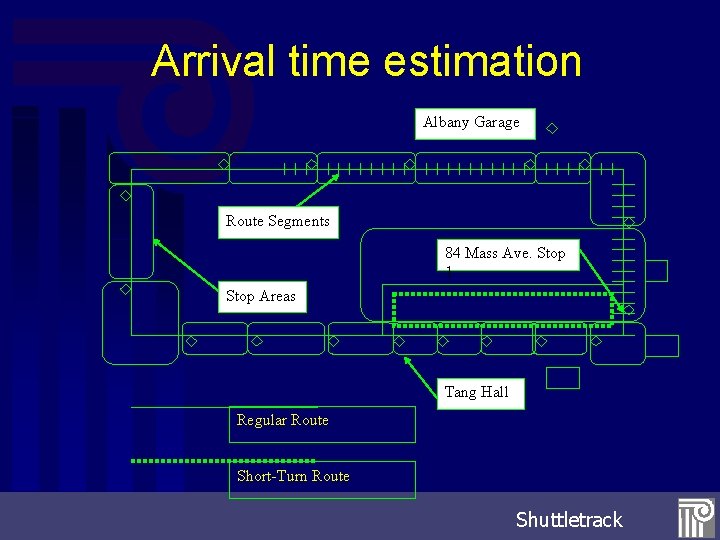

Arrival time estimation Albany Garage Route Segments 84 Mass Ave. Stop 1 Stop Areas Tang Hall Regular Route Short-Turn Route Shuttletrack

Outline • • Motivation Overview Team and Expertise Summary Shuttletrack

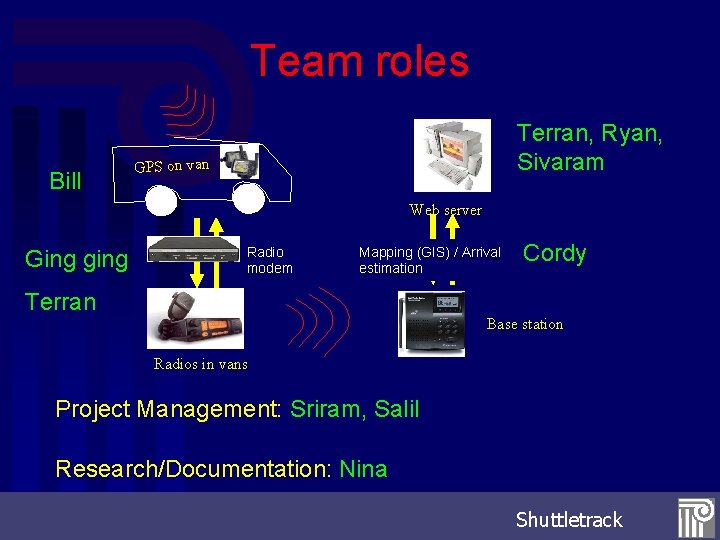

Team roles Bill Terran, Ryan, Sivaram GPS on van Web server Ging ging Radio modem Mapping (GIS) / Arrival estimation Terran Cordy Base station Radios in vans Project Management: Sriram, Salil Research/Documentation: Nina Shuttletrack

Contact info Shuttletrack@mit. edu • • Krishnan Sriram Salil Soman Cordy Crockett Ging Liu Nina Menezes Ryan Tam Sivaram Cheekiralla Technical Advisors: • Terran Melconian • William Hall • John Mc. Donald Shuttletrack

Outline • • Motivation Overview Team and Expertise Summary Shuttletrack

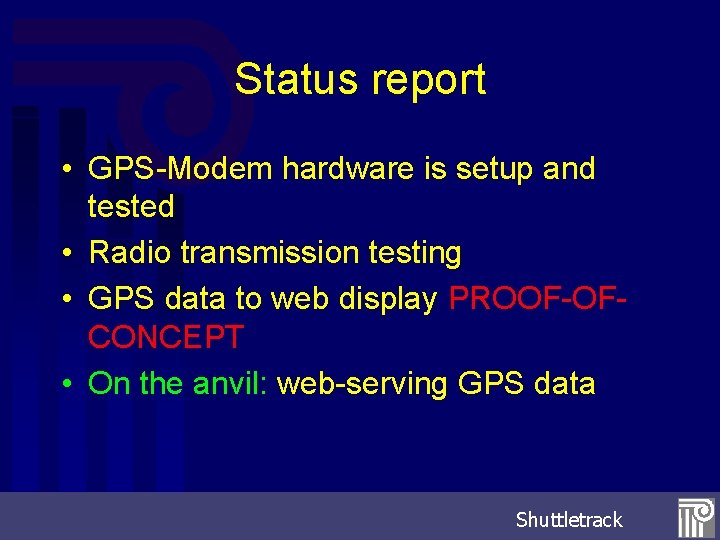

Status report • GPS-Modem hardware is setup and tested • Radio transmission testing • GPS data to web display PROOF-OFCONCEPT • On the anvil: web-serving GPS data Shuttletrack
