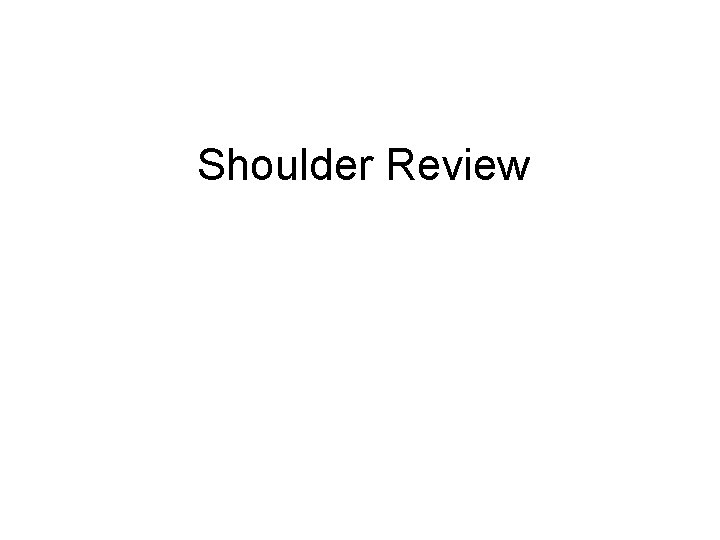

Shoulder Review

Shoulder Review

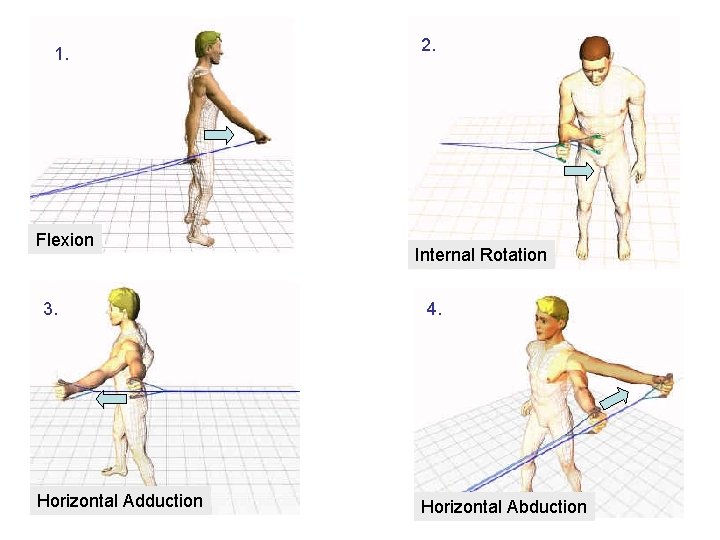

1. Flexion 3. Horizontal Adduction 2. Internal Rotation 4. Horizontal Abduction

1. Flexion 3. Horizontal Adduction 2. Internal Rotation 4. Horizontal Abduction

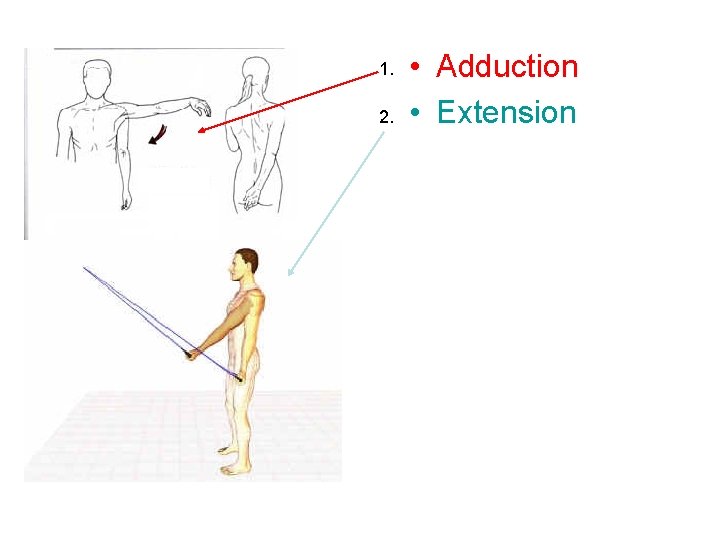

1. 2. • Adduction • Extension

1. 2. • Adduction • Extension

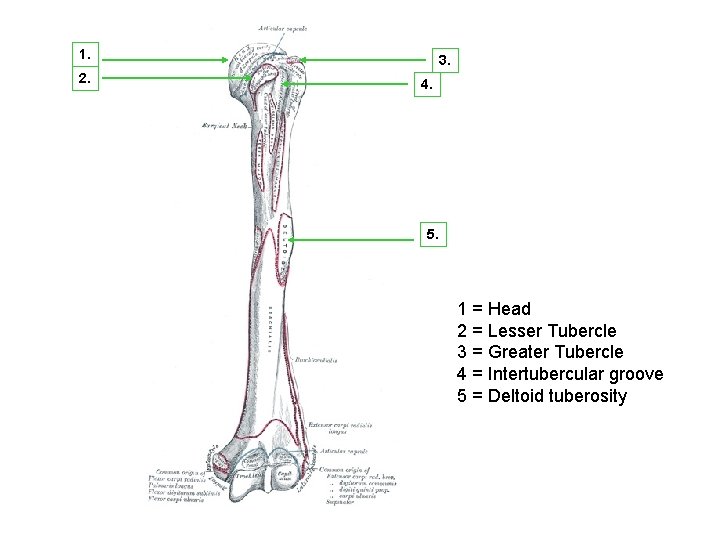

1. 2. 3. 4. 5. 1 = Head 2 = Lesser Tubercle 3 =

1. 2. 3. 4. 5. 1 = Head 2 = Lesser Tubercle 3 = Greater Tubercle 4 = Intertubercular groove 5 = Deltoid tuberosity

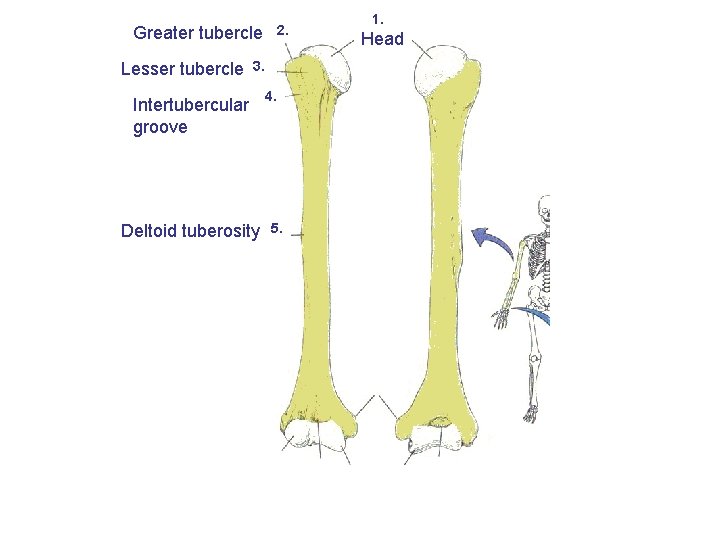

2. Greater tubercle Lesser tubercle 3. Intertubercular groove Deltoid tuberosity 4. 5. 1. Head

2. Greater tubercle Lesser tubercle 3. Intertubercular groove Deltoid tuberosity 4. 5. 1. Head

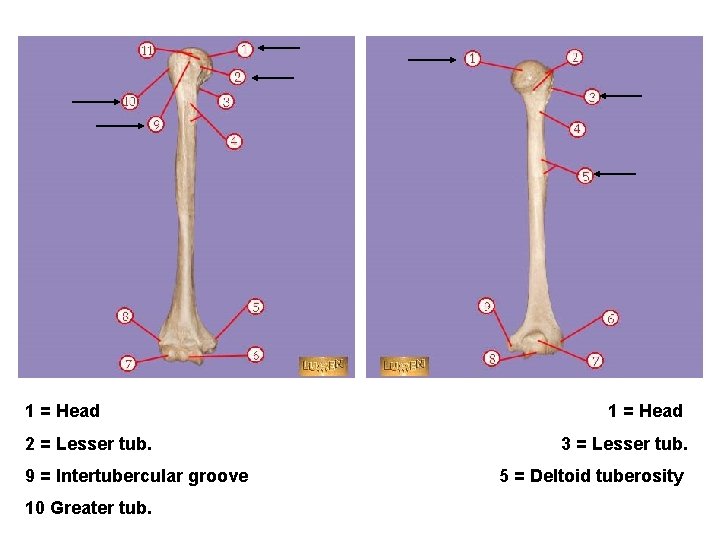

1 = Head 2 = Lesser tub. 9 = Intertubercular groove 10 Greater tub.

1 = Head 2 = Lesser tub. 9 = Intertubercular groove 10 Greater tub. 1 = Head 3 = Lesser tub. 5 = Deltoid tuberosity

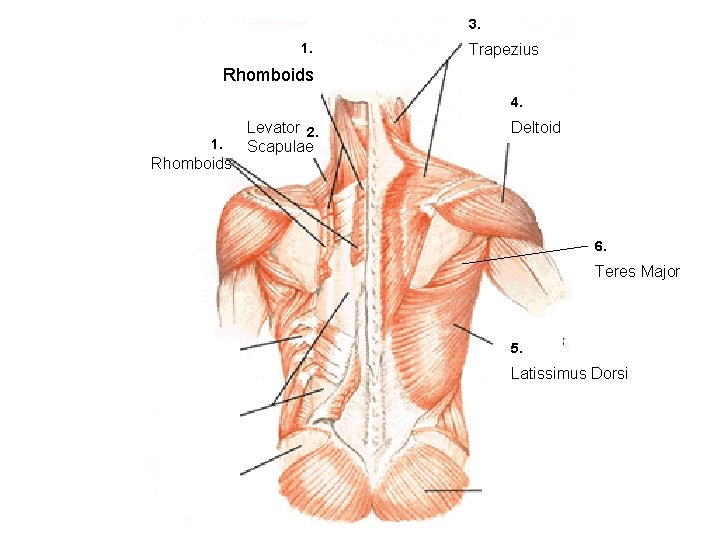

3. 1. Trapezius Rhomboids 4. 1. Rhomboids Levator 2. Scapulae Deltoid 6. Teres Major

3. 1. Trapezius Rhomboids 4. 1. Rhomboids Levator 2. Scapulae Deltoid 6. Teres Major 5. Latissimus Dorsi

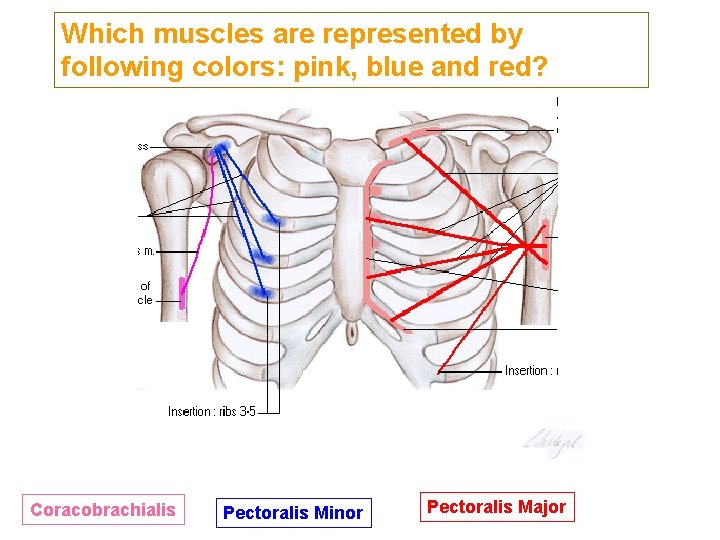

Which muscles are represented by following colors: pink, blue and red? Coracobrachialis Pectoralis Minor

Which muscles are represented by following colors: pink, blue and red? Coracobrachialis Pectoralis Minor Pectoralis Major

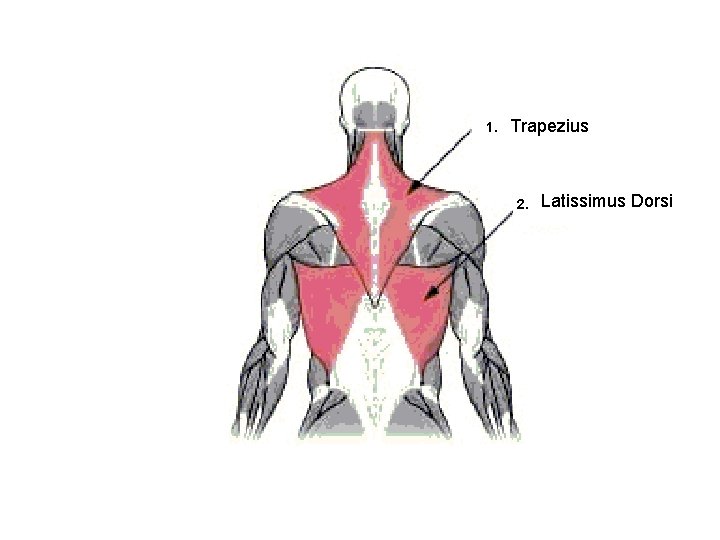

1. Trapezius 2. Latissimus Dorsi

1. Trapezius 2. Latissimus Dorsi

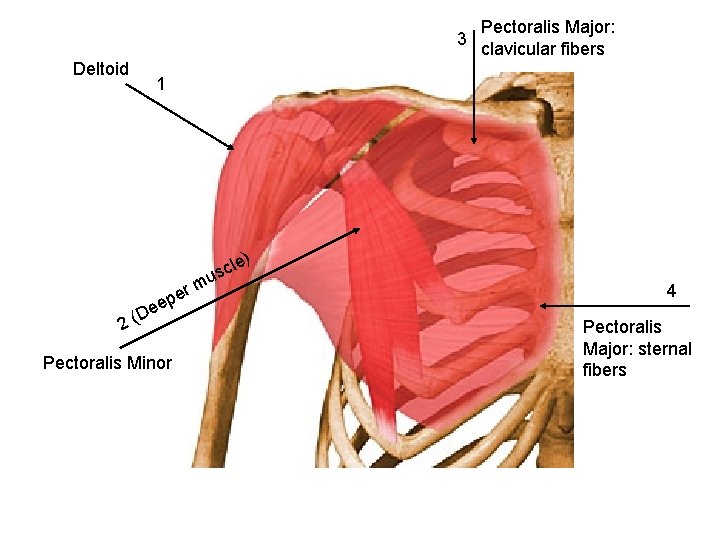

3 Deltoid Pectoralis Major: clavicular fibers 1 D 2( r pe ee Pectoralis Minor

3 Deltoid Pectoralis Major: clavicular fibers 1 D 2( r pe ee Pectoralis Minor m le) c s u 4 Pectoralis Major: sternal fibers

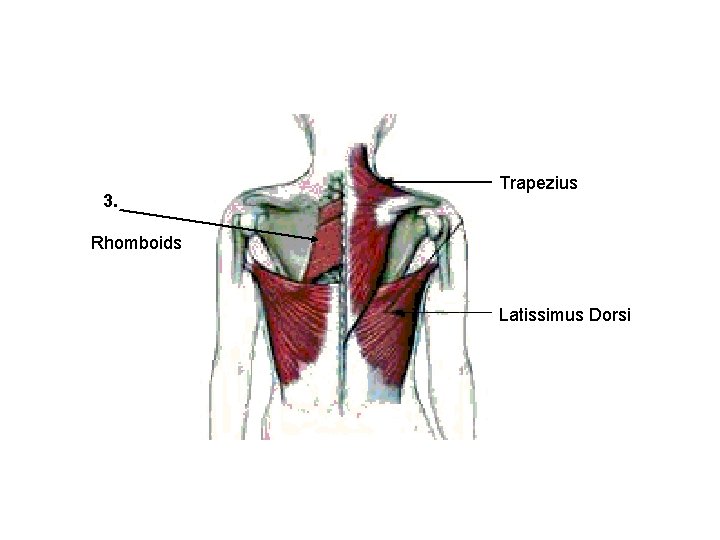

3. Trapezius Rhomboids Latissimus Dorsi

3. Trapezius Rhomboids Latissimus Dorsi

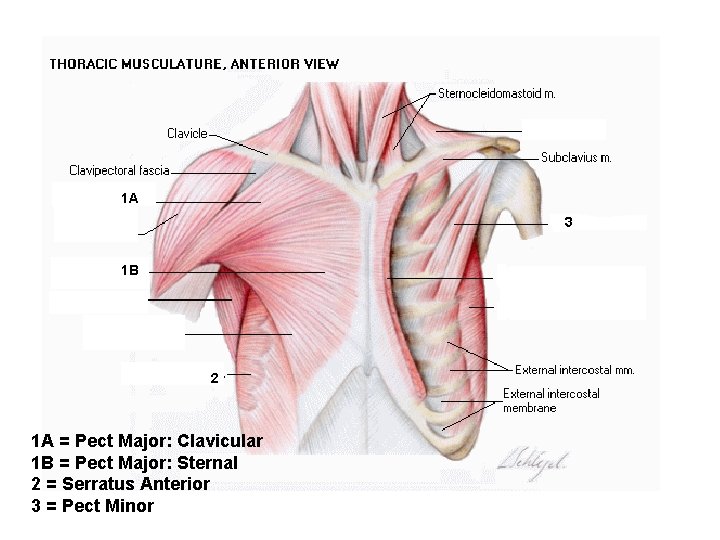

1 A 3 1 B 2 1 A = Pect Major: Clavicular 1 B

1 A 3 1 B 2 1 A = Pect Major: Clavicular 1 B = Pect Major: Sternal 2 = Serratus Anterior 3 = Pect Minor

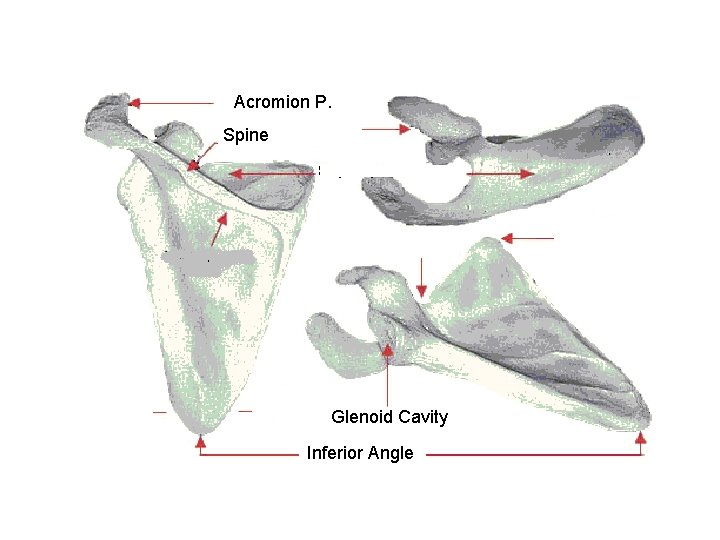

Acromion P. Spine Glenoid Cavity Inferior Angle

Acromion P. Spine Glenoid Cavity Inferior Angle

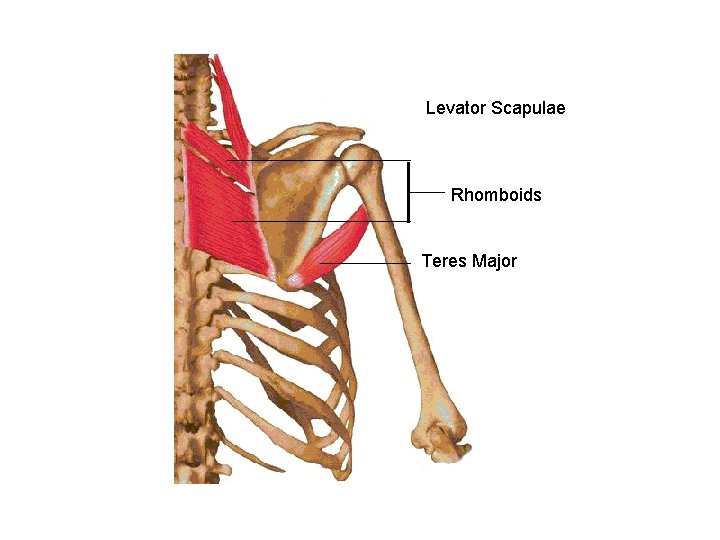

Levator Scapulae Rhomboids Teres Major

Levator Scapulae Rhomboids Teres Major

Muscle attachments at blue, purple, yellow and green? Coracobrachialis or Pectoralis Minor

Muscle attachments at blue, purple, yellow and green? Coracobrachialis or Pectoralis Minor

Muscle attachments at white, red, purple, yellow and black?

Muscle attachments at white, red, purple, yellow and black?

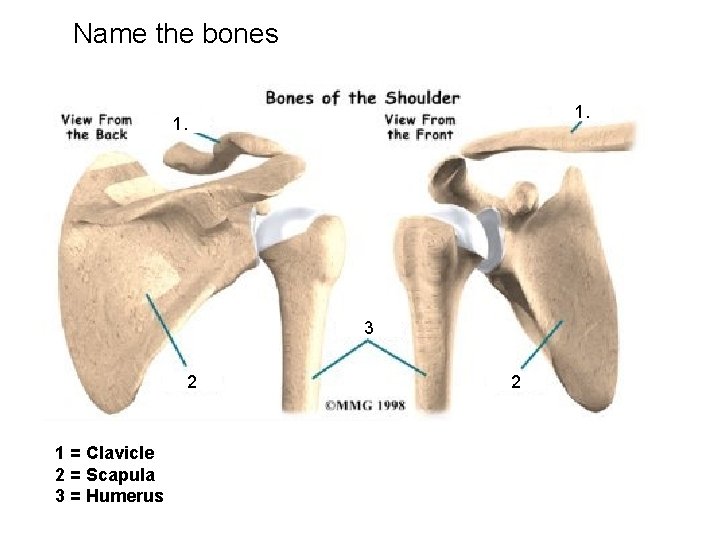

Name the bones 1. 3 2 1 = Clavicle 2 = Scapula 3 =

Name the bones 1. 3 2 1 = Clavicle 2 = Scapula 3 = Humerus 2

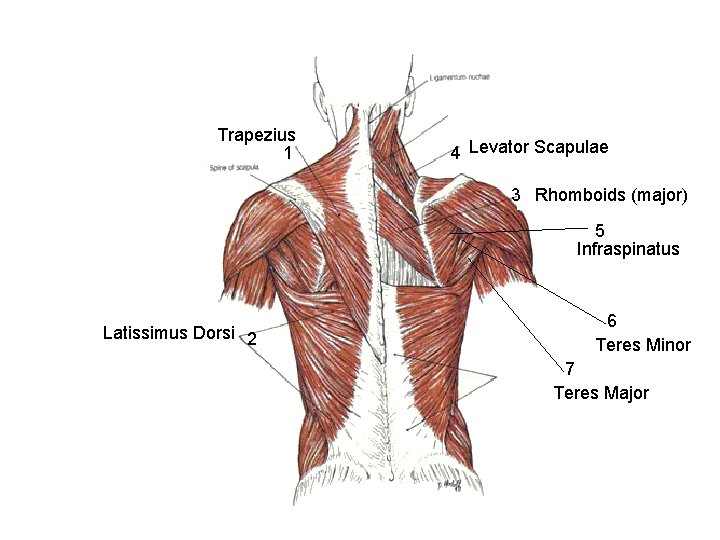

Trapezius 1 4 Levator Scapulae 3 Rhomboids (major) 5 Infraspinatus Latissimus Dorsi 2 6

Trapezius 1 4 Levator Scapulae 3 Rhomboids (major) 5 Infraspinatus Latissimus Dorsi 2 6 Teres Minor 7 Teres Major

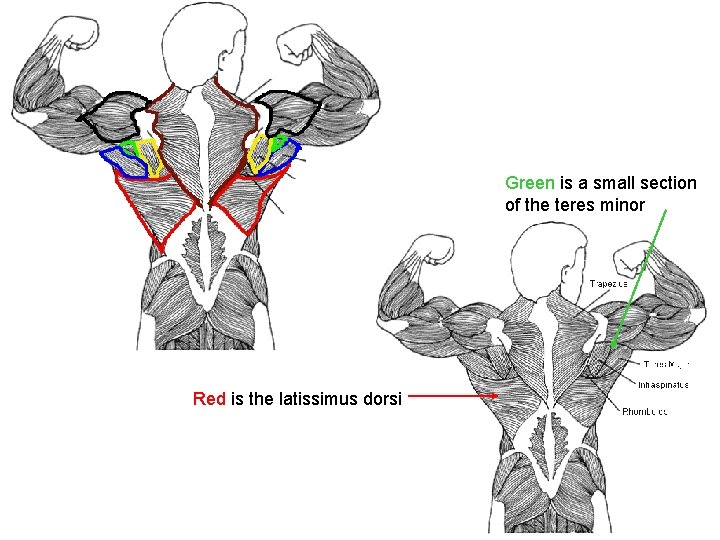

Green is a small section of the teres minor Red is the latissimus dorsi

Green is a small section of the teres minor Red is the latissimus dorsi

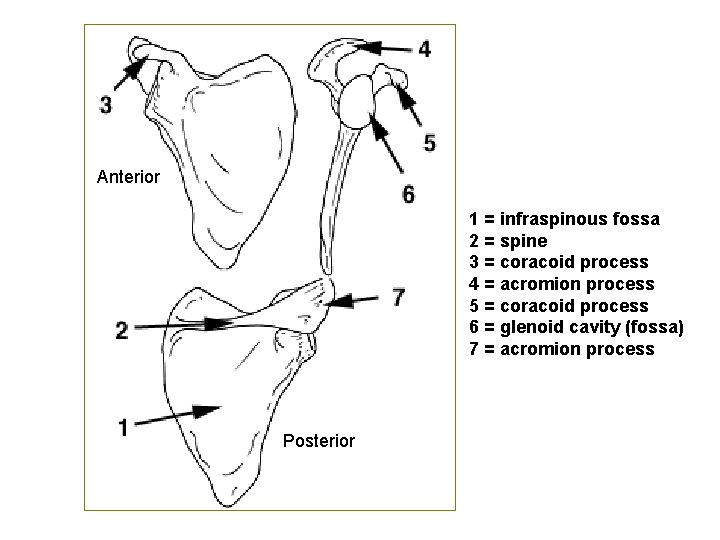

Anterior 1 = infraspinous fossa 2 = spine 3 = coracoid process 4 =

Anterior 1 = infraspinous fossa 2 = spine 3 = coracoid process 4 = acromion process 5 = coracoid process 6 = glenoid cavity (fossa) 7 = acromion process Posterior

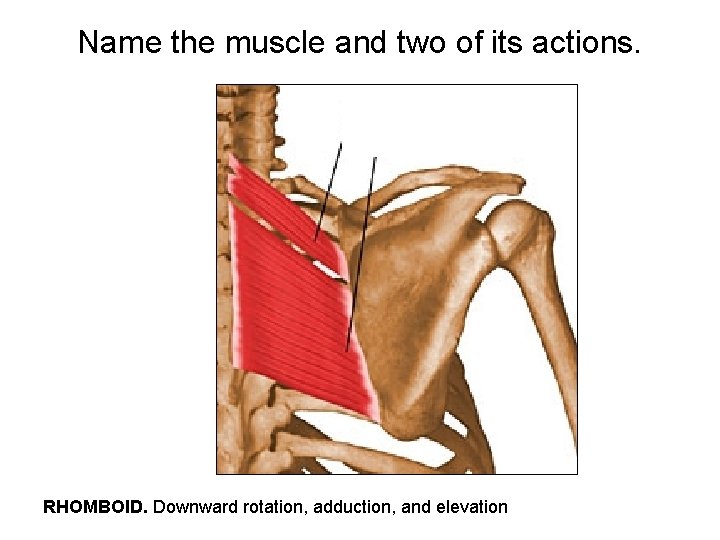

Name the muscle and two of its actions. RHOMBOID. Downward rotation, adduction, and elevation

Name the muscle and two of its actions. RHOMBOID. Downward rotation, adduction, and elevation

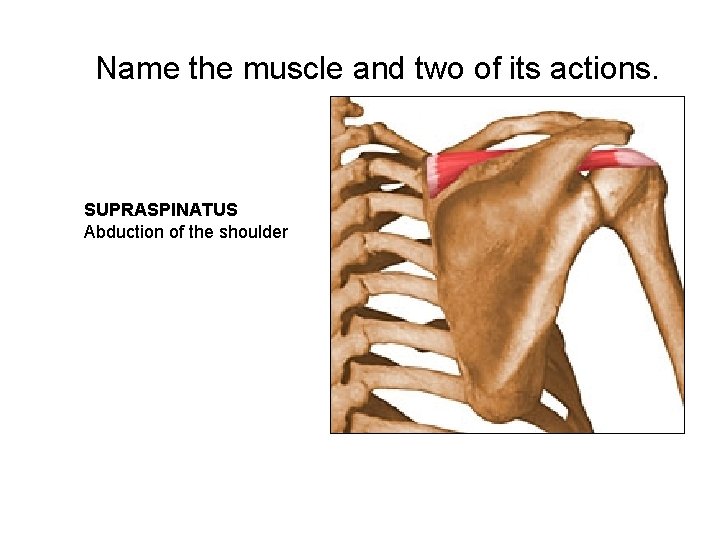

Name the muscle and two of its actions. SUPRASPINATUS Abduction of the shoulder

Name the muscle and two of its actions. SUPRASPINATUS Abduction of the shoulder

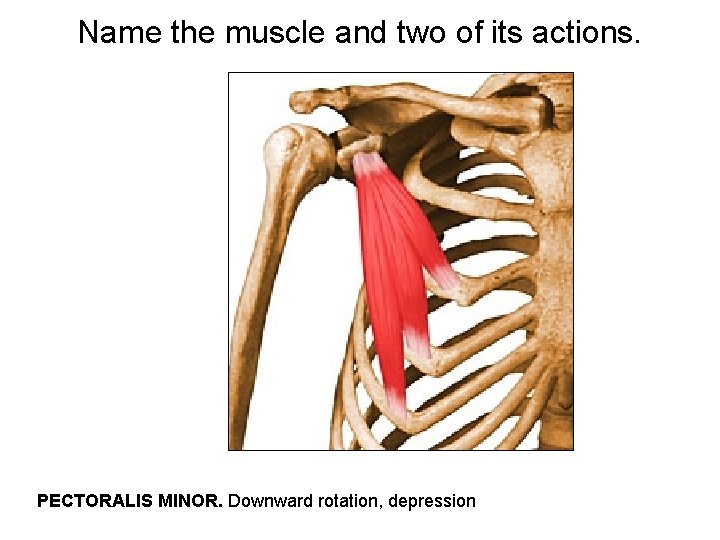

Name the muscle and two of its actions. PECTORALIS MINOR. Downward rotation, depression

Name the muscle and two of its actions. PECTORALIS MINOR. Downward rotation, depression

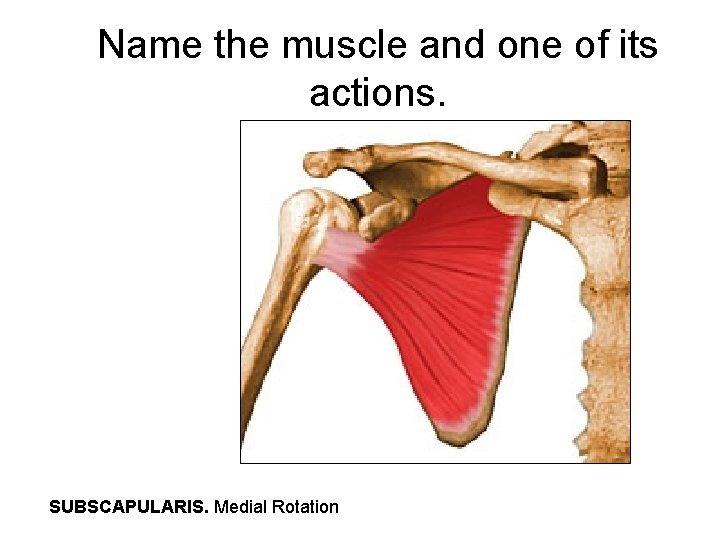

Name the muscle and one of its actions. SUBSCAPULARIS. Medial Rotation

Name the muscle and one of its actions. SUBSCAPULARIS. Medial Rotation

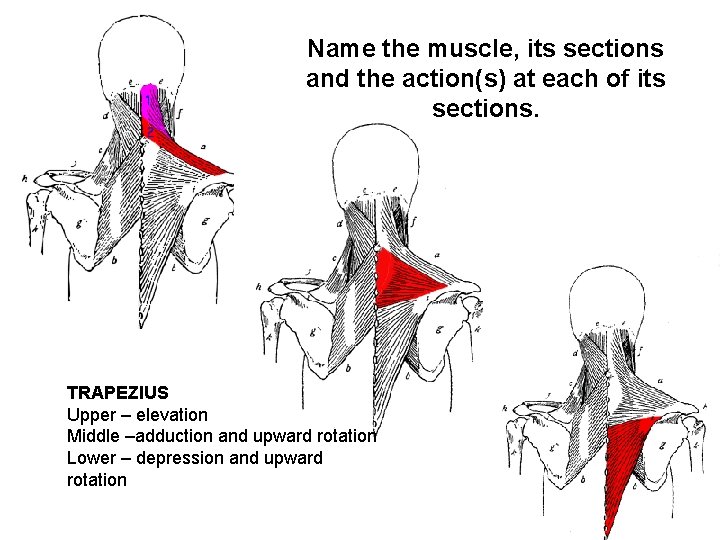

Name the muscle, its sections and the action(s) at each of its sections. TRAPEZIUS

Name the muscle, its sections and the action(s) at each of its sections. TRAPEZIUS Upper – elevation Middle –adduction and upward rotation Lower – depression and upward rotation

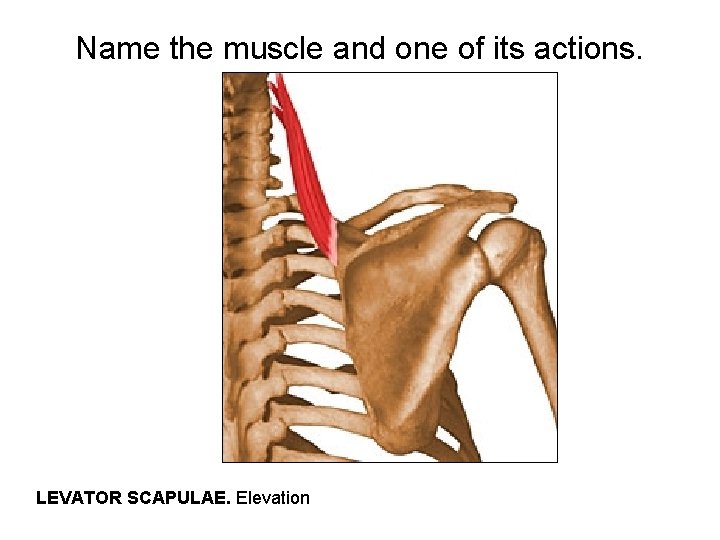

Name the muscle and one of its actions. LEVATOR SCAPULAE. Elevation

Name the muscle and one of its actions. LEVATOR SCAPULAE. Elevation

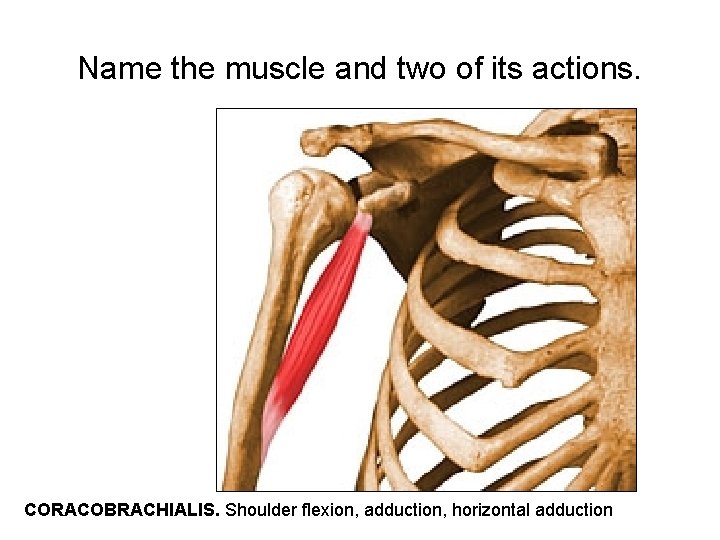

Name the muscle and two of its actions. CORACOBRACHIALIS. Shoulder flexion, adduction, horizontal adduction

Name the muscle and two of its actions. CORACOBRACHIALIS. Shoulder flexion, adduction, horizontal adduction

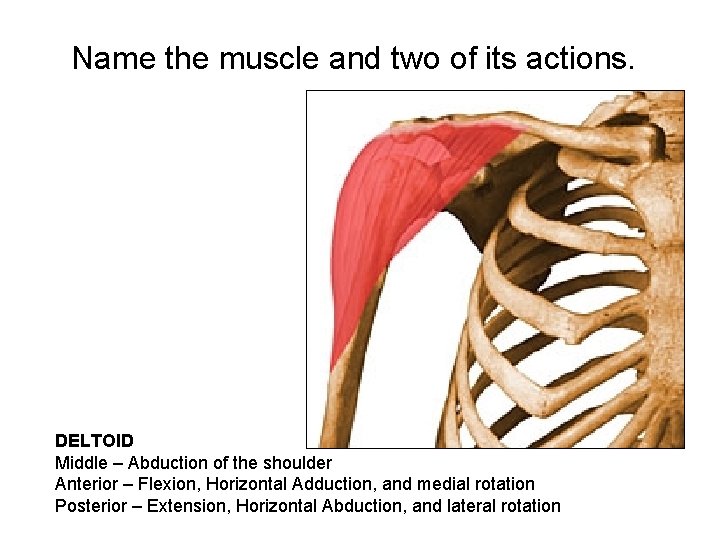

Name the muscle and two of its actions. DELTOID Middle – Abduction of the

Name the muscle and two of its actions. DELTOID Middle – Abduction of the shoulder Anterior – Flexion, Horizontal Adduction, and medial rotation Posterior – Extension, Horizontal Abduction, and lateral rotation

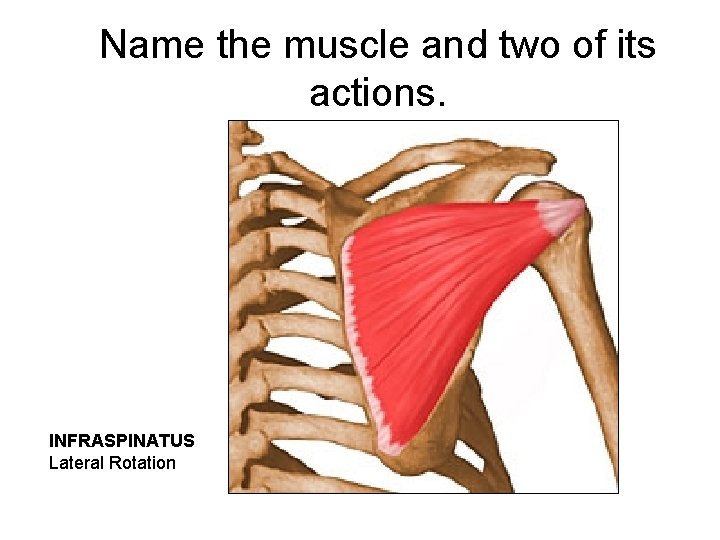

Name the muscle and two of its actions. INFRASPINATUS Lateral Rotation

Name the muscle and two of its actions. INFRASPINATUS Lateral Rotation

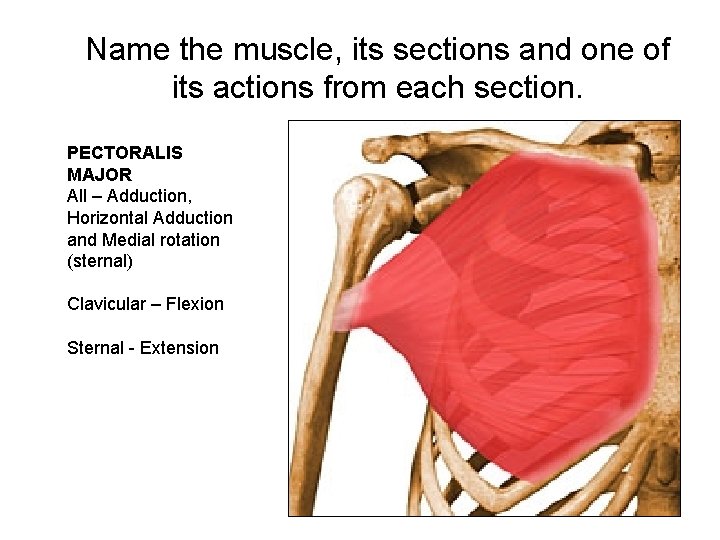

Name the muscle, its sections and one of its actions from each section. PECTORALIS

Name the muscle, its sections and one of its actions from each section. PECTORALIS MAJOR All – Adduction, Horizontal Adduction and Medial rotation (sternal) Clavicular – Flexion Sternal - Extension

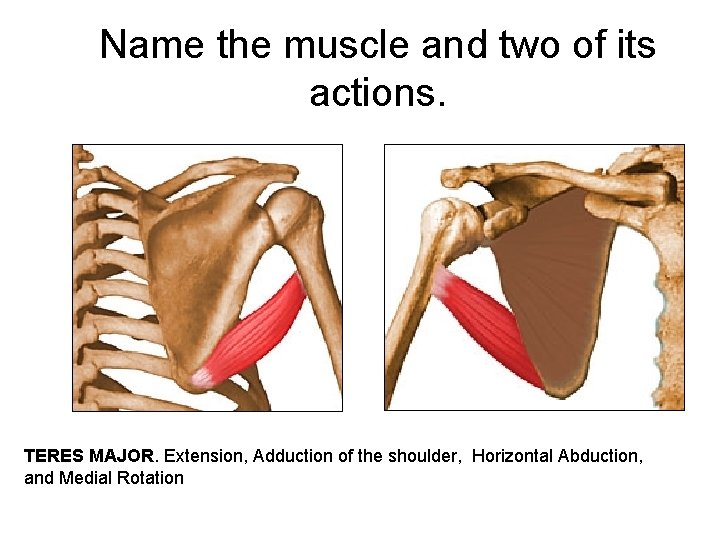

Name the muscle and two of its actions. TERES MAJOR. Extension, Adduction of the

Name the muscle and two of its actions. TERES MAJOR. Extension, Adduction of the shoulder, Horizontal Abduction, and Medial Rotation

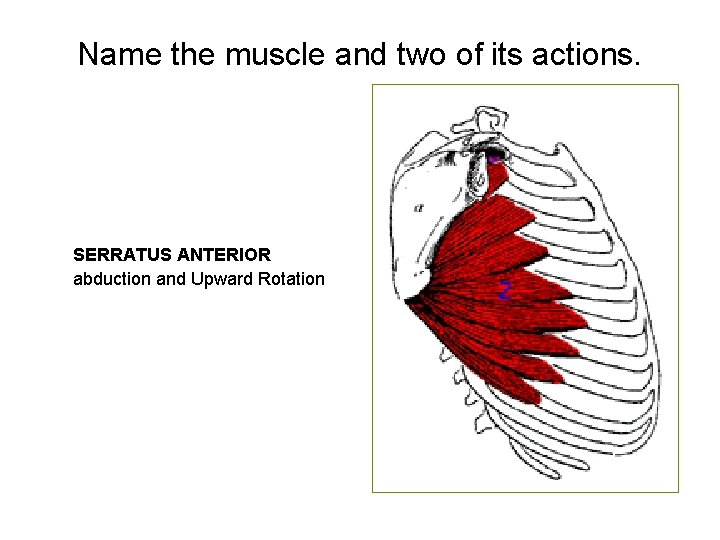

Name the muscle and two of its actions. SERRATUS ANTERIOR abduction and Upward Rotation

Name the muscle and two of its actions. SERRATUS ANTERIOR abduction and Upward Rotation

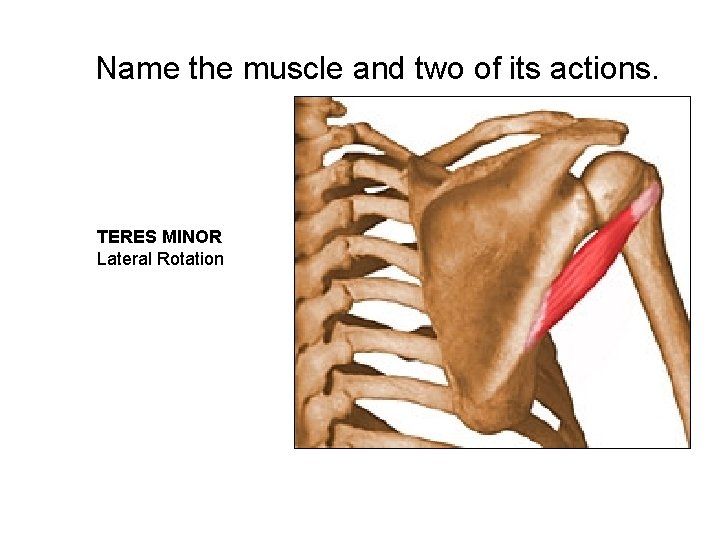

Name the muscle and two of its actions. TERES MINOR Lateral Rotation

Name the muscle and two of its actions. TERES MINOR Lateral Rotation

Abd Extension

Abd Extension

Extension

Extension

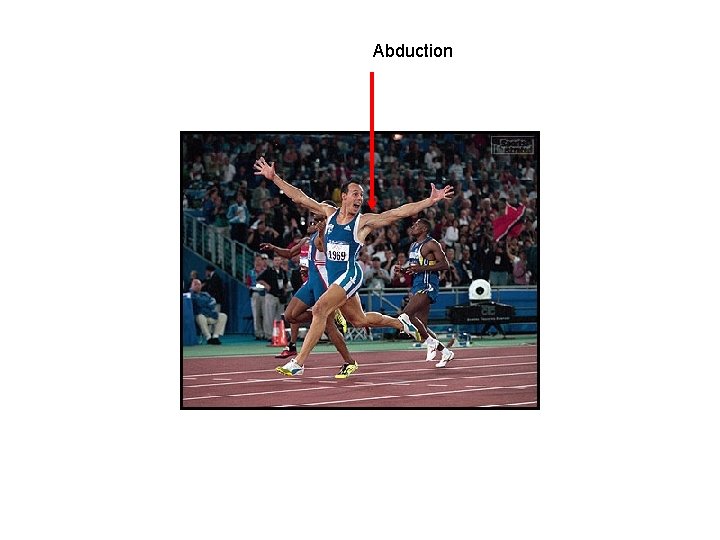

Abduction

Abduction

Adduction

Adduction

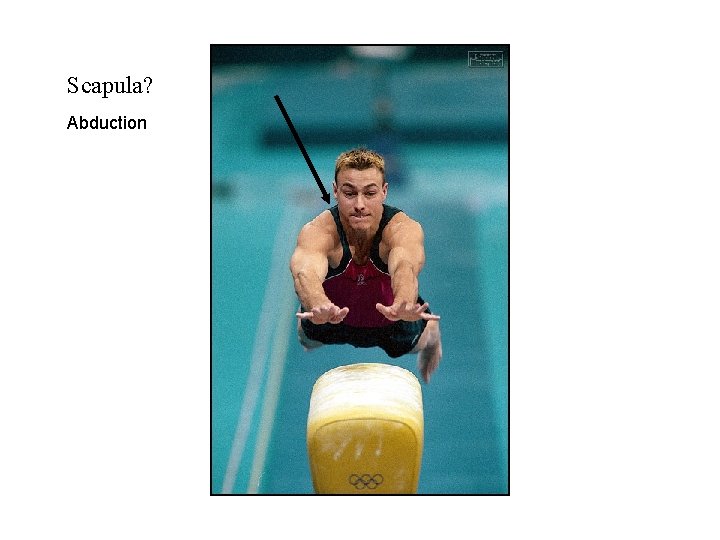

Scapula? Abduction

Scapula? Abduction

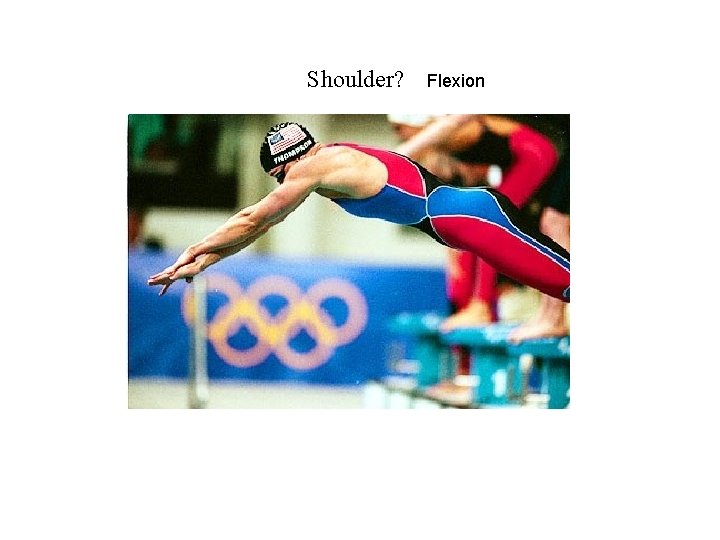

Shoulder? Flexion

Shoulder? Flexion

Shoulder? Abduction Scapula? Upward Rotation

Shoulder? Abduction Scapula? Upward Rotation
